glove box INFINITI EX 2011 Owners Manual

1. Side ventilator (P. 4-38)
2. Meters and gauges (P. 2-5)
3. Center ventilator (P. 4-38)
4. Center display (P. 4-2)
5. Clock (P. 2-44)
6. Hazard warning flasher switch (P. 2-39)7. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-8)
— Bluetooth Hands-Free Phone System
(with navigation system) (P. 4-93) — Bluetooth
Hands-Free Phone System
(if so equipped) (without navigation sys-
tem) (P. 4-103)
— Around View Monitor (if so equipped)
(P. 4-27)
— Rearview monitor (if so equipped)
(P. 4-22)
8. Front passenger supplemental air bag (P. 1-37)
9. Fuse box cover (P. 8-20)
10. Parking brake (P. 5-16)
11. Push-button ignition switch (P. 5-8)
12. Front passenger air bag status light (P. 1-42)
13. Power outlet (P. 2-44)
14. Rear window defogger switch (P. 2-34)
15. Automatic climate control system (P. 4-39)
16. Audio system (P. 4-48)
17. Glove box lid release handle (P. 2-46)
*: Refer to the separate Navigation System Owner’s Manual.
SSI0624
INSTRUMENT PANEL
0-8Illustrated table of contents

1. Crash zone sensor
2. Supplemental front-impact air bag mod-ules (INFINITI Advanced Air Bags)
3. Front seat-mounted side-impact supple- mental air bag modules 4. Occupant classification sensor (pattern
sensor)
5. Occupant classification system control unit
6. Roof-mounted curtain side-impact supplemental air bags 7. Roof-mounted curtain side-impact supple-
mental air bag inflators
8. Air bag Control Unit (ACU)
9. Satellite sensors
10. Seat belt pretensioner
INFINITI ADVANCED AIR BAG SYSTEM
(front seats)
This vehicle is equipped with the INFINITI Ad-
vanced Air Bag System for the driver and front
passenger seats. This system is designed to
meet certification requirements under U.S.
regulations. It is also permitted in Canada.
However, all of the information, cautions and
warnings in this manual still apply and must be
followed.
The driver supplemental front-impact air bag is
located in the center of the steering wheel. The
passenger supplemental front-impact air bag is
mounted in the instrument panel above the
glove box. The front air bags are designed to
inflate in higher severity frontal collisions, al-
though they may inflate if the forces in another
type of collision are similar to those of a higher
severity frontal impact. They may not inflate in
certain frontal collisions. Vehicle damage (or
lack of it) is not always an indication of proper
front air bag operation.
The INFINITI Advanced Air Bag System has dual
stage air bag inflators. The system monitors
SSS0854
1-42Safety — Seats, seat belts and supplemental restraint system

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-4
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-7
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-8
Compass (if so equipped) .......................... 2-8
Zone variation change procedure ...............2-10
Warning/indicator lights and audible reminders ......2-11
Checking bulbs ............................... 2-12
Warning lights ................................ 2-12
Indicator lights ................................. 2-17
Audible reminders ............................. 2-20
Dot matrix liquid crystal display ...................2-20
Indicators for operation ........................ 2-23
Indicators for maintenance .....................2-26
Trip computer ................................. 2-27
Security systems ................................. 2-29
Vehicle security system ........................ 2-29
INFINITI Vehicle Immobilizer System ............2-31
Windshield wiper and washer switch ...............2-32
Windshield wiper and washer operation .........2-33
Rear window wiper and washer operation .......2-33 Rear window and outside mirror defroster switch . . . 2-34
Headlight and turn signal switch
..................2-34
Xenon headlights (if so equipped) ..............2-34
Headlight switch .............................. 2-35
Turn signal switch ............................. 2-39
Fog light switch ............................... 2-39
Hazard warning flasher switch .....................2-39
Horn ............................................ 2-40
Heated seats (if so equipped) .....................2-40
Warning systems switch (if so equipped) ...........2-42
SNOW mode switch .............................. 2-43
Intelligent Brake Assist (IBA) OFF switch (if so
equipped) ....................................... 2-43
Vehicle Dynamic Control (VDC) OFF switch ..........2-43
Clock ............................................ 2-44
Adjusting

the time ............................. 2-44
Power outlet ..................................... 2-44
Storage ......................................... 2-45
Cup holders .................................. 2-45
Sunglasses holder ............................. 2-46
Glove box .................................... 2-46
Console box .................................. 2-47

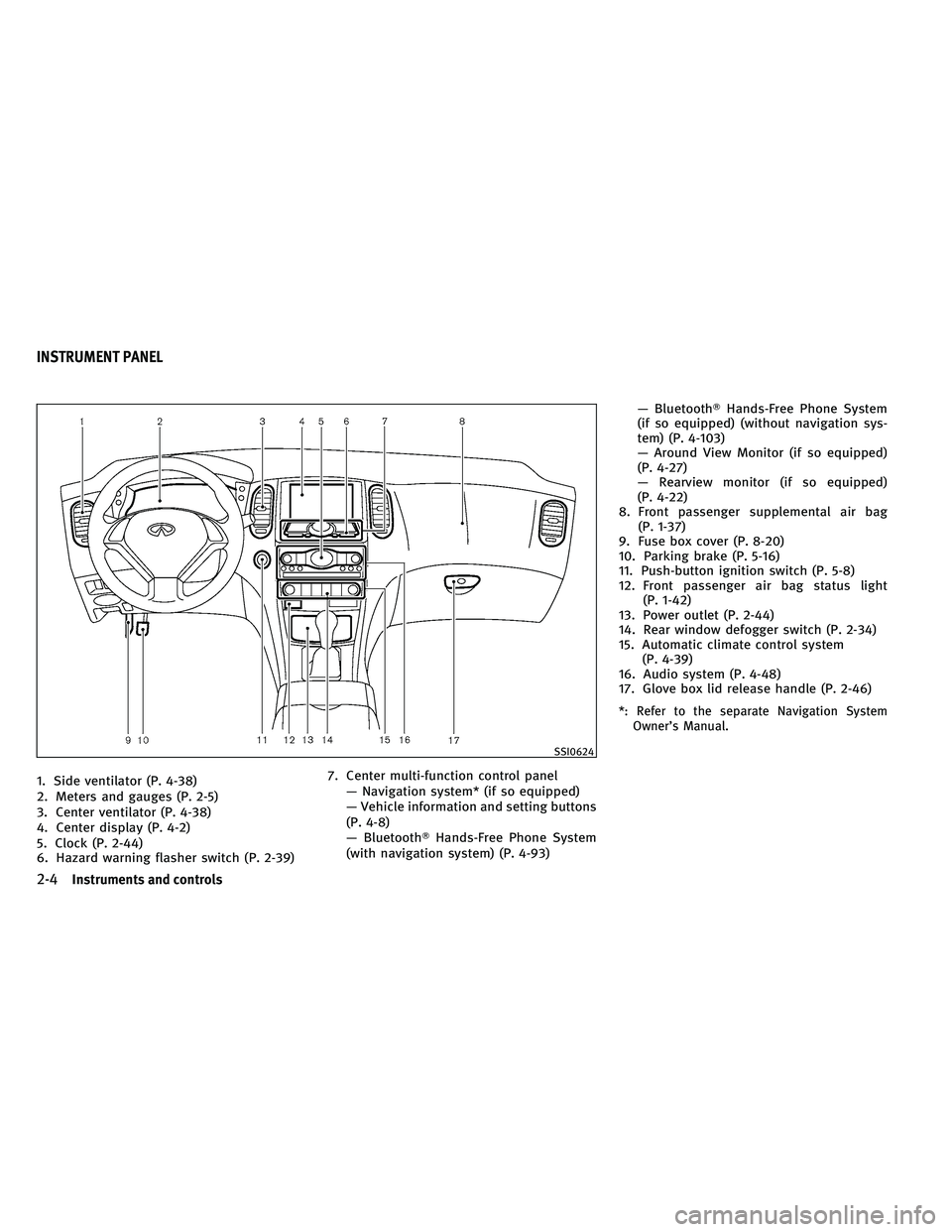

1. Side ventilator (P. 4-38)
2. Meters and gauges (P. 2-5)
3. Center ventilator (P. 4-38)
4. Center display (P. 4-2)
5. Clock (P. 2-44)
6. Hazard warning flasher switch (P. 2-39)7. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-8)
— Bluetooth Hands-Free Phone System
(with navigation system) (P. 4-93) — Bluetooth
Hands-Free Phone System
(if so equipped) (without navigation sys-
tem) (P. 4-103)
— Around View Monitor (if so equipped)
(P. 4-27)
— Rearview monitor (if so equipped)
(P. 4-22)
8. Front passenger supplemental air bag (P. 1-37)
9. Fuse box cover (P. 8-20)
10. Parking brake (P. 5-16)
11. Push-button ignition switch (P. 5-8)
12. Front passenger air bag status light (P. 1-42)
13. Power outlet (P. 2-44)
14. Rear window defogger switch (P. 2-34)
15. Automatic climate control system (P. 4-39)
16. Audio system (P. 4-48)
17. Glove box lid release handle (P. 2-46)
*: Refer to the separate Navigation System Owner’s Manual.
SSI0624
INSTRUMENT PANEL
2-4Instruments and controls

The cup holders for rear passengers are located
on the rear center armrest.
To open the cup holder, pull the lid. Make sure
that the lid is closed before storing the rear
center armrest in the seatback.
SUNGLASSES HOLDER
WARNING
Keep the sunglasses holder closed while driv-
ing to prevent an accident.
To open the sunglasses holder, push
1.
CAUTION
● Do not use for anything other than glasses.
● Do not leave glasses in the sunglasses
holder while parking in direct sunlight. The
heat may damage the glasses.
GLOVE BOX
WARNING
Keep glove box lid closed while driving to help
prevent injury in an accident or a sudden stop.
To open the glove box, pull the handle
1.
To close, push the lid in until the lock latches.
To lock
2/unlock3the glove box, use the
mechanical key. For the mechanical key usage,
see “KEYS” in the “3. Pre-driving checks and
adjustments” section.
Rear
SIC3633SIC3246SIC3866
2-46Instruments and controls

– Do not allow the Intelligent Key to comeinto contact with water or salt water, and
do not wash it in a washing machine. This
could affect the system function.
● If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key. This will prevent the Intelli-
gent Key from unauthorized use to unlock
the vehicle. For information regarding the
erasing procedure, please contact an
INFINITI retailer.
Mechanical key
To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
doors and the glove box.
See “DOORS” later in this section, “STORAGE”
in the “2. Instruments and controls” section.
CAUTION
Always carry the mechanical key installed in
the Intelligent Key.
VALET HAND-OFF
When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your belong-
ings.
To prevent the glove box from being opened
during valet hand-off, follow the procedures
below.
1. Remove the mechanical key from the In- telligent Key.
2. Lock the glove box with the mechanical key.
3. Hand the Intelligent Key to the valet, keeping the mechanical key in your
pocket or bag for insertion into the Intel-
ligent Key when you retrieve your vehicle.
See “STORAGE” in the “2. Instruments and
controls” section.
SPA2033
Pre-driving checks and adjustments3-3

WARNING
Do not operate the push-button ignition switch
while driving the vehicle except in an emer-
gency. (The engine will stop when the ignition
switch is pushed 3 consecutive times or the
ignition switch is pushed and held for more
than 2 seconds.) If the engine stops while the
vehicle is being driven, this could lead to a
crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the selector lever to the
P (Park) position.
OPERATING RANGE FOR ENGINE
START FUNCTION
The Intelligent Key can only be used for starting
the engine when the Intelligent Key is within the
specified operating range
1.
When the Intelligent Key battery is almost dis-
charged or strong radio waves are present near
the operating location, the Intelligent Key sys-
tem’s operating range becomes narrower and
may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to push
the ignition switch to start the engine. ●
The trunk area is not included in the operat-
ing range but the Intelligent Key may func-
tion.
● If the Intelligent Key is on the instrument
panel, cargo area, inside the glove box or
door pocket, or the corner of interior com-
partment, it may not be possible to start the
engine.
● If the Intelligent Key is near the door or door
glass outside the vehicle, it may be possible
to start the engine.
SSD0436
PUSH-BUTTON IGNITION SWITCH
5-8Starting and driving

FilterAir cleaner housing filter ..........8-16
Changing engine oil and filter ........8-8
Flashers (See hazard warning flasher
switch) ..................... .2-39
Flat tire ...................... .6-2
Flat towing ................... .9-17
Floor mat cleaning ................ .7-5
Fluid Automatic transmission fluid (ATF) .....8-11
Brake fluid ................. .8-12
Capacities and recommended fuel/
lubricants .................. .9-2
Engine coolant ................ .8-6
Engine oil .................. .8-8
Power steering fluid .............8-11
Window washer fluid .............8-12
FM-AM-SAT radio with Compact Disc (CD)
player ...................... .4-62
Fog light switch ................ .2-39
Forward Collision Warning (FCW) system . . .5-66
Front passenger air bag and status light . . .1-44
Front power seat adjustment ...........1-2
Front seat, Front seat adjustment ........1-2
Front-seat active head restraint .........1-9
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ................ .5-73
Fuel economy information (display) . . . .4-10
Fuel octane rating .............. .9-3
Fuel recommendation .............9-3
Fuel-filler cap ................ .3-17
Fuel-filler door ............... .3-17
Gauge .................... .2-8
LOOSE FUEL CAP warning ..........3-19Fuses
...................... .8-20
Fusible links .................. .8-20
G
Garage door opener, HomeLink Universal
Transceiver ................... .2-57
Gascap..................... .3-17
Gauge ....................... .2-5
Engine coolant temperature gauge .....2-7
Fuel
gauge .................. .2-8
Odometer ................... .2-6
Speedometer ................. .2-6
Tachometer .................. .2-7
Trip computer ................ .2-27
General maintenance .............. .8-2
Glove box .................... .2-46
H
Hands-free phone system, Bluetooth
(models with navigation system) ........4-93
Hands-free phone system, Bluetooth
(models without navigation system) .....4-103
Hazard warning flasher switch .........2-39
Head restraints .................. .1-6
Headlights Aiming control (See adaptive front
lighting system (AFS)) ............2-37
Bulb replacement ............. .8-25
Headlight switch .............. .2-35
Xenon headlights ............. .2-34
Headrest, Adjustable headrest ..........1-9
Heated seats .................. .2-40Heater
Automatic climate control ..........4-39
Engine block heater .............5-85
HomeLink Universal Transceiver ........2-57
Hood release .................. .3-16
Hook Coat hooks ................. .2-48
Luggage hook ............... .2-48
Horn ....................... .2-40
I
Ignition switch (Push-button) ...........5-8
Immobilizer system .............. .2-31
In-cabin microfilter ............... .4-47
Indicator Dot matrix display ............. .2-20
Lights .................... .2-17
INFINITI

Vehicle Immobilizer System . .....2-31
INFINITI voice recognition system .......4-116
INFO button ................... .4-8
Inside mirror .................. .3-21
Inspection/maintenance (I/M) test . . . . . . .9-20
Instrument brightness control .........2-38
Instrument panel ................ .2-4
Intelligent Brake Assist (IBA) off indicator
light ....................... .2-18
Intelligent Brake Assist (IBA) system .....5-69
Intelligent cruise control (ICC) system,
Preview function ................ .5-54
Intelligent Cruise Control (ICC) system (Full
Speed Range) .................. .5-34
Intelligent Cruise Control (ICC) system
warning light .................. .2-14
Intelligent Key .................. .3-2
10-3
