steering INFINITI EX 2011 Owners Manual

1. TRIP/RESET switch for twin trip odometer(P. 2-6)
2. Instrument brightness control switch (P. 2-38)
3. Headlight, fog light and turn signal switch (P. 2-34) 4. Trip computer switch (P. 2-27)
5. Windshield wiper and washer switch
(P. 2-32) 6. Warning systems switch (if so equipped)
— Forward Collision Warning (FCW)
(P. 5-66)
— Lane Departure Warning (LDW)
(P. 5-17)
— Blind Spot Warning (BSW)
(P. 5-25)
7. Hood release handle (P. 3-16)
8. Intelligent Key port (P. 5-10)
9. Vehicle Dynamic Control (VDC) OFF switch (P. 5-82)
10. Intelligent Brake Assist (IBA) off switch (if so equipped) (P. 2-43)
11. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-19)
12. Steering-wheel-mounted controls (Left side)
— For audio system (P. 4-90)
— For Bluetooth Hands-Free Phone Sys-
tem (with navigation system)
(P. 4-93)
— For Bluetooth Hands-Free Phone Sys-
tem (without navigation system)
(P. 4-103)
— For INFINITI Voice Recognition System
(if so equipped) (P. 4-116)
13. Manual tilting/telescopic steering wheel lever (if so equipped) (P. 3-19)
14. Steering wheel — Horn (P. 2-40)
— Driver supplemental air bag (P. 1-37)
SSI0623
COCKPIT
0-6Illustrated table of contents

15. Steering-wheel-mounted controls(right side)
— Cruise control switches (P. 5-32)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-34)
— Lane Departure Prevention (LDP)
switch (if so equipped) (P. 5-17)
— Distance Control Assist (DCA) switch (if
so equipped) (P. 5-54)
16. Center-console-mounted controls — Heated seat switches
(if so equipped) (P. 2-40)
— Rear seat power return switches
(if so equipped) (P. 1-4)
— SNOW mode switch (P. 2-43)
Illustrated table of contents0-7

VQ35HR ENGINE
1. Fuse/fusible link holder (P. 8-20)
2. Battery (P. 8-13)
3. Radiator filler cap (P. 8-6)
4. Engine oil dipstick (P. 8-8)
5. Engine oil filler cap (P. 8-8)6. Brake fluid reservoir (P. 8-12)
7. Window washer fluid reservoir (P. 8-12)
8. Power steering fluid reservoir (P. 8-11)
9. Air cleaner (P. 8-16)
10. Drive belts (P. 8-15)
11. Coolant reservoir (P. 8-6)
SSI0388
ENGINE COMPARTMENT
0-10Illustrated table of contents

PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
This Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the following systems.
●Driver and passenger supplemental front-
impact air bag (INFINITI Advanced Air Bag
System)
● Front seat-mounted side-impact supplemen-
tal air bag
● Roof-mounted curtain side-impact supple-
mental air bag
● Seat belt with pretensioner cap
Supplemental front-impact air bag system: The
INFINITI Advanced Air Bag System can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supplemental
air bag system: This system can help cushion
the impact force to the chest and pelvis area of
the driver and front passenger in certain side
impact collisions. The front seat side-impact
supplemental air bags are designed to inflate
on the side where the vehicle is impacted. Roof-mounted curtain side-impact supplemen-
tal air bag system:
This system can help cushion
the impact force to the head of occupants in
front and rear outboard seating positions in
certain side impact collisions. The curtain air
bags are designed to inflate on the side where
the vehicle is impacted.
These supplemental restraint systems are de-
signed to supplement the crash protection pro-
vided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel and door fin-
ishers. (See “SEAT BELTS” earlier in this section
for instructions and precautions on seat belt
usage.)
The supplemental air bags operate only when
the ignition switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the systems
are operational.
SUPPLEMENTAL RESTRAINT SYSTEM
Safety — Seats, seat belts and supplemental restraint system1-37

WARNING
●The front air bags ordinarily will not inflate in
the event of a side impact, rear impact, roll-
over, or lower severity frontal collision. Al-
ways wear your seat belts to help reduce the
risk or severity of injury in various kinds of
accidents.
● The front passenger air bag will not inflate if
the passenger air bag status light is lit or if
the front passenger seat is unoccupied. See
“Front passenger air bag and status light”
later in this section.
● The seat belts and the front air bags are most
effective when you are sitting well back and
upright in the seat. The front air bags inflate
with great force. Even with the INFINITI Ad-
vanced Air Bag System, if you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at
greater risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the front air bag if you are up against it
when it inflates. Always sit back against the
seatback and as far-away as practical from
the steering wheel or instrument panel. Al-
ways use the seat belts.

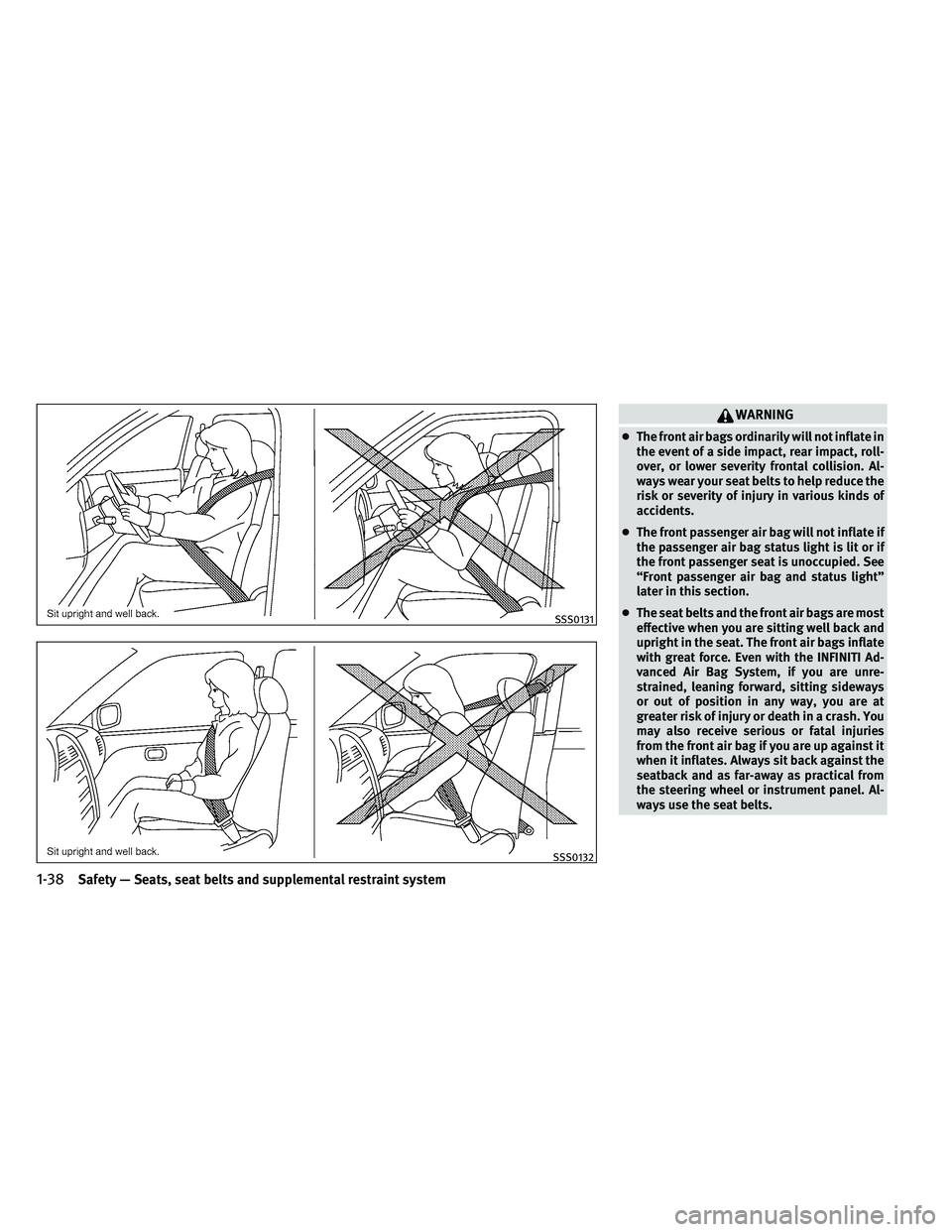

SSS0131
SSS0132
1-38Safety — Seats, seat belts and supplemental restraint system

●The driver and front passenger seat belt
buckles are equipped with sensors that de-
tect if the seat belts are fastened. The Ad-
vanced Air Bag System monitors the severity
of a collision and seat belt usage then in-
flates the air bags as needed. Failure to prop-
erly wear seat belts can increase the risk or
severity of injury in an accident.
● The front passenger seat is equipped with an
occupant classification sensor (pattern sen-
sor) that turns the front passenger air bag
OFF under some conditions. This sensor is
only used in this seat. Failure to be properly
seated and wearing the seat belt can in-
crease the risk or severity of injury in an
accident. See “Front passenger air bag and
status light” later in this section.
● Keep hands on the outside of the steering
wheel. Placing them inside the steering
wheel rim could increase the risk of injury if
the supplemental front air bag inflates.
SSS0007
SSS0006
SSS0008
SSS0009
Safety — Seats, seat belts and supplemental restraint system1-39

1. Crash zone sensor
2. Supplemental front-impact air bag mod-ules (INFINITI Advanced Air Bags)
3. Front seat-mounted side-impact supple- mental air bag modules 4. Occupant classification sensor (pattern
sensor)
5. Occupant classification system control unit
6. Roof-mounted curtain side-impact supplemental air bags 7. Roof-mounted curtain side-impact supple-
mental air bag inflators
8. Air bag Control Unit (ACU)
9. Satellite sensors
10. Seat belt pretensioner
INFINITI ADVANCED AIR BAG SYSTEM
(front seats)
This vehicle is equipped with the INFINITI Ad-
vanced Air Bag System for the driver and front
passenger seats. This system is designed to
meet certification requirements under U.S.
regulations. It is also permitted in Canada.
However, all of the information, cautions and
warnings in this manual still apply and must be
followed.
The driver supplemental front-impact air bag is
located in the center of the steering wheel. The
passenger supplemental front-impact air bag is
mounted in the instrument panel above the
glove box. The front air bags are designed to
inflate in higher severity frontal collisions, al-
though they may inflate if the forces in another
type of collision are similar to those of a higher
severity frontal impact. They may not inflate in
certain frontal collisions. Vehicle damage (or
lack of it) is not always an indication of proper
front air bag operation.
The INFINITI Advanced Air Bag System has dual
stage air bag inflators. The system monitors
SSS0854
1-42Safety — Seats, seat belts and supplemental restraint system

information from the crash zone sensor, the Air
bag Control Unit (ACU), the diagnosis sensor
unit, seat belt buckle sensors and the occupant
classification sensor (pattern sensor). Inflator
operation is based on the severity of a collision
and seat belt usage for the driver. For the front
passenger, the occupant classification sensor is
also monitored. Based on information from the
sensors, only one front air bag may inflate in a
crash, depending on the crash severity and
whether the front occupants are belted or un-
belted. Additionally, the front passenger air bag
may be automatically turned OFF under some
conditions, depending on the information pro-
vided by the occupant classification sensor. If
the front passenger air bag is OFF, the passen-
ger air bag status light will be illuminated (if the
seat is unoccupied, the light will not be illumi-
nated, but the air bag will be off). (See “Front
passenger air bag and status light” later in this
section for further details.) One front air bag
inflating does not indicate improper perfor-
mance of the system.
If you have any questions about your air bag
system, contact INFINITI or an INFINITI retailer. If
you are considering modification of your vehicle
due to a disability, you may also contact
INFINITI. Contact information is contained in the
front of this Owner’s Manual.When a front air bag inflates, a fairly loud noise
may be heard, followed by release of smoke.
This smoke is not harmful and does not indicate
a fire. Care should be taken not to inhale it, as
it may cause irritation and choking. Those with
a history of a breathing condition should get
fresh air promptly.
Front air bags, along with the use of seat belts,
help to cushion the impact force on the head
and chest of the front occupants. They can help
save lives and reduce serious injuries. However,
an inflating front air bag may cause facial
abrasions or other injuries. Front air bags do
not provide restraint to the lower body.
Even with INFINITI advanced air bags, seat belts
should be correctly worn and the driver and
passenger seated upright as far as practical
away from the steering wheel or instrument
panel. The front air bags inflate quickly in order
to help protect the front occupants. Because of
this, the force of the front air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, the air bag module
during inflation.
The front air bags deflate quickly after a colli-
sion.
The front air bags operate only when the ignition
switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the system is
operational.
Safety — Seats, seat belts and supplemental restraint system1-43

INFINITI recommends that pre-teens and chil-
dren be properly restrained in a rear seat.
INFINITI also recommends that appropriate
child restraints and booster seats be properly
installed in a rear seat. If this is not possible,
the occupant classification sensor is designed
to operate as described above to turn the front
passenger air bag OFF for specified child re-
straints. Failing to properly secure child re-
strains and to use the ALR mode (child restraint
mode) may allow the restraint to tip or move in
an accident or sudden stop. This can also result
in the passenger air bag inflating in a crash
instead of being OFF. (See “CHILD RESTRAINTS”
earlier in this section for proper use and instal-
lation.)
If the front passenger seat is not occupied, the
passenger air bag is designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object being detected by the occupant
classification sensor. Other conditions could
also result in air bag inflation, such as if a child
is standing on the seat, or if two children are on
the seat, contrary to the instructions in this
manual. Always be sure that you and all vehicle
occupants are seated and restrained properly.
Using the passenger air bag status light, you
can monitor when the front passenger air bag is
automatically turned OFF with the seat occu-pied. The light will not illuminate when the front
passenger seat is unoccupied.
If an adult occupant is in the seat but the
passenger air bag status light is illuminated
(indicating that the air bag is OFF), it could be
that the person is a small adult, or is not sitting
on the seat properly.
If a child restraint must be used in the front
seat, the passenger air bag status light may or
may not be illuminated, depending on the size
of the child and the type of child restraint being
used. If the passenger air bag status light is not
illuminated (indicating that the air bag might
inflate in a crash), it could be that the child
restraint or seat belt is not being used properly.
Make sure that the child restraint is installed
properly, the seat belt is used properly and the
occupant is positioned properly. If the passen-
ger air bag status light is still not illuminated,
reposition the occupant or child restraint in a
rear seat.
If the passenger air bag status light will not
illuminate even though you believe that the
child restraint, the seat belts and the occupant
are properly positioned, the system may be
sensing an unoccupied seat (in which case the
air bag is OFF). Your INFINITI retailer can check
that the system is OFF by using a special tool.
However, until you have confirmed with yourretailer that your air bag is working properly,
reposition the occupant or child restraint in a
rear seat.
The INFINITI Advanced Air Bag System and
passenger air bag status light will take a few
seconds to register a change in the passenger
seat status. However, if the seat becomes un-
occupied, the air bag status light will remain
off.
If a malfunction occurs in the front passenger
air bag system, the supplemental air bag warn-
ing light
, located in the meter and
gauges area will blink. Have the system
checked by an INFINITI retailer.
Other supplemental front-impact air
bag precautions
WARNING
● Do not place any objects on the steering
wheel pad or on the instrument panel. Also,
do not place any objects between any occu-
pant and the steering wheel or instrument
panel. Such objects may become dangerous
projectiles and cause injury if the front air
bag inflates.
Safety — Seats, seat belts and supplemental restraint system1-45

●Do not place objects with sharp edges on the
seat. Also, do not place heavy objects on the
seat that will leave permanent impressions
in the seat. Such objects can damage the
seat or occupant classification sensor (pat-
tern sensor). This can affect the operation of
the air bag system and result in serious per-
sonal injury.
● Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can dam-
age the seat or occupant classification sen-
sor. This can also affect the operation of the
air bag system and result in serious personal
injury.
● Immediately after inflation, several front air
bag system components will be hot. Do not
touch them; you may severely burn yourself.
● No unauthorized changes should be made to
any components or wiring of the air bag sys-
tem. This is to prevent accidental inflation of
the supplemental air bag or damage to the
supplemental air bag system.
● Do not make unauthorized changes to your
vehicle’s electrical system, suspension sys-
tem or front end structure. This could affect
proper operation of the front air bag system. ●
Tampering with the air bag system may re-
sult in serious personal injury. Tampering
includes changes to the steering wheel and
the instrument panel assembly by placing
material over the steering wheel pad and
above the instrument panel or by installing
additional trim material around the air bag
system.
● Modifying or tampering with the front pas-
senger seat may result in serious personal
injury. For example, do not change the front
seats by placing material on the seat cush-
ion or by installing additional trim material,
such as seat covers, on the seat that is not
specifically designed to assure proper air
bag operation. Additionally, do not stow any
objects under the front passenger seat or the
seat cushion and seatback. Such objects
may interfere with the proper operation of
the occupant classification sensor.
● No unauthorized changes should be made to
any components or wiring of the seat belt
system. This may affect the front air bag
system. Tampering with the seat belt system
may result in serious personal injury. ●
Work on and around the front air bag system
should be done by an INFINITI retailer. Instal-
lation of electrical equipment should also be
done by an INFINITI retailer. The Supplemen-
tal Restraint System (SRS) wiring har-
nesses* should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices should not
be used on the air bag system.
● A cracked windshield should be replaced im-
mediately by a qualified repair facility. A
cracked windshield could affect the function
of the supplemental air bag system.
* The SRS wiring harness connectors are yel-
low and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the supplemental front
air bag system and guide the buyer to the
appropriate sections in this Owner’s Manual.
1-46Safety — Seats, seat belts and supplemental restraint system
