1-52Safety—Seats, seat belts and supplemental restraint system
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS
GUID-90FD8F2E-5B90-46B9-BF6E-B90D67C31851
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-9A4521F2-422E-479F-A044-73A23997117A
in the instrument panel,
monitors the circuits of the supplemental
front-impact air bag, front seat-mounted
side-impact supplemental air bag, roof-
mounted curtain side-impact supplemental
air bag, and seat belt pretensioner sys-
tems. The monitored circuits include the Air
bag Control Unit (ACU), satellite sensors,
occupant classification sensor, crash zone
sensor, front air bag modules, side air bag
modules, curtain air bag modules, preten-
sioners, front passenger air bag status light and all related wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing:
.
The supplemental air bag warning light
remains on approximately 7 seconds
after the ignition switch is pushed to
the ON position.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light
does not come on at all.
Under these conditions, the front air bag,
side air bag, and curtain air bag or
pretensioner systems may not operate
properly. They must be checked and
repaired. Take your vehicle to the nearest
INFINITI retailer.
WARNING
If the supplemental air bag warning light is
on, it could mean that the front air bag, side

WARNING
.Once a front air bag, side air bag or
curtain air bag has inflated, the air bag
module will not function again and must
be replaced. Additionally, the activated
pretensioner must also be replaced. The
air bag module and pretensioner system
should be replaced by an INFINITI
retailer. The air bag module and preten-
sioner system cannot be repaired.
. The front air bag, side air bag, curtain air
bag systems and the pretensioner sys-
tem should be inspected by an INFINITI
retailer if there is any damage to the
front end or side portion of the vehicle.
. If you need to dispose of a supplemental
air bag or pretensioner systems or scrap
the vehicle, contact an INFINITI retailer.
Correct supplemental air bag and pre-
tensioner system disposal procedures
are set forth in the appropriate INFINITI
Service Manual. Incorrect disposal pro-
cedures could cause personal injury.
Safety —Seats, seat belts and supplemental restraint system1-53

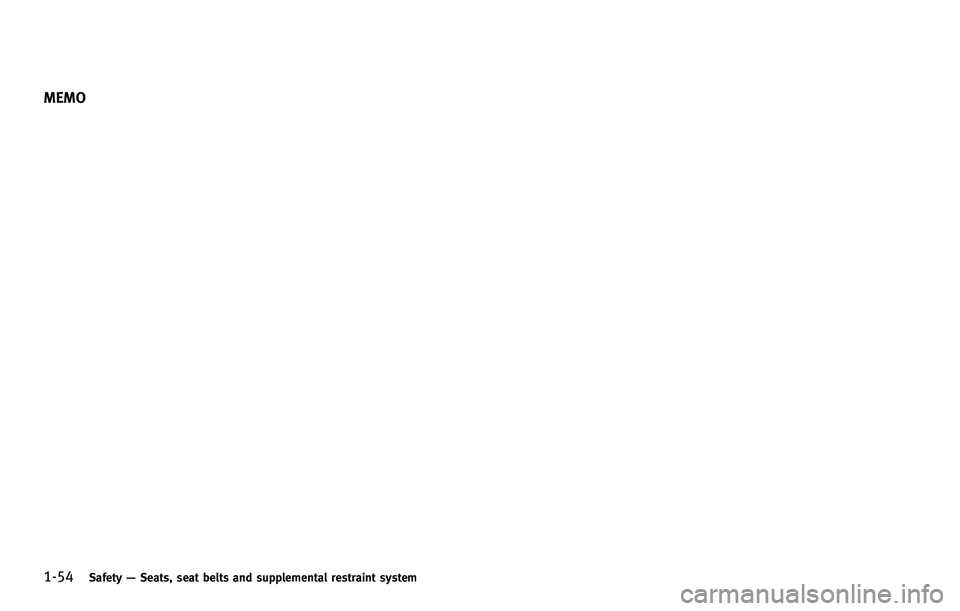

1-54Safety—Seats, seat belts and supplemental restraint system
MEMO

2 Instruments and controls
Cockpit...

Seat-mounted jacket hanger (if
so equipped)...

GUID-D50D6554-A3E9-4B15-AC48-BC6908CCC6C1
SSI0623
1. TRIP/RESET switch for twin trip od-ometer (P.2-7)
2. Instrument brightness control switch (P.2-39)
3. Headlight, fog light and turn signal switch (P.2-35) 4. Trip computer switch (P.2-28)
5. Windshield wiper and washer switch
(P.2-33)
6. Warning systems switch (if so
equipped)
—Forward Collision Warning (FCW) (P.5-71)
—
Lane Departure Warning (LDW)
(P.5-19)
— Blind Spot Warning (BSW)
(P.5-27)
7. Hood release handle (P.3-16)
8. Intelligent Key port (P.5-12)
9. Vehicle Dynamic Control (VDC) OFF switch (P.5-86)
10. Intelligent Brake Assist (IBA) off
switch (if so equipped) (P.2-44)
11. Electric tilting/telescopic steering
wheel lever (if so equipped) (P.3-20)
12. Steering-wheel-mounted controls (Left side)
—For audio system (P.4-95)
— For Bluetooth
®Hands-Free Phone
System (with navigation system)
(P.4-98)
— For Bluetooth
®Hands-Free Phone
System (without navigation system)
(P.4-109)
— For INFINITI Voice Recognition Sys-
tem (if so equipped) (P.4-123)
13. Manual tilting/telescopic steering
wheel lever (if so equipped) (P.3-20)
14. Steering wheel
Instruments and controls2-3
COCKPIT

2-4Instruments and controls
—Horn (P.2-41)
— Driver supplemental air bag
(P.1-39)
15. Steering-wheel-mounted controls (right side)
—Cruise control switches (P.5-34)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-36)
— Lane Departure Prevention (LDP)
switch (if so equipped) (P.5-19)
— Distance Control Assist (DCA)
switch (if so equipped) (P.5-59)
16. Center-console-mounted controls —Heated seat switches
(if so equipped) (P.2-41)
— Rear seat power return switches
(if so equipped) (P.1-4)
— SNOW mode switch (P.2-44)

GUID-0EC59BA9-750D-4844-BDCD-47D6D1842B7F
SSI0624
1. Side ventilator (P.4-43)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-43)
4. Center display (P.4-3)
5. Clock (P.2-45)
6. Hazard warning flasher switch (P.2-40)7. Center multi-function control panel
—Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-10)
— Bluetooth
®Hands-Free Phone Sys- tem (with navigation system) (P.4-98)
—
Bluetooth
®Hands-Free Phone Sys-
tem (if so equipped) (without naviga-
tion system) (P.4-109)
— Around View Monitor (if so
equipped) (P.4-31)
— Rearview monitor (if so equipped)
(P.4-24)
8. Front passenger supplemental air bag (P.1-39)
9. Fuse box cover (P.8-22)
10. Parking brake (P.5-18)
11. Push-button ignition switch (P.5-9)
12. Front passenger air bag status light (P.1-44)
13. Power outlet (P.2-46)
14. Rear window defroster switch (P.2-35)
15. Automatic climate control system (P.4-43)
16. Audio system (P.4-52)
17. Glove box lid release handle (P.2-48)
*: Refer to the separate Navigation System
Owner’s Manual.
Instruments and controls2-5
INSTRUMENT PANEL

2-6Instruments and controls
GUID-C6F284D6-D7CC-4225-A943-62BD4F86D632
SIC4694
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8)
5. Dot matrix liquid crystal display/ Odometer/twin trip odometer
(P.2-21)
6. Fuel gauge (P.2-9) *: The needle indicators in the speed-
ometer, tachometer, engine coolant tem-
perature gauge and fuel gauge may move
slightly after the ignition switch is pushed
to the OFF position. This is not a malfunc-
tion.
METERS AND GAUGES

SIC4695
Speedometer
SPEEDOMETER AND ODOMETERGUID-9B852385-FED4-4840-8A4D-39FC66F24984
SIC3259
Odometer/twin trip odometer
Odometer/twin trip odometerGUID-CD3AC996-8EA6-4E31-842A-2D29201B87E2
