mirror INFINITI FX 2010 User Guide

1. To block glare from the front, swing downthe main sun visor
1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing the visor to the side
2.
3. Slide the sun visor
3in or out as needed.
INSIDE MIRROR
Adjust the height and the angle of the inside
mirror to the desired position.
SPA2471
SPA2447
SUN VISORS MIRRORS
Pre-driving checks and adjustments3-21
—
—
07/30/09—pattie


Automatic anti-glare type
The inside mirror is designed so that it auto-
matically changes reflection according to the
intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed to
the ON position.
When the anti-glare system is turned on, the
indicator light
Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Type A: Push the
switchBto make the
inside rearview mirror operate normally and the
indicator light will turn off. Push the
switch again to turn the system on.
Type B: Push the “” switch
Cto make the
inside rearview mirror operate normally. The
indicator light will turn off. Push the “I” switch
Dto turn the system on.
Do not allow any object to cover the sensors
E
or apply glass cleaner on them. Doing so will
reduce the sensitivity of the sensor, resulting in
improper operation.
For the compass (if so equipped) operation, see
“COMPASS” in the “2. Instruments and con-
trols” section. For the HomeLink
Universal Transceiver opera-
tion, see “HomeLink UNIVERSAL TRANS-
CEIVER” in the “2. Instruments and controls”
section.
Type A
SPA2422A
Type B
SPA2450
3-22Pre-driving checks and adjustments
—
—
07/30/09—pattie


OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear. Be
careful when moving to the right. Using only
this mirror could cause an accident. Use the
inside mirror or glance over your shoulder to
properly judge distances to other objects.
Adjusting outside mirrors
The outside mirror control switch is located at
the lower part of the instrument panel.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.Move the switch right
1or left2to select the
right or left side mirror, then adjust
3using
the control switch.
Defrosting outside mirrors
The outside mirrors will be heated when the
rear window defroster switch is operated. (See
“REAR WINDOW AND OUTSIDE MIRROR DE-
FROSTER SWITCH” in the “2. Instruments and
controls” section.)
CAUTION
● Do not touch the mirrors while they are mov-
ing. Your hand may be pinched, and the mir-
ror may malfunction.
● Do not drive with the mirrors stored. You will
be unable to see behind the vehicle.
●
If the mirrors were folded or unfolded by hand,
there is a chance that the mirror will move for-
ward or backward during driving. If the mirrors
were folded or unfolded by hand, be sure to
adjust them again electrically before driving.
Foldable outside mirrors
The outside rearview mirror remote control op-
erates when the ignition switch is in the “ACC”
or “ON” position.
SPA2214SPA1732A
Pre-driving checks and adjustments3-23
—
—
10/16/09—tbrooks


To fold the outside rearview mirrors, push the
outside rearview mirror folding switch to the
“CLOSE” position
1. To unfold, push to the
“OPEN” position
2.
If mirrors are manually operated or bumped, the
mirror body can become loose at the pivot
point. To correct electronic mirror operation,
cycle mirrors by pushing the CLOSEswitch
until completely closed, then push OPENuntil
mirror is in the open position.
CAUTION
If mirrors are manually operated or bumped,
the mirror may become inoperable. To correct
electronic mirror operation, cycle mirrors by
pushing the “CLOSE” switch until completely
closed, then push the “OPEN” switch until mir-
ror is in the open position.
Reverse tilt-down feature (if so
equipped)
When backing up the vehicle, the right or left
outside mirror will turn downward automatically
to provide better rear visibility.
1.Push the ignition switch to the ON position.
2. Move the selector lever to the R (Reverse) position. 3. Select the right or left side mirror by
operating the outside mirror control
switch.
4. The selected outside mirror surface moves downward.
When one of the following conditions has oc-
curred, the selected outside mirror surface will
return to its original position.
●The selector lever is moved to any position
other than R (Reverse).
● The outside mirror control switch is set to
the center position.
● The ignition switch is pushed to the OFF
position.
VANITY MIRROR
To use the front vanity mirror, pull down the sun
visor and pull up the cover.
SIC3869
3-24Pre-driving checks and adjustments
—
—
03/16/10—tbrooks


SEAT SYNCHRONIZATION FUNCTION
The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mir-
rors will not move if the seat is adjusted over
the maximum thresholds. The system considers
that the steering wheel and outside mirror
adjustments are not necessary because the
seat may not be adjusted for the driving posi-
tion. Note that the function is set to disabled as
the factory default setting.The seat synchronization function operates un-
der the following conditions:
●
The ignition switch is in the ON position.
● The selector lever is in the P (Park) position.
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function
is automatically disabled. Restart the function
by selecting a previously stored seat memory
position using the memory switches (1 or 2). An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in
the seat memory, restart the function by adjust-
ing the steering wheel and outside mirrors
manually for your best driving position and then
drive the vehicle above 4 MPH (7 km/h).
Cancel or activate seat
synchronization function
The selector lever must be in the P (Park)
position with the ignition switch in the ACC
position.
The seat synchronization function can be acti-
vated or canceled by pushing and holding the
SET switch for more than 10 seconds while the
ignition switch is in the ACC position. The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated. Note that
the indicator lights may illuminate after 5 sec-
onds while holding the SET switch. This indi-
cates readiness for linking the Intelligent Key to
a stored memory position. Keep the SET switch
pushed for more than 10 seconds to turn on or
off the seat synchronization function.
MEMORY STORAGE
Two positions for the driver’s seat, steering
column and outside mirrors can be stored in the
automatic drive positioner memory. Follow
these procedures to use the memory system.
1. Move the selector lever to the P (Park)
position.
2. Push the ignition switch to the ON posi- tion.
3. Adjust the driver’s seat, steering column and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information, see
“SEATS” in the “1. Safety — Seats, seat
belts and supplemental restraint system”
section and “TILT/TELESCOPIC STEERING”
page 3-19 and “OUTSIDE MIRRORS” ear-
lier in this section.
SPA2525
3-26Pre-driving checks and adjustments
—
—
10/16/09—tbrooks


4. Push the SET switch and, within 5 sec-onds, push the memory switch (1 or 2)
fully for at least 1 second.
The indicator light for the pushed memory
switch will stay on for approximately 5 sec-
onds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored
memory position
The Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow the steps for storing a memoryposition.
2. While the indicator light for the memory switch being set is illuminated for 5 sec-
onds, push the
button on the Intel-
ligent Key. If the indicator light blinks, the
Intelligent Key is linked to that memory
setting.
Push the ignition switch to the OFF position,
and then push the
button on the Intelli-
gent Key. The driver’s seat, steering wheel and
outside mirrors will move to the memorized
position or to the exit position when the
entry/exit function is set to active.
Confirming memory storage
● Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Move the selector lever to the P (Park) position.
2. Use one of the following methods to move the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second. ●
Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and out-
side mirrors will move to the memorized
position or to the exit position when the
entry/exit function is set to active with the
indicator light flashing, and then the light
will stay on for approximately 5 seconds.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH
(7 km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the engine is started while moving the
automatic drive positioner.
Pre-driving checks and adjustments3-27
—
—
10/16/09—tbrooks


●When the AT selector lever is moved from the
P (Park) position to any other position. (How-
ever, it will not be canceled if the switch is
pushed while the seat and steering column
are returning to the previous positions
(entry/exit function).)
● When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
● The seat synchronization function is auto-
matically disabled if the outside mirrors or

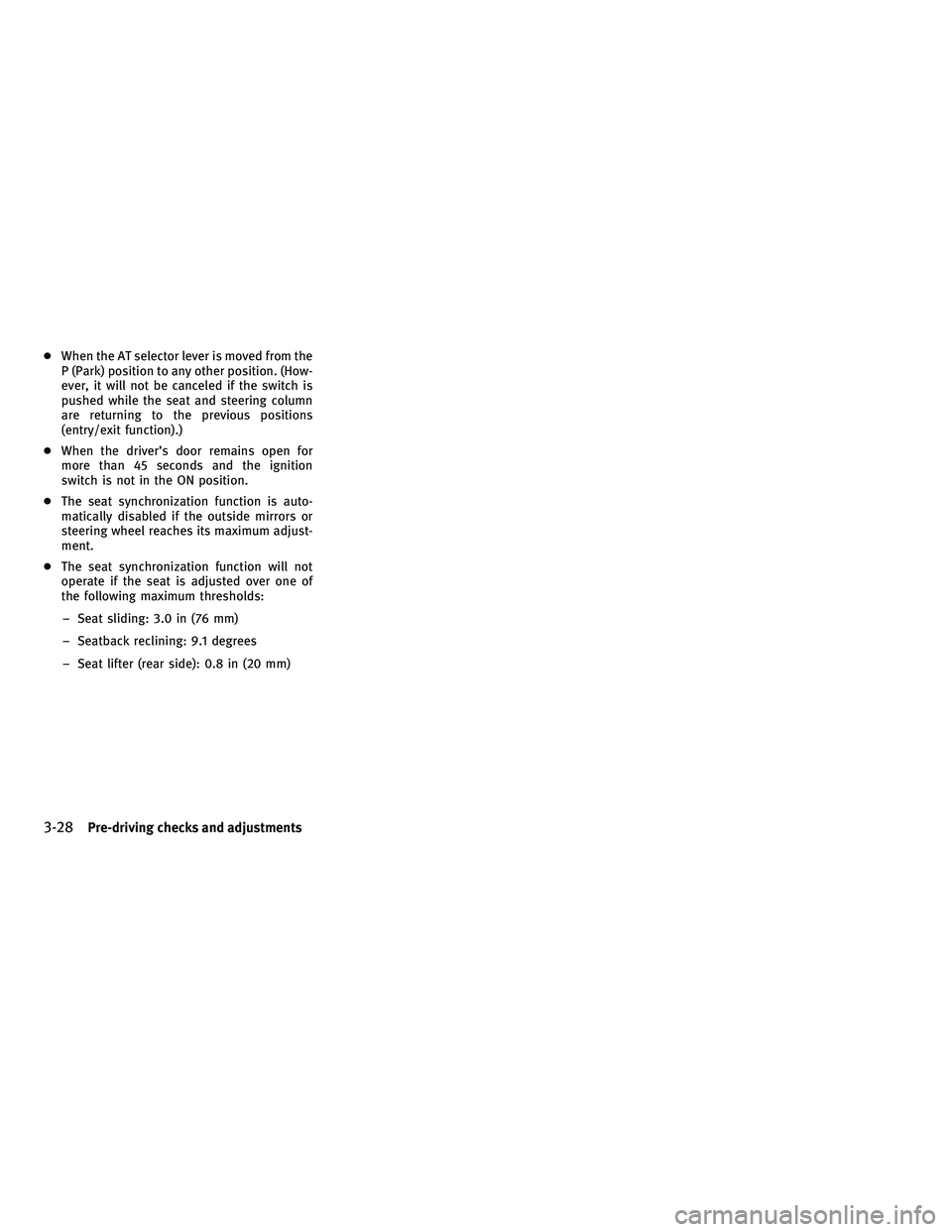

steering wheel reaches its maximum adjust-
ment.
● The seat synchronization function will not
operate if the seat is adjusted over one of
the following maximum thresholds:
– Seat sliding: 3.0 in (76 mm)
– Seatback reclining: 9.1 degrees
– Seat lifter (rear side): 0.8 in (20 mm)
3-28Pre-driving checks and adjustments
—
—
10/16/09—tbrooks


HOW TO USE DISC·AUX BUTTON
Images being played can be switched to the
center display if NTSC compatible devices are
connected to the auxiliary input jacks in the
center console. (See “AUXILIARY INPUT JACKS”
later in this section.) Push the DISC·AUX (with
navigation system) or AUX (without navigation
system) button to perform switching.
The above display will appear when the “Menu”
key is selected using the INFINITI controller.
How to use disc button (for models
without navigation system)
Push the DISC button to play a Compact Disc
(CD). See “AUDIO SYSTEM” later in this section.When the selector lever is shifted into the “R”
(Reverse) position, the monitor display shows
view to the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not de-
tect small objects below the bumper and may
not detect objects close to the bumper or on the
ground.
WARNING
●
The rearview camera is a convenience but it
is not a substitute for proper backing up.
Always turn and check that it is safe to do so
before backing up. Always back up slowly.
● Objects viewed in the RearView Monitor dif-
fer from actual distance because a wide-
angle lens is used. Objects in the RearView
Monitor will appear visually opposite like
ones viewed in the inside and outside
mirrors.
● Make sure that the back door is securely
closed when backing up.
● Underneath the bumper and the corner areas
of the bumper cannot be viewed on the rear-
view monitor because of its monitoring
range limitation. ●
Do not put anything on the rearview camera.
The rearview camera is installed above the
license plate.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water may
enter the camera unit causing water conden-
sation on the lens, a malfunction, fire or an
electric shock.
● Do not strike the camera. It is a precision
instrument. Otherwise, it may malfunction
or cause damage resulting in a fire or an
electric shock.
CAUTION
There is a plastic cover over the camera. Do not
scratch the cover when cleaning dirt or snow
from the cover.
REARVIEW MONITOR (if so equipped)
4-22Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


●When backing up the vehicle up a hill, ob-
jects viewed in the monitor are further than
they appear. When backing up the vehicle
down a hill, objects viewed in the monitor
are closer than they appear. Use the inside
mirror or glance over your shoulder to prop-
erly judge distances to other objects.
The vehicle width and predicted course lines are
wider than the actual width and course.
1. Visually check that the parking space is safe before parking your vehicle.
2. The rearview of the vehicle is displayed on the screen
Aas illustrated when the
selector lever is moved to the “R” (Re-
verse) position. 3. Slowly back up the vehicle adjusting the
steering wheel so that the predicted
course linesBenter the parking space
C.
SAA1897SAA1898
4-24Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


WARNING
●The Around View Monitor is a convenience
but it is not a substitute for proper vehicle
operation because it has areas where ob-
jects cannot be viewed. Always look out the
windows and check mirrors to be sure that it
is safe to move before operating the vehicle.
Always operate the vehicle slowly.
● Do not use the Around View Monitor with the
outside mirror in the stored position, and
make sure that the lift gate is securely
closed when operating the vehicle using the
Around View Monitor.
● The distance between objects viewed on the
Around View Monitor differs from the actual
distance.
● The cameras are installed above the front
grille, the outside mirrors and above the rear
license plate. Do not put anything on the
cameras.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the cameras. Otherwise, water may
enter the camera unit causing water conden-
sation on the lens, a malfunction, fire or an
electric shock. ●
Do not strike the cameras. They are precision
instruments. Doing so could cause a mal-
function or cause damage resulting in a fire
or an electric shock.
CAUTION
Do not scratch the lens when cleaning dirt or
snow from the front of the camera.
NOTE:
The color of the view on the Around View Monitor
display is different from the actual view because
the system uses infrared cameras.
Monitor, climate, audio, phone and voice recognition systems4-29
—
—
03/16/10—tbrooks
