WARNING
●Only INFINITI seat belt extenders, made by
the same company which made the original
equipment seat belts, should be used with
the INFINITI seat belts.
● Adults and children who can use the stan-
dard seat belt should not use an extender.
Such unnecessary use could result in seri-
ous personal injury in the event of an
accident.
● Never use seat belt extenders to install child
restraints. If the child restraint is not se-
cured properly, the child could be seriously
injured in a collision or a sudden stop.
SEAT BELT MAINTENANCE
● To clean the seat belt webbing, apply a mild
soap solution or any solution recommended
for cleaning upholstery or carpets. Then,
wipe with a cloth and allow the seat belts to
dry in the shade. Do not allow the seat belts
to retract until they are completely dry.
● If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth. ●
Periodically check to see that the seat belt
and the metal components such as buckles,
tongues, retractors, flexible wires and an-
chors work properly. If loose parts, deterio-
ration, cuts or other damage on the webbing
is found, the entire seat belt assembly
should be replaced.
PRECAUTIONS ON CHILD RESTRAINTS
WARNING
Infants and small children should never be car-
ried on your lap. It is not possible for even the
strongest adult to resist the forces of a severe
accident. The child could be crushed between
the adult and parts of the vehicle. Also, do not
put the same seat belt around both your child
and yourself.
SSS0099
CHILD RESTRAINTS
1-20Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


WARNING
●Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front seat. An inflating front air
bag could seriously injure or kill your child. A
rear-facing child restraint must only be used
in the rear seat.
● Infants and small children should always be
placed in an appropriate child restraint
while riding in the vehicle. Failure to use a
child restraint can result in serious injury or
death. ●
INFINITI recommends that the child restraint
be installed in the rear seat. According to
accident statistics, children are safer when
properly restrained in the rear seat than in
the front seat. If you must install a front-
facing child restraint in the front seat, see
“CHILD RESTRAINT INSTALLATION USING
THE SEAT BELTS” later in this section.
● Improper use or improper installation of a
child restraint can increase the risk or sever-
ity of injury for both the child and other oc-
cupants of the vehicle and can lead to seri-
ous injury or death in an accident.
● Follow all of the child restraint manufactur-
er’s instructions for installation and use.
When purchasing a child restraint, be sure to
select one which will fit your child and ve-
hicle. It may not be possible to properly in-
stall some types of child restraints in your
vehicle.
● If the child restraint is not anchored prop-
erly, the risk of a child being injured in a
collision or a sudden stop greatly increases.
● Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses. ●
Adjustable seatbacks should be positioned
to fit the child restraint, but as upright as
possible.
● After attaching the child restraint, test it be-
fore you place the child in it. Push it from
side to side while holding the seat near the
LATCH attachment or near the seat belt path.
The child restraint should not move more
than 1 inch (25 mm) from side to side. Try to
tug it forward and check to see if the belt
holds the restraint in place. If the restraint is
not secure, tighten the belt as necessary, or
put the restraint in another seat and test it
again. You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
● When your child restraint is not in use, keep
it secured with the LATCH System or a seat
belt to prevent it from being thrown around
in case of a sudden stop or accident.
CAUTION
Remember that a child restraint left in a closed
vehicle can become very hot. Check the seating
surface and buckles before placing your child in
the child restraint.
SSS0100
Safety — Seats, seat belts and supplemental restraint system1-21
—
—
07/30/09—pattie


The LATCH anchor points are provided to install
child restraints in the rear outboard seating
positions only. Do not attempt to install a child
restraint in the center position using the LATCH
anchors.
LATCH lower anchor point locations
The LATCH anchors are located at the rear of the
seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH anchors.
WARNING
●Attach LATCH system compatible child re-
straints only at the locations shown in the
illustration. If a child restraint is not secured
properly, your child could be seriously in-
jured or killed in an accident. ●
Do not secure a child restraint in the center
rear seating position using the LATCH an-
chors. The child restraint will not be secured
properly.
● Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
LATCH lower anchor location
SSS0840
Safety — Seats, seat belts and supplemental restraint system1-23
—
—
07/30/09—pattie


Installing child restraint LATCH
anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.LATCH child restraints generally require the use
of a top tether strap. (See “TOP TETHER STRAP
CHILD RESTRAINT” later in this section for in-
stallation instructions.)
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint. (See
“CHILD RESTRAINT INSTALLATION USING LATCH”
later in this section.)
TOP TETHER STRAP CHILD RESTRAINT
If the manufacturer of your child restraint re-
quires the use of a top tether strap, it must be
secured to an anchor point.
WARNING
●
Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
LATCH webbing-mounted attachment
SSS0643
LATCH rigid attachment
SSS0644SSS0902
1-24Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


●If the cargo cover contacts the top tether
strap when it is attached to the top tether
anchor, remove the cargo cover from the ve-
hicle or secure it on the cargo floor below its
attachment location. If the cargo cover is not
removed, it may damage the top tether strap
during a collision. Your child could be seri-
ously injured or killed in a collision if the
child restraint top tether strap is damaged.
● Do not allow cargo to contact the top tether
strap when it is attached to the top tether
anchor. Properly secure the cargo so it does
not contact the top tether strap. Cargo that is
not properly secured or cargo that contacts
the top tether strap may damage the top
tether strap during a collision. Your child
could be seriously injured or killed in a colli-
sion if the child restraint top tether strap is
damaged.
Top tether anchor point locations
Anchor points are located on the back of each
seatback for all three seating positions of the
rear seat as shown.
Installing top tether strap
First, secure the child restraint with the LATCH
system (rear outboard seat positions only) or
the seat belt, as applicable.
Install the top tether strap as follows:
1. Position the top tether strap over the top
of the seatback.
2. Secure the tether strap to the tether an- chor point on the seat directly behind the
child restraint.
3. Tighten the tether strap according to the manufacturer’s instructions to remove
any slack.
For best child restraint fit, see the child re-
straint installation instructions in this section
and the child restraint manufacturer’s instruc-
tions.
If you have any questions when installing a top
tether strap child restraint on the rear seat, con-
sult your INFINITI retailer for details.
CHILD RESTRAINT INSTALLATION
USING LATCH
WARNING
●Attach LATCH system compatible child re-
straints only at the locations shown. For the
LATCH lower anchor locations, see “Lower
Anchors and Tethers for CHildren System
(LATCH)” earlier in this section. If a child
restraint is not secured properly, your child
could be seriously injured or killed in an
accident.
● The LATCH anchors are designed to with-
stand only those loads imposed by correctly
fitted child restraints. Under no circum-
stance are they to be used for adult seat
belts or harnesses.
● Inspect the lower anchors by inserting your
fingers into the lower anchor area and feel-
ing to make sure there are no obstructions
over the LATCH anchors, such as seat belt
webbing or seat cushion material. The child
restraint will not be secured properly if the
LATCH anchors are obstructed.
Safety — Seats, seat belts and supplemental restraint system1-25
—
—
07/30/09—pattie


4. After attaching the child restraint, test itbefore you place the child in it. Push it
from side to side while holding the seat
near the LATCH attachment path. The
child restraint should not move more than
1 inch (25 mm) from side to side. Try to tug
it forward and check to see if the LATCH
attachment holds the restraint in place. If
the restraint is not secure, tighten the
LATCH attachment as necessary, or put
the restraint in another seat and test it
again. You may need to try a different
child restraint. Not all child restraints fit
in all types of vehicles. 5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 4.
CHILD RESTRAINT INSTALLATION
USING THE SEAT BELTS
WARNING
●Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front passenger seat. Front air
bags inflate with great force. A rear-facing
child restraint could be struck by the front air
bag in a crash and could seriously injure or
kill your child.
Rear-facing — step 4
SSS0650SSS0100
Safety — Seats, seat belts and supplemental restraint system1-29
—
—
07/30/09—pattie

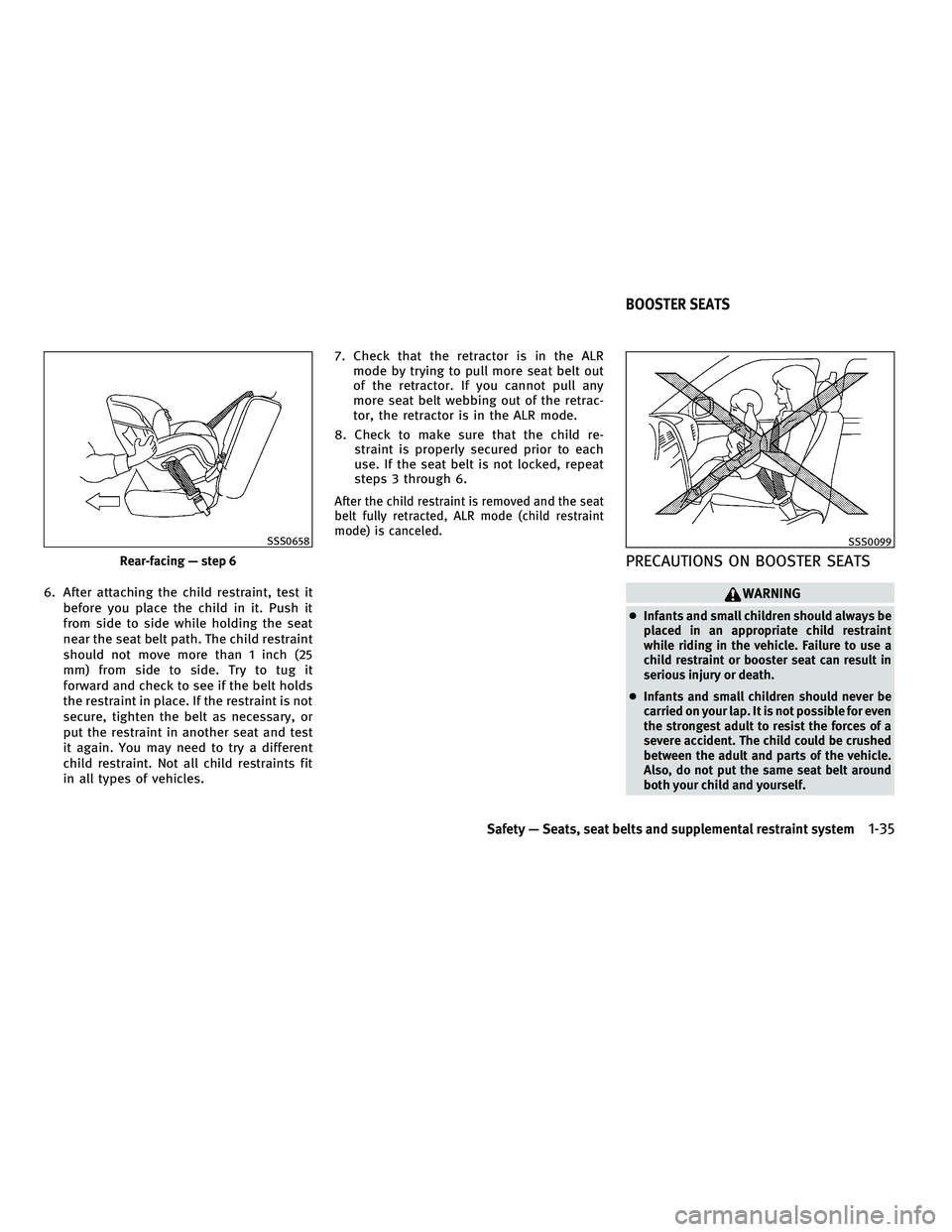

6. After attaching the child restraint, test itbefore you place the child in it. Push it
from side to side while holding the seat
near the seat belt path. The child restraint
should not move more than 1 inch (25
mm) from side to side. Try to tug it
forward and check to see if the belt holds
the restraint in place. If the restraint is not
secure, tighten the belt as necessary, or
put the restraint in another seat and test
it again. You may need to try a different
child restraint. Not all child restraints fit
in all types of vehicles. 7. Check that the retractor is in the ALR
mode by trying to pull more seat belt out
of the retractor. If you cannot pull any
more seat belt webbing out of the retrac-
tor, the retractor is in the ALR mode.
8. Check to make sure that the child re- straint is properly secured prior to each
use. If the seat belt is not locked, repeat
steps 3 through 6.
After the child restraint is removed and the seat
belt fully retracted, ALR mode (child restraint
mode) is canceled.
PRECAUTIONS ON BOOSTER SEATS
WARNING
●Infants and small children should always be
placed in an appropriate child restraint
while riding in the vehicle. Failure to use a
child restraint or booster seat can result in
serious injury or death.
● Infants and small children should never be
carried on your lap. It is not possible for even
the strongest adult to resist the forces of a
severe accident. The child could be crushed
between the adult and parts of the vehicle.
Also, do not put the same seat belt around
both your child and yourself.
Rear-facing — step 6
SSS0658SSS0099
BOOSTER SEATS
Safety — Seats, seat belts and supplemental restraint system1-35
—
—
07/30/09—pattie


BOOSTER SEAT INSTALLATION
WARNING
INFINITI recommends that booster seats be in-
stalled in the rear seat. However, if you must
install a booster seat in the front passenger
seat, move the passenger’s seat to the rear-
most position.
CAUTION
Do not use the lap/shoulder belt Automatic
Locking Retractor (ALR) mode when using a
booster seat with the seat belts.
Follow these steps to install a booster seat in
the rear seat or in the front passenger seat:
1. If you must install a booster seat in the
front seat, adjust the seatback so that it is
upright and then move the seat to the rear-
most position. Do not move the seat with
the booster seat attached to it.
2. Position the booster seat on the seat. Only place it in a front-facing direction.
Always follow the booster seat manufac-
turer’s instructions. 3. The booster seat should be positioned on
the vehicle seat so that it is stable. If
necessary, adjust or remove the head
restraint/headrest to obtain the correct
booster seat fit. (See “HEAD RESTRAINTS”
earlier in this section.)
SSS0640
Center position
LRS0451
1-38Safety — Seats, seat belts and supplemental restraint system
—
—
08/03/09—tbrooks


If the head restraint/headrest is removed,
store it in a secure place. Be sure to reinstall
the head restraint/headrest when the
booster seat is removed.
If the seating position does not have an
adjustable head restraint/headrest and it is
interfering with the proper booster seat fit,
try another seating position or a different
booster seat.
4. Position the lap portion of the seat beltlow and snug on the child’s hips. Be sure
to follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra
slack. Be sure the shoulder belt is posi-
tioned across the top, middle portion of
the child’s shoulder. Be sure to follow the
booster seat manufacturer’s instructions
for adjusting the seat belt routing. 6. Follow the warnings, cautions and in-
structions for properly fastening a seat
belt shown in the “THREE-POINT TYPE
SEAT BELT” earlier in this section.
Outboard position
LRS0452
Front seat
LRS0454
Safety — Seats, seat belts and supplemental restraint system1-39
—
—
08/03/09—tbrooks


7. If the booster seat is installed in the frontpassenger seat, push the ignition switch
to the ON position. The front passenger
air bag status light
may or may not
illuminate depending on the size of the
child and the type of booster seat used.
(See “Front passenger air bag and status
light” later in this section.)
PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
This Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the following systems.
● Driver and passenger supplemental front-
impact air bag (INFINITI Advanced Air Bag
System)
● Front seat-mounted side-impact supplemen-
tal air bag
● Roof-mounted curtain side-impact and roll-
over supplemental air bag
● Seat belt with pretensioner
Supplemental front-impact air bag system: The
INFINITI Advanced Air Bag System can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supplemental
air bag system: This system can help cushion
the impact force to the chest and pelvis area of
the driver and front passenger in certain side
impact collisions. The side air bag is designed
to inflate on the side where the vehicle is
impacted.
Roof-mounted curtain side-impact and rollover
supplemental air bag system: This system canhelp cushion the impact force to the head of
occupants in front and rear outboard seating
positions in certain side impact or rollover
collisions. In a side impact, the curtain and
rollover air bags are designed to inflate on the
side where the vehicle is impacted. In a rollover
both curtain and rollover air bags are designed
to inflate and remain inflated for a short period
of time.
These supplemental restraint systems are de-
signed to
supplement the crash protection pro-
vided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel and door fin-
ishers. (See “SEAT BELTS” earlier in this section
for instructions and precautions on seat belt
usage.)
The supplemental air bags operate only when
the ignition switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the systems
are operational.
SSS0676
SUPPLEMENTAL RESTRAINT SYSTEM
1-40Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie
