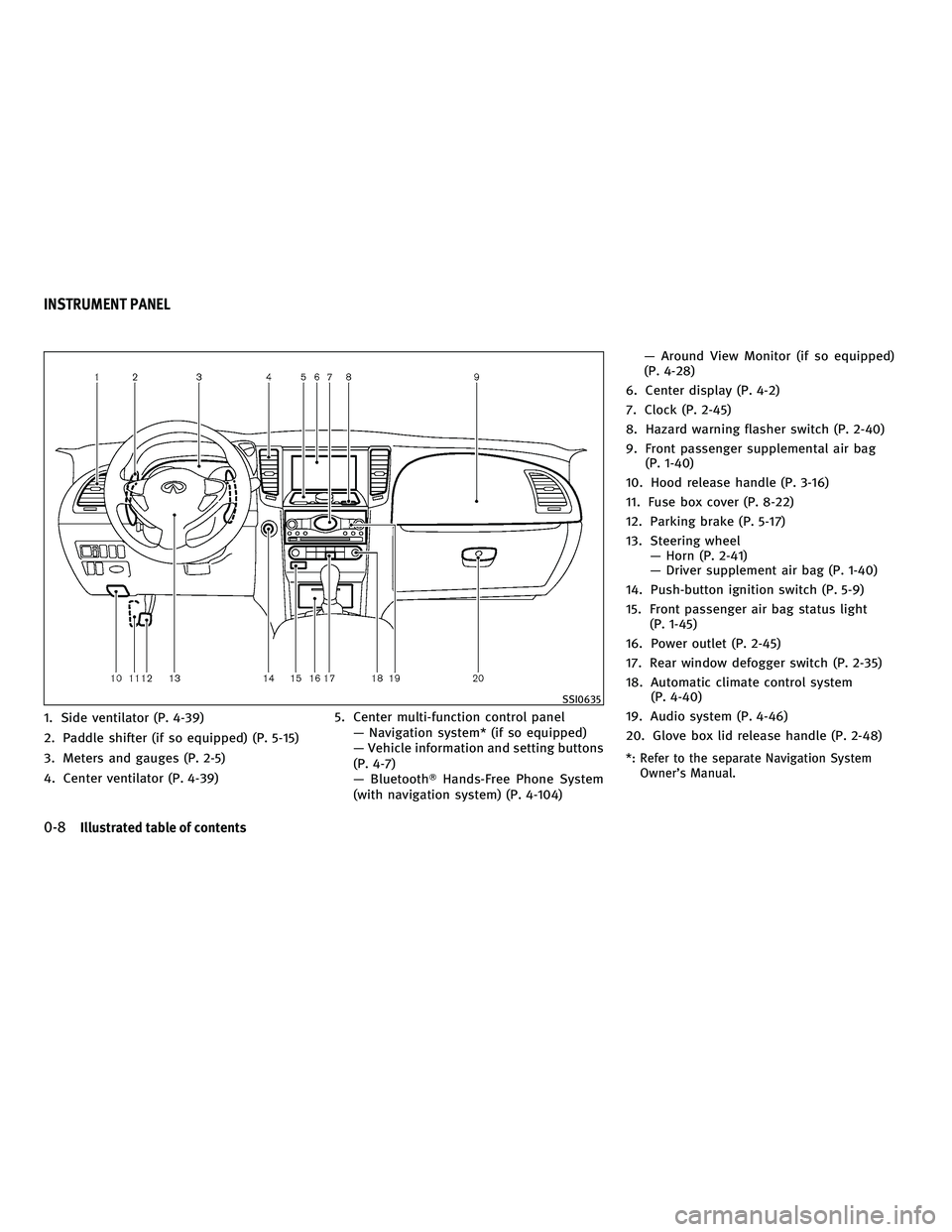

1. Side ventilator (P. 4-39)
2. Paddle shifter (if so equipped) (P. 5-15)
3. Meters and gauges (P. 2-5)
4. Center ventilator (P. 4-39)5. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(with navigation system) (P. 4-104) — Around View Monitor (if so equipped)
(P. 4-28)
6. Center display (P. 4-2)
7. Clock (P. 2-45)
8. Hazard warning flasher switch (P. 2-40)
9. Front passenger supplemental air bag (P. 1-40)
10. Hood release handle (P. 3-16)
11. Fuse box cover (P. 8-22)
12. Parking brake (P. 5-17)
13. Steering wheel — Horn (P. 2-41)
— Driver supplement air bag (P. 1-40)
14. Push-button ignition switch (P. 5-9)
15. Front passenger air bag status light (P. 1-45)
16. Power outlet (P. 2-45)
17. Rear window defogger switch (P. 2-35)
18. Automatic climate control system (P. 4-40)
19. Audio system (P. 4-46)
20. Glove box lid release handle (P. 2-48)
*: Refer to the separate Navigation System Owner’s Manual.
SSI0635
INSTRUMENT PANEL
0-8Illustrated table of contents
—
—
08/03/09—tbrooks


1. Side ventilator
2. Paddle shifter (if so equipped)
3. Meters and gauges
4. Center ventilator5. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
— Bluetooth Hands-Free Phone System
(if so equipped)
— Around View Monitor (if so equipped) 6. Center display
7. Clock
8. Hazard warning flasher switch
9. Front passenger supplemental air bag
10. Hood release handle
11. Fuse box cover
12. Parking brake
13. Steering wheel
— Horn
— Driver supplement air bag
14. Push-button ignition switch
15. Front passenger air bag status light
16. Power outlet
17. Rear window defogger switch
18. CompactFlash card slot (if so equipped)
19. Automatic climate control system
20. Audio system
21. Glove box lid release handle
*: Refer to the separate Navigation System Owner’s Manual.SIC3824
INSTRUMENT PANEL
2-4Instruments and controls
—
—
08/03/09—tbrooks


The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “VEHICLE
DYNAMIC CONTROL (VDC) SYSTEM” in the “5.
Starting and driving” section.) If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
1.
2. To set the clock backward, push the but- ton
2.
3. To move forward or backward faster, push and hold the button more than 5 seconds.
For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section.
SIC1881SIC3325
Front
SIC3631
Center console
SIC4274
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH CLOCK
POWER OUTLET
Instruments and controls2-45
—
—
07/30/09—pattie


Clock settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Clock” key.
On-screen Clock :
When this item is turned to ON, a clock is
always displayed in the upper right corner of
the screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS sys-
tem.Clock Format (24h) :
When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min) :
Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time :
Turn this item to ON for daylight saving time
application.
Time Zone :
Choose the time zone from the following
●
Pacific
● Mountain
● Central
● Eastern
● Atlantic
● Newfoundland
● Hawaii
● Alaska
SAA2487
Models with navigation system
SAA2404
Models without navigation system
SAA2606
