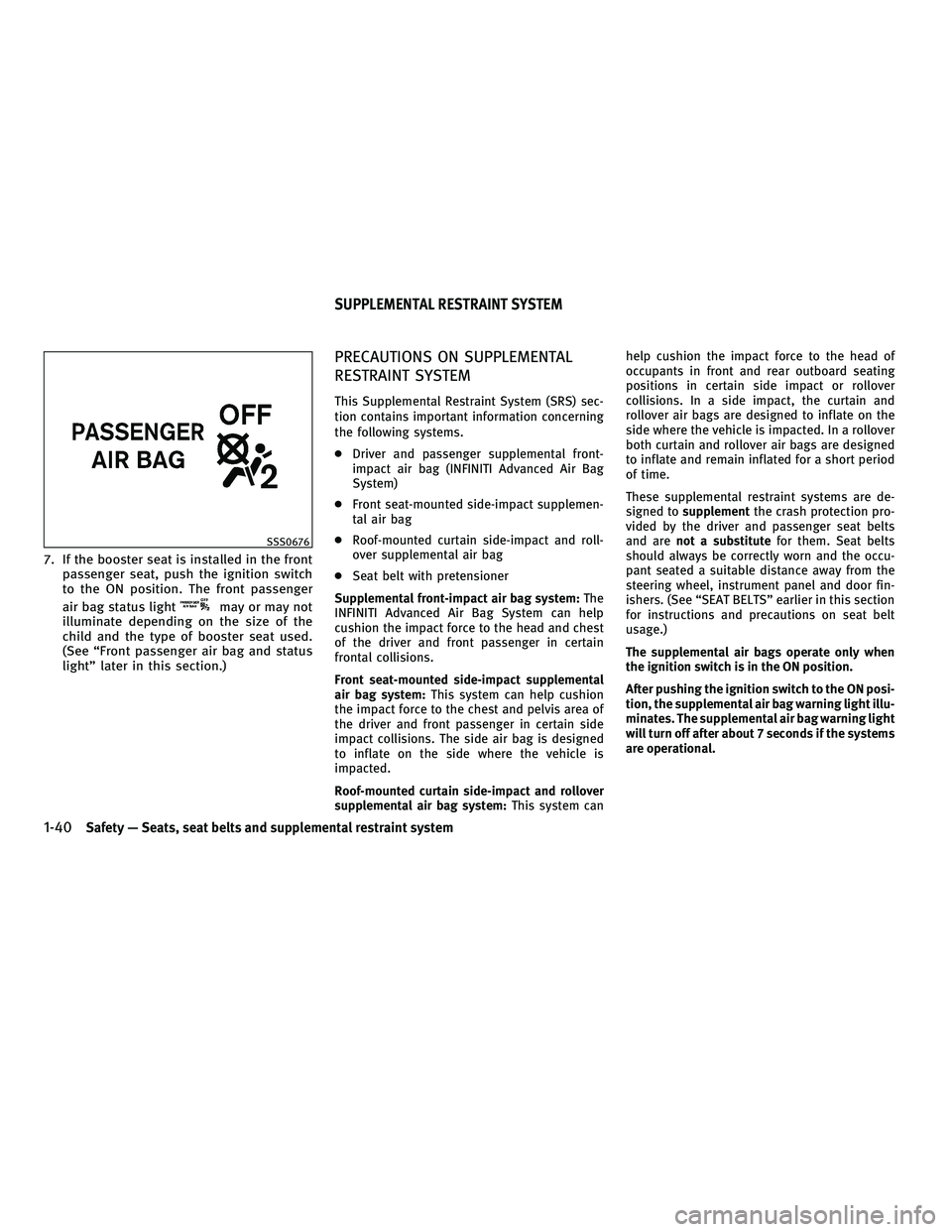

7. If the booster seat is installed in the frontpassenger seat, push the ignition switch
to the ON position. The front passenger
air bag status light
may or may not
illuminate depending on the size of the
child and the type of booster seat used.
(See “Front passenger air bag and status
light” later in this section.)
PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
This Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the following systems.
● Driver and passenger supplemental front-
impact air bag (INFINITI Advanced Air Bag
System)
● Front seat-mounted side-impact supplemen-
tal air bag
● Roof-mounted curtain side-impact and roll-
over supplemental air bag
● Seat belt with pretensioner
Supplemental front-impact air bag system: The
INFINITI Advanced Air Bag System can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supplemental
air bag system: This system can help cushion
the impact force to the chest and pelvis area of
the driver and front passenger in certain side
impact collisions. The side air bag is designed
to inflate on the side where the vehicle is
impacted.
Roof-mounted curtain side-impact and rollover
supplemental air bag system: This system canhelp cushion the impact force to the head of
occupants in front and rear outboard seating
positions in certain side impact or rollover
collisions. In a side impact, the curtain and
rollover air bags are designed to inflate on the
side where the vehicle is impacted. In a rollover
both curtain and rollover air bags are designed
to inflate and remain inflated for a short period
of time.
These supplemental restraint systems are de-
signed to
supplement the crash protection pro-
vided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel and door fin-
ishers. (See “SEAT BELTS” earlier in this section
for instructions and precautions on seat belt
usage.)
The supplemental air bags operate only when
the ignition switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the systems
are operational.
SSS0676
SUPPLEMENTAL RESTRAINT SYSTEM
1-40Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer.
Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)
WARNING LIGHTS
All-Wheel Drive (AWD)
warning light (AWD models)
Thewarning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the AWD system malfunctions, or the diam-
eter of the front and the rear wheels are differ-
ent, the warning light will either remain illumi-
nated or blink. (See “ALL-WHEEL DRIVE (AWD)”
in the “5. Starting and driving” section.)
CAUTION
● If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible. ●
If the AWD warning light blinks on when you
are driving:
– blinks rapidly (about twice a second): Pull off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning light turns
off, you can drive again.
– blinks slowly (about once every 2 sec- onds):
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the
same, tire pressure is correct and tires are
not worn.
● If the warning light is still on after the above
operations, have your vehicle checked by an
INFINITI retailer as soon as possible.
orAnti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indi-
cates the ABS is operational. If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “BRAKE SYSTEM” in the “5. Starting
and driving” section.)
Automatic transmission
check warning light
When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If
the light comes on at any other time, it may
indicate the transmission is not functioning
properly. Have your INFINITI retailer check and
repair the transmission.
orBrake warning
light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Instruments and controls2-13
—
—
07/30/09—pattie


When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. The low tire pressure warning light does
not automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “6. In case
of emergency” section.
TPMS malfunction :
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after 1
minute. Have the system checked by an INFINITI
retailer.
For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.WARNING
●If the light does not illuminate with the igni-
tion switch pushed ON, have the vehicle
checked by an INFINITI retailer as soon as
possible.
● If the light illuminates or LOW PRESSURE
information is displayed on the monitor
screen while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible. ●
When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
CAUTION
● The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
2-16Instruments and controls
—
—
07/30/09—pattie


HOW TO READ DISPLAYED LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m) Vehicle width guide lines
5:
Indicate the vehicle width when backing up.
Predicted course lines
6:
Indicate the predicted course when backing up.
The predicted course lines will be displayed on
the monitor when the selector lever is in the “R”
(Reverse) position and the steering wheel is
turned. The predicted course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
HOW TO PARK WITH PREDICTED
COURSE LINES
WARNING
● Always turn and check that it is safe to park
your car before backing up. Always back up
slowly.
● Use the displayed lines as a reference. The
lines are highly affected by the number of
occupants, fuel level, vehicle position, road
condition and road grade.
● If the tires are replaced with different sized
tires, the predicted course line may not be
displayed correctly. ●
On a snow-covered or slippery road, there
may be a difference between the predicted
course line and the actual course line.
● If the battery is disconnected or becomes
discharged, the predicted course lines may
not be displayed correctly. If this occurs,
perform the following procedures.
– Drive the vehicle on a straight road for more than 5 minutes.
● When the steering wheel is turned with the
ignition switch in the “ACC” position, the
predicted course lines may not be displayed
correctly.
● The displayed lines will appear slightly off to
the right because the rearview camera is not
installed in the rear center of the vehicle.
● The distance guide line and the vehicle
width guide line should be used as a refer-
ence only when the vehicle is on a level
paved surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance between
the vehicle and displayed objects.
SAA1896
Monitor, climate, audio, phone and voice recognition systems4-23
—
—
07/30/09—pattie


NOTE:
When the monitor displays the front view and
the steering wheel turns about 90 degrees or
less from the neutral position, both the right and
left predicted course lines
6are displayed.
When the steering wheel turns about 90 degrees
or more, a line is displayed only on the opposite
side of the turn.
Bird-eye view
The bird-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predicted course to a parking
space.
The vehicle icon
1shows the position of the
vehicle. Note that the size of the vehicle icon on
the bird-eye view may differ somewhat from the
actual vehicle.
The areas that the cameras cannot cover
2are
indicated in black.
After pushing the ignition switch, with the
Blind-Area Reminder turned to ON, the non-
viewable area
2is highlighted in yellow for 7
seconds after the bird-eye view is displayed. When the corner of the vehicle moves closer to
an object, the corner sonar indicator
3ap-
pears.
WARNING
● Objects in the bird-eye view will appear fur-
ther than the actual distance because the
bird-eye view is a pseudo view that is pro-
cessed by combining the views from the
cameras on the outside mirrors, the front
and the rear of the vehicle.
● Tall objects, such as a curb or vehicle, may
be misaligned or not displayed at the seam
of the views.
● Objects that are above the camera cannot be
displayed.
● The view for the bird-eye view may be mis-
aligned when the camera position alters.
● A line on the ground may be misaligned and
is not seen as being straight at the seam of
the views. The misalignment will increase as
the line proceeds away from the vehicle.
SAA1841
Monitor, climate, audio, phone and voice recognition systems4-33
—
—
07/30/09—pattie


●Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems can cause overrich fuel flow into the
three-way catalyst, causing it to overheat.
Do not keep driving if the engine misfires, or
if noticeable loss of performance or other
unusual operating conditions are detected.
Have the vehicle inspected promptly by an
INFINITI retailer.
● Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
● Do not race the engine while warming it up.
● Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.) As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not beable to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Additional information
●
The TPMS does not monitor the tire pressure
of the spare tire.
● The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).
● The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
Starting and driving5-3
—
—
08/03/09—pattie


●Unsecured cargo can be thrown around
when driving over rough terrain. Properly se-
cure all cargo so it will not be thrown forward
and cause injury to you or your passengers.
● To avoid raising the center of gravity exces-
sively, do not exceed the rated capacity of
the roof rack (if so equipped) and evenly dis-
tribute the load. Secure heavy loads in the
cargo area as far forward and as low as pos-
sible. Do not equip the vehicle with tires
larger than specified in this manual. This
could cause your vehicle to roll over.
● Do not grip the inside or spokes of the steer-
ing wheel when driving off-road. The steer-
ing wheel could move suddenly and injure
your hands. Instead drive with your fingers
and thumbs on the outside of the rim.
● Before operating the vehicle, ensure that the
driver and all passengers have their seat
belts fastened.
● Always drive with the floor mats in place as
the floor may became hot.
● Lower your speed when encountering strong
crosswinds. With a higher center of gravity,
your INFINITI is more affected by strong side
winds. Slower speeds ensure better vehicle
control. ●
Do not drive beyond the performance capa-
bility of the tires, even with AWD engaged.
● For AWD equipped vehicles, do not attempt
to raise two wheels off the ground and shift
the transmission to any drive or reverse po-
sition with the engine running. Doing so may
result in drivetrain damage or unexpected
vehicle movement which could result in seri-
ous vehicle damage or personal injury.
● Do not attempt to test an AWD equipped ve-
hicle on a 2-wheel dynamometer (such as
the dynamometers used by some states for
emissions testing), or similar equipment
even if the other two wheels are raised off
the ground. Make sure you inform test facil-
ity personnel that your vehicle is equipped
with AWD before it is placed on a dynamom-
eter. Using the wrong test equipment may
result in drivetrain damage or unexpected
vehicle movement which could result in seri-
ous vehicle damage or personal injury. (AWD
models)
● When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively.
● Accelerating quickly, sharp steering maneu-
vers or sudden braking may cause loss of
control. ●
If at all possible, avoid sharp turning maneu-
vers, particularly at high speeds. Your ve-
hicle has a higher center of gravity than a
conventional passenger car. The vehicle is
not designed for cornering at the same
speeds as conventional passenger cars. Fail-
ure to operate this vehicle correctly could
result in loss of control and/or a rollover
accident.
● Always use tires of the same type, size,
brand, construction (bias, bias-belted or ra-
dial), and tread pattern on all four wheels.
Install tire chains on the rear wheels when
driving on slippery roads and drive carefully.
● Be sure to check the brakes immediately af-
ter driving in mud or water. See “BRAKE SYS-
TEM” later in this section for wet brakes.
● Avoid parking your vehicle on steep hills. If
you get out of the vehicle and it rolls forward,
backward or sideways, you could be injured.
● Whenever you drive off-road through sand,
mud or water as deep as the wheel hub, more
frequent maintenance may be required. See
the maintenance information in the “INFINITI
Service and Maintenance Guide”.
5-8Starting and driving
—
—
08/03/09—pattie


The AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is pushed to the ON position. It
turns off soon after the engine is started.If any malfunction occurs in the AWD system
while the engine is running, the warning light
will come on.
The warning light may blink rapidly (about twice
per second) while trying to free a stuck vehicle
due to high power train oil temperature. The
driving mode may change to two-wheel drive. If
the warning light blinks rapidly during opera-
tion, stop the vehicle with the engine idling in a
safe place immediately. Then if the light goes
off after a while, you can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning
light blink slowly (about once per two seconds).
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the same,
tire pressure is correct and tires are not worn.
If the warning light is blinking after the above
operation, have your vehicle checked by an
INFINITI retailer as soon as possible.
WARNING
●
For AWD equipped vehicles, do not attempt
to raise two wheels off the ground and shift
the transmission to any drive or reverse po-
sition with the engine running. Doing so may
result in drivetrain damage or unexpected
vehicle movement which could result in seri-
ous vehicle damage or personal injury.
● Do not attempt to test an AWD equipped ve-
hicle on a 2-wheel dynamometer (such as
the dynamometers used by some states for
emissions testing) or similar equipment
even if the other two wheels are raised off
the ground. Make sure that you inform the
test facility personnel that your vehicle is
equipped with AWD before it is placed on a
dynamometer. Using the wrong test equip-
ment may result in drivetrain damage or un-
expected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
CAUTION
● Do not operate the engine on a free roller
when any of the wheels are raised.
SSD0336
ALL-WHEEL DRIVE (AWD) (if so equipped)
Starting and driving5-69
—
—
08/03/09—pattie


How to handle the sensor
The sensor for the Preview Function is common
with Intelligent Cruise Control and is located
below the front bumper.
To keep the Preview Function operating prop-
erly, be sure to observe the following:
●Always keep the sensor clean. Wipe with a
soft cloth carefully so as not to damage the
sensor.
● Do not strike or damage the areas around
the sensor. Do not touch or remove the
screw located on the sensor. Doing so could
cause failure or malfunction. If the sensor is
damaged due to an accident, contact an
INFINITI retailer.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion.
ANTI-LOCK BRAKING SYSTEM (ABS)
WARNING
● The Anti-lock Braking System (ABS) is a so-
phisticated device, but it cannot prevent ac-
cidents resulting from careless or dangerous
driving techniques. It can help maintain ve-
hicle control during braking on slippery sur-
faces. Remember that stopping distances on
slippery surfaces will be longer than on nor-
mal surfaces even with ABS. Stopping dis-
tances may also be longer on rough, gravel
or snow covered roads, or if you are using
tire chains. Always maintain a safe distance
from the vehicle in front of you. Ultimately,
the driver is responsible for safety.
● Tire type and condition may also affect brak-
ing effectiveness.
– When replacing tires, install the specified size of tires on all four wheels.
– When installing a spare tire, make sure that it is the proper size and type as speci-
fied on the Tire and Loading Information
label. See “TIRE AND LOADING INFORMA-
TION LABEL” in the “9. Technical and con-
sumer information” section of this
manual. – For detailed information, see “WHEELS
AND TIRES” in the “8. Maintenance and
do-it-yourself” section of this manual.
The Anti-lock Braking System (ABS) controls the
brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each
wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using the system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
5-76Starting and driving
—
—
08/03/09—pattie


FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTIFREEZE
In the winter when it is anticipated that the
outside temperature will drop below 32°F (0°C),
check antifreeze to assure proper winter protec-
tion. For additional information, see “ENGINE
COOLING SYSTEM” in the “8. Maintenance and
do-it-yourself” section.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For additional
information, see “BATTERY” in the “8. Mainte-
nance and do-it-yourself” section.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see “ENGINE COOLING SYS-
TEM” in the “8. Maintenance and do-it-yourself”
section.
TIRE EQUIPMENT
SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or
icy roads, INFINITI recommends the use of MUD
& SNOW or ALL SEASON tires on all four wheels.
Consult an INFINITI retailer for the tire type,
size, speed rating and availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires.
Skid and traction capabilities of studded snow
tires, on wet or dry surfaces, may be poorer than
that of non-studded snow tires.
Tire chains may be used. For details, see “TIRE
CHAINS” in the “8. Maintenance and do-it-
yourself” section of this manual.
For all-wheel drive
If you install snow tires, they must also be the
same size, brand, construction and tread pat-
tern on all four wheels.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
●A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
● A sturdy, flat board to be placed under the
jack to give it firm support.
● A shovel to dig the vehicle out of snowdrifts.
● Extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE
WARNING
● Wet ice (32°F, 0°C and freezing rain), very
cold snow or ice can be slick and very hard to
drive on. The vehicle will have much less
traction or “grip” under these conditions.
Try to avoid driving on wet ice until the road
is salted or sanded.
● Whatever the condition, drive with caution.
Accelerate and slow down with care. If accel-
erating or downshifting too fast, the drive
wheels will lose even more traction.
COLD WEATHER DRIVING
5-80Starting and driving
—
—
08/03/09—pattie
