WARNING
.Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufacturer
for the possible influences before use.
. The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.
The Intelligent Key system can operate all
doors and the lift gate using the remote
controller function or pushing the request
switch on the vehicle without taking the
key out from a pocket or purse. The
operating environment and/or conditions
may affect the Intelligent Key system
operation.
Be sure to read the following before using
the Intelligent Key system.
CAUTION
.Be sure to carry the Intelligent Key with
you when operating the vehicle.
. Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicat-
ing with the vehicle as it receives radio
waves. The Intelligent Key system trans-
mits weak radio waves. Environmental
conditions may interfere with the operation
of the Intelligent Key system under the
following operating conditions.
.When operating near a location where
strong radio waves are transmitted,
such as a TV tower, power station and
broadcasting station.
. When in possession of wireless equip-
ment, such as a cellular telephone,
transceiver, and CB radio.
. When the Intelligent Key is in contact
with or covered by metallic materials.
. When any type of radio wave remote
control is used nearby.
. When the Intelligent Key is placed near
an electric appliance such as a perso- nal computer.
. When the vehicle is parked near a
parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key
function or use the mechanical key.
Although the life of the battery varies
depending on the operating conditions,
the battery’s life is approximately 2 years.
If the battery is discharged, replace it with
a new one.
When the Intelligent Key battery is almost
discharged, insert the Intelligent Key into
the Intelligent Key port to start the engine.
Replace the discharged battery with a new
one as soon as possible. For more details,
see “Push-button ignition switch” (P.5-10).
Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.
For information regarding replacement of a
battery, see “Intelligent Key battery repla-
cement” (P.8-27).
As many as 4 Intelligent Keys can be
registered and used with one vehicle. For
Pre-driving checks and adjustments3-7
INTELLIGENT KEY SYSTEM

10-4
IndicatorDot matrix display ....................................... 2-21
Lights .......................................................... 2-18
INFINITI Vehicle Immobilizer System .................. 2-32
INFINITI voice recognition system .................... 4-120
INFO button ........................................................ 4-9
Inside mirror ..................................................... 3-29
Inspection/maintenance (I/M) test .................... 9-31
Instrument brightness control ........................... 2-41
Instrument panel ................................................ 2-5
Intelligent Brake Assist (IBA) off indicator light ... 2-19
Intelligent Brake Assist (IBA) system ................. 5-70
Intelligent Cruise Control (ICC) system (Full
Speed Range) ................................................... 5-31
Intelligent Cruise Control (ICC) system
warning light .................................................... 2-15
Intelligent cruise control (ICC) system,
Preview function ............................................... 5-54
Intelligent Key ..................................................... 3-2 Intelligent Key battery discharge indicator ........ 2-24
Intelligent Key insertion indicator ...................... 2-24
Intelligent Key removal indicator ....................... 2-24
Intelligent Key system ......................................... 3-7 Battery replacement ..................................... 8-27
Intelligent Key system warning light ............ 2-15
Key operating range ....................................... 3-9
Key operation .............................................. 3-10
Warning signals ........................................... 3-12
Interior light control switch ............................... 2-63 Interior light replacement .................................. 8-30Interior lights .................................................... 2-63 iPod®player operation ..................................... 4-80
ISOFIX child restraint ........................................ 1-21
J
Jump starting ...................................................... 6-8
K
Keyless entry (See remote keyless
entry system) .................................................... 3-14
Keys ................................................................... 3-2 For Intelligent Key system .............................. 3-7
L
LabelsAir bag warning labels ................................. 1-50
Air conditioner specification label ................ 9-13
Emission control information label ............... 9-13
Engine serial number ................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-12
Tire and Loading information label ...... 8-34, 9-13
Vehicle identification number (VIN) .............. 9-11
Lane Departure Prevention (LDP) ON
indicator light ................................................... 2-19
Lane Departure Prevention (LDP) system ........... 5-24
Lane departure warning (LDW) system .............. 5-22
Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system ................... 5-21
Lane departure warning chime .......................... 2-21
Lane departure warning light ............................ 2-15 LATCH system ................................................... 1-21
License plate, Installing front license plate ....... 9-14
Lift gate ............................................................ 3-18
Light
Air bag warning light ................................... 1-50
Bulb replacement ......................................... 8-29
Cargo light ................................................... 2-65
Fog light switch ........................................... 2-42
Headlight switch .......................................... 2-37
Headlights bulb replacement ....................... 8-30Indicator lights ............................................ 2-18Interior light control switch .......................... 2-63Interior lights ............................................... 2-63
Map lights ................................................... 2-63
Personal lights ............................................. 2-63
Replacement ................................................ 8-29
Vanity mirror lights ...................................... 2-64
Warning/indicator lights and
audible reminders ........................................ 2-13
Xenon headlights ......................................... 2-36
Lights, Exterior and interior light replacement ... 8-30
Loading information (See vehicle
loading information) ......................................... 9-15 Lock Automatic door locks ..................................... 3-6
Door locks ..................................................... 3-4
Lift gate lock ................................................ 3-18
Power door lock ............................................. 3-4
Locking with mechanical key ............................... 3-4
Low fuel warning .............................................. 2-25
Low tire pressure warning light ......................... 2-15

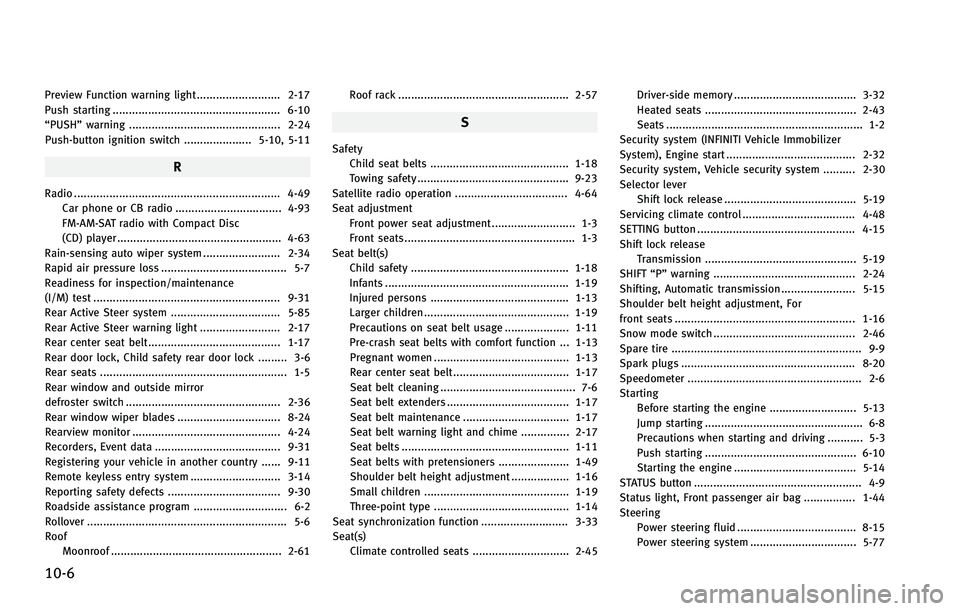

10-6
