service INFINITI FX35 2004 Service Manual

WATER PUMP
CO-25
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
c. Install timing chain tensioner (primary).
d. Remove stopper pin.
4. Install chain tensioner cover and water pump cover.
a. Before installing, remove all traces of liquid gasket from mating
surface of water pump cover and chain tensioner cover using a
scraper. Also remove traces of liquid gasket from the mating sur-
face of front timing chain case.
b. Apply a continuous bead of liquid gasket to mating surface of
chain tensioner cover and water pump cover with tube presser
[SST: WS39930000 ( – )].
Use Genuine RTV Silicone Sealant or equivalent. GI-48,
"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS".
5. Install water drain plug (front) of cylinder block.

Apply liquid gasket to the thread of water drain plug (front).
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS".
6. Install in the reverse order of removal for remaining parts.

After starting engine, let idle for three minutes, then rev engine up to 3,000 rpm under no load to
purge air from the high-pressure chamber of chain tensioner. Engine may produce a rattling
noise. This indicates that air still remains in the chamber and is not a matter of concern.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J-33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-11, "
CHECKING COOLING SYSTEM FOR
LEAKS" .

Start and warm up engine. Visually make sure that there is no leaks of engine coolant and A/T fluid.
SLC448B
SLC446B
PBIC1283E

WATER INLET AND THERMOSTAT ASSEMBLY
CO-27
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER REMOVAL
1. Check valve seating condition at ordinary room temperatures. It should seat tightly.
2. Check valve operation.
INSTALLATION
Note to the following, and install in the reverse order of removal.

Be careful not to spill engine coolant over engine room. Use rag to absorb engine coolant.

Install water drain plug (front) of cylinder block.
–Apply liquid gasket to the thread of water drain plug (front).
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS".
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J-33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-11, "
CHECKING COOLING SYSTEM FOR
LEAKS" .

Start and warm up engine. Visually make sure that there is no leaks of engine coolant.
Thermostat Standard
Valve opening temperature 76 - 79°C (169 - 174°F)
Maximum valve lift More than 8.6 mm / 90°C (0.339 in / 194°F)
Valve closing temperature More than 71 °C (160 °F)
SLC949A

CO-28
[VQ35DE]
WATER OUTLET AND WATER PIPING
Revision: 2004 November 2004 FX35/FX45
WATER OUTLET AND WATER PIPINGPFP:11060
Removal and InstallationABS007ZU
REMOVAL
1. Remove front engine undercover with power tool.
2. Drain engine coolant from drain plug and water drain plugs on radiator and both sides of cylinder block.
Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform when engine is cold.
3. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
4. Remove air duct and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
5. Disconnect radiator upper hose, heater hose and water hose.
6. Remove water outlet and water piping.
INSTALLATION
Note to the following, and install in the reverse order of removal.

Securely insert each hose, and install a clamp at a position where it does not interfere with the pipe bulge.

When inserting a water pipe into water outlet, apply neutral detergent to O-ring.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J-33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-11, "
CHECKING COOLING SYSTEM FOR
LEAKS" .

Start and warm up engine. Visually make sure that there is no leaks of engine coolant and A/T fluid.
1. Harness bracket 2. Water hose 3. Water bypass hose
4. Engine coolant temperature sensor 5. Gasket 6. Water outlet
7. Heater hose 8. Water pipe 9. Radiator upper hose
10. Heater pipe 11. Washer 12. O-ring
SBIA0484E

SERVICE DATA AND SPECIFICATIONS (SDS)
CO-29
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100
Standard and LimitABS004W0
ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: (US qt, Imp qt)
THERMOSTAT
RADIATOR
Unit: kPa (kg/cm2 , psi)
Engine coolant capacity [With reservoir tank (“MAX” level)] 8.6 (9-1/8, 7- 5/8)
Reservoir tank engine coolant capacity (at “MAX” level) 0.8 (7/8, 3/4)
ThermostatStandard
Valve opening temperature 76.0 - 79.0°C (169 - 174°F)
Maximum valve lift More than 8.6 mm / 90°C (0.339 in / 194°F)
Valve closing temperature More than 71°C (160°F)
Cap relief pressureStandard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Leakage test pressure 157 (1.6, 23)

CO-30
[VK45DE]
PRECAUTIONS
Revision: 2004 November 2004 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
ABS008FV
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

PREPARATION
CO-31
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsABS006JD
The actual shapes of Kent-Moore tools may from those of special service tools illustrated here.
Commercial Service ToolsABS006JE
Tool number
(Kent-Moore No.)
Tool nameDescription
EG17650301
(J33984-A)
Radiator cap tester adapterAdapting radiator cap tester to radiator cap
and thermostat housing filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV99103510
(—)
Radiator plate pliers AInstalling radiator upper and lower tanks
KV99103520
(—)
Radiator plate pliers BRemoving radiator upper and lower tanks
WS39930000
(—)
Tube pressurePressing the tube of liquid gasket
S-NT564
S-NT224
S-NT225
S-NT052
Tool nameDescription
Power toolLoosening bolts and nuts
Radiator cap tester Checking radiator and radiator cap
PBIC0190E
PBIC1982E

CO-36
[VK45DE]
ENGINE COOLANT
Revision: 2004 November 2004 FX35/FX45
ENGINE COOLANTPFP:KQ100
InspectionABS006JI
LEVEL CHECK

Check if reservoir tank engine coolant level is within “MIN” to
“MAX” when engine is cool.

Adjust the engine coolant level as necessary.
LEAK CHECK

To check for leaks, apply pressure to the cooling system with
radiator cap tester (commercial service tool) and radiator cap
tester adapter (SST).
WARNING:
Do not remove radiator cap when engine is hot. Serious
burns could occur from high-pressure engine coolant
escaping from thermostat housing.
CAUTION:
Higher testing pressure than specified may cause radiator
damage.
NOTE:
In a case engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantABS006JJ
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around radiator cap and carefully remove radiator cap. First, turn radiator cap a
quarter of a turn to release built-up pressure. Then turn radiator cap all the way.
DRAINING ENGINE COOLANT
1. Remove engine front undercover with power tool.
2. Open radiator drain plug at the bottom of radiator, and then
remove radiator cap.

Be careful not to allow engine coolant to contact drive
belts.
When draining all of engine coolant in the system, open water drain plugs on engine cylinder
block. Refer to EM-241, "
DISASSEMBLY" .
3. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to CO-38, "
FLUSHING COOLING SYSTEM" .
4. Remove reservoir tank, drain engine coolant and clean reservoir tank before installing.
SMA412B
Testing pressure : 157 kPa (1.6 kg/cm2 , 23 psi)
PBIC1528E
SBIA0444E

RADIATOR
CO-41
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
11. Lift up and remove radiator.
CAUTION:
Do not damage or scratch A/C condenser and radiator core
when removing.
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-36, "
LEAK CHECK" .

Start and warm up engine. Visually make sure that there is no leaks of engine coolant and A/T fluid.
Checking Radiator CapABS008FY
1. Pull negative-pressure valve to open it and make sure that it
closes completely when released.

Make sure that there is no dirt or damage on the valve seat of
radiator cap negative-pressure valve.

Make sure that there are no unusualness in the opening and
closing conditions of negative-pressure valve.
2. Check radiator cap relief pressure.

When connecting radiator cap to radiator cap tester (commer-
cial service tool) and radiator cap tester adapter [SST], apply
engine coolant to the cap seal surface.

Replace radiator cap if there is an unusualness in negative-
pressure valve, or if the relief pressure exceed the limit.
Checking RadiatorABS008FZ
Check radiator for mud or clogging. If necessary, clean radiator as follows:
CAUTION:

Be careful not to bend or damage the radiator fins.

When radiator is cleaned without removal, remove all surrounding parts such as cooling fan, radi-
ator shroud and horns. Then tape the harness and electrical connectors to prevent water from
entering.
1. Apply water by hose to the back side of the radiator core vertically downward.
2. Apply water again to all radiator core surface once per minute.
3. Stop washing if any stains no longer flow out from radiator.
4. Blow air into the back side of radiator core vertically downward.
PBIC1536E
SMA967B
Standard:
78 - 98 kPa (0.8 - 1.0 kg/cm
2 , 11 - 14 psi)
Limit:
59 kPa (0.6 kg/cm
2 , 9 psi)
SLC755A

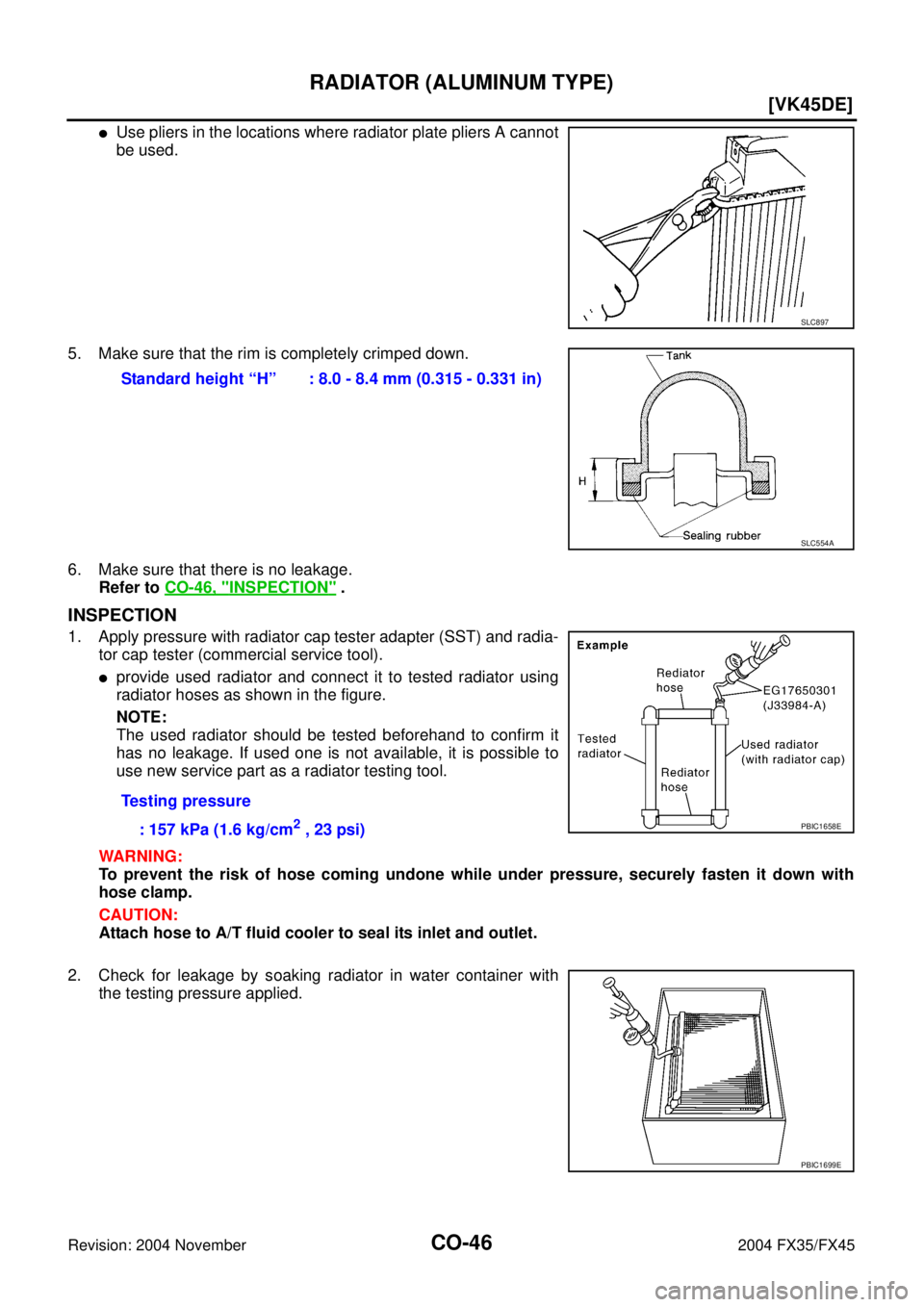

CO-46
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2004 November 2004 FX35/FX45

Use pliers in the locations where radiator plate pliers A cannot
be used.
5. Make sure that the rim is completely crimped down.
6. Make sure that there is no leakage.
Refer to CO-46, "
INSPECTION" .
INSPECTION
1. Apply pressure with radiator cap tester adapter (SST) and radia-
tor cap tester (commercial service tool).

provide used radiator and connect it to tested radiator using
radiator hoses as shown in the figure.
NOTE:
The used radiator should be tested beforehand to confirm it
has no leakage. If used one is not available, it is possible to
use new service part as a radiator testing tool.
WARNING:
To prevent the risk of hose coming undone while under pressure, securely fasten it down with
hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet.
2. Check for leakage by soaking radiator in water container with
the testing pressure applied.
SLC897
Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.6 kg/cm
2 , 23 psi)PBIC1658E
PBIC1699E

CO-50
[VK45DE]
WATER PUMP
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-36, "
LEAK CHECK" .

Start and warm up engine. Visually make sure that there is no leaks of engine coolant.
