TOTAL PRELOAD INSPECTION
1. Turn companion flange in both directions 20 times or more to set
bearing rollers, then check total preload with special service tool.

If the preload value is out of standard, adjust by changing side
bearing adjusting shim thickness (side retainer side).
–If preload value too large, increase the side bearing adjusting
shim thickness.
–If preload value too small, decrease the side bearing adjusting shim thickness.
DRIVE PINION PRELOAD ADJUSTMENT
Removal of differential case assembly
1. Unfasten the retainer tab using a flat blade screwdriver.
2. Remove the retainer by pulling it and tapping carrier case using a plastic hammer.
3. Remove the differential case assembly from the carrier case.
CAUTION:
Be careful not to damage the carrier cover mating surface.
Removal of drive pinon assembly
1. Hold the companion flange using cam sprocket wrench or flange
wrench, remove the drive pinion lock nut.
2. Remove the companion flange using puller.
3. Temporarily install drive pinion lock nut.
CAUTION:
Avoid damaging drive pinion threads, install the drive pinion lock nut unit it flash with drive pinion
end.
4. Remove the drive pinion from the carrier case using a copper hammer.
Preload Adjustment
1. Install drive pinion adjusting washer and drive pinion bearing adjusting washer onto the drive pinion, then
install drive pinion into the carrier case.
CAUTION:
Install the removed pinion height adjusting washer and drive pinion bearing adjusting washer or
same thickness washers to drive pinion.
2. Apply gear oil to the bearing portion.
3. Install drive pinion and drive pinion bearing into the carrier case.
4. Install the companion flange without installing oil seal.
5. Apply oil to drive pinion nut threads and seating surface, then temporarily install it.
6. Turn companion flange several times to seat the bearing.
7. Tighten the drive pinion nut while measuring preload using preload gauge.
8. Select drive pinion adjusting washer and drive pinion bearing adjusting washer so that standard preload is
obtain when the drive pinion nut is tightened to specified torque.Tool number : ST3127S000 (see J25765-A)
Total preload (without oil seal)
: 1.56 - 2.65 N·m
(0.16 - 0.27 kg-m, 14 - 23 in-lb)
SDIA1649E
Tool number : KV40104000 (−)
SDIA1658E

FFD-34
FRONT FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
CAUTION:

Tighten the drive pinion nut by very small degrees until the specified preload in achieved. Do
not tighten nut more than necessary.

First select the thicker washer, then gradually select thinner one.

Do not apply preload more than necessary.
Reassembly of drive pinion assembly
1. The standard preload is obtain when the drive pinion nut is tightened to specified toque, remove the pin-
ion.
2. Remove the companion flange using puller.
3. Drive out the drive pinion from carrier case using copper hammer.
4. Apply gear oil to bearing portion.
5. Install the drive pinion with selected drive pinion adjusting washer and drive pinion bearing adjusting
washer into the carrier case, then install bearing.
6. Apply multi-purpose grease to oil seal lips.
7. Drive oil seal into the final drive using drift.
8. Install companion flange.
9. Apply oil to new drive pinion lock nut threads and seating sur-
face, then install it onto the drive pinion.
CAUTION:
Do not reuse drive pinion lock nut. Always replace nut with
new one.
10. Turn the companion flange more than 20 times to seat bearing.
11. Tighten the drive pinion lock nut to specified torque.
CAUTION:
Do not overtighten the nut.

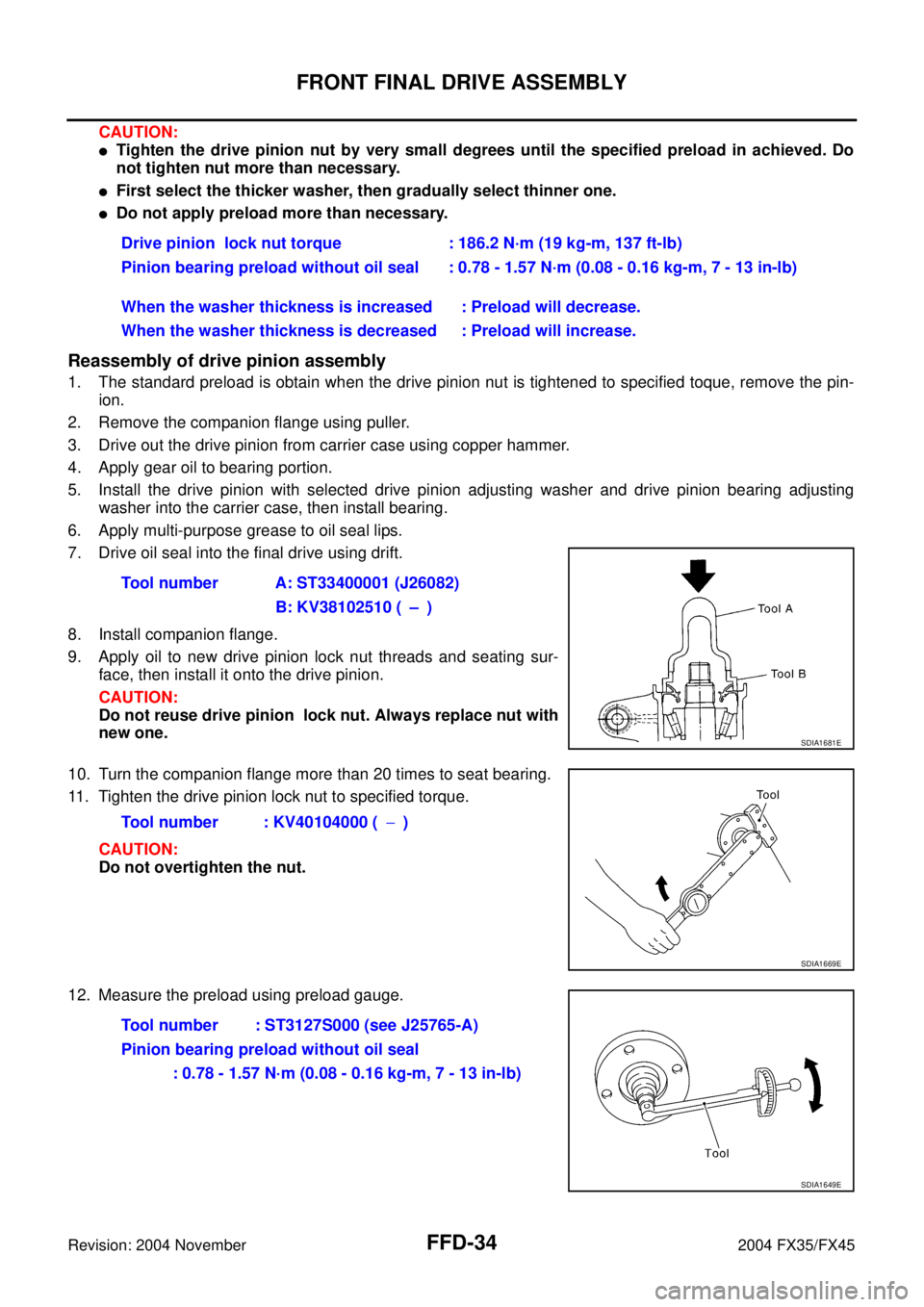

12. Measure the preload using preload gauge.Drive pinion lock nut torque : 186.2 N·m (19 kg-m, 137 ft-lb)
Pinion bearing preload without oil seal : 0.78 - 1.57 N·m (0.08 - 0.16 kg-m, 7 - 13 in-lb)
When the washer thickness is increased : Preload will decrease.
When the washer thickness is decreased : Preload will increase.
Tool number A: ST33400001 (J26082)
B: KV38102510 ( – )
SDIA1681E
Tool number : KV40104000 (−)
SDIA1669E
Tool number : ST3127S000 (see J25765-A)
Pinion bearing preload without oil seal
: 0.78 - 1.57 N·m (0.08 - 0.16 kg-m, 7 - 13 in-lb)
SDIA1649E

FRONT FINAL DRIVE ASSEMBLY
FFD-35
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: 2004 November 2004 FX35/FX45
Installation of differential case assembly
1. Apply gear oil to side bearing, then install the differential case assembly into carrier case.
CAUTION:
Be careful not damage the carrier cases mating surface.
2. Apply multi-purpose grease to the oil seal lips.
3. Install oil seal into the side retainer using drift.
CAUTION:
After tightening the bolt, wipe off excess sealant from
inside of case.
4. Apply liquid sealant to side retainer mounting hole of carrier case.
5. Install selected side bearing adjusting shim and O-ring to the side retainer, then install it to carrier case.
CAUTION:
After installing adjusting shim onto side retainer, apply gear oil to O-ring and install it.
6. Tighten side retainer mounting bolt to specified torque. Refer to FFD-14, "
COMPONENTS (VQ35DE)" or
FFD-16, "
COMPONENTS (VK45DE)" .
After InspectionADS000NS
1. Turn drive pinion and drive gear several times.
Set dial indicator to the drive gear face and measure the back-
lash.

If the measured value out of standard, adjust the backlash by
replacing the side bearing adjusting shim (carrier case side.)
–If backlash too large, decrease side bearing adjusting shim
thickness.
–If backlash too small, increase side bearing adjusting shim
thickness.
2. Check the back face of drive gear runout.
3. Set dial gauge to back of drive gear and measure the drive gear runout.

If the runout is exceed limit, check for drive gear assembly:
–any object between the drive gear and differential case.
–deformed differential case.
–deformed drive gear

if drive gear is deformed, replace the hypoid gear as an
assembly. If the differential case is deformed, replace the dif-
ferential case.
4. Check the companion flange face and inside diameter runout.
a. Set the dial gauge to the companion flange face and measure
runout.
b. Set the dial gauge to the inside diameter of the companion flange and measure the runout.
Mark paint to maximum runout position.Tool number : ST33400001 (J26082)
SDIA1682E
Standard drive gear backlash : 0.10 - 0.15 mm
(0.0039 - 0.0059 in)
Runout limit : 0.05 mm (0.0020 in) or less
Runout limit : 0.18 mm (0.0070 in) or less
Runout limit : 0.13 mm (0.0051 in) less
SDIA0009J
SDIA1651E

FFD-36
FRONT FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
CAUTION:
Clean inside of companion flange before measuring runout.

If runout is exceed limit, remove the companion from the drive pinion. Turn the companion flange posi-
tion 90° each, and measure the runout again.

If runout still exceed limit, replace companion flange.

If runout still exceed limit after replacing companion flange, check pinion bearing and drive pinion
assembly, and pinion bearing damage.
5. Turn companion flange in both directions 20 times to more,
check total preload with tool.

If the preload value is out of standard, adjust pinion bearing
preload and side bearing preload.
If preload value too large:
–Decrease the drive pinion bearing adjusting washer thick-
ness.
–Decrease the drive pinion adjusting washer thickness.
–Increase the side bearing adjusting shim thickness.
If preload value too small:
If preload value to small:
–Increase the drive pinion bearing adjusting washer thickness.
–Increase the drive pinion adjusting washer thickness.
–Decrease the side bearing adjusting shim thickness.
Carrier Cover InstallationADS000NT
1. Apply sealant to mating surface of carrier cover and carrier case
as shown.
CAUTION:
Clean any residual gasket material off from mating surface
before applying sealant.
2. Install the carrier cover to carrier case, tighten the bolts to spec-
ified torque. Refer to FFD-14, "
COMPONENTS (VQ35DE)" or
FFD-16, "
COMPONENTS (VK45DE)" .
3. Apply sealant to drain plug and filler plug threads.
Install and tighten the plugs to specified torque.
NOTE:
After installing front final drive on vehicle, fill it with specified
amount of gear oil. Refer to FFD-14, "
COMPONENTS
(VQ35DE)" or FFD-16, "COMPONENTS (VK45DE)" . Tool number : ST3127S000 (see J25765-A)
Total preload with oil seal installed
: 1.56 - 2.65 N·m
(0.16 - 0.27 kg-m, 14 - 23 in-lb)
SDIA1649E
SDIA1683E
SDIA1648E

PREPARATION
FSU-3
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2004 November 2004 FX35/FX45
PREPARATIONPFP:00002
Special Service Tools (SST)AES000N0
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool nameDescription
KV991040S0
( — )
CCK gauge attachment
1. Plate
2. Guide bolts
3. Nuts
4. Springs
5. Center plate
6. KV9910 4020 Adapter A
a: 72 mm (2.83 in) dia.
7. KV9910 4030 Adapter B
b: 65 mm (2.56 in) dia.
8. KV9910 4040 Adapter C
c: 57 mm (2.24 in) dia.
9. KV9910 4050 Adapter D
d: 53.4 mm (2.102 in) dia.Measuring wheel alignment
HT72520000
(J25730-A)
Ball joint remover
a: 33 mm (1.30 in)
b: 50 mm (1.97 in)
r: 11.5 mm (0.453 in)

Removing steering outer socket

Removing transverse link
ST35652000
( — )
Strut attachmentDisassembling and assembling strut
ST3127 S000
(See J25742-1)
Preload gauge
1. GG91030000
Torque wrench (J25765)
2. HT62940000 ( — )
Socket adapter (1/2″)
3. HT62900000 ( — )
Socket adapter (3/8″)Measuring rotating torque of ball joint
S-NT498
NT546
ZZA0807D
NT124

FSU-10
FRONT SUSPENSION ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
16. Remove stabilizer connecting rod upper nut with power tool,
separate stabilizer connecting rod and strut assembly.
17. Remove mounting nuts between engine mounting insulator and
front suspension member.
18. Remove mounting bolts which are at the back of transverse link
(mounting part with body) with power tool, separate transverse
link.
19. Remove mounting nuts between front suspension member and
body with power tool.
20. Move jack down slowly to remove front suspension member,
transverse link, stabilizer bar, drive shaft (For AWD models) and
steering knuckle from vehicle as a unit.
21. Remove transverse link from steering knuckle. Refer to FSU-14,
"TRANSVERSE LINK" .
INSTALLATION

Refer to FSU-8, "Components" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

After removing/installing or replacing suspension components and steering components, check wheel
alignment. Refer to FSU-6, "
Wheel Alignment Inspection" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .

Check the following item after service.
–Installation condition of wheel sensor harness.
SEIA0330E
SEIA0331E

COIL SPRING AND STRUT
FSU-11
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2004 November 2004 FX35/FX45

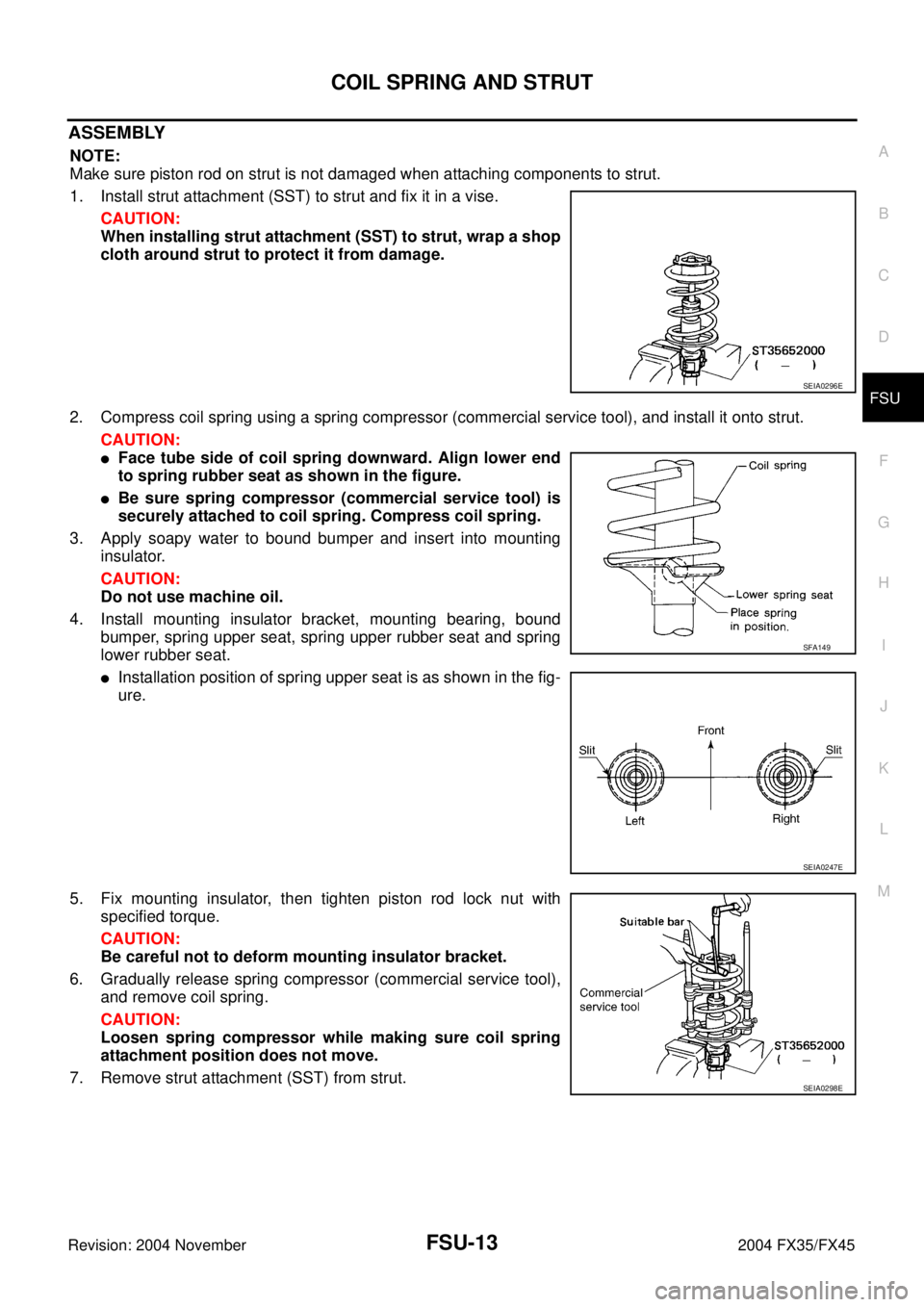

COIL SPRING AND STRUTPFP:55302
Removal and InstallationAES000N7
REMOVAL
1. Remove tire from vehicle with power tool.
2. Remove brake hose lock plate. Then remove brake hose from
strut assembly.
3. Remove wheel sensor harness from strut assembly.
CAUTION:
Do not pull wheel sensor harness.
4. Remove stabilizer connecting rod upper nut with power tool,
separate stabilizer connecting rod and strut assembly.
5. Remove fixing bolts and nuts between strut assembly and steer-
ing knuckle with power tool.
6. Remove mounting nuts on mounting insulator bracket with
power tool, then remove strut upper plate, strut spacer and strut
from vehicle.
INSTALLATION

Refer to FSU-8, "Components" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

After removing/installing or replacing suspension components, check wheel alignment. Refer to FSU-6,
"Wheel Alignment Inspection" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .

Check the following item after service.
–Installation condition of wheel sensor harness.
SEIA0328E
SEIA0329E
SEIA0330E

COIL SPRING AND STRUT
FSU-13
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2004 November 2004 FX35/FX45
ASSEMBLY
NOTE:
Make sure piston rod on strut is not damaged when attaching components to strut.
1. Install strut attachment (SST) to strut and fix it in a vise.
CAUTION:
When installing strut attachment (SST) to strut, wrap a shop
cloth around strut to protect it from damage.
2. Compress coil spring using a spring compressor (commercial service tool), and install it onto strut.
CAUTION:

Face tube side of coil spring downward. Align lower end
to spring rubber seat as shown in the figure.

Be sure spring compressor (commercial service tool) is
securely attached to coil spring. Compress coil spring.
3. Apply soapy water to bound bumper and insert into mounting
insulator.
CAUTION:
Do not use machine oil.
4. Install mounting insulator bracket, mounting bearing, bound
bumper, spring upper seat, spring upper rubber seat and spring
lower rubber seat.

Installation position of spring upper seat is as shown in the fig-
ure.
5. Fix mounting insulator, then tighten piston rod lock nut with
specified torque.
CAUTION:
Be careful not to deform mounting insulator bracket.
6. Gradually release spring compressor (commercial service tool),
and remove coil spring.
CAUTION:
Loosen spring compressor while making sure coil spring
attachment position does not move.
7. Remove strut attachment (SST) from strut.
SEIA0296E
SFA149
SEIA0247E
SEIA0298E

TRANSVERSE LINK
FSU-15
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2004 November 2004 FX35/FX45
Swing Torque Inspection
NOTE:
Before measurement, move ball joint at least ten times by hand to check for smooth movement.

Hook spring scale at ball stud. Confirm spring scale measure-
ment value is within the specifications when ball stud begins
moving.

If it is outside the specified range, replace transverse link
assembly.
Rotating Torque Inspection

Attach mounting nut to ball stud. Check that rotating torque is
within the specifications with a preload gauge (SST).

If it is outside the specified range, replace transverse link
assembly.
Axial End Play Inspection

Move tip of ball joint in axial direction to check for looseness.

If it is outside the specified range, replace transverse link assembly.
INSTALLATION

Refer to FSU-8, "Components" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

After removing/installing or replacing suspension components, check wheel alignment. Refer to FSU-6,
"Wheel Alignment Inspection" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" . Swing torque:
Less than 0.5 − 4.9 N·m (0.06 − 0.49 kg-m, 5 − 43 in-lb)
Measure value of spring scale:
Less than 0.5 − 4.9 N·m (0.06 − 0.49 kg-m, 5 − 43 in-lb)
SDIA1143E
Rotating Torque:
Less than 0.5 − 4.9 N·m (0.06 − 0.49 kg-m, 5 − 43 in-lb)
SDIA1150E
Axial end play : 0.1 mm (0.004 in)

FSU-16
STABILIZER BAR
Revision: 2004 November 2004 FX35/FX45
STABILIZER BARPFP:54611
Removal and InstallationAES000NA
REMOVAL
1. Remove tire from vehicle with power tool.
2. Remove undercover with power tool.
3. Remove stabilizer connecting rod lower nut with power tool, sep-
arate stabilizer bar and stabilizer connecting rod.
4. Remove stabilizer clamp mounting bolts and nuts with power
tool.
5. Remove stabilizer bar, stabilizer clamp, stabilizer bushing from
vehicle.
6. Remove stabilizer connecting rod upper nut with power tool,
separate stabilizer connecting rod and strut.
INSPECTION AFTER REMOVAL
Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp deformation, cracks and
damage, and replace if necessary.
INSTALLATION

Refer to FSU-8, "Components" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

After removing/installing or replacing suspension components, check wheel alignment. Refer to FSU-6,
"Wheel Alignment Inspection" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .

Stabilizer bar uses pillow ball type connecting rod. Position ball
joint with case on pillow ball head parallel to stabilizer bar.
SEIA0335E
SEIA0330E
SFA449BB
