TROUBLE DIAGNOSIS
AT-55
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
Check Before Engine is StartedACS007A8
1. CHECK A/T CHECK INDICATOR LAMP
1. Park vehicle on level surface.
2. Move selector lever to “P” position.
3. Turn ignition switch “OFF” and wait at least 10 seconds.
4. Turn ignition switch “ON”. (Do not start engine.)
Does A/T CHECK indicator lamp light up for about 2 seconds?
YES >> GO TO 2.
NO >> Stop the road test and go to AT- 1 9 1 , "
A/T CHECK Indicator Lamp Does Not Come On" .
2. CHECK A/T CHECK INDICATOR LAMP
Does A/T CHECK indicator lamp flash for about 8 seconds?
YES >> For TCM fail-safe mode, carry out self-diagnostics and record all NG items on the diagnostics
worksheet. Refer to AT- 9 4
, AT- 1 0 3 .
NO >> 1. Turn ignition switch “OFF”.
2. Carry out the self-diagnostics and record all NG items on the diagnostics worksheet. Refer to
AT- 9 4
, AT- 1 0 3 .
3. Go to AT- 5 5 , "
Check at Idle" .
Check at Idle ACS007A9
1. CHECK STARTING THE ENGINE
1. Park vehicle on level surface.
2. Move selector lever to “P” or “N” position.
3. Turn ignition switch “OFF”.
4. Turn ignition switch “START”.
Does the engine start?
YES >> GO TO 2.
NO >> Stop the road test and go to AT- 1 9 3 , "
Engine Cannot Be Started In “P” or “N” Position" .
2. CHECK STARTING THE ENGINE
1. Turn ignition switch “ON”. (Do not start engine.)
2. Move selector lever in “D”, “M” or “R” position.
3. Turn ignition switch “START”.
Does the engine start in either position?
YES >> Stop the road test and go to AT- 1 9 3 , "Engine Cannot Be Started In “P” or “N” Position" .
NO >> GO TO 3.
3. CHECK “P” POSITION FUNCTIONS
1. Move selector lever to “P” position.
2. Turn ignition switch “OFF”.
3. Release the parking brake.
4. Push the vehicle forward or backward.
5. Engage the parking brake.
When you push the vehicle with disengaging the parking brake, does it move?
YES >> Enter a check mark at “In “P” position, Vehicle Moves When Pushed” on the diagnostics work-
sheet AT- 4 6
, then continue the road test.
NO >> GO TO 4.

AT-60
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
Cruise Test - Part 2ACS007AB
1. CHECK STARTING FROM D1
1. Move selector lever to “D” position.
2. Accelerate at half throttle.
With CONSULT-II
Read the gear position. Refer to AT- 9 7 , "
DATA MONITOR MODE" .
Does it start from D1?
YES >> GO TO 2.
NO >> Enter a check mark at “Vehicle Cannot Be Started From D1” on the diagnostics worksheet AT- 4 6
,
then continue the road test.
2. CHECK SHIFT UP D1 → D2
Press the accelerator pedal down all the way and inspect whether or not the transmission shifts up (D1 → D2)
at the correct speed.

Refer to AT- 6 2 , "Vehicle Speed When Shifting Gears" .
With CONSULT-II
Read the gear position, throttle position and vehicle speed. Refer to AT- 9 7 , "
DATA MONITOR MODE" .
Does the A/T shift up D1
→ D2 at the correct speed?
YES >> GO TO 3.
NO >> Enter a check mark at “Vehicle Does Not Shift D1 → D2” on the diagnostics worksheet AT- 4 6
,
then continue the road test.
3. CHECK SHIFT UP D2 → D3
Press the accelerator pedal down all the way and inspect whether or not the transmission shifts up (D2 → D3)
at the correct speed.

Refer to AT- 6 2 , "Vehicle Speed When Shifting Gears" .
With CONSULT-II
Read the gear position, throttle position and vehicle speed. Refer to AT- 9 7 , "
DATA MONITOR MODE" .
Does the A/T shift up D2
→ D3 at the correct speed?
YES >> GO TO 4.
NO >> Enter a check mark at “Vehicle Does Not Shift D2 → D3” on the diagnostics worksheet AT- 4 6
,
then continue the road test.
4. CHECK SHIFT UP D3 → D4 AND ENGINE BRAKE
When the transmission changes speed D3 → D4, return the accelerator pedal.
With CONSULT-II
Read the gear position. Refer to AT- 9 7 , "
DATA MONITOR MODE" .
Does the A/T shift up D3
→ D4 and apply the engine brake?
YES >> 1. Stop the vehicle.
2. Go to AT- 6 1 , "
Cruise Test - Part 3" .
NO >> Enter a check mark at “Vehicle Does Not Shift D3 → D4” on the diagnostics worksheet AT- 4 6
,
then continue the road test. (Refer to AT- 6 1
).

AT-94
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
SELF-DIAGNOSTIC RESULT MODE
Operation Procedure
1. Perform “CONSULT-II SETTING PROCEDURE” Refer to AT- 9 3 ,
"CONSULT-II SETTING PROCEDURE" .
2. Touch “SELF-DIAG RESULTS”.
Display shows malfunction experienced since the last erasing
operation.
Display Items List
X: Applicable, —: Not applicable
SCIA5304E
Items (CONSULT-
II screen terms)Malfunction is detected when...TCM self-diagnosis OBD-II (DTC)
A/T CHECK
indicator
lamp “A/T” with
CONSULT-IIMIL indicator
lamp*1,
“ENGINE” with
CONSULT-II or
GST
CAN COMM CIR-
CUIT

When a malfunction is detected in CAN communications X U1000 U1000
STARTER RELAY/
CIRC

If this signal is ON other than in P or N position, this is
judged to be a malfunction.
(And if it is OFF in P or N position, this too is judged to be a
malfunction.)X P0615 —
PNP SW/CIRC

PNP switch 1-4 signals input with impossible pattern

P position is detected from N position without any other
position being detected in between.X P0705 P0705
VEH SPD SEN/
CIR AT (Revolution
sensor)

Signal from vehicle speed sensor A/T (Revolution sensor)
not input due to cut line or the like

Unexpected signal input during running

After ignition switch is turned ON, unexpected signal input
from vehicle speed sensor MTR before the vehicle starts
movingX P0720 P0720
ENGINE SPEED
SIG

TCM does not receive the CAN communication signal from
the ECM.X P0725 P0725*3
TCC SOLENOID/
CIRC

Normal voltage not applied to solenoid due to cut line,
short, or the likeX P0740 P0740
A/T TCC S/V
FNCTN

A/T cannot perform lock-up even if electrical circuit is good.

TCM detects as irregular by comparing difference value
with slip rotation.X P0744 P0744*2
L/PRESS SOL/
CIRC

Normal voltage not applied to solenoid due to cut line,
short, or the like

TCM detects as irregular by comparing target value with
monitor value.X P0745 P0745
TCM-POWER
SUPPLY

When the power supply to the TCM is cut “OFF”, for exam-
ple because the battery is removed, and the self-diagnos-
tics memory function stops

This is not a malfunction message (Whenever shutting
“OFF” a power supply to the TCM, this message appears
on the screen.)— P1701 —
TCM·RAM

TCM memory (RAM) is malfunctioning. — P1702 —
TCM·ROM

TCM memory (ROM) is malfunctioning. — P1703 —

TROUBLE DIAGNOSIS
AT-101
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45

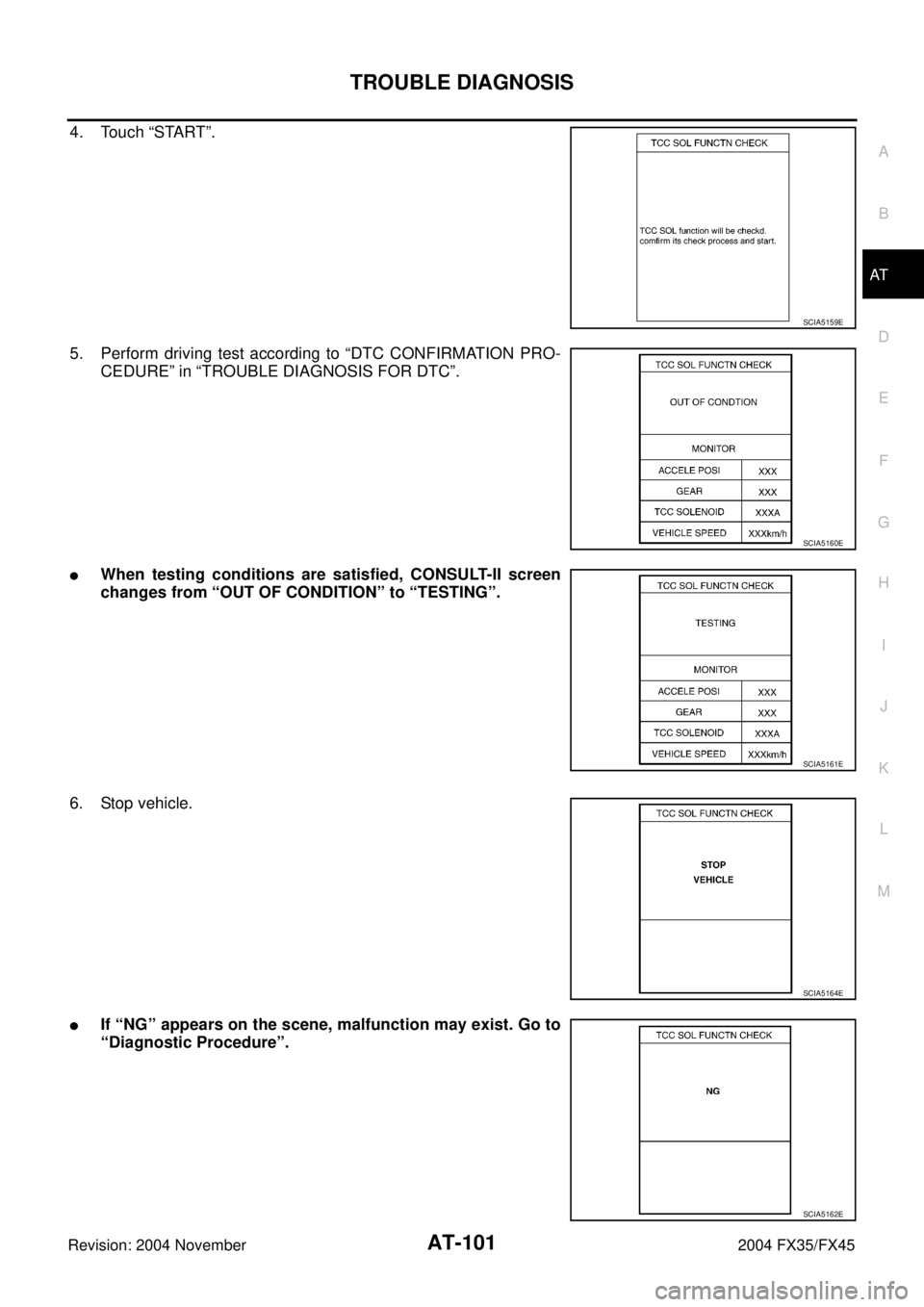

4. Touch “START”.
5. Perform driving test according to “DTC CONFIRMATION PRO-
CEDURE” in “TROUBLE DIAGNOSIS FOR DTC”.

When testing conditions are satisfied, CONSULT-II screen
changes from “OUT OF CONDITION” to “TESTING”.
6. Stop vehicle.

If “NG” appears on the scene, malfunction may exist. Go to
“Diagnostic Procedure”.
SCIA5159E
SCIA5160E
SCIA5161E
SCIA5164E
SCIA5162E

TROUBLE DIAGNOSIS
AT-103
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
Diagnostic Procedure Without CONSULT-IIACS007AJ
OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to EC-122, "Generic Scan Tool (GST) Function" (for VG35DE) or EC-772, "Generic Scan Tool (GST)
Function" (for VK45DE).
OBD-II SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
Refer to EC-68, "Malfunction Indicator Lamp (MIL)" (for VG35DE) or EC-717, "Malfunction Indicator Lamp
(MIL)" (for VK45DE).
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
Description
In the unlikely event of a malfunction in the electrical system, when the ignition switch is switched “ON”, the A/
T CHECK indicator lamp lights up for 2 seconds, then flashes for 8 seconds. If there is no malfunction, when
the ignition switch is turned “ON”, the indicator lamp lights up for 2 seconds. As a method for locating the sus-
pect circuit, when the self-diagnostics start signal is input, the memory for the malfunction location is output
and the A/T CHECK indicator lamp flashes to display the corresponding DTC.
Diagnostic Procedure
1. CHECK A/T CHECK INDICATOR LAMP
1. Start the engine with selector lever in “P” position. Warm engine to normal operating temperature.
2. Turn ignition switch “ON” and “OFF” at least twice, then leave it in the “OFF” position.
3. Wait 10 seconds.
4. Turn ignition switch to “ON” position. (Do not start engine.)
Does A/T CHECK indicator lamp come on for about 2 seconds?
YES >> GO TO 2.
NO >> GO TO AT- 1 9 1 , "
A/T CHECK Indicator Lamp Does Not Come On" .
2. JUDGEMENT PROCEDURE STEP 1
1. Turn ignition switch “OFF”.
2. Push shift lock release button.
3. Move selector lever from “P” to “D” position.
4. Release accelerator pedal. (Set the closed throttle position signal “ON”.)
5. Depress brake pedal. (Stop lamp switch signal “ON”.)
6. Turn ignition switch “ON”. (Do not start engine.)
7. Wait 3 seconds.
8. Move the selector lever to the Manual shift gate side. (Manual mode switch “ON”.)
9. Release brake pedal. (Stop lamp switch signal “OFF”.)
10. Move the selector lever to “D” position. (Manual mode switch “OFF”.)
11. Depress brake pedal. (Stop lamp switch signal “ON”.)
12. Release brake pedal. (Stop lamp switch signal “OFF”.)
13. Depress accelerator pedal fully and release it.
>> GO TO 3.
3. CHECK SELF-DIAGNOSIS CODE
Check A/T CHECK indicator lamp.
Refer to AT- 1 0 4 , "
Judgement Self-diagnosis Code" .
If the system does not go into self-diagnostics. Refer to AT- 11 2 , "
DTC P0705 PARK/NEUTRAL POSITION
SWITCH" , AT- 1 8 6 , "CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION CIRCUIT" ,
AT- 1 7 2 , "
DTC P1815 MANUAL MODE SWITCH" , AT- 1 8 7 , "BRAKE SIGNAL CIRCUIT" .
>>DIAGNOSIS END

DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
AT-129
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)PFP:31036
DescriptionACS007C0
When the power supply to the TCM is cut “OFF”, for example because the battery is removed, and the self-
diagnostics memory function stops, malfunction is detected.
On Board Diagnosis LogicACS007C1

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “TCM-POWER SUPPLY” with CONSULT-II is detected when TCM does not
receive the voltage signal from the battery power supply.

This is not a malfunction message. (Whenever shutting “OFF” a power supply to the TCM, this message
appears on the screen.)
Possible CauseACS007C2
Harness or connectors
(Battery or ignition switch and TCM circuit is open or shorted.)
DTC Confirmation ProcedureACS007C3
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Wait for at least 2 consecutive seconds.
4. If DTC is detected, go to AT- 1 3 1 , "
Diagnostic Procedure" .
SAT014K

AT-148
DTC P1730 A/T INTERLOCK
Revision: 2004 November 2004 FX35/FX45
A/T INTERLOCK COUPLING PATTERN TABLE

: NG, X: OK
Diagnostic ProcedureACS007DG
1. SELF-DIAGNOSIS
With CONSULT-II
1. Drive vehicle.
2. Stop vehicle and turn ignition switch “OFF”.
3. Turn ignition switch “ON”. (Do not start engine.)
4. Select “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
Without CONSULT-II
1. Drive vehicle.
2. Stop vehicle and turn ignition switch “OFF”.
3. Turn ignition switch “ON”. (Do not start engine.)
4. Perform self-diagnosis. Refer to AT- 1 0 3 , "
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)" .
OK or NG
OK >> GO TO 2.
NG >> Check low coast brake solenoid valve circuit and function. Refer to AT- 1 6 8 , "
DTC P1772 LOW
COAST BRAKE SOLENOID VALVE" , AT- 1 7 0 , "DTC P1774 LOW COAST BRAKE SOLENOID
VALVE FUNCTION" .
2. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 4 7 , "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 4 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate
“TCM-POWER SUPPLY”?
YES >> Check the TCM power circuit. Refer to AT- 1 2 9 , "DTC P1701 TRANSMISSION CONTROL MOD-
ULE (POWER SUPPLY)" .
NO >> GO TO 4.
Gear positionATF pressure switch output
Fail-safe
functionClutch pressure output pattern after fail-safe func-
tion
SW3
(I/C)SW6
(HLR/
C)SW5
(D/C)SW1
(FR/B)SW2
(LC/B)I/C HLR/C D/C FR/B LC/B L/U
A/T interlock
coupling pat-
tern3rd – X X –
Held in
2nd gearOFF OFF ON OFF OFF OFF
4th – X X –
Held in
2nd gearOFF OFF ON OFF OFF OFF
5th X X – X
Held in
2nd gearOFF OFF ON OFF OFF OFF
SAT014K

BRAKE SIGNAL CIRCUIT
AT-187
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
BRAKE SIGNAL CIRCUITPFP:25320
CONSULT-II Reference ValueACS007GA
Diagnostic ProcedureACS007GB
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 9 4 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-
DIAGNOSTIC PROCEDURE (NO TOOLS)" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 5 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out ON/OFF switching action of the “BRAKE SW”.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
Check continuity between stop lamp switch harness connector E210
terminals 1 and 2. Refer to AT- 1 8 8 , "
Wiring Diagram — AT — NON-
DTC" .
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
Inspection and Adjustment" .
OK or NG
OK >> Check the following items. If NG, repair or replace dam-
aged parts.

Harness for short or open between battery and stop lamp switch.

Harness for short or open between stop lamp switch and unified meter and A/C amp.
NG >> Repair or replace the stop lamp switch.
Item name Condition Display value
BRAKE SWDepressed brake pedal. ON
Released brake pedal. OFF
Item name Condition Display value
BRAKE SWDepressed brake pedal. ON
Released brake pedal. OFF
PCIA0070E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA2144E

AT-234
SHIFT CONTROL SYSTEM
Revision: 2004 November 2004 FX35/FX45
REMOVAL
1. Disconnect lower lever of control device and control rod.
2. Remove knob cover below selector lever downward.
3. Pull lock pin out of selector lever knob.
4. Remove selector lever knob.
5. Remove console finisher.

Refer to IP-10, "Component Parts Drawing" .
6. Remove center console.

Refer to IP-10, "Component Parts Drawing" .
7. Remove key interlock cable from control device.

Refer to AT- 2 4 0 , "Removal and Installation" .
8. Disconnect A/T device harness connector.
9. Remove control device assembly.
INSTALLATION
Install in reverse order of removal. Be careful of the following:

After installation is completed, adjust and check A/T position.
Adjustment of A/T PositionACS002RR
1. Loosen nut of control rod.
2. Place PNP switch and selector lever in “P” position.
3. While pressing lower lever toward rear of vehicle (in P position
direction), tighten nut to specified torque.
CAUTION:
Do not push the bracket.
Checking of A/T PositionACS002RS
1. Place selector lever in “P” position, and turn ignition switch ON (Do not start engine).
2. Make sure selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
make sure selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Move the selector lever and check for excessive effort, sticking, noise or rattle.
4. Confirm the selector lever stops at each position with the feel of engagement when it is moved through all
the positions. Check whether or not the actual position the selector lever is in matches the position shown
by the shift position indicator and the transmission body.
5. The method of operating the lever to individual positions cor-
rectly should be as shown in the figure.
6. When selector button is pressed in “P”, “R”, or “N” position with-
out applying forward/backward force to selector lever, check but-
ton operation for sticking.
7. Confirm the back-up lamps illuminate only when lever is placed
in the “R” position. Confirm the back-up lamps does not illumi-
nate when selector lever is pushed against “R” position in the
“P” or “N” position.
8. Confirm the engine can only be started with the selector lever in
the “P” and “N” positions.
9. Make sure transmission is locked completely in “P” position.
10. When selector lever is set to manual shift gate, make sure manual mode is displayed on combination
meter.
Shift selector lever to “+” and “-” sides, and make sure set shift position changes.
SCIA4954E
:26 N·m (2.7 kg-m, 19 ft-lb)
SCIA2119E
SCIA3906E

LUBRICANT
ATC-27
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
LUBRICANTPFP:KLG00
Maintenance of Lubricant Quantity in CompressorAJS00149
The lubricant in the compressor circulates through the system with the refrigerant. Add lubricant to compres-
sor when replacing any component or after a large refrigerant leakage occurred. It is important to maintain the
specified amount.
If lubricant quantity is not maintained properly, the following malfunctions may result:

Lack of lubricant: May lead to a seized compressor

Excessive lubricant: Inadequate cooling (thermal exchange interference)
LUBRICANT
LUBRICANT RETURN OPERATION
Adjust the lubricant quantity according to the test group shown below.
1. CHECK LUBRICANT RETURN OPERATION
Can lubricant return operation be performed?

A/C system works properly.

There is no evidence of a large amount of lubricant leakage.
CAUTION:
If excessive lubricant leakage is noted, do not perform the lubricant return operation.
YES or NO
YES >> GO TO 2.
NO >> GO TO 3.
2. PERFORM LUBRICANT RETURN OPERATION, PROCEEDING AS FOLLOWS:
1. Start engine, and set the following conditions:
–Test condition
Engine speed: Idling to 1,200 rpm
A/C switch: ON
Blower speed: Max. position
Temp. control: Optional [Set so that intake air temperature is 25 to 30°C (77 to 86°F).]
Intake position: Recirculation (REC)
2. Perform lubricant return operation for about 10 minutes.
3. Stop engine.
>> GO TO 3.
3. CHECK REPLACEMENT PART
Should the compressor be replaced?
YES >> GO TO AT C - 2 9 , "LUBRICANT ADJUSTING PROCEDURE FOR COMPRESSOR REPLACE-
MENT" .
NO >> GO TO AT C - 2 8 , "
LUBRICANT ADJUSTING PROCEDURE FOR COMPONENTS REPLACE-
MENT EXCEPT COMPRESSOR" . Name : NISSAN A/C System Oil Type S
Part number : KLH00-PAGS0
