REAR WINDOW DEFOGGER
GW-97
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
Trouble Diagnoses Symptom ChartAIS004R8

Make sure other systems using the signal of the following systems operate normally.
BCM Power Supply and Ground Circuit CheckAIS004R9
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-II, when perform the each trouble
diagnosis. Refer to BCS-14, "
CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)" .
1. CHECK FUSE

Check 15A fuse [No.1, located in fuse block (J/B)]

Check 15A fuse [No.22, located in fuse block (J/B)]

Check 50A fusible link (letter M located in the fuse and fusible link box).
NOTE:
Refer to GW-86, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M3, M4 terminal 38, 42,
55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
Symptom Diagnoses / Service procedure Refer to page
Rear window defogger and door mirror defogger do not
operate. 1. BCM power supply and ground circuit check.GW-97
2. IPDM E/R auto active test checkPG-24
3. Rear window defogger switch circuit checkGW-98
4. Rear window defogger power supply circuit checkGW-100
5. Replace IPDM E/ RPG-30
Rear window defogger does not operate but both of door
mirror defogger operate.1. Rear window defogger circuit checkGW-102
2. Filament checkGW-107
Door mirror defogger does not operated but both of rear
window defogger operate. 1. Door mirror defogger power supply circuit checkGW-103
Driver side door mirror defogger does not operate. 1. Driver side door mirror defogger circuit checkGW-104
Passenger side door mirror defogger does not operate. 1. Passenger side door mirror defogger circuit checkGW-105
Rear window defogger switch does not light, and rear win-
dow defogger is not displayed on the display.
But rear window defogger operates. 1. Rear window defogger signal checkGW-106
38 (W/L) – Ground : Battery voltage
42 (L/R) – Ground : Battery voltage
55 (G) – Ground : Battery voltage
PIIA6160E

REAR WINDOW DEFOGGER
GW-103
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
Door Mirror Defogger Power Supply Circuit CheckAIS004RD
1. CHECK FUSE

Check 15A fuse [No.8, located in fuse block (J/B)]
NOTE:
Refer to GW-86, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT 1
1. Turn ignition switch ON.
2. Check voltage between fuse block (J/B) connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between rear window defog-
ger relay and fuse block (J/B).
3. CHECK POWER SUPPLY CIRCUIT 2
Check voltage between fuse block (J/B) connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace fuse block (J/B).
4. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect fuse block (J/B) and door mirror connector.
3. Check continuity between fuse block (J/B) connector M2 termi-
nal 5B and door mirror connector D2 (driver side) or D32 (pas-
senger side) terminal 1.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness between fuse block (J/B) and
malfunction door mirror connector.
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
E201 2C (B) GroundRear window defogger
switch ON Battery voltage
Rear window defogger
switch OFF0
PIIA2388E
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M2 5B (L) GroundRear window defogger
switch ON Battery voltage
Rear window defogger
switch OFF0
PIIA2386E
5B (L) – 1 (L) : Continuity should exist.
PIIA6213E

GW-104
REAR WINDOW DEFOGGER
Revision: 2004 November 2004 FX35/FX45
5. CHECK GROUND CIRCUIT
Check continuity between each door mirror connector D2 (driver
side), D32 (passenger side) terminal 2 and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness.
6. CHECK DOOR MIRROR DEFOGGER
1. Connect door mirror connector.
2. Check continuity between each door mirror connector D2 (driver
side), D32 (passenger side) terminals 1 and 2.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace malfunctioning door mirror.
Driver Side Door Mirror Defogger Circuit CheckAIS004RE
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between door mirror (driver side) connector and
ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between fuse block (J/B) and door mirror (driver side).2 (B) – Ground : Continuity should exist.
PIIA6214E
1 (L) – 2 (B) : Continuity should exist.
PIIA6215E
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
D2 1 (L) GroundRear window defogger
switch ON Battery voltage
Rear window defogger
switch OFF0
PIIA6216E

REAR WINDOW DEFOGGER
GW-105
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between door mirror (driver side) connector D2
terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between door mirror (driver
side) and ground.
3. CHECK DOOR MIRROR DEFOGGER
1. Connector door mirror connector.
2. Check continuity between each door mirror connector D2 (driver
side) terminals 1 and 2.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace door mirror (driver side).
Passenger Side Door Mirror Defogger Circuit Check AIS004RF
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror (passenger side) connector.
3. Turn ignition switch ON.
4. Check voltage between door mirror (passenger side) connector
and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between fuse block (J/B) and door mirror (passenger side).2 (B) – Ground : Continuity should exist.
PIIA6214E
1 (L) – 2 (B) : Continuity should exist.
PIIA6215E
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
D32 1 (L) GroundRear window defogger
switch ON Battery voltage
Rear window defogger
switch OFF0
PIIA6216E

GW-106
REAR WINDOW DEFOGGER
Revision: 2004 November 2004 FX35/FX45
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between door mirror (passenger side) connec-
tor D32 terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between door mirror (passen-
ger side) and ground.
3. CHECK DOOR MIRROR DEFOGGER
1. Connector door mirror connector.
2. Check continuity between each door mirror connector D32 (pas-
senger side) terminals 1 and 2.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace door mirror (passenger side).
Rear Window Defogger Signal CheckAIS004RG
1. CHECK REAR WINDOW DEFOGGER SWITCH LAMP
A/C and AV switch self-diagnosis is performed. Refer to AV- 3 5 , "
A/C and AV Switch Self-Diagnosis Function"
Does rear window defogger switch light?
YES >> GO TO 2.
NO >> Replace A/C and AV switch.
2. CHECK AV COMMUNICATION LINE
AV communication line check is performed. Refer to AV- 8 4 , "
A/C and AV Switch Does Not Operate"
Is rear window defogger displayed on the display?
YES >> GO TO 3.
NO >> Replace display control unit.
3. CHECK CAN COMMUNICATION LINE
CAN communication line check is performed. Refer toAV- 8 5 , "
CAN Communication Line Inspection"
OK or NG
OK >> Check condition of harness and connector.
NG >> In addition, it is necessary to check CAN communication line. Refer to AV- 8 5 , "
CAN Communica-
tion Line Inspection"
2 (B) – Ground : Continuity should exist.
PIIA6214E
1 (L) – 2 (B) : Continuity should exist.
PIIA6215E

DOOR MIRROR
GW-109
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
DOOR MIRRORPFP:96301
Door Mirror (Only Manual Operation)AIS003AP
WRING DIAGRAM —MIRROR— FOR MANUAL OPERATION DOOR MIRROR
TIWM0362E

GW-110
DOOR MIRROR
Revision: 2004 November 2004 FX35/FX45
Automatic Drive Positioner Interlocking Door Mirror AIS003L5
A trouble diagnosis of a automatic drive positioner interlocking door mirror is refer to SE-11, "AUTOMATIC
DRIVE POSITIONER" .

DOOR MIRROR
GW-111
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45

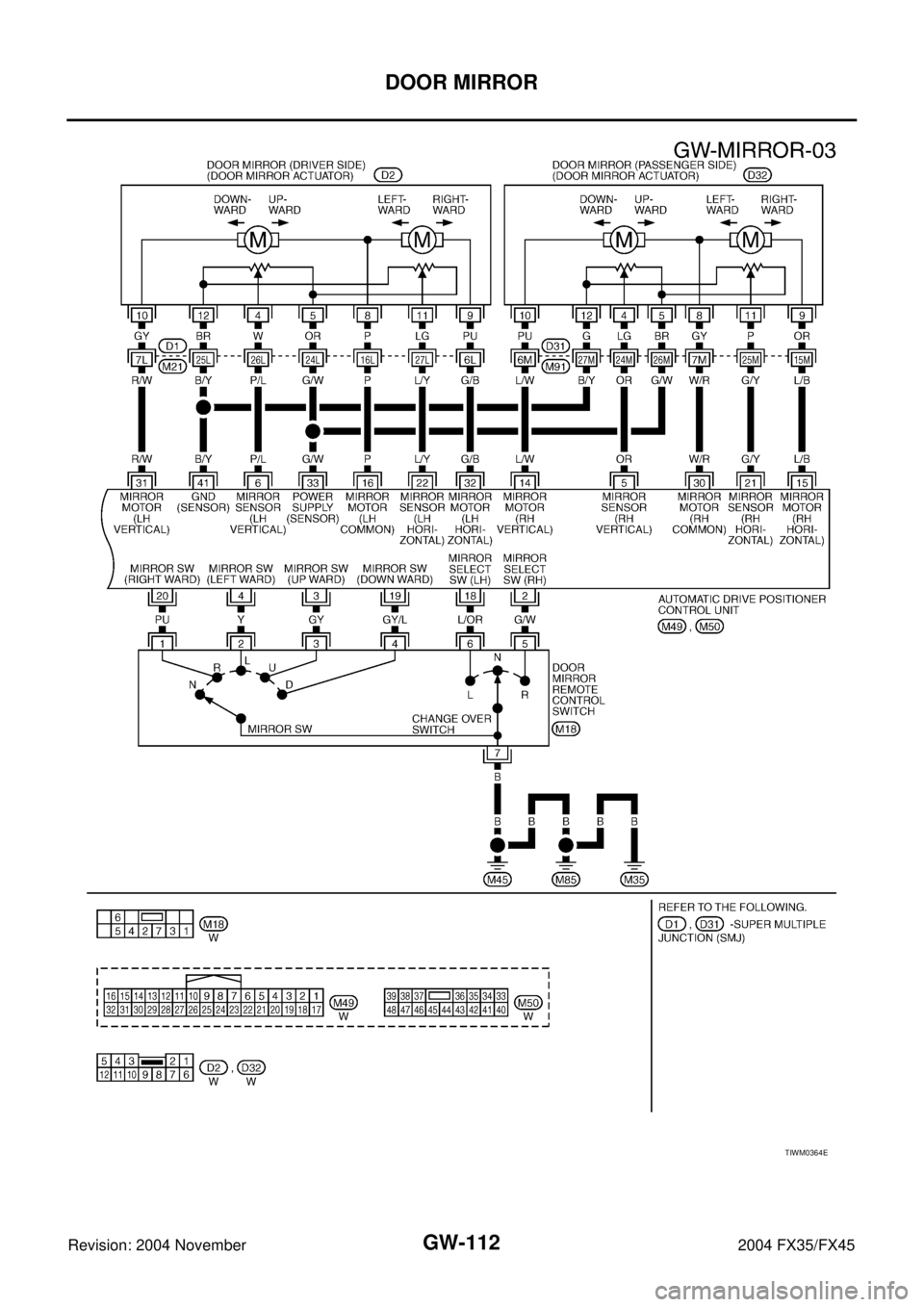

WRING DIAGRAM –MIRROR– FOR AUTOMATIC DRIVE POSITIONER INTERLOCKING DOOR
MIRROR
TIWH0061E

GW-112
DOOR MIRROR
Revision: 2004 November 2004 FX35/FX45
TIWM0364E

DOOR MIRROR
GW-113
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
Removal and InstallationAIS003AQ
CAUTION:
Be careful not to damage the mirror body.
REMOVAL
1. Remove the front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove the corner cover inner.
3. Remove the door mirror harness connector.
4. Remove the door mirror mounting nuts, and remove the door mirror assembly.
INSTALLATION
Install in the reverse order of removal.
Disassembly and AssemblyAIS00560
DISASSEMBLY
1. Place the mirror body with mirror glass facing upward.
2. Put strip of protection tape on mirror body.
3. As shown in the figure insert a small flat-bladed screwdriver into
the recess between mirror base (mirror holder) and mirror holder
bracket and push up pawls to remove mirror holder lower half
side.
NOTE:
When pushing up pawls do not attempt to use 1 recess only, be
sure to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating
(twist) to make work easier.
4. Remove terminals of mirror heater attachment.
PIIA4738E

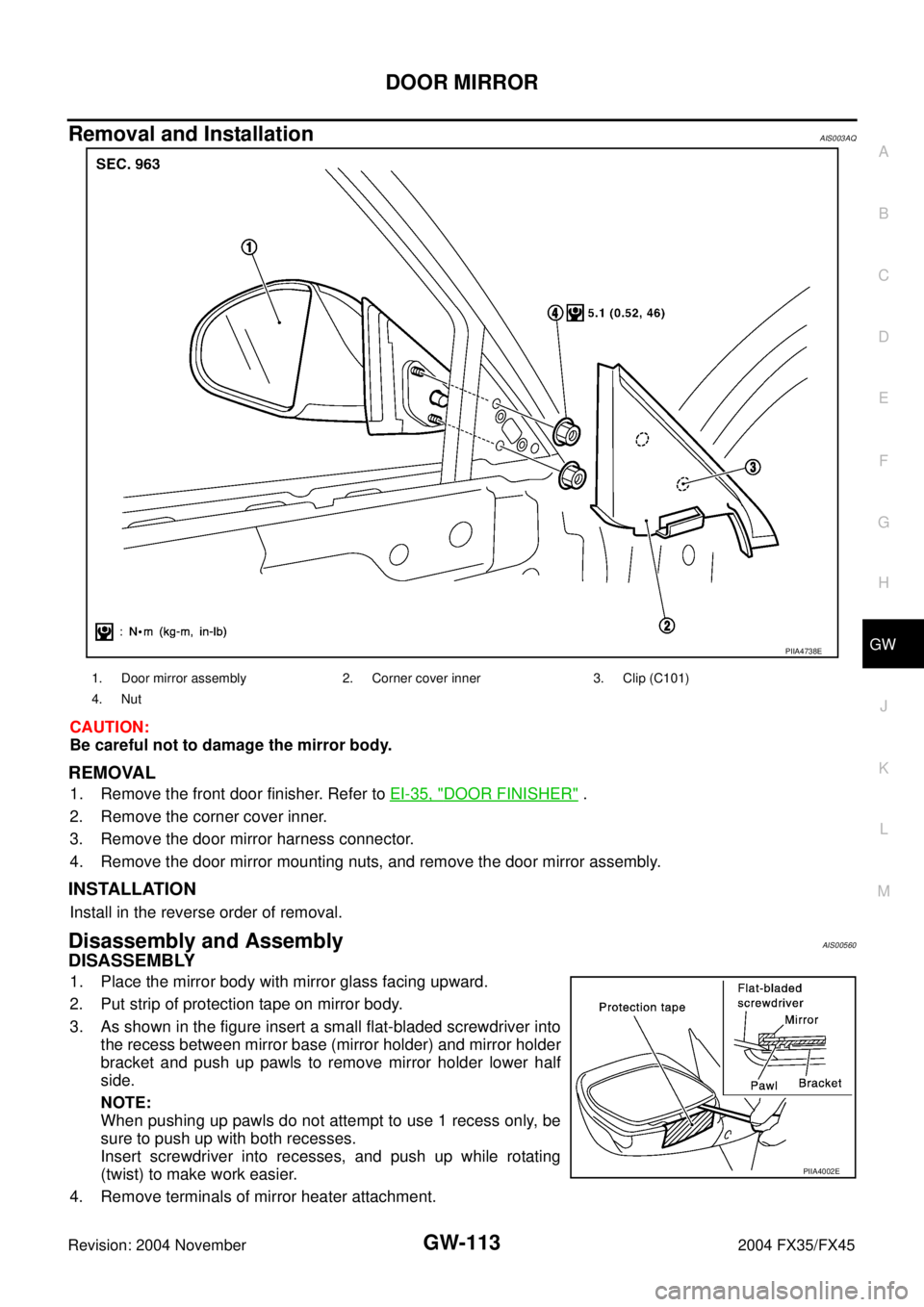

1. Door mirror assembly 2. Corner cover inner 3. Clip (C101)
4. Nut
PIIA4002E
