Window INFINITI FX35 2004 Repair Manual

DTC P0441 EVAP CONTROL SYSTEM
EC-977
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 70 seconds.
4. Select “PURG FLOW P0441” of “EVAPORATIVE SYSTEM” in “DTC CONFIRMATION” mode with CON-
SULT-II.
5. Touch “START”.
If “COMPLETED” is displayed, go to step 7.
6. When the following conditions are met, “TESTING” will be displayed on the CONSULT-II screen. Maintain
the conditions continuously until “TESTING” changes to “COMPLETED”. (It will take at least 35 seconds.)
If “TESTING” is not changed for a long time, retry from step 2.
7. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”. If “NG” is displayed, refer to EC-
978, "Diagnostic Procedure" .
Overall Function CheckABS00C5K
Use this procedure to check the overall monitoring function of the EVAP control system purge flow monitoring.
During this check, a 1st trip DTC might not be confirmed.
WITH GST
1. Lift up drive wheels.
2. Start engine (VDC switch OFF) and warm it up to normal operating temperature.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Start engine and wait at least 70 seconds.
5. Set voltmeter probes to ECM terminals 32 (EVAP control system
pressure sensor signal) and ground.
6. Check EVAP control system pressure sensor value at idle speed
and note it.
7. Establish and maintain the following conditions for at least 1
minute.
8. Verify that EVAP control system pressure sensor value stays 0.1V less than the value at idle speed (mea-
sured at step 6) for at least 1 second.
Selector lever Suitable position
VHCL SPEED SE 32 - 120 km/h (20 - 75 MPH)
ENG SPEED 500 - 3,000 rpm
B/FUEL SCHDL 1.0 - 10.0 msec
COOLAN TEMP/S 70 - 100°C (158 - 212°F)
PBIB0826E
Air conditioner switch ON
Headlamp switch ON
Rear window defogger switch ON
Engine speed Approx. 3,000 rpm
Gear position Any position other than P, N or R
PBIB1109E

EC-1292
[VK45DE]
ELECTRICAL LOAD SIGNAL
Revision: 2004 November 2004 FX35/FX45
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionABS00CF4
The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
through the CAN communication line from BCM to ECM via IPDM E/R.
CONSULT-II Reference Value in Data Monitor ModeABS00CF5
Specification data are reference values.
Diagnostic ProcedureABS00CF6
1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Connect CONSULT-II and select “DATA MONITOR” mode.
3. Select “LOAD SIGNAL” and check indication under the following
conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check “LOAD SIGNAL” indication under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
3. CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to GW-86, "
REAR WINDOW DEFOGGER" .
>>INSPECTION END
4. CHECK HEADLAMP SYSTEM
Refer to LT- 7 , "
HEADLAMP - XENON TYPE -" .
>>INSPECTION END
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL

Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2ndON
Rear window defogger switch is OFF
and lighting switch is OFFOFF
Condition Indication
Rear window defogger switch ON ON
Rear window defogger switch OFF OFF
PBIB0103E
Condition Indication
Lighting switch ON at 2nd position ON
Lighting switch OFF OFF
PBIB0103E

EC-1336
[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureABS00CG2
Idle Speed and Ignition TimingABS00CG3
*1: Under the following conditions:

Air conditioner switch: OFF

Electric load: OFF (Lights, heater fan & rear window defogger)

Steering wheel: Kept in straight-ahead position
Calculated Load ValueABS00CG4
Mass Air Flow SensorABS00CG5
*: Engine is warmed up to normal operating temperature and running under no-load.
Intake Air Temperature SensorABS00CG6
Engine Coolant Temperature SensorABS00CG7
Heated Oxygen Sensor 1 HeaterABS00CG8
Heated Oxygen Sensor 2 HeaterABS00CG9
Crankshaft Position Sensor (POS)ABS00CGA
Refer to EC-964, "Component Inspection" .
Camshaft Position Sensor (PHASE)ABS00CGB
Refer to EC-970, "Component Inspection" .
Throttle Control MotorABS00CGC
Fuel pressure at idling kPa (kg/cm2 , psi)Approximately 350 (3.57, 51)
Target idle speed
No-load*1 (in P or N position)650±50 rpm
Air conditioner: ON In P or N position 700 rpm or more
Ignition timing In P or N position 12° ± 5° BTDC
Condition Calculated load value% (Using CONSULT-II or GST)
At idle14.0 - 33.0
At 2,500 rpm12.0 - 25.0
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle1.2 - 1.8V*
Mass air flow (Using CONSULT-II or GST)2.0 - 6.0 g·m/sec at idle*
7.0 - 20.0 g·m/sec at 2,500 rpm*
Temperature °C (°F) Resistance kΩ
25 (77)1.9 - 2.1
80 (176)0.31 - 0.37
Temperature °C (°F) Resistance kΩ
20 (68)2.1 - 2.9
50 (122)0.68 - 1.00
90 (194)0.236 - 0.260
Resistance [at 25°C (77°F)] 3.3 - 4.0Ω
Resistance [at 25°C (77°F)] 5.0 - 7.0Ω
Resistance [at 25°C (77°F)] Approximately 1 - 15Ω

EI-2Revision: 2004 November 2004 FX35/FX45 BACK DOOR WINDOW MOLDING .......................... 31
Removal and Installation ........................................ 31
REMOVAL ........................................................... 31
INSTALLATION .................................................... 31
ROOF SIDE MOLDING ............................................. 33
Removal and Installation ........................................ 33
REMOVAL ........................................................... 33
INSTALLATION .................................................... 33
ROOF RAIL ............................................................... 34
Removal and Installation ........................................ 34
REMOVAL ........................................................... 34
INSTALLATION .................................................... 34
ROOF RAIL BRACKET ....................................... 34
DOOR FINISHER ...................................................... 35
Removal and Installation ........................................ 35
DOOR FINISHER (FRONT AND REAR) ............. 35
BODY SIDE TRIM ..................................................... 37
Removal and Installation ........................................ 37
CENTER PILLAR LOWER GARNISH ................. 37
CENTER PILLAR UPPER GARNISH .................. 38
DASH SIDE FINISHER ....................................... 38
FRONT PILLAR GARNISH ................................. 39
KICKING PLATE .................................................. 39
CENTER MUDGUARD FINISHER (FRONT/REAR) .................................................................. 39
FLOOR TRIM ............................................................. 40
Removal and Installation ......................................... 40
REMOVAL ............................................................ 40
INSTALLATION .................................................... 41
HEADLINING ............................................................. 42
Removal and Installation ......................................... 42
REMOVAL ............................................................ 43
INSTALLATION .................................................... 43
LUGGAGE FLOOR TRIM ......................................... 44
Removal and Installation ......................................... 44
REMOVAL ............................................................ 45
INSTALLATION .................................................... 45
BACK DOOR TRIM ................................................... 46
Removal and Installation ......................................... 46
REMOVAL ............................................................ 46
INSTALLATION .................................................... 46
BACK DOOR OUTSIDE FINISHER ..................... 46

EI-26
DOOR OUTSIDE MOLDING
Revision: 2004 November 2004 FX35/FX45
DOOR OUTSIDE MOLDING PFP:82820
Removal and InstallationAIS0037E
FRONT DOOR OUTSIDE MOLDING
Removal
1. Open windows fully.
2. Remove door mirror. Refer to GW-113, "
Removal and Installation" .
3. Disconnect pawl on rear edge of molding.
4. Lift up to upper side, and remove molding.
Installation
Install in the reverse order of removal.
REAR DOOR OUTSIDE MOLDING
Removal
1. Open windows fully.
2. Disconnect pawl on front edge and rear edge of molding.
3. Lift up to upper side, and remove molding.
Installation
Install in the reverse order of removal.
1. Rear door outside molding 2. Rear door panel 3. Front door panel
4. Front door outside molding
PIIA4949E

BACK DOOR WINDOW MOLDING
EI-31
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45

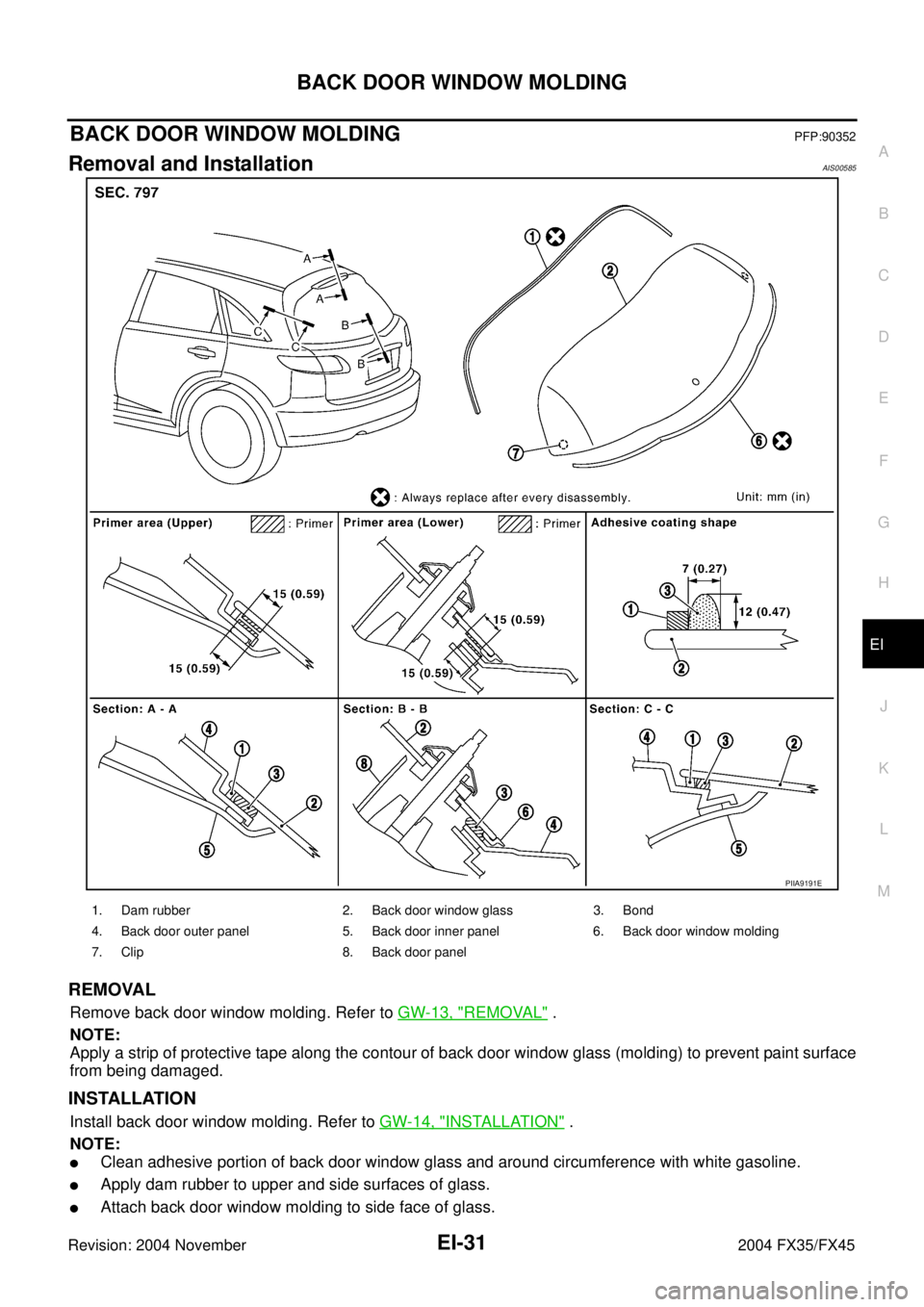

BACK DOOR WINDOW MOLDINGPFP:90352
Removal and InstallationAIS00585
REMOVAL
Remove back door window molding. Refer to GW-13, "REMOVAL" .
NOTE:
Apply a strip of protective tape along the contour of back door window glass (molding) to prevent paint surface
from being damaged.
INSTALLATION
Install back door window molding. Refer to GW-14, "INSTALLATION" .
NOTE:

Clean adhesive portion of back door window glass and around circumference with white gasoline.

Apply dam rubber to upper and side surfaces of glass.

Attach back door window molding to side face of glass.
PIIA9191E
1. Dam rubber 2. Back door window glass 3. Bond
4. Back door outer panel 5. Back door inner panel 6. Back door window molding
7. Clip 8. Back door panel

EI-32
BACK DOOR WINDOW MOLDING
Revision: 2004 November 2004 FX35/FX45

Back door window molding should not overlap on the surface of back door window glass.

SERVICE INFORMATION FOR ELECTRICAL INCIDENT
GI-29
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2004 November 2004 FX35/FX45
UNDER SEATING AREAS
An unclamped or loose harness can cause wiring to be pinched by seat components (such as slide guides)
during vehicle vibration. If the wiring runs under seating areas, inspect wire routing for possible damage or
pinching.

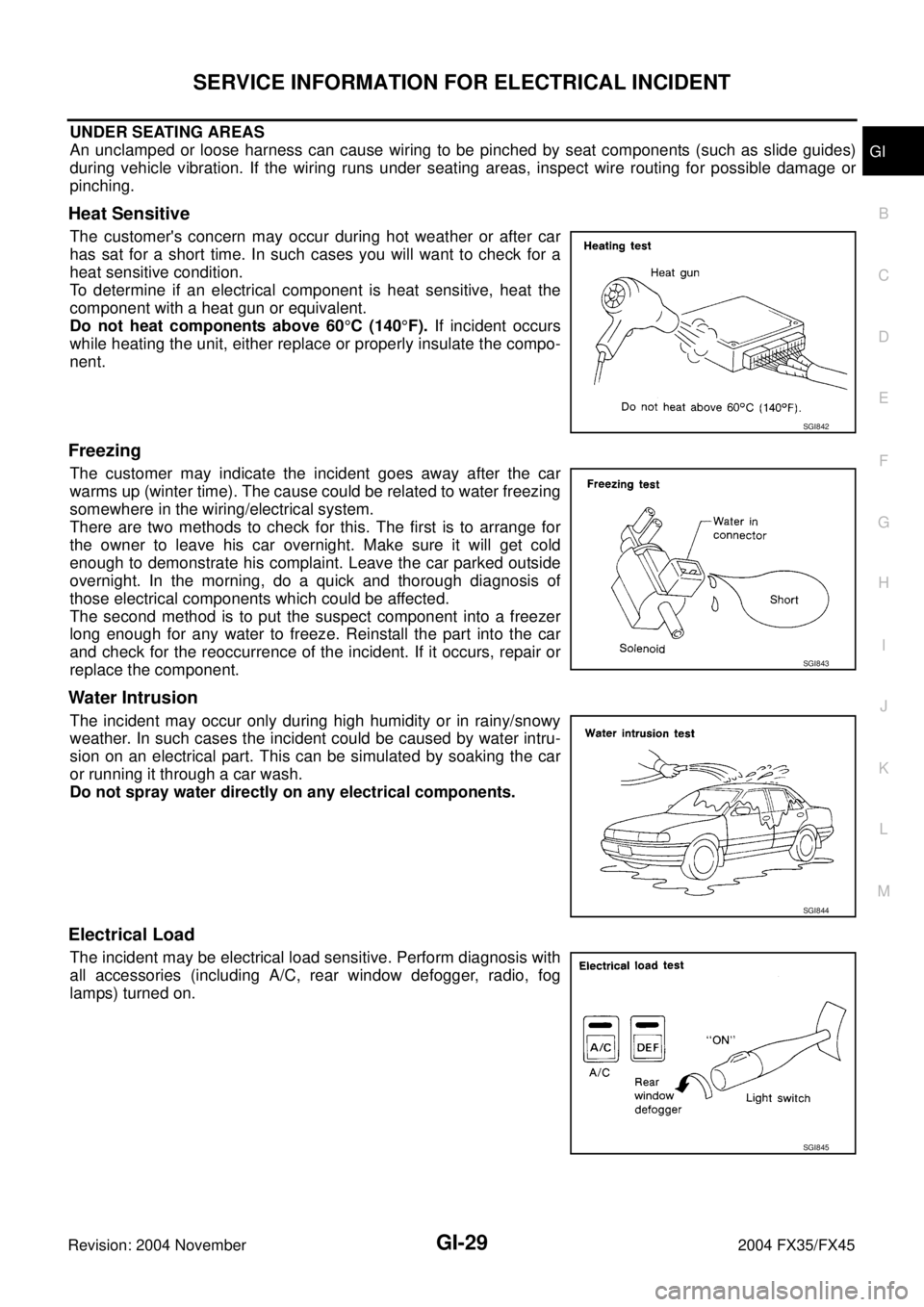

Heat Sensitive
The customer's concern may occur during hot weather or after car
has sat for a short time. In such cases you will want to check for a
heat sensitive condition.
To determine if an electrical component is heat sensitive, heat the
component with a heat gun or equivalent.
Do not heat components above 60°C (140°F). If incident occurs
while heating the unit, either replace or properly insulate the compo-
nent.
Freezing
The customer may indicate the incident goes away after the car
warms up (winter time). The cause could be related to water freezing
somewhere in the wiring/electrical system.
There are two methods to check for this. The first is to arrange for
the owner to leave his car overnight. Make sure it will get cold
enough to demonstrate his complaint. Leave the car parked outside
overnight. In the morning, do a quick and thorough diagnosis of
those electrical components which could be affected.
The second method is to put the suspect component into a freezer
long enough for any water to freeze. Reinstall the part into the car
and check for the reoccurrence of the incident. If it occurs, repair or
replace the component.
Water Intrusion
The incident may occur only during high humidity or in rainy/snowy
weather. In such cases the incident could be caused by water intru-
sion on an electrical part. This can be simulated by soaking the car
or running it through a car wash.
Do not spray water directly on any electrical components.
Electrical Load
The incident may be electrical load sensitive. Perform diagnosis with
all accessories (including A/C, rear window defogger, radio, fog
lamps) turned on.
SGI842
SGI843
SGI844
SGI845

GI-48
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
Revision: 2004 November 2004 FX35/FX45
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTSPFP:00000
Recommended Chemical Products and SealantsAAS000EK
Refer to the following chart for help in selecting the appropriate chemical product or sealant.
Product Description PurposeNissan North America
Part No. (USA)Nissan Canada Part
No. (Canada)Aftermarket Cross-
reference Part Nos.
1Rear View Mirror
AdhesiveUsed to permanently
remount rear view mirrors
to windows.999MP-AM000P 99998-50505 Permatex 81844
2Anaerobic Liquid Gas-
ketFor metal-to-metal flange
sealing.
Can fill a 0.38 mm (0.015
inch) gap and provide
instant sealing for most
powertrain applications.999MP-AM001P 99998-50503Permatex 51813 and
51817
3High Performance
Thread SealantProvides instant sealing on
any threaded straight or
parallel threaded fitting.
(Thread sealant only, no
locking ability.)

Do not use on plastic.999MP-AM002P 999MP-AM002P Permatex 56521
4 Silicone RTVGasket Maker999MP-AM003P
(Ultra Grey)99998-50506
(Ultra Grey)Permatex Ultra Grey
82194;
Three Bond
1207,1215, 1216,
1217F and 1217G;
Nissan RTV Part No.
999MP-A7007
Gasket Maker for Maxima/
Quest 5-speed automatic
transmission
(RE5F22A)––Three Bond 1281B
or exact equivalent
in its quality
5High Temperature,
High Strength Thread
Locking Sealant (Red)Threadlocker 999MP-AM004P 999MP-AM004PPermatex 27200;
Three Bond 1360,
1360N, 1305 N&P,
1307N, 1335,
1335B, 1363B,
1377C, 1386B, D&E
and 1388
6Medium Strength
Thread Locking Seal-
ant (Blue)Threadlocker (service tool
removable)999MP-AM005P 999MP-AM005PPermatex 24200,
24206, 24240,
24283 and 09178;
Three Bond 1322,
1322N, 1324 D&N,
1333D, 1361C,
1364D, 1370C and
1374

GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION GW
A
B
GW
Revision: 2004 November 2004 FX35/FX45
GLASSES, WINDOW SYSTEM & MIRRORS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Handling for Adhesive and Primer ........................... 3
Wiring Diagrams and Trouble Diagnosis .................. 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
WINDSHIELD GLASS ...............................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION ................................................... 12
REAR WINDOW GLASS AND MOLDING ............... 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 14
POWER WINDOW SYSTEM .................................... 15
Component Parts and Harness Connector Location ... 15
System Description ................................................ 16
WITH FRONT POWER WINDOW ANTI-PINCH
SYSTEM ............................................................. 16WITH FRONT AND REAR WINDOW ANTI-
PINCH SYSTEM ................................................. 16
MANUAL OPERATION ........................................ 17
AUTO OPERATION ............................................. 19
POWER WINDOW SERIAL LINK ....................... 20
POWER WINDOW LOCK ................................... 20
RETAINED POWER OPERATION ...................... 21
ANTI-PINCH SYSTEM ........................................ 21
POWER WINDOW CONTROL BY THE KEY
CYLINDER SWITCH ........................................... 21
CAN Communication System Description .............. 22
CAN Communication Unit ....................................... 22
Schematic (With Front Power Window Anti-pinch
System) .................................................................. 23
Wiring Diagram —WINDOW— (With Front Power
Window Anti-pinch System) .................................... 24
Terminal and Reference Value for BCM / With Front
Power Window Anti-pinch System .......................... 28
Terminal and Reference Value for Power Window
Main Switch / With Front Power Window Anti-pinch
System .................................................................... 29
Terminal and Reference Value for Front Power Win-
dow Switch (Passenger Side) / With Front Power
Window Anti-pinch System ..................................... 30
Schematic (With Front and Rear Power Window
Anti-pinch System) ................................................. 31
Wiring Diagram —WINDOW— (With Front and
Rear Power Window Anti-pinch System) ................ 32
Terminal and Reference Value for BCM / With Front
and Rear Power Window Anti-pinch ....................... 37
Terminal and Reference Value for Power Window
Main Switch / With Front and Rear Power Window
Anti-pinch System ................................................... 38
Terminal and Reference Value for (Front and Rear)
Power Window Switch / With Front and Rear Win-
dow Anti-pinch System ........................................... 39
Work Flow ............................................................... 39
CONSULT-II Inspection Procedure ......................... 40
ACTIVE TEST ..................................................... 41
WORK SUPPORT ............................................... 41
