ALPHABETICAL INDEX
C
Camshaft inspection(VK45DE) ........................ EM-209
Camshaft inspection(VQ35DE) ......................... EM-84
Camshaft position sensor (PHASE) .. EC-308, EC-966
Camshaft(VK45DE) ......................................... EM-208
Camshaft(VQ35DE) ........................................... EM-82
CAN .................................................................... DI-29
CAN - Wiring diagram ......... EC-143, EC-793, LAN-22,
LAN-53
, LAN-89, LAN-135, LAN-169, LAN-208
CAN (Controller Area Network) . BL-25, BL-59, BL-93,
BL-185
, GW-22, GW-88, RF-13, SE-16, LAN-6, LAN-21,
LAN-52
, LAN-87, LAN-133, LAN-167, LAN-206
CAN communication EC-36, EC-142, EC-684, EC-792,
AT-31
, AT-105, TF-12, TF-31, WT-9, BRC-11, BL-25,
BL-59
, BL-93, BL-185, GW-22, GW-88, RF-13, SE-16,
WW-9
, LAN-6, LAN-21, LAN-52, LAN-87, LAN-133,
LAN-167
, LAN-206
Canister-See EVAP canister ........... EC-646, EC-1323
CHARGE - Wiring diagram ................................ SC-24
Charging system ................................................ SC-23
Chassis and body maintenance ........................ MA-28
CHIME - Wiring diagram ..................................... DI-59
CIGAR - Wiring diagram .................................. WW-52
Cigarette lighter ............................................... WW-52
Cigarette lighter illumination ............................. LT-156
Circuit breaker ................................................... PG-17
Clock ................................................................... DI-79
CLOCK - Wiring diagram .................................... DI-79
Closed loop control .............................. EC-33, EC-680
Collision diagnosis ........................................... SRS-56
Combination lamp, rear, removal and installation ........
LT-147
Combination meter ............................................... DI-4
Combination meter removal and installation - See
Instrument panel .................................................. IP-11
COMM - Wiring diagram ...................... AV-69, AV-116
COMPAS - Wiring diagram ................................. DI-37
Compass ............................................................ DI-35
Component Location (auto A/C) ...................... ATC-43
Compression pressure(VK45DE) .................... EM-224
Compression pressure(VQ35DE) ...................... EM-98
Compressor clutch removal and installation .. ATC-143
Compressor special service tool ...................... ATC-17
Condenser ..................................................... ATC-154
Connecting rod bearing clearance(VK45DE) .. EM-263
Connecting rod bearing clearance(VQ35DE) .. EM-138
Connecting rod bushing clearance(VK45DE) .. EM-258
Connecting rod bushing clearance(VQ35DE) . EM-138
Connecting rod(VK45DE) ................................ EM-258
Connecting rod(VQ35DE) ................................ EM-136
Console box - See Instrument panel ................... IP-10
CONSULT for VDC ......................................... BRC-25
CONSULT-II Reference value (A/T) .................. AT-91
Control units (terminal arrangement) ................. PG-77
Control valve (A/T) ............................................. AT-36
Controller Area Network (CAN) . BL-25, BL-59, BL-93,
BL-185
, GW-22, GW-88, RF-13, SE-16, LAN-6, LAN-21,
LAN-52
, LAN-87, LAN-133, LAN-167, LAN-206
Converter housing installation ........... AT-268, AT-272
COOL/F - Wiring diagram ................ EC-477, EC-1145
Coolant replacement(VQ35DE) ........................ MA-15
Cooling circuit (engine)(VK45DE) ..................... CO-34
Cooling circuit (engine)(VQ35DE) ...................... CO-9
Cooling fan motor ............................ EC-484, EC-1151
Cooling fan(VK45DE) ....................................... CO-47
Cooling fan(VQ35DE) ....................................... CO-21
Cowl top .............................................................. EI-24
Cowl top cover .................................................... EI-24
Crankcase ventilation system - See Positive crankcase
ventilation ......................................... EC-655
, EC-1332
Crankshaft position sensor (POS) ..... EC-302, EC-960
Crankshaft(VK45DE) ...................................... EM-241
Crankshaft(VQ35DE) ...................................... EM-136
Crash zone sensor .......................................... SRS-45
Cylinder block boring(VK45DE) ...................... EM-261
Cylinder block(VK45DE) ................................. EM-240
Cylinder block(VQ35DE) ................................. EM-120
Cylinder head bolt tightening(VK45DE) .......... EM-226
Cylinder head bolt tightening(VQ35DE) .......... EM-101
Cylinder head(VK45DE) ................................. EM-224
Cylinder head(VQ35DE) ................................... EM-98
D
D/LOCK - Wiring diagram ....................... BL-27
, BL-33
Daytime light system ........................................... LT-38
Daytime running light - See Daytime light system LT-38
Diagnosis sensor unit ..................................... SRS-48
Diagnostic trouble code (DTC) for OBD system EC-15,
EC-662
Direct clutch solenoid valve ............... AT-160, AT-162
Display and amp.assembly ............... ATC-51, ATC-63
Door glass ........................................... GW-76, GW-80
Door glass Fitting Adjustment(Front) ................ GW-78
Door glass Fitting Adjustment(Rear) ................. GW-83
Door lock .......................................................... BL-152
Door mirror ...................................................... GW-113
Door trim ............................................................. EI-35
Door, front ........................................... BL-148, GW-76
Door, rear ............................................ BL-148, GW-80
Drive belt inspection ......................................... MA-21
Drive belt inspection(VQ35DE) ......................... MA-14
Drive belt(VK45DE) ........................................ EM-169
Drive belt(VQ35DE) .......................................... EM-15
Drive pinion diff. inspection ............................. RFD-13
Drive shaft ......................................................... MA-37
Drive shaft (rear) ............................................... RAX-9
Driver air bag .................................................. SRS-36
DTRL - Wiring diagram ....................................... LT-41
Duct and grilles .............................................. ATC-133
E
ECM power supply EC-136
, EC-404, EC-785, EC-1060
ECM/PW - Wiring diagram ............... EC-405, EC-1061
ECTS - Wiring diagram ...................... EC-187, EC-844
Electric sunroof .................................................. RF-10

IDX-5
A
C
D
E
F
G
H
I
J
K
L B
IDX
ALPHABETICAL INDEX
LT-73
Headlining - See Roof trim .................................. EI-42
Heated oxygen sensor 1 (bank 1) .... EC-205, EC-214,
EC-226
, EC-433, EC-439, EC-863, EC-872, EC-884,
EC-1103
, EC-1109
Heated oxygen sensor 1 (bank 2) .... EC-205, EC-214,
EC-226
, EC-433, EC-439, EC-863, EC-872, EC-884,
EC-1103
, EC-1109
Heated oxygen sensor 1 heater (bank 1) ....... EC-149,
EC-806
Heated oxygen sensor 1 heater (bank 2) ....... EC-149,
EC-806
Heated oxygen sensor 2 (bank 1) .... EC-236, EC-245,
EC-446
, EC-457, EC-894, EC-903, EC-1116, EC-1127
Heated oxygen sensor 2 (bank 2) .... EC-236, EC-245,
EC-446
, EC-457, EC-894, EC-903, EC-1116, EC-1127
Heated oxygen sensor 2 heater (bank 1) ....... EC-157,
EC-814
Heated oxygen sensor 2 heater (bank 2) ....... EC-157,
EC-814
Heated seat ....................................................... SE-98
Heater and cooling unit (Heater core) ........... ATC-126
HFC134a (R134a) system precaution ............... ATC-5
HFC134a (R134a) system service procedure ATC-137
HFC134a (R134a) system service tools .......... ATC-18
HFC134a system service equipment precaution ..........
ATC-13
High & low reverse clutch solenoid valve ....... AT-164,
AT-166
Hood ................................................................... BL-14
Horn ................................................................. WW-56
HORN - Wiring diagram ................................... WW-56
HSEAT - Wiring diagram ................................... SE-99
I
IATS - Wiring diagram ....................... EC-182
, EC-839
ICC - Wiring diagram ....................................... ACS-20
ICC/BS - Wiring diagram ................. EC-524, EC-1191
ICC/SW - Wiring diagram ................ EC-510, EC-1176
ICCBOF - Wiring diagram ................ EC-616, EC-1294
Idle air volume learning ....................... EC-49, EC-698
Idle mixture ratio .................................. EC-38, EC-687
Idle speed ............................................ EC-38, EC-687
Idle speed control (ISC) .... EC-392, EC-394, EC-1048,
EC-1050
Ignition coil ....................................... EC-585, EC-1262
Ignition coil(VK45DE) ...................................... EM-185
Ignition coil(VQ35DE) ........................................ EM-42
Ignition control system ..................... EC-585, EC-1262
Ignition key hole illumination ............................. LT-153
Ignition timing ...................................... EC-38, EC-687
IGNSYS - Wiring diagram ................ EC-586, EC-1263
Illumination control ............................................ LT-197
In vehicle sensor ........................... ATC-107, ATC-118
INF/D - Wring diagram ....................................... AV-63
INJECT - Wiring diagram ................. EC-598, EC-1275
Injector ............................................. EC-597, EC-1274
Input clutch solenoid valve ................. AT-152, AT-154
Instrument panel ................................................. IP-10
Intake air temperature sensor ........... EC-180, EC-200,
EC-837
, EC-858
Intake door control linkage adjustment ............ ATC-78
Intake door motor ............................ ATC-76, ATC-124
Intake manifold(VK45DE) ............................... EM-174
Intake manifold(VQ35DE) ................................. EM-24
Intake sensor ................................ ATC-113, ATC-120
Intake valve timing control (Bank 1) ... EC-145, EC-795
Intake valve timing control (Bank 2) ... EC-145, EC-795
Intake valve timing control position sensor (Bank 1) ....
EC-1095
Intake valve timing control position sensor (Bank 2) ....
EC-1095
Intake valve timing control solenoid valve (Bank 1) ......
EC-408
, EC-1070
Intake valve timing control solenoid valve (Bank 2) ......
EC-408
, EC-1070
Integrated homelink transmitter ....................... BL-228
Intelligent cruise control (ICC) system .............. ACS-6
Interior ................................................................. EI-37
Interior lamp ...................................................... LT-157
IPDM (Intelligent power distribution module engine
room) ................................................................. PG-18
IVCB1 - Wiring diagram .... EC-409, EC-798, EC-1071
IVCB2 - Wiring diagram .... EC-411, EC-800, EC-1073
IVCSB1 - Wiring diagram ............................... EC-1096
IVCSB2 - Wiring diagram ............................... EC-1098
IVIS (Infiniti vehicle immobilizer system) precautions ...
GI-3
J
Joint connector (J/C) .......................................... PG-76
K
Knock sensor (KS) ............................. EC-297
, EC-955
KS - Wiring diagram ........................... EC-298, EC-956
L
LAN system circuit ........................................... ATC-66
Laser beam aiming adjustment ....................... ACS-12
Latch (lower anchors and tether for children) system ...
SB-11
Line pressure solenoid valve ........................... AT-127
Line pressure test (A/T) ..................................... AT-52
Liquid gasket application ................................... LU-21
Liquid gasket application(VQ35DE) EM-6, LU-3, CO-3
Location of electrical units ................................. PG-70
Low coast brake solenoid valve ......... AT-168, AT-170
Low tire pressure warning system ...................... WT-7
Lubricant (R134a) A/C ........................ ATC-7, ATC-27
Lubrication circuit (engine)(VK45DE) ................ LU-23
Lubrication circuit (engine)(VQ35DE) .................. LU-5
Lubrication oil A/C .......................................... ATC-161

IDX-6
ALPHABETICAL INDEX
M
M/ANT - Wiring diagram .................................... AV-50
MAFS - Wiring diagram ..... EC-168, EC-175, EC-825,
EC-832
, EC-1066
Magnet clutch ................................. ATC-84, ATC-143
MAIN - Wiring diagram ...................... EC-136, EC-785
Maintenance (engine)(VQ35DE) ...................... MA-14
Major overhaul (Final drive) ............................ RFD-14
Major overhaul (Transfer) .................................. TF-45
Mass air flow sensor (MAFS) ............ EC-165, EC-173,
EC-822
, EC-830, EC-1064
Meter ..................................................................... DI-4
METER - Wiring diagram ...................................... DI-9
MIL data link connectors circuit ....... EC-641, EC-1318
MIL/DL - Wiring diagram .................. EC-641, EC-1318
Mirror, door ..................................................... GW-113
Mirror, out side ................................................ GW-113
Misfire ................................................ EC-291, EC-949
Mode door control linkage adjustment ............. ATC-72
Mode door motor ............................ ATC-70, ATC-130
Molding - See Exterior ................... EI-26, EI-30, EI-33
Multiport fuel injection (MFI) system .... EC-32, EC-679
Multiport fuel injection precautions ....................... GI-7
N
NATS - Wiring diagram .................................... BL-209
NAVI - Wiring diagram ..................................... AV-107
Navigation system ............................................. AV-88
Nissan torque demand (NTD) control system .. EC-682
NVH troubleshooting (EM) .............................. EM-166
NVH troubleshooting (EM)(VQ35DE) ............... EM-13
NVH troubleshooting (Transfer) ........................... TF-7
NVIS (Nissan vehicle immobilizer system) precautions
GI-3
O
O2H1B1 - Wiring diagram .................. EC-151
, EC-808
O2H1B2 - Wiring diagram .................. EC-153, EC-810
O2H2B1 - Wiring diagram .................. EC-159, EC-816
O2H2B2 - Wiring diagram .................. EC-161, EC-818
O2S1B1 - Wiring diagram .. EC-207, EC-217, EC-229,
EC-865
, EC-875, EC-887
O2S1B2 - Wiring diagram .. EC-209, EC-219, EC-231,
EC-867
, EC-877, EC-889
O2S2B1 - Wiring diagram .. EC-238, EC-248, EC-449,
EC-460
, EC-896, EC-906, EC-1119, EC-1130
O2S2B2 - Wiring diagram .. EC-240, EC-250, EC-451,
EC-462
, EC-898, EC-908, EC-1121, EC-1132
Oil cooler (engine)(VQ35DE) ............................. LU-14
Oil filter(VK45DE) .............................................. LU-28
Oil filter(VQ35DE) .............................................. LU-10
Oil pan (engine)(VK45DE) .............................. EM-181
Oil pan (engine)(VQ35DE) ................................ EM-30
Oil pressure (engine)(VK45DE) ......................... LU-25
Oil pressure (engine)(VQ35DE) ........................... LU-8
Oil pressure relief valve (engine)(VQ35DE) ........ LU-6
Oil pump (A/T) ................................................. AT-303
Oil pump (engine)(VK45DE) .............................. LU-31
Oil pump (engine)(VQ35DE) .............................. LU-17
Oil pump regulator valve (engine)(VK45DE) ...... LU-31
Oil pump regulator valve (engine)(VQ35DE) ..... LU-17
Oil seal replacement (engine)(VK45DE) ......... EM-221
Oil seal replacement (engine)(VQ35DE) .......... EM-94
Oil seal replacement (front of final drive) FFD-7, RFD-7
Oil seal replacement (side of final drive) FFD-9, RFD-9
ORVR (On-board Refueling Vapor Recovery) EC-650,
EC-1327
Out side mirror ............................................... GW-113
Overheat ........................................................ EC-1142
P
P/SCKT - Wiring diagram ................................ WW-54
Park/Neutral position switch ........... EC-545, EC-1211
Park/neutral position switch (A/T) .................... AT-112
Parking brake control ........................................... PB-3
PCV (positive crankcase ventilation) EC-655, EC-1332
Personal lamp ..................................... LT-151, LT-184
PGC/V - Wiring diagram .... EC-337, EC-496, EC-992,
EC-1162
PHSB1 - Wiring diagram .................................. EC-309
PHSB2 - Wiring diagram .................................. EC-311
Pilot bushing replacement - See Pilot
converter(VQ35DE) ........................................ EM-121
Piston assembly(VK45DE) ............................. EM-250
Piston assembly(VQ35DE) ............................. EM-131
Piston pin inspection(VK45DE) ....................... EM-256
Piston pin inspection(VQ35DE) ...................... EM-136
Piston ring inspection(VK45DE) ..................... EM-257
Piston ring inspection(VQ35DE) ..................... EM-137
Piston to bore clearance(VK45DE) ................. EM-260
Piston to bore clearance(VQ35DE) ................ EM-140
PNP/SW - Wiring diagram .............. EC-547, EC-1213
POS - Wiring diagram ....................... EC-303, EC-961
POWER - Wiring diagram ................................... PG-4
Power door mirror .............................................. BL-22
Power seat ......................................................... SE-93
Power socket ................................................... WW-54
Power steering fluid level ........................ PS-8, MA-36
Power steering gear ........................................... PS-19
Power steering hydraulic pressure .................... PS-31
Power steering oil pump .................................... PS-31
Power steering system bleeding .......................... PS-8
Power supply routing .......................................... PG-3
Power window .................................................. GW-15
PRE/SE - Wiring diagram EC-354, EC-360, EC-1009,
EC-1016
Precations for Leak detection dye .................. ATC-16
Precautions (General) ........................................... GI-4
Pressure switch 1 .............................. AT-158, AT-178
Pressure switch 2 ............................................ AT-170
Pressure switch 3 .............................. AT-154, AT-180
Pressure switch 5 .............................. AT-162, AT-182
Pressure switch 6 .............................. AT-166, AT-184
Pressure test (A/T) ............................................. AT-52

PREPARATION
IP-3
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsAIS003CD
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsAIS003CE
Tool number
(Kent-Moore No.)
Tool nameDescription
(J-39570)
Chassis earLocating the noise
(J-43980)
NISSAN Squeak and Rattle
KitRepairing the cause of noise
SIIA0993E
SIIA0994E
Tool nameDescription
Engine earLocating the noise
Power tool
SIIA0995E
PIIB1407E

IP-12
INSTRUMENT PANEL ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
( ): Number indicates step in removal procedures.
REMOVAL
(A) Front Kicking Plate (LH/RH)
Remove front kicking plate (LH/RH). Refer to EI-37, "BODY SIDE TRIM" .
(B) Dash Side Finisher (LH/RH)
1. Remove plastics nut.
2. Remove dash side finisher (LH/RH). Refer to EI-37, "
BODY SIDE TRIM" .
(C) Front Pillar Garnish (LH/RH)
Pull to inside of vehicle, disengage metal clips and remove front pillar garnish. Refer to EI-37, "BODY SIDE
TRIM" .
(D) A/T Select Lever Knob
1. Pull down knob cover.
2. Remove lock-pin of select lever knob.
3. Lift up select lever knob and remove it. Refer to AT- 2 3 3 , "
Control Device Removal and Installation" .
(E) Instrument Clock Finisher
1. Insert a remover into side between gaps of instrument clock fin-
isher and pull back to your side.
2. Disconnect clips and harness connector, and remove instrument
clock finisher.
(F) A/T Console Finisher
1. Insert a remover into side between gaps of A/T console finisher
and remove by lifting A/T console finisher.
2. Disconnect harness connector.
(G) Console Finisher (LH/RH)
1. Remove screws with power tool.
2. Remove console finisher (LH/RH).
(H) Center Console
1. Remove screws with power tool.
2. Remove console sub-harness
PIIA4997E
PIIA4996E
PIIA5001E

INSTRUMENT PANEL ASSEMBLY
IP-13
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
3. After removing, disassemble, each parts.
CAUTION:
When removing console, be careful not to pull the harness.
(I) Instrument Lower Cover
1. Pull down front instrument lower cover, and disconnect clips.
2. Pull it horizontally, and remove from lower cover pawls.
(J) Instrument Passenger Lower Panel
Remove screws with power tool, and disconnect harness connector,
and remove instrument passenger lower panel.
(K) Instrument Driver Lower Panel
1. Remove bolt and screws with power tool.
2. Remove data link connector.
3. Pull to disengage clip and pawl by removing panel in horizontal direction.
4. Disconnect in-vehicle sensor and each electrical parts.
5. Remove the grommet, and remove hood lock cable.
(L) Steering Column Front Lower Cover
1. Remove screw with power tool.
2. Disengage the tab, then remove steering column front lower cover.
NOTE:

Move the steering column telescopic to the rear most position

Move the steering column tilt to the top position.
(M) Steering Column Lower Cover
1. Remove screws with power tool.
2. Disengage the tab, then remove steering column lower cover.
PIIA5007E
PIIA4995E
PIIA4998E

IP-14
INSTRUMENT PANEL ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
(N) Steering Column Upper Cover
Remove the steering column upper cover.
(O) Wiper and Washer Switch
Remove wiper and washer switch. Refer to WW-33, "Removal and Installation of Front Wiper and Washer
Switch" .
(P) Lighting and Turn Signal Switch
Remove lighting and turn signal switch.Refer to LT- 1 0 8 , "LIGHTING AND TURN SIGNAL SWITCH" .
(Q) Steering Lock Escutcheon
Pull back to your side, and remove steering lock escutcheon.
(R) Combination Meter Assembly
1. Remove bolts with power tool, and then remove connector
bracket.
2. Remove bolts with power tool and then disconnect harness con-
nector.
CAUTION:
To prevent it from damaged by interference with the combina-
tion meter assembly, protect the combination meter assembly
with cloths.
(S) Instrument Side Panel (LH/RH)
1. Remove screws with power tool.
2. Pull to the side, disconnect clip and pawls and remove instru-
ment side panel (LH/RH).
PIIA5002E
PIIA5003E
PIIA5004E

INSTRUMENT PANEL ASSEMBLY
IP-15
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
(T) Cluster Lid C
1. Insert a remover into gap between instrument panel and pad,
pull back to your side, and disconnect metal clips below.
2. Disconnect harness connectors, and remove cluster lid C.
CAUTION:
Cover surroundings with cloth to avoid scratches or damages.
(U) Display Unit and Audio Unit
1. Remove screws with power tool.
2. Disconnect harness connector, and remove display unit and
audio unit.
CAUTION:
Unit is heavy, so be careful not to pinch your fingers when
working.
(V) Front Defroster Grille (LH/RH)
Insert a remover into gaps between front defroster grille (LH/RH) and
instrument panel and pad, lift front defroster grille up, and remove
front defroster grille (LH/RH).
(W) Combination Meter Bracket
1. Remove bolts.
2. The installation bolts of the harness clip and steering column
assembly is removed, steering column assembly is pulled back-
ward, and set combination meter bracket free from the instru-
ment panel and pad. Refer to PS-12, "
STEERING COLUMN" .
PIIA4994E
PIIA5008E
PIIA5009E
PIIA5010E

INSTRUMENT PANEL ASSEMBLY
IP-17
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Assemble the following three parts carefully.
Install in the reverse order of removal.

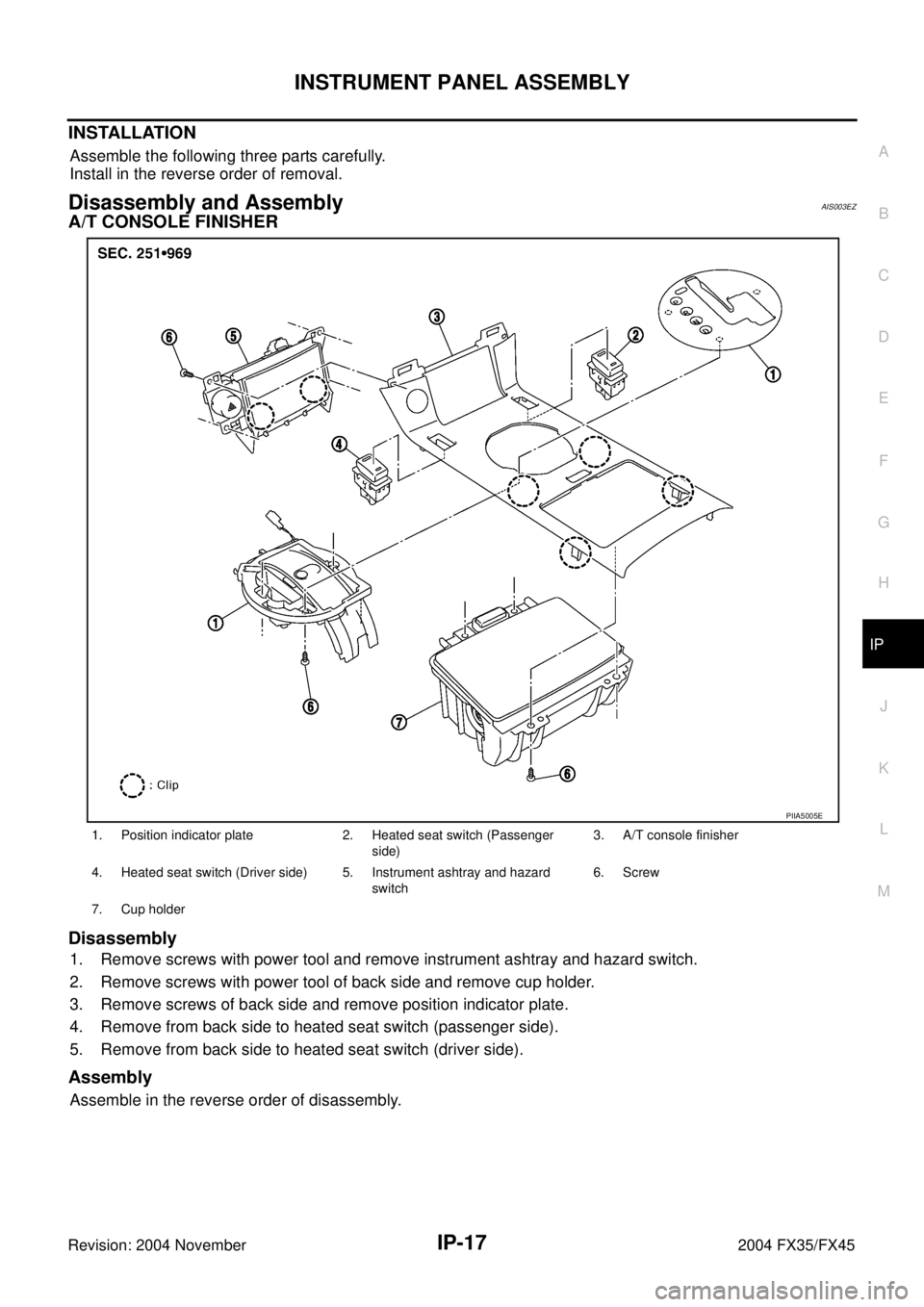

Disassembly and AssemblyAIS003EZ
A/T CONSOLE FINISHER
Disassembly
1. Remove screws with power tool and remove instrument ashtray and hazard switch.
2. Remove screws with power tool of back side and remove cup holder.
3. Remove screws of back side and remove position indicator plate.
4. Remove from back side to heated seat switch (passenger side).
5. Remove from back side to heated seat switch (driver side).
Assembly
Assemble in the reverse order of disassembly.
1. Position indicator plate 2. Heated seat switch (Passenger
side)3. A/T console finisher
4. Heated seat switch (Driver side) 5. Instrument ashtray and hazard
switch6. Screw
7. Cup holder
PIIA5005E

IP-18
INSTRUMENT PANEL ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
CENTER CONSOLE
Disassembly
1. Insert a remover into side between gaps console rear finisher and pull back to your side, and disconnect
pawls below.
2. Disconnect harness connector and remove console rear finisher.
3. Insert a remover into side between gaps of console mask and pull back to your side.
4. Remove screws with power tool and remove console lid.
5. Remove screws fixing DVD player with power tool.
6. Disconnect harness connectors, and remove DVD player.
Assembly
Assemble in the reverse order of disassembly.
1. Console lid 2. Screw 3. Console mask
4. Console body 5. DVD player bracket 6. DVD player
7. Console rear finisher
PIIA5006E
