DTC P1229 SENSOR POWER SUPPLY
Revision: 2005 July 2005 FX
2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK SENSOR POWER SUPPLY CIRCUITS
Check the following.

Harness for short to power and short to ground, between the following terminals.

ECM pin terminal.
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4. CHECK COMPONENTS
Check the following.

Refrigerant pressure sensor (Refer to AT C - 9 0 , "COMPONENT INSPECTION" .)

Power steering pressure sensor (Refer to EC-401, "Component Inspection" .)

EVAP control system pressure sensor (Refer to EC-352, "Component Inspection" .)
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning component.
PBIB1580E
Voltage: Approximately 5V
PBIB0914E
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 6 EC-621
49 Refrigerant pressure sensor terminal 1EC-675
68 PSP sensor terminal 1EC-398
48 EVAP control system pressure sensor terminal 3EC-355

EC-490
[VQ35DE]
DTC P1271, P1281 A/F SENSOR 1
Revision: 2005 July 2005 FX

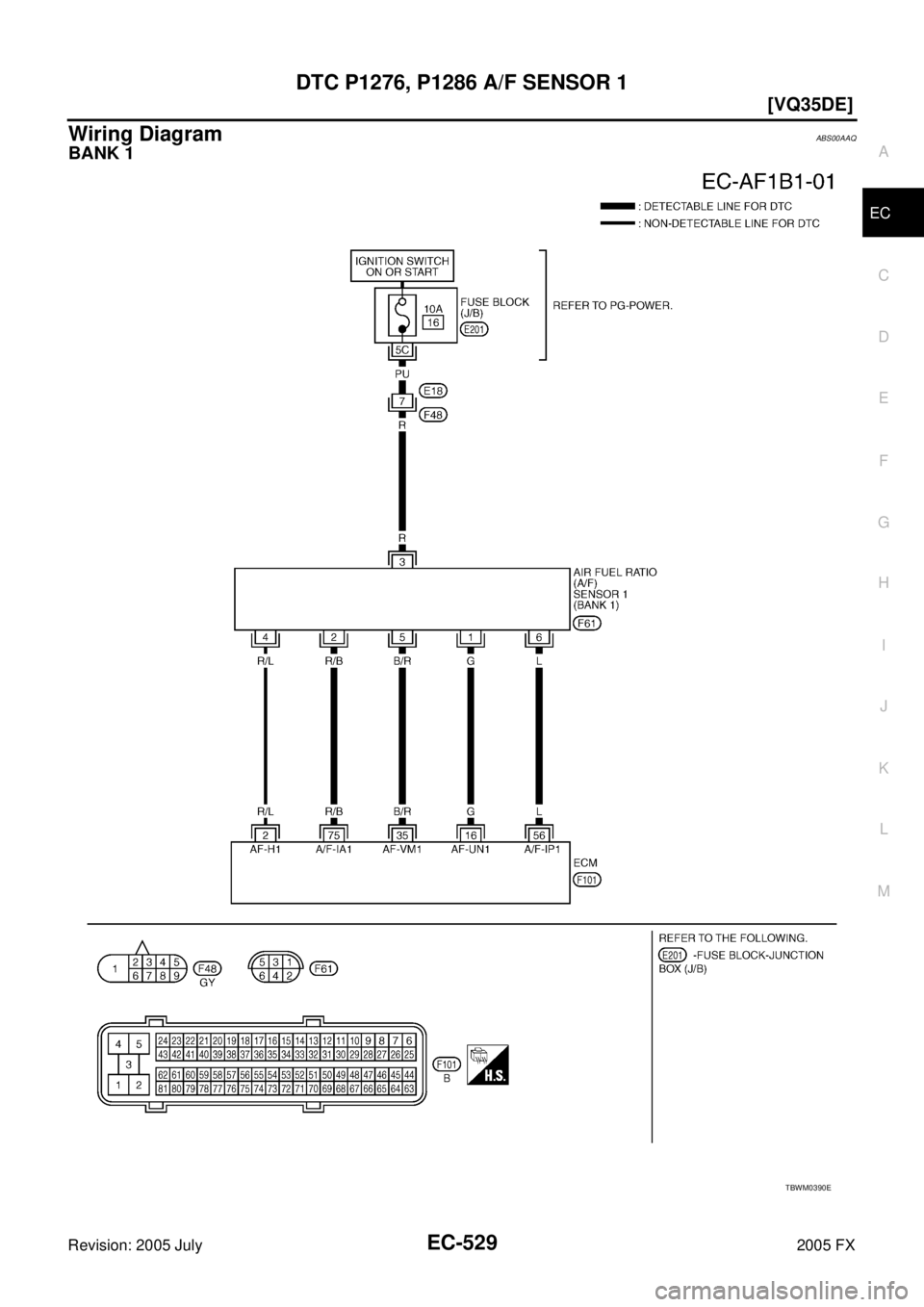

Wiring DiagramABS00A9X
BANK 1
TBWM0390E

DTC P1271, P1281 A/F SENSOR 1 EC-495
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
4. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals. Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK INTERMITTENT INCIDENT
Perform EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace.
6. REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace air fuel ratio (A/F) sensor 1.
CAUTION:

Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads using Heated Oxy-
gen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
>> INSPECTION END
A/F sensor 1 terminal ECM terminal
Bank1 116
275
535
656
Bank 2 176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 116176
275277
535557
656658
Continuity should not exist.

DTC P1272, P1282 A/F SENSOR 1 EC-499
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Wiring DiagramABS00AA4
BANK 1
TBWM0390E

EC-504
[VQ35DE]
DTC P1272, P1282 A/F SENSOR 1
Revision: 2005 July 2005 FX
4. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals. Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK INTERMITTENT INCIDENT
Perform EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace.
6. REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace air fuel ratio (A/F) sensor 1.
CAUTION:

Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads using Heated Oxy-
gen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
>> INSPECTION END
A/F sensor 1 terminal ECM terminal
Bank1 116
275
535
656
Bank 2 176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 116176
275277
535557
656658
Continuity should not exist.

EC-508
[VQ35DE]
DTC P1273, P1283 A/F SENSOR 1
Revision: 2005 July 2005 FX
Wiring Diagram ABS00AAB
BANK 1
TBWM0390E

EC-514
[VQ35DE]
DTC P1273, P1283 A/F SENSOR 1
Revision: 2005 July 2005 FX
6. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals. Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Refer to EC-412, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace air fuel ratio (A/F) sensor 1.
8. CHECK INTERMITTENT INCIDENT
Perform EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace.
A/F sensor 1 terminal ECM terminal
Bank1 116
275
535
656
Bank 2 176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 116176
275277
535557
656658
Continuity should not exist.

EC-518
[VQ35DE]
DTC P1274, P1284 A/F SENSOR 1
Revision: 2005 July 2005 FX
Wiring Diagram ABS00AAI
BANK 1
TBWM0390E

EC-524
[VQ35DE]
DTC P1274, P1284 A/F SENSOR 1
Revision: 2005 July 2005 FX
7. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals. Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Refer to EC-412, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace air fuel ratio (A/F) sensor 1.
9. CHECK INTERMITTENT INCIDENT
Perform EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 10.
NG >> Repair or replace.
A/F sensor 1 terminal ECM terminal
Bank1 116
275
535
656
Bank 2 176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 116176
275277
535557
656658
Continuity should not exist.

DTC P1276, P1286 A/F SENSOR 1 EC-529
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Wiring DiagramABS00AAQ
BANK 1
TBWM0390E
