INFINITI FX35 2006 Service Manual

REAR LOWER LINK & COIL SPRING RSU-15
C
D
F
G H
I
J
K L
M A
B
RSU
Revision: 2006 December 2006 FX35/FX45
REAR LOWER LINK & COIL SPRINGPFP:551B0
Removal and InstallationNES000I0
REMOVAL
1. Remove tire with power tool.
2. Set jack under rear lower link.
3. Loosen fixing bolt and nut between rear lower link and suspension member, and then remove fixing bolt and nut between rear axle and rear lower link with power tool.
4. Slowly lower jack, then remove upper seat, coil spring and rubber seat from rear lower link.
5. Remove fixing bolt and nut between rear suspension member and rear lower link with power tool.
INSPECTION AFTER REMOVAL

Check rear lower link, bushing and coil spring for deformation, cracks, and damage. Replace rear lower
link and coil spring if necessary.
INSTALLATION

Refer to RSU-7, "COMPONENTS" for tightening torque. Install in the reverse order of removal.
CAUTION:
Refer to component parts location and do not reuse non-reusable parts.

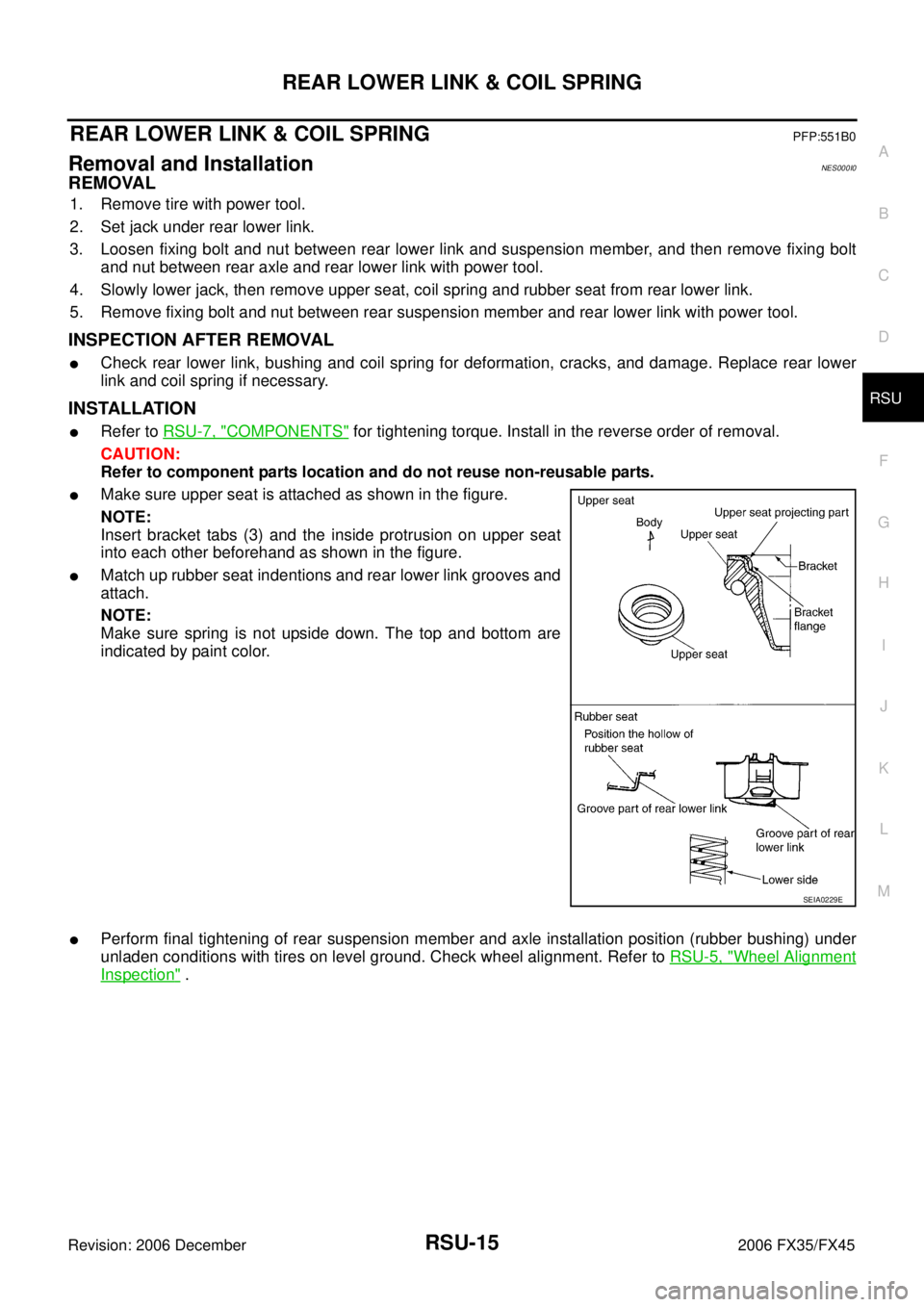

Make sure upper seat is attached as shown in the figure.
NOTE:
Insert bracket tabs (3) and the inside protrusion on upper seat
into each other beforehand as shown in the figure.

Match up rubber seat indentions and rear lower link grooves and
attach.
NOTE:
Make sure spring is not upside down. The top and bottom are
indicated by paint color.

Perform final tightening of rear suspension member and axle installation position (rubber bushing) under
unladen conditions with tires on level ground. Check wheel alignment. Refer to RSU-5, "
Wheel Alignment
Inspection" .
SEIA0229E

RSU-16
STABILIZER BAR
Revision: 2006 December 2006 FX35/FX45
STABILIZER BARPFP:56230
Removal and InstallationNES000GE
REMOVAL
1. Remove tires from vehicle with power tool.
2. Remove center muffler from vehicle. Refer to EX-3, "
Components" .
3. Remove fixing bolts and remove stabilizer connecting rod mount bracket from suspension arm with power tool.
4. Remove lower side fixing nut on stabilizer connecting rod and remove stabilizer connecting rod from stabi- lizer bar with power tool.
5. Remove fixing nuts on stabilizer clamps and remove stabilizer from vehicle with power tool.
INSPECTION AFTER REMOVAL
Check stabilizer bar, stabilizer bushings, stabilizer clamps, stabilizer connecting rod, stabilizer connecting rod
mounting bracket for any deformation, cracks or damage. Replace if necessary.
INSTALLATION

Refer to RSU-7, "Removal and installation" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

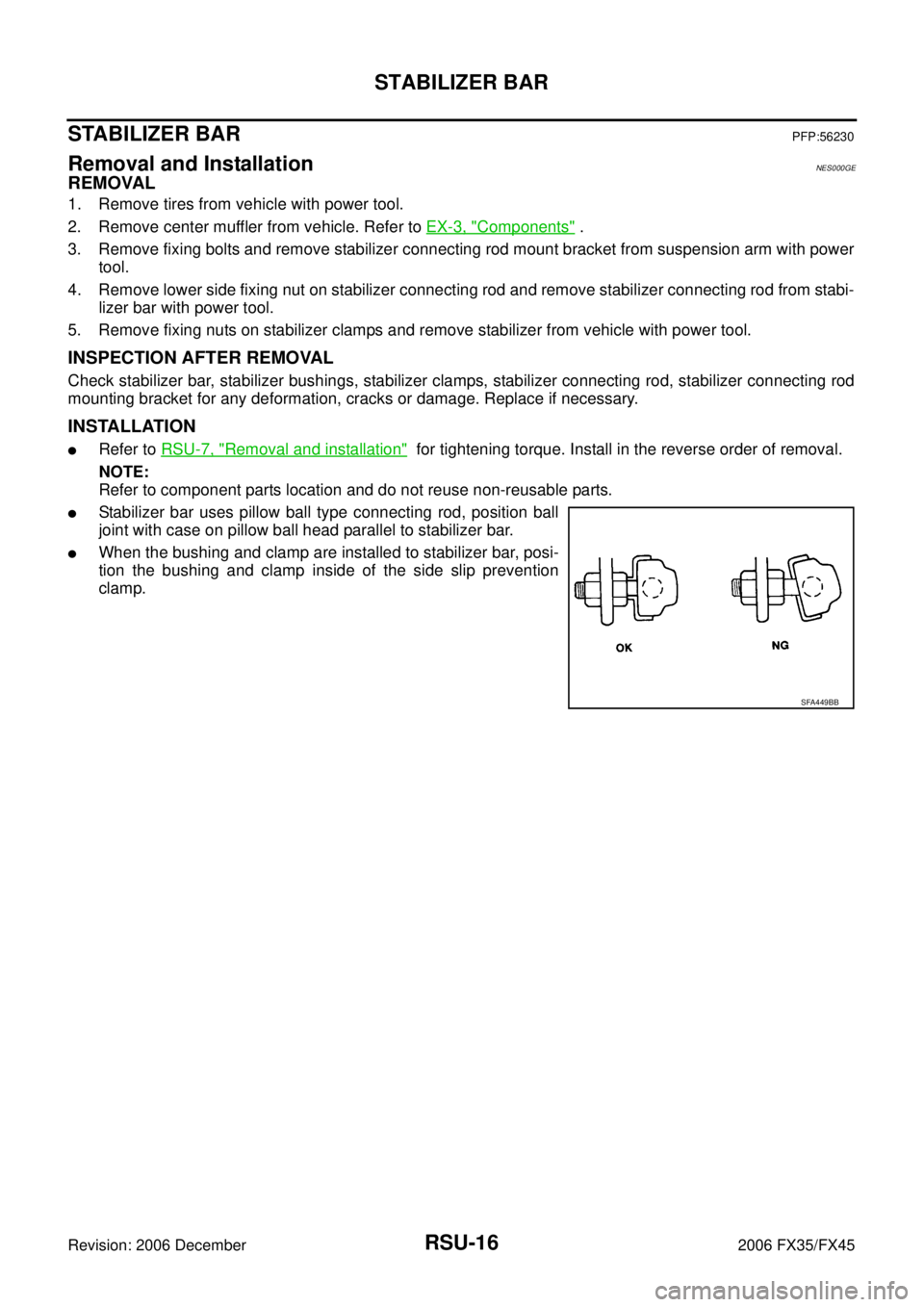

Stabilizer bar uses pillow ball type connecting rod, position ball
joint with case on pillow ball head parallel to stabilizer bar.

When the bushing and clamp are installed to stabilizer bar, posi-
tion the bushing and clamp inside of the side slip prevention
clamp.
SFA449BB

REAR SUSPENSION MEMBER RSU-17
C
D
F
G H
I
J
K L
M A
B
RSU
Revision: 2006 December 2006 FX35/FX45
REAR SUSPENSION MEMBERPFP:55501
Removal and InstallationNES000GF
REMOVAL
1. Remove tires from vehicle with power tool.
2. Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to BR-
25, "REAR DISC BRAKE" .
NOTE:
Avoid depressing brake pedal while brake caliper is removed.
3. Remove wheel sensor from rear final drive, then remove wheel sensor harness from rear suspension member. Refer to BRC-55, "
WHEEL SENSORS" .
4. Remove height sensor harness from rear suspension member (if equipped).
5. Remove center muffler and main muffler. Refer to EX-3, "
EXHAUST SYSTEM" .
6. Remove stabilizer bar. Refer to RSU-16, "
Removal and Installation" .
7. Remove rear drive shaft. Refer to RAX-9, "
REAR DRIVE SHAFT" .
8. Remove propeller shaft. Refer to PR-7, "
REAR PROPELLER SHAFT" .
9. Remove rear final drive. Refer to RFD-16, "
Removal and Installation" .
10. Separate attachments between parking brake cable and vehicle and rear suspension member. Refer to PB-4, "
PARKING BRAKE CONTROL" .
11. Remove rear lower link and coil spring. Refer to RSU-15, "
Removal and Installation" .
12. Remove fixing bolt in lower side of shock absorber with power tool.
13. Set jack under rear suspension member.
14. Remove fixing bolts and nuts of tunnel stay and member stay with power tool, then remove those parts from vehicle and rear suspension member.
15. Remove fixing bolts and nuts of rear pin stay with power tool and then remove rear pin stay from vehicle and rear suspension member.
16. Slowly lowering jack, then remove rear suspension member, suspension arm, radius rod, front lower link and axle from vehicle as a unit.
17. Remove fixing bolts and nuts with power tool, then remove suspension arm, front lower link, and radius rod from rear suspension member.
INSPECTION AFTER REMOVAL
Check rear suspension member for deformation, cracks, and other damage and replace if necessary.
INSTALLATION

Refer to RSU-7, "Removal and installation" , for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

Perform final tightening of installation position of links (rubber bushing) under unladen conditions with tires
on level ground. Check wheel alignment. Refer to RSU-5, "
Wheel Alignment Inspection" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .

RSU-18
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 December 2006 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Wheel Alignment (Unladen*)NES000LV
*: Fuel, engine coolant and lubricant oil full. Spare tire, jack, hand tools and mats are in designated positions.
Ball JointNES000GH
Wheelarch Height (Unladen*)NES000GI
*: Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats are in designated positions. Camber
Degree minute (Decimal degree) Minimum –1
° 18 ′ (–1.30 °)
Nominal –0 ° 48 ′ (–0.80 °)
Maximum –0 ° 18 ′ (–0.30 °)
Total toe-in Distance
Minimum 2.4 mm (0.09 in)
Nominal 4.7 mm (0.19 in)
Maximum 7.0 mm (0.28 in)
Angle (left wheel or right wheel)
Degree minute (Decimal degree) Minimum 0
° 05 ′ (0.08 °)
Nominal 0 ° 10 ′ (0.17 °)
Maximum 0 ° 15 ′ (0.25 °)
Axial end play 0 mm (0 in)
Swing torque 0.5 − 3.4 N·m (0.06 − 0.34 kg-m, 5 − 30 in-lb)
Measurement on spring balance (cotter pinhole position) 9.7 − 66.0 N (0.99 − 6.7 kg, 2.18 − 14.8 lb)
Rotating torque 0.5 − 3.4 N·m (0.06 − 0.34 kg-m, 5 − 30 in-lb)
Destination USA Canada
Engine VQ35DE VK45DE VQ35DE VK45DE
Axle 2WD AWD AWD
Tire size 265/60R18 265/50R20 265/60R18 265/50R20 265/60R18 265/50R20
Front (Hf) 835 mm
(32.87 in) 834 mm
(32.83 in) 834 mm
(32.83 in) 833 mm
(32.80 in) 832 mm
(32.76 in) 834 mm
(32.83 in) 833 mm
(32.80 in) 832 mm
(32.76 in)
Rear (Hr) 822 mm
(32.36 in) 821 mm
(32.32 in) 829 mm
(32.64 in) 827 mm
(32.56 in) 825 mm
(32.48 in) 827 mm
(32.56 in) 826 mm
(32.52 in) 823 mm
(32.40 in)
SFA818A

SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
D E
F
G
I
J
K L
M
SECTION SB
A
B
SB
Revision: 2006 December 2006 FX35/FX45
SEAT BELTS
PRECAUTIONS ..................................................... ..... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
Precaution for Seat Belt Service ......................... ..... 2
AFTER A COLLISION ...................................... ..... 2
SEAT BELTS ......................................................... ..... 4
System Description ............................................. ..... 4
SEAT BELT WARNING CHIME ....................... ..... 4
SEAT BELT WARNING LAMP ......................... ..... 4
Removal and Installation of Front Seat Belt ........ ..... 4
REMOVAL OF FRONT SEAT BELT RETRAC-
TOR .................................................................. ..... 5
INSTALLATION OF FRONT SEAT BELT
RETRACTOR ................................................... ..... 5
REMOVAL OF FRONT SEAT BELT BUCKLE . ..... 5
INSTALLATION OF FRONT SEAT BELT
BUCKLE ........................................................... ..... 5
Removal and Installation of Rear Seat Belt ........ ..... 6 REMOVAL OF REAR SEAT BELT RETRACTOR
..... 6
INSTALLATION OF REAR SEAT BELT RETRAC-
TOR .................................................................. ..... 7
Seat Belt Inspection ............................................. ..... 7
AFTER A COLLISION ...................................... ..... 7
PRELIMINARY CHECK .................................... ..... 7
SEAT BELT RETRACTOR ON-VEHICLE
INSPECTION ................................................... ..... 8
SEAT BELT RETRACTOR OFF-VEHICLE
INSPECTION ................................................... ..... 9
LATCH (LOWER ANCHORS AND TETHER FOR
CHILDREN) SYSTEM ............................................ ... 10
Removal and Installation ..................................... ... 10
REMOVAL ........................................................ ... 10
INSTALLATION ................................................ ... 10
TOP TETHER STRAP CHILD RESTRAINT .......... ... 11
Removal and Installation ..................................... ... 11
REMOVAL ........................................................ ... 11
INSTALLATION ................................................ ... 11

SB-2
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NHS0006V
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precaution for Seat Belt ServiceNHS0006W
CAUTION:

Before removing the front seat belt pre-tensioner assembly, turn the ignition switch off, discon-
nect the both battery cables and wait at least 3 minutes.

Do not use electrical test equipment for front seat belt pre-tensioner connector.

After replacing or reinstalling front seat belt pre-tensioner assembly, or reconnecting front seat
belt pre-tensioner connector, check the system function. Refer to SRS-19, "
SRS Operation Check"
.

Do not use disassemble buckle or seat belt assembly.

Replace anchor bolts if they are deformed or worn out.

Never oil tongue and buckle.

If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt
assembly.

If webbing is cut, frayed, or damaged, replace seat belt assembly.

When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.

Disposal, recycling, and transportation of air bag modules and seat belt pre-tensioners should be
performed in compliance with applicable federal, state and local laws and regulations.
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies including retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-
lision was minor and the belts show no damage and continue to operate properly. Failure to do so
could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-
sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioner
should be replaced even if the seat belts are not in use during a frontal collision in which the air bags
are deployed.
Replace any seat belt assembly (including anchor bolts) if:

The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).

The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide).

The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair as necessary before installing a new seat belt assembly.

Anchor bolts are deformed or worn out.

PRECAUTIONS SB-3
C
D E
F
G
I
J
K L
M A
B
SB
Revision: 2006 December 2006 FX35/FX45

The front seat belt pre-tensioner should be replaced even if the seat belts are not in use during the colli-
sion in which the air bags are deployed.

SB-4
SEAT BELTS
Revision: 2006 December 2006 FX35/FX45
SEAT BELTSPFP:86884
System DescriptionNHS0006X
SEAT BELT WARNING CHIME

With ignition switch turned ON and seat belt unfastened (seat belt switch ON), warning chime will sound
for approximately 6 seconds.

If warning chime does not sound, refer to DI-71, "Symptom Chart" in DI section.
SEAT BELT WARNING LAMP

Fasten driver's seat belt.

The seat belt warning lamp should go out.

If the seat belt warning lamp does not go out, refer to DI-40, "Wiring Diagram — WARN —" .
Removal and Installation of Front Seat Belt NHS0006Y
CAUTION:
Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
1. Seat belt pre-tensioner connector 2. Retractor 3. Screw
4. Anchor bolt 5. Retaining washer 6. Bolt
7. Seat belt adjuster 8. Retaining washer 9. Spacer
10. Adjuster cover 11. Shoulder anchor 12. Anchor bolt
13. Sus washer 14. Plain washer 15. Outer anchor
16. Anchor bolt 17. Seat cushion outer finisher cover
PHIA0678E

SEAT BELTS SB-5
C
D E
F
G
I
J
K L
M A
B
SB
Revision: 2006 December 2006 FX35/FX45
REMOVAL OF FRONT SEAT BELT RETRACTOR
1. Remove the adjuster cover on the shoulder anchor.
2. Remove the anchor bolt.
3. Remove the seat cushion outer finisher cover, and remove the anchor bolt.
NOTE:
Set the front and rear cushion lifter to the down position.
4. Disconnect the belt tension sensor connector (passenger side only).
5. Remove the center pillar upper and lower garnish. Refer to EI-37, "
Removal and Installation" .
6. Disconnect the seat belt pre-tensioner connector.
CAUTION:

For installing/removing seat belt pre-tensioner connector,
insert thin screwdriver wrapped in tape into notch, lift lock
and remove connector.

Install connector with lock raised, and push lock into con-
nector.
7. Remove the seat belt pre-tensioner retractor fixing screw and anchor bolt, and then remove the seat belt retractor.
INSTALLATION OF FRONT SEAT BELT RETRACTOR
CAUTION:
Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
Install in the reverse order of removal.
REMOVAL OF FRONT SEAT BELT BUCKLE
1. Remove the front seat. Refer to SE-100, "REMOVAL" .
2. Disconnect the buckle switch connector.
3. Remove the anchor bolt, and remove the buckle.
INSTALLATION OF FRONT SEAT BELT BUCKLE
Install in the reverse order of removal.
PHIA0341E
PHIA0346E

SB-6
SEAT BELTS
Revision: 2006 December 2006 FX35/FX45

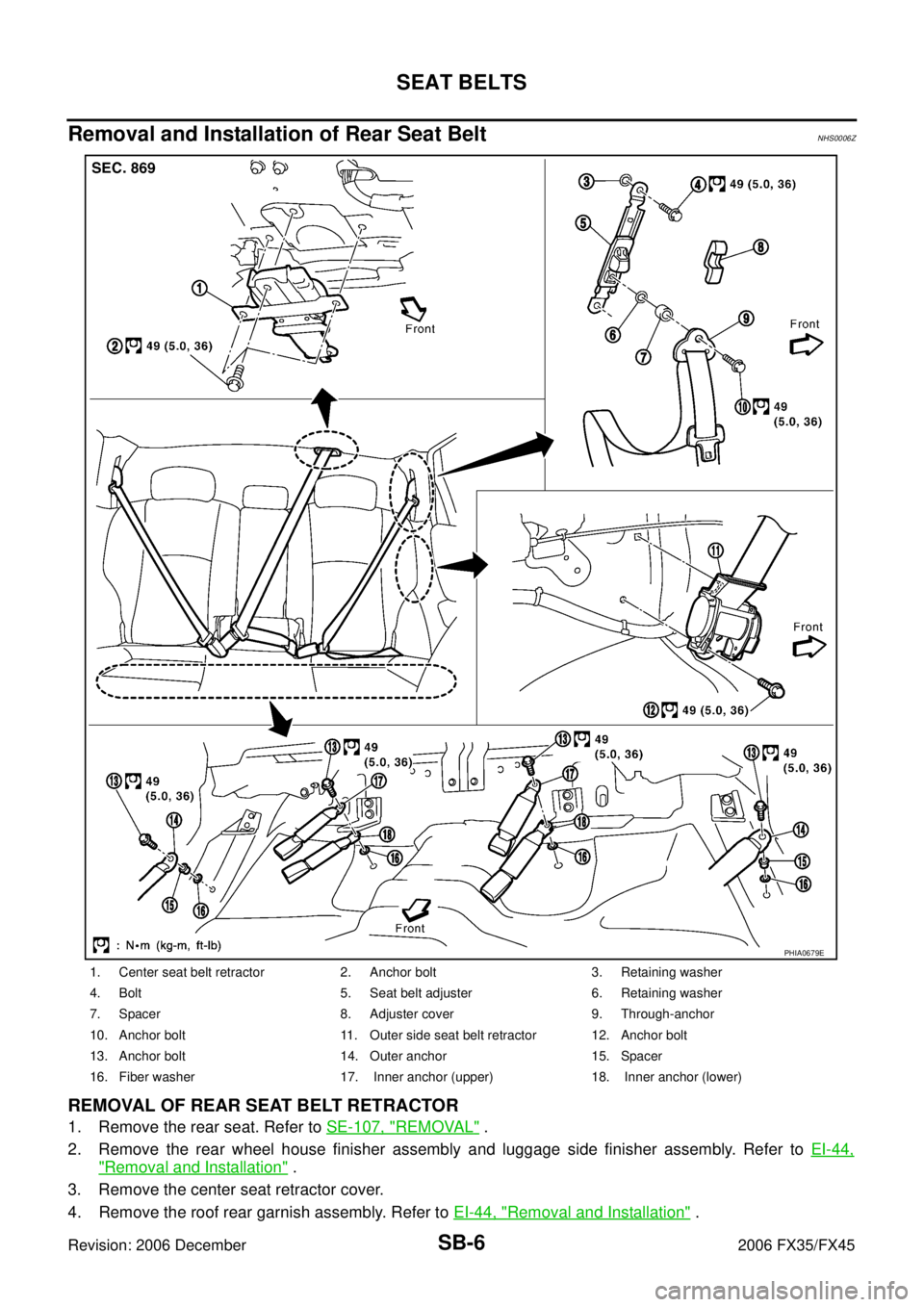

Removal and Installation of Rear Seat Belt NHS0006Z
REMOVAL OF REAR SEAT BELT RETRACTOR
1. Remove the rear seat. Refer to SE-107, "REMOVAL" .
2. Remove the rear wheel house finisher assembly and luggage side finisher assembly. Refer to EI-44,
"Removal and Installation" .
3. Remove the center seat retractor cover.
4. Remove the roof rear garnish assembly. Refer to EI-44, "
Removal and Installation" .
1. Center seat belt retractor 2. Anchor bolt 3. Retaining washer
4. Bolt 5. Seat belt adjuster 6. Retaining washer
7. Spacer 8. Adjuster cover 9. Through-anchor
10. Anchor bolt 11. Outer side seat belt retractor 12. Anchor bolt
13. Anchor bolt 14. Outer anchor 15. Spacer
16. Fiber washer 17. Inner anchor (upper) 18. Inner anchor (lower)
PHIA0679E
