diagram INFINITI FX35 2006 Repair Manual

DI-2Revision: 2006 December 2006 FX35/FX45 Oil Pressure Warning Lamp Does Not Turn Off (Oil
Pressure Is Normal) ............................................. ... 49
Component Inspection ......................................... ... 51
OIL PRESSURE SWITCH ................................ ... 51
A/T INDICATOR ..................................................... ... 52
System Description .............................................. ... 52
MANUAL MODE ............................................... ... 52
NOT MANUAL MODE ...................................... ... 52
Wiring Diagram — AT/IND — .............................. ... 53
A/T Indicator Is Malfunction ................................. ... 55
WARNING CHIME .................................................. ... 56
System Description .............................................. ... 56
POWER SUPPLY AND CIRCUIT ..................... ... 56
IGNITION KEY WARNING CHIME (WITHOUT
INTELLIGENT KEY) ......................................... ... 57
IGNITION KEY WARNING CHIME (WITH INTEL-
LIGENT KEY) ................................................... ... 57
LIGHT WARNING CHIME ................................ ... 58
SEAT BELT WARNING CHIME ........................ ... 58
Component Parts and Harness Connector Location ... 59
Schematic ............................................................ ... 60
Wiring Diagram — CHIME — .............................. ... 61
Terminals and Reference Value for BCM ............. ... 64
Terminals and Reference Value for Unified Meter
and A/C Amp. ...................................................... ... 68
Terminals and Reference Value for Combination
Meter ................................................................... ... 69
CONSULT-II Function (METER A/C AMP) .......... ... 69
CONSULT-II Function (BCM) ............................... ... 69
DIAGNOSIS ITEMS DESCRIPTION ................ ... 69
CONSULT-II BASIC OPERATION .................... ... 69
DATA MONITOR ............................................... ... 69
ACTIVE TEST .................................................. ... 70
SELF-DIAG RESULTS ..................................... ... 70
Trouble Diagnosis ................................................ ... 70
HOW TO PERFORM TROUBLE DIAGNOSIS . ... 70
PRELIMINARY INSPECTION .......................... ... 71
Symptom Chart .................................................... ... 71
Power Supply and Ground Circuit Inspection ...... ... 71
Combination Meter Buzzer Circuit Inspection ...... ... 72
Front Door Switch (Driver Side) Signal Inspection ... 74
Key Switch Signal Inspection (Without Intelligent
Key) ..................................................................... ... 75
Key Switch and Ignition Knob Switch Signal Inspec-
tion (With Intelligent Key, When Mechanical Key Is
Used) ................................................................... ... 76
Lighting Switch Signal Inspection ........................ ... 77
Seat Belt Buckle Switch (Driver Side) Signal Inspec-
tion ....................................................................... ... 78
Component Inspection ......................................... ... 79
FRONT DOOR SWITCH (DRIVER SIDE) ........ ... 79
KEY SWITCH ................................................... ... 79
KEY SWITCH AND IGNITION KNOB SWITCH ... 79
SEAT BELT BUCKLE SWITCH (DRIVER SIDE) ... 79
LANE DEPARTURE WARNING SYSTEM ............. ... 80
Precautions for Lane Departure Warning (LDW)
system ................................................................. ... 80
System Description .............................................. ... 80 LDW SYSTEM OPERATION ............................
... 80
POWER SUPPLY AND GROUND CIRCUIT .... ... 82
Action Test ........................................................... ... 83
LDW SYSTEM RUNNING TEST ...................... ... 83
Camera Aiming Adjustment ................................. ... 83
OUTLINE .......................................................... ... 83
PREPARATION ................................................. ... 83
TARGET SETTING ........................................... ... 83
VEHICLE HEIGHT CHECK .............................. ... 86
AIMING ADJUSTMENT .................................... ... 86
Component Parts and Harness Connector Location ... 90
Schematic ............................................................ ... 91
Wiring Diagram — LDW — .................................. ... 92
Terminals and Reference Value for LDW Camera
Unit ....................................................................... ... 95
CONSULT-II Function (LDW) ............................... ... 95
DESCRIPTION ................................................. ... 95
CONSULT-II BASIC OPERATION .................... ... 95
WORK SUPPORT ............................................ ... 95
SELF-DIAG RESULTS ...................................... ... 95
DATA MONITOR ............................................... ... 96
ACTIVE TEST ................................................... ... 97
Trouble Diagnosis ................................................ ... 98
HOW TO PERFORM TROUBLE DIAGNOSIS . ... 98
SYMPTOM CHART ........................................... ... 98
Preliminary Inspection .......................................... ... 98
Power Supply and Ground Circuit Inspection ...... ... 99
DTC [C1B00] CAMERA UNIT MALF ................... .100
DTC [C1B01] CAM AIMING INCMP .................... .100
DTC [C1B02] VHCL SPD DATA MALF ................ .100
DTC [C1B03] ABNRML TEMP DETECT ............. .101
DTC [U1000] CAN COMM CIRCUIT ................... .101
DTC [U1010] CONTROL UNIT (CAN) ................. .101
LDW Chime Circuit Inspection ............................. .101
LDW Switch Circuit Inspection ............................. .102
LDW Indicator Lamp Circuit Inspection ................ .105
Turn Signal Input Inspection ................................ .106
Electrical Component Inspection ......................... .106
LDW SWITCH ................................................... .106
Removal and Installation for LDW Camera Unit .. .107
REMOVAL ......................................................... .107
INSTALLATION ................................................. .107
Removal and Installation for LDW Chime ............ .107
REMOVAL ......................................................... .107
INSTALLATION ................................................. .107
Removal and Installation for LDW Switch ............ .107
CAN COMMUNICATION ........................................ .108
System Description .............................................. .108
CAN Communication Unit .................................... .108
COMPASS .............................................................. .109
Precautions for Compass ..................................... .109
System Description .............................................. .109
Troubleshooting ................................................... .110
Zone Variation Setting Procedure ........................ . 111
Calibration Procedure .......................................... . 111
Wiring Diagram — COMPAS — ........................... .112
Removal and Installation of Compass .................. .113
CLOCK ................................................................... .114

DI-3
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45 Wiring Diagram — CLOCK — .............................
.. 114
Removal and Installation of Clock ....................... .. 115
REMOVAL ........................................................ .. 115
INSTALLATION ................................................ .. 115
REAR VIEW MONITOR ......................................... ..116
System Description ............................................. .. 116
POWER SUPPLY AND GROUND ................... .. 116
AV COMMUNICATION LINE ............................ .. 116
REAR VIEW CAMERA OPERATION ............... .. 116
Component Parts and Harness Connector Location .. 117
Schematic ........................................................... .. 118
Wiring Diagram — R/VIEW — ............................ .. 119
Terminals and Reference Value for Rear View Cam-
era Control Unit ................................................... . 122
CONSULT-II Function (REARVIEW CAMERA) ... . 123
CONSULT-II BASIC OPERATION .................... . 123 WORK SUPPORT ............................................
.123
DATA MONITOR .............................................. .123
Side Distance Guideline Correction ..................... .124
SIDE DISTANCE GUIDELINE CORRECTION
PROCEDURE .................................................. .124
Power Supply and Ground Circuit Inspection ...... .126
Rear View Is Not Displayed With The A/T Selector
Lever In R-Position .............................................. .127
The Rear View Image Is Distorted ....................... .131
Removal and Installation of Rear View Camera Con-
trol Unit ................................................................ .132
REMOVAL ........................................................ .132
INSTALLATION ................................................ .132
Removal and Installation of Rear View Camera .. .133
REMOVAL ........................................................ .133
INSTALLATION ................................................ .133

COMBINATION METERS DI-11
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Circuit DiagramNKS002ZF
TKWM4341E

DI-12
COMBINATION METERS
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — METER —NKS002ZG
TKWM4342E

DI-40
WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45

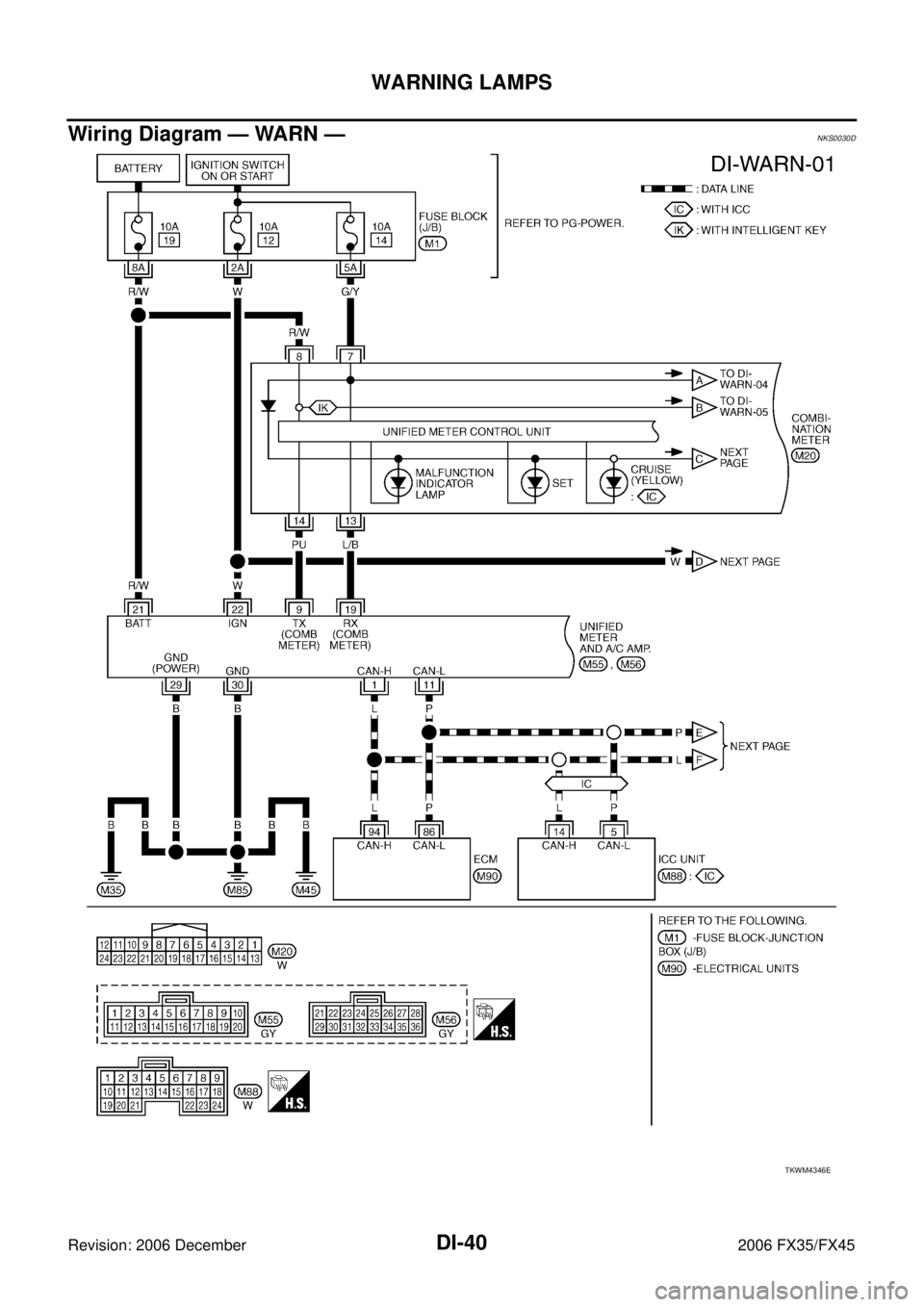

Wiring Diagram — WARN —NKS0030D
TKWM4346E

A/T INDICATOR DI-53
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — AT/IND —NKS0030H
TKWM4354E

WARNING CHIME DI-61
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — CHIME —NKS0030O
TKWM4357E

DI-82
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 December 2006 FX35/FX45
System Diagram
Components Description
NOTE:
*: This indicates in a few seconds for the system check during ignition switch ON.
POWER SUPPLY AND GROUND CIRCUIT
With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 12, located in the fuse block (J/B)]

to LDW camera unit terminal 1.
Ground is supplied

to LDW camera unit terminals 6 and 12

through grounds M45, M85 and M35.
SKIB1784E
Component Description
LDW camera unit Detects the lane marker by the built-in camera, gives judgement for the warning according to the
result of detection and signals from each unit, and transmits the operation signal to LDW chime and
LDW indicator lamp.
LDW switch

Selects ON/OFF of the system.

Indicates ON/OFF of the signal with LDW system ON indicator.
LDW chime Gives a warning chime according to the direction from LDW camera unit.
LDW indicator lamp Installed in combination meter, and indicates the system condition.

Blinks when LDW system is functioning to alert the driver.

Stays on when LDW system is malfunctioning.*
BCM Transmits turn indicator signal to LDW camera unit with CAN communication signal.
ABS actuator and electric unit
(control unit) Transmits vehicle speed signal to LDW camera unit with CAN communication signal.
TCM Transmits vehicle speed signal to LDW camera unit with CAN communication signal. (For detecting
incorrect speed.)

DI-92
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — LDW —NKS00318
TKWM4367E

DI-112
COMPASS
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — COMPAS —NKS003HV
TKWM4344E
