OVERHAUL
Revision: 2006 December 2006 FX35/FX45
VK45DE models for 4WD
SCIA7601J
1. Rear oil seal 2. Self-sealing bolt 3. Bracket
4. Adapter case 5. Parking actuator support 6. Parking pawl

BRC-24
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation) and VDC/TCS function is not activa ted.
Note 3: ON/OFF timing of VDC OFF indicator lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC OFF switch is ON.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation.) And when VDC OFF switch is OFF.
Note 4: ON/OFF timing of SLIP indicator lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC/TCS function is activa ted
while driving.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation) and VDC/TCS function is not activa ted.
Flashing: VDC/TCS function is active during driving
Note 5: Only AWD models.
Note 6: Serves as EBD warning lamp.
CONSULT-II Functions (VDC)NFS000NG
CONSULT-II MAIN FUNCTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
CRANKING SIG CRANKING status Cranking ON
Not cranking OFF
4WD FAIL REQ ETS fail status (Note 5) ETS fail ON
ETS normal OFF
2WD/4WD Drive axle 2WD model 2WD
AW D mod el AW D
Monitor item Display content
Data monitor
Condition Reference value in
normal operation
Diagnostic test mode Function Reference
WORK SUP-
PORT This mode enables a technician to adjust some devices faster and more accurately
by following the indications on CONSULT-II. BRC-6, "
ON-VEHICLE SER-
VICE"
SELF-DIAG
RESULTS Self-diagnostic results can be read and erased quickly.
BRC-25, "Self-Diagnosis"
DATA MONI-
TOR Input/Output data in the ABS actuator and electric unit (control unit) can be read.
BRC-29, "Data Monitor"
CAN DIAG
SUPPORT
MNTR The results of transmit/receive diagnosis of communication can be read.
LAN-16, "CAN Diagnostic
Support Monitor"
ACTIVE TEST Diagnostic Test Mode in which CONSULT-II drives some actuators apart from the
ABS actuator and electric unit (control unit) and also shifts some parameters in a
specified range. BRC-31, "Active Test"
FUNCTION
TEST Performed by CONSULT-II instead of a technician to determine whether each sys-
tem is “OK” or “NG”. —
ECU PART
NUMBER ABS actuator and electric unit (control unit) part number can be read. —

TROUBLE DIAGNOSIS BRC-31
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
× :Applicable
–:Not applicable
Note: Serves as EBD warning lamp.
Active TestNFS000RF
CAUTION:

Do not perform active test while driving.

Make sure to completely bleed air from the brake system.

Active test can not be performed when EBD, ABS, TCS or VDC operation is malfunction.

ABS and brake warning lamps turn on during the active test.
OPERATION PROCEDURE
1. Perform “CONSULT-II Starting Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. Touch “ACTIVE TEST”.
3. The test item selection screen is displayed.
4. Touch necessary test item.
5. With the “MAIN SIGNALS” display shown in reverse, touch “START”.
6. The “ACTIVE TEST” screen will be displayed, so perform the following test.
4WD FAIL REQ
(ON/OFF) ––
×AWD fail-safe signal (ON/OFF) status is displayed.
2WD/4WD
(2WD/4WD) ––
×Distinguish 2WD and AWD
Item
(Unit) Data monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
SFIA1172E

UNIFIED METER AND A/C AMP DI-33
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
NOTE:
Monitored item that does not match the vehicle is deleted from the display automatically.
*: Monitor keeps indicating “OFF” when brake warning lamp is on by the parking brake operation or low brake fluid level.
Power Supply and Ground Circuit InspectionNKS003HN
1. CHECK FUSE
Check for blown unified meter and A/C amp. fuses.
OK or NG
OK >> GO TO 2.
NG >> Be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-3, "
POWER
SUPPLY ROUTING CIRCUIT" .
KEY KNOB W/L [ON/OFF] X Indicates [ON/OFF] condition of key knob warning lamp.
M RANGE SW [ON/OFF] X X Indicates [ON/OFF] condition of manual mode range switch.
NM RANGE SW [ON/OFF] X X Indicates [ON/OFF] condition of except for manual mode range
switch.
AT SFT UP SW [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift-up switch.
AT SFT DWN SW [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift-down switch.
BRAKE SW [ON/OFF] X Indicates [ON/OFF] condition of brake switch (stop lamp switch).
AT-M IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T manual mode indicator.
AT-M GEAR [5-1] X X Indicates [5-1] condition of A/T manual mode gear position.
P RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift P range indicator.
R RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift R range indicator.
N RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift N range indicator.
D RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift D range indicator.
AT CHECK W/L X Indicates [ON/OFF] condition of AT CHECK warning lamp.
CRUISE IND [ON/OFF] X Indicates [ON/OFF] condition of CRUISE indicator lamp.
SET IND [ON/OFF] X Indicates [ON/OFF] condition of SET indicator lamp.
CRUISE W/L [ON/OFF] X Indicates [ON/OFF] condition of ICC warning lamp.
4WD LOCK SW [ON/OFF] X This item is not used for this model. “OFF” is always displayed.
4WD LOCK IND [ON/OFF] X This item is not used for this model. “OFF” is always displayed.
4WD W/L [ON/OFF] X Indicates [ON/OFF] condition of AWD warning lamp. Display item [Unit]
MAIN
SIGNALS SELECTION
FROM MENU Contents
Power source Fuse No.
Battery power supply 19 ACC power supply 10, 11
Ignition power supply 12

CONSULT-II CHECKING SYSTEM GI-37
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45
CONSULT-II CHECKING SYSTEMPFP:00000
DescriptionNAS0006J

CONSULT-II is a hand-held type tester. When it is connected with a diagnostic connector equipped on the
vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various
kinds of diagnostic tests.

Refer to “CONSULT-II Software Operation Manual” for more information.
Function and System Application NAS0006K
x: Applicable
*:IVIS (NATS) INFINITI Vehicle Immobilizer System (Nissan Anti-theft System)
NOTE:
This item is indicated, but it is what it does not use.
Diagnostic test
mode Function
ENGINE
A/T
AIR BAG
REARVIEW CAMERA
METER A/C AMP BCM
AUTO DRIVE POS.
ABS (Including VDC) IVIS (NATS)*
IPDM E/R ICC
ALL MODE AWD/4WD INTELLIGENT KEY LDW
Work support This mode enables a technician to adjust some devices
faster and more accurately by following the indications on
CONSULT-II. x - - x - xxx -- x- xx
Self-diagnostic
results Self-diagnostic results can be read and erased quickly. x x x - x x x x x x x x x x
Trouble diagnos-
tic record Current self-diagnostic results and all trouble diagnostic
records previously stored can be read. --x-----------
Data monitor Input/Output data in the ECU can be read. x x - x x x x x - x x x x x
CAN diagnosis
support monitor The condition of CAN communication line can be read. x x - - x x x x - x x x x x
Active test Diagnostic Test Mode in which CONSULT-II drives some
actuators apart from the ECUs and also shifts some param-
eters in a specified range. x- -- - xxx -xxxxx
DTC & SRT con-
firmation The results of SRT (System Readiness Test) and the self-
diagnosis status/result can be confirmed. x- -- ----------
DTC work sup-
port The operating condition to confirm Diagnosis Trouble
Codes can be selected. xx-- ----------
ECU (ECM/TCM)
part number ECU (ECM/TCM) part number can be read. x x - x - x x x - - x x x x
ECU discrimi-
nated No. Classification number of a replacement ECU can be read to
prevent an incorrect ECU from being installed. -- x- ----------
Function test This mode can show results of self-diagnosis of ECU with
either 'OK' or 'NG'. For engines, more practical tests
regarding sensors/switches and/or actuators are available. xxx- ---x------
Control unit ini-
tialization All registered ignition key IDs in NATS components can be
initialized and new IDs can be registered. -- -- - - - - x- - - - -
Configuration
Note— -----x------- -
Pin read Individual control unit number can be read.
For future information, refer to “CONSULT-II operation
manual NATS-IVIS/NVIS” -- -- - - - - x- - - - -

LAN-10
[CAN]
TROUBLE DIAGNOSES WORK FLOW
Revision: 2006 December 2006 FX35/FX45
Example of Filling in Check Sheet When Initial Conditions Are Reproduced
1. Put a check mark to “No indication” if some of unit names listed on the column of diagnosis system selec- tion screen of a check sheet table are not displayed on “SELECT SYSTEM” screen attached to the check
sheet.
NOTE:
Put a check mark to “No indication” of METER A/C AMP, AUTO DRIVE POS. and IPDM E/R because
METER A/C AMP, AUTO DRIVE POS. and IPDM E/R is not displayed on “SELECT SYSTEM” screen.
2. Confirm the unit name that “UNKWN” is displayed from the copy of “CAN DIAG SUPPORT MNTR” screen of “ENGINE” attached to the check sheet, and then put a check mark to the check sheet table.
NOTE:
In “CAN DIAG SUPPORT MNTR” screen, “UNKWN” is displayed on “VDC/TCS/ABS”, “METER/M&A” and
“IPDM E/R”. Put a check mark to the check sheet table.
3. Confirm the unit name that “UNKWN” is displayed on the copy of “CAN DIAG SUPPORT MNTR” screen of “A/T” as well as “ENGINE”. And then, put a check mark to the check sheet table.
NOTE:
In “CAN DIAG SUPPORT MNTR” screen, “UNKWN” is displayed on “VDC/TCS/ABS”, “METER/M&A”,
”ICC/e4WD“ and “AWD/4WD”. But, put a check mark to “VDC/TCS/ABS” and “METER/M&A” because
“UNKWN” is listed on the column of reception diagnosis of the check sheet table.
PKIC9652E

LAN-16
[CAN]
TROUBLE DIAGNOSES WORK FLOW
Revision: 2006 December 2006 FX35/FX45
CAN Diagnostic Support MonitorNKS0034B
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR ECM
Display Results (Present)

OK: Normal

UNKWN: The diagnosed unit does not transmit or receive the applicable data normally.

–: There is no received unit or the unit is not in the condition that reception diagnosis is performed.
Display Results (Past)

OK: Normal

0: There is malfunction now.

1 – 39: Displays when it is normal at present and finds malfunction in the past. It increases like 0 →1→ 2...38 →39 after returning to the
normal condition whenever IGN OFF →ON. If it is over 39, it is fixed to 39 until the self-diagnostic results are erased. It returns to 0
when malfunction is detected again in the process.

—: Undiagnosed
PKIC3562E
“SELECT SYS- TEM” screen “CAN DIAG SUP-
PORT MNTR” screen Description Present Past
ENGINE TRANSMIT DIAG Make sure of normal transmission. OK/UNKWN/–
OK/0/1 – 39/—
VDC/TCS/ABS
Make sure of normal reception from ABS actuator and
electric unit (control unit). OK/UNKWN/–
METER/M&A Make sure of normal reception from unified meter and A/
C amp. OK/UNKWN/–
BCM/SEC Make sure of normal reception from BCM. OK/UNKWN/–
ICC Make sure of normal reception from ICC unit. OK/UNKWN/–
HVAC HVAC is not diagnosed. –
TCM Make sure of normal reception from TCM. OK/UNKWN/–
EPS EPS is not diagnosed. –
IPDM E/R Make sure of normal reception from IPDM E/R. OK/UNKWN/–
e4WD e4WD is not diagnosed. –
AWD/4WD Make sure of normal reception from AWD control unit. OK/UNKWN/–

TROUBLE DIAGNOSES WORK FLOW LAN-17
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN
FOR TCM
Display Results (Present)

OK: Normal

NG: Malfunction

UNKWN: The diagnosed unit does not transmit or receive the applicable data normally.
PKIA9892E
“SELECT SYSTEM”
screen “CAN DIAG SUPPORT
MNTR” screen Description Present
A/T INITIAL DIAG Make sure that microcomputer in ECU works normally. OK/NG
TRANSMIT DIAG Make sure of normal transmission. OK/UNKWN
ECM Make sure of normal reception from ECM. OK/UNKWN
VDC/TCS/ABS Make sure of normal reception from ABS actuator and electric unit
(control unit). OK/UNKWN
METER/M&A Make sure of normal reception from unified meter and A/C amp. OK/UNKWN
ICC/e4WD Make sure of normal reception from ICC unit. OK/UNKWN
AWD/4WD Make sure of normal reception from AWD control unit. OK/UNKWN

LAN-18
[CAN]
TROUBLE DIAGNOSES WORK FLOW
Revision: 2006 December 2006 FX35/FX45
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN
FOR AWD CONTROL UNIT
Display Results (Present)

OK: Normal

NG: Malfunction

UNKWN: The diagnosed unit does not transmit or receive the applicable data normally.
PKIB5966E
“SELECT SYSTEM”
screen “CAN DIAG SUPPORT
MNTR” screen Description Present
ALL MODE AWD/
4WD INITIAL DIAG Make sure that microcomputer in ECU works normally. OK/NG
TRANSMIT DIAG Make sure of normal transmission. OK/UNKWN
VDC/TCS/ABS Make sure of normal reception from ABS actuator and electric
unit (control unit). OK/UNKWN
ECM Make sure of normal reception from ECM. OK/UNKWN
TCM Make sure of normal reception from TCM.
(Not available for CAN system diagnosis.) OK
METER/M&A Make sure of normal reception from unified meter and A/C amp. OK/UNKWN

TROUBLE DIAGNOSES WORK FLOW LAN-23
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

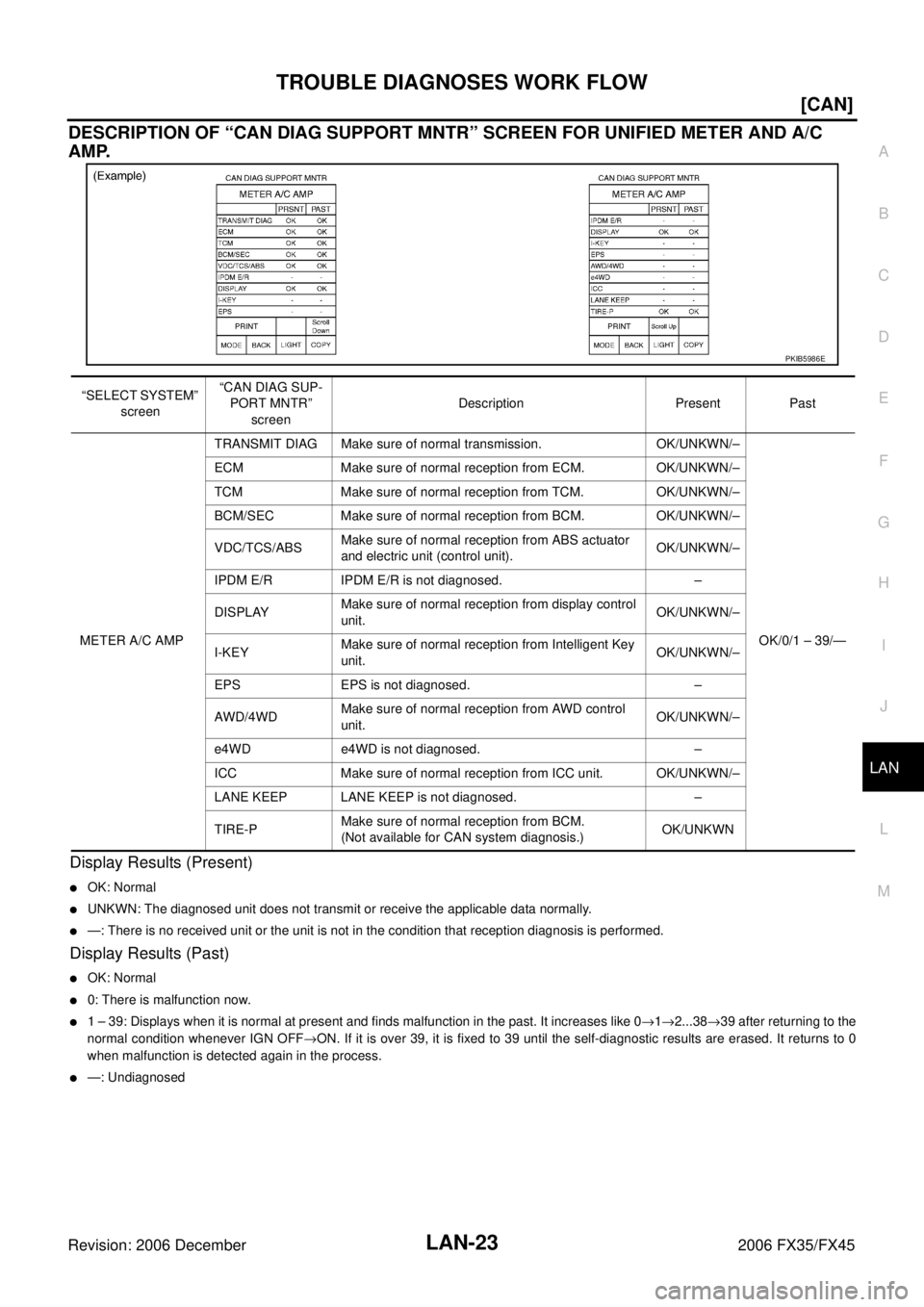

DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR UNIFIED METER AND A/C
AMP.
Display Results (Present)

OK: Normal

UNKWN: The diagnosed unit does not transmit or receive the applicable data normally.

—: There is no received unit or the unit is not in the condition that reception diagnosis is performed.
Display Results (Past)

OK: Normal

0: There is malfunction now.

1 – 39: Displays when it is normal at present and finds malfunction in the past. It increases like 0 →1→ 2...38 →39 after returning to the
normal condition whenever IGN OFF →ON. If it is over 39, it is fixed to 39 until the self-diagnostic results are erased. It returns to 0
when malfunction is detected again in the process.

—: Undiagnosed
PKIB5986E
“SELECT SYSTEM” screen “CAN DIAG SUP-
PORT MNTR”
screen Description Present Past
METER A/C AMP TRANSMIT DIAG Make sure of normal transmission. OK/UNKWN/–
OK/0/1 – 39/—
ECM Make sure of normal reception from ECM. OK/UNKWN/–
TCM Make sure of normal reception from TCM. OK/UNKWN/–
BCM/SEC Make sure of normal reception from BCM. OK/UNKWN/–
VDC/TCS/ABS Make sure of normal reception from ABS actuator
and electric unit (control unit). OK/UNKWN/–
IPDM E/R IPDM E/R is not diagnosed. –
DISPLAY Make sure of normal reception from display control
unit. OK/UNKWN/–
I-KEY Make sure of normal reception from Intelligent Key
unit. OK/UNKWN/–
EPS EPS is not diagnosed. –
AWD/4WD Make sure of normal reception from AWD control
unit. OK/UNKWN/–
e4WD e4WD is not diagnosed. –
ICC Make sure of normal reception from ICC unit. OK/UNKWN/–
LANE KEEP LANE KEEP is not diagnosed. –
TIRE-P Make sure of normal reception from BCM.
(Not available for CAN system diagnosis.) OK/UNKWN
