check engine INFINITI FX35 2006 Service Manual

DESCRIPTION ACS-7
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 December 2006 FX35/FX45
Functional DiagramNKS003ID
Items of input/output signal to be checked with CONSULT-II
PKIC8700E
Input Data monitored
Item [unit] CAN Description
ECM THRTL OPENING
[%] ×Indicates throttle angle read by ICC unit through CAN communication (ECM transmits
throttle angle through CAN communication).
ENGINE RPM
[rpm] ×
Indicates engine speed read by ICC unit through CAN communication (ECM transmits
engine speed through CAN communication).
MAIN SW
[ON/OFF] × Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steer-
ing switch signal through CAN communication).
SET/COAST SW
[ON/OFF] ×Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steer-
ing switch signal through CAN communication).
CANCEL SW
[ON/OFF] ×
Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steer-
ing switch signal through CAN communication).
RESUME/ACC SW
[ON/OFF] × Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steer-
ing switch signal through CAN communication).
IDLE SW
[ON/OFF] ×Indicates [ON/OFF] status of idle switch read by ICC unit through CAN communication
(ECM transmits ON/OFF status through CAN communication).
TCM VHCL SPD AT
[km/h] or [mph] × Indicates vehicle speed calculated from AT vehicle speed sensor by ICC unit through
CAN communication (TCM transmits AT vehicle speed sensor signal through CAN com-
munication).
GEAR
[1, 2, 3, 4, 5] ×
Indicates AT gear position read by ICC unit through CAN communication (TCM trans-
mits gear position through CAN communication).
D RANGE SW
[ON/OFF] × Indicates [ON/OFF] status of “D” position read by ICC unit through CAN communication
(TCM transmits ON/OFF condition of “D” position through CAN communication).
NP RANGE SW
[ON/OFF] ×Indicates PNP switch signal read by ICC unit through CAN communication (TCM trans-
mits PNP switch signal through CAN communication).

ACTION TEST ACS-11
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 December 2006 FX35/FX45
ACTION TESTPFP:00000
ICC System Running TestNKS003EP
VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE
Set Checking
1. Press the MAIN switch for less than 1.5 seconds.
2. Drive the vehicle between 40 km/h (25 MPH) and 144 km/h (90 MPH).
3. Push the SET/COAST switch.
4. Confirm that the desired speed is set as hand is released from the SET/COAST switch.
NOTE:

When there is no vehicle ahead, drive at the set speed steadily.

When there is a vehicle ahead, control to maintain distance from the vehicle ahead, watching its speed.

The set vehicle speed is displayed on the ICC system indicator in the combination meter.
Check For Increase Of Cruising Speed
1. Set vehicle-to-vehicle distance control mode at desired speed.
2. Check if the set speed increases by 1 km/h (1 MPH) as RESUME/ACCELERATE switch is pushed.
NOTE:
The maximum set speed of the vehicle-to-vehicle distance control mode is 144 km/h (90 MPH).
Check For Decrease Of Cruising Speed
1. Set vehicle-to-vehicle distance control mode at desired speed.
2. Check if the set speed decreases by 1 km/h (1 MPH) as SET/COAST switch is pushed.
NOTE:

Vehicle-to-vehicle distance control mode is automatically turned off when the driving speed lowers to 32
km/h (20 MPH) due to the deceleration of the vehicle ahead.

The minimum set speed of the vehicle-to-vehicle distance control mode is 40 km/h (25 MPH).
Check For Cancellation Of Vehicle-To-Vehicle Distance Control Mode (Normal Driving Condi-
tion) In The Following Cases:

When the brake pedal is depressed after the system is turned ON.

When the selector lever is shifted to the “N” (Neutral) position.

When the MAIN switch is turned OFF.

When CANCEL switch is operated.
Check For Restoring Speed That Is Set By Vehicle-To-Vehicle Distance Control Mode Before
Cancellation
1. Cancel the system by depressing the foot brake. Then, check that the speed before cancellation is
restored when pressing RESUME/ACCELERATE switch with 40 km/h (25 MPH) or above.
2. Cancel the system by shifting the selector lever to “N” position. Then, check if the speed set before the cancellation is restored when RESUME/ACCELERATE switch is pushed up.
3. Check if the speed previously set is restored when RESUME/ACCELERATE switch is operated with driv- ing 40 km/h (25 MPH), after canceling vehicle-to-vehicle distance control mode by operating the CANCEL
switch.
Check For MAIN Switch
1. Start engine. Then, check if the following operations are per- formed correctly.
2. Vehicle-to-vehicle distance control mode is displayed in combi- nation meter illuminates when MAIN switch is pressed “ON” for
less than 1.5 seconds and ready for operation. The illumination
goes off when MAIN switch is turned to OFF.
3. “CRUISE” illumination and ICC system display go off when the ignition switch is turned to OFF while MAIN switch is ON
(“CRUISE” illumination is ON and vehicle-to-vehicle distance
control mode is ready for operation).
SKIB8559E

ACS-12
[ICC]
ACTION TEST
Revision: 2006 December 2006 FX35/FX45
Check For RESUME/ACCELERATE, SET/COAST, CANCEL Switches
1. Check if RESUME/ACCELERATE, SET/COAST, CANCEL switches are operated smoothly.
2. Check if buttons come up as hand is released from the buttons.
Check For Distance Switch
1. Start engine.
2. Press the MAIN switch for less than 1.5 seconds.
3. Press the DISTANCE switch.

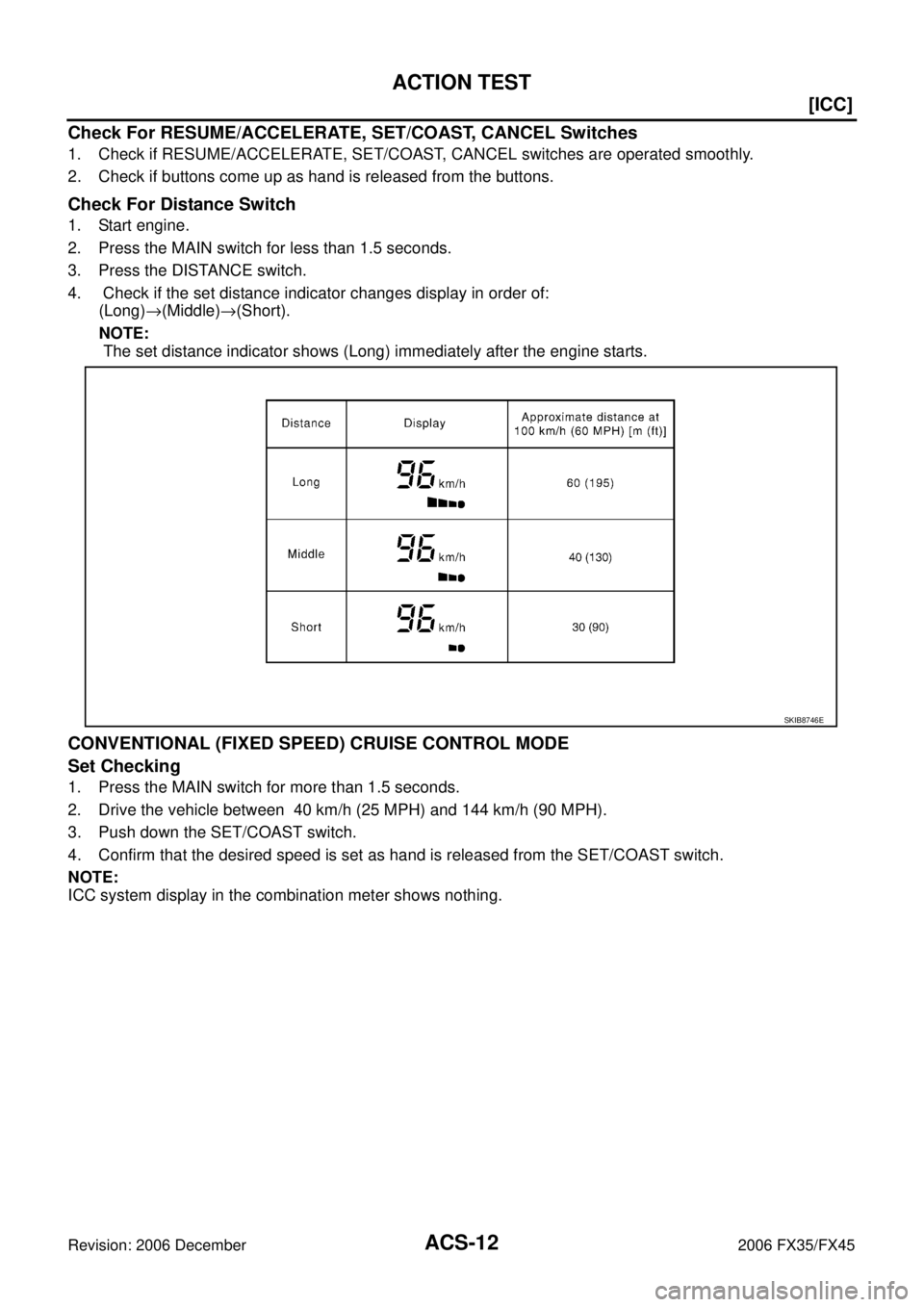

4. Check if the set distance indicator changes display in order of: (Long) →(Middle) →(Short).
NOTE:
The set distance indicator shows (Long) immediately after the engine starts.
CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE
Set Checking
1. Press the MAIN switch for more than 1.5 seconds.
2. Drive the vehicle between 40 km/h (25 MPH) and 144 km/h (90 MPH).
3. Push down the SET/COAST switch.
4. Confirm that the desired speed is set as hand is released from the SET/COAST switch.
NOTE:
ICC system display in the combination meter shows nothing.
SKIB8746E

ACTION TEST ACS-13
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 December 2006 FX35/FX45
Check For Increase Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed increases by 1.6 km/h (1 MPH) as RESUME/ACCELERATE switch is pushed up.
NOTE:

If the RESUME/ACCELERATE switch is kept pushing up during cruise control driving, the vehicle speed
increases until the switch is released.

The maximum set speed is 144 km/h (90 MPH).
Check For Decrease Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed decreases by 1.6 km/h (1 MPH) as SET/COAST switch is pushed down.
NOTE:

Conventional (fixed speed) cruise control mode is automatically turned off when the driving speed lowers
to 32 km/h (20 MPH).

The minimum set speed is 40 km/h (25 MPH).
Check For Cancellation Of Conventional (Fixed Speed) Cruise Control Mode (Normal Driving
Condition) In The Following Cases:
Refer to ACS-11, "Check For Cancellation Of Vehicle-To-Vehicle Distance Control Mode (Normal Driving Con-
dition) In The Following Cases:" .
Check For Restoring Speed That Is Set By Conventional (Fixed Speed) Cruise Control Mode
Before ICC Cancellation
Refer to ACS-11, "Check For Restoring Speed That Is Set By Vehicle-To-Vehicle Distance Control Mode
Before Cancellation" .
Check For MAIN Switch
1. Start engine. Then, check if the following operations are per-
formed correctly.
2. “CRUISE” lamp illuminates and ICC system indicator goes off when MAIN switch is pressed “ON” for more than 1.5 seconds,
and then ready for operation. The illumination goes off when
MAIN switch is turned to OFF.
3. “CRUISE” illumination go off when the ignition switch is turned to OFF while MAIN switch is ON.
Check For RESUME/ACCELERATE, SET/COAST, CANCEL Switches
1. Check if RESUME/ACCELERATE, SET/COAST, CANCEL switches are operated smoothly.
2. Check if buttons come up as hand is released from the buttons.
SKIB8560E

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-35
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 December 2006 FX35/FX45
ACTIVE TEST
CAUTION:

Never perform the active test while driving.

Active test cannot be started while ICC system warning indicator illuminates.
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen. Refer to GI-38, "
CONSULT-II Start Procedure"
.
2. Touch any of “ICC BUZZER 1”, “METER LAMP”, “STOP LAMP” and “BOOSTER SOL/V 3” on selection screen.
3. Touch necessary item and “START”.
4. Active test screen will be shown.
ICC BUZZER 1

Touch “ON” and “OFF” to check that ICC warning chime oper-
ates as in the following chart.
METER LAMP

Start engine.

Touch “ON” and “OFF” to check that ICC system display oper-
ates as in the following chart.
STOP LAMP

Touch “ON” and “OFF” to check that stop lamp operates as in
the following chart.
SKIA6195E
BUZZER O/P ON OFF
Buzzer sound Beep Not activated
SKIA1228E
METER LAMP ON OFF
ICC system display Full illumination OFF
SKIA1231E
STP LMP DRIVE ON OFF
Stop lamp Lamp ON Lamp OFF
SKIA1232E

ACS-36
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2006 December 2006 FX35/FX45
BOOSTER SOL/V 3

Start engine.

Touch any of “MODE 1”, “MODE 2”, “MODE 3” to check that fol-
lowing operation condition is caused by operating monitor and
brake pedal.

“START” is displayed 10 seconds after operation start. (Active
test is completed.)
SKIA1233E
PKIA9821E

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-37
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 December 2006 FX35/FX45
Self-Diagnostic FunctionNKS003F2
WITH CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-11, "ACTION
TEST" .
2. Stop vehicle, turn ignition switch OFF, then connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
3. With engine started, touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULTS” on CON- SULT-II screen in this order.
CAUTION:
If “ICC” cannot be shown after several attempts, the ICC unit may have had malfunction. Repair or
replace it. Refer to GI-39, "
CONSULT-II Data Link Connector (DLC) Circuit" .
4. Self-diagnostic result appears on screen. If “NO DTC ···” is shown, check ICC warning lamp. If any mal- function is indicated, GO TO step 5.
5. According to ACS-42, "
Diagnostic Trouble Code (DTC) Chart" , perform appropriate check, and repair or
replace malfunctioning part as necessary.
6. Turn ignition switch OFF.
7. Start the engine and touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULTS”, and “ERASE” on CONSULT-II display in turn to erase the memory.
CAUTION:
If the memory does not erase, go to 5.
8. Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC warning lamp does not illuminate.
WITHOUT CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-11, "ACTION
TEST" .
2. Stop the vehicle to start the self-diagnosis.
3. Turn ignition switch OFF.
4. From 5 seconds through 15 seconds after turning ignition switch ON, press RESUME/ACCELERATE switch 5 times, and SET/
COAST switch 5 times.
CAUTION:

Never start engine.

Never turn the MAIN switch ON.

When operation above is not completed from 5 seconds
through 15 seconds, start again from above go to 3.

If self-diagnosis mode cannot be started after several
attempts, the ICC unit may have had malfunction. Repair
or replace it. Refer to ACS-39, "
SELF-DIAGNOSIS BY ICC
SYSTEM DISPLAY WILL NOT RUN" .
PKIA9675E

ACS-72
[ICC]
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
2. CHECK FUNCTION
After adjusting ICC sensor beam aiming, perform ICC system running test. Check that preceding vehicle
detection performance has been improved.
OK or NG
OK >> INSPECTION END
NG >> 1. Replace ICC sensor, and perform laser beam aiming adjustment.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Symptom 8: The System Does Not Detect the Vehicle Ahead at AllNKS003FY
1. VISUAL CHECK 1
With ignition switch turned ON (engine not started), check that all indicator lamps in ICC system display are
continuously lit. (Check for a missing segment in preceding vehicle detection display.)
OK or NG
OK >> GO TO 2.
NG >> Check for combination meter. Refer to DI-16, "
Trouble Diagnosis" .
2. VISUAL CHECK 2
Check ICC sensor body window for contamination and foreign materials.
OK or NG
OK >> If any contamination or foreign materials are found, remove them. Perform ICC system running test.
NG >> GO TO 3.
3. VISUAL CHECK 3
Check ICC sensor body window for cracks and scratches.
OK or NG
OK >> GO TO 4.
NG >> 1. Replace ICC sensor, and perform laser beam aiming adjustment.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
4. ADJUST ICC SENSOR
After adjusting ICC sensor beam aiming, perform ICC system running test. Check that preceding vehicle
detection performance has been improved.
OK or NG
OK >> INSPECTION END
NG >> 1. Replace ICC sensor, and perform laser beam aiming adjustment.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.

AT-1
AUTOMATIC TRANSMISSION
C TRANSMISSION/TRANSAXLE
CONTENTS
D E
F
G H
I
J
K L
M
SECTION AT
A
B
AT
Revision: 2006 December 2006 FX35/FX45
AUTOMATIC TRANSMISSION
INDEX FOR DTC ................................................... ..... 5
Alphabetical Index ............................................... ..... 5
DTC No. Index .................................................... ..... 6
PRECAUTIONS ..................................................... ..... 7
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 7
Precautions for On Board Diagnostic (OBD) System
of A/T and Engine ............................................... ..... 7
Precautions ......................................................... ..... 8
Service Notice or Precautions ............................. ..... 9
PREPARATION ...................................................... ... 10
Special Service Tools .......................................... ... 10
Commercial Service Tools ................................... .... 11
A/T FLUID .............................................................. ... 12
Changing A/T Fluid ............................................. ... 12
Checking A/T Fluid .............................................. ... 13
A/T Fluid Cooler Cleaning ................................... ... 15
A/T CONTROL SYSTEM ....................................... ... 18
Cross-sectional View (2WD Models) ................... ... 18
Cross-sectional View (VQ35DE Models for AWD) ... 19
Cross-sectional View (VK45DE Models for AWD) ... 20
Shift Mechanism .................................................. ... 21
TCM Function ...................................................... ... 32
CAN Communication ........................................... ... 33
Input/Output Signal of TCM ................................. ... 33
Line Pressure Control ......................................... ... 34
Shift Control ........................................................ ... 35
Lock-up Control ................................................... ... 37
Engine Brake Control .......................................... ... 38
Control Valve ....................................................... ... 38
ON BOARD DIAGNOSTIC (OBD) SYSTEM ......... ... 40
Introduction ......................................................... ... 40
OBD-II Function for A/T System .......................... ... 40
One or Two Trip Detection Logic of OBD-II ......... ... 40
OBD-II Diagnostic Trouble Code (DTC) .............. ... 40
Malfunction Indicator Lamp (MIL) ........................ ... 43
TROUBLE DIAGNOSIS ......................................... ... 44
DTC Inspection Priority Chart ............................. ... 44
Fail-safe .............................................................. ... 44 How to Perform Trouble Diagnosis for Quick and
Accurate Repair ................................................... ... 46
A/T Electrical Parts Location ............................... ... 51
Circuit Diagram .................................................... ... 52
Inspections Before Trouble Diagnosis ................. ... 53
Check Before Engine Is Started .......................... ... 57
Check at Idle ........................................................ ... 57
Cruise Test - Part 1 .............................................. ... 58
Cruise Test - Part 2 .............................................. ... 60
Cruise Test - Part 3 .............................................. ... 61
Vehicle Speed at Which Gear Shifting Occurs .... ... 62
Vehicle Speed at Which Lock-up Occurs/Releases ... 63
Symptom Chart .................................................... ... 64
TCM Input/Output Signal Reference Values ........ ... 89
CONSULT-II Function (A/T) ................................. ... 90
Diagnostic Procedure without CONSULT-II ......... .102
DTC U1000 CAN COMMUNICATION LINE ........... .104
Description ........................................................... .104
On Board Diagnosis Logic ................................... .104
Possible Cause .................................................... .104
DTC Confirmation Procedure .............................. .104
Wiring Diagram — AT — CAN ............................. .105
Diagnostic Procedure .......................................... .106
DTC P0615 START SIGNAL CIRCUIT .................. .107
Description ........................................................... .107
CONSULT-II Reference Value ............................. .107
On Board Diagnosis Logic ................................... .107
Possible Cause .................................................... .107
DTC Confirmation Procedure .............................. .107
Wiring Diagram — AT — STSIG ......................... .108
Diagnostic Procedure .......................................... .109
DTC P0700 TCM .................................................... .. 111
Description ........................................................... ..111
On Board Diagnosis Logic ................................... ..111
Possible Cause .................................................... ..111
DTC Confirmation Procedure .............................. ..111
Diagnostic Procedure .......................................... ..111
DTC P0705 PARK/NEUTRAL POSITION SWITCH .112
Description ........................................................... .112
CONSULT-II Reference Value ............................. .112

AT-3
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45 DTC P1762 DIRECT CLUTCH SOLENOID VALVE
. 154
Description .......................................................... . 154
CONSULT-II Reference Value ............................. . 154
On Board Diagnosis Logic .................................. . 154
Possible Cause ................................................... . 154
DTC Confirmation Procedure .............................. . 154
Diagnostic Procedure .......................................... . 155
DTC P1764 DIRECT CLUTCH SOLENOID VALVE
FUNCTION ............................................................. . 156
Description .......................................................... . 156
CONSULT-II Reference Value ............................. . 156
On Board Diagnosis Logic .................................. . 156
Possible Cause ................................................... . 156
DTC Confirmation Procedure .............................. . 156
Diagnostic Procedure .......................................... . 157
DTC P1767 HIGH AND LOW REVERSE CLUTCH
SOLENOID VALVE ................................................ . 158
Description .......................................................... . 158
CONSULT-II Reference Value ............................. . 158
On Board Diagnosis Logic .................................. . 158
Possible Cause ................................................... . 158
DTC Confirmation Procedure .............................. . 158
Diagnostic Procedure .......................................... . 159
DTC P1769 HIGH AND LOW REVERSE CLUTCH
SOLENOID VALVE FUNCTION ............................ . 160
Description .......................................................... . 160
CONSULT-II Reference Value ............................. . 160
On Board Diagnosis Logic .................................. . 160
Possible Cause ................................................... . 160
DTC Confirmation Procedure .............................. . 160
Diagnostic Procedure .......................................... . 161
DTC P1772 LOW COAST BRAKE SOLENOID
VALVE .................................................................... . 162
Description .......................................................... . 162
CONSULT-II Reference Value ............................. . 162
On Board Diagnosis Logic .................................. . 162
Possible Cause ................................................... . 162
DTC Confirmation Procedure .............................. . 162
Diagnostic Procedure .......................................... . 163
DTC P1774 LOW COAST BRAKE SOLENOID
VALVE FUNCTION ................................................ . 164
Description .......................................................... . 164
CONSULT-II Reference Value ............................. . 164
On Board Diagnosis Logic .................................. . 164
Possible Cause ................................................... . 164
DTC Confirmation Procedure .............................. . 164
Diagnostic Procedure .......................................... . 165
DTC P1815 MANUAL MODE SWITCH ................. . 166
Description .......................................................... . 166
CONSULT-II Reference Value in Data Monitor Mode . 166
On Board Diagnosis Logic .................................. . 166
Possible Cause ................................................... . 166
DTC Confirmation Procedure .............................. . 166
Wiring Diagram — AT — MMSW ........................ . 167
Diagnostic Procedure .......................................... . 169
Component Inspection ........................................ . 170
DTC P1841 ATF PRESSURE SWITCH 1 .............. . 171
Description .......................................................... . 171 CONSULT-II Reference Value .............................
.171
On Board Diagnosis Logic ................................... .171
Possible Cause .................................................... .171
DTC Confirmation Procedure .............................. .171
Diagnostic Procedure .......................................... .172
DTC P1843 ATF PRESSURE SWITCH 3 .............. .173
Description ........................................................... .173
CONSULT-II Reference Value ............................. .173
On Board Diagnosis Logic ................................... .173
Possible Cause .................................................... .173
DTC Confirmation Procedure .............................. .173
Diagnostic Procedure .......................................... .174
DTC P1845 ATF PRESSURE SWITCH 5 .............. .175
Description ........................................................... .175
CONSULT-II Reference Value ............................. .175
On Board Diagnosis Logic ................................... .175
Possible Cause .................................................... .175
DTC Confirmation Procedure .............................. .175
Diagnostic Procedure .......................................... .176
DTC P1846 ATF PRESSURE SWITCH 6 .............. .177
Description ........................................................... .177
CONSULT-II Reference Value ............................. .177
On Board Diagnosis Logic ................................... .177
Possible Cause .................................................... .177
DTC Confirmation Procedure .............................. .177
Diagnostic Procedure .......................................... .178
MAIN POWER SUPPLY AND GROUND CIRCUIT .179
Wiring Diagram — AT — MAIN ........................... .179
Diagnostic Procedure .......................................... .180
CLOSED THROTTLE POSITION AND WIDE OPEN
THROTTLE POSITION CIRCUIT ........................... .183
CONSULT-II Reference Value ............................. .183
Diagnostic Procedure .......................................... .183
BRAKE SIGNAL CIRCUIT ..................................... .184
CONSULT-II Reference Value ............................. .184
Diagnostic Procedure .......................................... .184
A/T INDICATOR CIRCUIT ...................................... .185
Description ........................................................... .185
CONSULT-II Reference Value ............................. .185
Diagnostic Procedure .......................................... .185
TROUBLE DIAGNOSIS FOR SYMPTOMS ........... .186
Wiring Diagram — AT — NONDTC ..................... .186
A/T CHECK Indicator Lamp Does Not Come On . 189
Engine Cannot Be Started in “P” or “N” Position . .190
In “P” Position, Vehicle Moves When Pushed ..... .191
In “N” Position, Vehicle Moves ............................. .192
Large Shock (“N” to “D” Position) ........................ .193
Vehicle Does Not Creep Backward in “R” Position .196
Vehicle Does Not Creep Forward in “D” Position . 199
Vehicle Cannot Be Started From D
1 .................... .201
A/T Does Not Shift: D
1 → D2 ............................... .204
A/T Does Not Shift: D
2 → D3 ............................... .206
A/T Does Not Shift: D
3 → D4 ............................... .208
A/T Does Not Shift: D
4 → D5 ............................... .211
A/T Does Not Lock-up ......................................... .213
A/T Does Not Hold Lock-up Condition ................. .215
Lock-up Is Not Released ..................................... .217
Engine Speed Does Not Return to Idle ............... .217
Cannot Be Changed to Manual Mode ................. .219
