DI-120
REAR VIEW MONITOR
Revision: 2006 July 2007 FX35/FX45
CONSULT-II Function (REARVIEW CAMERA)NKS0031Y
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
WORK SUPPORT
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “SELCT GUIDELINE PATTERN” or “ADJ GUIDELINE POSITION” on the “WORK SUP- PORT” screen.
Refer to DI-121, "
SIDE DISTANCE GUIDELINE CORRECTION PROCEDURE" for detail.
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
3. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “ALL SIG- NALS” is selected, all items will be monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop recording, touch “STOP”.
Display Item List
System Diagnosis mode Description Reference
page
REARVIEW CAMERA WORK SUPPORT
It can adjust the side distance guidelines which overlap the
rear view monitor image. DI-120
DATA MONITOR Displays rear view camera control unit input data in real
time. DI-120
ECU PART NUMBER Displays part number of rear view camera control unit. —
SELCT GUIDELINE PATTERN Side distance guideline is optional from two patterns.
ADJ GUIDELINE POSITION Side distance guideline is adjustable toward up and down, right and left.
ALL SIGNALS Monitors all signals.
SELECTION FROM MENU Selects and monitors individual signal.
Display item [Unit] ALL
SIGNALS SELECTION
FROM MENU Contents
R POSI SIG [ON/OFF] X X Indicates [ON/OFF] condition of R range position signal input.

EI-46
LUGGAGE FLOOR TRIM
Revision: 2006 July 2007 FX35/FX45
REMOVAL
1. Remove tonneau cover.
2. Remove luggage side hook and remove net hook (RH/LH).
3. Remove luggage floor board assembly. Remove bolt with power tool.
4. Remove luggage floor side board assembly (RH/LH).
5. Remove back door weather strip.
6. Remove rear plate assembly.
7. Remove roof rear garnish assembly.
8. Remove luggage floor cover assembly (RH/LH).
9. Remove rear door kicking plate (RH/LH).
10. Remove rear body side welt.
11. Remove rear seat cushion and seatback. Refer to SE-104, "
Removal and Installation" .
12. Remove rear wheel house finisher assembly (RH/LH).
13. Remove luggage side finisher assembly bolt and remove luggage side finisher assembly (RH/LH).
14. Remove bolt, and then remove parcel shelf holder.
15. Remove rear parcel shelf cap.
16. Remove bolt, and then remove rear parcel hook.
17. Remove rear seat belt anchor (RH/LH). Refer to SB-6, "
Removal and Installation of Rear Seat Belt" .
18. Remove rear pillar upper garnish assembly cap and bolt, then remove rear pillar upper garnish assembly (RH/LH).
19. Remove spare tire clamp.
20. Remove sub-woofer box connector and remove sub-woofer box.
21. Remove spare tire.
22. Remove towing hook, wheel nut wrench, spanner, tire stopper, jack rod and jack complete.
23. Remove luggage side box bolt and luggage side box assembly (RH/LH).
INSTALLATION
Install in the reverse order of removal.
1. Roof rear garnish assembly 2. Rear pillar upper garnish assembly (LH) 3. Bolt
4. Cap 5. Luggage floor cover assembly (RH) 6. Luggage floor cover assembly (LH)
7. Luggage floor side board assembly (LH) 8. Rear wheel house finisher assembly
(LH) 9. Luggage side finisher assembly
(LH)
10. Clamp 11. Sub woofer box 12. Spare tire
13. Luggage side box (LH) 14. Rear plate assembly 15. Luggage side box (RH)
16. Cap 17. Luggage floor board assembly 18. Luggage floor board assembly (option for Canada)
19. Luggage floor side board assembly (RH) 20. Net hook 21. Luggage side finisher assembly
(RH)
22. Rear parcel shelf hook 23. Rear parcel shelf cap 24. Rear parcel shelf holder
25. Rear wheel house finisher assembly (RH) 26. Rear pillar upper garnish assembly
(RH) 27. Luggage finisher mask (RH)
28. Luggage finisher mask (LH) 29. Tonneau cover 30. Net
31. Luggage floor center front board (Run flat type) 32. Luggage floor center rear board
(Run flat type) 33. Luggage floor box assembly
(Run flat type)
Clip Pawl Metal clip

FAX-12
[AWD]
FRONT DRIVE SHAFT
Revision: 2006 July 2007 FX35/FX45
FRONT DRIVE SHAFTPFP:39100
On-Vehicle Inspection NDS000G3

Check drive shaft mounting point and joint for looseness and other damage.

Check boot for cracks and other damage.
CAUTION:
Replace entire drive shaft assembly when noise or vibration occur from drive shaft.
DRIVE SHAFT BOOT REPLACEMENT
1. Remove tires from vehicle with power tool.
2. Remove undercover with power tool.
3. Remove cotter pin. Then remove lock nut from drive shaft with power tool.
CAUTION:
Do not depress brake pedal while brake caliper is removed.
4. Remove wheel sensor harness from strut assembly. Refer to BRC-57, "
WHEEL SENSORS" .
CAUTION:
Do not pull on wheel sensor harness.
5. Remove brake hose lock plate. Then remove brake hose from strut assembly. Refer to BR-11, "
BRAKE
TUBE AND HOSE" .
6. Remove fixing bolts and nuts between strut assembly and steering knuckle with power tool.
7. Remove drive shaft from wheel hub and bearing assembly.
8. Using a puller (suitable tool), remove drive shaft from steering knuckle.
CAUTION:
When removing drive shaft, do not apply an excessive
angle to drive shaft joint. Also be careful not to excessively
extend slide joint.
9. Remove boot bands, and then remove boot from joint sub-assembly.
10. Screw a drive shaft puller (suitable tool) into joint sub-assembly screw part to a length of 30 mm (1.18 in) or more. Support drive
shaft with one hand and pull out joint sub-assembly with a slid-
ing hammer (suitable tool) from shaft.
CAUTION:

Align a sliding hammer and drive shaft and remove them
by pulling firmly and uniformly.

If joint sub-assembly cannot be pulled out, try after
removing drive shaft from vehicle.
11. Remove the circular clip from shaft.
12. Remove boot from shaft.
13. Clean the old grease on joint sub-assembly with paper towels.
SDIA0972J
SDIA0881J
SDIA2489E

FRONT DRIVE SHAFT FAX-19
[AWD]
C E F
G H
I
J
K L
M A
B
FA X
Revision: 2006 July 2007 FX35/FX45

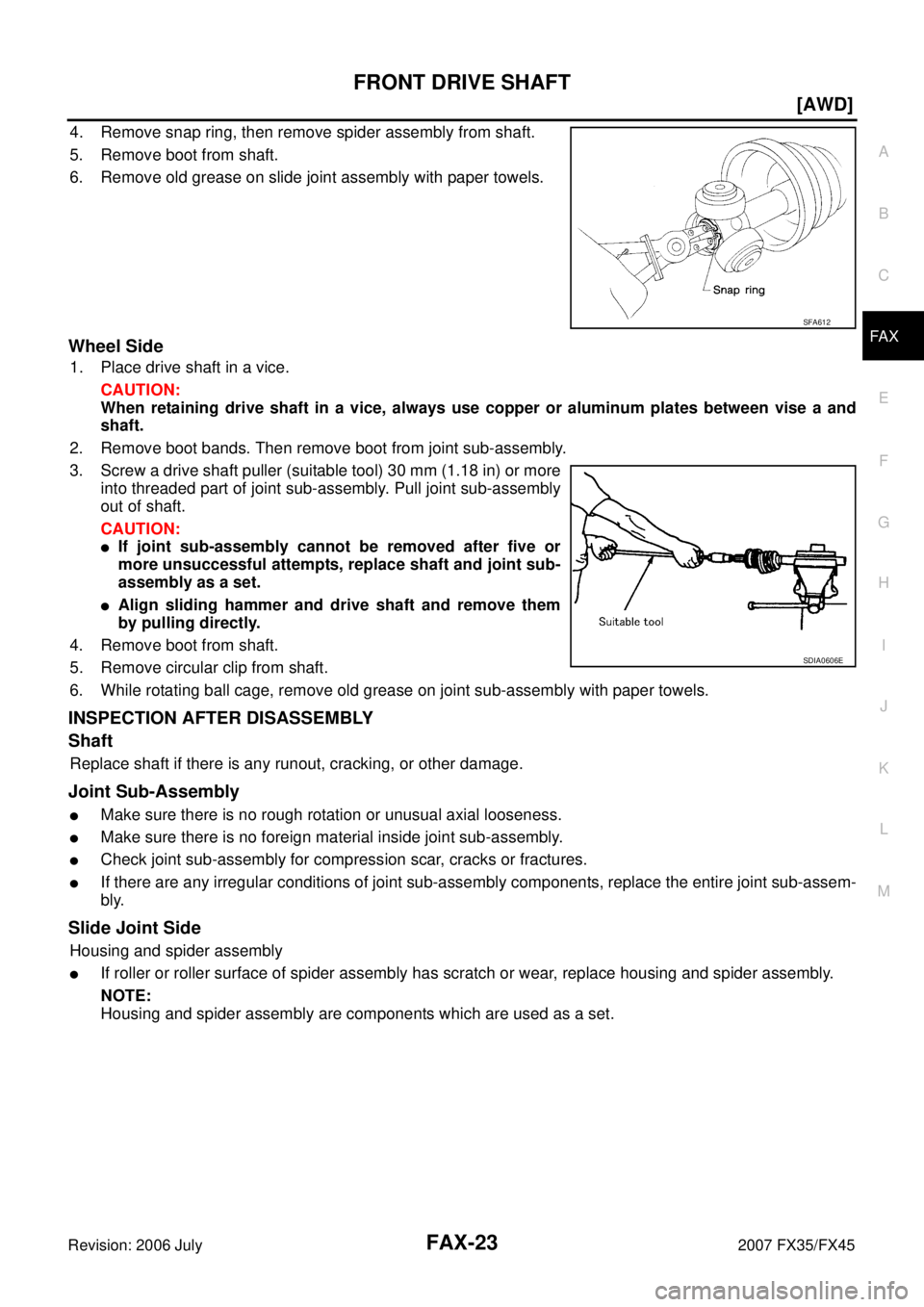

5. Remove snap ring, then remove spider assembly from shaft.
6. Remove boot from shaft.
7. Remove old grease on slide joint assembly with paper towels.
Wheel Side
1. Place drive shaft in a vice. CAUTION:
When retaining drive shaft in a vice, always use copper or aluminum plates between a vise and
shaft.
2. Remove boot bands. Then remove boot from joint sub-assembly.
3. Screw a drive shaft puller (suitable tool) 30 mm (1.18 in) or more into threaded part of joint sub-assembly. Pull joint sub-assembly
out of shaft.
CAUTION:

If joint sub-assembly cannot be removed after five or
more unsuccessful attempts, replace shaft and joint sub-
assembly as a set.

Align sliding hammer and drive shaft and remove them
by pulling directly.
4. Remove boot from shaft.
5. Remove circular clip from shaft.
6. While rotating ball cage, remove old grease on joint sub-assembly with paper towels.
INSPECTION AFTER DISASSEMBLY
Shaft
Replace shaft if there is any runout, cracking, or other damage.
Joint Sub-Assembly

Make sure there is no rough rotation or unusual axial looseness.

Make sure there is no foreign material inside joint sub-assembly.

Check joint sub-assembly for compression scar, cracks or fractures.
CAUTION:
If there are any irregular conditions of joint sub-assembly components, replace the entire joint
sub-assembly.
Slide Joint Side
Housing and spider assembly

If roller or roller surface of spider assembly has scratch or wear, replace housing and spider assembly.
NOTE:
Housing and spider assembly are components which are used as a set.
SFA612
SDIA0606E

FRONT DRIVE SHAFT FAX-23
[AWD]
C E F
G H
I
J
K L
M A
B
FA X
Revision: 2006 July 2007 FX35/FX45
4. Remove snap ring, then remove spider assembly from shaft.
5. Remove boot from shaft.
6. Remove old grease on slide joint assembly with paper towels.
Wheel Side
1. Place drive shaft in a vice. CAUTION:
When retaining drive shaft in a vice, always use copper or aluminum plates between vise a and
shaft.
2. Remove boot bands. Then remove boot from joint sub-assembly.
3. Screw a drive shaft puller (suitable tool) 30 mm (1.18 in) or more into threaded part of joint sub-assembly. Pull joint sub-assembly
out of shaft.
CAUTION:

If joint sub-assembly cannot be removed after five or
more unsuccessful attempts, replace shaft and joint sub-
assembly as a set.

Align sliding hammer and drive shaft and remove them
by pulling directly.
4. Remove boot from shaft.
5. Remove circular clip from shaft.
6. While rotating ball cage, remove old grease on joint sub-assembly with paper towels.
INSPECTION AFTER DISASSEMBLY
Shaft
Replace shaft if there is any runout, cracking, or other damage.
Joint Sub-Assembly

Make sure there is no rough rotation or unusual axial looseness.

Make sure there is no foreign material inside joint sub-assembly.

Check joint sub-assembly for compression scar, cracks or fractures.

If there are any irregular conditions of joint sub-assembly components, replace the entire joint sub-assem-
bly.
Slide Joint Side
Housing and spider assembly

If roller or roller surface of spider assembly has scratch or wear, replace housing and spider assembly.
NOTE:
Housing and spider assembly are components which are used as a set.
SFA612
SDIA0606E

GI-1
GENERAL INFORMATION
A GENERAL INFORMATION
CONTENTS
C
D E
F
G H
I
J
K L
M B
GI
SECTION
Revision: 2006 July
2007 FX35/FX45
GENERAL INFORMATION
PRECAUTIONS .......................................................... 3
Description .......................................................... ..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS) (If
Equipped) ............................................................ ..... 3
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect ..................................... ..... 4
OPERATION PROCEDURE ............................ ..... 4
Precautions for Procedures without Cowl Top Cover ..... 4
General Precautions ........................................... ..... 4
Precautions for Three Way Catalyst .................... ..... 6
Precautions for Fuel (Unleaded Premium Gasoline
Recommended) ................................................... ..... 6
Precautions for Fuel (Unleaded Premium Gasoline
Required) ............................................................ ..... 7
Precautions for Multiport Fuel Injection System or
Engine Control System ....................................... ..... 7
Precautions for Hoses ......................................... ..... 7
HOSE REMOVAL AND INSTALLATION .......... ..... 7
HOSE CLAMPING ........................................... ..... 8
Precautions for Engine Oils ................................. ..... 8
HEALTH PROTECTION PRECAUTIONS ........ ..... 8
Precautions for the Environment ......................... ..... 8
Precautions for Air Conditioning .......................... ..... 9
HOW TO USE THIS MANUAL .............................. ... 10
Description .......................................................... ... 10
Terms .................................................................. ... 10
Units .................................................................... ... 10
Contents .............................................................. ... 10
Components ........................................................ .... 11
SYMBOLS ........................................................ .... 11
How to Follow Trouble Diagnoses ....................... ... 12
DESCRIPTION ................................................. ... 12
HOW TO FOLLOW TEST GROUPS IN TROU-
BLE DIAGNOSES ............................................ ... 12
HARNESS WIRE COLOR AND CONNECTOR
NUMBER INDICATION .................................... ... 13 KEY TO SYMBOLS SIGNIFYING MEASURE-
MENTS OR PROCEDURES ............................ ... 14
How to Read Wiring Diagrams ............................ ... 16
CONNECTOR SYMBOLS ................................ ... 16
SAMPLE/WIRING DIAGRAM - EXAMPL - ....... ... 17
DESCRIPTION ................................................. ... 18
Abbreviations ....................................................... ... 24
SERVICE INFORMATION FOR ELECTRICAL INCI-
DENT ...................................................................... ... 25
How to Check Terminal ........................................ ... 25
CONNECTOR AND TERMINAL PIN KIT ......... ... 25
HOW TO PROBE CONNECTORS ................... ... 25
How to Perform Efficient Diagnosis for an Electrical
Incident ................................................................ ... 28
WORK FLOW ................................................... ... 28
INCIDENT SIMULATION TESTS ..................... ... 28
CIRCUIT INSPECTION .................................... ... 31
Control Units and Electrical Parts ........................ ... 36
WORK FLOW ................................................... ... 28
CONSULT-II CHECKING SYSTEM ....................... ... 37
Description ........................................................... ... 37
Function and System Application ........................ ... 37
Nickel Metal Hydride Battery Replacement ......... ... 38
Checking Equipment ........................................... ... 38
CONSULT-II Start Procedure ............................... ... 38
CONSULT-II Data Link Connector (DLC) Circuit . ... 39
INSPECTION PROCEDURE ........................... ... 39
CIRCUIT DIAGRAM ......................................... ... 40
LIFTING POINT ...................................................... ... 41
Commercial Service Tools ................................... ... 41
Garage Jack and Safety Stand ............................ ... 41
2-Pole Lift ............................................................ ... 42
Board-On Lift ....................................................... ... 43
TOW TRUCK TOWING .......................................... ... 44
Tow Truck Towing ................................................ ... 44
2WD MODELS ................................................. ... 44
AWD MODELS ................................................. ... 45
Vehicle Recovery (Freeing a Stuck Vehicle) ........ ... 45
AUTOMATIC TRANSMISSION ........................ ... 46

GI-44
TOW TRUCK TOWING
Revision: 2006 July 2007 FX35/FX45
TOW TRUCK TOWINGPFP:00000
Tow Truck TowingNAS0006T
CAUTION:

All applicable state or Provincial (in Canada) laws and local laws regarding the towing operation
must be obeyed.

It is necessary to use proper towing equipment to avoid possible damage to the vehicle during
towing operation. Towing is in accordance with Towing Procedure Manual at dealer.

Always attach safety chains before towing.

When towing, make sure that the transmission, steering system and powertrain are in good order.
If any unit is damaged, dollies must be used.

Never tow an automatic transmission model from the rear (that is backward) with four wheels on
the ground. This may cause serious and expensive damage to the transmission.
2WD MODELS
INFINITI recommends that vehicle be towed with the driving (rear) wheels off the ground or that a dolly be
used as illustrated.
CAUTION:

Never tow automatic transmission models with the rear wheels on the ground or four wheels on
the ground (forward or backward), as this may cause serious and expensive damage to the trans-
mission.
If it is necessary to tow the vehicle with the front wheels raised, always use towing dollies under
the rear wheels.

When towing rear wheel drive models with the front wheels on the ground or on towing dollies:
–Turn the ignition key to the OFF position, and secure the steering wheel in a straight ahead posi-
tion with a rope or similar device.Never secure the steering wheel by turning the ignition key to the
LOCK position. This may damage the steering lock mechanism.
–Move the selector lever to the N (Neutral) position.

When the battery of vehicle equipped with the Intelligent Key system is discharged, your vehicle
should be towed with the front wheels on towing dollies or place the vehicle on a flat bed truck.
If the speed or distance must necessarily be greater, remove the propeller shaft before towing to prevent dam-
age to the transmission.
PAIA0097E

TOW TRUCK TOWING GI-45
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45
AWD MODELS
INFINITI recommends that a dolly be used as illustrated when towing AWD models.
CAUTION:
Never tow AWD models with any of the wheels on the ground as this may cause serious and expen-
sive damage to the powertrain.
Vehicle Recovery (Freeing a Stuck Vehicle) NAS0006U
Securely install the vehicle recovery hook stored with jacking tools.
Make sure that the hook is properly secured in the stored place after
use.
WARNING:

Stand clear of a stuck vehicle.

Do not spin your tires at high speed. This could cause them
to explode and result in serious injury. Parts of your vehicle
could also overheat and be damaged.
CAUTION:

Tow chains or cables must be attached only to the vehicle
recovery hooks or main structural members of the vehicle.
Otherwise, the vehicle body will be damaged.

Do not use the vehicle tie downs to free a vehicle stuck in
sand, snow, mud, etc. Never tow the vehicle using the vehi-
cle tie downs or recovery hooks.

Always pull the cable straight out from the front of the vehi-
cle. Never pull on the hook at an angle.

Pulling devices should be routed so they do not touch any
part of the suspension, steering, brake or cooling systems.

Pulling devices such as ropes or canvas straps are not rec-
ommended for use in vehicle towing or recovery.
PAIA0098E
PAIA0099E

GI-46
TOW TRUCK TOWING
Revision: 2006 July 2007 FX35/FX45
AUTOMATIC TRANSMISSION
To tow a vehicle equipped with an automatic transmission, an appropriate vehicle dolly MUST be placed
under the towed vehicle's drive wheels. Always follow the dolly manufacture's recommendations when using
their product.
If the vehicle is stuck in sand, snow, mud, etc., use the following procedure:
1. Turn off the Vehicle Dynamic Control System.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and backward. Shift back and forth between R (reverse) and D (drive).
Apply the accelerator as little as possible to maintain the rocking motion.
Release the accelerator pedal before shifting between R and D.
Do not spin the tires above 35 mph (55 km/h).
5. If the vehicle can not be freed after a few tries, contact a professional towing service to remove the vehi- cle.

FRONT DOOR GLASS AND REGULATOR GW-59
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 July 2007 FX35/FX45

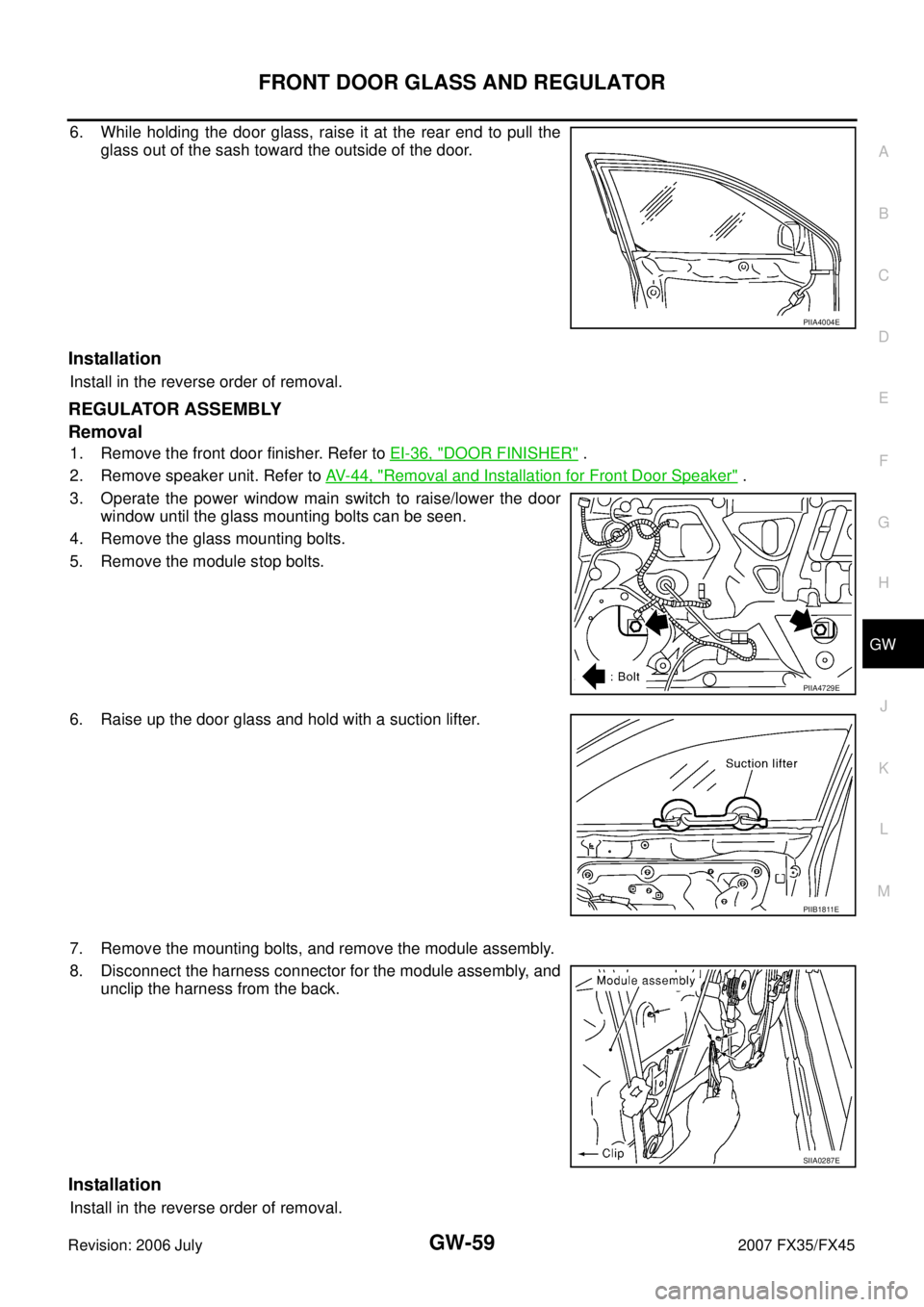

6. While holding the door glass, raise it at the rear end to pull the
glass out of the sash toward the outside of the door.
Installation
Install in the reverse order of removal.
REGULATOR ASSEMBLY
Removal
1. Remove the front door finisher. Refer to EI-36, "DOOR FINISHER" .
2. Remove speaker unit. Refer to AV- 4 4 , "
Removal and Installation for Front Door Speaker" .
3. Operate the power window main switch to raise/lower the door window until the glass mounting bolts can be seen.
4. Remove the glass mounting bolts.
5. Remove the module stop bolts.
6. Raise up the door glass and hold with a suction lifter.
7. Remove the mounting bolts, and remove the module assembly.
8. Disconnect the harness connector for the module assembly, and unclip the harness from the back.
Installation
Install in the reverse order of removal.
PIIA4004E
PIIA4729E
PIIB1811E
SIIA0287E
