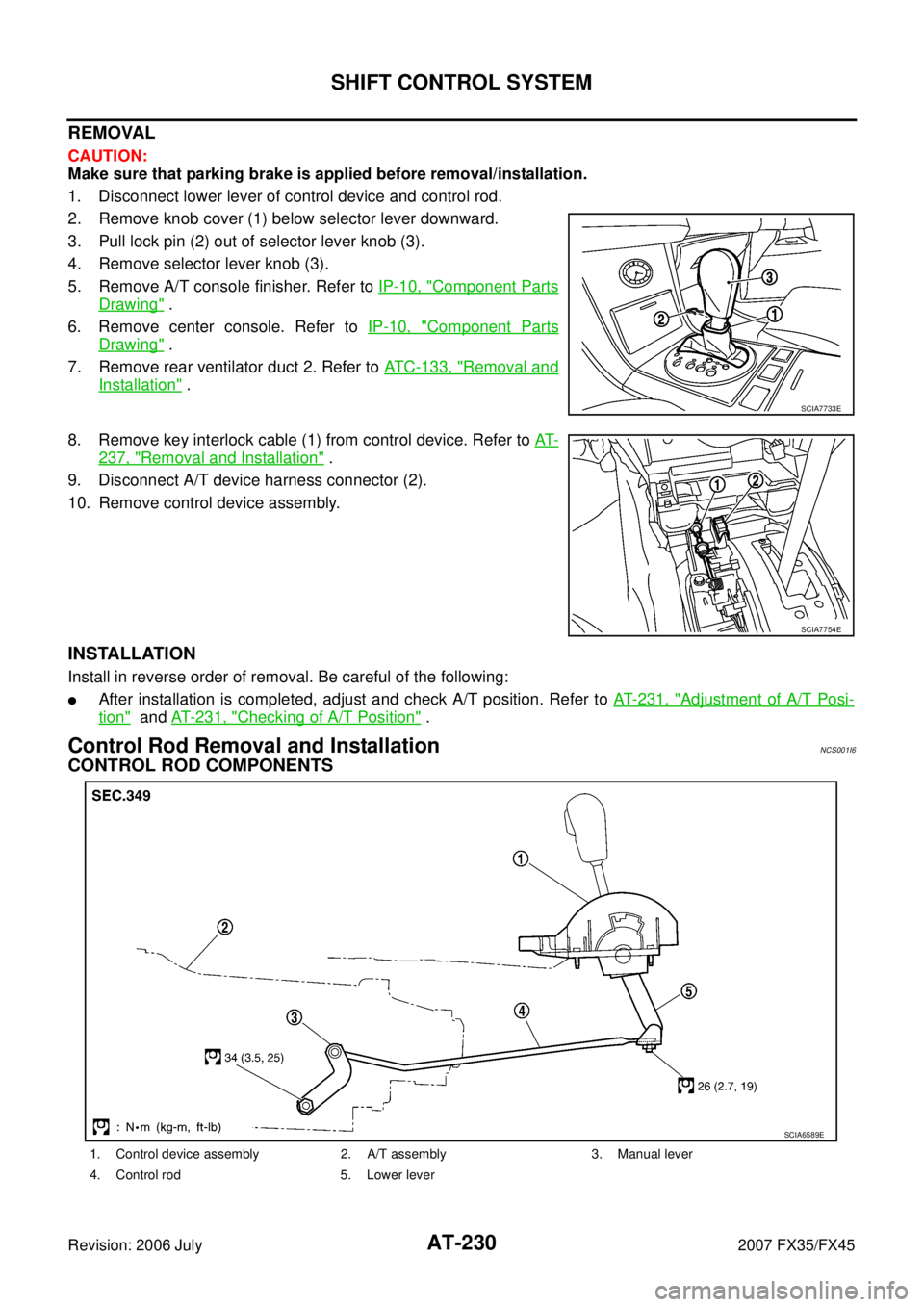

center console INFINITI FX35 2007 Service Manual

AT-230
SHIFT CONTROL SYSTEM
Revision: 2006 July 2007 FX35/FX45
REMOVAL
CAUTION:
Make sure that parking brake is applied before removal/installation.
1. Disconnect lower lever of control device and control rod.
2. Remove knob cover (1) below selector lever downward.
3. Pull lock pin (2) out of selector lever knob (3).
4. Remove selector lever knob (3).
5. Remove A/T console finisher. Refer to IP-10, "
Component Parts
Drawing" .
6. Remove center console. Refer to IP-10, "
Component Parts
Drawing" .
7. Remove rear ventilator duct 2. Refer to ATC-133, "
Removal and
Installation" .
8. Remove key interlock cable (1) from control device. Refer to AT-
237, "Removal and Installation" .
9. Disconnect A/T device harness connector (2).
10. Remove control device assembly.
INSTALLATION
Install in reverse order of removal. Be careful of the following:

After installation is completed, adjust and check A/T position. Refer to AT- 2 3 1 , "Adjustment of A/T Posi-
tion" and AT- 2 3 1 , "Checking of A/T Position" .
Control Rod Removal and InstallationNCS001I6
CONTROL ROD COMPONENTS
SCIA7733E
SCIA7754E
1. Control device assembly 2. A/T assembly 3. Manual lever
4. Control rod 5. Lower lever
SCIA6589E

AT-232
A/T SHIFT LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45
A/T SHIFT LOCK SYSTEMPFP:34950
DescriptionNCS001I9

The mechanical key interlock mechanism also operates as a shift lock:
With the ignition switch turned to ON, the selector lever cannot be shifted from “P” position to any other
position unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from “P” position to any other position.
The key cannot be removed unless the selector lever is placed in “P” position.

The shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside the key cylinder.

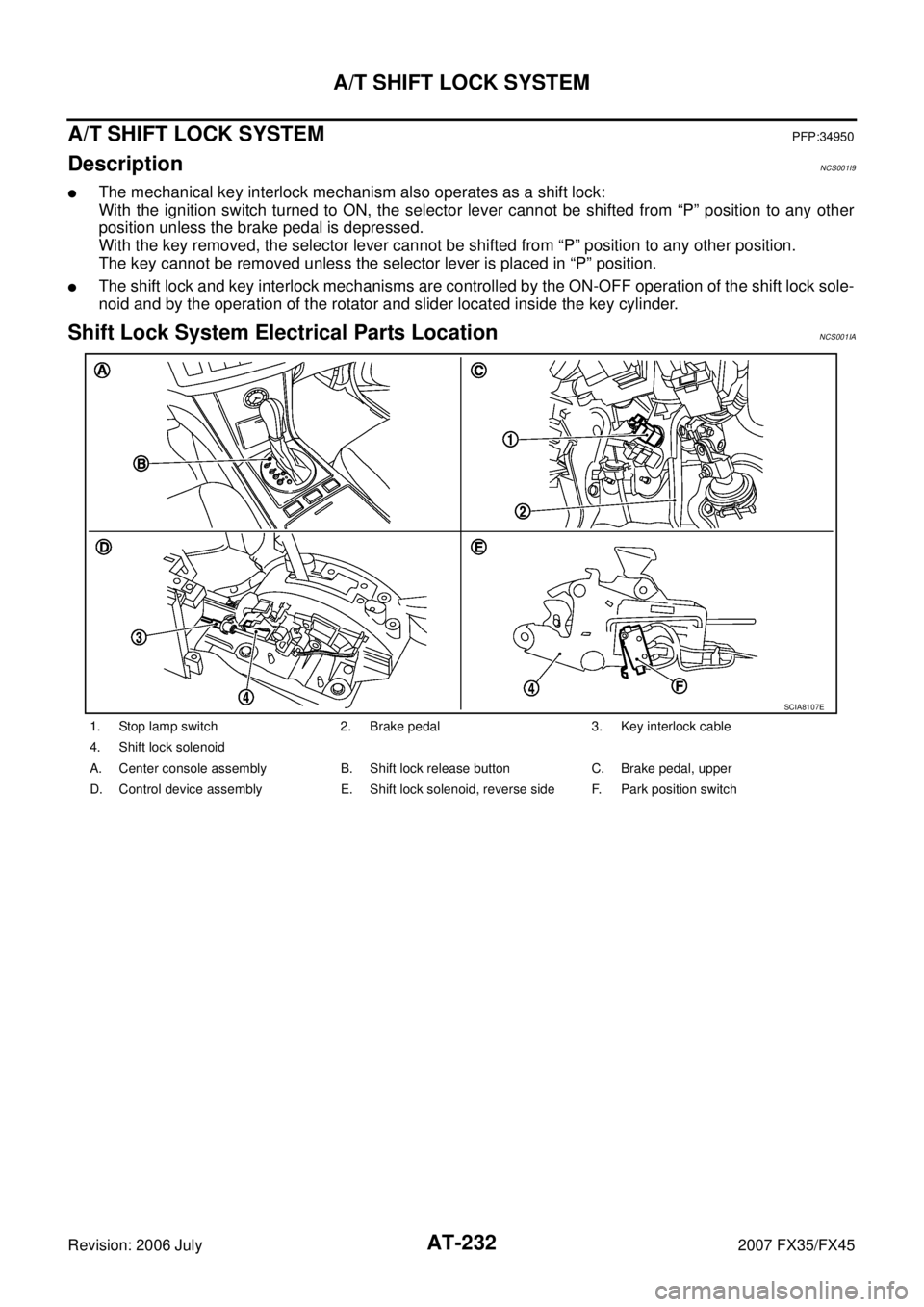

Shift Lock System Electrical Parts LocationNCS001IA
1. Stop lamp switch 2. Brake pedal 3. Key interlock cable
4. Shift lock solenoid
A. Center console assembly B. Shift lock release button C. Brake pedal, upper
D. Control device assembly E. Shift lock solenoid, reverse side F. Park position switch
SCIA8107E

DUCTS AND GRILLES ATC-135
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 July 2007 FX35/FX45

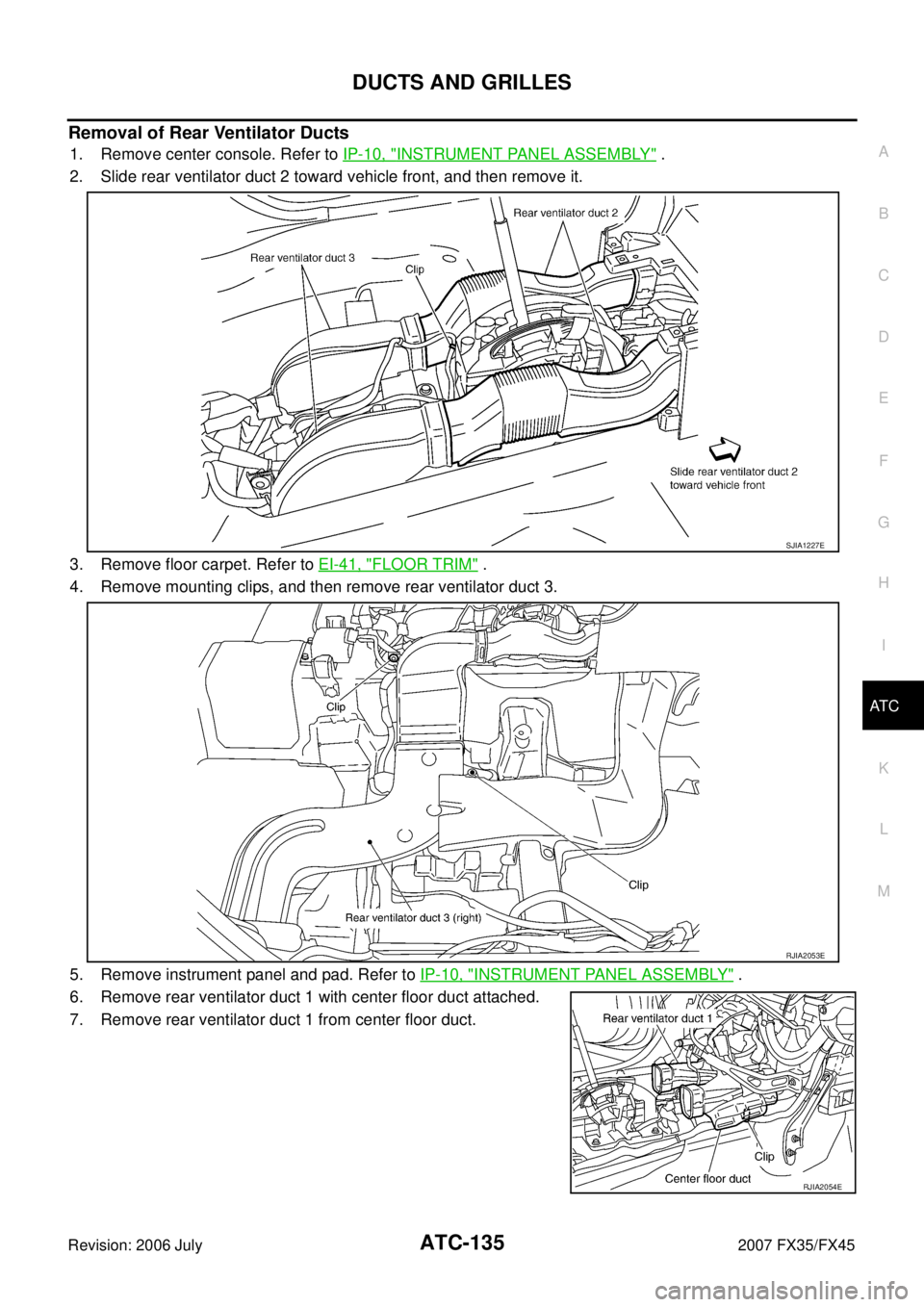

Removal of Rear Ventilator Ducts
1. Remove center console. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Slide rear ventilator duct 2 toward vehicle front, and then remove it.
3. Remove floor carpet. Refer to EI-41, "
FLOOR TRIM" .
4. Remove mounting clips, and then remove rear ventilator duct 3.
5. Remove instrument panel and pad. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
6. Remove rear ventilator duct 1 with center floor duct attached.
7. Remove rear ventilator duct 1 from center floor duct.
SJIA1227E
RJIA2053E
RJIA2054E

AV-172
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 July 2007 FX35/FX45
Removal and Installation for DVD PlayerNKS003ED
REMOVAL
1. Remove center console. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove center console rear finisher. Refer to IP-12, "
(H) Center Console" .
3. Remove screws (2) with power tool and remove DVD player.
4. Remove screws (4) with power tool and remove brackets.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation for DVD Display UnitNKS003EE
REMOVAL
1. Insert cloth-covered driver into gaps between rear display cover and head lining, and remove rear display cover.
2. Press pawl on rear side and remove inner cover.
SKIA5810E
SKIA5811E
SKIA5812E
SKIA5813E

BL-1
BODY, LOCK & SECURITY SYSTEM
I BODY
CONTENTS
C
D E
F
G H
J
K L
M
SECTION
A
B
BL
Revision: 2006 July 2007 FX35/FX45
BODY, LOCK & SECURITY SYSTEM
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 5
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect ..................................... ..... 5
OPERATION PROCEDURE ............................ ..... 5
Precautions for Work ........................................... ..... 5
PREPARATION ...................................................... ..... 6
Special Service Tools .......................................... ..... 6
Commercial Service Tools ................................... ..... 6
SQUEAK AND RATTLE TROUBLE DIAGNOSIS . ..... 7
Work Flow ........................................................... ..... 7
CUSTOMER INTERVIEW ................................ ..... 7
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 8
CHECK RELATED SERVICE BULLETINS ...... ..... 8
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 8
REPAIR THE CAUSE ...................................... ..... 8
CONFIRM THE REPAIR .................................. ..... 9
Generic Squeak and Rattle Troubleshooting ...... ..... 9
INSTRUMENT PANEL ..................................... ..... 9
CENTER CONSOLE ........................................ ..... 9
DOORS ............................................................ ..... 9
TRUNK ............................................................. ... 10
SUNROOF/HEADLINING ................................ ... 10
SEATS .............................................................. ... 10
UNDERHOOD .................................................. ... 10
Diagnostic Worksheet ......................................... .... 11
HOOD .................................................................... ... 13
Fitting Adjustment ............................................... ... 13
LONGITUDINAL AND LATERAL CLEARANCE
ADJUSTMENT ................................................. ... 13
FRONT END HEIGHT ADJUSTMENT ............ ... 13
SURFACE HEIGHT ADJUSTMENT ................ ... 13
Removal and Installation of Hood Assembly ....... ... 14
REMOVAL ........................................................ ... 15
INSTALLATION ................................................ ... 15
Removal and Installation of Hood Lock Control .. ... 15
REMOVAL ........................................................ ... 15 INSTALLATION ................................................
... 16
Hood Lock Control Inspection ............................. ... 16
RADIATOR CORE SUPPORT ............................... ... 18
Removal and Installation ..................................... ... 18
REMOVAL ........................................................ ... 18
INSTALLATION ................................................ ... 19
FRONT FENDER ................................................... ... 20
Removal and Installation ..................................... ... 20
REMOVAL ........................................................ ... 20
INSTALLATION ................................................ ... 20
POWER DOOR LOCK SYSTEM ........................... ... 21
Component Parts and Harness Connector Location ... 21
System Description .............................................. ... 22
OUTLINE .......................................................... ... 23
CAN Communication System Description ........... ... 24
CAN Communication Unit .................................... ... 24
Schematic/With Intelligent Key ............................ ... 25
Wiring Diagram — D/LOCK —/With Intelligent Key ... 26
Schematic/Without Intelligent Key ....................... ... 31
Wiring Diagram — D/LOCK —/Without Intelligent
Key ...................................................................... ... 32
Terminals and Reference Value for BCM ............ ... 36
Terminals and Reference Value for Intelligent Key
Unit (With Intelligent Key System) ....................... ... 36
Work Flow ............................................................ ... 37
CONSULT-II Function (BCM) .............................. ... 37
CONSULT-II START PROCEDURE ................. ... 37
CONSULT-II APPLICATION ITEMS ................. ... 37
Trouble Diagnosis Chart by Symptom ................. ... 38
Check BCM Power Supply and Ground Circuit ... ... 39
Check Door Switch .............................................. ... 40
CHECK DOOR SWITCH (EXCEPT BACK DOOR
SWITCH) .......................................................... ... 40
CHECK BACK DOOR SWITCH ....................... ... 42
Check Key Switch ................................................ ... 44
Check Door Lock and Unlock Switch .................. ... 46
Check Door Lock Actuator (Driver Side) ............. ... 48
Check Door Lock Actuator (Passenger Side and
Rear LH/RH) ........................................................ ... 49
Check Fuel Lid Lock Actuator .............................. ... 50

SQUEAK AND RATTLE TROUBLE DIAGNOSIS BL-9
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 × 50 mm (1.18 × 1.97 in)
FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15 × 25 mm (0.59 × 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll The following
materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW(TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingNIS001LL
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the Nissan Squeak and Rattle Kit (J-43980) to repair the noise.

BL-92
INTELLIGENT KEY SYSTEM
Revision: 2006 July 2007 FX35/FX45
Warning Procedure
Ignition knob OFF position warning
(for outside car: when door opened/
closed)

The ignition switch is in the OFF or LOCK position (knob pressed)

In the above state, when the ACC switch is changed from ON to OFF and 1 second
passes. (However, this warning is not issued if the mechanical key is inserted in the igni-
tion knob, ignition knob is turned except OFF position or ignition or ignition knob is not
pushed.)

Driver door open → closed
Warning for take out of Intelligent
Key to outside the car (when door
open/closed)
When Any of the Following Conditions Are Met

When the ignition knob is pressed in so that it can be rotated (or has been rotated), if any
of the doors has been opened, when all the doors are closed, the Intelligent Key unit
compares the key-ID with that of the Intelligent Key using the inside key antenna, if the
results of the comparison are NG (the Intelligent Key is not found)

When the ignition knob is pressed in so that it can be rotated (or has been rotated), if any
of the doors is open, the Intelligent Key unit compares the key-ID with that of the Intelli-
gent Key every 5 seconds using the inside key antenna (center console), if the results of
the comparison are NG (the Intelligent Key is not found)
NOTE:
However, this warning is not issued if the mechanical key is inserted in the ignition knob.
Warning for take out of Intelligent
Key to outside the car (from win-
dow) When the ignition knob is pressed in so that it can be rotated (or has been rotated), if the
vehicle speed is no greater than 5 km per hour, the Intelligent Key unit compares the key-ID
with that of the Intelligent Key every 30 seconds using the inside key antenna, if the results
of the comparison are NG (the Intelligent Key is not found)
Note: The factory setting for this function is OFF.
Door lock non-operation warning When any of the following conditions are met
Intelligent Key Lock-in Prevention Warning

When the Intelligent Key is inside the car and the ignition knob is not pressed, when an
attempt is made to lock a door lock with a door request switch
NOTE:
This warning is issued even if the Intelligent Key is not in the out side key antenna detec-
tion area corresponding to the door request switch was operated.
Knob Return Forgotten Warning

When the ignition knob is pressed, when an attempt is made to lock a door lock with a
door request switch
NOTE:
This warning is only issued if the Intelligent Key is in the out side key antenna detection
area corresponding to the door request switch was operated.
Door Ajar Alarm

When any of the doors is open, when an attempt is made to lock a door lock with a door
request switch
NOTE:
This warning is only issued if the Intelligent Key is in the out side key antenna detection
area corresponding to the door request switch was operated.
Intelligent Key low battery pre-
warning This warning is issued when it is detected that the battery in the Intelligent Key has been
used up.
Warning and alarm names Operating conditions (when all the conditions below are met)
Warning and alarm names
Buzzer Warning lamp
Inside car Outside car “KEY” “P” shift
Ignition switch return forgotten
warning Buzzer: Continuous — — —
Selector lever return for gotten
warning — — — Illuminate
Ignition key warning
(When mechanical key used) Buzzer: Continuous — — —

BRC-62
[VDC/TCS/ABS]
G SENSOR
Revision: 2006 July 2007 FX35/FX45
G SENSORPFP:47930
Removal and InstallationNFS000O7
REMOVAL
1. Remove center console. Refer to IP-12, "(H) Center Console" .
2. Disconnect G sensor harness connector.
3. Remove G sensor mounting bolts. Then remove G sensor from vehicle.
CAUTION:

Do not drop or strike G sensor, because it has little endur-
ance to impact.

Do not use power tool etc., because G sensor is weak for
the impact.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:

Do not drop or strike G sensor, because it has little endurance to impact.

After performing above works, calibrate decel G sensor (AWD models). Refer to BRC-7, "Calibra-
tion of Decel G Sensor (AWD Models)" .
PFIA0602E

EI-1
EXTERIOR & INTERIOR
I BODY
CONTENTS
C
D E
F
G H
J
K L
M
SECTION
A
B
EI
Revision: 2006 July 2007 FX35/FX45
EXTERIOR & INTERIOR
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Procedures without Cowl Top Cover ..... 3
Precautions for Work ........................................... ..... 3
PREPARATION ...................................................... ..... 4
Special Service Tools .......................................... ..... 4
Commercial Service Tools ................................... ..... 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ........................................................... ..... 5
CUSTOMER INTERVIEW ................................ ..... 5
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 6
CHECK RELATED SERVICE BULLETINS ...... ..... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 6
REPAIR THE CAUSE ...................................... ..... 6
CONFIRM THE REPAIR .................................. ..... 7
Generic Squeak and Rattle Troubleshooting ...... ..... 7
INSTRUMENT PANEL ..................................... ..... 7
CENTER CONSOLE ........................................ ..... 7
DOORS ............................................................ ..... 7
TRUNK ............................................................. ..... 8
SUNROOF/HEADLINING ................................ ..... 8
SEATS .............................................................. ..... 8
UNDERHOOD .................................................. ..... 8
Diagnostic Worksheet ......................................... ..... 9
CLIP AND FASTENER .......................................... ....11
Clip and Fastener ................................................ .... 11
FRONT BUMPER .................................................. ... 14
Removal and Installation ..................................... ... 14
REMOVAL ........................................................ ... 15
INSTALLATION ................................................ ... 16
REMOVAL AND INSTALLATION OF FILLET
MOLDING ........................................................ ... 16
REMOVAL AND INSTALLATION OF BUMPER
CENTER MOLDING ......................................... ... 16 REAR BUMPER .....................................................
... 17
Removal and Installation ..................................... ... 17
REMOVAL ........................................................ ... 18
INSTALLATION ................................................ ... 19
DISASSEMBLY AND ASSEMBLY OF REAR
BUMPER FASCIA ............................................ ... 19
REMOVAL AND INSTALLATION OF REAR
BUMPER CLOSING ......................................... ... 20
REMOVAL AND INSTALLATION OF DRAFTER
GUARD ............................................................ ... 20
REMOVAL AND INSTALLATION OF REAR FIL-
LET MOLDING ASSEMBLY ............................. ... 21
FRONT GRILLE ..................................................... ... 22
Removal and Installation ..................................... ... 22
REMOVAL ........................................................ ... 22
INSTALLATION ................................................ ... 22
COWL TOP ............................................................ ... 23
Removal and Installation ..................................... ... 23
REMOVAL ........................................................ ... 23
INSTALLATION ................................................ ... 23
FENDER PROTECTOR ......................................... ... 24
Removal and Installation ..................................... ... 24
REMOVAL ........................................................ ... 24
INSTALLATION ................................................ ... 24
DOOR OUTSIDE MOLDING .................................. ... 25
Removal and Installation ..................................... ... 25
FRONT DOOR OUTSIDE MOLDING ............... ... 25
REAR DOOR OUTSIDE MOLDING ................. ... 25
DOOR OUTSIDE LOWER MOLDING ................... ... 26
Removal and Installation ..................................... ... 26
FRONT AND REAR DOOR OUTSIDE LOWER
MOLDING ......................................................... ... 26
DOOR PARTING SEAL ......................................... ... 27
Removal and Installation ..................................... ... 27
REMOVAL ........................................................ ... 27
INSTALLATION ................................................ ... 28
CENTER MUD GUARD ......................................... ... 29
Removal and Installation ..................................... ... 29
REMOVAL ........................................................ ... 29
INSTALLATION ................................................ ... 29

SQUEAK AND RATTLE TROUBLE DIAGNOSES EI-7
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 July 2007 FX35/FX45
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 × 50 mm (1.18 × 1.97 in)
FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15 × 25 mm (0.59 × 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll The following
materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW(TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingNIS001TL
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the Nissan Squeak and Rattle Kit (J-43980) to repair the noise.
