set clock INFINITI FX35 2007 Service Manual

TRANSMISSION ASSEMBLY AT-267
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
10. Remove crankshaft position sensor (POS) from A/T assembly.
CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

Do not place in an area affected by magnetism.
11. Remove starter motor. Refer to SC-19, "
Removal and Installa-
tion [VQ35DE Engine Models (2WD)]" .
12. Remove fluid cooler tube.
13. Remove rear plate cover. Refer to EM-30, "
Removal and Instal-
lation (2WD Models)" .
14. Remove rear cover plate. Refer to EM-30, "
Removal and Installation (2WD Models)" .
15. Turn crankshaft, and remove the four tightening bolts for drive plate and torque converter.
CAUTION:
When turning crankshaft, turn it clockwise as viewed from
the front of the engine.
16. Support A/T assembly with a transmission jack. CAUTION:
When setting the transmission jack, be careful not to allow
it to collide against the drain plug.
17. Remove rear engine mounting member with power tool.
18. Remove engine mounting insulator (rear).
19. Remove air breather hose. Refer to AT- 2 6 4 , "
Removal and Installation" .
20. Disconnect A/T assembly harness connector.
21. Remove A/T fluid charging pipe from A/T assembly.
22. Remove O-ring from A/T fluid charging pipe.
23. Plug up openings such as the A/T fluid charging pipe hole, etc.
24. Remove bolts fixing A/T assembly to engine assembly with power tool.
25. Remove A/T assembly from vehicle with a transmission jack.

Secure torque converter to prevent it from dropping.

Secure A/T assembly to a transmission jack.
INSPECTION
Installation and Inspection of Torque Converter

After inserting a torque converter to a A/T, be sure to check dis-
tance “A” to ensure it is within the reference value limit.
SCIA2155E
SCIA2288E
SCIA0499E
Distance “A” : 25.0 mm (0.98 in) or more
SAT017B

TRANSMISSION ASSEMBLY AT-271
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
11. Remove crankshaft position sensor (POS) from A/T assembly.
CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings, etc., to get on the sensor's
front edge magnetic area.

Do not place in an area affected by magnetism.
12. Remove starter motor. Refer to SC-20, "
Removal and Installa-
tion [VQ35DE Engine Models (AWD)]" (for VQ35DE) or SC-18,
"REMOVAL" (for VK45DE).
13. Disconnect fluid cooler tube from A/T assembly.
14. Remove rear plate cover. Refer to EM-36, "
Removal and Instal-
lation (AWD Models)" (for VQ35DE) or EM-187, "Removal and
Installation" (for VK45DE).
15. Turn crankshaft, and remove the four tightening bolts for drive plate and torque converter.
CAUTION:
When turning crankshaft, turn it clockwise as viewed from
the front of the engine.
16. Remove dynamic damper (for VQ35DE). Refer to EM-118,
"Removal and Installation (AWD Models)" .
17. Support A/T assembly with a transmission jack. CAUTION:
When setting the transmission jack, be careful not to allow
it to collide against the drain plug.
18. Remove rear engine mounting member with power tool.
19. Remove engine mounting insulator (rear).
20. Tilt the A/T assembly slightly to keep the clearance between body and A/T assembly, and then disconnect air breather hose
from A/T fluid charging pipe. Refer to AT- 2 6 4 , "
Removal and
Installation" .
21. Disconnect A/T assembly harness connector and transfer assembly harness connector.
22. Remove A/T fluid charging pipe.
23. Remove O-ring from A/T fluid charging pipe.
24. Plug up openings such as the A/T fluid charging pipe hole, etc.
25. Remove bolts fixing transmission assembly to engine with power tool.
SCIA2011E
SCIA5326E
SCIA2010E
SCIA2202E

BR-6
BRAKE PEDAL
Revision: 2006 July 2007 FX35/FX45
BRAKE PEDALPFP:46501
Inspection and AdjustmentNFS000LS
Play and clearance between brake pedal and floor panel with pedal depressed
1. Check brake pedal height from dash lower panel.
2. Adjust height referring to the following specifications.
ADJUSTMENT
1. Loosen stop lamp switch and ASCD cancel switch (or brake switch) by rotating it counterclockwise by 45 °.
2. Loosen lock nut (A) on input rod, then rotate input rod to set pedal to the specified height, and tighten lock nut (A). Refer to
BR-15, "
Components" .
CAUTION:
Make sure the threaded end of input rod stays inside clevis.
3. With pedal pulled and held by hand, press stop lamp switch and ASCD cancel switch (or brake switch) until its threaded end con-
tacts stopper rubber.
4. With the threaded end of stop lamp switch and ASCD cancel switch (or brake switch) contacting stopper rubber, rotate switch
clockwise by 45 ° to secure.
CAUTION:
Make sure that the clearance “C” between stopper rubber
and threaded end of stop lamp switch and ASCD cancel
switch (or brake switch) is within the standard.
5. Check pedal play. CAUTION:
Make sure that stop lamps go off when pedal is released.
6. Start engine to check brake pedal depressed height.
H Brake pedal height (from dash
lower panel top surface) 161.5
− 171.5 mm (6.358 − 6.752 in)
D Depressed pedal height [under a
force of 490 N (50 kg, 110 lb) with
engine running] More than 95 mm (3.74 in)
C Clearance between stopper rubber
and the threaded end of stop lamp
switch and ASCD cancel switch (or
brake switch) 0.74
− 1.96 mm (0.0291 −0.0772 in)
A Pedal play 3 − 11 mm (0.12 − 0.43 in)
SFIA2380E
PFIA0819E

DI-2Revision: 2006 July 2007 FX35/FX45
Oil Pressure Warning Lamp Does Not Turn Off (Oil
Pressure Is Normal) ............................................. ... 49
Component Inspection ......................................... ... 51
OIL PRESSURE SWITCH ................................ ... 51
A/T INDICATOR ..................................................... ... 52
System Description .............................................. ... 52
MANUAL MODE ............................................... ... 52
NOT MANUAL MODE ...................................... ... 52
Wiring Diagram — AT/IND — .............................. ... 53
A/T Indicator Is Malfunction ................................. ... 55
WARNING CHIME .................................................. ... 56
System Description .............................................. ... 56
POWER SUPPLY AND CIRCUIT ..................... ... 56
IGNITION KEY WARNING CHIME (WITHOUT
INTELLIGENT KEY) ......................................... ... 57
IGNITION KEY WARNING CHIME (WITH INTEL-
LIGENT KEY) ................................................... ... 57
LIGHT WARNING CHIME ................................ ... 58
SEAT BELT WARNING CHIME ........................ ... 58
Component Parts and Harness Connector Location ... 59
Schematic ............................................................ ... 60
Wiring Diagram — CHIME — .............................. ... 61
Terminals and Reference Value for BCM ............. ... 64
Terminals and Reference Value for Unified Meter
and A/C Amp. ...................................................... ... 65
Terminals and Reference Value for Combination
Meter ................................................................... ... 66
CONSULT-II Function (METER A/C AMP) .......... ... 66
CONSULT-II Function (BCM) ............................... ... 66
DIAGNOSIS ITEMS DESCRIPTION ................ ... 66
CONSULT-II BASIC OPERATION .................... ... 66
DATA MONITOR ............................................... ... 66
ACTIVE TEST .................................................. ... 67
SELF-DIAG RESULTS ..................................... ... 67
Trouble Diagnosis ................................................ ... 67
HOW TO PERFORM TROUBLE DIAGNOSIS . ... 67
PRELIMINARY INSPECTION .......................... ... 68
Symptom Chart .................................................... ... 68
Power Supply and Ground Circuit Inspection ...... ... 68
Combination Meter Buzzer Circuit Inspection ...... ... 69
Front Door Switch (Driver Side) Signal Inspection ... 71
Key Switch Signal Inspection (Without Intelligent
Key) ..................................................................... ... 72
Key Switch and Ignition Knob Switch Signal Inspec-
tion (With Intelligent Key, When Mechanical Key Is
Used) ................................................................... ... 73
Lighting Switch Signal Inspection ........................ ... 74
Seat Belt Buckle Switch (Driver Side) Signal Inspec-
tion ....................................................................... ... 75
Component Inspection ......................................... ... 76
FRONT DOOR SWITCH (DRIVER SIDE) ........ ... 76
KEY SWITCH ................................................... ... 76
KEY SWITCH AND IGNITION KNOB SWITCH ... 76
SEAT BELT BUCKLE SWITCH (DRIVER SIDE) ... 76
LANE DEPARTURE WARNING SYSTEM ............. ... 77
Precautions for Lane Departure Warning (LDW)
system ................................................................. ... 77
System Description .............................................. ... 77 LDW SYSTEM OPERATION ............................
... 77
POWER SUPPLY AND GROUND CIRCUIT .... ... 79
Action Test ........................................................... ... 80
LDW SYSTEM RUNNING TEST ...................... ... 80
Camera Aiming Adjustment ................................. ... 80
OUTLINE .......................................................... ... 80
PREPARATION ................................................. ... 80
TARGET SETTING ........................................... ... 80
VEHICLE HEIGHT CHECK .............................. ... 83
AIMING ADJUSTMENT .................................... ... 83
Component Parts and Harness Connector Location ... 87
Schematic ............................................................ ... 88
Wiring Diagram — LDW — .................................. ... 89
Terminals and Reference Value for LDW Camera
Unit ....................................................................... ... 92
CONSULT-II Function (LDW) ............................... ... 92
DESCRIPTION ................................................. ... 92
CONSULT-II BASIC OPERATION .................... ... 92
WORK SUPPORT ............................................ ... 92
SELF-DIAG RESULTS ...................................... ... 92
DATA MONITOR ............................................... ... 93
ACTIVE TEST ................................................... ... 94
Trouble Diagnosis ................................................ ... 95
HOW TO PERFORM TROUBLE DIAGNOSIS . ... 95
SYMPTOM CHART ........................................... ... 95
Preliminary Inspection .......................................... ... 95
Power Supply and Ground Circuit Inspection ...... ... 96
DTC [C1B00] CAMERA UNIT MALF ................... ... 97
DTC [C1B01] CAM AIMING INCMP .................... ... 97
DTC [C1B02] VHCL SPD DATA MALF ................ ... 97
DTC [C1B03] ABNRML TEMP DETECT ............. ... 98
DTC [U1000] CAN COMM CIRCUIT ................... ... 98
DTC [U1010] CONTROL UNIT (CAN) ................. ... 98
LDW Chime Circuit Inspection ............................. ... 98
LDW Switch Circuit Inspection ............................. ... 99
LDW Indicator Lamp Circuit Inspection ................ .102
Turn Signal Input Inspection ................................ .103
Electrical Component Inspection ......................... .103
LDW SWITCH ................................................... .103
Removal and Installation for LDW Camera Unit .. .104
REMOVAL ......................................................... .104
INSTALLATION ................................................. .104
Removal and Installation for LDW Chime ............ .104
REMOVAL ......................................................... .104
INSTALLATION ................................................. .104
Removal and Installation for LDW Switch ............ .104
CAN COMMUNICATION ........................................ .105
System Description .............................................. .105
CAN Communication Unit .................................... .105
COMPASS .............................................................. .106
Precautions for Compass ..................................... .106
System Description .............................................. .106
Troubleshooting ................................................... .107
Zone Variation Setting Procedure ........................ .108
Calibration Procedure .......................................... .108
Wiring Diagram — COMPAS — ........................... .109
Removal and Installation of Compass .................. .110
CLOCK ................................................................... . 111

EC-68
[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision: 2006 July 2007 FX35/FX45
ON BOARD DIAGNOSTIC SYSTEM FUNCTION
The on board diagnostic system has the following three functions.
When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there is
malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by means
of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands the
driver to repair the malfunction.
MIL Flashing Without DTC
When any SRT codes are not set, MIL may flash without DTC. For the details, refer to EC-62, "How to Display
SRT Status" .
HOW TO SWITCH DIAGNOSTIC TEST MODE
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.

Always ECM returns to Diagnostic Test Mode I after ignition switch is turned OFF.
How to Set Diagnostic Test Mode II (Self-Diagnostic Results)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly 5 times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MIL starts blinking.
Diagnostic Test
Mode KEY and ENG.
Sta tus Function Explanation of Function
Mode I Ignition switch in ON position
Engine stopped BULB CHECK This function checks the MIL bulb for damage (blown,
open circuit, etc.).
If the MIL does not come on, check MIL circuit.
Engine running MALFUNCTION WARNING This is a usual driving condition. When a malfunction is
detected twice in two consecutive driving cycles (two trip
detection logic), the MIL will light up to inform the driver
that a malfunction has been detected.
The following malfunctions will light up or blink the MIL in
the 1st trip.

Misfire (Possible three way catalyst damage)

One trip detection diagnoses
Mode II Ignition switch in ON position
Engine stopped SELF-DIAGNOSTIC
RESULTS This function allows DTCs and 1st trip DTCs to be read.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

ON BOARD DIAGNOSTIC (OBD) SYSTEM EC-731
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
MIL Flashing Without DTC
When any SRT codes are not set, MIL may flash without DTC. For the details, refer to EC-724, "How to Dis-
play SRT Status" .
HOW TO SWITCH DIAGNOSTIC TEST MODE
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.

Always ECM returns to Diagnostic Test Mode I after ignition switch is turned OFF.

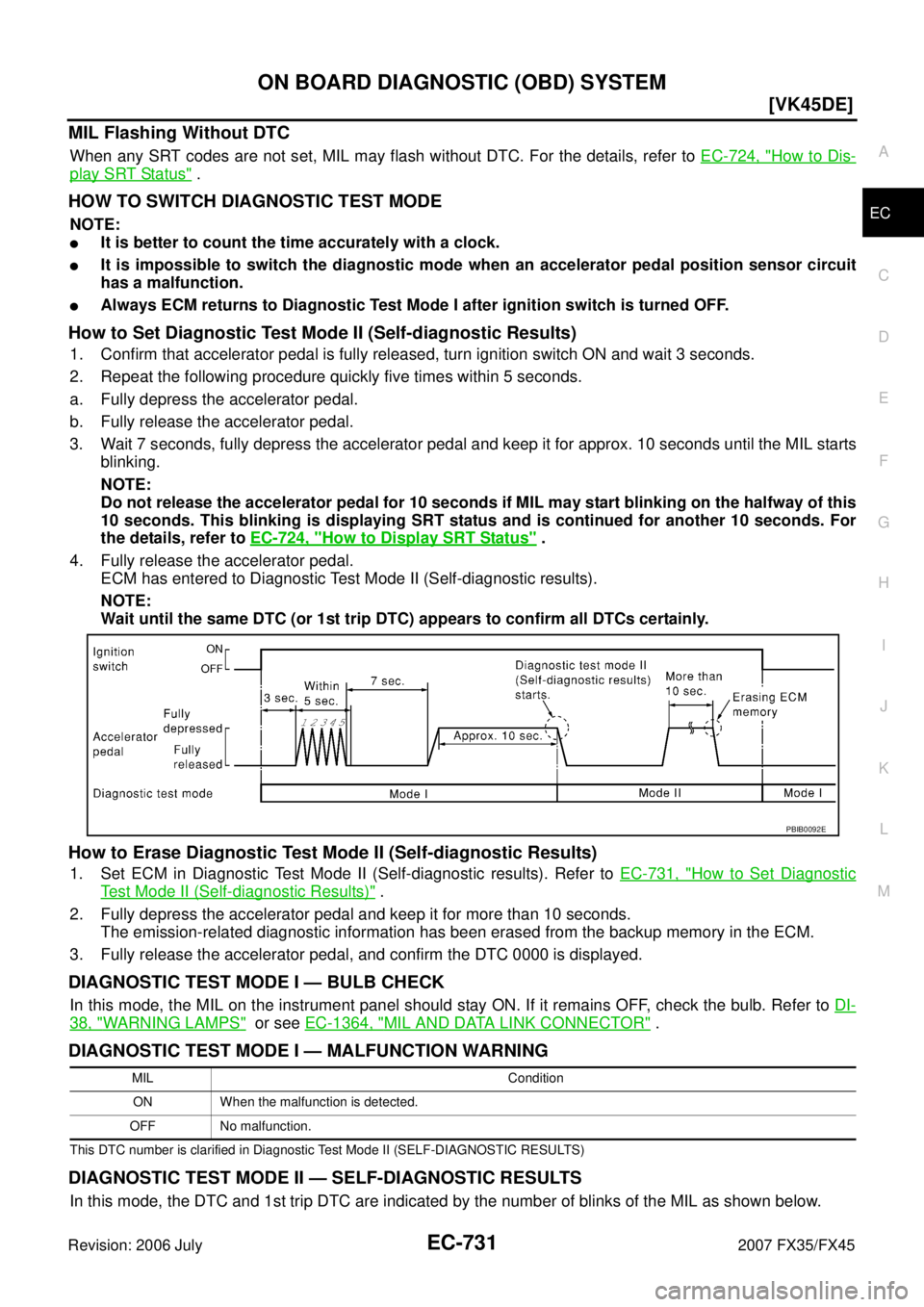

How to Set Diagnostic Test Mode II (Self-diagnostic Results)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MIL starts blinking.
NOTE:
Do not release the accelerator pedal for 10 seconds if MIL may start blinking on the halfway of this
10 seconds. This blinking is displaying SRT status and is continued for another 10 seconds. For
the details, refer to EC-724, "
How to Display SRT Status" .
4. Fully release the accelerator pedal. ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
NOTE:
Wait until the same DTC (or 1st trip DTC) appears to confirm all DTCs certainly.
How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to EC-731, "How to Set Diagnostic
Test Mode II (Self-diagnostic Results)" .
2. Fully depress the accelerator pedal and keep it for more than 10 seconds. The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.
DIAGNOSTIC TEST MODE I — BULB CHECK
In this mode, the MIL on the instrument panel should stay ON. If it remains OFF, check the bulb. Refer to DI-
38, "WARNING LAMPS" or see EC-1364, "MIL AND DATA LINK CONNECTOR" .
DIAGNOSTIC TEST MODE I — MALFUNCTION WARNING
This DTC number is clarified in Diagnostic Test Mode II (SELF-DIAGNOSTIC RESULTS)
DIAGNOSTIC TEST MODE II — SELF-DIAGNOSTIC RESULTS
In this mode, the DTC and 1st trip DTC are indicated by the number of blinks of the MIL as shown below.
PBIB0092E
MIL Condition
ON When the malfunction is detected.
OFF No malfunction.

FRONT TIMING CHAIN CASE EM-55
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
16. Remove collared O-ring from front timing chain case (left and
right side).
17. Remove rocker covers (right and left banks). Refer to EM-51, "
ROCKER COVER" .
NOTE:
When only timing chain (primary) is removed, rocker cover does not need to be removed.
18. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
NOTE:
When timing chain is not removed/installed, this step is not required.
a. Rotate crankshaft pulley clockwise to align timing mark (grooved line without color) with timing indicator.
b. Make sure that intake and exhaust cam noses on No. 1 cylinder (engine front side of right bank) are located as shown in the fig-
ure.

If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
NOTE:
When only timing chain (primary) is removed, rocker cover does
not need to be removed. To make sure that No. 1 cylinder is at
its compression TDC, remove front timing chain case first. Then
check mating marks on camshaft sprockets. Refer to EM-72,
"INSTALLATION" .
19. Remove crankshaft pulley as follows:
a. Remove rear cover plate (2WD) or starter motor (AWD) and set ring gear stopper (SST). Refer to EM-30,
"OIL PAN AND OIL STRAINER" (2WD) or SC-11, "STARTING SYSTEM" (AWD).
b. Loosen crankshaft pulley bolt and locate bolt seating surface as 10 mm (0.39 in) from its original position.
CAUTION:
Do not remove crankshaft pulley bolt as it will be used as a
supporting point for suitable puller.
PBIC2631E
KBIA1717J
SEM418G
PBIC1103E

EM-66
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45

Loosen mounting bolts in reverse order as shown in the fig-
ure.

U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d
gasket for removal.
CAUTION:
Shaft is internally jointed with camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.
19. Remove collared O-ring from front timing chain case (left and right side).
20. Remove rocker covers (right and left). Refer to EM-51, "
ROCKER COVER" .
21. Remove oil pans (lower and upper). Refer to EM-30, "
OIL PAN AND OIL STRAINER" .
22. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
a. Rotate crankshaft pulley clockwise to align timing mark (grooved line without color) with timing indicator.
b. Make sure that intake and exhaust cam noses on No. 1 cylinder (engine front side of right bank) are located as shown in the fig-
ure.

If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
23. Remove crankshaft pulley as follows:
a. Remove rear cover plate (2WD) or starter motor (AWD) and set the ring gear stopper (SST). Refer to EM-
30, "OIL PAN AND OIL STRAINER" (2WD) or SC-11, "STARTING SYSTEM" (AWD).
SEM728G
PBIC2631E
KBIA1717J
SEM418G

CAMSHAFT EM-93
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
Va l v e C l e a r a n c eNBS003GS
INSPECTION
Perform inspection as follows after removal, installation or replacement of camshaft or valve-related parts, or if
there is unusual engine conditions regarding valve clearance.
In cases of removing/installing or replacing camshaft and valve-
related parts, or of unusual engine conditions due to changes in
valve clearance (found malfunctions during stating, idling or causing
noise), perform inspection as follows:
1. Remove rocker covers (right and left bank). Refer to EM-51, "
ROCKER COVER" .
2. Measure the valve clearance as follows:
a. Set No. 1 cylinder at TDC of its compression stroke.

Rotate crankshaft pulley clockwise to align timing mark
(grooved line without color) with timing indicator.

Make sure that intake and exhaust cam nose on No. 1 cylin-
der (engine front side of right bank) are located as shown in
the figure.

If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
SEM713A
KBIA1717J
SEM418G

EM-222
[VK45DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
4. Crank the engine, and then make sure that engine oil comes out
from intake valve timing control cover oil hole. End crank after
checking.
WARNING:
Be careful not to touch rotating parts (drive belt, idler pul-
ley, and crankshaft pulley, etc.).
CAUTION:
Engine oil may squirt from intake valve timing control sole-
noid valve installation hole during cranking. Use a shop
cloth to prevent the engine components and the vehicle. Do
not allow engine oil to get on rubber components such as
drive belt or engine mount insulators. Immediately wipe off
any splashed engine oil.

Clean oil groove between oil strainer and intake valve timing control solenoid valve if engine oil does not
come out from intake valve timing control cover oil hole. Refer to LU-23, "
LUBRICATION SYSTEM" .
5. Remove components between intake valve timing control solenoid valve and camshaft sprocket (INT), and then check each oil groove for clogging.

Clean oil groove if necessary. Refer to LU-23, "LUBRICATION SYSTEM" .
6. After inspection, install removed parts.
Valve ClearanceNBS003IF
INSPECTION
In cases of removing/installing or replacing camshaft and valve-related parts, or of unusual engine conditions
due to changes in valve clearance (found malfunctions during starting, idling or causing noise), perform
inspection as follows:
1. Remove rocker covers (right and left bank). Refer to EM-200, "
ROCKER COVER" .
2. Measure the valve clearance as follows:
a. Set No. 1 cylinder at TDC of its compression stroke.

Rotate crankshaft pulley in clockwise to align TDC identifica-
tion notch (without paint mark) with timing indicator on front
cover.

Make sure that both intake and exhaust cam noses of No. 1
cylinder (engine front side of left bank) are located as shown
in the figure.

If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
PBIC2848E
PBIC2341E
KBIA0400J
