INFINITI G 2010 Owners Manual

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the “8.
Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 20 gal16-5/8 gal 76 See “FUEL RECOMMENDATION” later in this section.
Engine oil*2
Drain and refill With oil filter change 5-1/8 qt4-3/8 qt 4.9 •Engine oil with API Certification Mark*1*2
•Viscosity SAE 5W-30
Without oil filter change 4-7/8 qt4 qt 4.6
Cooling system Automatic transmission
model With reservoir
9 qt7-1/2 qt 8.5 50% Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
50% Demineralized or distilled water
Reservoir 7/8 qt3/4 qt 0.8
Manual transmission
model With reservoir
9-1/8 qt7-5/8 qt 8.6
Reservoir 7/8 qt3/4 qt 0.8
Automatic transmission fluid ——— Genuine NISSAN Matic S ATF*3
Manual transmission gear oil ——— Genuine NISSAN Manual Transmission Fluid (MTF)
HQ Multi 75W-85 or API GL-4, Viscosity SAE 75W-85
Differential gear oil ——— Front:
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5
Viscosity SAE 80W-90*4
Rear:
For 7AT 2WD models:
Genuine NISSAN Differential Oil Synthetic 75W-90 or API GL-5 synthetic
gear oil, Viscosity SAE 75W-90*5
All other models:
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5
Viscosity SAE 80W-90*4
Transfer fluid ——— Genuine NISSAN Matic J ATF*6
Power steering fluid (PSF) Refill to the proper oil level according to the in-
structions in the “8. Maintenance and do-it-
yourself” section. Genuine NISSAN PSF or equivalent*7
Brake and clutch fluid Genuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3
Multi-purpose grease Without limited slip differential NLGI No. 2 (Lithium soap base)
With limited slip differential
Air conditioning system refrigerant ——— HFC-134a (R-134a)*9
Air conditioning system lubricants ——— NISSAN A/C System Oil
Type S or exact equivalent
Window washer fluid ——— Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information
—
—
04/21/10—debbie


*1:INFINITI recommends Genuine NISSAN Ester Engine Oil available at your INFINITI retailer.
*2: For additional information, see “ENGINE OIL” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*3: Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and automatic transmission
durability, and may damage the automatic transmission, which is not covered by the INFINITI new vehicle limited warranty.
*4: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 32°F (0°C).
*5: See an INFINITI retailer for service for synthetic oil.
*6: Using transfer fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and transfer durability, and may damage the
transfer, which is not covered by the INFINITI new vehicle limited warranty.
*7: DEXRON
TMVI type ATF may also be used.
*8: Available in mainland US through an INFINITI retailer.
*9: For additional information, see “VEHICLE IDENTIFICATION” later in this section for air conditioner specification label.
Technical and consumer information9-3
—
—
04/21/10—debbie


FUEL RECOMMENDATION
VQ37VHR engine
Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:
●Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
● Avoid full throttle driving and abrupt accel-
eration.
However, for maximum vehicle performance, the
use of unleaded premium gasoline is recom-
mended.
CAUTION
● Using a fuel other than that specified could
adversely affect the emission control sys-
tem, and may also affect warranty coverage.
● Under no circumstances should a leaded
gasoline be used, because this will damage
the three-way catalyst. ●
Do not use E-85 fuel in your vehicle. Your
vehicle is not designed to run on E-85 fuel.
Using E-85 fuel can damage the fuel system
components and is not covered by the
INFINITI vehicle limited warranty.
Gasoline specifications
INFINITI recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifica-
tions where it is available. Many of the automo-
bile manufacturers developed this specification
to improve emission system and vehicle perfor-
mance. Ask your service station manager if the
gasoline meets the World-Wide Fuel Charter
(WWFC) specifications.
Reformulated gasoline
Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are spe-
cially designed to reduce vehicle emissions.
INFINITI supports efforts towards cleaner air
and suggests that you use reformulated gaso-
line when available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
INFINITI does not recommend the use of fuels of which the oxygenate content and the fuel com-
patibility for your INFINITI cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please
take the following precautions as the usage of
such fuels may cause vehicle performance prob-
lems and/or fuel system damage.
●
The fuel should be unleaded and have an oc-
tane rating no lower than that recommended
for unleaded gasoline.
● If an oxygenate-blend, excepting a methanol
blend, is used, it should contain no more than
10% oxygenate. (MTBE may, however, be
added up to 15%.)
● If a methanol blend is used, it should contain
no more than 5% methanol (methyl alcohol,
wood alcohol). It should also contain a suit-
able amount of appropriate cosolvents and
corrosion inhibitors. If not properly formu-
lated with appropriate cosolvents and corro-
sion inhibitors, such methanol blends may
cause fuel system damage and/or vehicle
performance problems. At this time, suffi-
cient data is not available to ensure that all
methanol blends are suitable for use in
INFINITI vehicles.
If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
9-4Technical and consumer information
—
—
04/21/10—debbie


enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refueling.
Gasoline containing oxygenates can cause paint
damage.
E-85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispens-
ing pumps to be identified by a small, square,
orange and black label with the common abbre-
viation or the appropriate percentage for that
region.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel injec-
tor cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for
gum, varnish or deposit removal may contain
active solvent or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane rating
lower than recommended above can cause per-
sistent, heavy spark knock. (Spark knock is a
metallic rapping noise.) If severe, this can lead
to engine damage. If you detect a persistent
heavy spark knock even when using gasoline of
the stated octane rating, or if you hear steady
spark knock while holding a steady speed on
level roads, have an INFINITI retailer correct the
condition. Failure to correct the condition is mis-
use of the vehicle, for which INFINITI is not re-
sponsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, have your vehicle checked at an
INFINITI retailer or other competent service fa-
cility.
However, now and then you may notice light
spark knock for a short time while accelerating
or driving up hills. This is no cause for concern,
because you get the greatest fuel benefit when
there is light spark knock for a short time under
heavy engine load.
CAUTION
●Your vehicle is not designed to run on E-85
fuel. Using E-85 fuel in a vehicle not specifi-
cally designed for E-85 fuel can damage fuel
system components and is not covered by
the INFINITI new vehicle limited warranty.
● E-85 is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline.
● U.S. government regulations require ethanol
dispensing pumps to be identified by a
small, square, orange and black label with
the common abbreviation or the appropriate
percentage for that region.
Technical and consumer information9-5
—
—
04/21/10—debbie

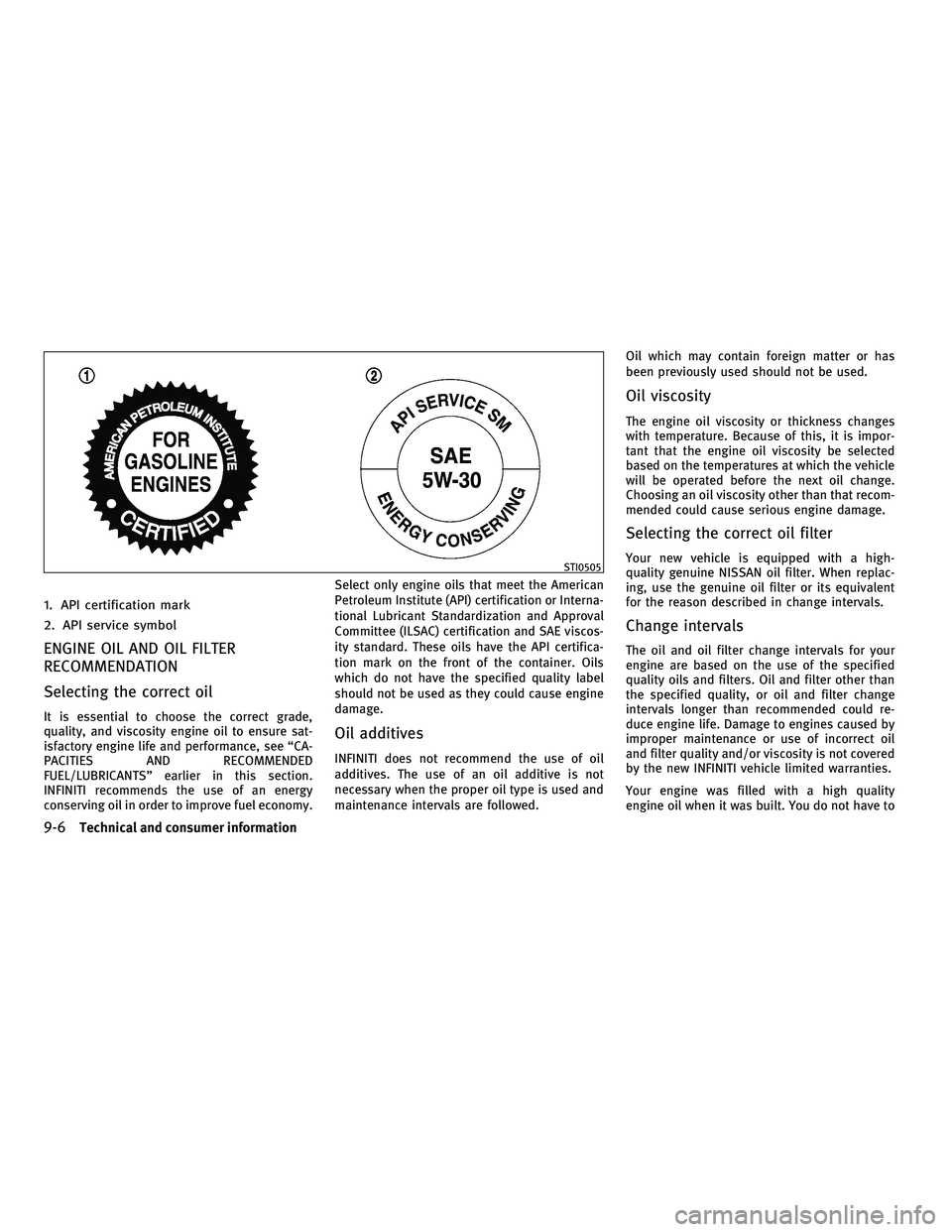

1. API certification mark
2. API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure sat-
isfactory engine life and performance, see “CA-
PACITIES AND RECOMMENDED
FUEL/LUBRICANTS” earlier in this section.
INFINITI recommends the use of an energy
conserving oil in order to improve fuel economy.Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE viscos-
ity standard. These oils have the API certifica-
tion mark on the front of the container. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant that the engine oil viscosity be selected
based on the temperatures at which the vehicle
will be operated before the next oil change.
Choosing an oil viscosity other than that recom-
mended could cause serious engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When replac-
ing, use the genuine oil filter or its equivalent
for the reason described in change intervals.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than
the specified quality, or oil and filter change
intervals longer than recommended could re-
duce engine life. Damage to engines caused by
improper maintenance or use of incorrect oil
and filter quality and/or viscosity is not covered
by the new INFINITI vehicle limited warranties.
Your engine was filled with a high quality
engine oil when it was built. You do not have to
STI0505
9-6Technical and consumer information
—
—
04/21/10—debbie


change the oil before the first recommended
change interval. Oil and filter change intervals
depend upon how you use your vehicle. Opera-
tion under the following conditions may require
more frequent oil and filter changes.
●repeated short distance driving at cold out-
side temperatures,
● driving in dusty conditions,
● extensive idling,
● stop and go “rush hour” traffic,
Refer to the “INFINITI Service and Maintenance
Guide” for the maintenance schedule.
AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your INFINITI ve-
hicle must be charged with the refrigerant HFC-
134a (R-134a) and the lubricant, NISSAN A/C sys-
tem oil Type S or the exact equivalents.
CAUTION
The use of any other refrigerant or lubricant will
cause severe damage to the air conditioning
system and will require the replacement of all
air conditioner system components. The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling
of any refrigerant during automotive air condi-
tioning system service. Your INFINITI retailer
has the trained technicians and equipment
needed to recover and recycle your air condi-
tioning system refrigerant.
Contact an INFINITI retailer when servicing your
air conditioning system.
Technical and consumer information9-7
—
—
04/21/10—debbie


ENGINE
ModelVQ37VHR
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°
Bore × Stroke in (mm) 3.760 × 3.385 (95.5 × 86.0)
Displacement cu in
(cm
3) 225.54 (3,696)
Firing order 1-2-3-4-5-6
Idle speed rpm No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/
rpm
Spark plug Standard FXE24HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
VQ37VHR engine
STI0425
SPECIFICATIONS
9-8Technical and consumer information
—
—
04/21/10—debbie


WHEELS AND TIRES
Road wheel
Sedan:
TypeSize Offset in (mm)
Conventional 17 × 7-1/2J 1.77 (45)
18 × 7-1/2J 1.77 (45)
Front: 18 × 7-1/2J 1.77 (45)
Rear: 18 × 8-1/2J 1.97 (50)
Spare 17 × 4T 1.18 (30)
18 × 4T 0 (0)
Coupe:
Type Size Offset in (mm)
Conventional 18 × 8J 1.69 (43)
Front: 19 × 8-1/2J 1.69 (43)
Rear: 19 × 9J 1.77 (45)
Spare 17 × 4T 1.18 (30)
18 × 4T 0 (0)
Technical and consumer information9-9
—
—
04/21/10—debbie


Tire
Sedan:
TypeSize Pressure PSI (kPa) [Cold]
Conventional P225/55R17 33 (230)
P225/50R18
Front: 225/50R18
Rear: 245/45R18
Spare (T-type) T145/80D17
60 (420)
T145/70R18
T145/70D18
Coupe:
Type Size Pressure PSI (kPa) [Cold]
Conventional P225/50R18 33 (230)
Front: 225/45R19 35 (240)
Rear: 245/40R19
Spare (T-type) T145/80D17 60 (420)
T145/70R18
T145/70D18
9-10Technical and consumer information
—
—
04/21/10—debbie


DIMENSIONS
IN (MM)
Sedan:Overall length (with front license plate) 187.2 (4,755)
Overall length (without front license plate) 187.0 (4,750)
Overall width 69.8 (1,773)
Overall height 57.2 (1,453)*1*2
57.8 (1,468)*3
Front tread 59.8 (1,520)
Rear tread 59.8 (1,520)*2
60.2 (1,530)*1*3
Wheelbase 112.2 (2,850)
Coupe: Overall length (with front license plate) 183.1 (4,650)
Overall length (without front license plate) 183.1 (4,650)
Overall width 71.8 (1,823)
Overall height 54.8 (1,391)*4*5
55.4 (1,406)*6
Front tread 60.8 (1,545)
Rear tread 61.4 (1,560)
Wheelbase 112.2 (2,850)
*1: Sedan/Two-Wheel Drive (2WD)/17-in tire models
*2: Sedan/Two-Wheel Drive (2WD)/18-in tire models
*3: Sedan/All-Wheel Drive (AWD) models
*4: Coupe/Two-Wheel Drive (2WD)/18-in tire models
*5: Coupe/Two-Wheel Drive (2WD)/19-in tire models
*6: Coupe/All-Wheel Drive (AWD) models
If you plan to travel in another country, you
should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your ve-
hicle to another country, state, province or dis-
trict, it may be necessary to modify the vehicle
to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and regis-
tered, its modifications, transportation, and reg-
istration are the responsibility of the user.
INFINITI is not responsible for any inconvenience
that may result.
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY
Technical and consumer information9-11
—
—
04/21/10—debbie
