Seat lifter :
Push the front or rear end of the switch up or
down to adjust the angle of the front portion or
height of the seat.Lumbar support (if so equipped) :
The lumbar support feature provides lower back
support to the driver.
Type A
Push the front
1or back2end of the switch
to adjust the seatback lumbar area. Type B
Move the lever
1up or down to adjust the
seatback lumbar area.
SSS1052
Type A
SSS1053
Type B
SSS0836
1-4Safety — Seats, seat belts and supplemental restraint system
—
—
10/12/09—tbrooks


CHILD SAFETY
Children need adults to help protect them. They
need to be properly restrained.
In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices, and
community organizations. Every child is differ-
ent, so be sure to learn the best way to trans-
port your child.
There are three basic types of child restraint
systems:
●Rear-facing child restraint
● Front-facing child restraint
● Booster seat
The proper restraint depends on the child’s
size. Generally, infants (up to about 1 year and
less than 20 lb (9 kg)) should be placed in
rear-facing child restraints. Front-facing child
restraints are available for children who out-
grow rear-facing child restraints and are at least
1 year old. Booster seats are used to help
position a vehicle lap/shoulder belt on a child
who can no longer use a front-facing child
restraint.
WARNING
Infants and children need special protection.
The vehicle’s seat belts may not fit them prop-
erly. The shoulder belt may come too close to
the face or neck. The lap belt may not fit over
their small hip bones. In an accident, an im-
properly fitting seat belt could cause serious or
fatal injury. Always use appropriate child
restraints.
All U.S. states and Canadian provinces or terri-
tories require the use of approved child re-
straints for infants and small children. (See
“CHILD RESTRAINTS” later in this section.)
Also, there are other types of child restraints
available for larger children for additional pro-
tection.
INFINITI recommends that all pre-teens and chil-
dren be restrained in the rear seat. According to
accident statistics, children are safer when
properly restrained in the rear seat than in the
front seat.
This is especially important because your ve-
hicle has a supplemental restraint system (air
bag system) for the front passenger. (See
“SUPPLEMENTAL RESTRAINT SYSTEM” later in
this section.)
Infants
Infants up to at least 1 year old should be
placed in a rear-facing child restraint. INFINITI
recommends that infants be placed in child
restraints that comply with Federal Motor Ve-
hicle Safety Standards or Canadian Motor Ve-
hicle Safety Standards. You should choose a
child restraint which fits your vehicle and al-
ways follow the manufacturer’s instructions for
installation and use.
Small children
Children that are over 1 year old and weigh at
least 20 lb (9 kg) can be placed in a front-facing
child restraint. Refer to the manufacturer’s in-
structions for minimum and maximum weight
and height recommendations. INFINITI recom-
mends that small children be placed in child
restraints that comply with Federal Motor Ve-
hicle Safety Standards or Canadian Motor Ve-
hicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer’s instructions for in-
stallation and use.
Larger children
Children who are too large for child restraints
should be seated and restrained by the seat
belts which are provided. The seat belt may not
fit properly if the child is less than 4 ft 9 in
Safety — Seats, seat belts and supplemental restraint system1-15
—
—
11/25/09—tbrooks


Shoulder belt height adjustment (for
Sedan front seats)
The shoulder belt anchor height should be
adjusted to the position best for you. (See
“PRECAUTIONS ON SEAT BELT USAGE” earlier in
this section.)
To adjust, push the button
A, and then move
the shoulder belt anchor to the desired posi-
tion, so that the belt passes over the center of
the shoulder. The belt should be away from
your face and neck, but not falling off of your
shoulder. Release the adjustment button to lock
the shoulder belt anchor into position.
WARNING
● After adjustment, release the adjustment
button and try to move the shoulder belt
anchor up and down to make sure it is se-
curely fixed in position.
● The shoulder belt anchor height should be
adjusted to the position best for you. Failure
to do so may reduce the effectiveness of the
entire restraint system and increase the
chance or severity of injury in an accident.
Shoulder belt arm (for Coupe front
seats)
Before fastening the seat belt, pull the shoulder
belt arm forward until it clicks at the lock
position. The arm can also be folded down for
easier access for rear seat passengers.
Pulling the arm forward will allow an easy
access to the belt.
SSS0294ASSS0588
Safety — Seats, seat belts and supplemental restraint system1-19
—
—
10/12/09—tbrooks


This vehicle is equipped with a universal child
restraint lower anchor system, referred to as the
Lower Anchors and Tethers for CHildren System
or LATCH. Some child restraints include two
rigid or webbing-mounted attachments that can
be connected to these lower anchors. For de-
tails, see “Lower Anchors and Tethers for CHil-
dren System (LATCH)” later in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
(See “CHILD RESTRAINT INSTALLATION USING
THE SEAT BELTS” later in this section.) In gen-
eral, child restraints are also designed to be
installed with the lap portion of a lap/shoulder
seat belt.
Several manufacturers offer child restraints for
infants and small children of various sizes.
When selecting any child restraint, keep the
following points in mind:
●Choose only a restraint with a label certify-
ing that it complies with Federal Motor Ve-
hicle Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system. ●
If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated. Cana-
dian law requires the top tether strap on front-
facing child restraints to be secured to the des-
ignated anchor point on the vehicle.
LOWER ANCHORS AND TETHERS FOR
CHILDREN SYSTEM (LATCH)
Your vehicle is equipped with special anchor
points that are used with Lower Anchors and
Tethers for CHildren System (LATCH) compatible
child restraints. This system may also be re-
ferred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to
use a vehicle seat belt to secure the child
restraint.
LATCH label location (Sedan)
SSS0710
1-22Safety — Seats, seat belts and supplemental restraint system
—
—
10/12/09—tbrooks


CAUTION
●Do not store the main sun visor before stor-
ing the extension sun visor.
● Do not pull the extension sun visor forcedly
downward.
1. To block out glare from the front, swing down the main sun visor
1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing it to the side
2.
3. Draw out the extension sun visor
3from
the main sun visor to block from further
glare.
INSIDE MIRROR
Adjust the height and the angle of the inside
mirror to the desired position.
Manual anti-glare type
The night position1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
2when driving in day-
light hours.
WARNING
Use the night position only when necessary,
because it reduces rear view clarity.
SPA2447SPA2143
MIRRORS
Pre-driving checks and adjustments3-25
—
—
04/21/10—debbie

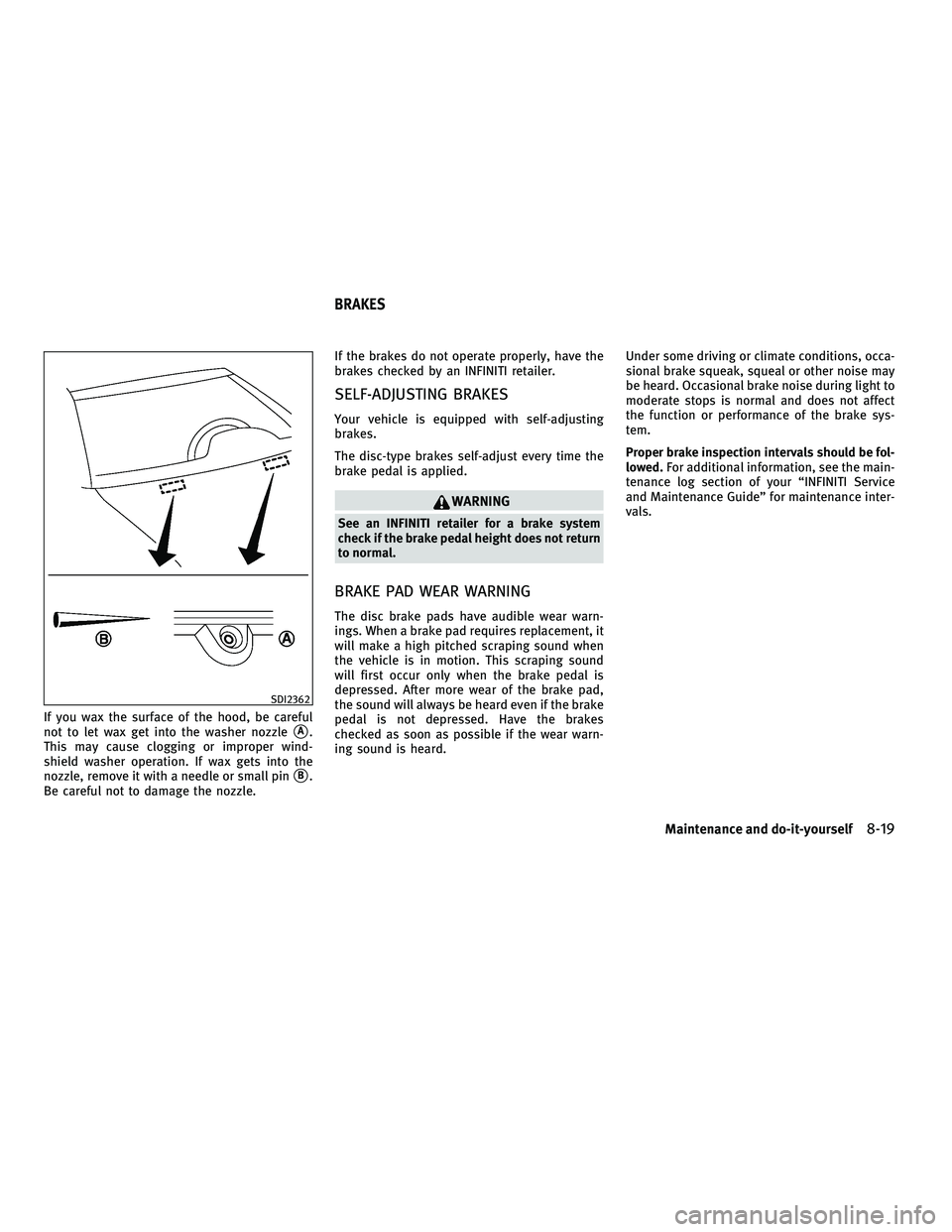

If you wax the surface of the hood, be careful
not to let wax get into the washer nozzle
A.
This may cause clogging or improper wind-
shield washer operation. If wax gets into the
nozzle, remove it with a needle or small pin
B.
Be careful not to damage the nozzle. If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not return
to normal.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warn-
ing sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake sys-
tem.
Proper brake inspection intervals should be fol-
lowed.
For additional information, see the main-
tenance log section of your “INFINITI Service
and Maintenance Guide” for maintenance inter-
vals.
SDI2362
BRAKES
Maintenance and do-it-yourself8-19
—
—
04/21/10—debbie


1Tire size (example: P215/60R16 94H)
1.P: The “P” indicates the tire is de-
signed for passenger vehicles. (Not all
tires have this information.)
2.Three-digit number (215): This num-
ber gives the width in millimeters of
the tire from sidewall edge to side-
wall edge.
3.Two-digit number (60): This number,
known as the aspect ratio, gives the
tire’s ratio of height to width.
4.R: The “R” stands for radial.
5.Two-digit number (16): This number is
the wheel or rim diameter in inches.
6.Two- or three-digit number (94): This
number is the tire’s load index. It is a
measurement of how much weight
each tire can support. You may not
find this information on all tires be-
cause it is not required by law.
7.H: Tire speed rating. You should not
drive the vehicle faster than the tire
speed rating.
2TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX
XXXX)
1.DOT: Abbreviation for the “Depart-
ment of Transportation”. The symbol
can be placed above, below or to the
left or right of the Tire Identification
Number.
2.Two-digit code: Manufacturer’s iden-
tification mark
3.Two-digit code: Tire size
Example
SDI1606
Example
SDI1607
Maintenance and do-it-yourself8-33
—
—
04/21/10—debbie


●The original tires have built-in tread
wear indicators. When wear indica-
tors are visible, the tire(s) should be
replaced.
●Tires degrade with age and use. Have
tires, including the spare, over 6
years old checked by a qualified tech-
nician, because some tire damage
may not be obvious. Replace the tires
as necessary to prevent tire failure
and possible personal injury.
●Improper service of the spare tire may
result in serious personal injury. If it
is necessary to repair the spare tire,
contact an INFINITI retailer.
●For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “SPECIFICATIONS”
in the “9. Technical and consumer information”
section for recommended types and sizes of
tires and wheels.)
WARNING
● The use of tires other than those recom-
mended or the mixed use of tires of different
brands, construction (bias, bias-belted or ra-
dial), or tread patterns can adversely affect
the ride, braking, handling, ground clear-
ance, body-to-tire clearance, tire chain
clearance, speedometer calibration, head-
light aim and bumper height. Some of these
effects may lead to accidents and could re-
sult in serious personal injury. ●
If the wheels are changed for any reason,
always replace with wheels which have the
same off-set dimension. Wheels of a differ-
ent off-set could cause premature tire wear,
degrade vehicle handling characteristics
and/or interference with the brake
discs/drums. Such interference can lead to
decreased braking efficiency and/or early
brake pad/shoe wear. See “WHEELS AND
TIRES” in the “9. Technical and consumer
information” section of this manual for
wheel off-set dimensions.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not install a damaged or deformed wheel
or tire even if it has been repaired. Such
wheels or tires could have structural damage
and could fail without warning.
● The use of retread tire is not recommended.
8-38Maintenance and do-it-yourself
—
—
04/21/10—debbie


DIMENSIONS
IN (MM)
Sedan:Overall length (with front license plate) 187.2 (4,755)
Overall length (without front license plate) 187.0 (4,750)
Overall width 69.8 (1,773)
Overall height 57.2 (1,453)*1*2
57.8 (1,468)*3
Front tread 59.8 (1,520)
Rear tread 59.8 (1,520)*2
60.2 (1,530)*1*3
Wheelbase 112.2 (2,850)
Coupe: Overall length (with front license plate) 183.1 (4,650)
Overall length (without front license plate) 183.1 (4,650)
Overall width 71.8 (1,823)
Overall height 54.8 (1,391)*4*5
55.4 (1,406)*6
Front tread 60.8 (1,545)
Rear tread 61.4 (1,560)
Wheelbase 112.2 (2,850)
*1: Sedan/Two-Wheel Drive (2WD)/17-in tire models
*2: Sedan/Two-Wheel Drive (2WD)/18-in tire models
*3: Sedan/All-Wheel Drive (AWD) models
*4: Coupe/Two-Wheel Drive (2WD)/18-in tire models
*5: Coupe/Two-Wheel Drive (2WD)/19-in tire models
*6: Coupe/All-Wheel Drive (AWD) models
If you plan to travel in another country, you
should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your ve-
hicle to another country, state, province or dis-
trict, it may be necessary to modify the vehicle
to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and regis-
tered, its modifications, transportation, and reg-
istration are the responsibility of the user.
INFINITI is not responsible for any inconvenience
that may result.
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY
Technical and consumer information9-11
—
—
04/21/10—debbie


SafetyChild seat belts .............. .1-15
Reporting safety defects (US only) . . . 9-23
S
Satellite radio operation ............4-55
Seat adjustment Front power seat adjustment ........1-3
Front seats ..................1-3
Seat belt(s) Child safety ................ .1-15
Infants .................... 1-15
Injured persons ............... 1-16
Larger children ............... 1-15
Pre-crash seat belts ............1-16
Precautions on seat belt usage ......1-12
Pregnant women .............. 1-16
Seat belt cleaning ..............7-5
Seat belt extenders ............1-20
Seat belt maintenance ..........1-20
Seat belt warning light and chime ....2-16
Seat belts .................. 1-12
Seat belts with pretensioners ......1-52
Shoulder belt height adjustment .....1-19
Small children ............... 1-15
Three-point type .............. 1-16
Seat synchronization function ........3-29
Seat(s) Driver-side memory ............3-28
Heated seats ................ 2-38
Seats .....................1-2
Security system (INFINITI Vehicle
Immobilizer System), Engine start ......2-29
Security system, Vehicle security system . .2-27 Selector lever
Shift lock release ............. .5-15
Servicing air conditioner (See automatic
climate control) ............... .4-28
Servicing climate control ...........4-38
SETTING button ................ .4-12
Shift lock release Transmission ............... .5-15
Shifting Automatic transmission ..........5-12
Manual transmission ...........5-16
Shoulder

belt height adjustment .......1-19
Sliding front passenger’s seat .........1-5
Snow mode switch .............. .2-40
Sonar system ................. .5-46
Sonar system off switch ............5-48
Spare tire .................... .9-9
Spark plugs .................. .8-16
Speedometer .................. .2-5
Starting Before starting the engine .........5-10
Precautions when starting and driving . . 5-2
Starting the engine ............. 5-11
STATUS button ................. .4-7
Status light, Front passenger air bag . . . .1-47
Steering Power steering fluid ............8-11
Power steering system ..........5-48
Steering lock release malfunction
indicator .................. 2-21
Steering-wheel-mounted controls for
audio .................... 4-83
Tilt/telescopic steering ..........3-23
Storage .................... .2-43
Storage box .................. .2-47
Stowing golf bags .............. .2-48Sun visors
.................. .3-24
Sunglasses holder .............. .2-45
Supplemental air bag warning labels . . . .1-53
Supplemental air bag warning light . .1-53 , 2-16
Supplemental restraint system ........1-40
Supplemental restraint system,
Precautions on supplemental restraint
system ..................... .1-40
Switch Autolight switch ............. .2-33
Fog light switch .............. 2-37
Hazard warning flasher switch ......2-37
Headlight switch .............. 2-33
Ignition switch automatic transmission
models ................... 5-12
Ignition switch manual transmission
models ................... 5-16
Power door lock switch ...........3-5
Rear window and outside mirror defroster
switch .................... 2-32
Snow mode switch ............2-40
Turn

signal switch ............. 2-37
Vehicle dynamic control (VDC)
off switch ................. 2-40
T
Tachometer ................... .2-6
Temperature gauge, Engine coolant
temperature gauge .............. .2-6
Theft (INFINITI Vehicle Immobilizer System),
Engine start .................. .2-29
Thigh extension ................ .1-5
Three-way catalyst ............... .5-2
Tilt/telescopic steering ............3-23
10-6
—
—
04/30/10—diane
