INFINITI G 2011 User Guide

COUPE
1. Hood (P. 3-17)
2. Headlight and turn signal— Operation (P. 2-32)
— Bulb replacement (P. 8-26) 3. Windshield wiper and washer
— Operation (P. 2-29)
— Maintenance (P. 8-19)
4. Moonroof (if so equipped) (P. 2-51)
5. Power windows (P. 2-48)
6. Recovery hook (P. 6-14) 7. Fog light (P. 2-36)
8. Tires
— Wheel and tires (P. 8-31, P. 9-9)
— Flat tire (P. 6-2)
— Tire pressure monitoring system
(TPMS) (P. 2-13, P. 5-3)
9. Outside mirrors (P. 3-27)
10. Doors — Keys (P. 3-2)
— Door locks (P. 3-4)
— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
SSI0806
0-4Illustrated table of contents

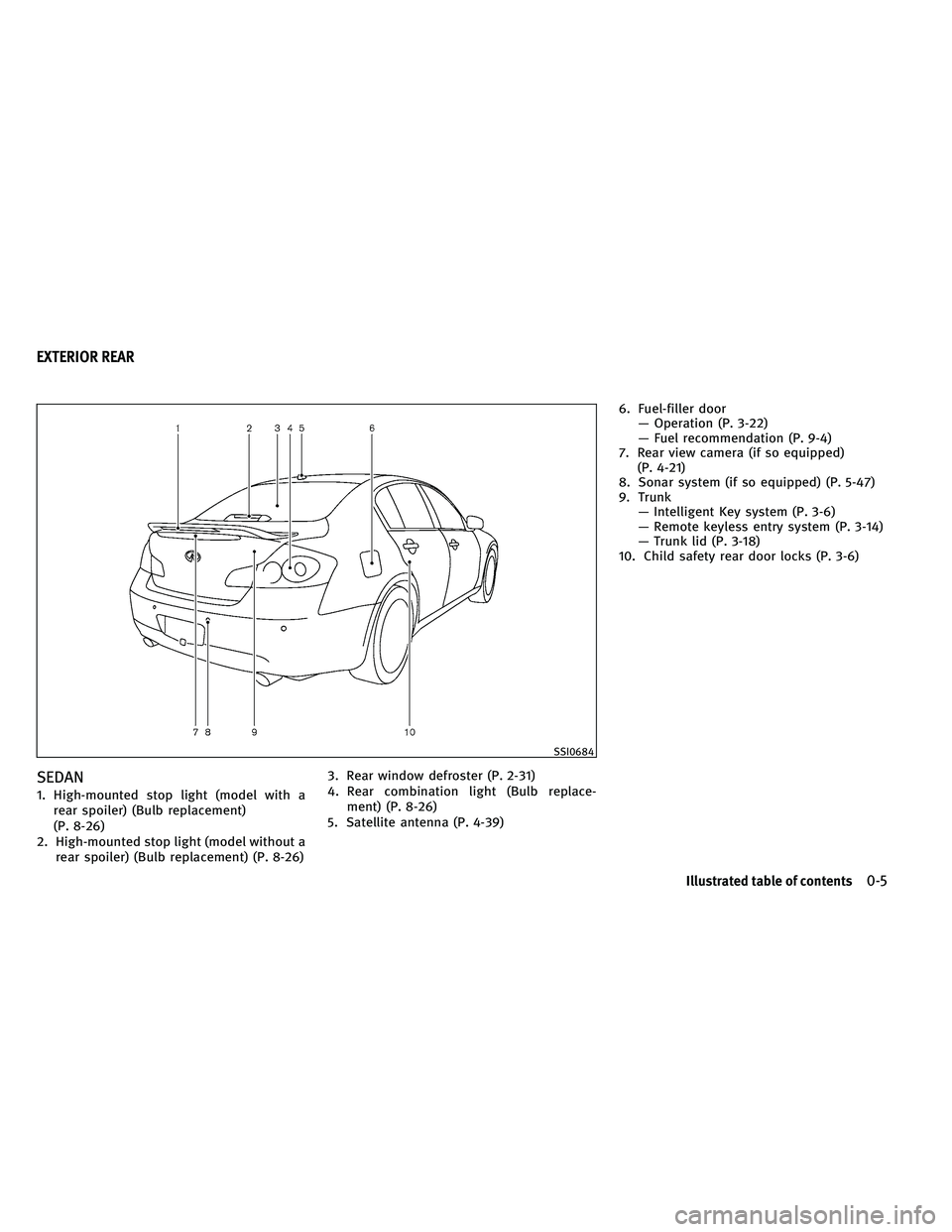

SEDAN
1. High-mounted stop light (model with arear spoiler) (Bulb replacement)
(P. 8-26)
2. High-mounted stop light (model without a rear spoiler) (Bulb replacement) (P. 8-26) 3. Rear window defroster (P. 2-31)
4. Rear combination light (Bulb replace-
ment) (P. 8-26)
5. Satellite antenna (P. 4-39) 6. Fuel-filler door
— Operation (P. 3-22)
— Fuel recommendation (P. 9-4)
7. Rear view camera (if so equipped) (P. 4-21)
8. Sonar system (if so equipped) (P. 5-47)
9. Trunk — Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
— Trunk lid (P. 3-18)
10. Child safety rear door locks (P. 3-6)
SSI0684
EXTERIOR REAR
Illustrated table of contents0-5

COUPE
1. High-mounted stop light (model with arear spoiler) (Bulb replacement)
(P. 8-26)
2. High-mounted stop light (model without a rear spoiler) (Bulb replacement) (P. 8-26) 3. Rear window defroster (P. 2-31)
4. Satellite antenna (P. 4-39)
5. Rear view camera (if so equipped)
(P. 4-21) 6. Trunk
— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
— Trunk lid (P. 3-18)
7. Sonar system (if so equipped) (P. 5-47)
8. Rear combination light (Bulb replace- ment) (P. 8-18)
9. Fuel-filler door — Operation (P. 3-22)
— Fuel recommendation (P. 9-4)
SSI0685
0-6Illustrated table of contents

For INFINITI Coupe/INFINITI Performance Line,
Aerodynamic Package models, the vehicle parts
listed below require special care or caution for
treating. Refer to additional information in each
section.
1. Recovery hook (P. 6-14)2. Exhaust pipes (for INFINITI Performance
Line model) (P. 3-21)
SSI0807
EXTERIOR (Coupe/INFINITI Performance
Line, Aerodynamic Package models)
Illustrated table of contents0-7

SEDAN
1. Coat hooks (P. 2-47)
2. Rear personal light (P. 2-53)
3. Power windows (P. 2-48)
4. Outside mirror remote control switch(P. 3-27) 5. Automatic drive positioner switch (if so
equipped) (P. 3-29)
6. Sun visors (P. 3-25)
7. Moonroof switch (if so equipped) (P. 2-51)
8. Map light (P. 2-53) 9. Sunglasses holder (P. 2-44)
10. Inside rearview mirror
— Operation (P. 3-26)
— HomeLink (if so equipped) (P. 2-55)
— Compass (if so equipped) (P. 2-7)
11. Trunk pass-through/Rear armrest (P. 1-12)
12. Rear cup holders (P. 2-42)
13. Console box — Power outlet (P. 2-40)
— Auxiliary input jacks (if so equipped)
(P. 4-80)
— USB input operation (if so equipped)
(P. 4-62)
— iPod player operation (if so
equipped) (P. 4-71)
14. Front cup holders (P. 2-42)
SSI0668
PASSENGER COMPARTMENT
0-8Illustrated table of contents

COUPE
1. Coat hooks (P. 2-47)
2. Power windows (P. 2-48)
3. Outside mirror remote control switch(P. 3-27) 4. Automatic drive positioner switch (if so
equipped) (P. 3-29)
5. Sun visors (P. 3-25)
6. Moonroof switch (if so equipped) (P. 2-51)
7. Map light (P. 2-53) 8. Sunglasses holder (P. 2-44)
9. Inside rearview mirror
— Operation (P. 3-26)
— HomeLink (if so equipped) (P. 2-55)
— Compass (if so equipped) (P. 2-7)
10. Rear cup holders (P. 2-42)
11. Console box — Power outlet (P. 2-40)
— Auxiliary input jacks (if so equipped)
(P. 4-80)
— USB input operation (if so equipped)
(P. 4-62)
— iPod player operation (if so equipped)
(P. 4-71)
12. Front cup holders (P. 2-42)
SSI0669
Illustrated table of contents0-9

1. Vehicle Dynamic Control (VDC) OFF switch(P. 5-54)
2. Trunk lid release switch (P. 3-18)
3. Sonar system off switch (if so equipped) (P. 5-49) 4. Instrument brightness control switch
(P. 2-35)
5. TRIP/RESET switch for twin trip odometer (P. 2-5)
6. Headlight, fog light and turn signal switch (P. 2-32) 7. Paddle shifter (if so equipped) (P. 5-15)
8. Steering-wheel-mounted controls (left
side)
— ENTER or tuning switch (P. 4-82)
— BACK switch (P. 4-82)
— TALK switch (if so equipped)
(P. 4-108)/Phone switch (if so equipped)
(P. 4-84)
— Volume control switches (P. 4-82)
— Source select switch (P. 4-82)
9. Trip computer switch (P. 2-24)
10. Windshield wiper and washer switch (P. 2-29)
11. Steering-wheel-mounted controls (right side)
— Cruise control switches (P. 5-19)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-22)
12. Hood release handle (P. 3-17)
13. Intelligent Key port (P. 5-10)
14. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-24)
15. Manual tilting/telescopic steering wheel lever (if so equipped) (P. 3-24)
16. Steering wheel — Horn (P. 2-37)
— Driver supplemental air bag (P. 1-40)
SIC4683
COCKPIT
0-10Illustrated table of contents

1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-38)
5. Clock (P. 2-39)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-84, P. 4-95) — Audio system (P. 4-38)
7. Center display (P. 4-2)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P. 2-36)
9. Front passenger supplemental air bag (P. 1-40)
10. Fuse box cover (P. 8-21)
11. Parking brake (for Automatic Transmis- sion models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-8)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-41) or storage box (if so
equipped) (P. 2-46)
— Power outlet (if so equipped) (P. 2-40)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-37)
17. SNOW mode switch (if so equipped) (P. 2-39)
18. Rear window and outside mirror (if so equipped) defogger switch (P. 2-31)
19. Glove box lid release handle (P. 2-44)
20. Trunk release power cancel switch (P. 3-19)
*: Refer to the separate Navigation SystemOwner’s Manual.
SSI0671
INSTRUMENT PANEL
Illustrated table of contents0-11

1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-10)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-18)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
0-12Illustrated table of contents

VQ25HR/VQ37VHR ENGINE
1. Fuse/fusible link holder (P. 8-21)
2. Battery (P. 8-14)
3. Engine oil filler cap (P. 8-9)
4. Brake fluid reservoir (P. 8-13)5. Clutch fluid reservoir (Manual Transmis-
sion models) (P. 8-13)
6. Window washer fluid reservoir (P. 8-14)
7. Power steering fluid reservoir (P. 8-12)
8. Air cleaner (P. 8-18)
9. Radiator filler cap (P. 8-8) 10. Drive belts (P. 8-17)
11. Coolant reservoir (P. 8-8)
12. Engine oil dipstick (for VQ37VHR engine
model) (P. 8-9)
13. Engine oil dipstick (for VQ25HR engine model) (P. 8-9)
SDI2709
ENGINE COMPARTMENT
Illustrated table of contents0-13
