TPMS INFINITI G 2011 Owners Manual

SEDAN
1. Hood (P. 3-17)
2. Headlight and turn signal— Operation (P. 2-32)
— Bulb replacement (P. 8-18) 3. Windshield wiper and washer
— Operation (P. 2-29)
— Maintenance (P. 8-19)
4. Moonroof (if so equipped) (P. 2-51)
5. Power windows (P. 2-48)
6. Recovery hook (P. 6-14) 7. Fog light (P. 2-36)
8. Tires
— Wheel and tires (P. 8-31, P. 9-9)
— Flat tire (P. 6-2)
— Tire pressure monitoring system
(TPMS) (P. 2-13, P. 5-3)
9. Outside mirrors (P. 3-27)
10. Doors — Keys (P. 3-2)
— Door locks (P. 3-4)
— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
SSI0643
EXTERIOR FRONT
Illustrated table of contents0-3

COUPE
1. Hood (P. 3-17)
2. Headlight and turn signal— Operation (P. 2-32)
— Bulb replacement (P. 8-26) 3. Windshield wiper and washer
— Operation (P. 2-29)
— Maintenance (P. 8-19)
4. Moonroof (if so equipped) (P. 2-51)
5. Power windows (P. 2-48)
6. Recovery hook (P. 6-14) 7. Fog light (P. 2-36)
8. Tires
— Wheel and tires (P. 8-31, P. 9-9)
— Flat tire (P. 6-2)
— Tire pressure monitoring system
(TPMS) (P. 2-13, P. 5-3)
9. Outside mirrors (P. 3-27)
10. Doors — Keys (P. 3-2)
— Door locks (P. 3-4)
— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
SSI0806
0-4Illustrated table of contents

Intelligent Key warning light
After the ignition switch is pushed to the ON
position, this light comes on for about 2 sec-
onds and then turns off.
This light warns of a malfunction with the
electrical steering lock system (if so equipped)
or the Intelligent Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock (if so equipped) or to start the
engine. If the light comes on while the engine is
running, you can drive the vehicle. However in
these cases, contact an INFINITI retailer for
repair as soon as possible.
Low tire pressure warning
light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.Low tire pressure warning :
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRESSURE warning also appears
on the dot matrix liquid crystal display.
When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. The low tire pressure warning light does
not automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning is active as
long as the low tire pressure warning light
remains illuminated.
For additional information, see “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section,
“TIRE PRESSURE MONITORING SYSTEM (TPMS)”
in the “5. Starting and driving” section and
“TIRE PRESSURE MONITORING SYSTEM (TPMS)”
in the “6. In case of emergency” section.TPMS malfunction :
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by an INFINITI
retailer. The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunc-
tion.
For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.
WARNING
●
If the light does not illuminate with the igni-
tion switch pushed ON, have the vehicle
checked by an INFINITI retailer as soon as
possible.
Instruments and controls2-13

●If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as soon
as possible. Driving with under-inflated tires
may permanently damage the tires and in-
crease the likelihood of tire failure. Serious
vehicle damage could occur and may lead to
an accident and could result in serious per-
sonal injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the rec-
ommended COLD tire pressure shown on the
Tire and Loading Information label to turn
the low tire pressure warning light OFF. If the
light still illuminates while driving after ad-
justing the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a spare
tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after the 1 minute. Contact your
INFINITI retailer as soon as possible for tire
replacement and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.CAUTION
●The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
Master warning light
When the ignition switch is in the ON position,
the master warning light illuminates if any of
the following are displayed on the dot matrix
liquid crystal display:
● No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door/trunk open warning
● Loose fuel cap warning
● Check tire pressure warning
See “DOT MATRIX LIQUID CRYSTAL DISPLAY”
later in this section.
Preview Function warning
light (orange; if so equipped)
The light comes on if there is a malfunction in
the Brake Assist (with Preview Function) sys-
tem.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the igni-
tion switch is pushed to the ON position, and
will remain illuminated until the driver’s seat
belt is fastened. At the same time, the chime
will sound for about 6 seconds unless the
driver’s seat belt is securely fastened.
The seat belt warning light for the front passen-
ger will illuminate if the seat belt is not fastened
when the front passenger’s seat is occupied.
For approximately 5 seconds after the ignition
2-14Instruments and controls

SHIFT “P” warning→(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
Instruments and controls2-21

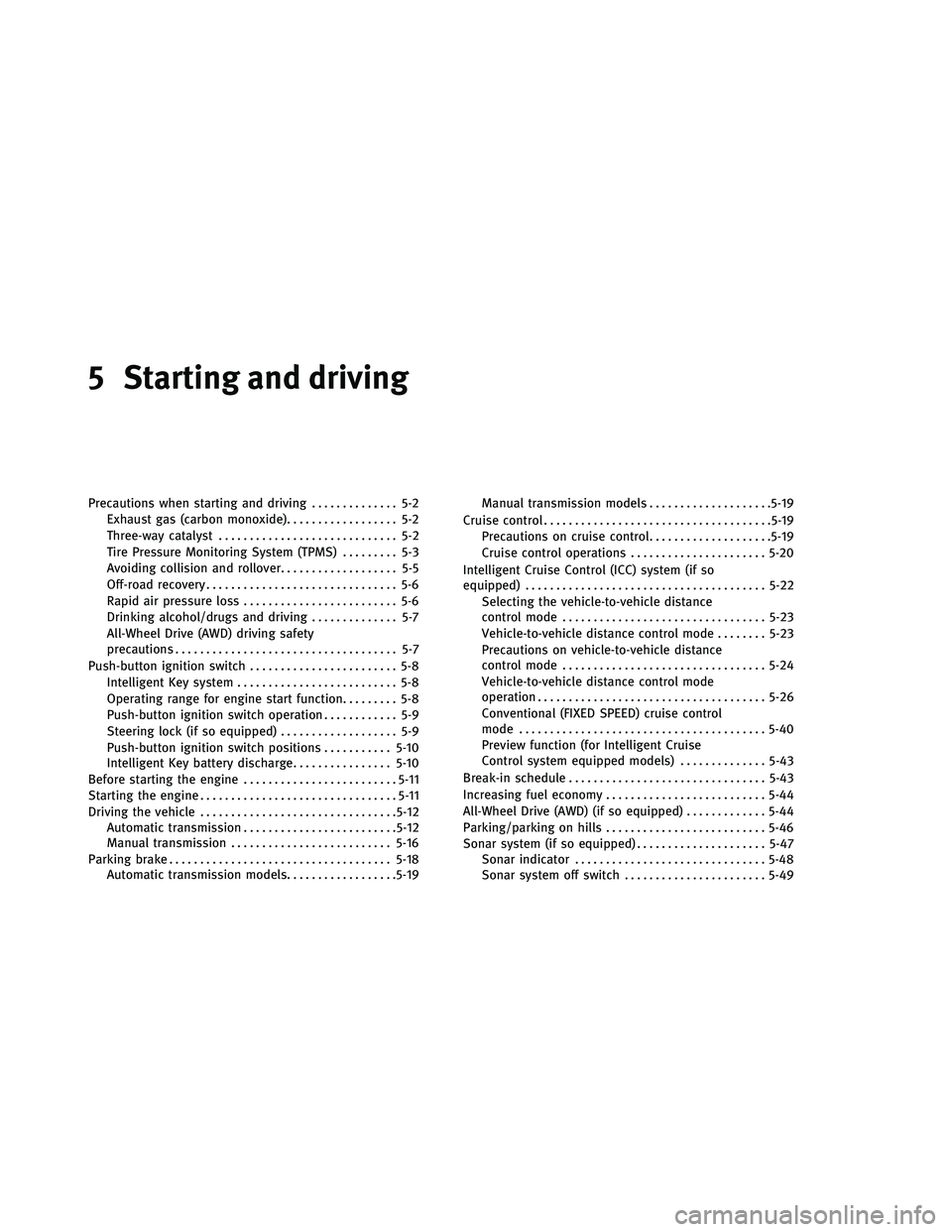

5 Starting and driving
Precautions when starting and driving.............. 5-2
Exhaust gas (carbon monoxide) .................. 5-2
Three-way catalyst ............................. 5-2
Tire Pressure Monitoring System (TPMS) ......... 5-3
Avoiding collision and rollover ................... 5-5
Off-road recovery ............................... 5-6
Rapid air pressure loss ......................... 5-6
Drinking alcohol/drugs and driving .............. 5-7
All-Wheel Drive (AWD) driving safety
precautions .................................... 5-7
Push-button ignition switch ........................ 5-8
Intelligent Key system .......................... 5-8
Operating range for engine start function......... 5-8
Push-button ignition switch operation ............ 5-9
Steering lock (if so equipped) ................... 5-9
Push-button ignition switch positions ...........5-10
Intelligent Key battery discharge ................5-10
Before starting the engine .........................5-11
Starting the engine ................................ 5-11
Driving the vehicle ................................ 5-12
Automatic transmission ......................... 5-12
Manual transmission .......................... 5-16
Parking brake .................................... 5-18
Automatic transmission models ..................5-19Manual transmission models
....................5-19
Cruise control ..................................... 5-19
Precautions on cruise control ....................5-19
Cruise control operations ......................5-20
Intelligent Cruise Control (ICC) system (if so
equipped) ....................................... 5-22
Selecting the vehicle-to-vehicle distance
control mode ................................. 5-23
Vehicle-to-vehicle distance control mode ........5-23
Precautions on vehicle-to-vehicle distance
control mode ................................. 5-24
Vehicle-to-vehicle distance control mode
operation ..................................... 5-26
Conventional (FIXED SPEED) cruise control
mode ........................................ 5-40
Preview function (for Intelligent Cruise
Control system equipped models) ..............5-43
Break-in schedule ................................ 5-43
Increasing fuel economy .......................... 5-44
All-Wheel Drive (AWD) (if so equipped) .............5-44
Parking/parking on

hills.......................... 5-46
Sonar system (if so equipped) .....................5-47
Sonar indicator ............................... 5-48
Sonar system off switch ....................... 5-49

CAUTION
●Do not use leaded gasoline. Deposits from
leaded gasoline seriously reduce the three-
way catalyst’s ability to help reduce exhaust
pollutants.
● Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems can cause overrich fuel flow into the
three-way catalyst, causing it to overheat.
Do not keep driving if the engine misfires, or
if noticeable loss of performance or other
unusual operating conditions are detected.
Have the vehicle inspected promptly by an
INFINITI retailer.
● Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
● Do not race the engine while warming it up.
● Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure, even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Additional information
●
The TPMS does not monitor the tire pressure
of the spare tire.
● The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Starting and driving5-3

Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).
● The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
● The CHECK TIRE PRESSURE warning appears
in the vehicle information display when the
low tire pressure warning light is illuminated
and low tire pressure is detected. The CHECK
TIRE PRESSURE warning turns off when the
low tire pressure warning light turns off.
The CHECK TIRE PRESSURE warning does not
appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
● Tire pressure rises and falls depending on
the heat caused by the vehicle’s operation
and the outside temperature. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to illumi- nate. If the warning light illuminates in low
ambient temperature, check the tire pres-
sure for all four tires.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “TIRE PRESSURE MONI-
TORING SYSTEM (TPMS)” in the “6. In case of
emergency” section.WARNING
● If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible. (See “FLAT TIRE” in the “6. In case
of emergency” section for changing a flat
tire.)
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
5-4Starting and driving

●Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CAUTION
●The TPMS may not function properly when
the wheels are equipped with tire chains or
the wheels are buried in snow.
● Do not place metalized film or any metal
parts (antenna, etc.) on the windows. This
may cause poor reception of the signals from
the tire pressure sensors, and the TPMS will
not function properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
– Facilities or electric devices using similar radio frequencies are near the vehicle.
– If a transmitter set to similar frequencies is being used in or near the vehicle. – If a computer (or similar equipment) or a
DC/AC converter is being used in or near the
vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Note: Changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user’s authority to operate
the equipment.
For Canada:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
AVOIDING COLLISION AND ROLLOVER
WARNING
Failure to operate this vehicle in a safe and
prudent manner may result in loss of control or
an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle. As
with any vehicle, a loss of control could result in
a collision with other vehicles or objects, or
cause the vehicle to rollover, particularly if the
loss of control causes the vehicle to slide side-
ways. Be attentive at all times, and avoid
driving when tired. Never drive when under the
influence of alcohol or drugs (including pre-
scription or over-the-counter drugs which may
cause drowsiness). Always wear your seat belt
as outlined in the “SEAT BELTS” in the “1. Safety
— Seats, seat belts and supplemental restraint
system” section of this manual, and also in-
struct your passengers to do so.
Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is signifi-
Starting and driving5-5

6 In case of emergency
Roadside assistance program...................... 6-2
Emergency engine shut off ......................... 6-2
Flat tire ........................................... 6-2
Tire Pressure Monitoring System (TPMS) ......... 6-2
Changing a flat tire ............................. 6-3
Jump starting ..................................... 6-8 Push starting
.................................... 6-10
If your vehicle overheats .......................... 6-10
Towing your vehicle ............................... 6-11
Towing recommended by INFINITI ...............6-12
Vehicle recovery (Freeing a stuck vehicle) .......6-14
