engine INFINITI G 2012 Owners Manual

Black plate (456,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

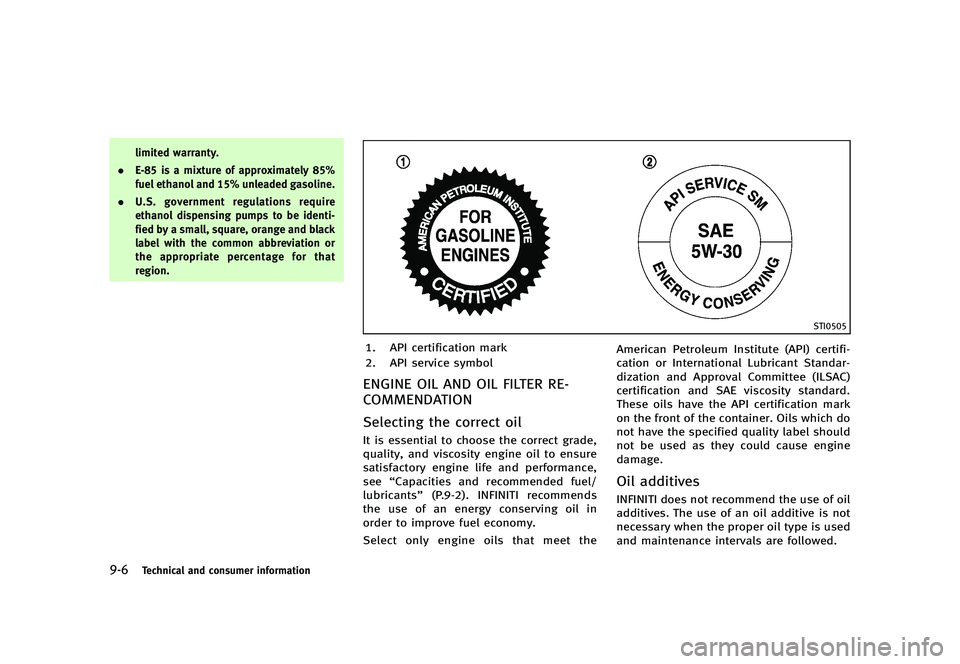

9-6Technical and consumer information
limited warranty.
. E-85 is a mixture of approximately 85%
fuel ethanol and 15% unleaded gasoline.
. U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and black
label with the common abbreviation or
the appropriate percentage for that
region.
STI0505
1. API certification mark
2. API service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
GUID-5DAF484B-5225-4882-BA4B-DB4830EFE0AF
Selecting the correct oilGUID-7E56B07C-FA31-476B-909A-6FD2C08A7626It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance,
see “Capacities and recommended fuel/
lubricants” (P.9-2). INFINITI recommends
the use of an energy conserving oil in
order to improve fuel economy.
Select only engine oils that meet the American Petroleum Institute (API) certifi-
cation or International Lubricant Standar-
dization and Approval Committee (ILSAC)
certification and SAE viscosity standard.
These oils have the API certification mark
on the front of the container. Oils which do
not have the specified quality label should
not be used as they could cause engine
damage.
Oil additivesGUID-11AD1E70-8EAE-4D70-880A-3AA3882862D5INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.

Black plate (457,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

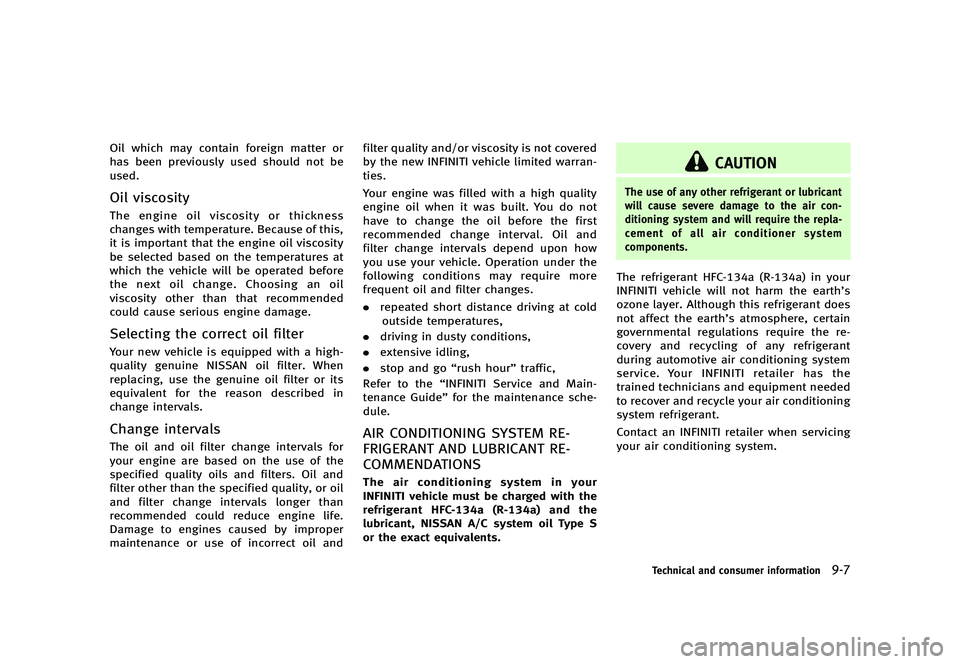

Oil which may contain foreign matter or
has been previously used should not be
used.
Oil viscosityGUID-6FE50DBA-A088-4DF7-B955-855B7BC409B7The engine oil viscosity or thickness
changes with temperature. Because of this,
it is important that the engine oil viscosity
be selected based on the temperatures at
which the vehicle will be operated before
the next oil change. Choosing an oil
viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filterGUID-FFA0543F-C4EE-4AB0-A3D3-B35085A1CBFEYour new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When
replacing, use the genuine oil filter or its
equivalent for the reason described in
change intervals.
Change intervalsGUID-9DC392AF-E881-459C-941F-E42A7567649CThe oil and oil filter change intervals for
your engine are based on the use of the
specified quality oils and filters. Oil and
filter other than the specified quality, or oil
and filter change intervals longer than
recommended could reduce engine life.
Damage to engines caused by improper
maintenance or use of incorrect oil andfilter quality and/or viscosity is not covered
by the new INFINITI vehicle limited warran-
ties.
Your engine was filled with a high quality
engine oil when it was built. You do not
have to change the oil before the first
recommended change interval. Oil and
filter change intervals depend upon how
you use your vehicle. Operation under the
following conditions may require more
frequent oil and filter changes.
.
repeated short distance driving at cold
outside temperatures,
. driving in dusty conditions,
. extensive idling,
. stop and go “rush hour”traffic,
Refer to the “INFINITI Service and Main-
tenance Guide” for the maintenance sche-
dule.AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS
GUID-A6645D62-AEB6-4D99-B362-51EC90BEBB5EThe air conditioning system in your
INFINITI vehicle must be charged with the
refrigerant HFC-134a (R-134a) and the
lubricant, NISSAN A/C system oil Type S
or the exact equivalents.
CAUTION
The use of any other refrigerant or lubricant
will cause severe damage to the air con-
ditioning system and will require the repla-
cement of all air conditioner system
components.
The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle will not harm the earth’s
ozone layer. Although this refrigerant does
not affect the earth’s atmosphere, certain
governmental regulations require the re-
covery and recycling of any refrigerant
during automotive air conditioning system
service. Your INFINITI retailer has the
trained technicians and equipment needed
to recover and recycle your air conditioning
system refrigerant.
Contact an INFINITI retailer when servicing
your air conditioning system.
Technical and consumer information9-7

Black plate (458,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
9-8Technical and consumer information
GUID-FFBD2EF3-5719-47E5-B112-89129991741B
ENGINEGUID-0847A1B6-AE80-4107-9ADC-D17B43B8EBB3
ModelVQ25HRVQ37VHR
Type Gasoline, 4-cycle Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 608 6-cylinder, V-slanted at 608
Bore 6Stroke in (mm) 3.346 62.886 (85.0 673.3) 3.760 63.385 (95.5 686.0)
Displacement cu in (cm
3) 152.31 (2,496) 225.54 (3,696)
Firing order 1-2-3-4-5-6 1-2-3-4-5-6
Idle speed rpm
No adjustment is necessary. No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/
rpm
Spark plug Standard FXE22HR-11 FXE24HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1) 0.043 (1.1)
Camshaft operation Timing chainTiming chain
This spark ignition system complies with the Canadian standard ICES-002.
STI0425
VQ25HR/VQ37VHR engine
SPECIFICATIONS

Black plate (461,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
DIMENSIONSGUID-F7D80962-40E2-4E0D-84D0-66CBC3C97D89in (mm)
Sedan: Overall length (with front
license plate) 188.1 (4,779)
189.0 (4,800)*10
Overall length (without
front license plate) 187.9 (4,773)
189.0 (4,800)*10
Overall width 69.8 (1,773)
Overall height 57.2 (1,453)*1*2
57.8 (1,468)*4
Front tread 59.8 (1,520)
Rear tread 59.8 (1,520)*2
60.2 (1,530)*1*3*4
Wheelbase 112.2 (2,850)
Coupe: Overall length (with front
license plate) 183.2 (4,653)*8
183.8 (4,669)*9
185.2 (4,705)*11
Overall length (without
front license plate) 183.1 (4,650)*8
183.7 (4,665)*9
185.0 (4,700)*11
Overall width 71.8 (1,823)
Overall height 54.8 (1,390)*5 54.9 (1,393)*6
55.4 (1,406)*7
Front tread 60.8 (1,545)
Rear tread 61.4 (1,560)
Wheelbase 112.2 (2,850)
*1: Sedan/Two-Wheel Drive (2WD)/17-in tire models
*2: Sedan/Two-Wheel Drive (2WD)/18-in tire models (FR: 225/50R18, RR:
245/45R18)
*3: Sedan/Two-Wheel Drive (2WD)/18-in tire models (FR, RR: 225/50R18)
*4: Sedan/All-Wheel Drive (AWD) models
*5: Coupe/Two-Wheel Drive (2WD)/18-in tire models
*6: Coupe/Two-Wheel Drive (2WD)/19-in tire models
*7: Coupe/All-Wheel Drive (AWD) models
*8: Coupe/Standard models
*9: Coupe/Sports models
*10: Sedan/Aerodynamic Package models
*11: Coupe/INFINITI Performance Line,
Aerodynamic Package models
GUID-F8B625EB-7D94-4B40-9FAF-F75725369B65If you plan to travel in another country,
you should first find out if the fuel
available is suitable for your vehicle’s
engine.
Using fuel with too low an octane rating
may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your
vehicle to areas where appropriate fuel is
not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify
the vehicle to meet local laws and regula-
tions.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications
may differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, trans-
portation, and registration are the respon-
sibility of the user. INFINITI is not
responsible for any inconvenience that
may result.
Technical and consumer information9-11
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY

Black plate (462,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
9-12Technical and consumer information
GUID-4E2739FE-BAC9-4C7E-9643-38D98DC0DF3E
STI0431
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
GUID-987915D8-5A47-485F-B45B-A0C946DC386DThe vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used
in the vehicle registration.
STI0492
VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-E9B6A346-25E3-4CD9-AD1F-87C2F34BAF8FThe number is stamped as shown in the
engine compartment.
STI0509
ENGINE SERIAL NUMBERGUID-AB9E2BE3-5E93-4FA6-B294-3DDECD921BB9The number is stamped on the engine as
shown.
VEHICLE IDENTIFICATION

Black plate (473,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

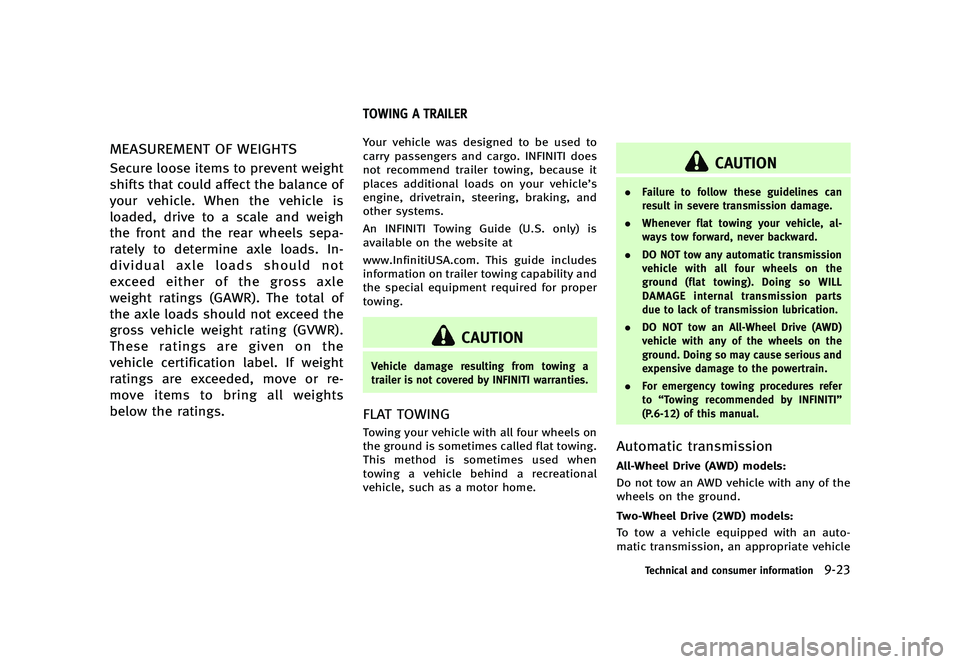

MEASUREMENT OF WEIGHTSGUID-50D1912A-C00F-4ED3-8ACC-D24A0397214B
Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is
loaded, drive to a scale and weigh
the front and the rear wheels sepa-
rately to determine axle loads. In-
dividual axle loads should not
exceed either of the gross axle
weight ratings (GAWR). The total of
the axle loads should not exceed the
gross vehicle weight rating (GVWR).
These ratings are given on the
vehicle certification label. If weight
ratings are exceeded, move or re-
move items to bring all weights
below the ratings.
GUID-BC9945CE-0C0A-468B-8072-EAC4EDA8B7B5Your vehicle was designed to be used to
carry passengers and cargo. INFINITI does
not recommend trailer towing, because it
places additional loads on your vehicle’s
engine, drivetrain, steering, braking, and
other systems.
An INFINITI Towing Guide (U.S. only) is
available on the website at
www.InfinitiUSA.com. This guide includes
information on trailer towing capability and
the special equipment required for proper
towing.
CAUTION
Vehicle damage resulting from towing a
trailer is not covered by INFINITI warranties.
FLAT TOWINGGUID-A4A9B27A-245D-4579-9712-944464AA5082Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when
towing a vehicle behind a recreational
vehicle, such as a motor home.
CAUTION
.Failure to follow these guidelines can
result in severe transmission damage.
. Whenever flat towing your vehicle, al-
ways tow forward, never backward.
. DO NOT tow any automatic transmission
vehicle with all four wheels on the
ground (flat towing). Doing so WILL
DAMAGE internal transmission parts
due to lack of transmission lubrication.
. DO NOT tow an All-Wheel Drive (AWD)
vehicle with any of the wheels on the
ground. Doing so may cause serious and
expensive damage to the powertrain.
. For emergency towing procedures refer
to“Towing recommended by INFINITI”
(P.6-12) of this manual.
Automatic transmissionGUID-5322E855-87A5-4D73-B422-7DD7455EF723
All-Wheel Drive (AWD) models:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Do not tow an AWD vehicle with any of the
wheels on the ground.
Two-Wheel Drive (2WD) models:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To tow a vehicle equipped with an auto-
matic transmission, an appropriate vehicle
Technical and consumer information9-23
TOWING A TRAILER

Black plate (474,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
9-24Technical and consumer information
dollyMUST be placed under the towed
vehicle’s drive wheels. Alwaysfollow the
dolly manufacturer’s recommendations
when using their product.
Manual transmissionGUID-B30ED557-E6C5-4E25-B21C-5F9B6B9B165D. Always tow with the manual transmis-
sion in Neutral.
. Your vehicle speed should never exceed
70 MPH (112 km/h) when flat towing
your vehicle.
. After towing 500 miles, start and idle
the engine with the transmission in
Neutral for two minutes. Failure to idle
the engine after every 500 miles of
towing may cause damage to the
transmission’s internal parts.
GUID-3E088555-DC3D-4483-A05A-8DA986F1D29DDOT (Department Of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where applic-
able on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
TREADWEARGUID-499F0B52-9319-4A2F-9811-B95040CBA836The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled conditions
on a specified government test course. For
example, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon actual conditions of their use, how-
ever, and may depart significantly from the
norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
TRACTION AA, A, B AND CGUID-06FD06F1-0BA4-4FE2-98C0-CCD1E9E9D435The traction grades, from highest to low-
est, are AA, A, B and C. Those grades
represent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
TEMPERATURE A, B AND CGUID-D08B43D7-C76A-4659-BF4F-9C199B188B10The temperature grades A (the highest), B,
and C, representing the tire’s resistance to
the generation of heat and its ability to
dissipate heat when tested under con-
trolled conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material of the
tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden
UNIFORM TIRE QUALITY GRADING

Black plate (477,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-126FA212-7CA0-4A46-8098-F063BF60E060A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dynam-
ometers used by some states for emissions
testing), or similar equipment. Make sure
you inform test facility personnel that your
vehicle is equipped with AWD before it is
placed on a dynamometer. Using the
wrong test equipment may result in trans-
mission damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states/
areas, your vehicle may be required to be
in what is called the“ready condition”for
an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition”
can be obtained by ordinary usage of the
vehicle.
If a powertrain system component is
repaired or the battery is disconnected,
the vehicle may be reset to a “not ready
condition”. Before taking the I/M test,
check the vehicle’s inspection/mainte-
nance test readiness condition. Place the
ignition switch in the ON position without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for
20 seconds and then blinks for 10
seconds, the I/M test condition is
“not
ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”.
Contact an INFINITI retailer to set the
“ready condition” or to prepare the vehicle
for testing.GUID-9C3875F5-7E59-4991-892A-95438AAA2114This vehicle is equipped with an Event
Data Recorder (EDR). The main purpose of
an EDR is to record, in certain crash or
near crash-like situations, such as an air
bag deployment or hitting a road obstacle,
data that will assist in understanding how
a vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or
less. The EDR in this vehicle is designed to
record such data as:
. How various systems in your vehicle
were operating;
. Whether or not the driver and passen-
ger safety belts were buckled/fas-
tened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle only
if a nontrivial crash situation occurs; no
data are recorded by the EDR under normal
driving conditions and no personal data
Technical and consumer information9-27
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only) EVENT DATA RECORDERS (EDR)

Black plate (479,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
10 Index
Number
4 Wheel Active Steer (4WAS) system...
................. 5-57
4 Wheel Active Steer (4WAS) warning light ...
....... 2-14
A
ABS (Anti-lock Braking System) ...
......................... 5-54
Advanced air bag system ...
.................................. 1-46
Air bag system Advanced air bag system ...
............................. 1-46
Front passenger air bag and status light ...
...... 1-49
Front-seat mounted side-impact supplemental
air bag system ...
............................................. 1-52
Roof-mounted curtain side-impact
supplemental air bag system ...
....................... 1-52
Air bag warning labels ...
...................................... 1-55
Air bag warning light ...
............................... 1-55, 2-17
Air cleaner housing filter ...
................................... 8-21
Air conditioner Air conditioner service ...
................................. 4-41
Air conditioner specification label ...
................ 9-14
Air conditioning system refrigerant and
lubricant recommendations ...
.................. 4-41, 9-7
Automatic climate control ...
............................ 4-31
In-cabin microfilter ...
....................................... 4-40
Alarm, How to stop alarm (see vehicle
security system) ...
................................................ 2-29
Alcohol, drugs and driving ...
.................................. 5-8
All-wheel drive (AWD) ...
........................................ 5-45 All-wheel drive (AWD) driving
safety precautions
...
.............................................. 5-8
All-wheel drive (AWD) warning light ...
.................. 2-12
Antenna ...
............................................................ 4-89
Anti-lock Braking System (ABS) ...
......................... 5-54
Anti-lock braking system (ABS) warning light ...
.... 2-13
Appearance care Exterior appearance care ...
................................ 7-2
Interior appearance care ...
................................ 7-4
Armrest ...
............................................................. 1-13
Ashtrays (See cigarette lighter and ashtrays) ...
.... 2-44
Audible reminders ...
............................................ 2-19
Audio operation precautions ...
............................. 4-41
Audio system ...
.................................................... 4-41
Steering wheel audio controls ...
...................... 4-87
Autolight system ...
............................................... 2-35
Automatic
Automatic adjusting function
(front windows) ...
............................................ 2-54
Automatic climate control ...
.................. 4-32, 4-34
Automatic transmission fluid (ATF) ...
............... 8-14
Climate control ...
............................................ 4-31
Door locks ...
..................................................... 3-6
Drive positioner ...
........................................... 3-31
Driving with automatic transmission ...
............ 5-14
Moonroof ...
..................................................... 2-55
Seat positioner ...
............................................ 3-31
Average fuel consumption and speed ...
................ 2-26
Avoiding collision and rollover ...
............................ 5-6
B
Battery ...
.............................................................. 8-17
Battery saver system ...
................................... 2-37
Intelligent Key ...
.............................................. 8-26
Variable voltage control system ...
................... 8-19
Before starting the engine ...
................................ 5-12
Belts (See drive belts) ...
....................................... 8-19
Bluetooth
®hands-free phone system
(models with navigation system) ...
....................... 4-90
Bluetooth
®hands-free phone system
(models without navigation system) ...
................ 4-100
Bluetooth
®streaming audio ...
............................. 4-70
Brake Anti-lock Braking System (ABS) ...
.................... 5-54
Brake and clutch fluid ...
.................................. 8-15
Brake fluid ...
................................................... 8-15
Brake system ...
............................................... 5-51
Parking brake operation ...
............................... 5-20
Warning light ...
............................................... 2-13
Break-in schedule ...
............................................. 5-45
Brightness control Display ON/OFF button ...
.................................. 4-9
Instrument panel ...
......................................... 2-38
Bulb check/instrument panel ...
............................ 2-12
Bulb replacement ...
.............................................. 8-28

Black plate (480,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
10-2
C
Cabin air filter...
................................................... 4-40
Capacities and recommended fuel/lubricants ...
...... 9-2
Car phone or CB radio ...
...................................... 4-89
Card holder ...
....................................................... 2-49
Cargo net retainers ...
........................................... 2-51
Catalytic converter, Three way catalyst ...
................ 5-4
CD/CF/USB memory care and cleaning ...
............. 4-86
Center multi-function control panel ...
..................... 4-3
Child restraints ...
................................................. 1-23
LATCH system ...
.............................................. 1-25
Precautions on child restraints ...
..................... 1-23
Child safety ...
...................................................... 1-21
Child safety rear door lock ...
.................................. 3-6
Chimes Audible reminders ...
....................................... 2-19
Seat belt warning light and chime ...
............... 2-17
Cigarette lighter and ashtrays ...
........................... 2-44
Circuit breaker, Fusible link ...
............................... 8-24
Cleaning exterior and interior ...
....................... 7-2, 7-4
Climate control, Automatic climate control ...
........ 4-31
Clock ...
................................................................ 2-42
Clutch fluid ...
....................................................... 8-15
Coat hooks ...
....................................................... 2-50
Cockpit ...
............................................................... 2-3
Cold weather driving ...
......................................... 5-58
Compact Disc (CD) player (See audio system) ...
... 4-60
Compact spare tire ...
........................................... 8-43
Compass ...
............................................................. 2-9
Console box ...
...................................................... 2-48 Controller, Center multi-function control panel
...
.... 4-5
Controls Control panel button ...
...................................... 4-3
INFINITI Controller ...
.......................................... 4-5
Coolant Capacities and
recommended fuel/lubricants ...
........................ 9-2
Changing engine coolant ...
............................. 8-10
Checking engine coolant level ...
...................... 8-10
Corrosion protection ...
........................................... 7-6
Cruise control ...
................................................... 5-21
Fixed speed cruise control (on ICC system) ...
... 5-41
Intelligent cruise control (ICC) system ...
.......... 5-23
Cup holders ...
...................................................... 2-45
Current fuel consumption ...
.................................. 2-26
D
Daytime running light system ...
........................... 2-37
Defroster switch, Rear window and outside mirror
defroster switch ...
................................................ 2-34
Dimensions ...
....................................................... 9-11
Distance to empty ...
............................................. 2-26
Door/trunk open warning ...
.................................. 2-23
Dot matrix liquid crystal display ...
....................... 2-20
Drive belts ...
........................................................ 8-19
Drive positioner ...
................................................ 3-31
Driving
All-wheel drive (AWD) ...
................................... 5-45
Cold weather driving ...
.................................... 5-58
Driving with automatic transmission ...
............ 5-14
Driving with manual transmission ...
................ 5-18 Precautions when starting and driving
...
........... 5-3
DS (Drive Sport) mode ...
...................................... 5-16
DVD player operation ...
........................................ 4-62
E
Economy, Fuel ...
................................................... 5-45
Elapsed time ...
..................................................... 2-26
Elapsed time and trip odometer ...
........................ 2-26
Emission control information label ...
.................... 9-13
Emission control system warranty ...
..................... 9-25
Engine Before starting the engine ...
........................... 5-12
Break-in schedule ...
........................................ 5-45
Capacities and
recommended fuel/lubricants ...
........................ 9-2
Changing engine coolant ...
............................. 8-10
Changing engine oil and filter ...
...................... 8-11
Checking engine coolant level ...
...................... 8-10
Checking engine oil level ...
............................. 8-11
Coolant temperature gauge ...
............................ 2-8
Emergency engine shut off ...
........................... 5-11
Engine compartment check locations ...
............. 8-8
Engine cooling system ...
................................... 8-9
Engine oil ...
.................................................... 8-11
Engine oil and oil filter recommendation ...
........ 9-6
Engine oil replacement indicator ...
.................. 2-24
Engine oil viscosity ...
........................................ 9-7
Engine serial number ...
................................... 9-12
Engine specifications ...
..................................... 9-8
Engine start operation indicator (Automatic
Transmission models) ...
.................................. 2-22
