INFINITI G 2012 Owner's Manual

Black plate (20,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
0-14Illustrated table of contents
GUID-4EFFD432-519B-49EA-B9D3-B7E9FD7A6615
SDI2709
VQ25HR/VQ37VHR ENGINEGUID-2D649F04-F3DE-4C0A-877A-1F56F5C159981. Fuse/fusible link holder (P.8-24)
2. Battery (P.8-17)
3. Engine oil filler cap (P.8-11)
4. Brake fluid reservoir (P.8-15)
5. Clutch fluid reservoir (Manual Trans-mission models) (P.8-15)
6. Window washer fluid reservoir (P.8-16)
7. Power steering fluid reservoir (P.8-14)
8. Air cleaner (P.8-21) 9. Radiator filler cap (P.8-9)
10. Drive belts (P.8-19)
11. Coolant reservoir (P.8-9)
12.
Engine oil dipstick (for VQ37VHR
engine model) (P.8-11)
13. Engine oil dipstick (for VQ25HR en- gine model) (P.8-11)
ENGINE COMPARTMENT

Black plate (21,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-20167C10-9FEC-49A8-BD90-B52F0ED487EA
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-12
Anti-lock Braking System (ABS)
warning light2-13
Automatic Transmission check
warning light
2-13
Brake warning light
2-13
Charge warning light2-14
Engine oil pressure warning
light 2-14
4 Wheel Active Steer (4WAS)
warning light*
2-14
Intelligent Cruise Control (ICC)
system warning light (orange)*2-15
Intelligent Key system warning
light2-15
Low tire pressure warning light 2-15
Master warning light
2-16
Preview Function warning light
(orange)* 2-16
Seat belt warning light 2-17 Warning
light Name
Page
Supplemental air bag warning
light 2-17
Vehicle Dynamic Control (VDC)
warning light2-17
Indicator light Name
Page
Automatic Transmission posi-
tion indicator light* 2-18
Exterior light indicator
2-18
Front fog light indicator light 2-18
Front passenger air bag status
light 2-18
High beam indicator light 2-18
Malfunction Indicator Light
(MIL)2-18
Security indicator light 2-19
Turn signal/hazard indicator
lights2-19
Vehicle Dynamic Control (VDC)
off indicator light2-19
*: if so equipped
Illustrated table of contents0-15
WARNING AND INDICATOR LIGHTS

Black plate (22,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
0-16Illustrated table of contents

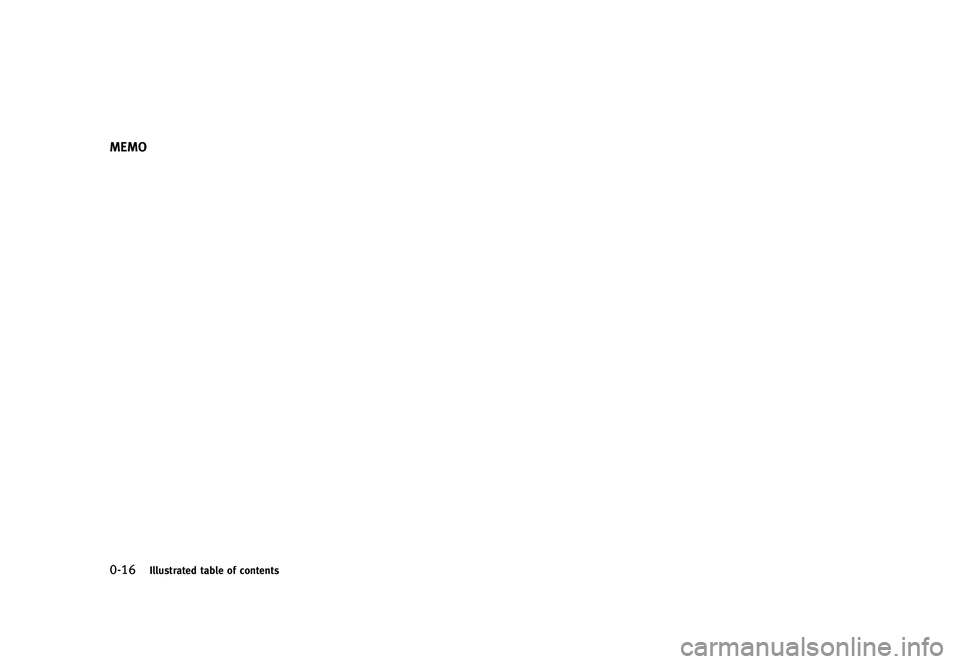

MEMO

Black plate (23,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
1 Safety—Seats, seat belts and supplemental
restraint system
Seats ...
................................................................... 1-2
Front seats ...
...................................................... 1-3
Rear seats ...
....................................................... 1-7
Head restraints ...
................................................ 1-9
Armrest (if so equipped) ...
................................ 1-13
Seat belts ...
.......................................................... 1-14
Precautions on seat belt usage ...
..................... 1-14
Pregnant women ...
........................................... 1-16
Injured persons ...
............................................. 1-16
Pre-crash seat belts (front seats) (if
so equipped) ...
................................................. 1-16
Three-point type seat belt ...
............................. 1-16
Seat belt extenders ...
....................................... 1-20
Seat belt maintenance ...
................................... 1-21
Child safety ...
....................................................... 1-21
Infants ...
........................................................... 1-22
Small children ...
............................................... 1-22
Larger children ...
.............................................. 1-22
Child restraints ...
.................................................. 1-23
Precautions on child restraints ...
...................... 1-23
Lower Anchors and Tethers for CHildren
System (LATCH) ...
............................................. 1-25 Rear-facing child restraint installation
using LATCH
...
................................................. 1-27
Rear-facing child restraint installation using
the seat belts ...
.............................................. 1-29
Forward-facing child restraint installation
using LATCH ...
................................................. 1-32
Forward-facing child restraint installation
using the seat belts ...
..................................... 1-33
Installing top tether strap ...
............................ 1-37
Booster seats ...
.............................................. 1-37
Supplemental restraint system ...
.......................... 1-41
Precautions on supplemental
restraint system ...
........................................... 1-41
INFINITI Advanced Air Bag System
(front seats) ...
................................................. 1-46
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
..................... 1-52
Seat belts with pretensioners (front seats) ...
.... 1-54
Supplemental air bag warning labels ...
........... 1-55
Supplemental air bag warning light ...
............. 1-55
Repair and replacement procedure ...
............... 1-56

Black plate (24,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
1-2Safety—Seats, seat belts and supplemental restraint system
GUID-15F58BF2-1182-4C7C-8EA9-0FDFD873D801
SSS0133
WARNING
. Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be
against your body. In an accident, you
could be thrown into it and receive neck
or other serious injuries. You could also
slide under the lap belt and receive
serious internal injuries.
. For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the seat with both feet on the floor and
adjust the seat belt properly. See
“Pre-
cautions on seat belt usage” (P.1-14).
. After adjustment, gently rock in the seat
to make sure it is securely locked.
. Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.
. The seatback should not be reclined
further than necessary for comfort. Seat
belts are most effective when the pas- senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damages.
SEATS

Black plate (25,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
FRONT SEATSGUID-D508833B-F102-47A6-A2B6-56CF07852D8B
Front power seat adjustmentGUID-78261695-CA4C-40D0-8577-D5ACFE37E844
Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 sec-
onds, then reactivate the switch.
. Do not operate the power seat switch
for a long period of time when the
engine is off. This will discharge the
battery.
See “Automatic drive positioner” (P.3-31)
for the seat position memory function (if so
equipped).
SSS1051
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*1forward or backward
will slide the seat forward or backward to
the desired position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*2backward until
the desired angle is obtained. To bring the
seatback forward again, move the switch
*2forward.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. (See “Precautions on
seat belt usage” (P.1-14).) Also, the seat- back can be reclined to allow occupants to
rest when the vehicle is parked.
Safety
—Seats, seat belts and supplemental restraint system1-3

Black plate (26,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
1-4Safety—Seats, seat belts and supplemental restraint system
SSS1052

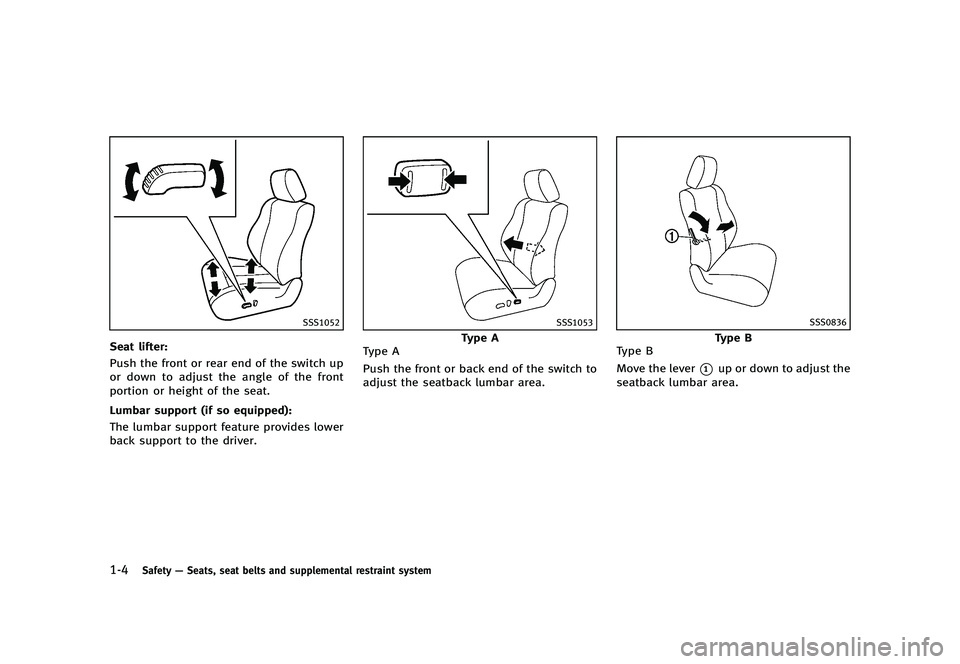

Seat lifter:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the front or rear end of the switch up
or down to adjust the angle of the front
portion or height of the seat.
Lumbar support (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower
back support to the driver.
SSS1053
Type A
Type A
Push the front or back end of the switch to
adjust the seatback lumbar area.
SSS0836
Type B
Type B
Move the lever
*1up or down to adjust the
seatback lumbar area.

Black plate (27,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SSS0685

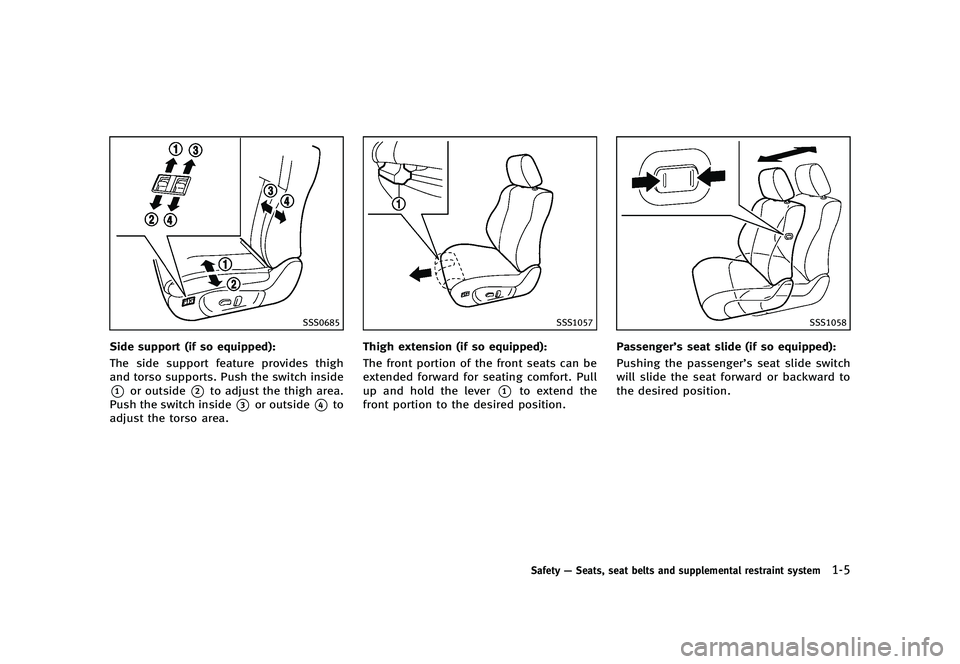

Side support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The side support feature provides thigh
and torso supports. Push the switch inside
*1or outside*2to adjust the thigh area.
Push the switch inside
*3or outside*4to
adjust the torso area.
SSS1057
Thigh extension (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The front portion of the front seats can be
extended forward for seating comfort. Pull
up and hold the lever
*1to extend the
front portion to the desired position.
SSS1058
Passenger’s seat slide (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the passenger’s seat slide switch
will slide the seat forward or backward to
the desired position.
Safety —Seats, seat belts and supplemental restraint system1-5

Black plate (28,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
1-6Safety—Seats, seat belts and supplemental restraint system
SSS0786

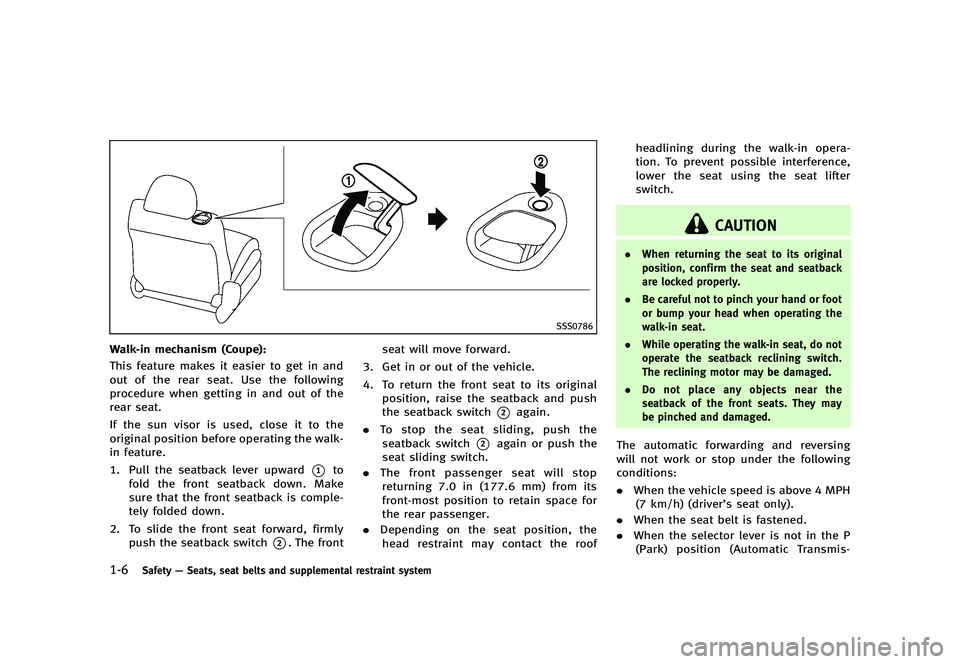

Walk-in mechanism (Coupe):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This feature makes it easier to get in and
out of the rear seat. Use the following
procedure when getting in and out of the
rear seat.
If the sun visor is used, close it to the
original position before operating the walk-
in feature.
1. Pull the seatback lever upward
*1to
fold the front seatback down. Make
sure that the front seatback is comple-
tely folded down.
2. To slide the front seat forward, firmly push the seatback switch
*2. The front seat will move forward.
3. Get in or out of the vehicle.
4. To return the front seat to its original position, raise the seatback and push
the seatback switch
*2again.
. To stop the seat sliding, push the
seatback switch
*2again or push the
seat sliding switch.
. The front passenger seat will stop
returning 7.0 in (177.6 mm) from its
front-most position to retain space for
the rear passenger.
. Depending on the seat position, the
head restraint may contact the roof headlining during the walk-in opera-
tion. To prevent possible interference,
lower the seat using the seat lifter
switch.
CAUTION
.
When returning the seat to its original
position, confirm the seat and seatback
are locked properly.
. Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
. While operating the walk-in seat, do not
operate the seatback reclining switch.
The reclining motor may be damaged.
. Do not place any objects near the
seatback of the front seats. They may
be pinched and damaged.
The automatic forwarding and reversing
will not work or stop under the following
conditions:
.When the vehicle speed is above 4 MPH
(7 km/h) (driver’s seat only).
. When the seat belt is fastened.
. When the selector lever is not in the P
(Park) position (Automatic Transmis-

Black plate (29,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
sion model’s driver’s seat) or the
parking brake is not applied (Manual
Transmission model’s driver’s seat).
. When the door is closed (automatic
forwarding only).
. While the automatic drive positioner
operates.
. When the automatic drive positioner
switches are pushed.
. When the seatback switch is pushed.
. When the seat position is adjusted.
Note that the seat must be moved to the
front-most position by operating the walk-
in function or the seat adjusting switches
after the battery is disconnected. Other-
wise, the seat will not move backward
during the walk-in function.REAR SEATSGUID-58068C6E-B055-4C8D-8938-1936BD5C8640
Folding (Coupe only)GUID-985B2C6A-D9B9-4CA7-BE2F-7414DF57F80E
WARNING
. Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an
accident or sudden stop.
. Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or
collision, unsecured cargo could cause
personal injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
. Closely supervise children when they are
around cars to prevent them from play-
ing and becoming locked in the trunk
where they could be seriously injured.
Keep the car locked, with the rear seatback and trunk lid securely latched
when not in use, and prevent children’s
access to car keys.
The rear seatback can be folded according
to the following procedure.
Safety
—Seats, seat belts and supplemental restraint system1-7
