center console INFINITI G 2012 Owners Manual

Black plate (119,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SSS0911
The front seats are warmed by built-in
heaters. The switches located on the center
console can be operated independently of
each other.
1. Start the engine.
2. Turn the control knob
*Ato the right*1
and select the desired heat range..For high heat, turn the knob to theright
*1..For low heat, turn the knob to the left
*2..The indicator light*Bwill illuminate
when the heater is on.
3. To turn off the heater, return the knob to the OFF position
*3. Make sure that
the indicator light turns off.
The heater is controlled by a thermis-
tor, automatically turning the heater on
and off. The indicator light will remain
on as long as the switch is on.
When the vehicle’s interior is warmed,
or before you leave the vehicle, be sure
to turn off the switch.
GUID-EF41F86E-C62C-4AF4-8DCA-50E40AEADC52
SIC3602
For driving or starting the vehicle on snowy
roads or slippery areas, turn on the SNOW
mode switch. The indicator light
*1on the
switch will illuminate. When the SNOW
mode is activated, engine output is con-
trolled to avoid wheel spin.
Instruments and controls2-41
SNOW MODE SWITCH (if so equipped)

Black plate (121,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-B26334D9-D8B8-436D-BBEA-461C2F9C02D3
JVI0329X
Automatic transmission models
SIC4684
Manual transmission models
SIC4316
Automatic transmission models
The power outlet is located in the center
console and storage box (if so equipped).
CAUTION
. The outlet and plug may be hot during or
immediately after use.
. Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.
. Use power outlet with the engine run-
ning to avoid discharging the vehicle
battery. .
Avoid using power outlet when the air
conditioner, headlights or rear window
defroster is on.
. This power outlet is not designed for use
with a cigarette lighter unit.
. Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may blow.
. Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned OFF.
. When not in use, be sure to close the
cap. Do not allow water to contact the
outlet.
Instruments and controls2-43
POWER OUTLET

Black plate (263,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

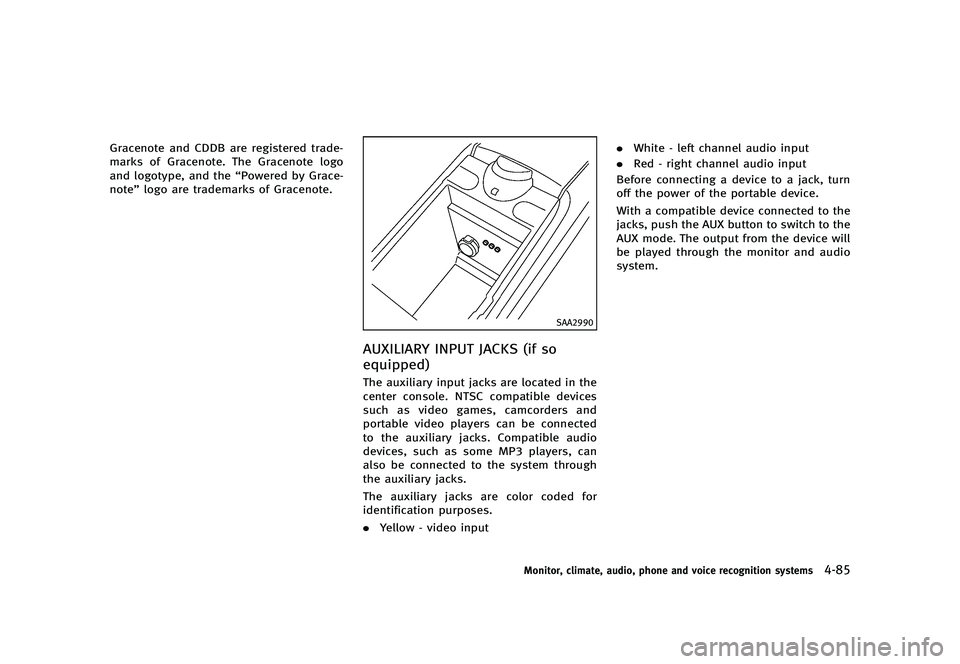

Gracenote and CDDB are registered trade-
marks of Gracenote. The Gracenote logo
and logotype, and the“Powered by Grace-
note” logo are trademarks of Gracenote.
SAA2990
AUXILIARY INPUT JACKS (if so
equipped)
GUID-0280CC1A-0892-4C7E-8144-201453B60254The auxiliary input jacks are located in the
center console. NTSC compatible devices
such as video games, camcorders and
portable video players can be connected
to the auxiliary jacks. Compatible audio
devices, such as some MP3 players, can
also be connected to the system through
the auxiliary jacks.
The auxiliary jacks are color coded for
identification purposes.
.Yellow - video input .
White - left channel audio input
. Red - right channel audio input
Before connecting a device to a jack, turn
off the power of the portable device.
With a compatible device connected to the
jacks, push the AUX button to switch to the
AUX mode. The output from the device will
be played through the monitor and audio
system.
Monitor, climate, audio, phone and voice recognition systems4-85

Black plate (480,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
10-2
C
Cabin air filter...
................................................... 4-40
Capacities and recommended fuel/lubricants ...
...... 9-2
Car phone or CB radio ...
...................................... 4-89
Card holder ...
....................................................... 2-49
Cargo net retainers ...
........................................... 2-51
Catalytic converter, Three way catalyst ...
................ 5-4
CD/CF/USB memory care and cleaning ...
............. 4-86
Center multi-function control panel ...
..................... 4-3
Child restraints ...
................................................. 1-23
LATCH system ...
.............................................. 1-25
Precautions on child restraints ...
..................... 1-23
Child safety ...
...................................................... 1-21
Child safety rear door lock ...
.................................. 3-6
Chimes Audible reminders ...
....................................... 2-19
Seat belt warning light and chime ...
............... 2-17
Cigarette lighter and ashtrays ...
........................... 2-44
Circuit breaker, Fusible link ...
............................... 8-24
Cleaning exterior and interior ...
....................... 7-2, 7-4
Climate control, Automatic climate control ...
........ 4-31
Clock ...
................................................................ 2-42
Clutch fluid ...
....................................................... 8-15
Coat hooks ...
....................................................... 2-50
Cockpit ...
............................................................... 2-3
Cold weather driving ...
......................................... 5-58
Compact Disc (CD) player (See audio system) ...
... 4-60
Compact spare tire ...
........................................... 8-43
Compass ...
............................................................. 2-9
Console box ...
...................................................... 2-48 Controller, Center multi-function control panel
...
.... 4-5
Controls Control panel button ...
...................................... 4-3
INFINITI Controller ...
.......................................... 4-5
Coolant Capacities and
recommended fuel/lubricants ...
........................ 9-2
Changing engine coolant ...
............................. 8-10
Checking engine coolant level ...
...................... 8-10
Corrosion protection ...
........................................... 7-6
Cruise control ...
................................................... 5-21
Fixed speed cruise control (on ICC system) ...
... 5-41
Intelligent cruise control (ICC) system ...
.......... 5-23
Cup holders ...
...................................................... 2-45
Current fuel consumption ...
.................................. 2-26
D
Daytime running light system ...
........................... 2-37
Defroster switch, Rear window and outside mirror
defroster switch ...
................................................ 2-34
Dimensions ...
....................................................... 9-11
Distance to empty ...
............................................. 2-26
Door/trunk open warning ...
.................................. 2-23
Dot matrix liquid crystal display ...
....................... 2-20
Drive belts ...
........................................................ 8-19
Drive positioner ...
................................................ 3-31
Driving
All-wheel drive (AWD) ...
................................... 5-45
Cold weather driving ...
.................................... 5-58
Driving with automatic transmission ...
............ 5-14
Driving with manual transmission ...
................ 5-18 Precautions when starting and driving
...
........... 5-3
DS (Drive Sport) mode ...
...................................... 5-16
DVD player operation ...
........................................ 4-62
E
Economy, Fuel ...
................................................... 5-45
Elapsed time ...
..................................................... 2-26
Elapsed time and trip odometer ...
........................ 2-26
Emission control information label ...
.................... 9-13
Emission control system warranty ...
..................... 9-25
Engine Before starting the engine ...
........................... 5-12
Break-in schedule ...
........................................ 5-45
Capacities and
recommended fuel/lubricants ...
........................ 9-2
Changing engine coolant ...
............................. 8-10
Changing engine oil and filter ...
...................... 8-11
Checking engine coolant level ...
...................... 8-10
Checking engine oil level ...
............................. 8-11
Coolant temperature gauge ...
............................ 2-8
Emergency engine shut off ...
........................... 5-11
Engine compartment check locations ...
............. 8-8
Engine cooling system ...
................................... 8-9
Engine oil ...
.................................................... 8-11
Engine oil and oil filter recommendation ...
........ 9-6
Engine oil replacement indicator ...
.................. 2-24
Engine oil viscosity ...
........................................ 9-7
Engine serial number ...
................................... 9-12
Engine specifications ...
..................................... 9-8
Engine start operation indicator (Automatic
Transmission models) ...
.................................. 2-22
