clock INFINITI G 2012 Owners Manual

Black plate (17,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-5BF1CCAC-1271-471E-83A1-FF109419BE46
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-41)
5. Clock (P.2-42)
6. Center multi-function control panel—
Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth
®Hands-Free Phone Sys-
tem (if so equipped) (P.4-90, P.4-100) —
Audio system (P.4-41)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.2-39)
9. Front passenger supplemental air bag (P.1-41)
10. Fuse box cover (P.8-24)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-20)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-31)
14. Cigarette lighter and ashtray (if so equipped) (P.2-44) or storage box (if
so equipped) (P.2-50)
—Power outlet (if so equipped)
(P.2-43)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-20)
16. Heated seat switch (if so equipped) (P.2-40)
17. SNOW mode switch (if so equipped) (P.2-41)
18. Rear window and outside mirror (if so equipped) defroster switch (P.2-34)
Illustrated table of contents0-11
INSTRUMENT PANEL

Black plate (79,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2 Instruments and controls
Cockpit...
................................................................ 2-3
Instrument panel ...
................................................. 2-4
Meters and gauges ...
.............................................. 2-6
Speedometer and odometer ...
............................ 2-7
Tachometer ...
...................................................... 2-8
Engine coolant temperature gauge ...
.................. 2-8
Fuel gauge ...
...................................................... 2-9
Compass (if so equipped) ...
.................................... 2-9
Zone variation change procedure ...
................... 2-11
Warning/indicator lights and
audible reminders ...
............................................. 2-12
Checking bulbs ...
.............................................. 2-12
Warning lights ...
............................................... 2-12
Indicator lights ...
.............................................. 2-18
Audible reminders ...
......................................... 2-19
Dot matrix liquid crystal display ...
........................ 2-20
Indicators for operation ...
................................. 2-22
Indicators for maintenance ...
............................ 2-24
Trip computer ...
................................................ 2-26
Security systems ...
............................................... 2-28
Vehicle Security System ...
................................ 2-28
INFINITI Vehicle Immobilizer System ...
.............. 2-30
Windshield wiper and washer switch ...
................. 2-31
Rain-sensing auto wiper system
(if so equipped) ...
............................................. 2-33 Rear window and outside mirror
defroster switch
...
................................................ 2-34
Headlight and turn signal switch ...
....................... 2-34
Xenon headlights ...
......................................... 2-34
Headlight switch ...
.......................................... 2-35
Turn signal switch ...
........................................ 2-38
Fog light switch ...
........................................... 2-39
Hazard warning flasher switch ...
.......................... 2-39
Horn ...
................................................................. 2-40
Heated seats (if so equipped) ...
........................... 2-40
SNOW mode switch (if so equipped) ...
................. 2-41
Vehicle Dynamic Control (VDC) OFF switch ...
......... 2-42
Clock ...
................................................................. 2-42
Adjusting the time ...
....................................... 2-42
Power outlet ...
..................................................... 2-43
Cigarette lighter and ashtrays (if so equipped) ...
.... 2-44
Front ...
............................................................ 2-44
Rear ...
............................................................. 2-44
Storage ...
............................................................. 2-45
Cup holders ...
................................................. 2-45
Sunglasses holder ...
...................................... 2-47
Glove box ...
.................................................... 2-47
Console box ...
................................................. 2-48
Card holder (if so equipped) ...
........................ 2-49
Storage box (if so equipped) ...
........................ 2-50>

Black plate (82,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-4Instruments and controls
GUID-F966D69B-15F8-48D0-A86B-A60F682B16E9
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-41)
5. Clock (P.2-42)
6. Center multi-function control panel—
Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth
®Hands-Free Phone Sys-
tem (if so equipped) (P.4-90, P.4-100) —
Audio system (P.4-41)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.2-39)
9. Front passenger supplemental air bag (P.1-41)
10. Fuse box cover (P.8-24)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-20)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-31)
14. Cigarette lighter and ashtray (if so equipped) (P.2-44) or storage box (if
so equipped) (P.2-50)
—Power outlet (if so equipped)
(P.2-43)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-20)
16. Heated seat switch (if so equipped) (P.2-40)
17. SNOW mode switch (if so equipped) (P.2-41)
18. Rear window and outside mirror (if so equipped) defroster switch (P.2-34)
INSTRUMENT PANEL

Black plate (120,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-42Instruments and controls
GUID-D6E40EC7-7E3A-4BCB-BCDD-525F5F5A56AE
JVS0022X
The vehicle should be driven with the
Vehicle Dynamic Control (VDC) system on
for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is
depressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator will illumi-
nate.
Push the VDC OFF switch again or restart
the engine to turn on the system. (See “Vehicle Dynamic Control (VDC) system”
(P.5-55).)
GUID-DC9CAC82-B97F-47EC-AD18-AF6DB1F26506
SIC3325
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
ADJUSTING THE TIMEGUID-9687E000-FB4A-4A09-9D4E-BA64FB9580221.
To set the clock forward, push the
button
*1.
2. To set the clock backward, push the button
*2.
3. To move forward or backward faster, push and hold the button more than 5
seconds.
For details about display clock adjustment
(if so equipped), see “How to use SETTING
button” (P.4-14).
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH CLOCK

Black plate (166,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
3-24Pre-driving checks and adjustments
.Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable fuel
containers:
—Always place the container on the
ground when filling.
—Do not use electronic devices when
filling.
—Keep the pump nozzle in contactwith the container while you are
filling it.
—Use only approved portable fuelcontainers for flammable liquid.
CAUTION
. If fuel is spilled on the vehicle body,
flush it away with water to avoid paint
damage.
. Insert the cap straight into the fuel-filler
tube, then tighten until a single click is
heard. Failure to tighten the fuel-filler
cap properly may cause the
mal- function indicator light (MIL) to illumi-
nate. If the
light illuminates
because the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light should turn off after a few driving
trips. If the
light does not turn off
after a few driving trips, have the vehicle
inspected by an INFINITI retailer.
. The LOOSE FUEL CAP warning will
illuminate if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the fuel-
filler cap properly after the LOOSE FUEL
CAP warning illuminates may cause the
malfunction indicator light (MIL) to
illuminate.
SPA2720
Sedan
Turn the fuel-filler cap counterclockwise to
remove. To tighten, turn the cap clockwise
until a single click is heard. Put the fuel-
filler cap on the cap holder
*Awhile
refueling.

Black plate (196,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-18Monitor, climate, audio, phone and voice recognition systems
SAA2487
Clock settings (models with navi-
gation system)
GUID-B9CF9FB9-D5FE-4867-98B3-5D7755C52672The display as illustrated will appear when
pushing the SETTING button and selecting
the“Clock” key.
On-screen Clock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, a clock is
always displayed in the upper right corner
of the screen.
This clock will indicate the time almost
exactly because it is always adjusted by
the GPS system. Clock Format (24h):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the 24-
hour clock is displayed. When this item is
not turned to ON, the 12-hour clock is
displayed.
Offset (hour)/(min):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the time by increasing or decreasing
per hour or per minute.
Daylight Saving Time:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn this item to ON for daylight saving
time application.
Time Zone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the time zone from the following
.
Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
SAA3019
Others settings (models with navi-
gation system)
GUID-5502AFAA-980F-4CBD-AAF3-40F5218DA4F3The Others settings display will appear
when pushing the SETTING button and
selecting the “Others”key.
The following items are available:
. Comfort
. Language & Units
. Voice Recognition
. Camera
. Sonar
. Image Viewer

Black plate (386,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

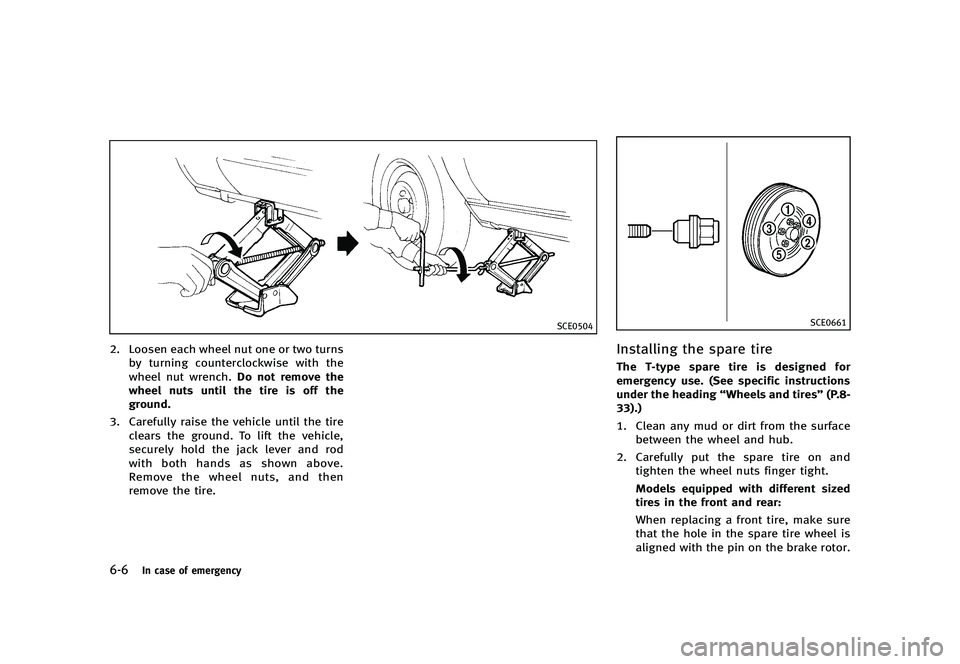

6-6In case of emergency
SCE0504
2. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.
3. Carefully raise the vehicle until the tire clears the ground. To lift the vehicle,
securely hold the jack lever and rod
with both hands as shown above.
Remove the wheel nuts, and then
remove the tire.
SCE0661
Installing the spare tireGUID-4746005A-8947-492C-A2AA-FAC1609582B5The T-type spare tire is designed for
emergency use. (See specific instructions
under the heading “Wheels and tires” (P.8-
33).)
1. Clean any mud or dirt from the surface between the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
Models equipped with different sized
tires in the front and rear:
When replacing a front tire, make sure
that the hole in the spare tire wheel is
aligned with the pin on the brake rotor.

Black plate (419,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
CAUTION
Be sure to remove any old rubber gasket
remaining on the mounting surface of the
engine. Failure to do so could lead to engine
damage.
6. Coat the gasket on the new filter withclean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten
additionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the
drain plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
See “Capacities and recommended
fuel/lubricants” (P.9-2) for drain and refill capacity. The drain and refill
capacity depends on the oil tempera-
ture and drain time. Use these specifi-
cations for reference only. Always use
the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operationGUID-28B45484-D2E9-4712-897E-4EBAD29B4BC71.Install the engine undercover into
position as the following steps.
a. Pull the center of the small plastic
clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the under- cover into the hole in the frame, then
push the center of the clip in to lock
the clip in place.
d. Install the other bolts that hold the undercover in place. Be careful not
to strip the bolts or over-tighten
them. 2.
Lower the vehicle carefully to the
ground.
3. Dispose of waste oil and filter properly.
WARNING
. Prolonged and repeated contact with
used engine oil may cause skin cancer.
. Try to avoid direct skin contact with used
oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.
. Keep used engine oil out of reach of
children.
Maintenance and do-it-yourself8-13

Black plate (480,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
10-2
C
Cabin air filter...
................................................... 4-40
Capacities and recommended fuel/lubricants ...
...... 9-2
Car phone or CB radio ...
...................................... 4-89
Card holder ...
....................................................... 2-49
Cargo net retainers ...
........................................... 2-51
Catalytic converter, Three way catalyst ...
................ 5-4
CD/CF/USB memory care and cleaning ...
............. 4-86
Center multi-function control panel ...
..................... 4-3
Child restraints ...
................................................. 1-23
LATCH system ...
.............................................. 1-25
Precautions on child restraints ...
..................... 1-23
Child safety ...
...................................................... 1-21
Child safety rear door lock ...
.................................. 3-6
Chimes Audible reminders ...
....................................... 2-19
Seat belt warning light and chime ...
............... 2-17
Cigarette lighter and ashtrays ...
........................... 2-44
Circuit breaker, Fusible link ...
............................... 8-24
Cleaning exterior and interior ...
....................... 7-2, 7-4
Climate control, Automatic climate control ...
........ 4-31
Clock ...
................................................................ 2-42
Clutch fluid ...
....................................................... 8-15
Coat hooks ...
....................................................... 2-50
Cockpit ...
............................................................... 2-3
Cold weather driving ...
......................................... 5-58
Compact Disc (CD) player (See audio system) ...
... 4-60
Compact spare tire ...
........................................... 8-43
Compass ...
............................................................. 2-9
Console box ...
...................................................... 2-48 Controller, Center multi-function control panel
...
.... 4-5
Controls Control panel button ...
...................................... 4-3
INFINITI Controller ...
.......................................... 4-5
Coolant Capacities and
recommended fuel/lubricants ...
........................ 9-2
Changing engine coolant ...
............................. 8-10
Checking engine coolant level ...
...................... 8-10
Corrosion protection ...
........................................... 7-6
Cruise control ...
................................................... 5-21
Fixed speed cruise control (on ICC system) ...
... 5-41
Intelligent cruise control (ICC) system ...
.......... 5-23
Cup holders ...
...................................................... 2-45
Current fuel consumption ...
.................................. 2-26
D
Daytime running light system ...
........................... 2-37
Defroster switch, Rear window and outside mirror
defroster switch ...
................................................ 2-34
Dimensions ...
....................................................... 9-11
Distance to empty ...
............................................. 2-26
Door/trunk open warning ...
.................................. 2-23
Dot matrix liquid crystal display ...
....................... 2-20
Drive belts ...
........................................................ 8-19
Drive positioner ...
................................................ 3-31
Driving
All-wheel drive (AWD) ...
................................... 5-45
Cold weather driving ...
.................................... 5-58
Driving with automatic transmission ...
............ 5-14
Driving with manual transmission ...
................ 5-18 Precautions when starting and driving
...
........... 5-3
DS (Drive Sport) mode ...
...................................... 5-16
DVD player operation ...
........................................ 4-62
E
Economy, Fuel ...
................................................... 5-45
Elapsed time ...
..................................................... 2-26
Elapsed time and trip odometer ...
........................ 2-26
Emission control information label ...
.................... 9-13
Emission control system warranty ...
..................... 9-25
Engine Before starting the engine ...
........................... 5-12
Break-in schedule ...
........................................ 5-45
Capacities and
recommended fuel/lubricants ...
........................ 9-2
Changing engine coolant ...
............................. 8-10
Changing engine oil and filter ...
...................... 8-11
Checking engine coolant level ...
...................... 8-10
Checking engine oil level ...
............................. 8-11
Coolant temperature gauge ...
............................ 2-8
Emergency engine shut off ...
........................... 5-11
Engine compartment check locations ...
............. 8-8
Engine cooling system ...
................................... 8-9
Engine oil ...
.................................................... 8-11
Engine oil and oil filter recommendation ...
........ 9-6
Engine oil replacement indicator ...
.................. 2-24
Engine oil viscosity ...
........................................ 9-7
Engine serial number ...
................................... 9-12
Engine specifications ...
..................................... 9-8
Engine start operation indicator (Automatic
Transmission models) ...
.................................. 2-22
