battery replacement INFINITI G-CONVERTIBLE 2010 Owners Manual

8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning (if so
equipped)
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (SeeFUEL-FILLER DOORin the
3. Pre-driving checks and adjustments sec-
tion.)
15. Check tire pressure warning (if so
equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres- sure shown on the Tire and Loading Information
label. (See
Low tire pressure warning light
earlier in this section and TIRE PRESSURE
WARNING SYSTEM (TPMS) in the5. Starting
and driving section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
Instruments and controls2-19
—
—
04/28/10—pattie

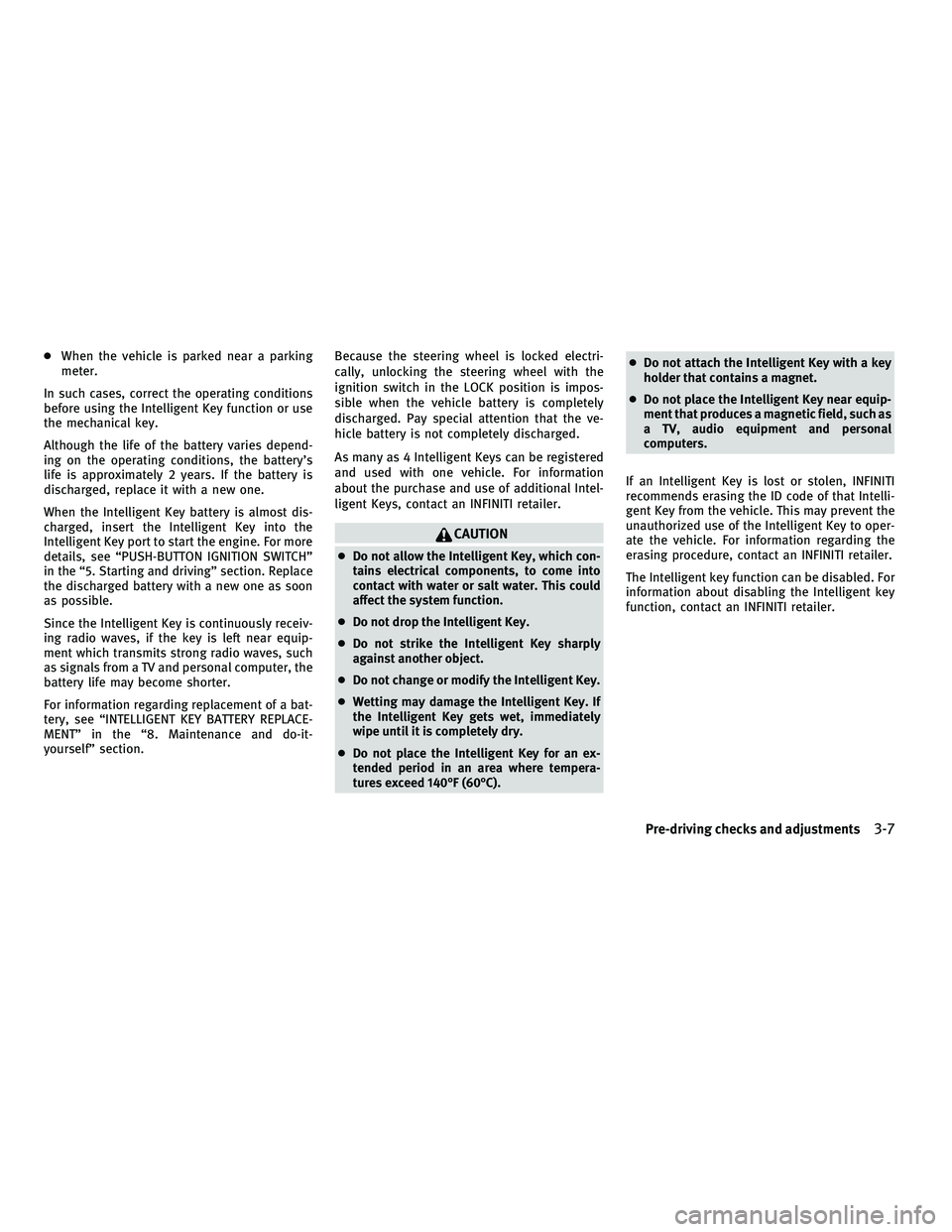

●When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depend-
ing on the operating conditions, the battery’s
life is approximately 2 years. If the battery is
discharged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the
Intelligent Key port to start the engine. For more
details, see “PUSH-BUTTON IGNITION SWITCH”
in the “5. Starting and driving” section. Replace
the discharged battery with a new one as soon
as possible.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equip-
ment which transmits strong radio waves, such
as signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a bat-
tery, see “INTELLIGENT KEY BATTERY REPLACE-
MENT” in the “8. Maintenance and do-it-
yourself” section. Because the steering wheel is locked electri-
cally, unlocking the steering wheel with the
ignition switch in the LOCK position is impos-
sible when the vehicle battery is completely
discharged. Pay special attention that the ve-
hicle battery is not completely discharged.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information
about the purchase and use of additional Intel-
ligent Keys, contact an INFINITI retailer.
CAUTION
●
Do not allow the Intelligent Key, which con-
tains electrical components, to come into
contact with water or salt water. This could
affect the system function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent Key.
● Wetting may damage the Intelligent Key. If
the Intelligent Key gets wet, immediately
wipe until it is completely dry.
● Do not place the Intelligent Key for an ex-
tended period in an area where tempera-
tures exceed 140°F (60°C). ●
Do not attach the Intelligent Key with a key
holder that contains a magnet.
● Do not place the Intelligent Key near equip-
ment that produces a magnetic field, such as
a TV, audio equipment and personal
computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to oper-
ate the vehicle. For information regarding the
erasing procedure, contact an INFINITI retailer.
The Intelligent key function can be disabled. For
information about disabling the Intelligent key
function, contact an INFINITI retailer.
Pre-driving checks and adjustments3-7
—
—
10/14/09—tbrooks


SymptomBeepPossible cause Possible solution
The retractable hard top stops halfway
during operation. Sounds twice
Objects are trapped in the moving structure of
the retractable hard top. Check that an object is not trapped inside the
rear parcel shelf, side flap and retractable hard
top. After the check, turn the ignition switch to
the OFF position, start the engine again and
then operate the retractable hard top.
Does not sound The battery voltage is low. Start the engine again and operate the retract-
able hard top.
Only the rear parcel shelf operates
when the OPEN side of the retractable
hard top operating switch is pushed. Sounds twice
every 10 sec- onds for 15 minutes. The retractable hard top control does not rec-
ognize the rear parcel shelf position because
of battery replacement or the contentious op-
eration of the retractable hard top. Perform the initialization of the retractable hard
top and operate the retractable hard top again.
For the initialization details, please refer to
“INITIALIZING OF THE RETRACTABLE HARD TOP”
in the “3. Pre-driving checks and adjustments”
section.
When the vehicle is being driven, the
beep sounds. Sounds con-
tinuously The retractable hard top is partially opened. Immediately park the vehicle in a safe location
and fully open or fully close the retractable
hard top.
When the engine is stopped, the beep
sounds. Sounds twice The retractable hard top is partially opened. Fully open or fully close the retractable hard
top.
Pre-driving checks and adjustments3-27
—
—
10/14/09—tbrooks


NOTE:
The Intelligent Key port does not charge the In-
telligent Key battery. If you see the low battery
indicator in the dot matrix liquid crystal display,
replace the battery as soon as possible. (See
“INTELLIGENT KEY BATTERY REPLACEMENT” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
CAUTION
●Never place anything except the Intelligent
Key in the Intelligent Key port. Doing so may
cause damage to the equipment.
● Make sure the Intelligent Key is in the cor-
rect direction when inserting it to the Intelli-
gent Key port. The engine may not start if it is
in the incorrect direction.
● Remove the Intelligent Key from the Intelli-
gent Key port after the ignition switch is
pushed to the OFF position. ●
Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head restraints.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section.)
1. Apply the parking brake.
2. Automatic Transmission (AT) model:
Move the selector lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral) posi-
tion. Depress the clutch pedal fully to the
floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried when op-
erating the ignition switch.
BEFORE STARTING THE ENGINE STARTING THE ENGINE
5-10Starting and driving
—
—
10/15/09—tbrooks


8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
VQ37VHR engine ............................... 8-6
Engine cooling system ............................. 8-7
Checking engine coolant level ................... 8-7
Changing engine coolant ........................ 8-8
Engine oil ........................................ 8-8
Checking engine oil level ....................... 8-8
Changing engine oil and filter ................... 8-9
Automatic transmission fluid .......................8-11
Power steering fluid ............................... 8-11
Brake and clutch fluid ............................. 8-11
Brake fluid ................................... 8-12
Clutch fluid (if so equipped) ....................8-12
Window washer fluid ............................. 8-12
Battery .......................................... 8-13
Jump starting ................................. 8-15Variable voltage control system
...................8-15
Drive belt ........................................ 8-15
Spark plugs ..................................... 8-16
Replacing spark plugs ......................... 8-16
Air cleaner ....................................... 8-17
Windshield wiper blades .......................... 8-17
Cleaning ...................................... 8-17
Replacing ..................................... 8-18
Brakes .......................................... 8-19
Self-adjusting brakes .......................... 8-19
Brake pad wear warning ....................... 8-19
Fuses ........................................... 8-19
Engine compartment ........................... 8-19
Passenger compartment ....................... 8-21
Intelligent Key battery replacement ................8-21
Lights ........................................... 8-23
Headlights .................................... 8-24
Exterior

and interior lights ..................... 8-24
Wheels and tires ................................. 8-26
Tire pressure .................................. 8-26
Tire labeling .................................. 8-29
Types of tires ................................. 8-31
Tire chains ................................... 8-32
Changing wheels and tires..................... 8-32
—
—
04/28/10—diane


When performing any inspection or maintenance
work on your vehicle, always take care to pre-
vent serious accidental injury to yourself or
damage to the vehicle. The following are general
precautions which should be closely observed.
WARNING
●Park the vehicle on a level surface, apply the
parking brake securely and block the wheels
to prevent the vehicle from moving. For
manual transmission models, move the shift
lever to N (Neutral). For automatic transmis-
sion models, move the selector lever to P
(Park).
● Be sure the ignition switch is in the OFF or
LOCK position when performing any parts
replacement or repairs.
● Never connect or disconnect the battery or
any transistorized component while the ig-
nition switch is in the ON position.
● Never leave the engine or automatic trans-
mission related component harnesses dis-
connected while the ignition switch is in the
ON position.
● If you must work with the engine running,
keep your hands, clothing, hair and tools
away from moving fans, belts and any other
moving parts. ●
It is advisable to secure or remove any loose
clothing and remove any jewelry, such as
rings, watches, etc. before working on your
vehicle.
● Always wear eye protection whenever you
work on your vehicle.
● If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.
● Never get under the vehicle while it is sup-
ported only by a jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Keep smoking materials, flame and sparks
away from fuel tank and the battery.
● Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
key is in the OFF position and the engine is
not running. To avoid injury, always discon-
nect the negative battery cable before work-
ing near the fan.
● The fuel filter or fuel lines should be serviced
by an INFINITI retailer because the fuel lines
are under high pressure even when the en-
gine is off.
CAUTION
● Do not work under the hood while the engine
is hot. Turn the engine off and wait until it
cools down.
● Avoid direct contact with used engine oil and
coolant. Improperly disposed engine oil,
coolant, and/or other vehicle fluids can dam-
age the environment. Always conform to lo-
cal regulations for disposal of vehicle fluid.
This “8. Maintenance and do-it-yourself” sec-
tion gives instructions regarding only those
items which are relatively easy for an owner to
perform.
A genuine INFINITI Service Manual is also avail-
able. (See “OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION” in the “9. Tech-
nical and consumer information” section.)
You should be aware that incomplete or im-
proper servicing may result in operating diffi-
culties or excessive emissions, and could affect
your warranty coverage. If in doubt about any
servicing, we recommend that it be done by an
INFINITI retailer.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5
—
—
04/28/10—pattie


PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the head-
light switch is turned to OFF.
2. Open the fuse box lid. 3. Remove the fuse with the fuse puller
A.
4. If the fuse is open, replace it with a new fuse. Spare fuses are stored in the fuse
box.
5. If a new fuse also opens, have the electri- cal system checked and repaired by an
INFINITI retailer.
Replace the battery as follows:
1. Release the lock knob at the back of the
Intelligent Key and remove the mechanical
key.
SDI2034
SDI2451
INTELLIGENT KEY BATTERY REPLACEMENT
Maintenance and do-it-yourself8-21
—
—
10/15/09—tbrooks


2. Insert a flat-blade screwdriver wrappedwith a cloth into the slit of the corner and
twist it to separate the upper part from
the lower part.
3. Replace the battery with a new one.
Recommended battery: CR2032 or equiva-
lent.
● Do not touch the internal circuit and
electric terminals as it could cause a
malfunction.
● Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
● Make sure that the + side faces the
bottom of the case.
4. Align the tips of the upper and lower parts
1, and then push them together until it
is securely closed
2.
5. Push the buttons two or three times to check its operation.
See an INFINITI retailer if you need any assis-
tance for replacement.
FCC Notice:
This equipment has been tested and found to
comply with the limits for a Class B digital device
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential in-
stallation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the in-
structions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
–
Reorient or relocate the receiving antenna
– Increase the separation between the equip-
ment and the receiver
– Connect the equipment into an outlet on a
circuit different from that to which the re-
ceiver is connected.
– Consult the retailer or an experienced
radio/TV technician for help.
SDI2452
8-22Maintenance and do-it-yourself
—
—
10/15/09—tbrooks


10 Index
A
ABS (Anti-lock Braking System) ........5-49
Advanced air bag system ...........1-39
Air bag system Advanced air bag system .........1-39
Door-mounted curtain side-impact
supplemental air bag system .......1-44
Front passenger air bag and status
light ..................... 1-41
Front-seat mounted side-impact
supplemental air bag system .......1-44
Air bag warning labels .............1-46
Air bag warning light ..........1-46 , 2-12
Air cleaner housing filter ...........8-17
Air conditioner Air conditioner service ...........4-35
Air conditioner specification label ....9-12
Air conditioning system refrigerant and
lubricant recommendations .......4-35
Automatic climate control ........4-28
In-cabin microfilter ............4-35
Operation (See automatic climate
control) ................... 4-28
Alarm, How to stop alarm
(see vehicle security system) .........2-26
Alcohol, drugs and driving ...........5-7
Antenna .................... .4-77
Anti-lock Braking System (ABS) ........5-49Anti-lock braking system (ABS) warning
light
....................... .2-9
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Ashtrays
(See cigarette lighter and ashtrays) .....2-39
Audible reminders .............. .2-15
Audio operation precautions .........4-36
Audio system ................. .4-36
Audio system, Steering wheel
audio controls ................ .4-75
Auto closure ................. .3-28
Autolight system ............... .2-31
Automatic Automatic adjusting function (front
windows) ................. .2-46
Automatic climate control ........4-29
Automatic transmission fluid (ATF) ....8-11
Climate control .............. 4-28
Driving
with automatic transmission . . . 5-11
Automatic door locks ..............3-5
Automatic drive positioner ..........3-39
Automatic seat positioner ...........3-39
Average fuel consumption and speed . . . .2-23
Avoiding collision and rollover .........5-5 B
Battery ..................... .8-13
Battery Battery saver system ...........2-32
Intelligent Key ............... 8-21
Variable voltage control system .....8-15
Before starting the engine ...........5-10
Bluetooth hands-free phone system
(models with navigation system) .......4-78
Booster seats ................. .1-29
Brake Anti-lock Braking System (ABS) ......5-49
Brake and clutch fluid ...........8-11
Brake system ................ 5-45
Parking brake operation ..........5-17
Brake warning light .............. .2-9
Break-in schedule .............. .5-41
Brightness control and display ON/OFF
button ...................... .4-7
Brightness control, Instrument panel . . . .2-33
Bulb check/instrument panel .........2-8
Bulb replacement .............. .8-23
C
Cabin air filter ................ .4-35
Capacities and recommended
fuel/lubricants ................. .9-2
Car phone or CB radio .............4-77
—
—
04/30/10—diane


INFINITI voice recognition standard
mode..................... .4-102
INFINITI voice recognition system ......4-102
INFO button .................. .4-8
Inside mirror ................. .3-36
Inspection/maintenance (I/M) test ......9-20
Instrument brightness control ........2-33
Instrument panel ............... .2-3
Intelligent cruise control (ICC) system . . . .5-20
Intelligent cruise control (ICC) system main
switch indicator ............... .2-20
Intelligent Cruise Control (ICC) system
warning light ................. .2-10
Intelligent cruise control (ICC) system,
Preview function ............... .5-40
Intelligent Key ................. .3-2
Intelligent Key battery discharge indicator .2-19
Intelligent Key insertion indicator ......2-18
Intelligent Key removal indicator .......2-18
Intelligent Key system .............3-6
Intelligent Key system Battery replacement ............8-21
Key operating range ............3-8
Key operation ................3-9
Warning light ................ 2-10
Warning signals .............. 3-11
Intelligent Key warning light .........2-10
Interior light control switch ..........2-47
Interior light replacement ...........8-24
Interior lights ................. .2-47
Interior trunk lid release ...........3-30
iPod player operation ............4-65
ISOFIX child restraint ............. .1-20 J
Jump starting ................. .6-17
K
Keyless entry (See remote keyless entry
system) .................... .3-14
Keys ....................... .3-2
Keys, For Intelligent Key system ........3-6
Labels Air bag warning labels ...........1-46
Air conditioner specification label ....9-12
Emission
control information label ....9-11
Engine serial number ...........9-10
F.M.V.S.S./C.M.V.S.S. certification
label ..................... 9-11
Tire and Loading information label ....9-11
Vehicle identification number (VIN) . . . 9-10
L
LATCH Lower Anchors .............1-20
License plate, Installing front license
plate ...................... .9-12
Light Air bag warning light ............1-46
Bulb replacement ............. 8-23
Fog light switch .............. 2-34
Headlight switch .............. 2-30
Headlights bulb replacement ......8-24
Indicator lights ............... 2-13
Interior light control switch .......2-47 Interior lights
............... 2-47
Map lights ................. 2-47
Trunk light ................. 2-48
Vanity mirror lights ............2-48
Warning/indicator lights and audible
reminders ..................2-9
Xenon headlights ............. 2-30
Light replacement .............. .8-23
Lights, Exterior and interior light
replacement ................. .8-24
Loading information (See vehicle loading
information) .................. .9-14
Lock Automatic door locks ............3-5
Door locks ..................3-4
Power door lock ...............3-4
Trunk lid .................. 3-28
Locking with mechanical key ..........3-4
Low fuel warning ............... .2-19
Low outside temperature warning . . . . . .2-19
Low tire pressure warning light ........2-10
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .....5-3
Low washer fluid warning ...........2-19
Maintenance Battery ................... .8-13
General
maintenance ............8-2
Indicators for maintenance
(dot matrix) ................. 2-21
Inside the vehicle ..............8-3
Maintenance precautions .........8-5
Maintenance requirements . . ......8-2
Outside the vehicle .............8-2
Seat belt maintenance ...........1-17
10-4
—
—
04/30/10—diane
