door lock INFINITI G-CONVERTIBLE 2010 Owners Manual

1. Hood (P. 3-17)
2. Headlight and turn signal— Operation (P. 2-30)
— Bulb replacement (P. 8-23)
— Fog light (P. 2-34) 3. Windshield wiper and washer
— Operation (P. 2-28)
— Maintenance (P. 8-17)
4. Power windows (P. 2-44)
5. Recovery hook (P. 6-22)
6. Front license plate installation (P. 9-12) 7. Tires
— Wheel and tires (P. 8-26, P. 9-8)
— Flat tire (P. 6-2)
— Tire pressure monitoring system (TPMS)
(P. 2-10, P. 5-3)
8. Outside mirrors (P. 3-37)
9. Doors — Keys (P. 3-2)
— Door locks (P. 3-4)
— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
SSI0342
EXTERIOR FRONT
Illustrated table of contents0-3
—
—
04/28/10—pattie


Walk-in mechanism
This feature makes it easier to get in and out of
the rear seat. Use the following procedure when
getting in and out of the rear seat.
If the sun visor is used, close it to the original
position before operating the walk-in feature.
1. Pull the seatback lever upward1to fold
the front seatback down. Make sure that
the front seatback is completely folded
down.
2. To slide the front seat forward, push the seatback switch
2. The front seat will
move forward.
3. Get in or out of the vehicle. 4. To return the front seat to its original
position, raise the seatback and firmly
push the seatback switch
2again.
●To stop the seat sliding, push the seatback
switch
2again or push the seat sliding
switch.
● The front passenger seat will stop returning
7.0 in (177.6 mm) from its front-most posi-
tion to retain space for the rear passenger.
● Depending on the seat position, the head
restraint may contact the roof headlining
during the walk-in operation. To prevent
possible interference, lower the seat using
the seat lifter switch.
CAUTION
● When returning the seat to its original posi-
tion, confirm the seat and seatback are
locked properly.
● Be careful not to pinch your hand or foot or
bump your head when operating the walk-in
seat.
● Do not place any objects near the seatback
of the front seats. They may be pinched and
damaged.
● When operating the walk-in function, always
release the seat belt from the seat belt
guide. Otherwise, the seat belt guide may be
damaged.
The automatic forwarding and reversing will not
work or stop under the following conditions:
● When the vehicle speed is above 4 MPH (7
km/h) (driver’s seat only).
● When the seat belt is fastened.
● When the selector lever is not in the P (Park)
position (Automatic Transmission model’s
driver’s seat) or the parking brake is not
applied (Manual Transmission model’s driv-
er’s seat).
● When the door is closed.
SSS0786
1-6Safety — Seats, seat belts and supplemental restraint system
—
—
10/14/09—tbrooks


Anti-lock Braking System (ABS) warn-
ing lightIntelligent Key warning lightFront passenger air bag status light
Low tire pressure warning lightHigh beam indicator light
Automatic transmission check warn-
ing lightMaster warning lightMalfunction Indicator Light (MIL)
Brake warning lightPreview Function warning light (or-
ange)*Security indicator light
Seat belt warning lightSlip indicator light
Charge warning lightSupplemental air bag warning lightLow beam indicator light
Engine oil pressure warning lightAutomatic transmission position indi-
cator light*Turn signal/hazard indicator lights
Intelligent Cruise Control (ICC) sys-
tem warning light (orange)*Front fog light indicator lightVehicle Dynamic Control (VDC) off
indicator light
*: if so equipped
CHECKING BULBS
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
,or,,,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,
,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer. Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-8Instruments and controls
—
—
10/22/09—tbrooks


AUDIBLE REMINDERS
Key reminder chime
A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or LOCK
position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.
Light reminder chime
A chime will sound when the driver side door is
opened with the light switch in theorposition and the ignition switch in the
ACC, OFF or LOCK position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chime
The parking brake reminder chime will sound if
the vehicle is driven at more than 4 MPH (7
km/h) with the parking brake applied. Stop the
vehicle and release the parking brake.
Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After the wear of the brake pad is
increased, the sound will be heard all the time
even if the brake pedal is not depressed. Have
the brakes checked as soon as possible if the
warning sound is heard.
Seat belt warning chime
The seat belt warning chime will sound for
about 6 seconds unless the driver’s seat belt is
securely fastened. The dot matrix liquid crystal display1is
located between the tachometer and the speed-
ometer, and it displays the automatic transmis-
sion position indicator (if so equipped), the
Intelligent Cruise Control (ICC) system (if so
equipped) information, the Intelligent Key op-
eration information, retractable hard top indica-
tors and other warnings and information.
● Automatic Transmission (AT)
– “WARNING/INDICATOR LIGHTS AND AU- DIBLE REMINDERS” earlier in this section.
– “DRIVING THE VEHICLE” in the “5. Starting and driving” section.
SIC4293
DOT MATRIX LIQUID CRYSTAL DISPLAY
Instruments and controls2-15
—
—
04/28/10—pattie


INDICATORS FOR OPERATION
1. Engine start operation indicator
(Automatic Transmission models)
This indicator appears when the selector lever
is in the P (Park) position.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed.
2. Steering lock release malfunction
indicator
This indicator appears when the steering wheel
cannot be released from the LOCK position.
If this indicator appears, push the push-button
ignition switch while lightly turning the steering
wheel right and left.
3. Intelligent Key insertion indicator
This indicator appears when the Intelligent Key
needs to be inserted into the Intelligent Key
port. (For example, the Intelligent Key battery is
discharged.)
If this indicator appears, insert the Intelligent
Key into the Intelligent Key port in the correct
direction. (See “PUSH-BUTTON IGNITION
SWITCH” in the “5. Starting and driving” sec-
tion.)
4. Intelligent Key removal indicator
This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the Intelligent Key port. A key reminder chime
also sounds.
If this indicator appears, remove the Intelligent
Key from the Intelligent Key port and take it with
you when leaving the vehicle.
5. NO KEY warning
This warning appears in either of the following
conditions.
No key inside the vehicle
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent Key
The warning appears when the ignition switch is
pushed from the LOCK position and the Intelli-
gent Key cannot be recognized by the system.
You cannot start the engine with an unregistered
key. Use the registered Intelligent Key.
See “INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section for
more details.
6. SHIFT “P” warning (Automatic
Transmission models)
This warning appears when the ignition switch
is pushed to stop the engine with the selector
lever in any position except the P (Park) posi-
tion.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section.)
7. “PUSH” warning (Automatic
Transmission models)
This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:SHIFT “P” warning →(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
2-18Instruments and controls
—
—
04/28/10—pattie


7. Warning check
SKIP
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus.
DETAIL
This item is available only when a warning is
displayed.
Select this menu to see the details of warnings. Your vehicle has two types of security systems,
as follows:
●Vehicle security system
● INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audio alarm signals if someone opens the
doors, hood, or trunk lid when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when unat-
tended. Be aware of your surroundings, and
park in secure, well-lit areas whenever pos-
sible.
Many devices offering additional protection,
such as component locks, identification mark-
ers, and tracking systems, are available at auto
supply stores and specialty shops. Your INFINITI
retailer may also offer such equipment. Check
with your insurance company to see if you may
be eligible for discounts for various theft pro-
tection features.
SIC4169
SECURITY SYSTEMS
Instruments and controls2-25
—
—
10/14/09—tbrooks


How to arm the vehicle security
system
1. Close all windows.
The system can be armed even if the windows
are open.
2. Push the ignition switch to the OFF posi-tion.
3. Remove the Intelligent Key from the ve- hicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request
switch, power door lock switch or me-
chanical key. 5. Confirm that the security indicator light
comes on. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle secu-
rity system automatically shifts into the
armed phase. The security light begins to
flash once every approximately 3 sec-
onds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
ignition switch is pushed to ACC or ON,
the system will not arm.
Even when the driver and/or passengers are in
the vehicle, the system will activate with all
doors, hood, and trunk lid locked with the igni-
tion switch in the LOCK position. When pushing
the ignition switch to the ACC or ON position, the
system will be released.
Vehicle security system activation
The vehicle security system will give the follow-
ing alarm:
● The headlights blink and the horn sounds
intermittently.
● The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.
The alarm is activated by: ●
Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key, or when the ignition switch
is pushed to the ACC or ON position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Statement related to section 15 of FCC rules for
INFINITI Vehicle Immobilizer System (CONT
ASSY - CARD SLOT)
SIC2045
2-26Instruments and controls
—
—
10/14/09—tbrooks


Headlight beam select
1To select the low beam, put the lever in theneutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
position. Pull it back to select the low beam.
3Pulling the lever toward you will flash the
headlight high beam even when the head-
light switch is in the OFF position.
Battery saver system
A chime will sound when the driver side door is
opened with the light switch in theorposition and the ignition switch in the
ACC, OFF or LOCK position.
When the headlight switch is in the
orposition while the ignition switch is in
the ON position, the lights will automatically
turn off 5 minutes after the ignition switch has
been pushed to the OFF position.
When the headlight switch remains in theorposition after the lights automatically
turn off, the lights will turn on when the ignition
switch is pushed to the ON position.
CAUTION
● When you turn on the headlight switch again
after the lights automatically turn off, the
lights will not turn off automatically. Be sure
to turn the light switch to the OFF position
when you leave the vehicle for extended pe-
riods of time, otherwise the battery will be
discharged.
● Never leave the light switch on when the
engine is not running for extended periods of
time even if the headlights turn off
automatically.
Daytime running light system
(Canada only)
The daytime running lights automatically illumi-
nate when the engine is started with the park-
ing brake released. The daytime running lights
operate with the headlight switch in the OFF,
AUTO or
position. Turn the headlight
switch to theposition for full illumination
when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illumi-
nate once the parking brake is released. The
daytime running lights will remain on until the
ignition switch is pushed to the OFF position.
WARNING
When the daytime running light system is ac-
tive, tail lights on your vehicle are not on. It is
necessary at dusk to turn on your headlights.
Failure to do so could cause an accident injur-
ing yourself and others.
SIC3269
2-32Instruments and controls
—
—
10/14/09—tbrooks


POWER WINDOWS
WARNING
●Make sure that all passengers have their
hands, etc. inside the vehicle while it is in
motion and before closing the windows. Use
the window lock switch to prevent unex-
pected use of the power windows.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls and become trapped in
the window. Unattended children could be-
come involved in serious accidents.
The power windows operate when the ignition
switch is in the ON position or for about 45
seconds after the ignition switch is pushed to
the OFF position. If the driver’s or front passen-
ger’s door is opened during this period of about
45 seconds, power to the windows is canceled.
Main power window switch (driver’s
side)
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button
To open or close the window, push downAor
pull up
Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windows
When the lock buttonCis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC3279
WINDOWS
2-44Instruments and controls
—
—
10/14/09—tbrooks

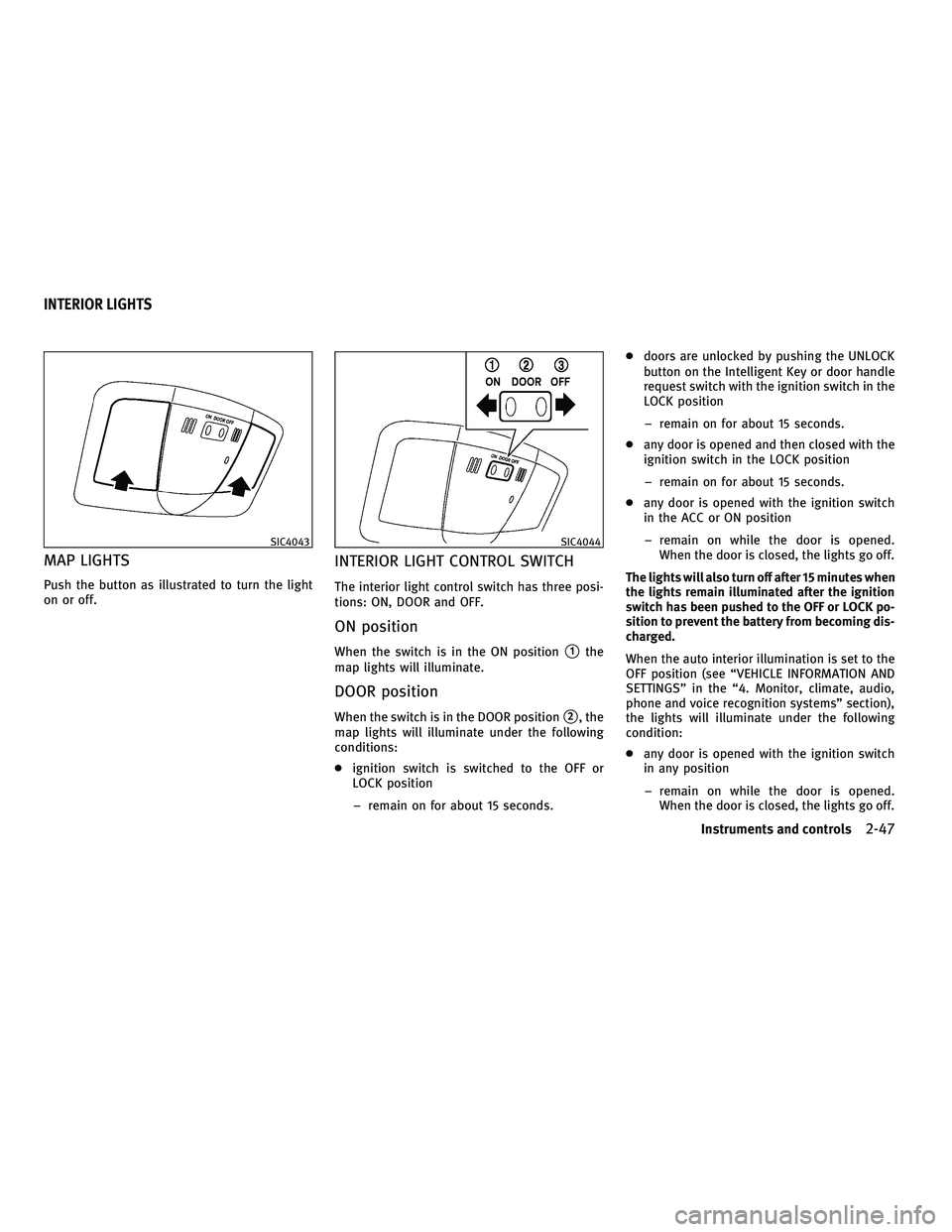

MAP LIGHTS
Push the button as illustrated to turn the light
on or off.
INTERIOR LIGHT CONTROL SWITCH
The interior light control switch has three posi-
tions: ON, DOOR and OFF.
ON position
When the switch is in the ON position1the
map lights will illuminate.
DOOR position
When the switch is in the DOOR position2, the
map lights will illuminate under the following
conditions:
● ignition switch is switched to the OFF or
LOCK position
– remain on for about 15 seconds. ●
doors are unlocked by pushing the UNLOCK
button on the Intelligent Key or door handle
request switch with the ignition switch in the
LOCK position
– remain on for about 15 seconds.
● any door is opened and then closed with the
ignition switch in the LOCK position
– remain on for about 15 seconds.
● any door is opened with the ignition switch
in the ACC or ON position
– remain on while the door is opened. When the door is closed, the lights go off.
The lights will also turn off after 15 minutes when
the lights remain illuminated after the ignition
switch has been pushed to the OFF or LOCK po-
sition to prevent the battery from becoming dis-
charged.
When the auto interior illumination is set to the
OFF position (see “VEHICLE INFORMATION AND
SETTINGS” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section),
the lights will illuminate under the following
condition:
● any door is opened with the ignition switch
in any position
– remain on while the door is opened. When the door is closed, the lights go off.
SIC4043SIC4044
INTERIOR LIGHTS
Instruments and controls2-47
—
—
10/14/09—tbrooks
