2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-4
Speedometer and odometer ..................... 2-5
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-6
Fuel gauge ..................................... 2-7
Warning/indicator lights and audible reminders ...... 2-8
Checking bulbs ................................ 2-8
Warning lights ................................. 2-9
Indicator lights ................................ 2-13
Audible reminders .............................. 2-15
Dot matrix liquid crystal display ...................2-16
Indicators for operation ........................ 2-18
Indicators for retractable hard top ..............2-21
Indicators for maintenance .....................2-22
Trip computer ................................. 2-23
Security systems ................................. 2-26
Vehicle security system ........................ 2-26
INFINITI Vehicle Immobilizer System ............2-27
Windshield wiper and washer switch ...............2-28
Rain-sensing auto wiper system (if so
equipped) .................................... 2-30
Rear window and outside mirror defroster switch . . . 2-31 Headlight and turn signal switch
..................2-31
Xenon headlights ............................. 2-31
Headlight switch .............................. 2-32
Turn signal switch ............................. 2-35
Fog light switch ............................... 2-36
Hazard warning flasher switch .....................2-36
Horn ............................................ 2-37
Heated seats (if so equipped) .....................2-37
Climate controlled seats (if so equipped) ...........2-38
Vehicle Dynamic Control (VDC) OFF switch ..........2-39
Clock ............................................ 2-40
Adjusting the time ............................. 2-40
Power outlets .................................... 2-41
Cigarette lighter and ashtrays
(if so equipped) .................................. 2-42
Front ......................................... 2-42
Rear ......................................... 2-42
Storage ......................................... 2-43
Cup

holders .................................. 2-43
Glove box .................................... 2-44
Console box .................................. 2-45
Storage box (if so equipped) ...................2-46
Windows ........................................ 2-46
Power windows ............................... 2-46

Your vehicle has two types of security systems,
as follows:
●Vehicle security system
● INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audio alarm signals if someone opens the
doors, hood, or trunk lid when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when unat-
tended. Be aware of your surroundings, and
park in secure, well-lit areas whenever pos-
sible.
Many devices offering additional protection,
such as component locks, identification mark-
ers, and tracking systems, are available at auto
supply stores and specialty shops. Your INFINITI
retailer may also offer such equipment. Check
with your insurance company to see if you may
be eligible for discounts for various theft pro-
tection features.
How to arm the vehicle security
system
1. Close all windows.
The system can be armed even if the windows
are open.
2. Push the ignition switch to the OFF posi-
tion.
3. Remove the Intelligent Key from the ve- hicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request
switch, power door lock switch or me-
chanical key.
SIC4169SIC2045
SECURITY SYSTEMS
2-26Instruments and controls

5. Confirm that the security indicator lightcomes on. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle secu-
rity system automatically shifts into the
armed phase. The security light begins to
flash once every approximately 3 sec-
onds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
ignition switch is pushed to ACC or ON,
the system will not arm.
Even when the driver and/or passengers are in
the vehicle, the system will activate with all
doors, hood, and trunk lid locked with the igni-
tion switch in the LOCK position. When pushing
the ignition switch to the ACC or ON position, the
system will be released.
Vehicle security system activation
The vehicle security system will give the follow-
ing alarm:
● The headlights blink and the horn sounds
intermittently.
● The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
●
Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key, or when the ignition switch
is pushed to the ACC or ON position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Statement related to section 15 of FCC rules for
INFINITI Vehicle Immobilizer System (CONT
ASSY - CARD SLOT)
This device complies with part 15 of the FCC
Rules and RSS-210 of Industry Canada. Opera-
tion is subject to the following two conditions;
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that
may cause undesired operation of the device.
CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USER’S AUTHOR-
ITY TO OPERATE THE EQUIPMENT.
Instruments and controls2-27

Security indicator light
The security indicator light is located on the
meter panel. It indicates the status of the
INFINITI Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the LOCK position. This function indicates the
security systems equipped on the vehicle are
operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, this light will remain on while
the ignition switch is in the ON position.If the light still remains on and/or the engine will
not start, see an INFINITI retailer for INFINITI Ve-
hicle Immobilizer System service as soon as
possible. Please bring all Intelligent Keys that
you have when visiting an INFINITI retailer for
service.
WARNING
In freezing temperatures the washer solution
may freeze on the windshield and obscure your
vision which may lead to an accident. Warm
windshield with the defroster before you wash
the windshield.
CAUTION
●
Do not operate the washer continuously for
more than 30 seconds.
● Do not operate the washer if the reservoir
tank is empty.
● Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.
SIC2045
WINDSHIELD WIPER AND WASHER SWITCH
2-28Instruments and controls

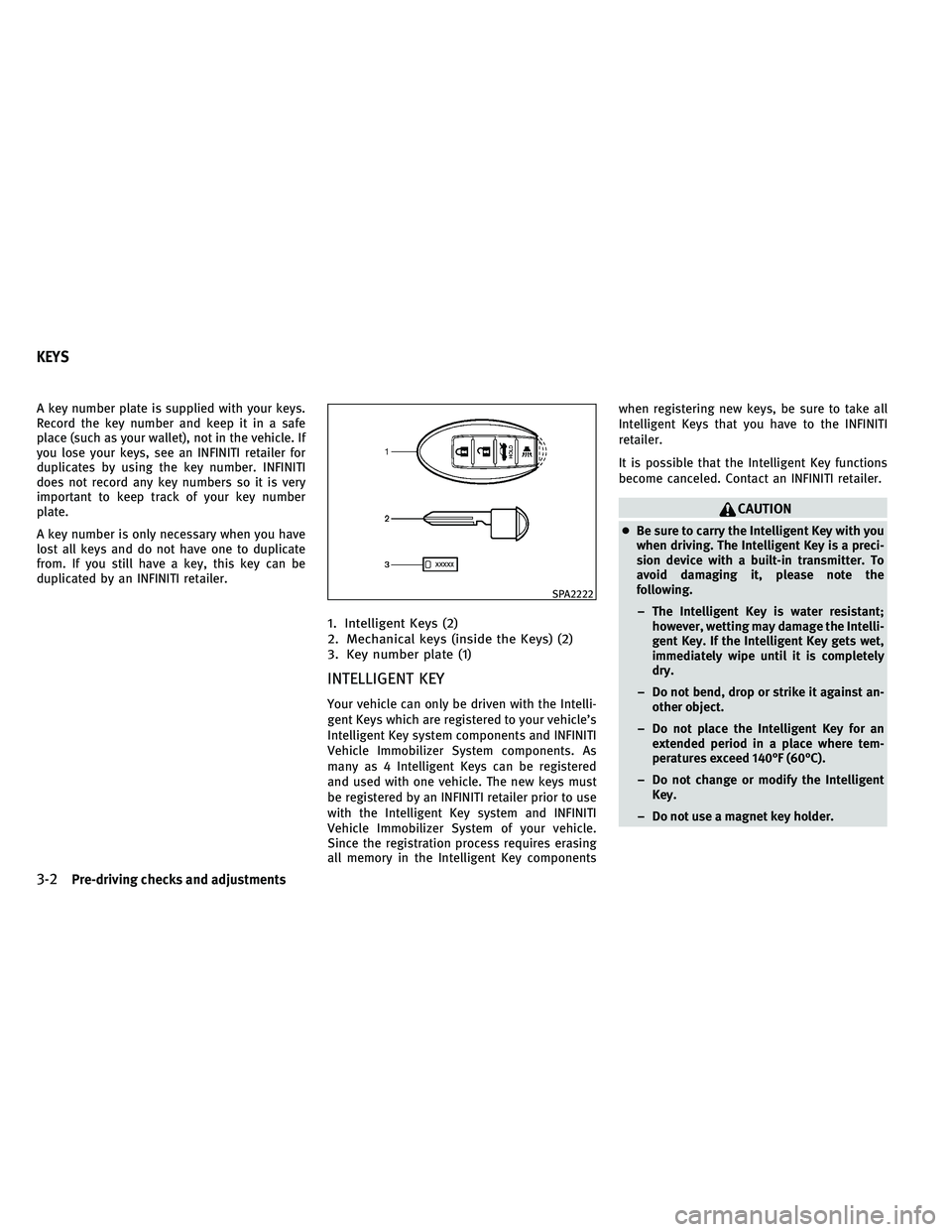

A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see an INFINITI retailer for
duplicates by using the key number. INFINITI
does not record any key numbers so it is very
important to keep track of your key number
plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by an INFINITI retailer.
1. Intelligent Keys (2)
2. Mechanical keys (inside the Keys) (2)
3. Key number plate (1)
INTELLIGENT KEY
Your vehicle can only be driven with the Intelli-
gent Keys which are registered to your vehicle’s
Intelligent Key system components and INFINITI
Vehicle Immobilizer System components. As
many as 4 Intelligent Keys can be registered
and used with one vehicle. The new keys must
be registered by an INFINITI retailer prior to use
with the Intelligent Key system and INFINITI
Vehicle Immobilizer System of your vehicle.
Since the registration process requires erasing
all memory in the Intelligent Key componentswhen registering new keys, be sure to take all
Intelligent Keys that you have to the INFINITI
retailer.
It is possible that the Intelligent Key functions
become canceled. Contact an INFINITI retailer.
CAUTION
●
Be sure to carry the Intelligent Key with you
when driving. The Intelligent Key is a preci-
sion device with a built-in transmitter. To
avoid damaging it, please note the
following.
– The Intelligent Key is water resistant; however, wetting may damage the Intelli-
gent Key. If the Intelligent Key gets wet,
immediately wipe until it is completely
dry.
– Do not bend, drop or strike it against an- other object.
– Do not place the Intelligent Key for an extended period in a place where tem-
peratures exceed 140°F (60°C).
– Do not change or modify the Intelligent Key.
– Do not use a magnet key holder.
SPA2222
KEYS
3-2Pre-driving checks and adjustments

FluidAutomatic transmission fluid (ATF) .....8-11
Brake and clutch fluid ............8-12
Brake fluid ................. .8-12
Capacities and recommended fuel/
lubricants .................. .9-2
Engine coolant ................ .8-7
Engine oil .................. .8-8
Power steering fluid .............8-11
Window washer fluid .............8-13
FM-AM-SAT radio with Compact Disc (CD)
player ...................... .4-53
Fog light switch ................ .2-36
Front passenger air bag and status light . . .1-42
Front power seat adjustment ...........1-3
Front seat, Front seat adjustment ........1-3
Front-seat active head restraints ........1-10
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ................ .5-43
Fuel economy information (display) .....4-9
Fuel octane rating .............. .9-3
Fuel recommendation .............9-3
Fuel-filler cap ................ .3-30
Fuel-filler door ............... .3-30
Gauge ..................... .2-7
LOOSE FUEL CAP warning ..........3-32
Fuses ...................... .8-20
Fusible links .................. .8-20
G
Garage door opener, HomeLink Universal
Transceiver ................... .2-51Gascap.....................
.3-30
Gauge ....................... .2-4
Engine coolant temperature gauge .....2-6
Fuel gauge .................. .2-7
Odometer ................... .2-5
Speedometer ................. .2-5
Tachometer ................. .2-6
Trip computer ............... .2-23
General
maintenance .............. .8-2
Glove box .................... .2-44
H
Hands-free phone system, Bluetooth
(models with navigation system) ........4-85
Hands-free phone system, Bluetooth
(models without navigation system) ......4-96
Hard top If the top does not open or close .....3-24
Indicators for retractable hard top
(dot matrix) .............. .2-21, 3-22
Initializing .................. .3-25
Operating using the Intelligent Key . . . .3-25
Retractable hard top operation .......3-18
Hazard warning flasher switch .........2-36
Head restraints .................. .1-7
Headlights Bulb replacement ............. .8-25
Headlight switch .............. .2-32
Xenon headlights .............. .2-31
Heated seats .................. .2-37
Heater Automatic climate control ..........4-29
Engine block heater .............5-55
HomeLink Universal Transceiver ........2-51Hood release
.................. .3-17
Horn ....................... .2-37
I
Ignition switch (Push-button) ................. .5-7
Manual transmission models . . . . . . . .5-16
Immobilizer system .............. .2-27
In-cabin microfilter ............... .4-36
Indicator Dot matrix display ............. .2-16
Lights .................... .2-13
INFINITI Vehicle Immobilizer System ......2-27
INFINITI voice recognition system . . . . . . .4-109
INFO button ................... .4-8
Inside mirror .................. .3-34
Inspection/maintenance
(I/M) test.......9-22
Instrument brightness control .........2-35
Instrument panel ................ .2-3
Intelligent cruise control (ICC) system .....5-21
Preview function .............. .5-42
Intelligent Cruise Control (ICC) system
warning light .................. .2-10
Intelligent Key .................. .3-2
Intelligent Key battery discharge indicator . .2-19
Intelligent Key insertion indicator . ......2-18
Intelligent Key removal indicator ........2-18
Intelligent Key system ..............3-6
Battery replacement .............8-22
Key operating range .............3-8
Key operation ................ .3-9
Warning light ................ .2-10
Warning signals ............... .3-11
Intelligent Key warning light ..........2-10
10-3

Driver-side memory.............3-37
Heated seats ................ .2-37
Seats ..................... .1-2
Security system, Vehicle security system . . .2-26
Security system (INFINITI Vehicle
Immobilizer System), Engine start .......2-27
Selector lever Shift lock release .............. .5-16
Separator, Retractable hard top ........3-20
Servicing climate control ............4-36
SETTING button ................. .4-12
Shift “P” warning (Automatic Transmission
models) ..................... .2-18
Shift lock release, Transmission ........5-16
Shifting Automatic transmission ...........5-12
Manual transmission .............5-16
Sliding front passenger’s seat ..........1-5
Sonar system .................. .5-45
Sonar system off switch .............5-47
Spare tire .................... .9-8
Spark plugs ................... .8-16
Speedometer ................... .2-5
Starting Before starting the engine ..........5-11
Jump starting ................ .6-14
Precautions when starting and driving . . .5-2
Push starting ................ .6-16
Starting the engine ............. .5-11
STATUS button .................. .4-7
Status light, Front passenger air bag .....1-42
Steering Power steering fluid .............8-11
Power steering system ...........5-47
Steering lock ................. .5-9
Steering lock release malfunction indicator
................... .2-18
Steering-wheel-mounted controls for
audio .................... .4-82
Tilt/telescopic steering ...........3-33
Storage ..................... .2-43
Storage box .................. .2-46
Sun visors ................... .3-34
Supplemental
air bag warning labels .....1-48
Supplemental air bag warning light . . .1-48, 2-12
Supplemental restraint system .........1-35
Precautions on supplemental restraint
system .................... .1-35
Switch Autolight switch .............. .2-32
Fog light switch .............. .2-36
Hazard warning flasher switch .......2-36
Headlight switch .............. .2-32
Ignition switch ............... .5-12
Ignition switch manual transmission
models .................... .5-16
Power door lock switch ............3-5
Rear window and outside mirror defroster
switch .................... .2-31
Retractable hard top switch .....3-23, 3-25
Turn signal switch ............. .2-35
Vehicle dynamic control (VDC) off switch .2-39
T
Tachometer ................... .2-6
Temperature gauge, Engine coolant
temperature gauge ............... .2-6
Theft (INFINITI Vehicle Immobilizer System),
Engine start ................... .2-27
Thigh extension ................. .1-5Three-way catalyst
................ .5-2
Tilt/telescopic steering .............3-33
Tire Pressure, Low tire pressure warning
light ..................... .2-10
Sealant .................... .6-3
Tire replacement indicator . . .......2-22
Tires Emergency tire puncture repair kit .....6-3
Flat tire .................... .6-2
Low tire pressure warning system ......5-3
Spare tire .................. .8-35
Tire and Loading information label .8-28, 9-11
Tire chains ................. .8-32
Tire dressing ................. .7-3
Tire pressure ................ .8-27
Tire pressure monitoring system
(TPMS) .................. .5-3, 6-2
Tire rotation ................ .8-33
Types of tires ................ .8-32
Uniform
tire quality grading .........9-19
Wheel/tire size ............... .9-8
Wheels and tires .............. .8-27
Top, Retractable hard top ............3-18
Touch screen system .............. .4-4
Towing Flat towing ................. .9-19
Tow truck towing .............. .6-17
Towing a trailer ............... .9-19
TPMS, Tire pressure monitoring system .....5-3
TPMS, Tire pressure warning system ......6-2
Trailer towing .................. .9-19
Transceiver, HomeLink Universal
Transceiver ................... .2-51
Transmission Automatic transmission fluid (ATF) .....8-11
10-6
