INDICATORS FOR OPERATION
1. Engine start operation indicator
(Automatic Transmission models)
This indicator appears when the selector lever
is in the P (Park) position.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed.
2. Steering lock release malfunction
indicator (if so equipped)
This indicator appears when the steering wheel
cannot be released from the LOCK position.
If this indicator appears, push the push-button
ignition switch while lightly turning the steering
wheel right and left.
3. Intelligent Key insertion indicator
This indicator appears when the Intelligent Key
needs to be inserted into the Intelligent Key
port. (For example, the Intelligent Key battery is
discharged.)
If this indicator appears, insert the Intelligent Key
into the Intelligent Key port in the correct direc-
tion. (See “PUSH-BUTTON IGNITION SWITCH” in
the “5. Starting and driving” section.)
4. Intelligent Key removal indicator
This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the Intelligent Key port. A key reminder chime
also sounds.
If this indicator appears, remove the Intelligent
Key from the Intelligent Key port and take it with
you when leaving the vehicle.
5. NO KEY warning
This warning appears in either of the following
conditions.
No key inside the vehicle :
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.Unregistered Intelligent Key :
The warning appears when the ignition switch
is pushed from the LOCK position and the
Intelligent Key cannot be recognized by the
system. You cannot start the engine with an
unregistered key. Use the registered Intelligent
Key.
See “INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section for
more details.6. SHIFT “P” warning (Automatic
Transmission models)
This warning appears when the ignition switch
is pushed to stop the engine with the selector
lever in any position except the P (Park) posi-
tion.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section.)
2-18Instruments and controls

7. “PUSH” warning (Automatic
Transmission models)
This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:SHIFT “P” warning →(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER CAP” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning
This warning appears when the low tire pres-
sure warning light in the meter illuminates and
low tire pressure is detected. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.)
Instruments and controls2-19

INTERIOR LIGHT CONTROL SWITCH
The interior light control switch has three posi-
tions: ON, DOOR and OFF.
ON position
When the switch is in the ON position1the
map lights will illuminate.
DOOR position
When the switch is in the DOOR position2, the
map lights will illuminate under the following
conditions:
● ignition switch is switched to the OFF or
LOCK position
– remain on for about 15 seconds.
● doors are unlocked by pushing the UNLOCK
button on the Intelligent Key or door handle
request switch with the ignition switch in the
LOCK position
– remain on for about 15 seconds.
● any door is opened and then closed with the
ignition switch in the LOCK position
– remain on for about 15 seconds.
● any door is opened with the ignition switch
in the ACC or ON position
– remain on while the door is opened. When the door is closed, the lights go off.
The lights will also turn off after 15 minutes when
the lights remain illuminated after the ignition
switch has been pushed to the OFF or LOCK po-
sition to prevent the battery from becoming dis-
charged. When the auto interior illumination is set to the
OFF position (see “VEHICLE INFORMATION AND
SETTINGS” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section),
the lights will illuminate under the following
condition:
●
any door is opened with the ignition switch
in any position
– remain on while the door is opened. When the door is closed, the lights go off.
OFF position
When the switch is in the OFF position3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time with
the engine stopped. This could result in a dis-
charged battery.
SIC4044
2-50Instruments and controls

3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-4
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-5
Intelligent Key system ............................. 3-6

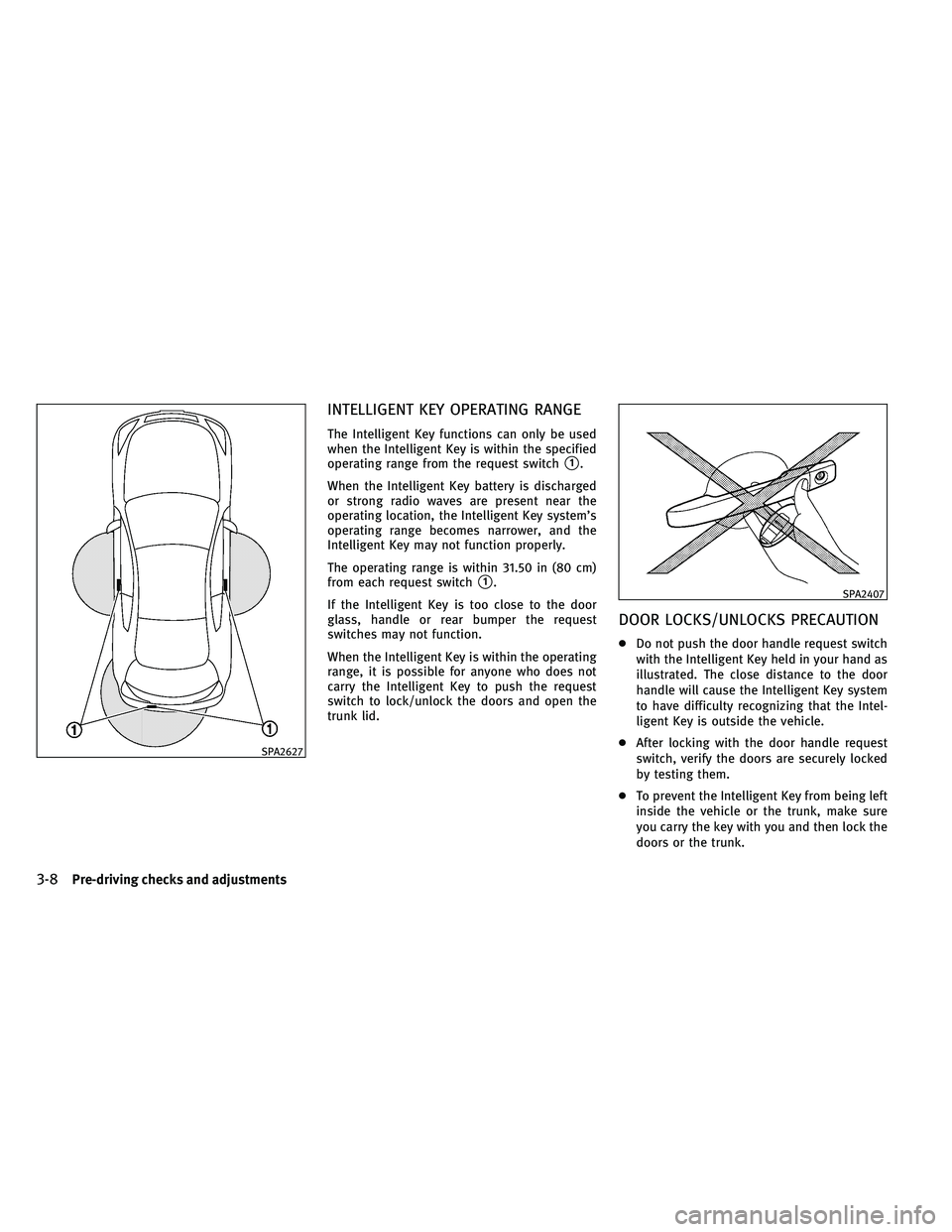

Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-8
Intelligent Key operation ........................ 3-9

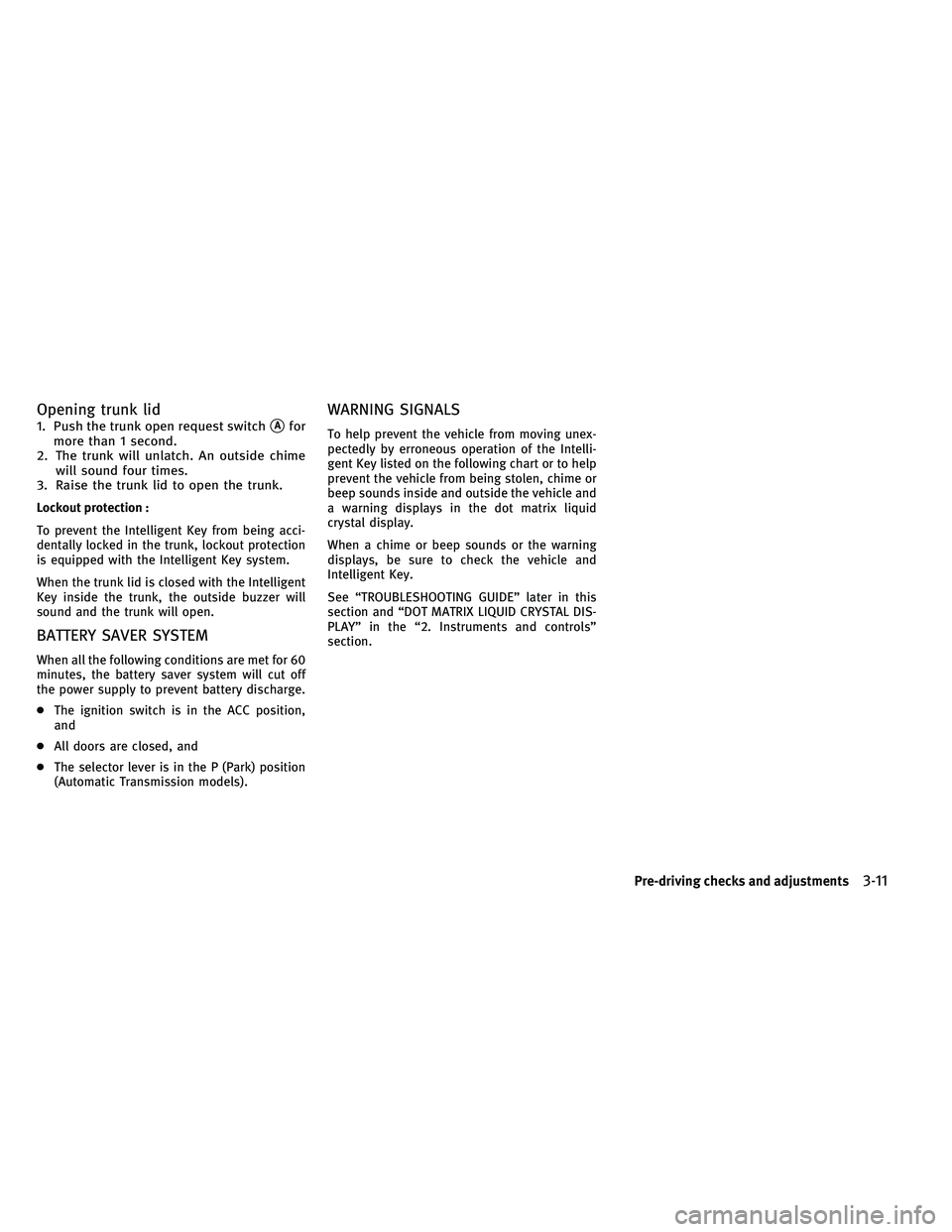

Battery saver system ........................... 3-11
Warning signals ................................ 3-11
Troubleshooting guide ......................... 3-12
Remote keyless entry system ......................3-14
How to use remote keyless entry system ........3-14
Hood ............................................. 3-17
Retractable hard top .............................. 3-18
Before operating the retractable hard top .......3-18
When operating the retractable hard top ........3-20
Indicators for the retractable hard top ..........3-22 Opening the retractable hard top
...............3-23
Closing the retractable hard top ................3-24
If the retractable hard top does not open
or close electrically ............................ 3-24
Operating the retractable hard top using
the Intelligent Key ............................. 3-25
Initializing of the retractable hard top ...........3-25
Troubleshooting guide ......................... 3-26
Trunk lid ........................................ 3-28
Trunk lid release switch ........................ 3-28
Trunk open request switch .....................3-28
Auto closure .................................. 3-28
Trunk release power cancel switch ..............3-29
Interior trunk lid release ....................... 3-30
Fuel-filler door ................................... 3-30
Opening the fuel-filler door ....................3-30
Fuel-filler cap ................................. 3-31
Tilt/telescopic
steering........................... 3-33
Manual operation (if so equipped) ..............3-33
Electric operation (if so equipped) ..............3-33
Sun visors ....................................... 3-34
Mirrors .......................................... 3-34
Inside mirror .................................. 3-34
Outside mirrors ............................... 3-35

●When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depend-
ing on the operating conditions, the battery’s
life is approximately 2 years. If the battery is
discharged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the
Intelligent Key port to start the engine. For more
details, see “PUSH-BUTTON IGNITION SWITCH”
in the “5. Starting and driving” section. Replace
the discharged battery with a new one as soon
as possible.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equip-
ment which transmits strong radio waves, such
as signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a bat-
tery, see “INTELLIGENT KEY BATTERY REPLACE-
MENT” in the “8. Maintenance and do-it-
yourself” section. For models with a steering wheel lock mecha-
nism: Because the steering wheel is locked
electrically, unlocking the steering wheel with
the ignition switch in the LOCK position is
impossible when the vehicle battery is com-
pletely discharged. Pay special attention that
the vehicle battery is not completely dis-
charged.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information
about the purchase and use of additional Intel-
ligent Keys, contact an INFINITI retailer.
CAUTION
●
Do not allow the Intelligent Key, which con-
tains electrical components, to come into
contact with water or salt water. This could
affect the system function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent Key.
● Wetting may damage the Intelligent Key. If
the Intelligent Key gets wet, immediately
wipe until it is completely dry. ●
If the outside temperature is below 14°F
(10°C) degrees, the battery of the Intelli-
gent Key may not function properly.
● Do not place the Intelligent Key for an ex-
tended period in an area where tempera-
tures exceed 140°F (60°C).
● Do not attach the Intelligent Key with a key
holder that contains a magnet.
● Do not place the Intelligent Key near equip-
ment that produces a magnetic field, such as
a TV, audio equipment and personal
computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to oper-
ate the vehicle. For information regarding the
erasing procedure, contact an INFINITI retailer.
The Intelligent key function can be disabled. For
information about disabling the Intelligent key
function, contact an INFINITI retailer.
Pre-driving checks and adjustments3-7

INTELLIGENT KEY OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch
1.
When the Intelligent Key battery is discharged
or strong radio waves are present near the
operating location, the Intelligent Key system’s
operating range becomes narrower, and the
Intelligent Key may not function properly.
The operating range is within 31.50 in (80 cm)
from each request switch
1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper the request
switches may not function.
When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors and open the
trunk lid.
DOOR LOCKS/UNLOCKS PRECAUTION
● Do not push the door handle request switch
with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the Intel-
ligent Key is outside the vehicle.
● After locking with the door handle request
switch, verify the doors are securely locked
by testing them.
● To prevent the Intelligent Key from being left
inside the vehicle or the trunk, make sure
you carry the key with you and then lock the
doors or the trunk.
SPA2627
SPA2407
3-8Pre-driving checks and adjustments

Opening trunk lid
1. Push the trunk open request switchAfor
more than 1 second.
2. The trunk will unlatch. An outside chime will sound four times.
3. Raise the trunk lid to open the trunk.
Lockout protection :
To prevent the Intelligent Key from being acci-
dentally locked in the trunk, lockout protection
is equipped with the Intelligent Key system.
When the trunk lid is closed with the Intelligent
Key inside the trunk, the outside buzzer will
sound and the trunk will open.
BATTERY SAVER SYSTEM
When all the following conditions are met for 60
minutes, the battery saver system will cut off
the power supply to prevent battery discharge.
● The ignition switch is in the ACC position,
and
● All doors are closed, and
● The selector lever is in the P (Park) position
(Automatic Transmission models).
WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelli-
gent Key listed on the following chart or to help
prevent the vehicle from being stolen, chime or
beep sounds inside and outside the vehicle and
a warning displays in the dot matrix liquid
crystal display.
When a chime or beep sounds or the warning
displays, be sure to check the vehicle and
Intelligent Key.
See “TROUBLESHOOTING GUIDE” later in this
section and “DOT MATRIX LIQUID CRYSTAL DIS-
PLAY” in the “2. Instruments and controls”
section.
Pre-driving checks and adjustments3-11

WARNING
The Intelligent Key transmits radio waves when
the buttons are pushed. The FAA advises that
the radio waves may affect aircraft navigation
and communication systems. Do not operate
the Intelligent Key while on an airplane. Make
sure the buttons are not operated unintention-
ally when the unit is stored during a flight.
It is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the Intelli-
gent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent Key
can operate at a distance of approximately 33 ft
(10 m) from the vehicle. (The effective distance
depends upon the conditions around the ve-
hicle.)
As many as 4 Intelligent Keys can be used with
one vehicle. For information concerning the
purchase and use of additional Intelligent Keys,
contact an INFINITI retailer. The lock and unlock buttons on the Intelligent
Key will not operate when:
●
the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m).
● the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies de-
pending on the environment. To securely oper-
ate the lock and unlock buttons, approach the
vehicle to about 3 ft (1 m) from the door.
1LOCK button
2UNLOCK button
3TRUNK button
4PANIC button
HOW TO USE REMOTE KEYLESS ENTRY
SYSTEM
When you lock or unlock the doors or the trunk
lid, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, see “Setting hazard indicator
and horn mode” later in this section.
SPA2100
REMOTE KEYLESS ENTRY SYSTEM
3-14Pre-driving checks and adjustments

OPERATING THE RETRACTABLE HARD
TOP USING THE INTELLIGENT KEY
The retractable hard top can be opened using
the request switch. This operation cannot close
the retractable hard top.
Opening the retractable hard top
Carry the Intelligent Key with you. Push the door
handle request switch (driver’s or passenger’s)
Aand hold it until the retractable hard top is
fully open.
INITIALIZING OF THE RETRACTABLE
HARD TOP
After replacing the battery or when repeating
open and close operations without fully open-
ing or closing the retractable hard top, the
retractable hard top may not operate normally.
If this situation occurs, perform initialization of
the retractable hard top according to the follow-
ing procedures.
1. Start the engine.
2. Push the OPEN side of the retractable
hard top operating switch and hold it.
3. Release the OPEN side of the retractable hard top operating switch when the beep
sounds once. The initialization of the re-
tractable hard top is complete.
If the beep sounds twice when releasing the
OPEN side of the retractable hard top operating
switch during the initialization, repeat the pro-
cedures from step 2.
CAUTION
After the initialization, if the retractable hard
top does not operate normally, immediately
contact INFINITI retailer for an inspection. NOTE:
The following functions do not operate normally
when the initialization of the retractable hard
top is not complete.
– The retractable hard top does not open or
close when pushing the OPEN side of the re-
tractable hard top operating switch. (Only the
rear parcel shelf operates.)
– The retractable hard top indicator does not appear on the dot matrix liquid crystal dis-
play.
– The air conditioner airflow is fixed at the level when the retractable hard top is being closed.
– The audio volume is fixed at the level when the retractable hard top is being closed.
– For the models with the navigation system, the Voice Recognition function (VR) is not op-
erative.
SPA2585
Pre-driving checks and adjustments3-25

INTERIOR TRUNK LID RELEASE
WARNING
Closely supervise children when they are
around cars to prevent them from playing and
becoming locked in the trunk where they could
be seriously injured. Keep the car locked, with
the trunk lid securely latched, when not in use,
and prevent children’s access to Intelligent
Keys.
The interior trunk lid release mechanism allows
opening of the trunk lid in the event that people
become locked inside the trunk or in the event
of the loss of electrical power such as a dis-
charged battery.
Releasing inside the trunk
To open the trunk lid from the inside, pull the
release handle
1until the lock releases and
push up on the trunk lid. The release lever is
made of a material that glows in the dark after
a brief exposure to ambient light.
The handle is located on the back of the trunk
lid as illustrated.
OPENING THE FUEL-FILLER DOOR
To open the fuel-filler door, unlock the fuel-filler
door by using one of the following operations,
then push the left side of the door.
● Push the door handle request switch with
the Intelligent Key carried with you.
● Push the UNLOCK button on the Intelligent
Key.
● Insert the mechanical key into the door lock
cylinder and turn it to the rear of the vehicle.
● Push the power door lock switch to the
UNLOCK position.
SPA2634SPA1562A
FUEL-FILLER DOOR
3-30Pre-driving checks and adjustments
