navigation update INFINITI G-CONVERTIBLE 2011 Owners Manual

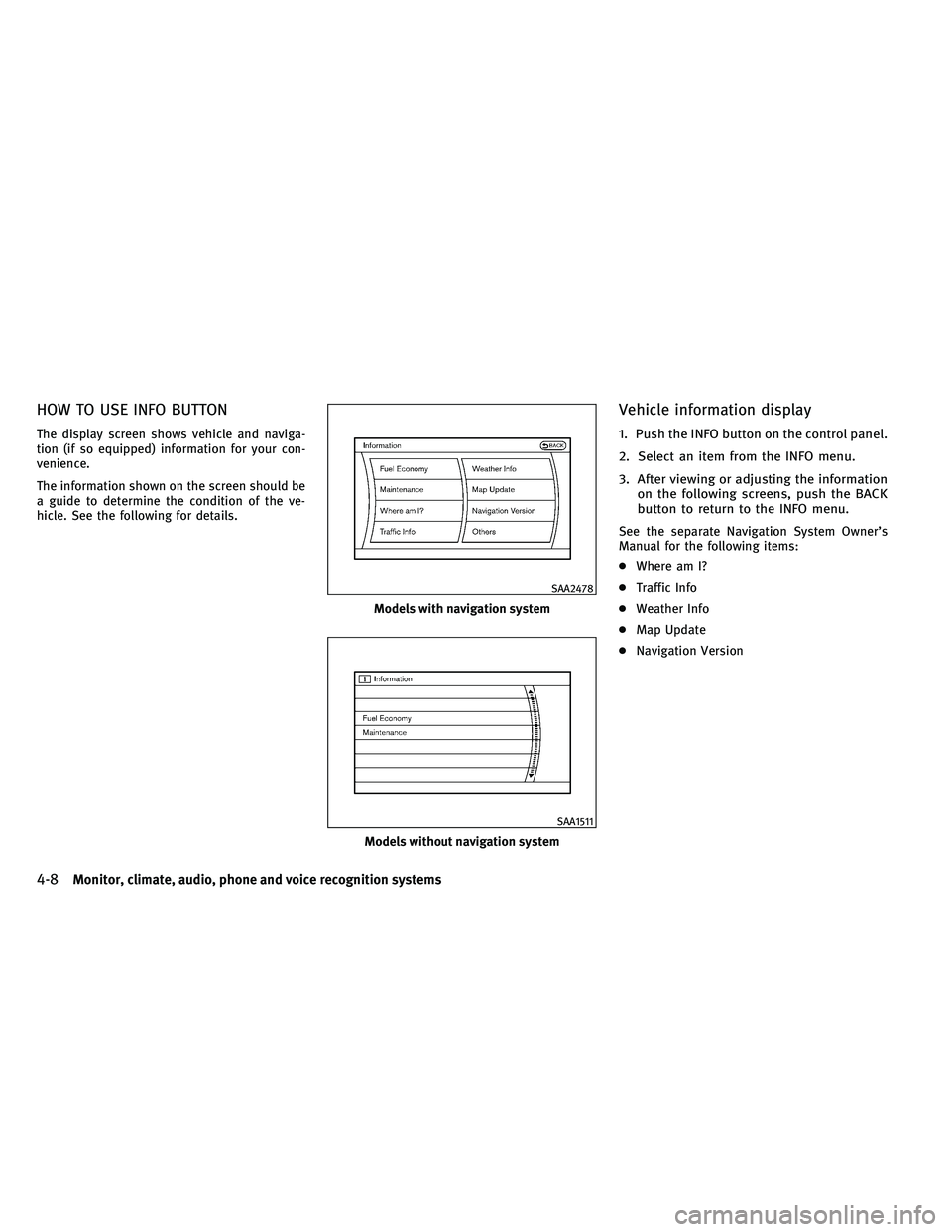

HOW TO USE INFO BUTTON
The display screen shows vehicle and naviga-
tion (if so equipped) information for your con-
venience.
The information shown on the screen should be
a guide to determine the condition of the ve-
hicle. See the following for details.
Vehicle information display
1. Push the INFO button on the control panel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the informationon the following screens, push the BACK
button to return to the INFO menu.
See the separate Navigation System Owner’s
Manual for the following items:
●Where am I?
● Traffic Info
● Weather Info
● Map Update
● Navigation Version
Models with navigation system
SAA2478
Models without navigation system
SAA1511
4-8Monitor, climate, audio, phone and voice recognition systems

1. AM·FM·SAT radio band select button
2. DISC·AUX button1. AUX/Satellite band select button
2. RADIO AM·FM radio band select button
3. DISC button
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER
For all operation precautions, see “AUDIO OP-
ERATION PRECAUTIONS” earlier in this section.
The satellite radio mode requires an active XM
Satellite Radio subscription. The satellite radio
is not available in Alaska, Hawaii and Guam.
It may take some time to receive the activation
signal after subscribing the XM Satellite Radio. After receiving the activation signal, an avail-
able channel list will be automatically updated
in the radio. For XM, push the ignition switch
from LOCK to ACC to update the channel list.
Audio main operation
Head unit :
The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON·OFF/Volume control :
Push the ignition switch to the ACC or ON
position, and then push the ON·OFF button
while the system is off to turn on the last audio
source (i.e. FM or CD), which was playing im-
mediately before the system was turned off.
While the system is on, pushing the ON·OFF
button turns the system off.
Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker balance :
To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display
shows the setting you want to change (Bass,
Treble, Balance and Fade), rotate the Audio
control knob to set the desired setting. For the
other setting methods, see “HOW TO USE SET-
TING BUTTON” earlier in this section.
Models with navigation system
SAA1533
Models without navigation system
SAA2922
Monitor, climate, audio, phone and voice recognition systems4-53

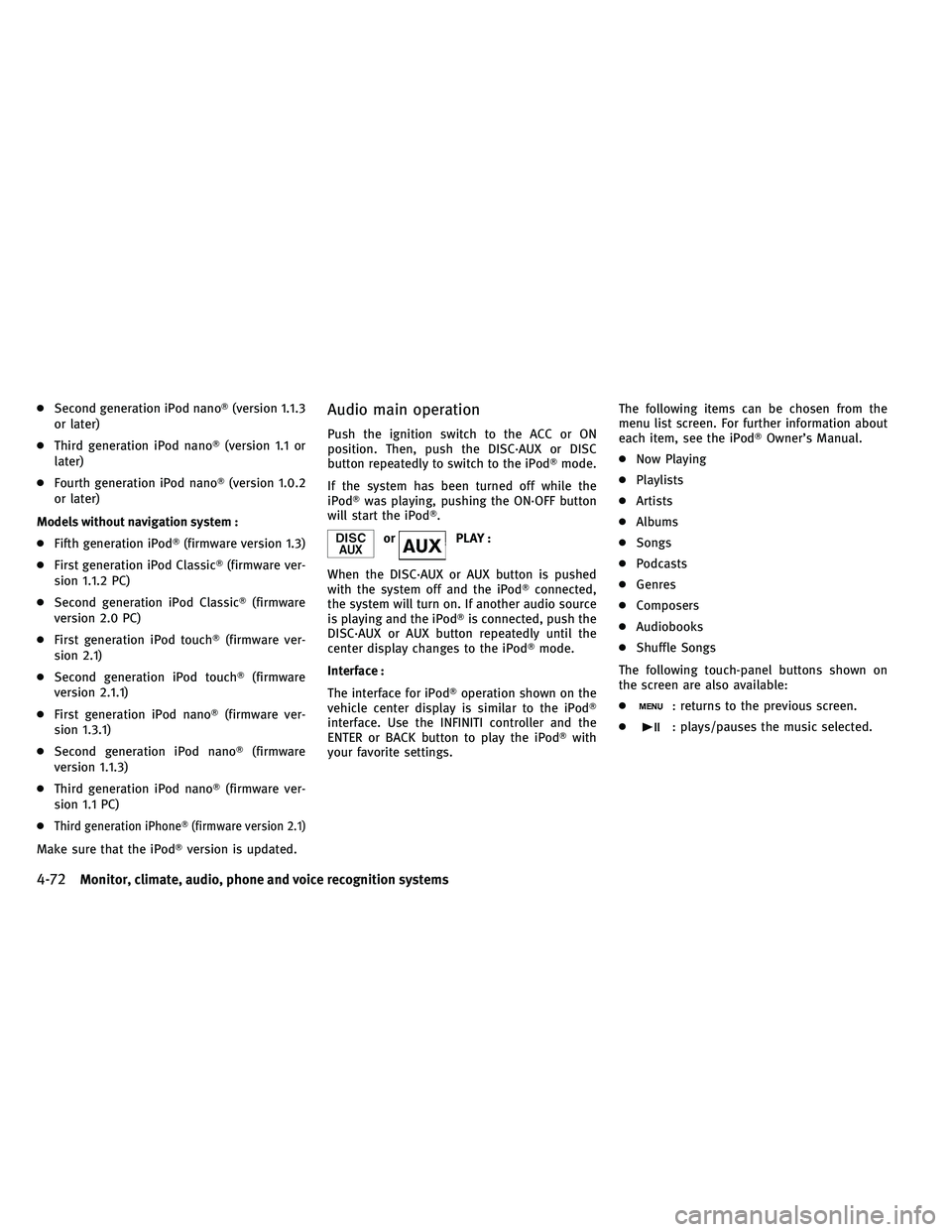

●Second generation iPod nano (version 1.1.3
or later)
● Third generation iPod nano (version 1.1 or
later)
● Fourth generation iPod nano (version 1.0.2
or later)
Models without navigation system :
● Fifth generation iPod (firmware version 1.3)
● First generation iPod Classic (firmware ver-
sion 1.1.2 PC)
● Second generation iPod Classic (firmware
version 2.0 PC)
● First generation iPod touch (firmware ver-
sion 2.1)
● Second generation iPod touch (firmware
version 2.1.1)
● First generation iPod nano (firmware ver-
sion 1.3.1)
● Second generation iPod nano (firmware
version 1.1.3)
● Third generation iPod nano (firmware ver-
sion 1.1 PC)
●
Third generation iPhone (firmware version 2.1)
Make sure that the iPod version is updated.
Audio main operation
Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX or DISC
button repeatedly to switch to the iPod mode.
If the system has been turned off while the
iPod was playing, pushing the ON·OFF button
will start the iPod.
orPLAY :
When the DISC·AUX or AUX button is pushed
with the system off and the iPod connected,
the system will turn on. If another audio source
is playing and the iPod is connected, push the
DISC·AUX or AUX button repeatedly until the
center display changes to the iPod mode.
Interface :
The interface for iPod operation shown on the
vehicle center display is similar to the iPod
interface. Use the INFINITI controller and the
ENTER or BACK button to play the iPod with
your favorite settings. The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod
Owner’s Manual.
● Now Playing
● Playlists
● Artists
● Albums
● Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● Shuffle Songs
The following touch-panel buttons shown on
the screen are also available:
●
: returns to the previous screen.
●
: plays/pauses the music selected.
4-72Monitor, climate, audio, phone and voice recognition systems

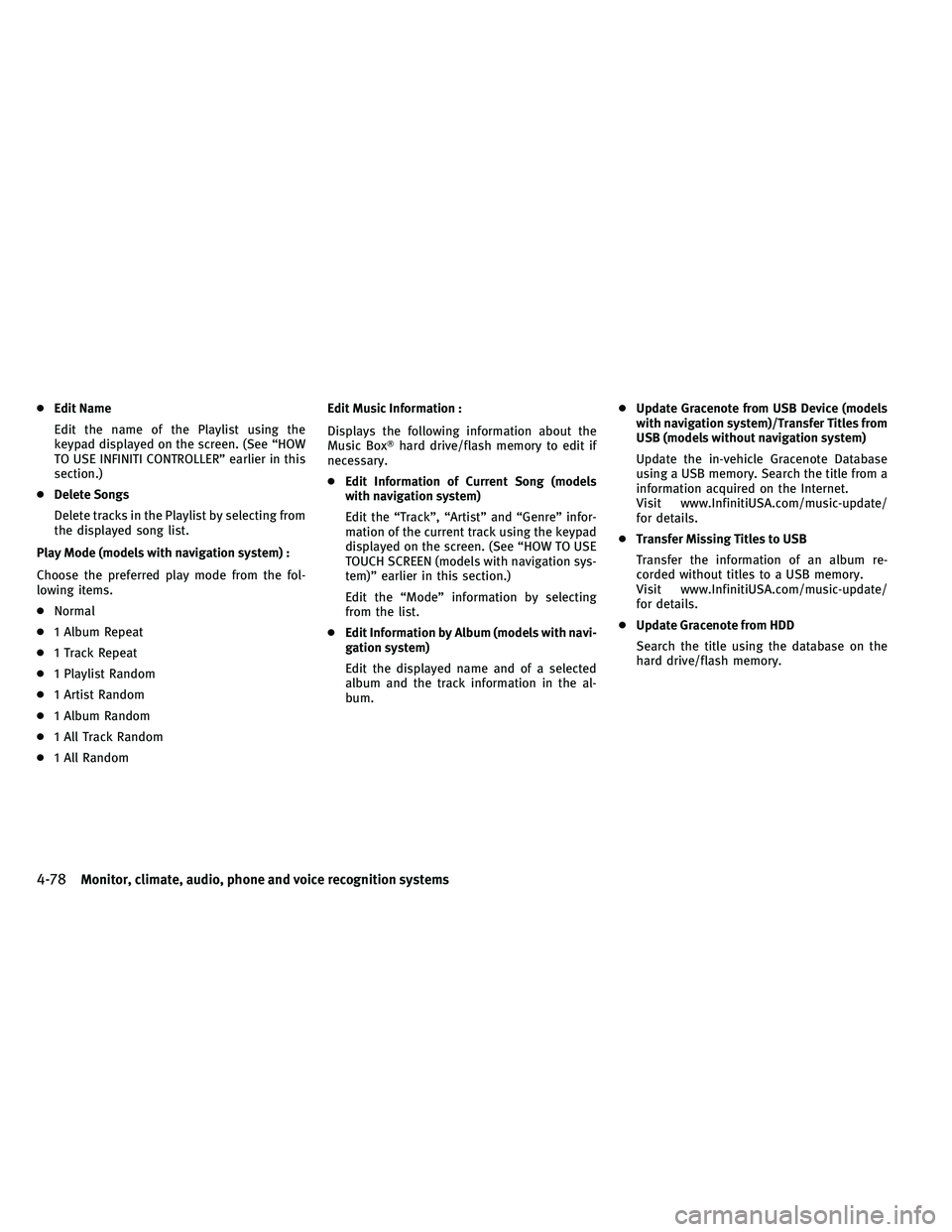

●Edit Name
Edit the name of the Playlist using the
keypad displayed on the screen. (See “HOW
TO USE INFINITI CONTROLLER” earlier in this
section.)
● Delete Songs
Delete tracks in the Playlist by selecting from
the displayed song list.
Play Mode (models with navigation system) :
Choose the preferred play mode from the fol-
lowing items.
● Normal
● 1 Album Repeat
● 1 Track Repeat
● 1 Playlist Random
● 1 Artist Random
● 1 Album Random
● 1 All Track Random
● 1 All Random Edit Music Information :
Displays the following information about the
Music Box
hard drive/flash memory to edit if
necessary.
● Edit Information of Current Song (models
with navigation system)
Edit the “Track”, “Artist” and “Genre” infor-
mation of the current track using the keypad
displayed on the screen. (See “HOW TO USE
TOUCH SCREEN (models with navigation sys-
tem)” earlier in this section.)
Edit the “Mode” information by selecting
from the list.
● Edit Information by Album (models with navi-
gation system)
Edit the displayed name and of a selected
album and the track information in the al-
bum. ●
Update Gracenote from USB Device (models
with navigation system)/Transfer Titles from
USB (models without navigation system)
Update the in-vehicle Gracenote Database
using a USB memory. Search the title from a
information acquired on the Internet.
Visit www.InfinitiUSA.com/music-update/
for details.
● Transfer Missing Titles to USB
Transfer the information of an album re-
corded without titles to a USB memory.
Visit www.InfinitiUSA.com/music-update/
for details.
● Update Gracenote from HDD
Search the title using the database on the
hard drive/flash memory.
4-78Monitor, climate, audio, phone and voice recognition systems
