Low tire pressure warning :
If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
CHECK TIRE PRESSURE warning also appears in
the dot matrix liquid crystal display.
When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. The low tire pressure warning light does
not automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure. The CHECK
TIRE PRESSURE Warning is active as long as the
low tire pressure warning light remains illumi-
nated.
For additional information, see “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section,
“TIRE PRESSURE MONITORING SYSTEM (TPMS)”
in the “5. Starting and driving” section and
“TIRE PRESSURE MONITORING SYSTEM (TPMS)”
in the “6. In case of emergency” section.TPMS malfunction :
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by an INFINITI
retailer. The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunc-
tion.
For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.
WARNING
●
If the light does not illuminate with the igni-
tion switch pushed ON, have the vehicle
checked by an INFINITI retailer as soon as
possible. ●
If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as soon
as possible. Driving with under-inflated tires
may permanently damage the tires and in-
crease the likelihood of tire failure. Serious
vehicle damage could occur and may lead to
an accident and could result in serious per-
sonal injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the rec-
ommended COLD tire pressure shown on the
Tire and Loading Information label to turn
the low tire pressure warning light OFF. If the
light still illuminates while driving after ad-
justing the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a spare
tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after the 1 minute. Contact your
INFINITI retailer as soon as possible for tire
replacement and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
Instruments and controls2-11

Additional information
●The TPMS does not monitor the tire pressure
of the spare tire.
● The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).
● The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
●
The CHECK TIRE PRESSURE warning appears
on the dot matrix liquid crystal display when
the low tire pressure warning light is illumi-
nated and low tire pressure is detected. The
CHECK TIRE PRESSURE warning turns off when
the low tire pressure warning light turns off.
The CHECK TIRE PRESSURE warning does not
appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
●Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature can lower the temperature of the air inside the
tire which can cause a lower tire inflation
pressure. This may cause the low tire pressure
warning light to illuminate. If the warning light
illuminates in low ambient temperature, check
the tire pressure for all four tires.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “TIRE PRESSURE MONI-
TORING SYSTEM (TPMS)” in the “6. In case of
emergency” section.
WARNING
●
If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible. (See “FLAT TIRE” in the “6. In case
of emergency” section for changing a flat
tire.)
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors (for
models not equipped with the emergency
tire puncture repair kit).
● If you used the Emergency Tire Sealant to
repair a minor tire puncture, your INFINITI
retailer will also need to replace the TPMS
sensor in addition to repairing or replacing
the tire (for models equipped with the emer-
gency tire puncture repair kit).
5-4Starting and driving

WARNING
●If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting. ●
Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors (for
models not equipped with the emergency
tire puncture repair kit).
● If you used the Emergency Tire Sealant to
repair a minor tire puncture, your INFINITI
retailer will also need to replace the TPMS
sensor in addition to repairing or replacing
the tire (for models equipped with the emer-
gency tire puncture repair kit).
● INFINITI recommends using only NISSAN
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure (for models
equipped with the emergency tire puncture
repair kit).
REPAIRING FLAT TIRE (for models with
emergency tire puncture repair kit)
WARNING
● After using Emergency Tire Sealant to repair
a minor tire puncture, do not drive the ve-
hicle at speeds faster than 50 MPH (80
km/h).
● Immediately after using the Emergency Tire
Sealant to repair a minor tire puncture, take
your vehicle to an INFINITI retailer to inspect,
and repair or replace the tire. The Emergency
Tire Sealant cannot permanently seal a
punctured tire. Continuing operation of the
vehicle without a permanent tire repair can
lead to a crash.
● If you used the Emergency Tire Sealant to
repair a minor tire puncture, your INFINITI
retailer will also need to replace the TPMS
sensor in addition to repairing or replacing
the tire.
● INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure.
In case of emergency6-3

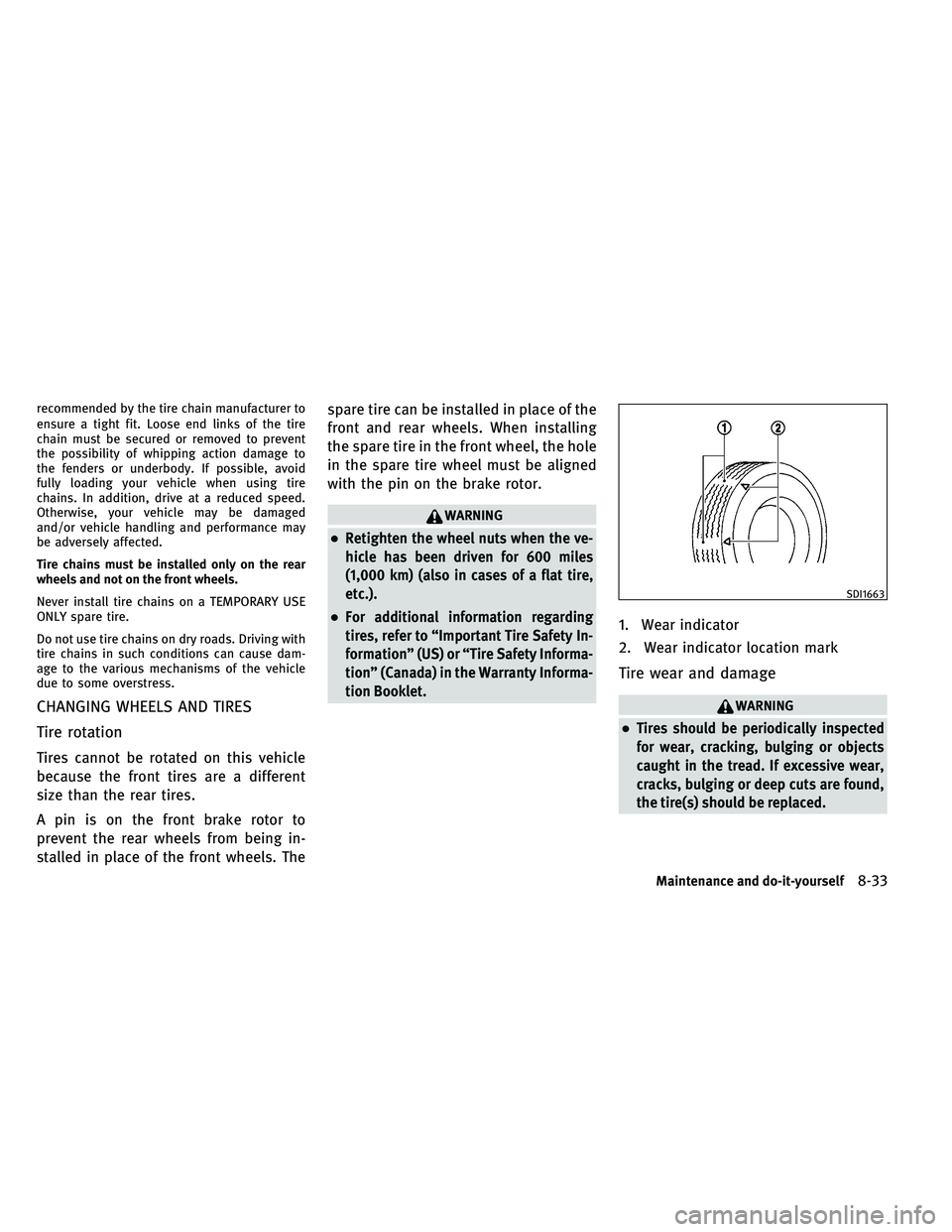

recommended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the tire
chain must be secured or removed to prevent
the possibility of whipping action damage to
the fenders or underbody. If possible, avoid
fully loading your vehicle when using tire
chains. In addition, drive at a reduced speed.
Otherwise, your vehicle may be damaged
and/or vehicle handling and performance may
be adversely affected.
Tire chains must be installed only on the rear
wheels and not on the front wheels.
Never install tire chains on a TEMPORARY USE
ONLY spare tire.
Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause dam-
age to the various mechanisms of the vehicle
due to some overstress.
CHANGING WHEELS AND TIRES
Tire rotation
Tires cannot be rotated on this vehicle
because the front tires are a different
size than the rear tires.
A pin is on the front brake rotor to
prevent the rear wheels from being in-
stalled in place of the front wheels. Thespare tire can be installed in place of the
front and rear wheels. When installing
the spare tire in the front wheel, the hole
in the spare tire wheel must be aligned
with the pin on the brake rotor.
WARNING
●Retighten the wheel nuts when the ve-
hicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).
●For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.1. Wear indicator
2. Wear indicator location mark
Tire wear and damage
WARNING
●Tires should be periodically inspected
for wear, cracking, bulging or objects
caught in the tread. If excessive wear,
cracks, bulging or deep cuts are found,
the tire(s) should be replaced.
SDI1663
Maintenance and do-it-yourself8-33

Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed with
the wheels off the vehicle. Spin balancing the
wheels on the vehicle could lead to mechanical
damage.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
INFINITI Warranty Information Booklet.
Care of wheels
●Wash the wheels when washing the vehicle
to maintain their appearance.
● Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
● Do not use abrasive cleaners when washing
the wheels.
● Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
● INFINITI recommends that the road wheels
be waxed to protect against road salt in
areas where it is used during winter.
Emergency tire puncture repair kit (if
so equipped)
The emergency tire puncture repair kit (Emer-
gency Tire Sealant) is supplied with the vehicle
instead of a spare tire. It can be used to
temporarily repair minor tire punctures.
If possible, have the vehicle towed to a facility
that can repair or replace the flat tire. Using the
emergency tire puncture repair kit may cause a
malfunction of the tire pressure sensor and
cause the low tire pressure warning light to
illuminate.
See “FLAT TIRE” in the “6. In case of emer-
gency” section for more details.
Spare tire (TEMPORARY USE ONLY
(T-type) spare tire) (if so equipped)
Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
WARNING
● The T-type spare tire should be used for
emergency use. It should be replaced with
the standard tire at the first opportunity to
avoid possible tire or differential damage.
● Drive carefully while the TEMPORARY USE
ONLY spare tire is installed. Avoid sharp
turns and abrupt braking while driving.
● Periodically check spare tire inflation pres-
sure. Always keep the pressure of the TEM-
PORARY USE ONLY spare tire at 60 psi (420
kPa, 4.2 bar). Always keep the pressure of
the full size spare tire (if so equipped) at the
recommended pressure for standard tires,
as indicated on the Tire and Loading Infor-
mation label. For Tire and Loading Informa-
tion label location, see “Tire and Loading
Information label” in the index of this
manual.
● With the TEMPORARY USE ONLY spare tire
installed do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).
Maintenance and do-it-yourself8-35

Cigarette lighter and ashtrays.........2-42
Circuit breaker, Fusible link ..........8-20
Cleaning exterior and interior ........7-2, 7-4
Climate control, Automatic climate control . .4-29
Clock ...................... .2-40
Closing the retractable hard top ........3-24
Clutch fluid ................... .8-12
Cockpit ...................... .2-2
Cold weather driving .............. .5-54
Compact Disc (CD) player
(See audio system) .............. .4-56
Compact spare tire ............... .8-35
Console box .................. .2-45
Controller, Center multi-function control
panel ....................... .4-4
Controls Control panel button .............4-2
INFINITI Controller .............. .4-4
Coolant Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-7
Corrosion protection .............. .7-6
Cruise control .................. .5-19
Fixed speed cruise control
(on ICC system) .............. .5-38
Intelligent cruise control (ICC) system . . .5-21
Cup holders .................. .2-43
Current fuel consumption ............2-24 D
Daytime running light system .........2-34
Defroster switch, Rear window and
outside mirror defroster switch .........2-31
Dimensions ................... .9-9
Distance to empty ............... .2-24
Door/trunk open warning ............2-19
Dot matrix liquid crystal display ........2-16
Drive belt .................... .8-16
Drive positioner ................ .3-37
Driving Cold weather driving .............5-54
Driving with automatic transmission . . . .5-12
Driving with manual transmission .....5-16
Precautions

when starting and driving . . .5-2
DS (Drive Sport) mode ..............5-14
DVD player operation ............. .4-58
E
Economy, Fuel ................. .5-43
Elapsed time .................. .2-24
Elapsed time and trip odometer ........2-24
Emergency tire puncture repair kit .......6-3
Emission control information label .......9-11
Emission control system warranty .......9-20
Engine Before starting the engine ..........5-11
Break-in schedule ............. .5-42
Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Changing engine oil and filter ........8-9
Checking engine coolant level ........8-7Checking engine oil level
...........8-8
Coolant temperature gauge .........2-6
Emergency engine shut off . . . .......5-9
Engine block heater .............5-55
Engine compartment check locations . . . .8-6
Engine cooling system ............8-7
Engine oil .................. .8-8
Engine oil and oil filter recommendation . .9-5
Engine oil replacement indicator ......2-22
Engine oil viscosity ............. .9-5
Engine serial number ............9-10
Engine specifications .............9-7
Engine start operation indicator
(Automatic Transmission models) .....2-18
Engine start operation indicator
(Manual Transmission models) . . . . . . .2-19
If your vehicle overheats ..........6-16
Starting the engine ............. .5-11
Event Data Recorders (EDR) ...........9-22
Exhaust gas (carbon monoxide) .........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . . .9-11
Filter Air cleaner housing filter ..........8-17
Changing engine oil and filter ........8-9
Flashers
(See hazard warning flasher
switch) ..................... .2-36
Flat tire ...................... .6-2
Changing flat tire (with spare tire) .....6-8
Repairing flat tire (with emergency tire
puncture repair kit) ............. .6-3
Flat towing ................... .9-19
Floor mat cleaning ................ .7-4
10-2
