9 Technical and consumer information
Capacities and recommended fuel/lubricants........ 9-2
Fuel recommendation ........................... 9-3
Engine oil and oil filter recommendation ......... 9-5
Air conditioning system refrigerant and
lubricant recommendations ..................... 9-6
Specifications ..................................... 9-7
Engine ........................................ 9-7
Wheels and tires ............................... 9-8
Dimensions .................................... 9-9
When traveling or registering your vehicle in
another country ................................... 9-9
Vehicle identification ............................. 9-10
Vehicle Identification Number (VIN) plate ........9-10
Vehicle identification number
(chassis number) .............................. 9-10
Engine serial number .......................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label ..........9-11
Emission control information label ...............9-11
Tire and loading information label ...............9-11
Air conditioner specification label ...............9-12
Installing front license plate .......................9-12Except for Aerodynamic Package models
........9-13
For Aerodynamic Package models ................9-15
Vehicle loading information .......................9-16
Terms ........................................ 9-16
Vehicle load capacity .......................... 9-17
Loading tips .................................. 9-18
Measurement of weights ....................... 9-18
Towing a trailer .................................. 9-19
Flat towing ................................... 9-19
Uniform tire quality grading .......................9-19
Treadwear .................................... 9-19
Traction AA, A, B and C ........................ 9-19
Temperature A, B and C ....................... 9-20
Emission control system warranty .................9-20
Reporting safety defects .......................... 9-21
Readiness for Inspection/Maintenance (I/M) test ....9-22
Event Data Recorders (EDR) .......................9-22
Owner’s Manual/Service Manual order
information ...................................... 9-23
In

the event of a collision ...................... 9-23

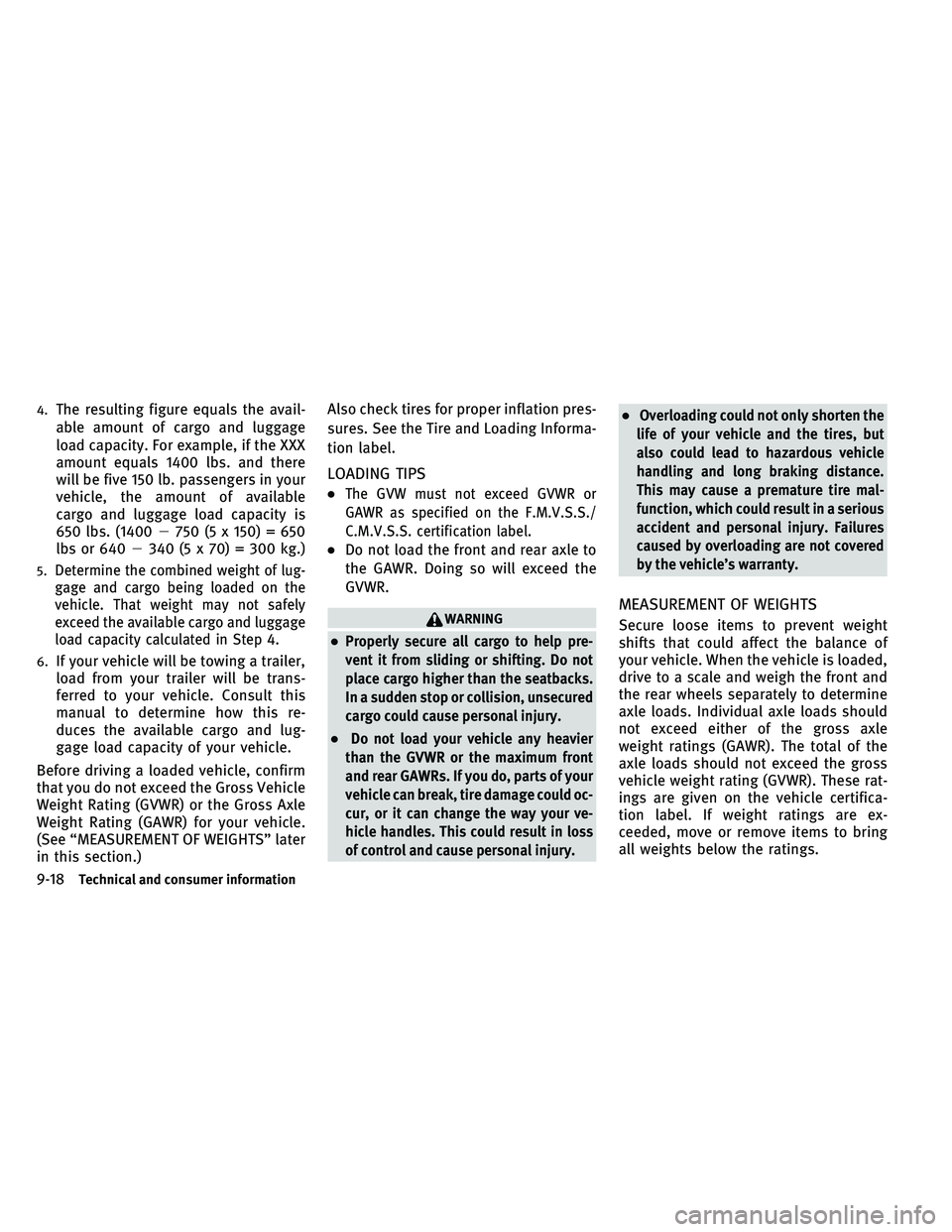

4.The resulting figure equals the avail-
able amount of cargo and luggage
load capacity. For example, if the XXX
amount equals 1400 lbs. and there
will be five 150 lb. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs. (1400 750 (5 x 150) = 650
lbs or 640 340 (5 x 70) = 300 kg.)
5.Determine the combined weight of lug-
gage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4.
6.If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this re-
duces the available cargo and lug-
gage load capacity of your vehicle.
Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
(See “MEASUREMENT OF WEIGHTS” later
in this section.) Also check tires for proper inflation pres-
sures. See the Tire and Loading Informa-
tion label.
LOADING TIPS
●The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S./
C.M.V.S.S. certification label.
●Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
WARNING
●Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
●Do not load your vehicle any heavier
than the GVWR or the maximum front
and rear GAWRs. If you do, parts of your
vehicle can break, tire damage could oc-
cur, or it can change the way your ve-
hicle handles. This could result in loss
of control and cause personal injury.
●Overloading could not only shorten the
life of your vehicle and the tires, but
also could lead to hazardous vehicle
handling and long braking distance.
This may cause a premature tire mal-
function, which could result in a serious
accident and personal injury. Failures
caused by overloading are not covered
by the vehicle’s warranty.
MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is loaded,
drive to a scale and weigh the front and
the rear wheels separately to determine
axle loads. Individual axle loads should
not exceed either of the gross axle
weight ratings (GAWR). The total of the
axle loads should not exceed the gross
vehicle weight rating (GVWR). These rat-
ings are given on the vehicle certifica-
tion label. If weight ratings are ex-
ceeded, move or remove items to bring
all weights below the ratings.
9-18
Technical and consumer information
