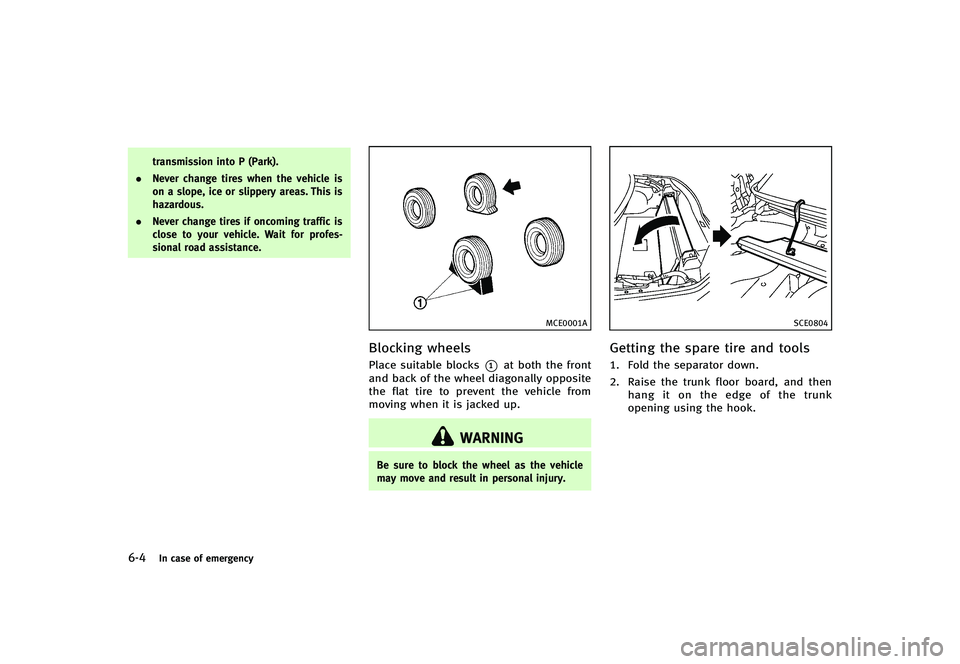

6-4In case of emergency
transmission into P (Park).
. Never change tires when the vehicle is
on a slope, ice or slippery areas. This is
hazardous.
. Never change tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.
MCE0001A
Blocking wheelsGUID-6A1DB770-53B2-4BFA-9588-B3D65FB9B9D7Place suitable blocks*1at both the front
and back of the wheel diagonally opposite
the flat tire to prevent the vehicle from
moving when it is jacked up.
WARNING
Be sure to block the wheel as the vehicle
may move and result in personal injury.
SCE0804
Getting the spare tire and toolsGUID-7DD2B12D-5730-4E55-BF75-F324EB9A62F61. Fold the separator down.
2. Raise the trunk floor board, and then
hang it on the edge of the trunk
opening using the hook.

SCE0800
3. Remove the jacking tool case.
4.Remove the retainer by turning it
counterclockwise, and then remove
the spare tire.
SCE0801
5. Remove the jack storage lid, and then
remove the jack.
Jacking up the vehicle and remov-
ing the damaged tire
GUID-365EE96F-DF7F-414D-BD83-A527F67299F9
WARNING
. Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use only the jack provided with your
vehicle to lift the vehicle. Do not use the
jack provided with your vehicle on other vehicles. The jack is designed for lifting
only your vehicle during a tire change.
. Use the correct jack-up points. Never use
any other part of the vehicle for jack
support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the jack.
. Do not start or run the engine while
vehicle is on the jack, as it may cause
the vehicle to move. This is especially
true for vehicles with limited slip differ-
entials.
. Do not allow passengers to stay in the
vehicle while it is on the jack.
Carefully read the caution label attached to
the jack body and the following instruc-
tions.
In case of emergency6-5

6-6In case of emergency

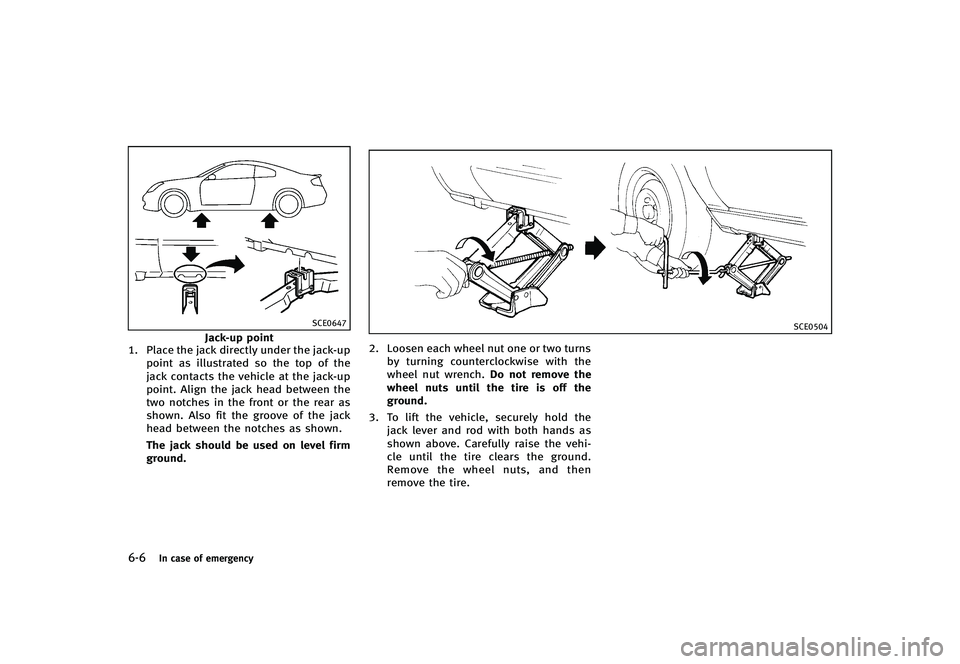

SCE0647
Jack-up point
1. Place the jack directly under the jack-up
point as illustrated so the top of the
jack contacts the vehicle at the jack-up
point. Align the jack head between the
two notches in the front or the rear as
shown. Also fit the groove of the jack
head between the notches as shown.
The jack should be used on level firm
ground.SCE0504
2. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.
3. To lift the vehicle, securely hold the jack lever and rod with both hands as
shown above. Carefully raise the vehi-
cle until the tire clears the ground.
Remove the wheel nuts, and then
remove the tire.

SCE0661
Installing the spare tireGUID-003A0190-9B2C-45A9-A542-11B8BA923B48The T-type spare tire is designed for
emergency use. (See specific instructions
under the heading“Wheels and tires” (P.8-
29).)
1. Clean any mud or dirt from the surface between the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
Check that all the wheel nuts contact
the wheel surface horizontally.
When replacing a front tire, make sure
that the hole in the spare tire wheel is
aligned with the pin on the brake rotor. 3. With the wheel nut wrench, tighten
wheel nuts alternately and evenly in the
sequence as illustrated (
*1,*2,*3,
*4,*5) until they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as
illustrated. Lower the vehicle comple-
tely.
WARNING
. Incorrect wheel nuts or improperly tigh-
tened wheel nuts can cause the wheel to
become loose or come off. This could
cause an accident.
. Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.
. Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).
.As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench. Wheel nut tightening torque:
80 ft-lb (108 N·m)
The wheel nuts must be kept tightened
to specifications at all times. It is
recommended that the wheel nuts be
tightened to specifications at each
lubrication interval.
.Adjust tire pressure to the COLD pressure.
COLD pressure:
After the vehicle has been parked for 3
hours or more or driven less than 1
mile (1.6 km).
COLD tire pressures are shown on the
Tire and Loading Information label
affixed to the driver side center pillar.
5. Securely store the flat tire and jacking equipment in the vehicle.
6. Place the jacking tool case and the trunk floor board over the damaged
tire.
7. Close the trunk.
WARNING
. Always make sure that the spare tire and
jacking equipment are properly secured
In case of emergency6-7

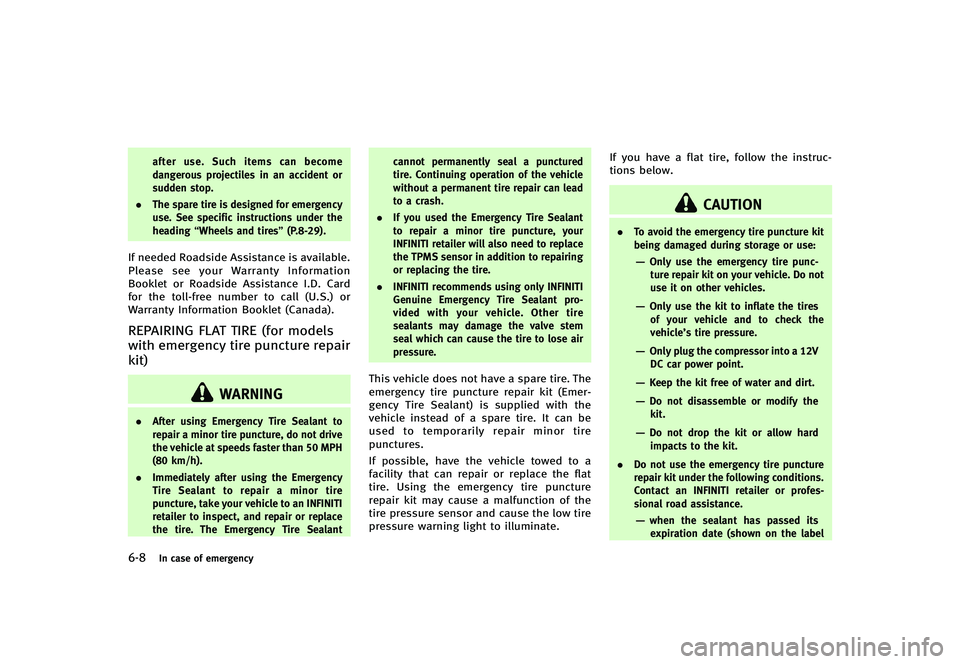

6-8In case of emergency
after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
. The spare tire is designed for emergency
use. See specific instructions under the
heading “Wheels and tires” (P.8-29).
If needed Roadside Assistance is available.
Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada).
REPAIRING FLAT TIRE (for models
with emergency tire puncture repair
kit)
GUID-A2EC433E-59F3-4454-8763-66668B584D77
WARNING
.After using Emergency Tire Sealant to
repair a minor tire puncture, do not drive
the vehicle at speeds faster than 50 MPH
(80 km/h).
. Immediately after using the Emergency
Tire Sealant to repair a minor tire
puncture, take your vehicle to an INFINITI
retailer to inspect, and repair or replace
the tire. The Emergency Tire Sealant cannot permanently seal a punctured
tire. Continuing operation of the vehicle
without a permanent tire repair can lead
to a crash.
. If you used the Emergency Tire Sealant
to repair a minor tire puncture, your
INFINITI retailer will also need to replace
the TPMS sensor in addition to repairing
or replacing the tire.
. INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant pro-
vided with your vehicle. Other tire
sealants may damage the valve stem
seal which can cause the tire to lose air
pressure.
This vehicle does not have a spare tire. The
emergency tire puncture repair kit (Emer-
gency Tire Sealant) is supplied with the
vehicle instead of a spare tire. It can be
used to temporarily repair minor tire
punctures.
If possible, have the vehicle towed to a
facility that can repair or replace the flat
tire. Using the emergency tire puncture
repair kit may cause a malfunction of the
tire pressure sensor and cause the low tire
pressure warning light to illuminate. If you have a flat tire, follow the instruc-
tions below.
CAUTION
.
To avoid the emergency tire puncture kit
being damaged during storage or use:
—Only use the emergency tire punc-
ture repair kit on your vehicle. Do not
use it on other vehicles.
—Only use the kit to inflate the tires
of your vehicle and to check the
vehicle’s tire pressure.
—Only plug the compressor into a 12VDC car power point.
—Keep the kit free of water and dirt.
—Do not disassemble or modify thekit.
—Do not drop the kit or allow hard
impacts to the kit.
. Do not use the emergency tire puncture
repair kit under the following conditions.
Contact an INFINITI retailer or profes-
sional road assistance.
—when the sealant has passed its
expiration date (shown on the label

attached to the bottle)
—when the cut or the puncture isapproximately 0.25 in (6 mm) or
longer
—when the tire sidewall is damaged
—when the vehicle has been drivenwith extremely low tire pressure
—when the tire has come off theinside or the outside of the wheel.
—when the tire wheel is damaged
—when two or more tires are flat
Stopping the vehicleGUID-6C84A54D-4B5D-4178-B441-FBBC7590315C1. Safely move the vehicle off the road
and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake.
4. Automatic Transmission models:
Move the selector lever to the P (Park)
position.
Manual Transmission models:
Move the shift lever to the R (Reverse)
position. 5. Turn off the engine.
6. Raise the hood to warn other traffic and
to signal professional road assistance
personnel that you need assistance.
7. Have all passengers get out of the vehicle and stand in a safe place, away
from traffic and clear of the vehicle.
WARNING
Make sure the parking brake is securely
applied and the manual transmission is
shifted into R (Reverse) or the automatic
transmission into P (Park).
. Never repair tires when the vehicle is on
a slope, ice or slippery areas. This is
hazardous.
. Never repair tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.
SCE0887
Getting emergency tire puncture
repair kit
GUID-16CB7F23-E591-4102-B36C-83255DD3FB7FTake out the emergency tire puncture
repair kit located under the cargo room or
in the trunk. The repair kit consists of the
following items:
*1Tire sealant bottle
*2Air compressor
*3Speed restriction sticker
NOTE:
For models with the emergency tire punc-
ture repair kit, a spare tire, jack and rod
are not equipped as standard. These parts
are dealer options. Contact an INFINITI
In case of emergency6-9

6-10In case of emergency
retailer about obtaining these parts. See
“Changing flat tire (for models with spare
tire)”(P.6-3) for usage of jacking tools and
tire replacement.
Before using emergency tire punc-
ture repair kit
GUID-C994BCD3-EB70-4BE1-AC12-BC734B28D6B8. If any foreign object (for example, a
screw or nail) is embedded in the tire,
do not remove it.
. Check the expiration date of the sealant
(shown on the label attached to the
bottle). Never use a sealant whose
expiration date has passed.
Repairing tireGUID-A73B72D6-D256-48D3-9998-8D39932B0F30
WARNING
Observe the following precautions when
using the tire repair compound.
. Swallowing the compound is dangerous.
Immediately drink as much water as
possible and seek prompt medical as-
sistance.
. Rinse well with lots of water if the
compound comes into contact with skin
or eyes. If irritation persists, seek
prompt medical attention. .
Keep the repair compound out of the
reach of children.
. The emergency repair compound may
cause a malfunction of the tire pressure
sensors and cause the low tire pressure
warning light to illuminate. Have the tire
pressure sensor replaced as soon as
possible.
NOTE:
Do not remove any nails or screws that
have penetrated the tire when performing
repairs.
SCE0867
1. Open the lid of the air compressor and
take out the speed restriction sticker,
then put it in a location where the
driver can see it while driving.
CAUTION
Do not put the speed restriction label on the
steering wheel pad, the speedometer or the
warning light locations.

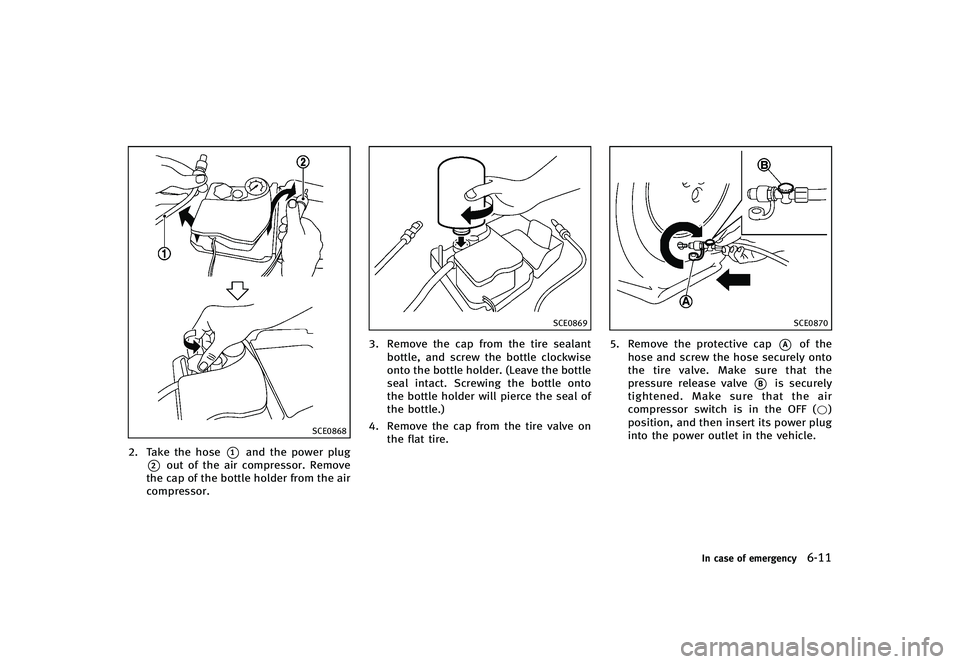

SCE0868
2. Take the hose*1and the power plug
*2out of the air compressor. Remove
the cap of the bottle holder from the air
compressor.
SCE0869
3. Remove the cap from the tire sealant
bottle, and screw the bottle clockwise
onto the bottle holder. (Leave the bottle
seal intact. Screwing the bottle onto
the bottle holder will pierce the seal of
the bottle.)
4. Remove the cap from the tire valve on the flat tire.
SCE0870
5. Remove the protective cap*Aof the
hose and screw the hose securely onto
the tire valve. Make sure that the
pressure release valve
*Bis securely
tightened. Make sure that the air
compressor switch is in the OFF (*)
position, and then insert its power plug
into the power outlet in the vehicle.
In case of emergency6-11

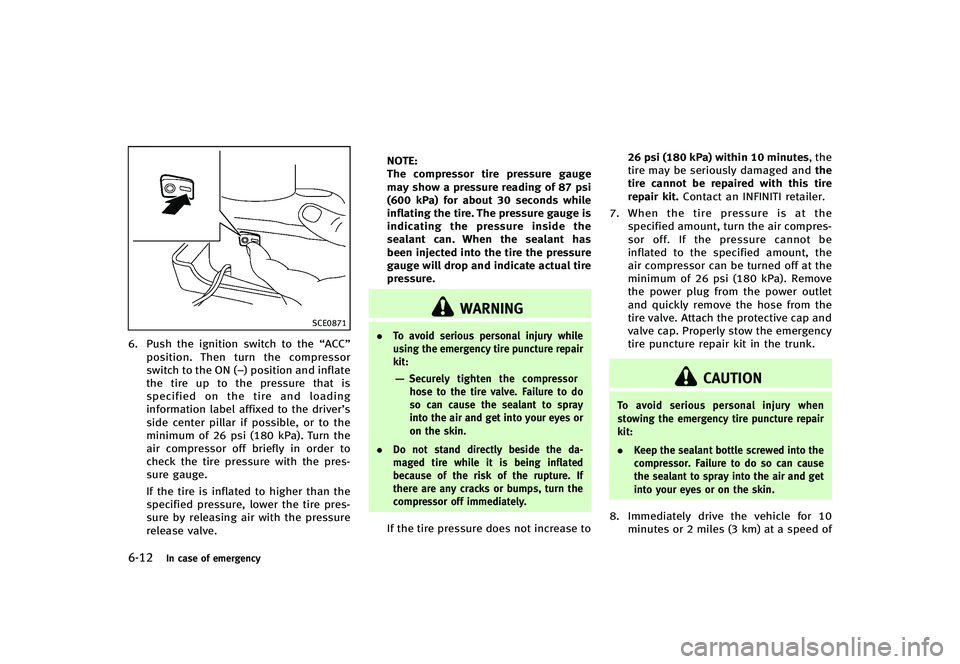

6-12In case of emergency
SCE0871
6. Push the ignition switch to the“ACC”
position. Then turn the compressor
switch to the ON (−) position and inflate
the tire up to the pressure that is
specified on the tire and loading
information label affixed to the driver’s
side center pillar if possible, or to the
minimum of 26 psi (180 kPa). Turn the
air compressor off briefly in order to
check the tire pressure with the pres-
sure gauge.
If the tire is inflated to higher than the
specified pressure, lower the tire pres-
sure by releasing air with the pressure
release valve. NOTE:
The compressor tire pressure gauge
may show a pressure reading of 87 psi
(600 kPa) for about 30 seconds while
inflating the tire. The pressure gauge is
indicating the pressure inside the
sealant can. When the sealant has
been injected into the tire the pressure
gauge will drop and indicate actual tire
pressure.
WARNING
.
To avoid serious personal injury while
using the emergency tire puncture repair
kit:
—Securely tighten the compressor
hose to the tire valve. Failure to do
so can cause the sealant to spray
into the air and get into your eyes or
on the skin.
. Do not stand directly beside the da-
maged tire while it is being inflated
because of the risk of the rupture. If
there are any cracks or bumps, turn the
compressor off immediately.
If the tire pressure does not increase to 26 psi (180 kPa) within 10 minutes, the
tire may be seriously damaged and
the
tire cannot be repaired with this tire
repair kit. Contact an INFINITI retailer.
7. When the tire pressure is at the
specified amount, turn the air compres-
sor off. If the pressure cannot be
inflated to the specified amount, the
air compressor can be turned off at the
minimum of 26 psi (180 kPa). Remove
the power plug from the power outlet
and quickly remove the hose from the
tire valve. Attach the protective cap and
valve cap. Properly stow the emergency
tire puncture repair kit in the trunk.
CAUTION
To avoid serious personal injury when
stowing the emergency tire puncture repair
kit:
. Keep the sealant bottle screwed into the
compressor. Failure to do so can cause
the sealant to spray into the air and get
into your eyes or on the skin.
8. Immediately drive the vehicle for 10
minutes or 2 miles (3 km) at a speed of

50 MPH (80 km/h) or less.
9. After driving, make sure that the air compressor switch is in the OFF posi-
tion, then screw the hose securely onto
the tire valve. Check the tire pressure
with the pressure gauge. The temporary
repair is completed if the tire pressure
does not drop.
Make sure the pressure is adjusted to
the pressure that is specified on the
tire and loading information label
before driving.
10. If the tire pressure drops, repeat the steps from 5 to 9. If the pressure drops
again or under 19 psi (130 kPa), the
tire cannot be repaired with this tire
repair kit. Contact an INFINITI retailer.
The sealant bottle and hose can not be
reused to repair another punctured tire.
Contact an INFINITI retailer to purchase
replacements.
After repairing tireGUID-4E33536E-075D-4123-B5DC-9F069D78BCDESee an INFINITI retailer for tire repair/
replacement as soon as possible.
WARNING
. After using Emergency Tire Sealant to
repair a minor tire puncture, do not drive
the vehicle at speeds faster than 50 MPH
(80 km/h).
. Immediately after using Emergency Tire
Sealant to repair a minor tire puncture,
take your vehicle to an INFINITI retailer
to inspect, and repair or replace the tire.
The Emergency Tire Sealant cannot
permanently seal a punctured tire. Con-
tinuing operation of the vehicle without
a permanent tire repair can lead to a
crash.
. If you used Emergency Tire Sealant to
repair a minor tire puncture, your
INFINITI retailer will also need to replace
the TPMS sensor in addition to repairing
or replacing the tire.
. INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant pro-
vided with your vehicle. Other tire
sealants may damage the valve stem
seal which can cause the tire to lose air
pressure.
GUID-5728BD27-D621-422D-90D6-784E66031447To start your engine with a booster battery,
the instructions and precautions below
must be followed.
WARNING
.If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also
damage your vehicle.
. Explosive hydrogen gas is always pre-
sent in the vicinity of the battery. Keep
all sparks and flames away from the
battery.
. Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a
corrosive sulphuric acid solution which
can cause severe burns. If the fluid
should come into contact with anything,
immediately flush the contacted area
with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle.
In case of emergency6-13
JUMP STARTING
