1. Hood (P.3-18)
2. Headlight and turn signal—Operation (P.2-33)
— Bulb replacement (P.8-26)
— Fog light (P.2-37)
3. Windshield wiper and washer —
Operation (P.2-30)
— Maintenance (P.8-20)
4. Power windows (P.2-48)
5. Recovery hook (P.6-19)
6. Front license plate installation (P.9-13)
7. Fog light (P.2-37) 8. Tires
—Wheel and tires (P.8-29, P.9-9)
— Flat tire (P.6-2)
— Tire pressure monitoring system
(TPMS) (P.2-12, P.5-4)
9. Outside mirrors (P.3-36)
10. Doors —Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
Illustrated table of contents0-3
EXTERIOR FRONT

GUID-2075472C-6623-4D22-B652-4F7655531773
SSI0819
1. Vehicle Dynamic Control (VDC) OFFswitch (P.5-54)
2. Trunk lid release switch (P.3-29)
3. Sonar system OFF switch (if so
equipped) (P.5-49) 4. Instrument brightness control switch
(P.2-37)
5. TRIP/RESET switch for twin trip od- ometer (P.2-7)
6. Headlight, fog light and turn signal switch (P.2-33) 7. Paddle shifter (if so equipped) (P.5-15)
8. Steering-wheel-mounted controls (Left
side)
—ENTER or tuning switch (P.4-81)
— BACK switch (P.4-81)
— TALK switch (P.4-109)/Phone
switch (P.4-84, P.4-95)
— Volume control switches (P.4-81)
— Source select switch (P.4-81)
9. Trip computer switch (P.2-25)
10. Windshield wiper and washer switch (P.2-30)
11. Steering-wheel-mounted controls
(Right side)
—Cruise control switches (P.5-21)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-23)
12. Hood release handle (P.3-18)
13. Intelligent Key port (P.5-9)
14. Electric tilting/telescopic steering
wheel lever (if so equipped) (P.3-34)
15. Manual tilting/telescopic steering
wheel lever (if so equipped) (P.3-34)
16. Steering wheel —Horn (P.2-38)
— Driver supplemental air bag
(P.1-35)
Illustrated table of contents0-7
COCKPIT

0-12Illustrated table of contents
GUID-136641A8-00EA-4FDE-BF49-C46A4BC29117
Warninglight Name
Page
Anti-lock Braking System (ABS)
warning light 2-10
Automatic Transmission check
warning light*2-11
Brake warning light
2-11
Charge warning light2-11
Engine oil pressure warning
light 2-12
Intelligent Cruise Control (ICC)
system warning light (orange)*2-12
Intelligent Key warning light 2-12
Low tire pressure warning light 2-12
Master warning light
2-13
Preview Function warning light
(orange)* 2-14
Seat belt warning light 2-14
Supplemental air bag warning
light
2-14
Vehicle Dynamic Control (VDC)
warning light2-14Indicator
light Name
Page
Automatic Transmission posi-
tion indicator light* 2-15
Front fog light indicator light 2-15
Front passenger air bag status
light2-15
High beam indicator light 2-15
Malfunction Indicator Light
(MIL)2-15
Security indicator light 2-16
Low beam indicator light 2-16
Turn signal/hazard indicator
lights2-16
Vehicle Dynamic Control (VDC)
off indicator light2-16
*: if so equipped
WARNING AND INDICATOR LIGHTS

2 Instruments and controls
Cockpit...
................................................................ 2-3
Instrument panel ...
................................................. 2-4
Meters and gauges ...
.............................................. 2-6
Speedometer and odometer ...
............................ 2-7
Tachometer ...
...................................................... 2-8
Engine coolant temperature gauge ...
.................. 2-8
Fuel gauge ...
...................................................... 2-9
Warning/indicator lights and
audible reminders ...
............................................. 2-10
Checking bulbs ...
.............................................. 2-10
Warning lights ...
............................................... 2-10
Indicator lights ...
.............................................. 2-15
Audible reminders ...
......................................... 2-16
Dot matrix liquid crystal display ...
........................ 2-17
Indicators for operation ...
................................. 2-19
Indicators for retractable hard top ...
................. 2-22
Indicators for maintenance ...
............................ 2-23
Trip computer ...
................................................ 2-25
Security systems ...
............................................... 2-27
Vehicle Security System ...
................................ 2-27
INFINITI Vehicle Immobilizer System ...
.............. 2-29
Windshield wiper and washer switch ...
................. 2-30
Rain-sensing auto wiper system
(if so equipped) ...
............................................. 2-32 Rear window and outside mirror
defroster switch
...
................................................ 2-33
Headlight and turn signal switch ...
....................... 2-33
Xenon headlights ...
......................................... 2-33
Headlight switch ...
.......................................... 2-34
Turn signal switch ...
........................................ 2-37
Fog light switch ...
........................................... 2-37
Hazard warning flasher switch ...
.......................... 2-38
Horn ...
................................................................. 2-38
Heated seats (if so equipped) ...
........................... 2-39
Climate controlled seats (if so equipped) ...
.......... 2-40
Vehicle Dynamic Control (VDC) OFF switch ...
......... 2-41
Clock ...
................................................................. 2-42
Adjusting the time ...
....................................... 2-42
Power outlets ...
.................................................... 2-42
Cigarette lighter and ashtrays (if so equipped) ...
.... 2-43
Front ...
............................................................ 2-43
Rear ...
............................................................. 2-44
Storage ...
............................................................. 2-44
Cup holders ...
................................................. 2-44
Glove box ...
.................................................... 2-46
Console box ...
................................................. 2-46
Storage box (if so equipped) ...
........................ 2-47
Windows ...
........................................................... 2-48
Power windows ...
............................................ 2-48>

GUID-3D0B5C00-6F2B-4B4E-80B4-0BCB718F22F5
SSI0819
1. Vehicle Dynamic Control (VDC) OFFswitch (P.5-54)
2. Trunk lid release switch (P.3-29)
3. Sonar system OFF switch (if so
equipped) (P.5-49) 4. Instrument brightness control switch
(P.2-37)
5. TRIP/RESET switch for twin trip od- ometer (P.2-7)
6. Headlight, fog light and turn signal switch (P.2-33) 7. Paddle shifter (if so equipped) (P.5-15)
8. Steering-wheel-mounted controls (Left
side)
—ENTER or tuning switch (P.4-81)
— BACK switch (P.4-81)
— TALK switch (P.4-109)/Phone
switch (P.4-84, P.4-95)
— Volume control switches (P.4-81)
— Source select switch (P.4-81)
9. Trip computer switch (P.2-25)
10. Windshield wiper and washer switch (P.2-30)
11. Steering-wheel-mounted controls
(Right side)
—Cruise control switches (P.5-21)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-23)
12. Hood release handle (P.3-18)
13. Intelligent Key port (P.5-9)
14. Electric tilting/telescopic steering
wheel lever (if so equipped) (P.3-34)
15. Manual tilting/telescopic steering
wheel lever (if so equipped) (P.3-34)
16. Steering wheel —Horn (P.2-38)
— Driver supplemental air bag
(P.1-35)
Instruments and controls2-3
COCKPIT

2-10Instruments and controls
GUID-EE18F31C-6492-4DA3-9A8F-B857D93F6388
Anti-lock Braking System (ABS) warning
lightIntelligent Key warning lightFront fog light indicator light
Low tire pressure warning lightFront passenger air bag status light
Automatic transmission check warning
light*Master warning lightHigh beam indicator light
Brake warning lightPreview Function warning light (orange)*Malfunction Indicator Light (MIL)
Seat belt warning lightSecurity indicator light
Charge warning lightSupplemental air bag warning lightLow beam indicator light
Engine oil pressure warning lightVehicle Dynamic Control (VDC) warning lightTurn signal/hazard indicator lights
Intelligent Cruise Control (ICC) system
warning light (orange)*Automatic transmission position indicator
light*Vehicle Dynamic Control (VDC) off indicator
light
*: if so equipped
CHECKING BULBSGUID-48D5F614-6AB6-4358-8741-C367A99F3DD9With all doors closed, apply the parking
brake and push the ignition switch to the
ON position without starting the engine.
The following lights will come on (if so
equipped):
,or,,,,
The following lights come on briefly and
then go off (if so equipped):
,or,,,,,
If any light does not come on, it may
indicate a burned-out bulb or an open
circuit in the electrical system. Have the system checked by an INFINITI retailer.
Some indicators and warnings are also
displayed on the dot matrix crystal display
between the speedometer and tachometer.
(See
“Dot matrix liquid crystal display”
(P.2-17).)
WARNING LIGHTSGUID-ABDBE74C-933A-449B-B855-B70E42CD39FF
orAnti-lock Braking
System (ABS) warning light
GUID-6EEC4327-E350-4F3A-9470-29AE4D172CADWhen the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while
the engine is running, or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked by an
INFINITI retailer.
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

thus alerting the driver that the vehicle is
nearing its traction limits. The road surface
may be slippery.
When the vehicle dynamic control warning
light illuminates when the vehicle dynamic
control system is turned on, this light
alerts the driver to the fact that the vehicle
dynamic control system’s fail-safe mode is
operating, for example the vehicle dynamic
control system may not be functioning
properly. Have the system checked by an
INFINITI retailer. If a malfunction occurs in
the system, the vehicle dynamic control
system function will be canceled but the
vehicle is still driveable. For additional
information, see“Vehicle Dynamic Control
(VDC) system” (P.5-54) of this manual.
INDICATOR LIGHTSGUID-64224243-3D85-45E9-840F-E29B74A1855A
Automatic transmission posi-
tion indicator light (if so equipped)
GUID-F12DE2FF-4D6B-4F62-8F44-84CE06C5841EWhen the ignition switch is pushed to the
ON position, the indicator shows the
automatic selector shift position.
In the manual shift mode, when the
transmission does not shift to the selected
gear due to the transmission protection
mode, the AT position indicator light will
blink and a chime will sound. (See
“Automatic transmission” (P.5-13).)
Front fog light indicator lightGUID-89DB9C0E-A5A2-42CB-8F4C-563F783E6EF9The front fog light indicator light illumi-
nates when the front fog lights are on. (See
“Fog light switch”(P.2-37).)
Front passenger air bag status
light
GUID-56567F38-A7E9-4445-882A-4C4EC06CF83FThe front passenger air bag status light
() located under the climate controls
will be lit and the passenger front air bag
will be OFF depending on how the front
passenger seat is being used.
For front passenger air bag status light
operation, see “INFINITI Advanced Air Bag
System (front seats)” (P.1-40) of this
manual.
High beam indicator lightGUID-9E559E28-47EC-4A74-B9B9-B97EFBAD0089This light comes on when the headlight
high beam is on and goes out when the low
beam is selected.
Malfunction Indicator Light
(MIL)
GUID-CCF62CD3-CAC8-43D4-8902-CA55F37F5E80If the malfunction indicator light comes on
steady or blinks while the engine is
running, it may indicate a potential emis-
sion control malfunction. The malfunction indicator light may also
come on steady if the fuel-filler cap is loose
or missing, or if the vehicle runs out of fuel.
Check to make sure the fuel-filler cap is
installed and closed tightly, and that the
vehicle has at least 3 US gallons (14 liters)
of fuel in the fuel tank.
After a few driving trips, the
light
should turn off if no other potential
emission control system malfunction ex-
ists.
If this indicator light remains on for 20
seconds and then blinks for 10 seconds
when the engine is not running, it indicates
that the vehicle is not ready for an
emission control system inspection/main-
tenance test. (See “Readiness for Inspec-
tion/Maintenance (I/M) test” (P.9-23).)
Operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The malfunction indicator light will come
on in one of two ways:
. Malfunction indicator light on steady —
An emission control system malfunc-
tion has been detected. Check the fuel-
filler cap if the LOOSE FUEL CAP
warning appears in the dot matrix
liquid crystal display. If the fuel-filler
cap is loose or missing, tighten or
Instruments and controls2-15

GUID-7DBA5951-7A07-431B-9E38-2EEF2D178DF7
SIC3239
To defog/defrost the rear window glass
and outside mirrors, start the engine and
push the switch
*1on. The indicator light
*2will come on. Push the switch again to
turn the defroster off.
It will automatically turn off in approxi-
mately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or damage
the rear window defroster.
GUID-B880B927-0D4A-4166-BD8D-A23B5CA4EDFD
XENON HEADLIGHTSGUID-B40150F6-DD79-4915-B6F1-208ABCF3DCF8
WARNING
HIGH VOLTAGE
. When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xenon
headlights replaced at an INFINITI retai-
ler.
. Xenon headlights provide considerably
more light than conventional headlights.
If they are not correctly aimed, they
might temporarily blind an oncoming
driver or the driver ahead of you and
cause a serious accident. If headlights
are not aimed correctly, immediately
take your vehicle to an INFINITI retailer
and have the headlights adjusted cor-
rectly.
When the xenon headlight is initially
turned on, its brightness or color varies
slightly. However, the color and brightness
will soon stabilize.
.The life of xenon headlights will be
shortened by frequent on-off operation. It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon head-
lights is not reduced.
. If the xenon headlight bulb is close to
burning out, the brightness will dras-
tically decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact an INFINITI
retailer.
Instruments and controls2-33
REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL SWITCH

Instrument brightness controlGUID-12851570-6D1E-4370-8D99-C4EDFBEA97EEThe instrument brightness control switch
can be operated when the ignition switch
is in the ON position. When the switch is
operated, the dot matrix liquid crystal
display switches to the brightness adjust-
ment mode.
Push the upper switch
*Ato brighten the
instrument panel lights. The bar
*1moves
to the + side. When reaching the maximum
brightness, “MAX”appears on the display
*2.
Push the lower switch
*Bto dim the
instrument panel lights. The bar
*1moves
to the −side. When reaching the minimum
brightness, “MIN”appears on the display
*3. However, “MIN”does not appear
during the nighttime.
The dot matrix liquid crystal display
returns to the normal display under the
following conditions:
. when the instrument brightness control
switch is not operated for more than 5
seconds.
. when the side or front of the
switch
orswitch on the right side of the
combination meter panel is pushed.
SIC3271
TURN SIGNAL SWITCHGUID-8BE38289-93AF-42A1-AF21-0183D12A80A5
*1Turn signalGUID-8ABF208E-C25E-4E7D-B7E2-6D8E91263B2DMove the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signals cancel automati-
cally.
*2Lane change signalGUID-05BC5F28-D0F7-4935-A2B1-8907F8541DECTo indicate a lane change, move the lever
up or down to the point where lights begin
flashing.
SIC3272
FOG LIGHT SWITCHGUID-68AA7C2A-9996-4CFA-A902-0702C250C7CCTo turn the fog lights on, turn the headlight
switch to theposition, then turn the
switch to theposition. To turn them
off, turn the switch to the OFF position.
The headlights must be on for the fog
lights to operate.
When the headlight switch is in the AUTO
position and the fog light switch is in the
position, the headlights and fog lights
turn ON at night.
Instruments and controls2-37

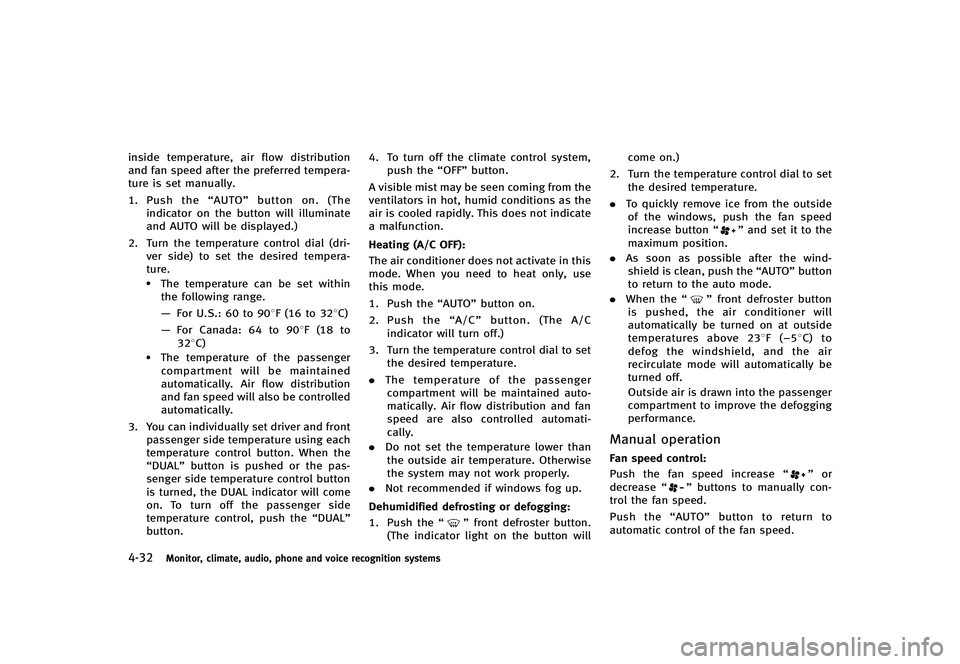

4-32Monitor, climate, audio, phone and voice recognition systems
inside temperature, air flow distribution
and fan speed after the preferred tempera-
ture is set manually.
1.Push the “AUTO”button on. (The
indicator on the button will illuminate
and AUTO will be displayed.)
2. Turn the temperature control dial (dri- ver side) to set the desired tempera-
ture.
.The temperature can be set withinthe following range.
— For U.S.: 60 to 908F (16 to 328C)
— For Canada: 64 to 908F (18 to
328C)
.The temperature of the passengercompartment will be maintained
automatically. Air flow distribution
and fan speed will also be controlled
automatically.
3. You can individually set driver and front passenger side temperature using each
temperature control button. When the
“DUAL” button is pushed or the pas-
senger side temperature control button
is turned, the DUAL indicator will come
on. To turn off the passenger side
temperature control, push the “DUAL”
button. 4. To turn off the climate control system,
push the “OFF”button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the
air is cooled rapidly. This does not indicate
a malfunction.
Heating (A/C OFF):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The air conditioner does not activate in this
mode. When you need to heat only, use
this mode.
1. Push the “AUTO”button on.
2. Push the “A/C”button. (The A/C
indicator will turn off.)
3. Turn the temperature control dial to set the desired temperature.
. The temperature of the passenger
compartment will be maintained auto-
matically. Air flow distribution and fan
speed are also controlled automati-
cally.
. Do not set the temperature lower than
the outside air temperature. Otherwise
the system may not work properly.
. Not recommended if windows fog up.
Dehumidified defrosting or defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the “”front defroster button.
(The indicator light on the button will come on.)
2. Turn the temperature control dial to set the desired temperature.
. To quickly remove ice from the outside
of the windows, push the fan speed
increase button “
”and set it to the
maximum position.
. As soon as possible after the wind-
shield is clean, push the “AUTO”button
to return to the auto mode.
. When the “
”front defroster button
is pushed, the air conditioner will
automatically be turned on at outside
temperatures above 238F (−58C) to
defog the windshield, and the air
recirculate mode will automatically be
turned off.
Outside air is drawn into the passenger
compartment to improve the defogging
performance.
Manual operationGUID-7F11AF27-ED27-452C-BE0F-1FBFEF4E2B04Fan speed control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the fan speed increase “”or
decrease “”buttons to manually con-
trol the fan speed.
Push the “AUTO”button to return to
automatic control of the fan speed.
