fuel reserve INFINITI G-CONVERTIBLE 2012 Owners Manual

SIC4292

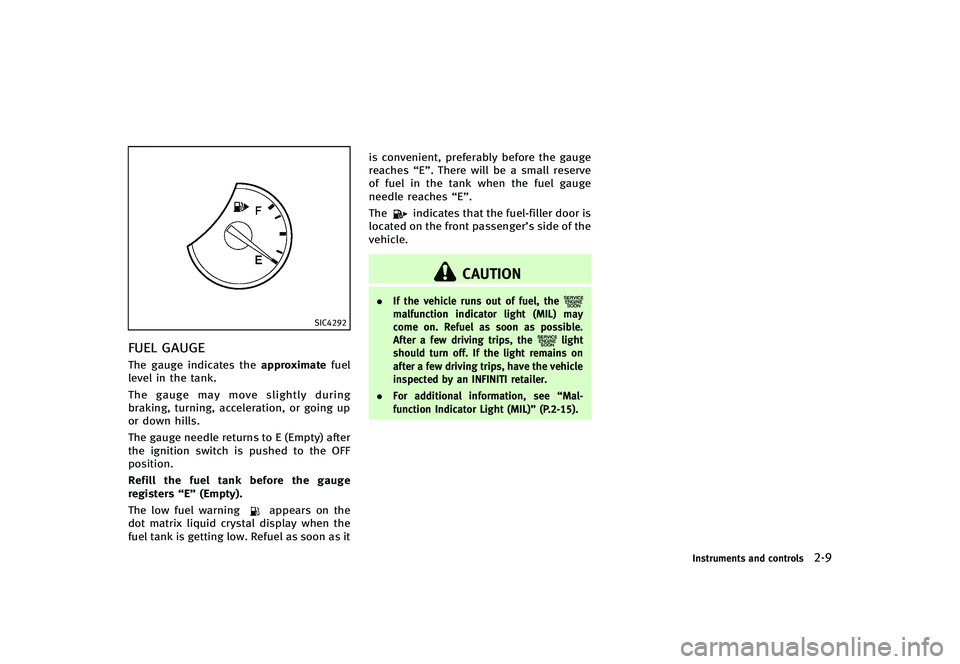

FUEL GAUGEGUID-73DD2CD4-6292-4B57-981A-DB493F9D915CThe gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during
braking, turning, acceleration, or going up
or down hills.
The gauge needle returns to E (Empty) after
the ignition switch is pushed to the OFF
position.
Refill the fuel tank before the gauge
registers “E”(Empty).
The low fuel warning
appears on the
dot matrix liquid crystal display when the
fuel tank is getting low. Refuel as soon as it is convenient, preferably before the gauge
reaches
“E”. There will be a small reserve
of fuel in the tank when the fuel gauge
needle reaches “E”.
The
indicates that the fuel-filler door is
located on the front passenger’s side of the
vehicle.
CAUTION
. If the vehicle runs out of fuel, themalfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the
light
should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected by an INFINITI retailer.
. For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-15).
Instruments and controls2-9

2-20Instruments and controls
8. Engine start operation indicator
(Manual Transmission models)
GUID-DBDAE3A2-CB00-42CF-830F-56CFC89016D9This indicator means that the engine will
start by pushing the ignition switch with
the clutch pedal depressed.
9. Parking brake release warningGUID-A29E560B-AC65-45EF-BD61-D46B01E8D317This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
10. Low fuel warningGUID-C398ED0E-471A-4276-8E87-41D8B1B5D7C6This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (E) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (E) position.
11. Low washer fluid warningGUID-4B511101-A790-47D3-8A2A-05D513567AC2This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See“Window washer fluid”
(P.8-14).)
12. Door/trunk open warning (igni-
tion switch is in the ON position)
GUID-D73931C6-CD04-450C-81A1-47A834D609C5This warning appears if any of the doors and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
13. Loose fuel cap warningGUID-BFE458ED-BCA7-4335-B8F7-73E37C39ABB7This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See
“Fuel-filler
cap ”(P.3-32).)
14. Check tire pressure warningGUID-4F8F90C9-1D1A-4B19-84DE-FB30ADE966CCThis warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. If
this warning appears, stop the vehicle and
adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. (See
“Low tire pressure warning light” (P.2-12)
and “Tire Pressure Monitoring System
(TPMS)” (P.5-4).)
15.“Time to rest” indicatorGUID-ED5D6E04-83A9-4A18-A337-1F03BC066E77This indicator appears when the set “time
to rest” indicator activates. You can set the
time for up to 6 hours. (See “Trip
computer” (P.2-25).)
16. Low outside temperature warn-
ing
GUID-780F773F-FB50-4944-8B7B-E69CA36895B2This warning appears if the outside tem-
perature is below 378F (38C). The warning
can be set not to be displayed. (See “Trip
computer” (P.2-25).)
17. Cruise indicatorGUID-3760C120-A3D7-4293-8781-3D4A6A9A5294Cruise main switch indicator:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The indicator is displayed when the cruise
control main switch is pushed. When the
main switch is pushed again, the indicator
disappears. When the cruise control main
switch indicator is displayed, the cruise
control system is operational.
Cruise set switch indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The indicator is displayed while the vehicle
speed is controlled by the cruise control
system. If the indicator blinks while the
engine is running, it may indicate that the
cruise control system is not functioning
properly. Have the system checked by an
INFINITI retailer.
See“Cruise control” (P.5-21) for details.
