SHIFT “P” warning→(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
Instruments and controls2-21

pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
Cruise set switch indicator :
The indicator is displayed while the vehicle
speed is controlled by the cruise control sys-
tem. If the indicator blinks while the engine is
running, it may indicate that the cruise control
system is not functioning properly. Have the
system checked by an INFINITI retailer.
See “CRUISE CONTROL” in the “5. Starting and
driving” section for details.
19. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)
The indicator is displayed when the Intelligent
Cruise Control (ICC) system main switch is
pushed. When the main switch is pushed again,
the indicator disappears. While the main switch
indicator is displayed, the ICC system is opera-
tional.
INDICATORS FOR MAINTENANCE
1. Engine oil replacement indicator
This indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
“TRIP COMPUTER” later in this section.)
2. Oil filter replacement indicator
This indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See
“TRIP COMPUTER” later in this section.)
3. Tire replacement indicator
This indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See “TRIP COM-
PUTER” later in this section.)
4. “OTHER” indicator
This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “TRIP COMPUTER”
later in this section.)
SIC3281
2-22Instruments and controls

4. Distance to empty (dte — mls or
km)
The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel
in the fuel tank and the actual fuel consump-
tion.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “——”.
●If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may continue to
be displayed.
● When driving uphill or rounding curves, the
fuel in the tank shifts, which may momen-
tarily change the display.
5. Outside air temperature (ICY — °F
or °C)
The outside air temperature is displayed in °F or
°C in the range of 22 to 131°F (30 to 55°C). The outside air temperature mode includes a
low temperature warning feature. If the outside
air temperature is below 37°F (3°C), the warning
is displayed on the screen.
The outside temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual outside temperature or the
temperature displayed on various signs or bill-
boards.
6. Setting
Setting cannot be made while driving. A mes-
sage “Setting can only be operated when
stopped” is also displayed on the dot matrix
crystal display.
The
switchAandswitchBare
used in the setting mode to select and decide a
menu.
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus. ALERT :
There are 3 submenus under the alert menu.
●
BACK
Select this submenu to return to the top
page of the setting mode.
● TIME TO REST
Select this submenu to specify when the
“time to rest” indicator activates.
● ICY
Select this submenu to display the low out-
side temperature warning.
MAINTENANCE :
There are 5 submenus under the maintenance
menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● ENGINE OIL
Select this submenu to set or reset the
distance for changing the engine oil.
● OIL FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
Instruments and controls2-25

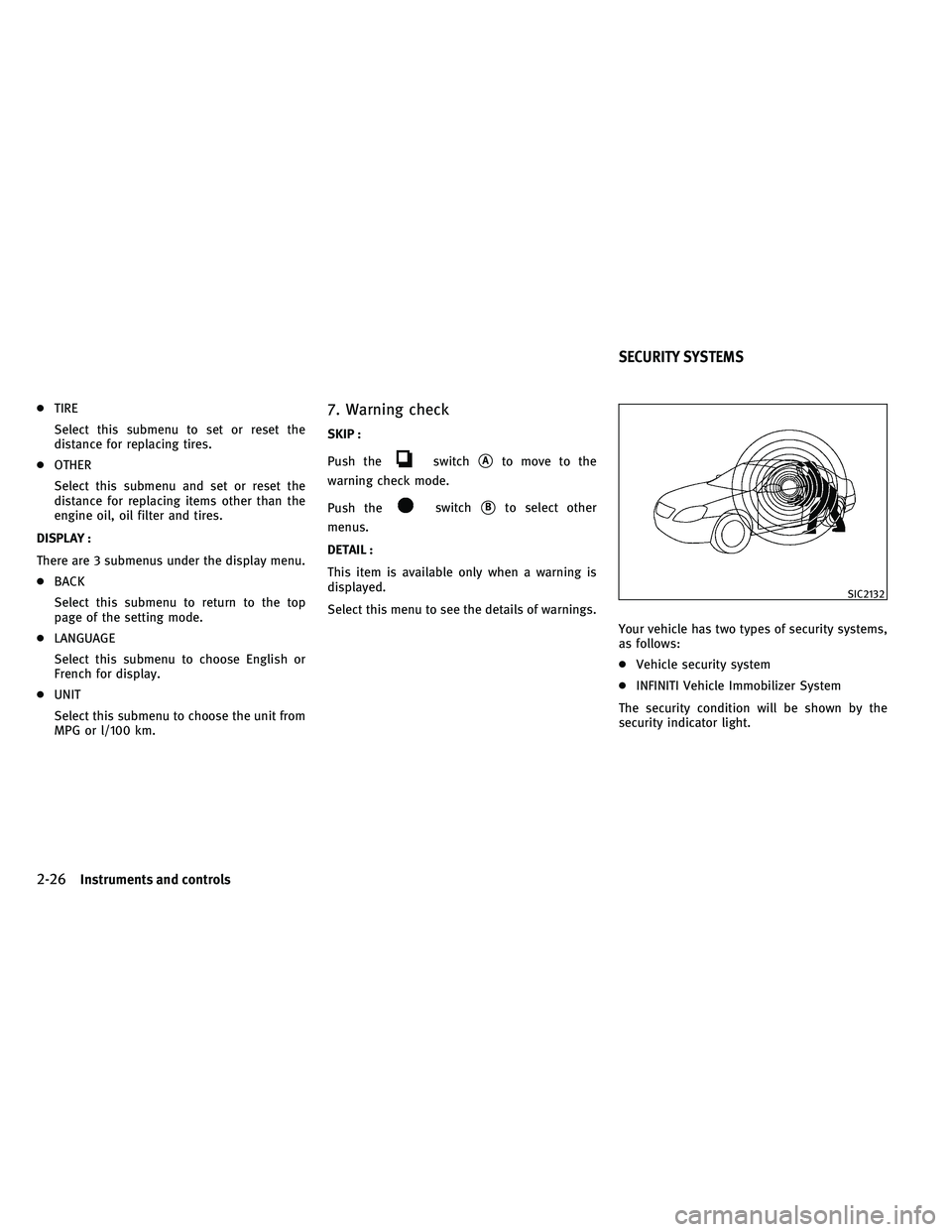

●TIRE
Select this submenu to set or reset the
distance for replacing tires.
● OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
DISPLAY :
There are 3 submenus under the display menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● LANGUAGE
Select this submenu to choose English or
French for display.
● UNIT
Select this submenu to choose the unit from
MPG or l/100 km.7. Warning check
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus.
DETAIL :
This item is available only when a warning is
displayed.
Select this menu to see the details of warnings. Your vehicle has two types of security systems,
as follows:
●Vehicle security system
● INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
SIC2132
SECURITY SYSTEMS
2-26Instruments and controls

The alarm is activated by:
●Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key. The alarm will not stop if
the ignition switch is pushed to the ACC or ON
position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Statement related to section 15 of FCC rules for
INFINITI Vehicle Immobilizer System (CONT
ASSY - CARD SLOT)
This device complies with part 15 of the FCC
Rules and RSS-210 of Industry Canada. Opera-
tion is subject to the following two conditions;
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that
may cause undesired operation of the device.
CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USER’S AUTHOR-
ITY TO OPERATE THE EQUIPMENT.
Security indicator light
The security indicator light is located on the
meter panel. It indicates the status of the
INFINITI Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the LOCK position. This function indicates the
security systems equipped on the vehicle are
operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, this light will remain on while
the ignition switch is in the ON position.
SIC2045
2-28Instruments and controls

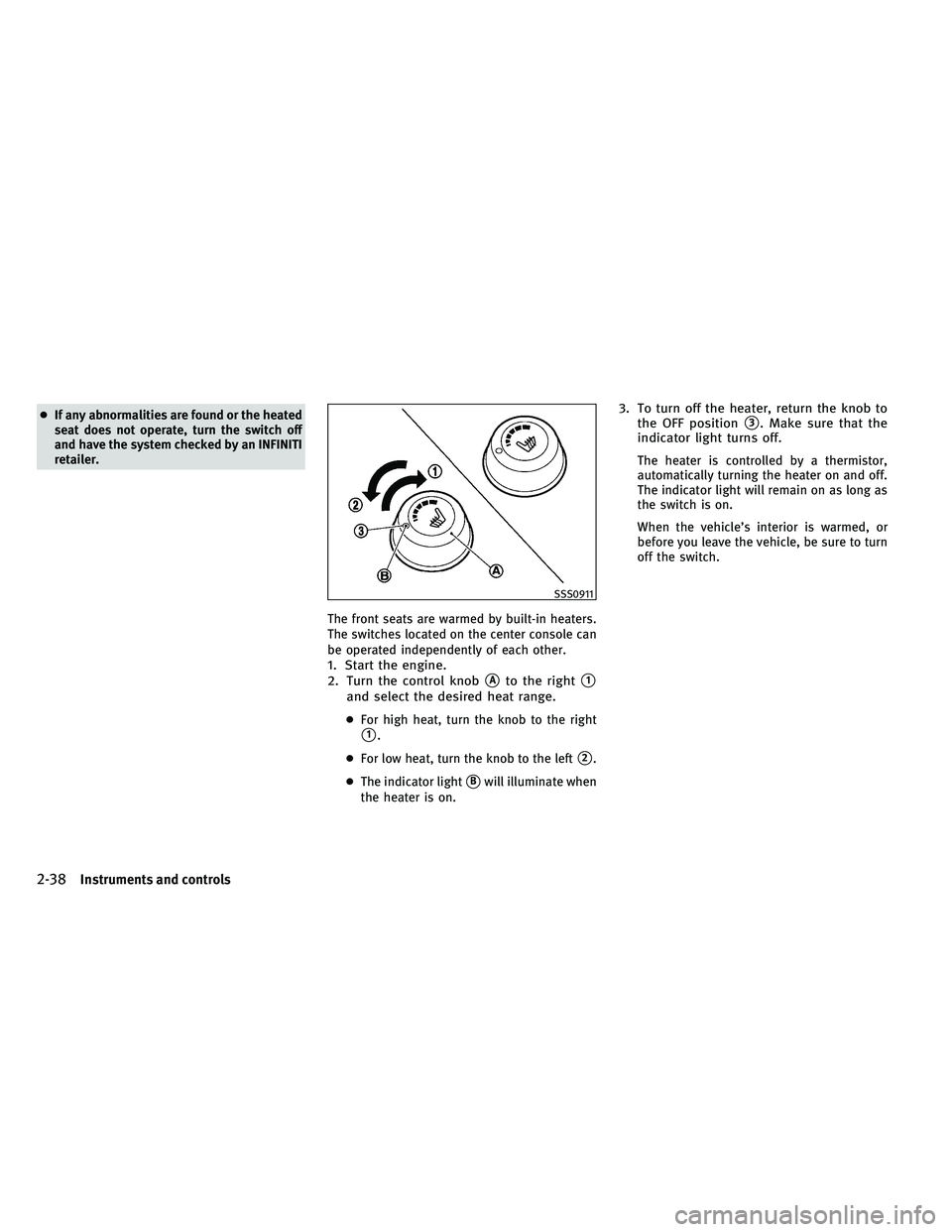

●If any abnormalities are found or the heated
seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.
The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.
1. Start the engine.
2. Turn the control knob
Ato the right1
and select the desired heat range.
●For high heat, turn the knob to the right
1.
● For low heat, turn the knob to the left
2.
● The indicator light
Bwill illuminate when
the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a thermistor,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
SSS0911
2-38Instruments and controls

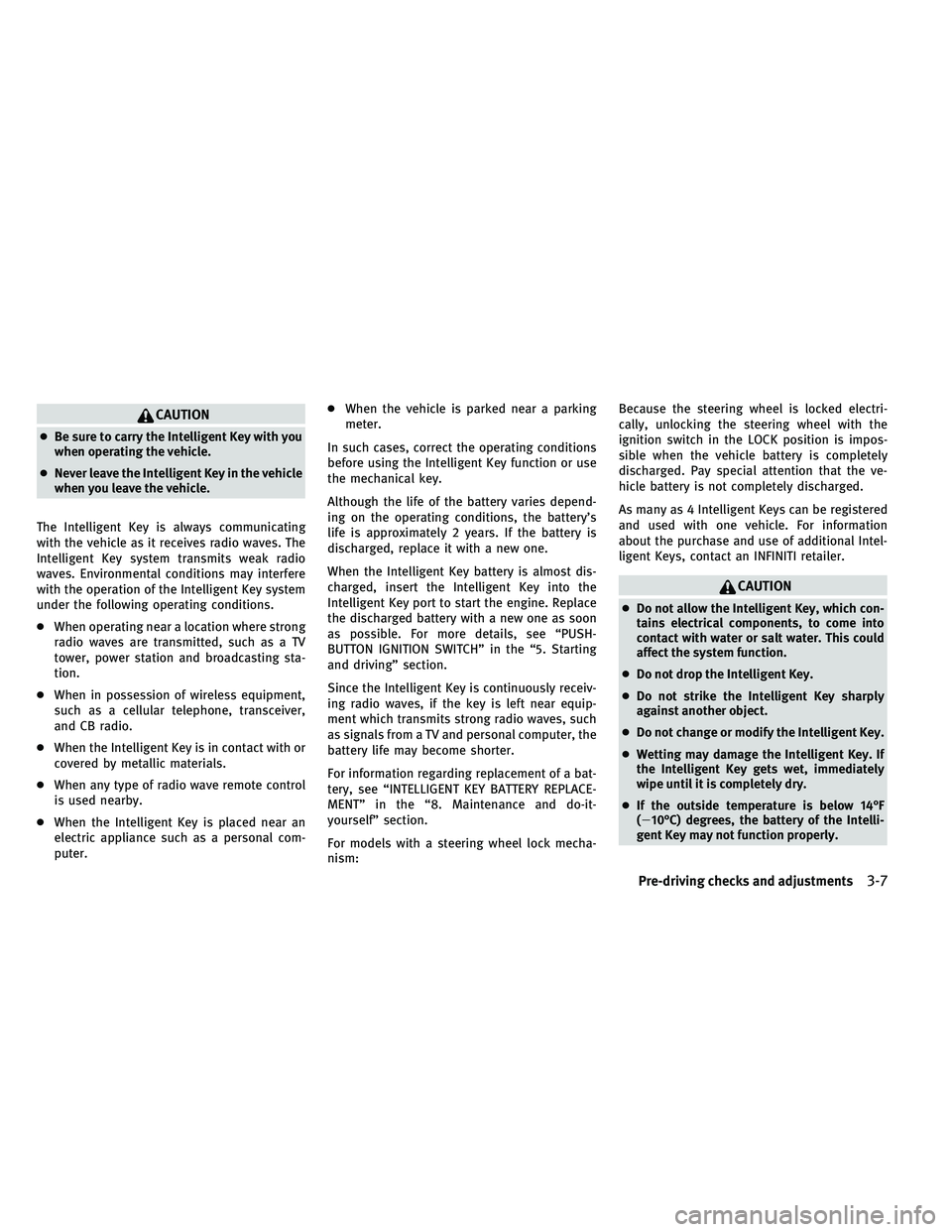

CAUTION
●Be sure to carry the Intelligent Key with you
when operating the vehicle.
● Never leave the Intelligent Key in the vehicle
when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
● When operating near a location where strong
radio waves are transmitted, such as a TV
tower, power station and broadcasting sta-
tion.
● When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
● When the Intelligent Key is in contact with or
covered by metallic materials.
● When any type of radio wave remote control
is used nearby.
● When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter. ●
When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depend-
ing on the operating conditions, the battery’s
life is approximately 2 years. If the battery is
discharged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the
Intelligent Key port to start the engine. Replace
the discharged battery with a new one as soon
as possible. For more details, see “PUSH-
BUTTON IGNITION SWITCH” in the “5. Starting
and driving” section.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equip-
ment which transmits strong radio waves, such
as signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a bat-
tery, see “INTELLIGENT KEY BATTERY REPLACE-
MENT” in the “8. Maintenance and do-it-
yourself” section.
For models with a steering wheel lock mecha-
nism: Because the steering wheel is locked electri-
cally, unlocking the steering wheel with the
ignition switch in the LOCK position is impos-
sible when the vehicle battery is completely
discharged. Pay special attention that the ve-
hicle battery is not completely discharged.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information
about the purchase and use of additional Intel-
ligent Keys, contact an INFINITI retailer.
CAUTION
●
Do not allow the Intelligent Key, which con-
tains electrical components, to come into
contact with water or salt water. This could
affect the system function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent Key.
● Wetting may damage the Intelligent Key. If
the Intelligent Key gets wet, immediately
wipe until it is completely dry.
● If the outside temperature is below 14°F
(10°C) degrees, the battery of the Intelli-
gent Key may not function properly.
Pre-driving checks and adjustments3-7

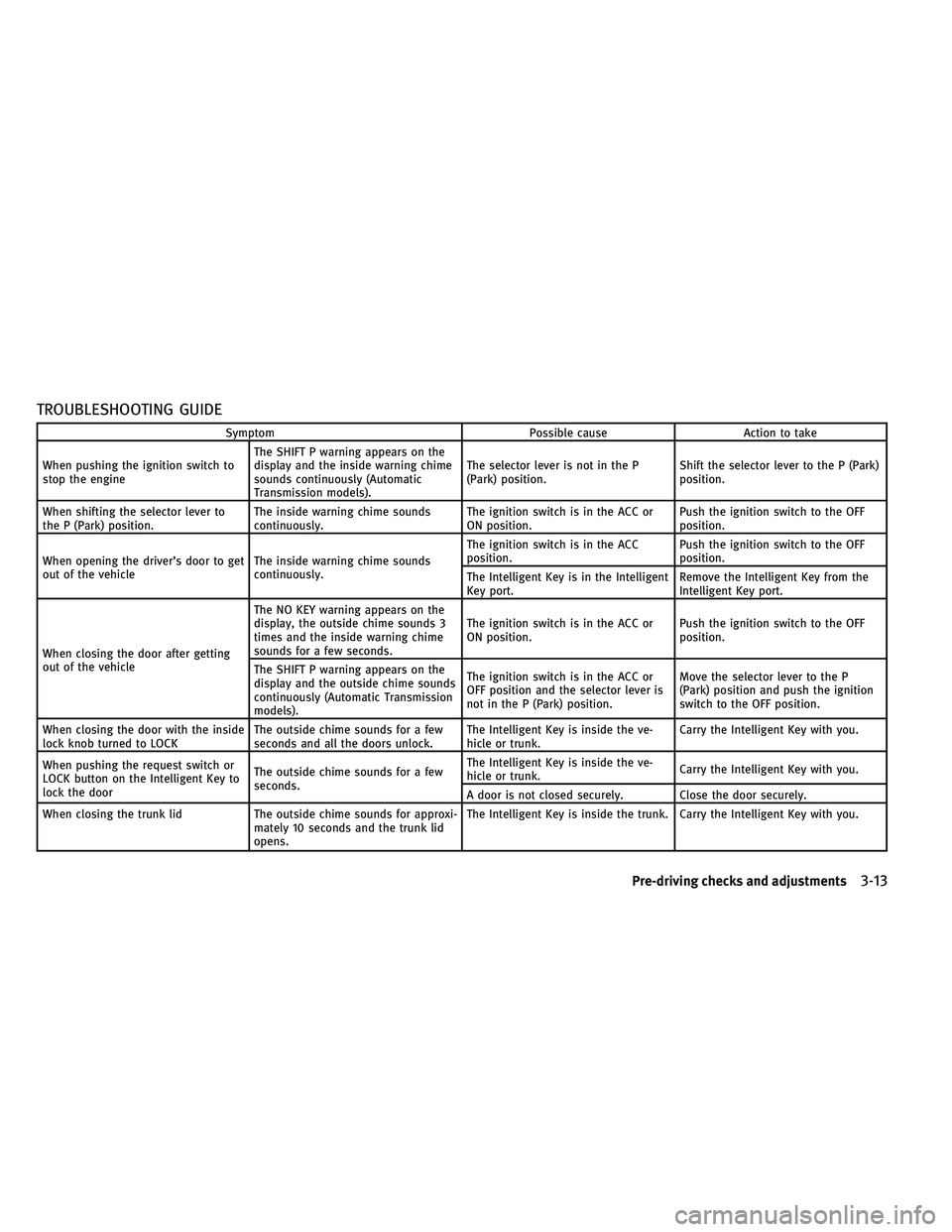

TROUBLESHOOTING GUIDE
SymptomPossible causeAction to take
When pushing the ignition switch to
stop the engine The SHIFT P warning appears on the
display and the inside warning chime
sounds continuously (Automatic
Transmission models). The selector lever is not in the P
(Park) position.
Shift the selector lever to the P (Park)
position.
When shifting the selector lever to
the P (Park) position. The inside warning chime sounds
continuously. The ignition switch is in the ACC or
ON position.Push the ignition switch to the OFF
position.
When opening the driver’s door to get
out of the vehicle The inside warning chime sounds
continuously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF
position.
The Intelligent Key is in the Intelligent
Key port. Remove the Intelligent Key from the
Intelligent Key port.
When closing the door after getting
out of the vehicle The NO KEY warning appears on the
display, the outside chime sounds 3
times and the inside warning chime
sounds for a few seconds.
The ignition switch is in the ACC or
ON position.
Push the ignition switch to the OFF
position.
The SHIFT P warning appears on the
display and the outside chime sounds
continuously (Automatic Transmission
models). The ignition switch is in the ACC or
OFF position and the selector lever is
not in the P (Park) position.
Move the selector lever to the P
(Park) position and push the ignition
switch to the OFF position.
When closing the door with the inside
lock knob turned to LOCK The outside chime sounds for a few
seconds and all the doors unlock. The Intelligent Key is inside the ve-
hicle or trunk.Carry the Intelligent Key with you.
When pushing the request switch or
LOCK button on the Intelligent Key to
lock the door The outside chime sounds for a few
seconds. The Intelligent Key is inside the ve-
hicle or trunk.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When closing the trunk lid The outside chime sounds for approxi-
mately 10 seconds and the trunk lid
opens. The Intelligent Key is inside the trunk. Carry the Intelligent Key with you.
Pre-driving checks and adjustments3-13

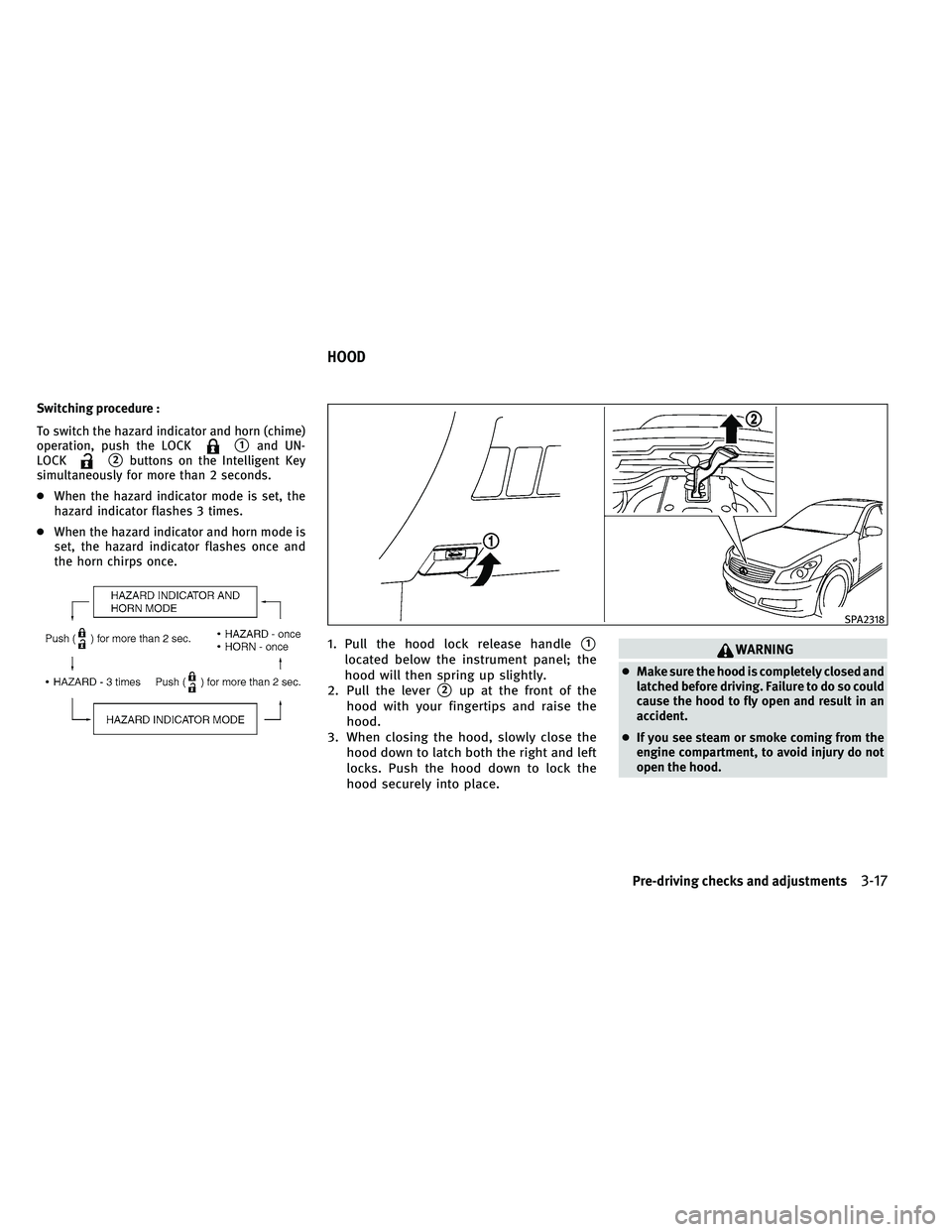

Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2318
HOOD
Pre-driving checks and adjustments3-17

OPENING THE FUEL-FILLER DOOR
To open the fuel-filler door, unlock the fuel-filler
door by using one of the following operations,
then push the right side of the door (Sedan) or
push the left side of the door (Coupe).
●Push the door handle request switch with
the Intelligent Key carried with you.
● Push the UNLOCK button on the Intelligent
Key.
● Insert the mechanical key into the door lock
cylinder and turn it to the rear of the vehicle.
● Push the power door lock switch to the
UNLOCK position.
To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
● Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire.
● Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the
malfunction indicator
light (MIL) to come on.
● Never pour fuel into the throttle body to at-
tempt to start your vehicle.
Sedan
SPA2554
Coupe
SPA1562A
FUEL-FILLER DOOR
3-22Pre-driving checks and adjustments
