Page 91 of 468
●If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as soon
as possible. Driving with under-inflated tires
may permanently damage the tires and in-
crease the likelihood of tire failure. Serious
vehicle damage could occur and may lead to
an accident and could result in serious per-
sonal injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the rec-
ommended COLD tire pressure shown on the
Tire and Loading Information label to turn
the low tire pressure warning light OFF. If the
light still illuminates while driving after ad-
justing the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a spare
tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after the 1 minute. Contact your
INFINITI retailer as soon as possible for tire
replacement and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.CAUTION
● The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
Master warning light
When the ignition switch is in the ON position,
the master warning light illuminates if any of
the following are displayed on the dot matrix
liquid crystal display:
● No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door/trunk open warning
● Loose fuel cap warning
● Check tire pressure warning
See “DOT MATRIX LIQUID CRYSTAL DISPLAY”
later in this section.
Preview Function warning
light (orange; if so equipped)
The light comes on if there is a malfunction in
the Brake Assist (with Preview Function) sys-
tem.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the igni-
tion switch is pushed to the ON position, and
will remain illuminated until the driver’s seat
belt is fastened. At the same time, the chime
will sound for about 6 seconds unless the
driver’s seat belt is securely fastened.
The seat belt warning light for the front passen-
ger will illuminate if the seat belt is not fastened
when the front passenger’s seat is occupied.
For approximately 5 seconds after the ignition
2-14Instruments and controls
Page 98 of 468
SHIFT “P” warning→(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
Instruments and controls2-21

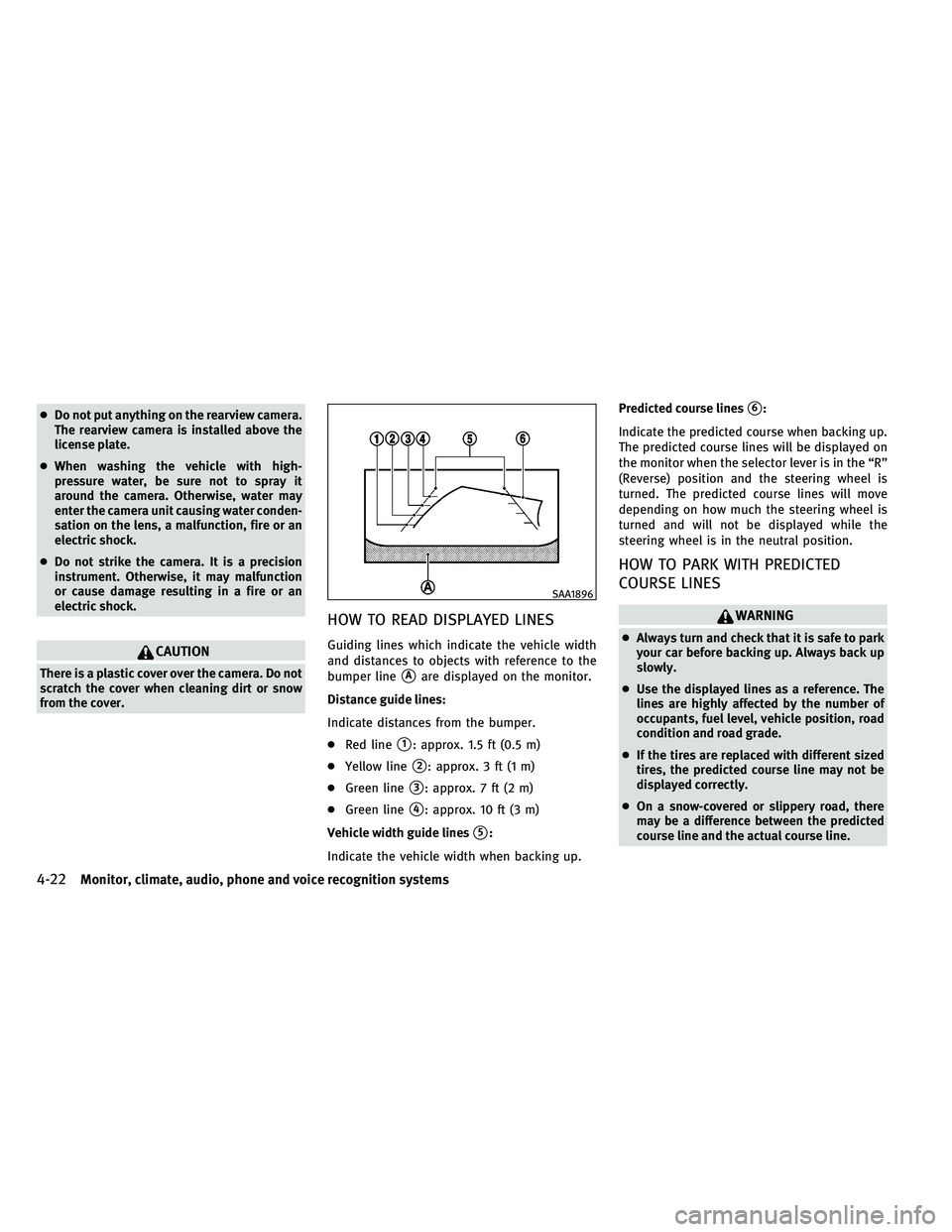

Page 193 of 468
●Do not put anything on the rearview camera.
The rearview camera is installed above the
license plate.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water may
enter the camera unit causing water conden-
sation on the lens, a malfunction, fire or an
electric shock.
● Do not strike the camera. It is a precision
instrument. Otherwise, it may malfunction
or cause damage resulting in a fire or an
electric shock.
CAUTION
There is a plastic cover over the camera. Do not
scratch the cover when cleaning dirt or snow
from the cover.
HOW TO READ DISPLAYED LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m)
Vehicle width guide lines
5:
Indicate the vehicle width when backing up. Predicted course lines
6:
Indicate the predicted course when backing up.
The predicted course lines will be displayed on
the monitor when the selector lever is in the “R”
(Reverse) position and the steering wheel is
turned. The predicted course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
HOW TO PARK WITH PREDICTED
COURSE LINES
WARNING
● Always turn and check that it is safe to park
your car before backing up. Always back up
slowly.
● Use the displayed lines as a reference. The
lines are highly affected by the number of
occupants, fuel level, vehicle position, road
condition and road grade.
● If the tires are replaced with different sized
tires, the predicted course line may not be
displayed correctly.
● On a snow-covered or slippery road, there
may be a difference between the predicted
course line and the actual course line.
SAA1896
4-22Monitor, climate, audio, phone and voice recognition systems
Page 305 of 468
5 Starting and driving
Precautions when starting and driving.............. 5-2
Exhaust gas (carbon monoxide) .................. 5-2
Three-way catalyst ............................. 5-2
Tire Pressure Monitoring System (TPMS) ......... 5-3
Avoiding collision and rollover ................... 5-5
Off-road recovery ............................... 5-6
Rapid air pressure loss ......................... 5-6
Drinking alcohol/drugs and driving .............. 5-7
All-Wheel Drive (AWD) driving safety
precautions .................................... 5-7
Push-button ignition switch ........................ 5-8
Intelligent Key system .......................... 5-8
Operating range for engine start function ......... 5-8
Push-button ignition switch operation ............ 5-9
Steering lock (if so equipped) ................... 5-9
Push-button ignition switch positions ...........5-10
Intelligent Key battery discharge ................5-10
Before starting the engine .........................5-11
Starting the engine ................................ 5-11
Driving the vehicle ................................ 5-12
Automatic transmission ......................... 5-12
Manual transmission .......................... 5-16
Parking brake .................................... 5-18
Automatic transmission models ..................5-19Manual transmission models
....................5-19
Cruise control ..................................... 5-19
Precautions on cruise control ....................5-19
Cruise control operations ......................5-20
Intelligent Cruise Control (ICC) system (if so
equipped) ....................................... 5-22
Selecting the vehicle-to-vehicle distance
control mode ................................. 5-23
Vehicle-to-vehicle distance control mode ........5-23
Precautions on vehicle-to-vehicle distance
control mode ................................. 5-24
Vehicle-to-vehicle distance control mode
operation ..................................... 5-26
Conventional (FIXED SPEED) cruise control
mode ........................................ 5-40
Preview function (for Intelligent Cruise
Control system equipped models) ..............5-43
Break-in schedule ................................ 5-43
Increasing fuel economy .......................... 5-44
All-Wheel Drive (AWD) (if so equipped) .............5-44
Parking/parking
on hills.......................... 5-46
Sonar system (if so equipped) .....................5-47
Sonar indicator ............................... 5-48
Sonar system off switch ....................... 5-49
Page 308 of 468
CAUTION
●Do not use leaded gasoline. Deposits from
leaded gasoline seriously reduce the three-
way catalyst’s ability to help reduce exhaust
pollutants.
● Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems can cause overrich fuel flow into the
three-way catalyst, causing it to overheat.
Do not keep driving if the engine misfires, or
if noticeable loss of performance or other
unusual operating conditions are detected.
Have the vehicle inspected promptly by an
INFINITI retailer.
● Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
● Do not race the engine while warming it up.
● Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure, even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Additional information
●
The TPMS does not monitor the tire pressure
of the spare tire.
● The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Starting and driving5-3
Page 349 of 468
●Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
● Drive at moderate speeds on the highway.
● Avoid unnecessary stopping and braking.
Keep a safe distance behind other vehicles.
● Select a gear range suitable to road condi-
tions.
● Avoid unnecessary prolonged engine idling.
● Keep your engine tuned up.
● Follow the recommended periodic mainte-
nance schedule.
● Keep the tires inflated at the correct pres-
sure. Improper tire pressure will increase
wear and waste fuel.
● Make sure the front wheels are properly
aligned. Improper alignment will cause pre-
mature tire wear and lower fuel economy.
● Climate control operation lowers fuel
economy. Use the air conditioner only when
necessary.
● When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag. The AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is pushed to the ON position. It
turns off soon after the engine is started. If any malfunction occurs in the AWD system
while the engine is running, the warning light
will come on.
The warning light may blink rapidly (about twice
per second) while trying to free a stuck vehicle
due to high power train oil temperature. The
driving mode may change to two-wheel drive. If
the warning light blinks rapidly during opera-
tion, stop the vehicle with the engine idling in a
safe place immediately. Then if the light goes
off after a while, you can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning
light blink slowly (about once per two seconds).
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the same,
tire pressure is correct and tires are not worn.
If the warning light is blinking after the above
operation, have your vehicle checked by an
INFINITI retailer as soon as possible.
SSD0336
INCREASING FUEL ECONOMY
ALL-WHEEL DRIVE (AWD) (if so equipped)
5-44Starting and driving
Page 394 of 468

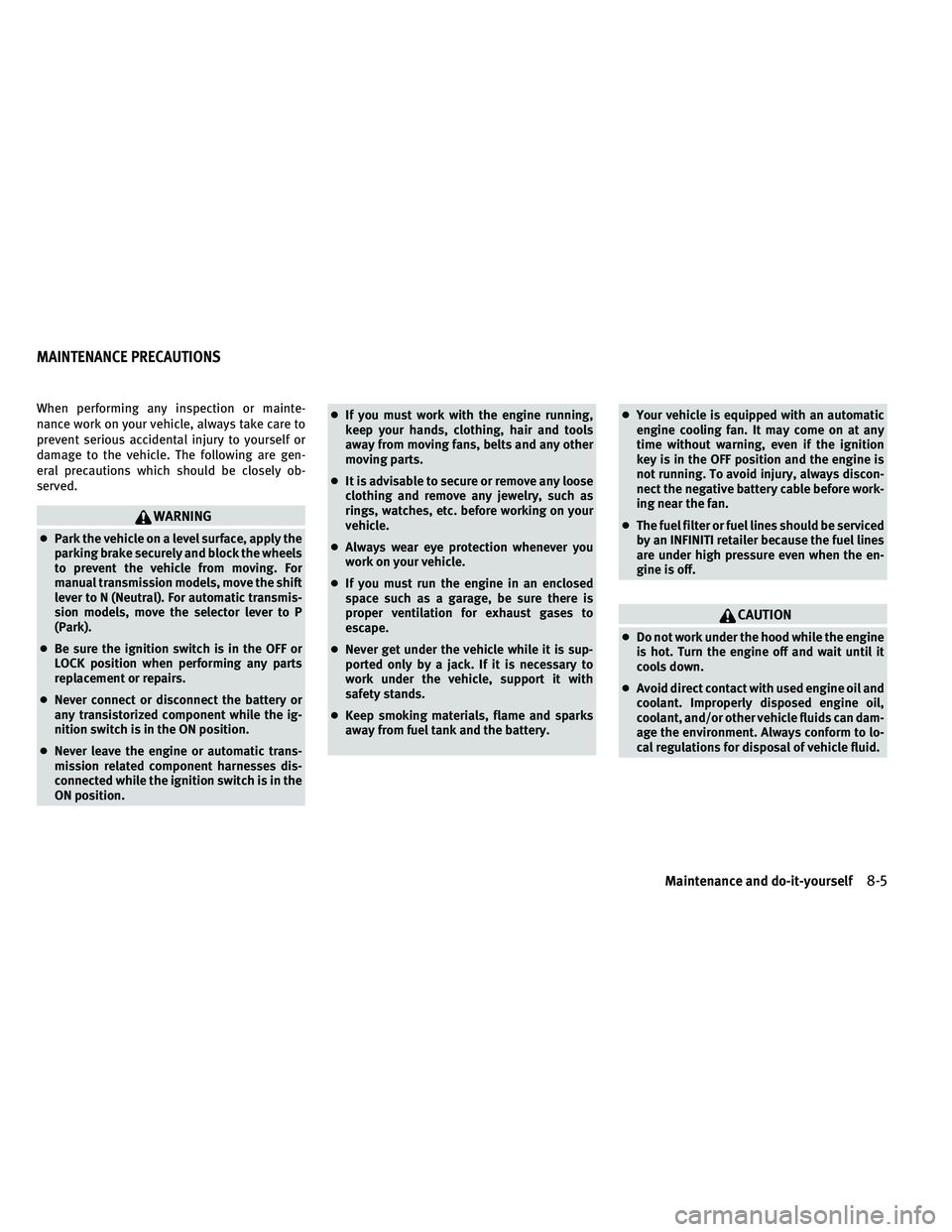

When performing any inspection or mainte-
nance work on your vehicle, always take care to
prevent serious accidental injury to yourself or
damage to the vehicle. The following are gen-
eral precautions which should be closely ob-
served.
WARNING
●Park the vehicle on a level surface, apply the
parking brake securely and block the wheels
to prevent the vehicle from moving. For
manual transmission models, move the shift
lever to N (Neutral). For automatic transmis-
sion models, move the selector lever to P
(Park).
● Be sure the ignition switch is in the OFF or
LOCK position when performing any parts
replacement or repairs.
● Never connect or disconnect the battery or
any transistorized component while the ig-
nition switch is in the ON position.
● Never leave the engine or automatic trans-
mission related component harnesses dis-
connected while the ignition switch is in the
ON position. ●
If you must work with the engine running,
keep your hands, clothing, hair and tools
away from moving fans, belts and any other
moving parts.
● It is advisable to secure or remove any loose
clothing and remove any jewelry, such as
rings, watches, etc. before working on your
vehicle.
● Always wear eye protection whenever you
work on your vehicle.
● If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.
● Never get under the vehicle while it is sup-
ported only by a jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Keep smoking materials, flame and sparks
away from fuel tank and the battery. ●
Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
key is in the OFF position and the engine is
not running. To avoid injury, always discon-
nect the negative battery cable before work-
ing near the fan.
● The fuel filter or fuel lines should be serviced
by an INFINITI retailer because the fuel lines
are under high pressure even when the en-
gine is off.
CAUTION
● Do not work under the hood while the engine
is hot. Turn the engine off and wait until it
cools down.
● Avoid direct contact with used engine oil and
coolant. Improperly disposed engine oil,
coolant, and/or other vehicle fluids can dam-
age the environment. Always conform to lo-
cal regulations for disposal of vehicle fluid.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5
Page 463 of 468
Interior light control switch...........2-53
Interior light replacement ............8-28
Interior lights .................. .2-53
Interior trunk lid release ............3-20
iPod player operation ............. .4-71
ISOFIX child restraint ..............1-23
J
Jump starting .................. .6-8
K
Keyless entry (See remote keyless entry
system) ..................... .3-14
Keys ........................ .3-2
For Intelligent Key system ..........3-6
L
Labels Air bag warning labels ............1-53
Air conditioner specification label .....9-14
Emission control information label .....9-14
Engine serial number ............9-13
F.M.V.S.S./C.M.V.S.S. certification label . .9-13
Tire and Loading information label .8-33, 9-14
Vehicle identification number (VIN) .....9-12
LATCH system .................. .1-23
License plate, Installing front license plate . .9-15
Light Air bag warning light .............1-53
Bulb replacement ............. .8-26
Fog light switch .............. .2-36Headlight switch
.............. .2-32
Headlights bulb replacement ........8-28
Indicator lights ............... .2-15
Interior light control switch .........2-53
Interior lights ................ .2-53
Map lights ................. .2-53
Replacement ................ .8-26
Trunk light ................. .2-55
Vanity mirror lights .............2-54
Warning/indicator lights and audible
reminders .................. .2-11
Xenon headlights ............. .2-32
Lights, Exterior and interior light
replacement .................. .8-28
Loading information (See vehicle loading
information) ................... .9-19
Lock Automatic
door locks.............3-5
Door locks .................. .3-4
Power door lock ............... .3-4
Trunk lid ................... .3-18
Locking with mechanical key ...........3-4
Low fuel warning ................ .2-21
Low tire pressure warning light .........2-13
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) ......5-3
Low washer fluid warning ............2-21
M
Maintenance Battery ................... .8-14
General maintenance .............8-2
Indicators for maintenance .........2-22
Inside the vehicle .............. .8-3Maintenance precautions
...........8-5
Maintenance requirements . . . .......8-2
Outside the vehicle ............. .8-2
Seat belt maintenance ............1-20
Malfunction indicator light (MIL) ........2-16
Map lights ................... .2-53
Master warning light .............. .2-14
Mechanical key (Intelligent Key system) . . . .3-3
Memory storage, Automatic drive positioner .3-31
Meter, Trip computer ............. .2-24
Meters and gauges ............... .2-4
Instrument brightness control .......2-35
Mirror Inside mirror ................ .3-26
Outside mirrors ............... .3-27
Vanity mirror ................ .3-29
Monitor, Rearview monitor . . . ........4-21
Moonroof .................... .2-51
N
New vehicle break-in ..............5-43
No key warning ................ .2-20
O
Odometer ..................... .2-5
Off-road
recovery ................ .5-6
Oil Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine oil and filter .......8-10
Checking engine oil level ..........8-10
Engine oil .................. .8-9
Engine oil viscosity ............. .9-6
10-4
Page 467 of 468

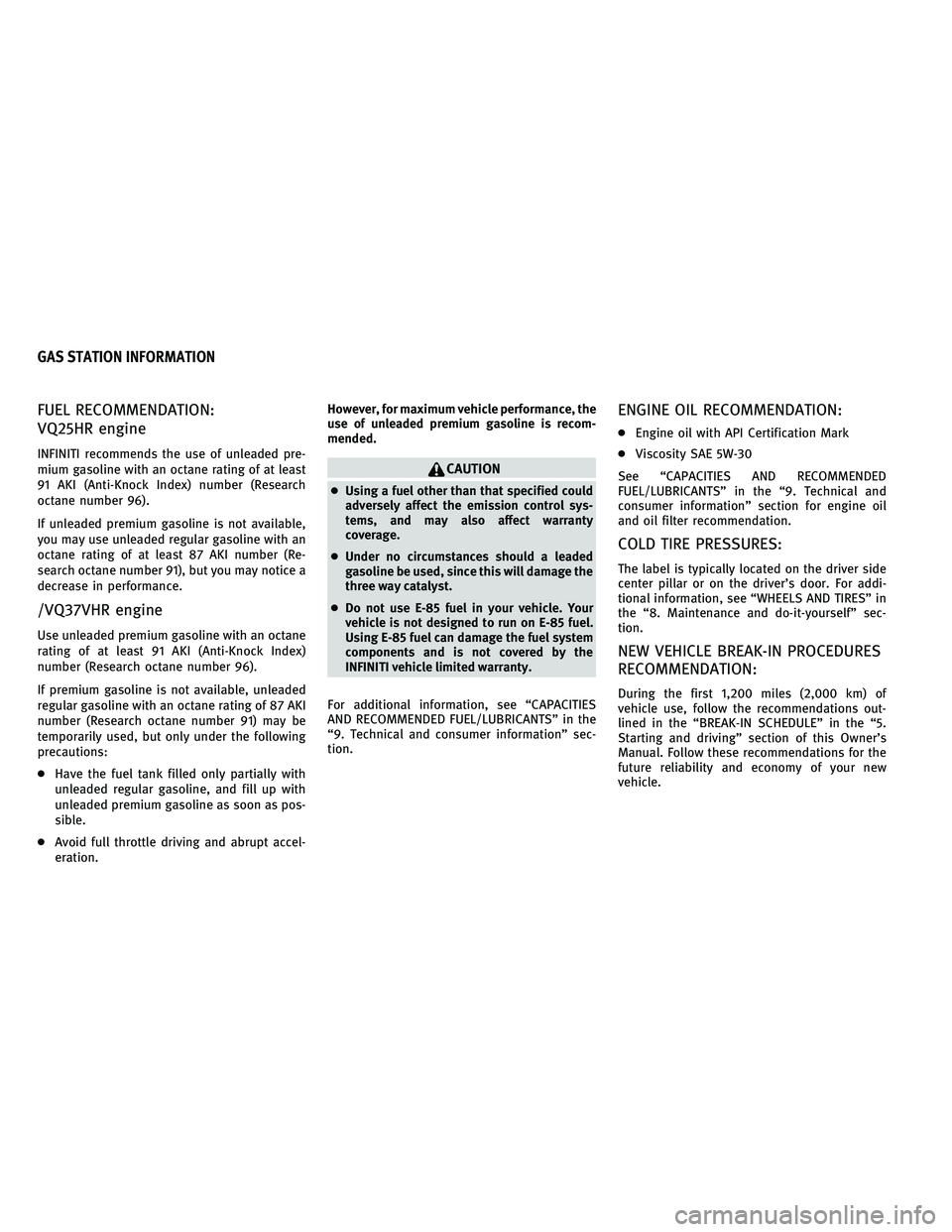

FUEL RECOMMENDATION:
VQ25HR engine
INFINITI recommends the use of unleaded pre-
mium gasoline with an octane rating of at least
91 AKI (Anti-Knock Index) number (Research
octane number 96).
If unleaded premium gasoline is not available,
you may use unleaded regular gasoline with an
octane rating of at least 87 AKI number (Re-
search octane number 91), but you may notice a
decrease in performance.
/VQ37VHR engine
Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:
●Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
● Avoid full throttle driving and abrupt accel-
eration. However, for maximum vehicle performance, the
use of unleaded premium gasoline is recom-
mended.
CAUTION
●
Using a fuel other than that specified could
adversely affect the emission control sys-
tems, and may also affect warranty
coverage.
● Under no circumstances should a leaded
gasoline be used, since this will damage the
three way catalyst.
● Do not use E-85 fuel in your vehicle. Your
vehicle is not designed to run on E-85 fuel.
Using E-85 fuel can damage the fuel system
components and is not covered by the
INFINITI vehicle limited warranty.
For additional information, see “CAPACITIES
AND RECOMMENDED FUEL/LUBRICANTS” in the
“9. Technical and consumer information” sec-
tion.
ENGINE OIL RECOMMENDATION:
● Engine oil with API Certification Mark
● Viscosity SAE 5W-30
See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section for engine oil
and oil filter recommendation.
COLD TIRE PRESSURES:
The label is typically located on the driver side
center pillar or on the driver’s door. For addi-
tional information, see “WHEELS AND TIRES” in
the “8. Maintenance and do-it-yourself” sec-
tion.
NEW VEHICLE BREAK-IN PROCEDURES
RECOMMENDATION:
During the first 1,200 miles (2,000 km) of
vehicle use, follow the recommendations out-
lined in the “BREAK-IN SCHEDULE” in the “5.
Starting and driving” section of this Owner’s
Manual. Follow these recommendations for the
future reliability and economy of your new
vehicle.
GAS STATION INFORMATION
