●Waste oil must be disposed of properly.
● Check your local regulations.
4. (Perform steps 4 to 7 only when the
engine oil filter change is needed.)
Loosen the oil filter2with an oil filter
wrench. Remove the oil filter by turning it by
hand.
5. Wipe the engine oil filter mounting sur- face with a clean rag.
CAUTION
Be sure to remove any old rubber gasket re-
maining on the mounting surface of the engine.
Failure to do so could lead to engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten ad-
ditionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section for drain and
refill capacity. The drain and refill capacity
depends on the oil temperature and drain time. Use these specifications for reference only.
Always use the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation
1. Install the engine undercover into positionas the following steps.
a. Pull the center of the small plastic clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the undercover into the hole in the frame, then push the
center of the clip in to lock the clip in
place.
d. Install the other bolts that hold the un- dercover in place. Be careful not to strip
the bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
All-wheel drive (AWD) models(VQ25HR/VQ37VHR engine)
SDI2047
Maintenance and do-it-yourself8-11

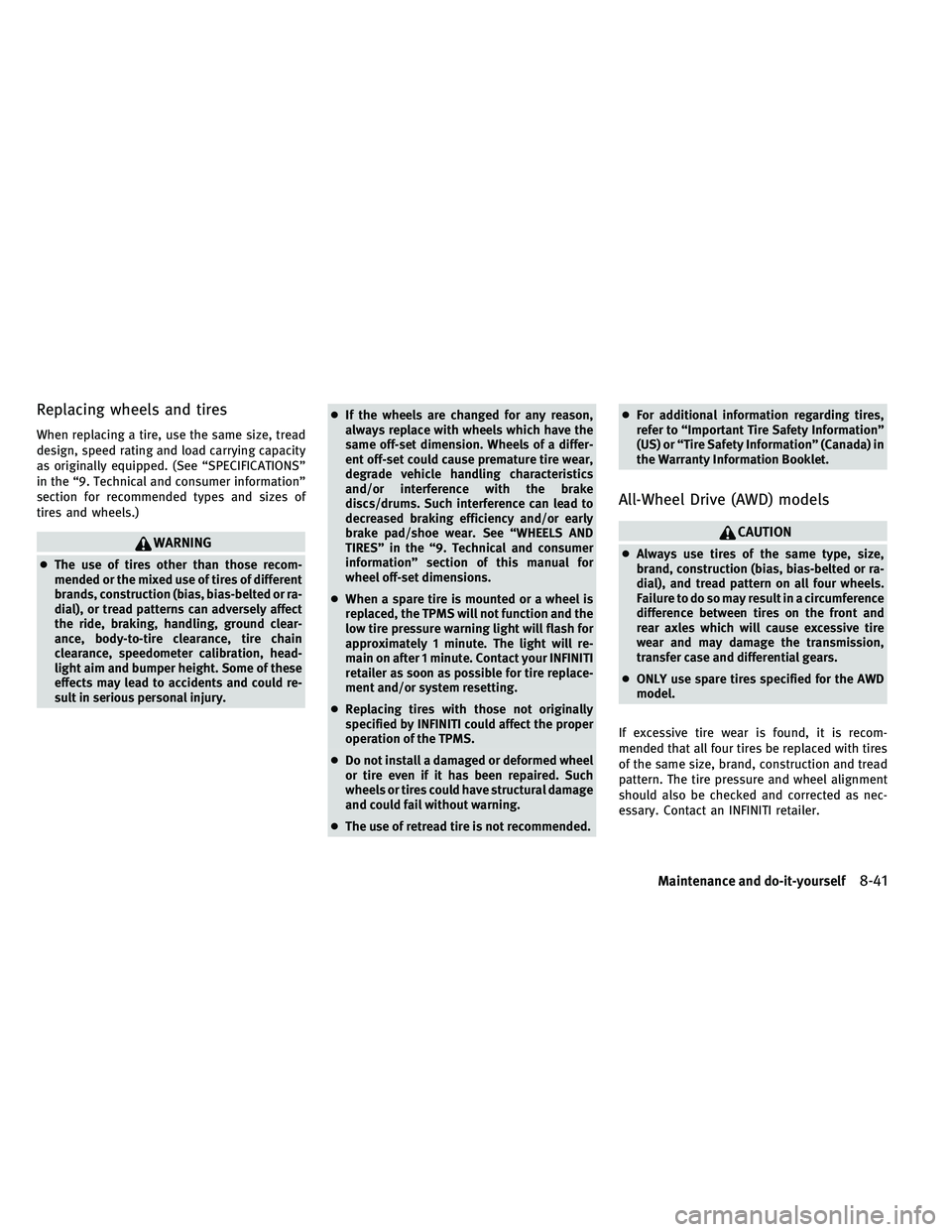

Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “SPECIFICATIONS”
in the “9. Technical and consumer information”
section for recommended types and sizes of
tires and wheels.)
WARNING
●The use of tires other than those recom-
mended or the mixed use of tires of different
brands, construction (bias, bias-belted or ra-
dial), or tread patterns can adversely affect
the ride, braking, handling, ground clear-
ance, body-to-tire clearance, tire chain
clearance, speedometer calibration, head-
light aim and bumper height. Some of these
effects may lead to accidents and could re-
sult in serious personal injury. ●
If the wheels are changed for any reason,
always replace with wheels which have the
same off-set dimension. Wheels of a differ-
ent off-set could cause premature tire wear,
degrade vehicle handling characteristics
and/or interference with the brake
discs/drums. Such interference can lead to
decreased braking efficiency and/or early
brake pad/shoe wear. See “WHEELS AND
TIRES” in the “9. Technical and consumer
information” section of this manual for
wheel off-set dimensions.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not install a damaged or deformed wheel
or tire even if it has been repaired. Such
wheels or tires could have structural damage
and could fail without warning.
● The use of retread tire is not recommended. ●
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
All-Wheel Drive (AWD) models
CAUTION
● Always use tires of the same type, size,
brand, construction (bias, bias-belted or ra-
dial), and tread pattern on all four wheels.
Failure to do so may result in a circumference
difference between tires on the front and
rear axles which will cause excessive tire
wear and may damage the transmission,
transfer case and differential gears.
● ONLY use spare tires specified for the AWD
model.
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. Contact an INFINITI retailer.
Maintenance and do-it-yourself8-41

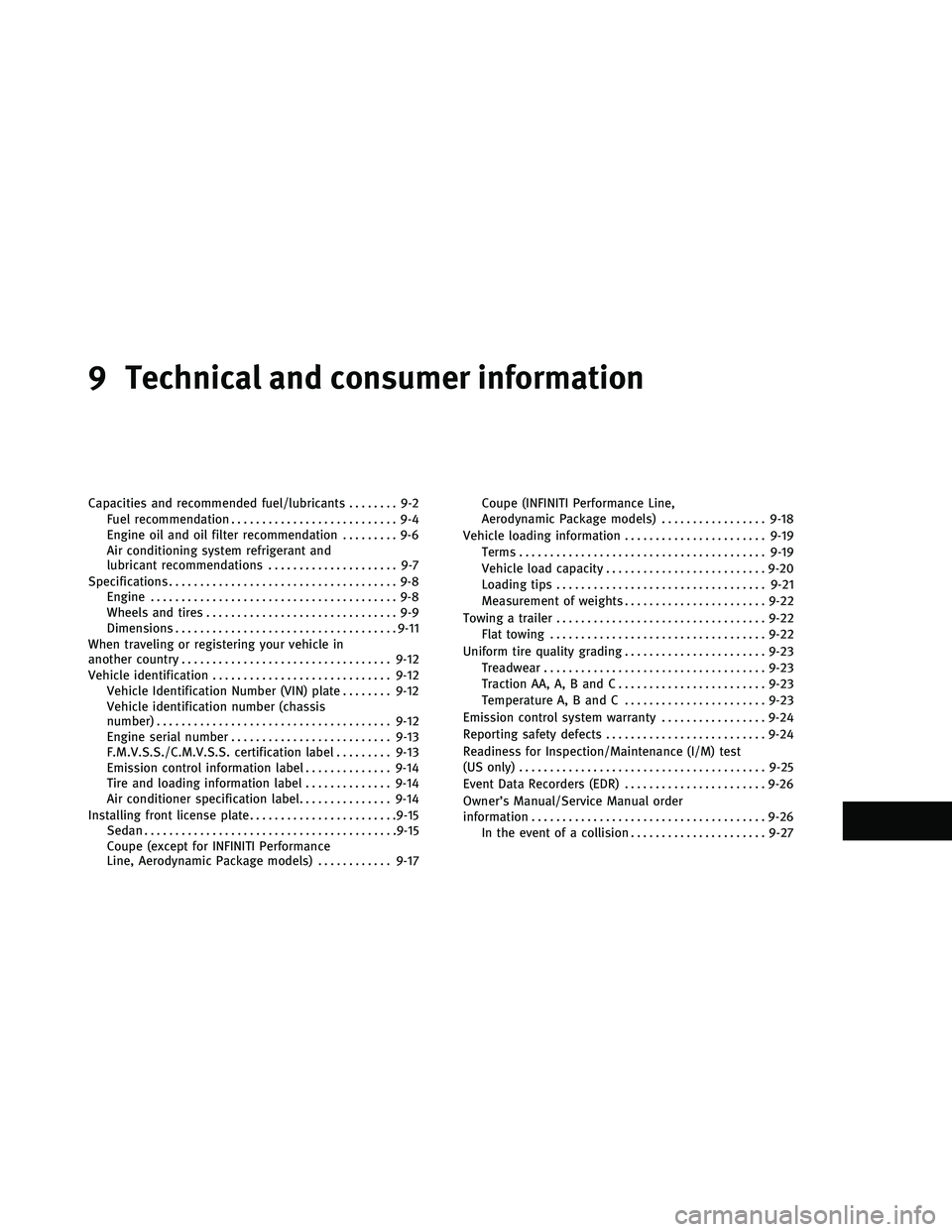

9 Technical and consumer information
Capacities and recommended fuel/lubricants........ 9-2
Fuel recommendation ........................... 9-4
Engine oil and oil filter recommendation ......... 9-6
Air conditioning system refrigerant and
lubricant recommendations ..................... 9-7
Specifications ..................................... 9-8
Engine ........................................ 9-8
Wheels and tires ............................... 9-9
Dimensions .................................... 9-11
When traveling or registering your vehicle in
another country .................................. 9-12
Vehicle identification ............................. 9-12
Vehicle Identification Number (VIN) plate ........9-12
Vehicle identification number (chassis
number) ...................................... 9-12
Engine serial number .......................... 9-13
F.M.V.S.S./C.M.V.S.S. certification label .........9-13
Emission control information label ..............9-14
Tire and loading information label ..............9-14
Air conditioner specification label ...............9-14
Installing front license plate ........................9-15
Sedan ......................................... 9-15
Coupe (except for INFINITI Performance
Line, Aerodynamic Package models) ............9-17 Coupe (INFINITI Performance Line,
Aerodynamic Package models)
.................9-18
Vehicle loading information .......................9-19
Terms ........................................ 9-19
Vehicle load capacity .......................... 9-20
Loading tips .................................. 9-21
Measurement of weights ....................... 9-22
Towing a trailer .................................. 9-22
Flat towing ................................... 9-22
Uniform tire quality grading .......................9-23
Treadwear .................................... 9-23
Traction AA, A, B and C ........................ 9-23
Temperature A, B and C ....................... 9-23
Emission control system warranty .................9-24
Reporting safety defects .......................... 9-24
Readiness for Inspection/Maintenance (I/M) test
(US only) ........................................ 9-25
Event
Data Recorders (EDR) ....................... 9-26
Owner’s Manual/Service Manual order
information ...................................... 9-26
In the event of a collision ......................9-27

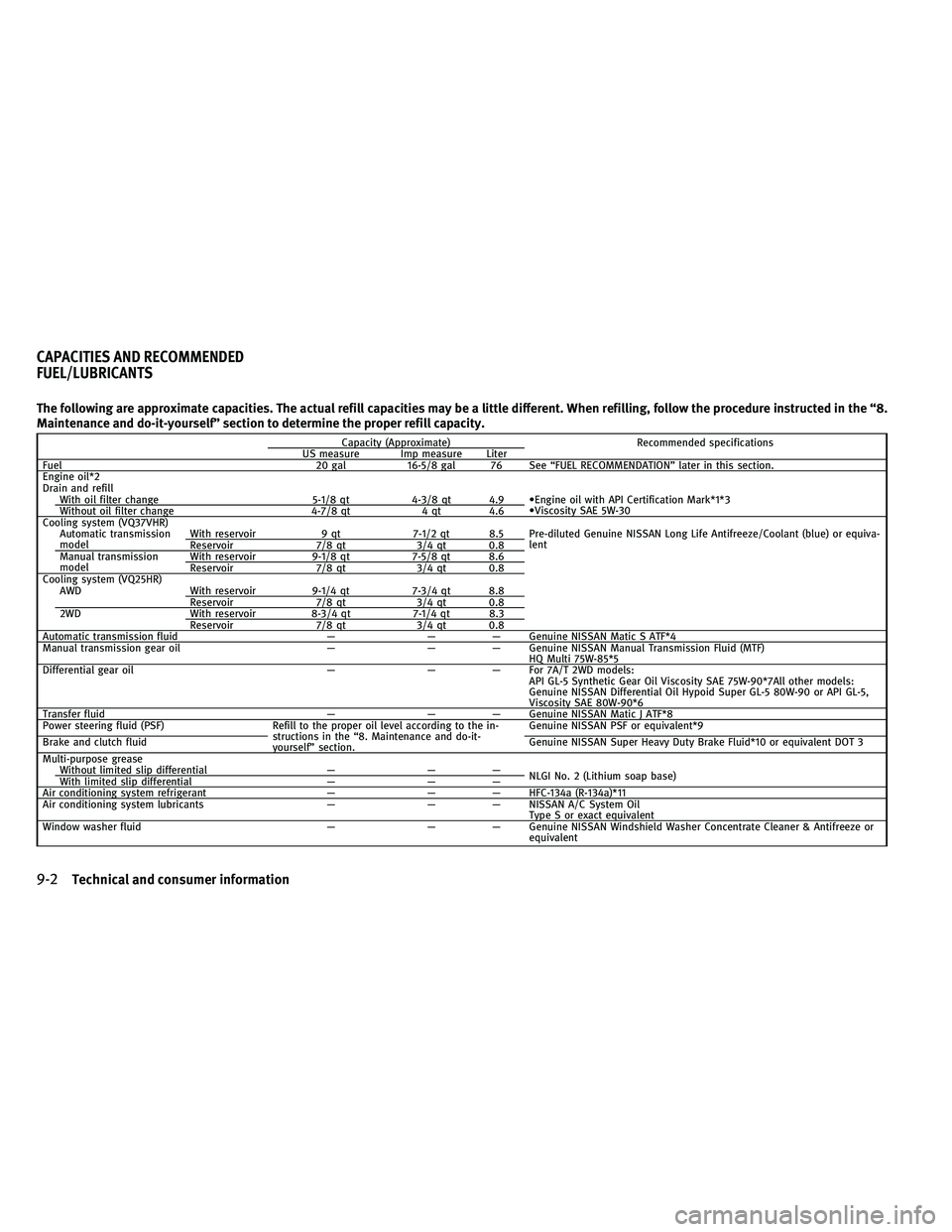

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the “8.
Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 20 gal16-5/8 gal 76 See “FUEL RECOMMENDATION” later in this section.
Engine oil*2
Drain and refill With oil filter change 5-1/8 qt4-3/8 qt 4.9 •Engine oil with API Certification Mark*1*3
•Viscosity SAE 5W-30
Without oil filter change 4-7/8 qt4 qt 4.6
Cooling system (VQ37VHR) Automatic transmission
model With reservoir
9 qt7-1/2 qt 8.5 Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equiva-
lent
Reservoir 7/8 qt3/4 qt 0.8
Manual transmission
model With reservoir
9-1/8 qt7-5/8 qt 8.6
Reservoir 7/8 qt3/4 qt 0.8
Cooling system (VQ25HR) AWD With reservoir9-1/4 qt7-3/4 qt 8.8
Reservoir 7/8 qt3/4 qt 0.8
2WD With reservoir8-3/4 qt7-1/4 qt 8.3
Reservoir 7/8 qt3/4 qt 0.8
Automatic transmission fluid ——— Genuine NISSAN Matic S ATF*4
Manual transmission gear oil ——— Genuine NISSAN Manual Transmission Fluid (MTF)
HQ Multi 75W-85*5
Differential gear oil ——— For 7A/T 2WD models:
API GL-5 Synthetic Gear Oil Viscosity SAE 75W-90*7All other models:
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5,
Viscosity SAE 80W-90*6
Transfer fluid ——— Genuine NISSAN Matic J ATF*8
Power steering fluid (PSF) Refill to the proper oil level according to the in-
structions in the “8. Maintenance and do-it-
yourself” section. Genuine NISSAN PSF or equivalent*9
Brake and clutch fluid Genuine NISSAN Super Heavy Duty Brake Fluid*10 or equivalent DOT 3
Multi-purpose grease Without limited slip differential ———
NLGI No. 2 (Lithium soap base)
With limited slip differential ———
Air conditioning system refrigerant ——— HFC-134a (R-134a)*11
Air conditioning system lubricants ——— NISSAN A/C System Oil
Type S or exact equivalent
Window washer fluid ——— Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information

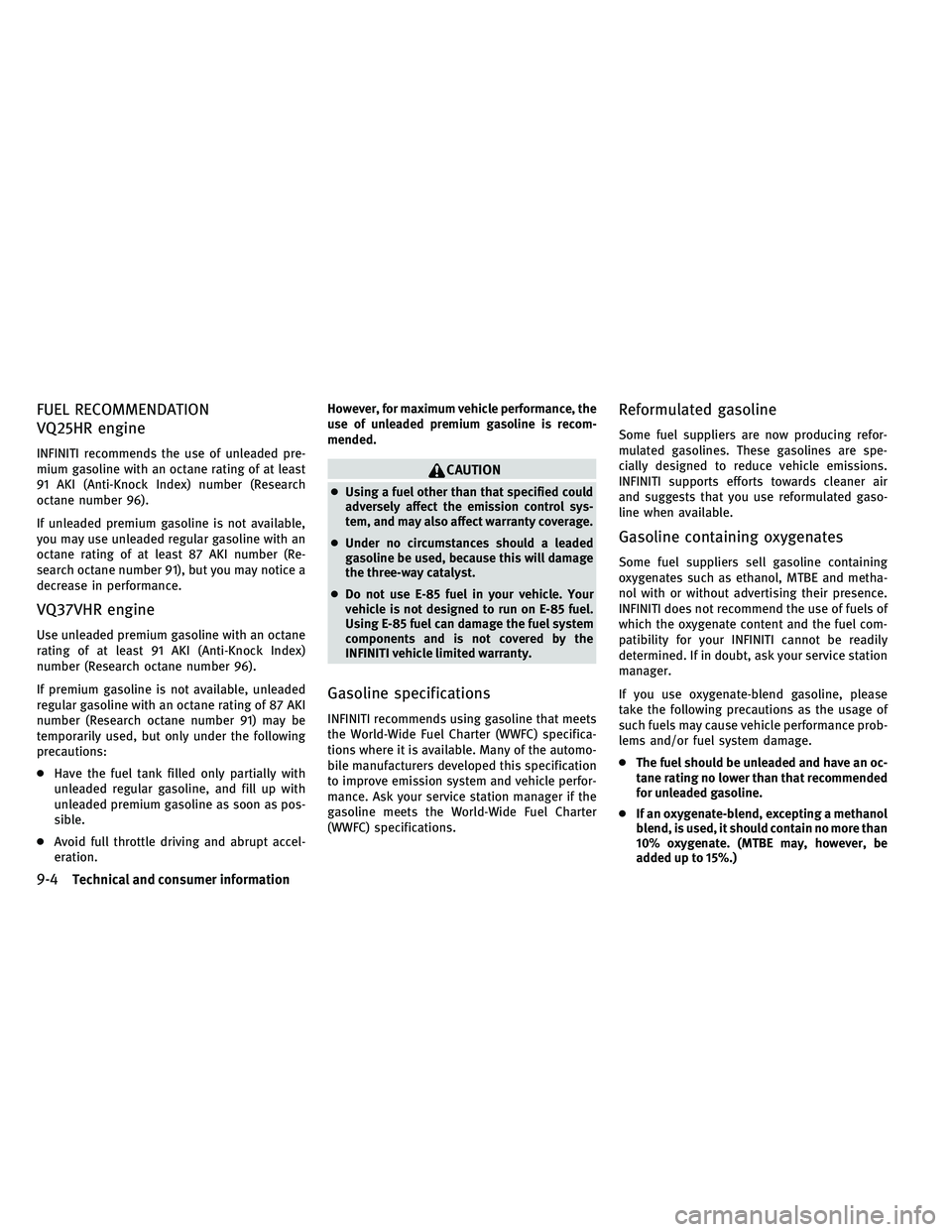

FUEL RECOMMENDATION
VQ25HR engine
INFINITI recommends the use of unleaded pre-
mium gasoline with an octane rating of at least
91 AKI (Anti-Knock Index) number (Research
octane number 96).
If unleaded premium gasoline is not available,
you may use unleaded regular gasoline with an
octane rating of at least 87 AKI number (Re-
search octane number 91), but you may notice a
decrease in performance.
VQ37VHR engine
Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:
●Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
● Avoid full throttle driving and abrupt accel-
eration. However, for maximum vehicle performance, the
use of unleaded premium gasoline is recom-
mended.
CAUTION
●
Using a fuel other than that specified could
adversely affect the emission control sys-
tem, and may also affect warranty coverage.
● Under no circumstances should a leaded
gasoline be used, because this will damage
the three-way catalyst.
● Do not use E-85 fuel in your vehicle. Your
vehicle is not designed to run on E-85 fuel.
Using E-85 fuel can damage the fuel system
components and is not covered by the
INFINITI vehicle limited warranty.
Gasoline specifications
INFINITI recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifica-
tions where it is available. Many of the automo-
bile manufacturers developed this specification
to improve emission system and vehicle perfor-
mance. Ask your service station manager if the
gasoline meets the World-Wide Fuel Charter
(WWFC) specifications.
Reformulated gasoline
Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are spe-
cially designed to reduce vehicle emissions.
INFINITI supports efforts towards cleaner air
and suggests that you use reformulated gaso-
line when available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
INFINITI does not recommend the use of fuels of
which the oxygenate content and the fuel com-
patibility for your INFINITI cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please
take the following precautions as the usage of
such fuels may cause vehicle performance prob-
lems and/or fuel system damage.
● The fuel should be unleaded and have an oc-
tane rating no lower than that recommended
for unleaded gasoline.
● If an oxygenate-blend, excepting a methanol
blend, is used, it should contain no more than
10% oxygenate. (MTBE may, however, be
added up to 15%.)
9-4Technical and consumer information

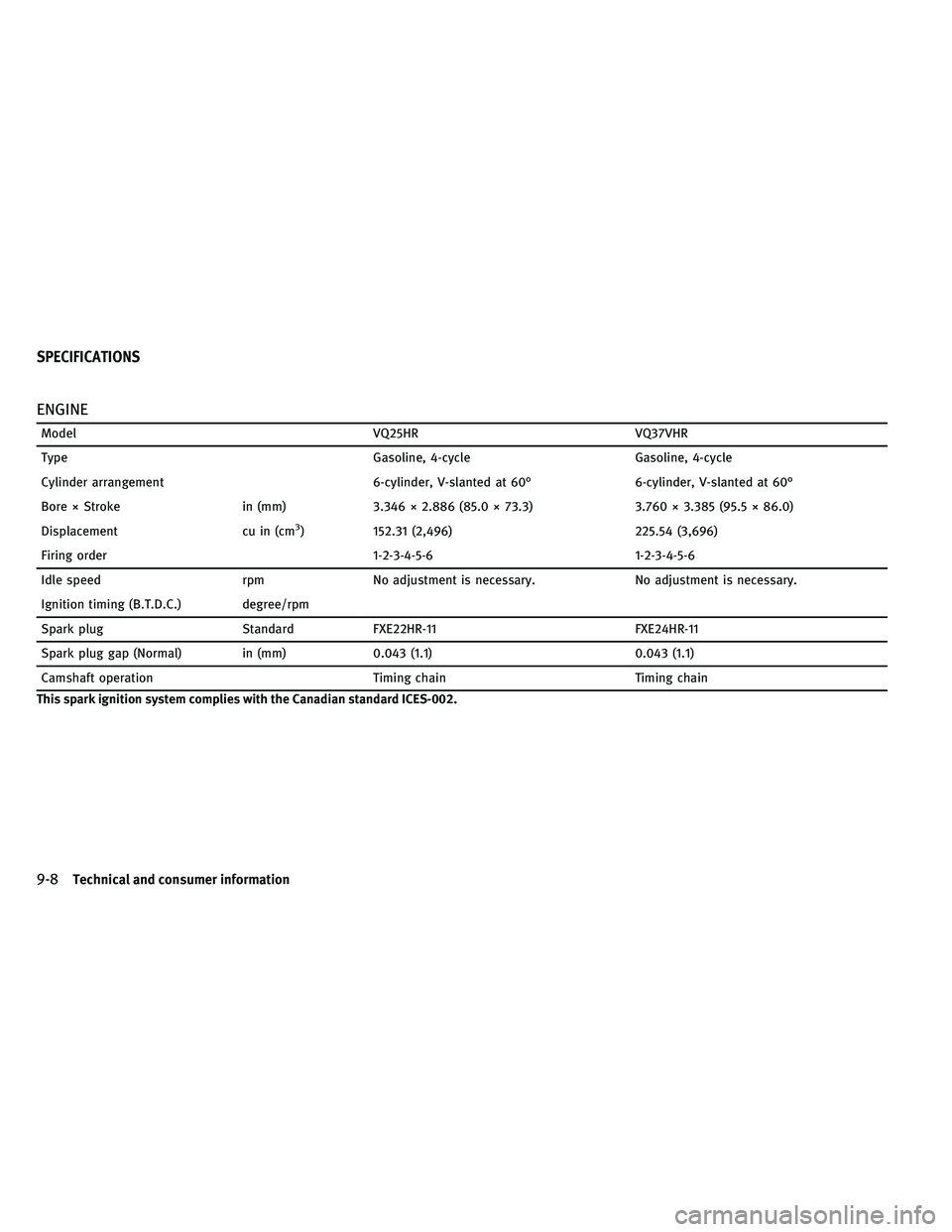

ENGINE
ModelVQ25HRVQ37VHR
Type Gasoline, 4-cycleGasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°6-cylinder, V-slanted at 60°
Bore × Stroke in (mm)3.346 × 2.886 (85.0 × 73.3) 3.760 × 3.385 (95.5 × 86.0)
Displacement cu in (cm
3)152.31 (2,496) 225.54 (3,696)
Firing order 1-2-3-4-5-61-2-3-4-5-6
Idle speed rpmNo adjustment is necessary. No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug StandardFXE22HR-11 FXE24HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)0.043 (1.1)
Camshaft operation Timing chainTiming chain
This spark ignition system complies with the Canadian standard ICES-002.
SPECIFICATIONS
9-8Technical and consumer information

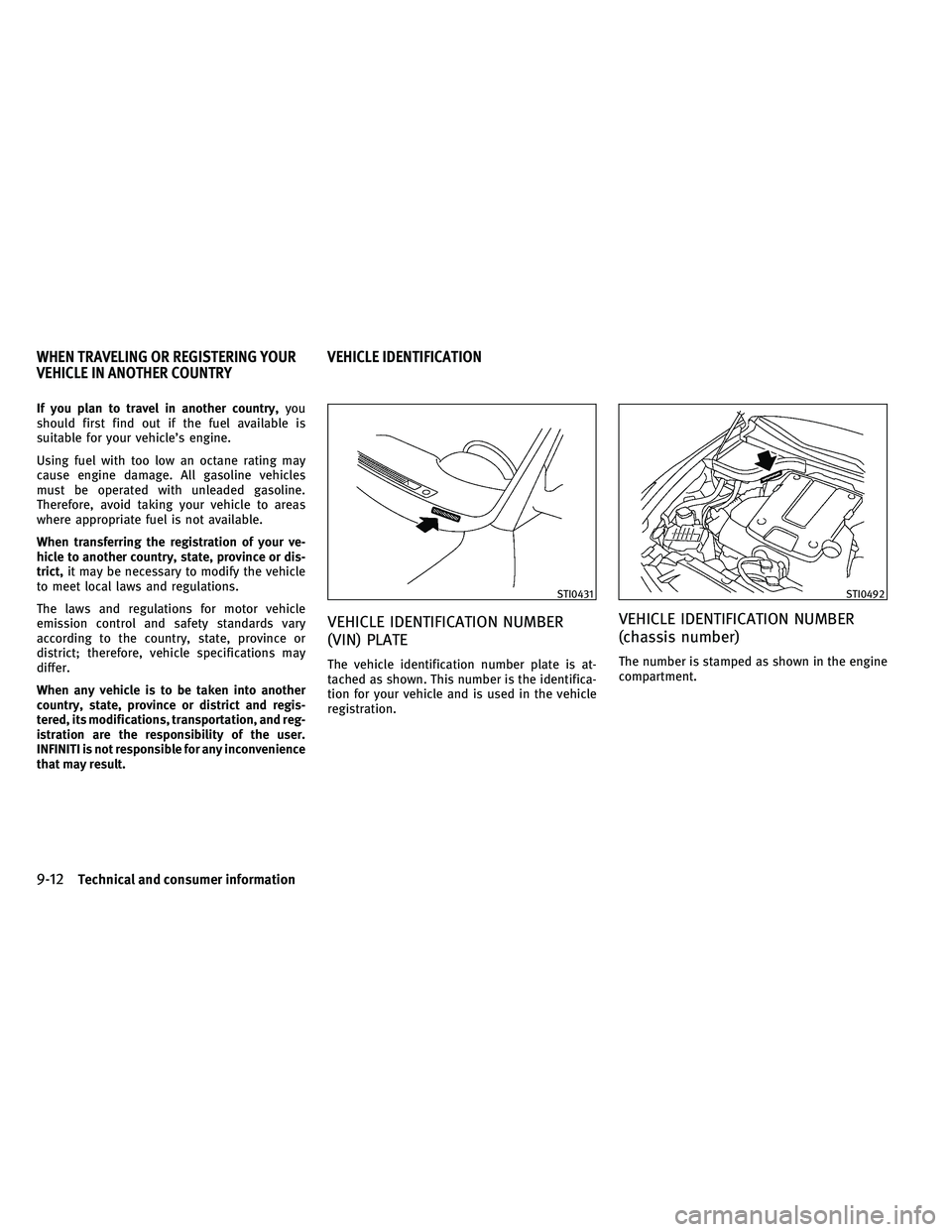

If you plan to travel in another country,you
should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your ve-
hicle to another country, state, province or dis-
trict, it may be necessary to modify the vehicle
to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and regis-
tered, its modifications, transportation, and reg-
istration are the responsibility of the user.
INFINITI is not responsible for any inconvenience
that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The number is stamped as shown in the engine
compartment.
STI0431STI0492
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
9-12Technical and consumer information
