INFINITI G-COUPE 2012 User Guide

0-4Illustrated table of contents
SSI0806
COUPE
1. Hood (P.3-18)
2. Headlight and turn signal—Operation (P.2-34)
— Bulb replacement (P.8-28)
3. Windshield wiper and washer —
Operation (P.2-31)
— Maintenance (P.8-22)
4. Moonroof (if so equipped) (P.2-55)
5. Power windows (P.2-52)
6. Recovery hook (P.6-13) 7. Fog light (P.2-39)
8. Tires
—Wheel and tires (P.8-33, P.9-9)
— Flat tire (P.6-2)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
9. Outside mirrors (P.3-29)
10. Doors —Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)

JVC0207X
SEDAN
1. High-mounted stop light (Bulb repla-cement) (P.8-28)
2. Rear window defroster (P.2-34)
3. Rear combination light (Bulb replace- ment) (P.8-28) 4. Satellite antenna (P.4-42)
5. Fuel-filler door
—Operation (P.3-23)
— Fuel recommendation (P.9-4)
6. Rear view camera (if so equipped) (P.4-23)
7. Sonar system (if so equipped) (P.5-48)
8. Trunk —Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
— Trunk lid (P.3-18)
9. Child safety rear door locks (P.3-6)
Illustrated table of contents0-5
EXTERIOR REAR

0-6Illustrated table of contents
SSI0685
COUPE
1. High-mounted stop light (model witha rear spoiler) (Bulb replacement)
(P.8-28)
2. High-mounted stop light (model with- out a rear spoiler) (Bulb replacement)
(P.8-28) 3. Rear window defroster (P.2-34)
4. Satellite antenna (P.4-42)
5. Rear view camera (if so equipped)
(P.4-23)
6. Trunk —
Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
— Trunk lid (P.3-18)
7. Sonar system (if so equipped) (P.5-48)
8. Rear combination light (Bulb replace- ment) (P.8-28)
9. Fuel-filler door —Operation (P.3-23)
— Fuel recommendation (P.9-4)

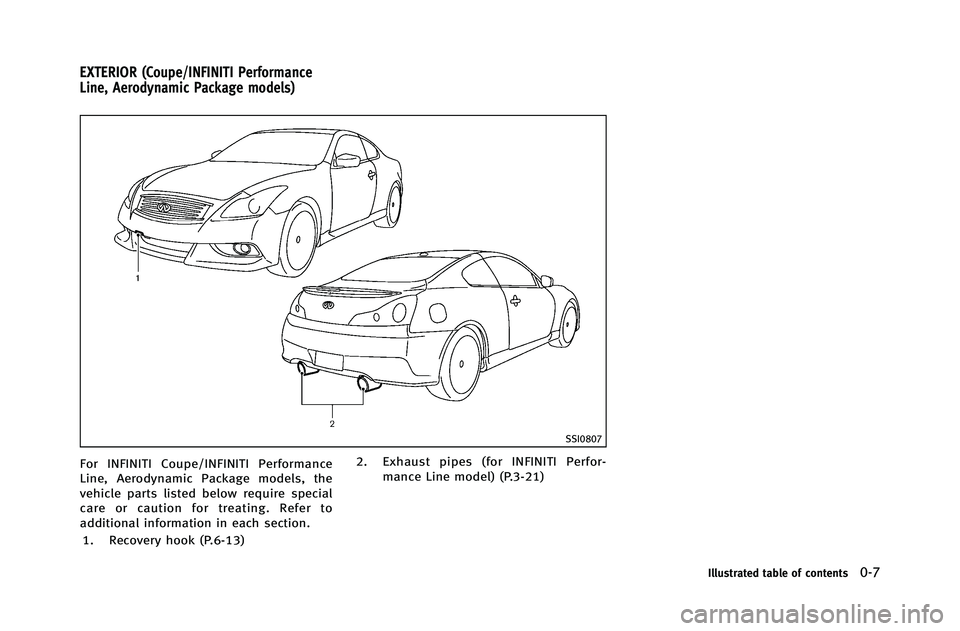

SSI0807
For INFINITI Coupe/INFINITI Performance
Line, Aerodynamic Package models, the
vehicle parts listed below require special
care or caution for treating. Refer to
additional information in each section.1. Recovery hook (P.6-13) 2. Exhaust pipes (for INFINITI Perfor-
mance Line model) (P.3-21)
Illustrated table of contents0-7
EXTERIOR (Coupe/INFINITI Performance
Line, Aerodynamic Package models)

0-8Illustrated table of contents
SSI0668
SEDAN
1. Coat hooks (P.2-50)
2. Rear personal light (P.2-57)
3. Power windows (P.2-52)
4. Outside mirror remote control switch(P.3-29) 5. Automatic drive positioner switch (if
so equipped) (P.3-31)
6. Sun visors (P.3-27)
7. Moonroof switch (if so equipped) (P.2-55) 8. Map light (P.2-56)
9. Sunglasses holder (P.2-47)
10. Inside rearview mirror
—Operation (P.3-28)
— HomeLink
®(if so equipped)
(P.2-59)
— Compass (if so equipped) (P.2-9)
11. Trunk pass-through/Rear armrest (P.1-13)
12. Rear cup holders (P.2-45)
13. Console box —Power outlet (P.2-43)
— Auxiliary input jacks (if so
equipped) (P.4-85)
— USB input operation (if so
equipped) (P.4-66)
— iPod
®player operation (if so
equipped) (P.4-75)
14. Front cup holders (P.2-45)
PASSENGER COMPARTMENT

SSI0669
COUPE
1. Coat hooks (P.2-50)
2. Power windows (P.2-52)
3. Outside mirror remote control switch(P.3-29)
4. Automatic drive positioner switch (if so equipped) (P.3-31)
5. Sun visors (P.3-27)
6. Moonroof switch (if so equipped) (P.2-55)
7. Map light (P.2-56) 8. Sunglasses holder (P.2-47)
9. Inside rearview mirror
—Operation (P.3-28)
— HomeLink
®(if so equipped)
(P.2-59)
— Compass (if so equipped) (P.2-9)
10. Rear cup holders (P.2-45)
11. Console box
—Power outlet (P.2-43)
— Auxiliary input jacks (if so
equipped) (P.4-85)
— USB input operation (if so
equipped) (P.4-66)
— iPod
®player operation (if so
equipped) (P.4-75)
12. Front cup holders (P.2-45)
Illustrated table of contents0-9

0-10Illustrated table of contents
SIC4683
1. Vehicle Dynamic Control (VDC) OFFswitch (P.5-55)
2. Trunk lid release switch (P.3-19)
3. Sonar system off switch (if so equipped) (P.5-50) 4. Instrument brightness control switch
(P.2-38)
5. TRIP/RESET switch for twin trip od- ometer (P.2-7)
6. Headlight, fog light and turn signal switch (P.2-34) 7. Paddle shifter (if so equipped) (P.5-16)
8. Steering-wheel-mounted controls (left
side)
—ENTER or tuning switch (P.4-87)
— BACK switch (P.4-87)
— TALK switch (if so equipped)
(P.4-114)/Phone switch (if so
equipped) (P.4-90)
— Volume control switches (P.4-87)
— Source select switch (P.4-87)
9. Trip computer switch (P.2-26)
10. Windshield wiper and washer switch (P.2-31)
11. Steering-wheel-mounted controls (right side)
—Cruise control switches (P.5-21)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-23)
12. Hood release handle (P.3-18)
13. Intelligent Key port (P.5-12)
14. Electric tilting/telescopic steering wheel lever (if so equipped) (P.3-26)
15. Manual tilting/telescopic steering wheel lever (if so equipped) (P.3-26)
16. Steering wheel —Horn (P.2-40)
— Driver supplemental air bag
(P.1-41)
COCKPIT

SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-41)
5. Clock (P.2-42)
6. Center multi-function control panel—
Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth
®Hands-Free Phone Sys-
tem (if so equipped) (P.4-90, P.4-100) —
Audio system (P.4-41)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.2-39)
9. Front passenger supplemental air bag (P.1-41)
10. Fuse box cover (P.8-24)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-20)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-31)
14. Cigarette lighter and ashtray (if so equipped) (P.2-44) or storage box (if
so equipped) (P.2-50)
—Power outlet (if so equipped)
(P.2-43)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-20)
16. Heated seat switch (if so equipped) (P.2-40)
17. SNOW mode switch (if so equipped) (P.2-41)
18. Rear window and outside mirror (if so equipped) defroster switch (P.2-34)
Illustrated table of contents0-11
INSTRUMENT PANEL

0-12Illustrated table of contents

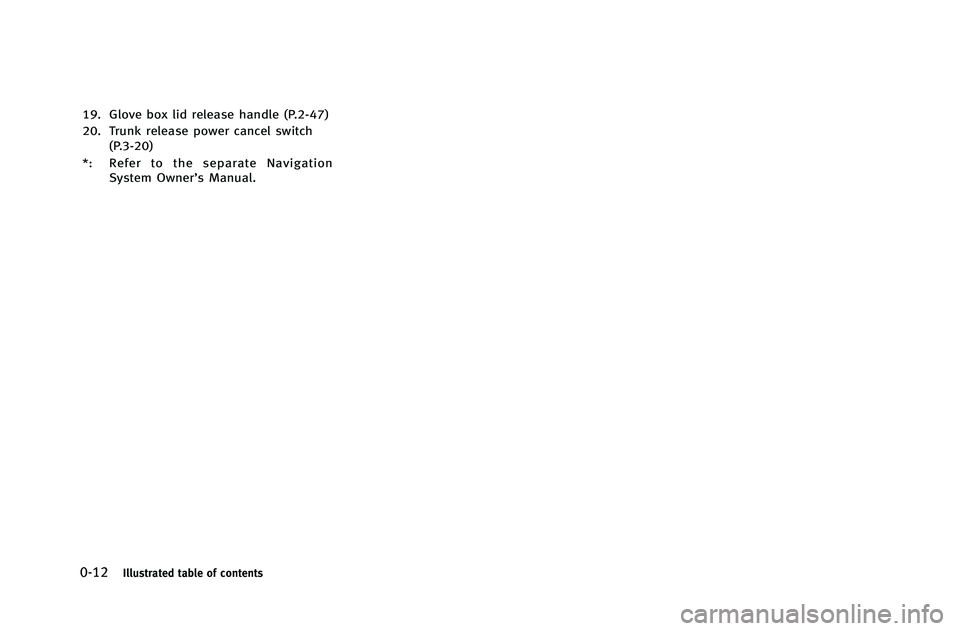

19. Glove box lid release handle (P.2-47)
20. Trunk release power cancel switch(P.3-20)
*: Refer to the separate Navigation System Owner’s Manual.

SIC4288
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8)
5. Dot matrix liquid crystal display/ Odometer/twin trip odometer
(P.2-20)
6. Fuel gauge (P.2-9)
Illustrated table of contents0-13
METERS AND GAUGES
