The engine cooling system is filled at the factory
with a high-quality, year-round, anti-freeze
coolant solution. The antifreeze solution con-
tains rust and corrosion inhibitors, therefore
additional cooling system additives are not
necessary.
WARNING● Never remove the radiator cap when the en-
gine is hot. Wait until the engine and radia-
tor cool down. Serious burns could be
caused by high pressure fluid escaping from
the radiator. See precautions in “IF YOUR
VEHICLE OVERHEATS” in the “6. In case of
emergency” section of this manual.
● The radiator is equipped with a pressure
type radiator cap. To prevent engine dam-
age, use only a genuine NISSAN radiator cap. CAUTION● When adding or replacing coolant, be sure to
use only a Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent with
the proper mixture ratio shown in the follow-
ing chart. The life expectancy of the factory-
fill coolant is 105,000 miles (168,000 km) or
7 years. Mixing any other type of coolant or
the use of non-distilled water will reduce the
life expectancy of the factory-fill coolant. Re-
fer to the Infiniti Service and Maintenance
Guide for more details. The use of other
types of coolant solutions may damage the
engine cooling system.
● The coolant reservoir is equipped with a
pressure type radiator cap. To prevent en-
gine damage, use only a genuine NISSAN
coolant reservoir cap.
Outside
temperature
down to Antifreeze Demineral-
ized water
or distilled
water
°F °C
 30  35 50% 50% CHECKING ENGINE COOLANT LEVEL Check the coolant level in the reservoir when the
engine is cold. If the coolant level is below MIN
 2
, open the reservoir tank cap and add coolant
up to the MAX
 1
level. If the reservoir tank is
empty, check the coolant level in the radiator
when the engine is cold. If there is insufficient
coolant in the radiator, fill the radiator with
coolant up to the filler opening and also add it
to the reservoir tank up to the MAX level
 1
.
Tighten the cap securely after adding engine
coolant.
This vehicle contains Genuine NISSAN Long Life
Antifreeze/Coolant (blue). The life expectancy of
the factory-fill coolant is 105,000 miles SDI2043
ENGINE COOLING SYSTEM
Maintenance and do-it-yourself
8-7
 —
—
04/22/10—debbie


(168,000 km) or 7 years. Mixing any other type
of coolant or the use of non-distilled water will
reduce the life expectancy of the factory-fill
coolant. Refer to the INFINITI Service and Main-
tenance Guide for more details.
If the cooling system requires coolant fre-
quently, have it checked by an INFINITI retailer.
CHANGING ENGINE COOLANT Major cooling system repairs should be per-
formed by an INFINITI retailer. The service pro-
cedures can be found in the appropriate INFINITI
Service Manual.
Improper servicing can result in reduced heater
performance and engine overheating.
WARNING● To avoid the danger of being scalded, never
change the coolant when the engine is hot.
● Never remove the radiator cap when the en-
gine is hot. Serious burns could be caused by
high pressure fluid escaping from the
radiator.
● Avoid direct skin contact with used coolant.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible. ● Keep coolant out of reach of children and
pets.
Engine coolant must be disposed of properly.
Check your local regulations.
CHECKING ENGINE OIL LEVEL 1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine until it reaches operating
temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick again and check the
oil level. It should be within the range
 1
.
If the oil level is below
 2
, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
 3
. SDI2045
ENGINE OIL
8-8 Maintenance and do-it-yourself
 —
—
04/22/10—debbie


WARNING● Prolonged and repeated contact with used
engine oil may cause skin cancer.
● Try to avoid direct skin contact with used oil.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible.
● Keep used engine oil out of reach of children. When checking or replacement is required, we
recommend an INFINITI retailer for servicing.
CAUTION● Use only Genuine NISSAN Matic S ATF. Do
not mix with other fluids.
● Using automatic transmission fluid other
than Genuine NISSAN Matic S ATF will cause
deterioration in driveability and automatic
transmission durability, and may damage
the automatic transmission, which is not
covered by the INFINITI new vehicle limited
warranty.
Check the fluid level in the reservoir.
The fluid level should be checked using the HOT
range (
 1
: HOT MAX.,
 2
: HOT MIN.) at fluid
temperatures of 122 to 176°F (50 to 80°C) or
using the COLD range (
 3
: COLD MAX.,
 4
:
COLD MIN.) at fluid temperatures of 32 to 86°F
(0 to 30°C).
If the fluid is below the MIN line, add Genuine
NISSAN PSF or equivalent. Remove the cap and
fill through the opening.
CAUTION● Do not overfill.
● Use Genuine NISSAN PSF or equivalent. SDI1765A
AUTOMATIC TRANSMISSION FLUID POWER STEERING FLUID
Maintenance and do-it-yourself
8-11
 —
—
04/21/10—debbie


For further brake and clutch fluid information,
see “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section of this manual.
WARNING● Use only new fluid from a sealed container.
Old, inferior or contaminated fluid may dam-
age the brake system. The use of improper
fluids can damage the brake system and af-
fect the vehicle’s stopping ability.
● Clean the filler cap before removing.
● Brake fluid is poisonous and should be
stored carefully in marked containers out of
the reach of children.
CAUTIONDo not spill the fluid on painted surfaces. This
will damage the paint. If fluid is spilled, wash
the surface with water.
BRAKE FLUID Check the fluid level in the reservoir. If the fluid
is below the MIN line
 2
or the brake warning
light comes on, add Genuine NISSAN Super
Heavy Duty Brake Fluid or equivalent DOT 3 fluid
up to the MAX line
 1
. If fluid must be added
frequently, the system should be checked by an
INFINITI retailer.
CLUTCH FLUID (if so equipped) Check the fluid level in the reservoir. If the fluid
level is below the MIN line
 1
, add Genuine
NISSAN Super Heavy Duty Brake Fluid or equiva-
lent DOT 3 fluid up to the MAX line
 2
. If fluid
must be added frequently, the system should
be checked by an INFINITI retailer. SDI2025 SDI1906A
BRAKE AND CLUTCH FLUID
8-12 Maintenance and do-it-yourself
 —
—
04/21/10—debbie


WARNINGAntifreeze is poisonous and should be stored
carefully in marked containers out of the reach
of children.
Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
window washer fluid warning light comes on.
To fill the window washer fluid reservoir, lift the
cap off the reservoir tank and pour the window
washer fluid into the tank opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a wind-
shield washer antifreeze. Follow the manufac-
turer’s instructions for the mixture ratio. Refill the reservoir more frequently when driv-
ing conditions require an increased amount of
window washer fluid.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Antifreeze
or equivalent.
CAUTION● Do not substitute engine anti-freeze coolant
for window washer solution. This may result
in damage to the paint.
● Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.
● Pre-mix washer fluid concentrates with wa-
ter to the manufacturer’s recommended lev-
els before pouring the fluid into the window
washer reservoir tank. Do not use the win-
dow washer reservoir tank to mix the washer
fluid concentrate and water. ● Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
● Make certain the terminal connections are
clean and securely tightened.
● If the vehicle is not to be used for 30 days or
longer, disconnect the negative (  ) battery
terminal cable to prevent discharging it.
COUPE CAUTIONWhen the battery cable is removed from the
battery terminal, do not close either of front
doors. The automatic window adjusting func-
tion will not work, and the side roof panel may
be damaged.
To disconnect the negative (  ) battery terminal,
perform the procedure in the following order.
Otherwise, the window and the side roof panel
may contact and be damaged.
1. Close the windows.
2. Open the hood.
3. Close and lock all the doors.
4. Disconnect the negative (  ) battery termi-
nal.
5. Securely close the hood.SDI2027
WINDOW WASHER FLUID BATTERY
Maintenance and do-it-yourself
8-13
 —
—
04/21/10—debbie


To connect the negative (  ) battery terminal,
perform the procedure in the following order.
Otherwise, the window and the side roof panel
may contact and be damaged.
1. Unlock and open the driver side door. Do
not close the door.
2. Open the hood.
3. Connect the negative (  ) battery terminal.
Then close the hood.
4. Fully open the driver side door window.
5. Close the driver side door and the win-
dow.
SEDAN AND COUPE WARNING● Do not expose the battery to flames or elec-
trical sparks. Hydrogen gas generated by
the battery is explosive. Do not allow battery
fluid to contact your skin, eyes, fabrics, or
painted surfaces. After touching a battery or
battery cap, do not touch or rub your eyes.
Thoroughly wash your hands. If the acid con-
tacts your eyes, skin or clothing, immedi-
ately flush with water for at least 15 minutes
and seek medical attention. ● Do not operate the vehicle if the fluid in the
battery is low. Low battery fluid can cause a
higher load on the battery which can gener-
ate heat, reduce battery life, and in some
cases lead to an explosion.
● When working on or near a battery, always
wear suitable eye protection and remove all
jewelry.
● Battery posts, terminals and related acces-
sories contain lead and lead compounds.
Wash hands after handling.
● Keep the battery out of the reach of children.
Check the fluid level in each cell (Remove the
battery cover if it is necessary). It should be
between the UPPER LEVEL
 1
and LOWER LEVEL
 2
lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening. Do not overfill. DI0137MA
8-14 Maintenance and do-it-yourself
 —
—
04/21/10—debbie


1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
WARNINGBe sure the ignition switch is in the OFF or LOCK
position before servicing drive belts. The en-
gine could rotate unexpectedly. 1. Visually inspect each belt for signs of
unusual wear, cuts, fraying or looseness.
If the belt is in poor condition or loose,
have it replaced or adjusted by an INFINITI
retailer.
2. Have the belts checked regularly for con-
dition and tension in accordance with the
maintenance schedule in your “INFINITI
Service and Maintenance Guide”. WARNINGBe sure the engine and the ignition switch are
off and that the parking brake is engaged
securely.
CAUTIONBe sure to use the correct socket to remove the
spark plugs. An incorrect socket can damage
the spark plugs.
VQ37VHR engine SDI2119
DRIVE BELTS SPARK PLUGS
8-16 Maintenance and do-it-yourself
 —
—
04/21/10—debbie


REPLACING SPARK PLUGS If replacement is required, see an INFINITI re-
tailer for servicing.
Iridium-tipped spark plugs It is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much
longer. Follow the maintenance schedule in
“INFINITI Service and Maintenance Guide”, but
do not reuse them by cleaning or regapping.
Always replace spark plugs with recommended
or equivalent ones. Remove the retainers
 1
as illustrated and pull
out the filter element
 2
.
The filter element should not be cleaned and
reused. Replace it according to the mainte-
nance intervals. See “INFINITI Service and Main-
tenance Guide” for maintenance intervals. When replacing the filter, wipe the inside of the
air cleaner housing and the cover with a damp
cloth.
WARNING● Operating the engine with the air cleaner
removed can cause you or others to be
burned. The air cleaner not only cleans the
air, it stops flame if the engine backfires. If it
isn’t there, and the engine backfires, you
could be burned. Do not drive with the air
cleaner removed, and be careful when work-
ing on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or at-
tempt to start the engine with the air cleaner
removed. Doing so could result in serious
injury.SDI2020
SDI2033AIR CLEANER
Maintenance and do-it-yourself
8-17
 —
—
04/21/10—debbie


If you wax the surface of the hood, be careful
not to let wax get into the washer nozzle
 A
.
This may cause clogging or improper wind-
shield washer operation. If wax gets into the
nozzle, remove it with a needle or small pin
 B
.
Be careful not to damage the nozzle. If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNINGSee an INFINITI retailer for a brake system
check if the brake pedal height does not return
to normal.
BRAKE PAD WEAR WARNING The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warn-
ing sound is heard. Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake sys-
tem.
Proper brake inspection intervals should be fol-
lowed. For additional information, see the main-
tenance log section of your “INFINITI Service
and Maintenance Guide” for maintenance inter-
vals.
SDI2362BRAKES
Maintenance and do-it-yourself
8-19
 —
—
04/21/10—debbie

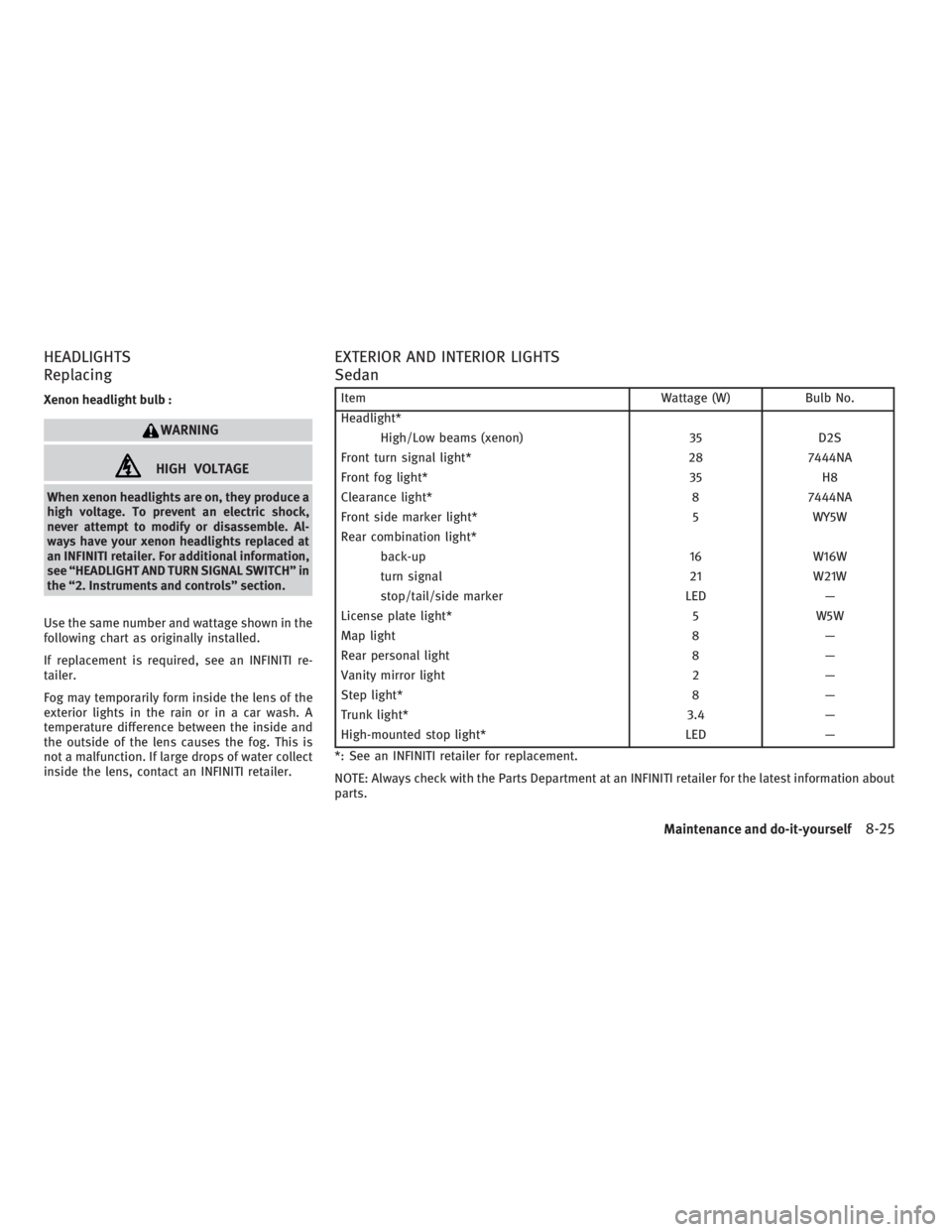

HEADLIGHTS
Replacing Xenon headlight bulb :
WARNING
HIGH VOLTAGEWhen xenon headlights are on, they produce a
high voltage. To prevent an electric shock,
never attempt to modify or disassemble. Al-
ways have your xenon headlights replaced at
an INFINITI retailer. For additional information,
see “HEADLIGHT AND TURN SIGNAL SWITCH” in
the “2. Instruments and controls” section.
Use the same number and wattage shown in the
following chart as originally installed.
If replacement is required, see an INFINITI re-
tailer.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact an INFINITI retailer. EXTERIOR AND INTERIOR LIGHTS
Sedan Item Wattage (W) Bulb No.
Headlight*
High/Low beams (xenon) 35 D2S
Front turn signal light* 28 7444NA
Front fog light* 35 H8
Clearance light* 8 7444NA
Front side marker light* 5 WY5W
Rear combination light*
back-up 16 W16W
turn signal 21 W21W
stop/tail/side marker LED —
License plate light* 5 W5W
Map light 8 —
Rear personal light 8 —
Vanity mirror light 2 —
Step light* 8 —
Trunk light* 3.4 —
High-mounted stop light* LED —
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest information about
parts.
Maintenance and do-it-yourself
8-25
 —
—
04/21/10—debbie
