FRONT SEATS
Front power seat adjustment Operating tips :
● The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function.
Forward and backward :
Moving the switch
 1
forward or backward will
slide the seat forward or backward to the
desired position.
Reclining :
Move the recline switch
 2
backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
 2
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback can be reclined to allow occupants to rest when
the vehicle is parked. SSS1051
Safety — Seats, seat belts and supplemental restraint system
1-3
 —
—
10/12/09—tbrooks

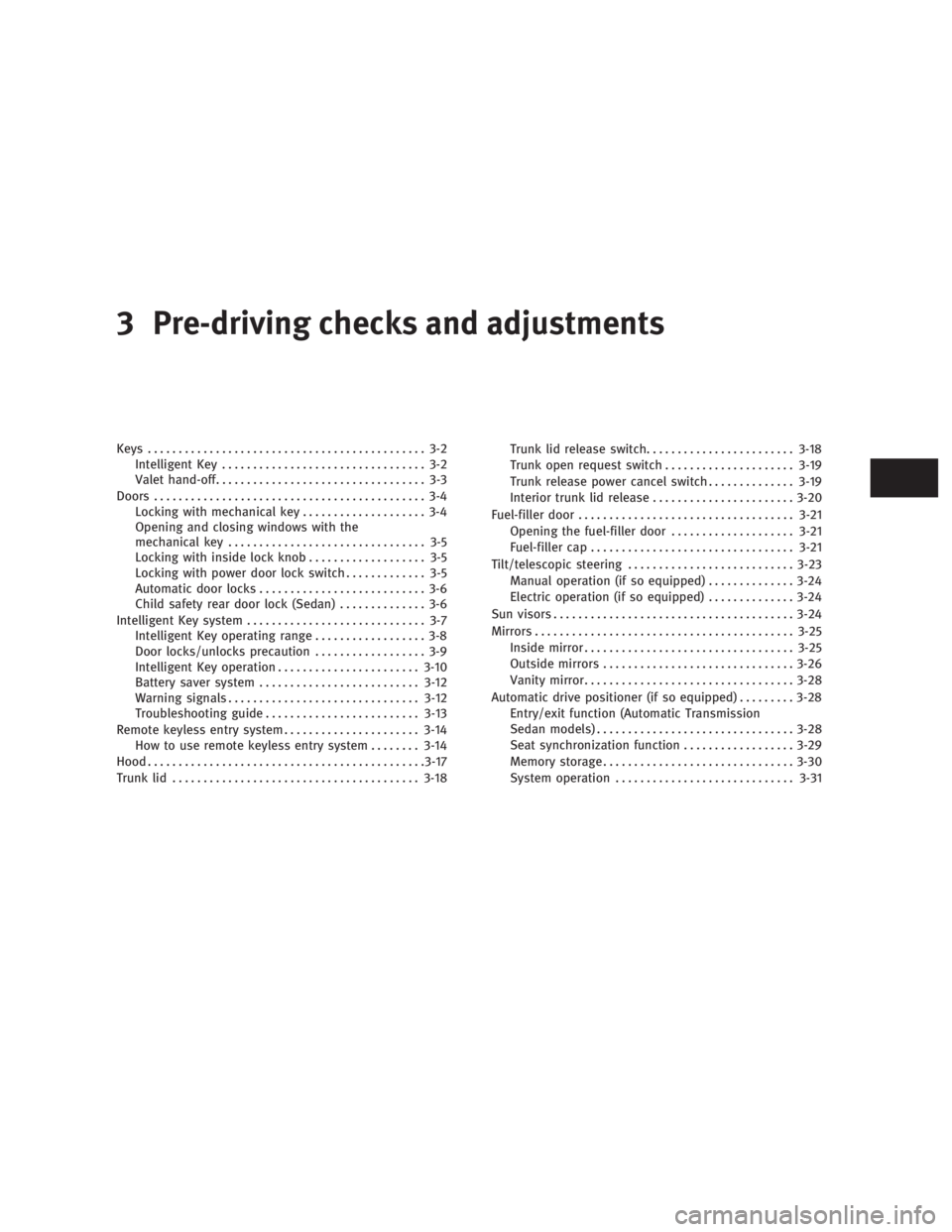

3 Pre-driving checks and adjustments Keys ............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-5
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-6
Child safety rear door lock (Sedan) .............. 3-6
Intelligent Key system ............................. 3-7
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-9
Intelligent Key operation ....................... 3-10
Battery saver system .......................... 3-12
Warning signals ............................... 3-12
Troubleshooting guide ......................... 3-13
Remote keyless entry system ...................... 3-14
How to use remote keyless entry system ........ 3-14
Hood ............................................. 3-17
Trunk lid ........................................ 3-18 Trunk lid release switch ........................ 3-18
Trunk open request switch ..................... 3-19
Trunk release power cancel switch .............. 3-19
Interior trunk lid release ....................... 3-20
Fuel-filler door ................................... 3-21
Opening the fuel-filler door .................... 3-21
Fuel-filler cap ................................. 3-21
Tilt/telescopic steering ........................... 3-23
Manual operation (if so equipped) .............. 3-24
Electric operation (if so equipped) .............. 3-24
Sun visors ....................................... 3-24
Mirrors .......................................... 3-25
Inside mirror .................................. 3-25
Outside mirrors ............................... 3-26
Vanity mirror .................................. 3-28
Automatic drive positioner (if so equipped) ......... 3-28
Entry/exit function (Automatic Transmission
Sedan models) ................................ 3-28
Seat synchronization
function .................. 3-29
Memory storage ............................... 3-30
System operation ............................. 3-31
 —
—
10/12/09—tbrooks

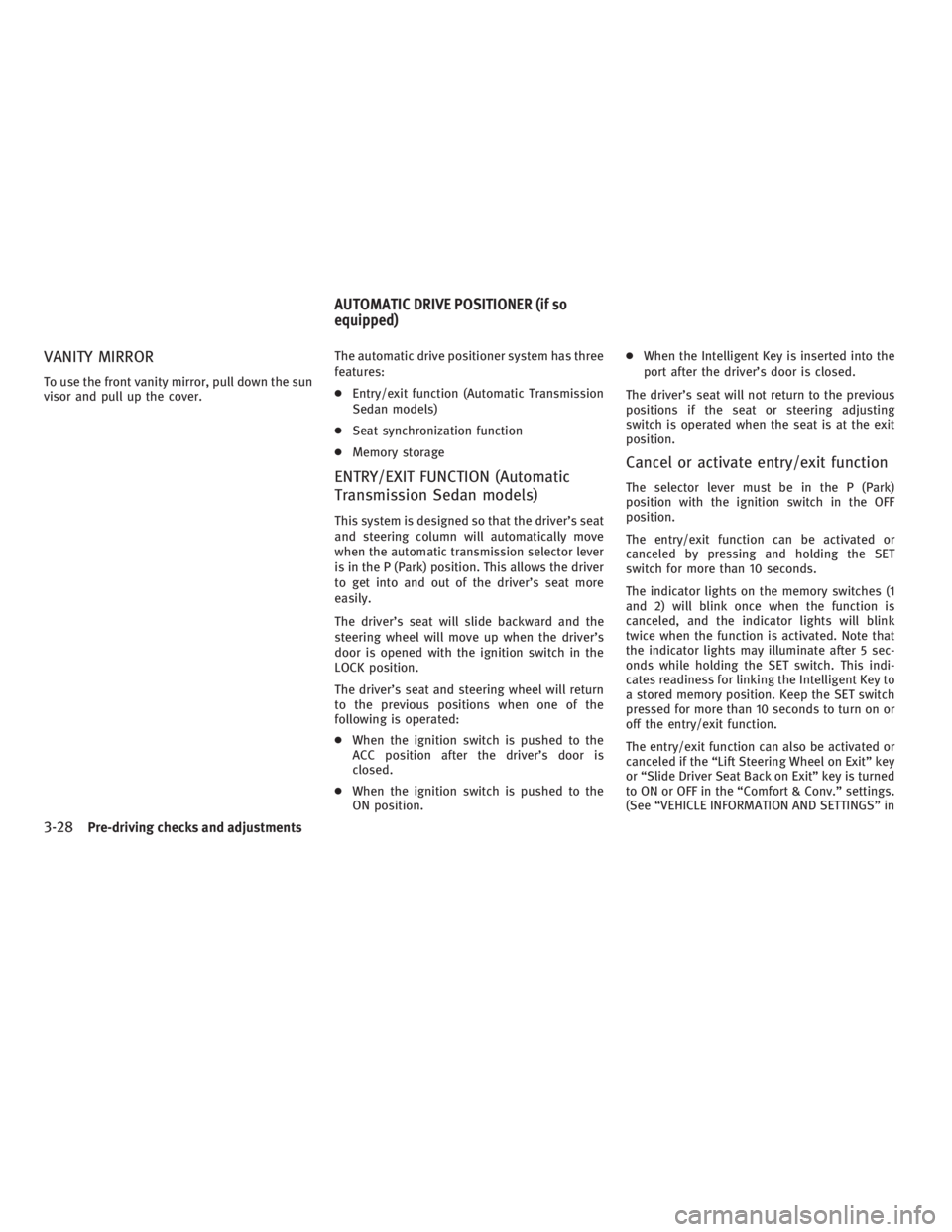

VANITY MIRROR To use the front vanity mirror, pull down the sun
visor and pull up the cover. The automatic drive positioner system has three
features:
● Entry/exit function (Automatic Transmission
Sedan models)
● Seat synchronization function
● Memory storage
ENTRY/EXIT FUNCTION (Automatic
Transmission Sedan models) This system is designed so that the driver’s seat
and steering column will automatically move
when the automatic transmission selector lever
is in the P (Park) position. This allows the driver
to get into and out of the driver’s seat more
easily.
The driver’s seat will slide backward and the
steering wheel will move up when the driver’s
door is opened with the ignition switch in the
LOCK position.
The driver’s seat and steering wheel will return
to the previous positions when one of the
following is operated:
● When the ignition switch is pushed to the
ACC position after the driver’s door is
closed.
● When the ignition switch is pushed to the
ON position. ● When the Intelligent Key is inserted into the
port after the driver’s door is closed.
The driver’s seat will not return to the previous
positions if the seat or steering adjusting
switch is operated when the seat is at the exit
position.
Cancel or activate entry/exit function The selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated. Note that
the indicator lights may illuminate after 5 sec-
onds while holding the SET switch. This indi-
cates readiness for linking the Intelligent Key to
a stored memory position. Keep the SET switch
pressed for more than 10 seconds to turn on or
off the entry/exit function.
The entry/exit function can also be activated or
canceled if the “Lift Steering Wheel on Exit” key
or “Slide Driver Seat Back on Exit” key is turned
to ON or OFF in the “Comfort & Conv.” settings.
(See “VEHICLE INFORMATION AND SETTINGS” inAUTOMATIC DRIVE POSITIONER (if so
equipped)
3-28 Pre-driving checks and adjustments
 —
—
04/21/10—debbie


the “4. Monitor, climate, audio, phone and
voice recognition systems” section.)
Initialize entry/exit function If the battery cable is disconnected, or if the
fuse opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is turned from the ON position to the
LOCK position. The entry/exit function will be
activated.
SEAT SYNCHRONIZATION FUNCTION The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mir-
rors will not move if the seat is adjusted over
the maximum thresholds. The system considers
that the steering wheel and outside mirror
adjustments are not necessary because the
seat may not be adjusted for the driving posi-
tion. Note that the function is set to disabled as
the factory default setting. The seat synchronization function operates un-
der the following conditions:
● The ignition switch is in the ON position.
● The selector lever is in the P (Park) position
(Automatic Transmission models) or the
parking brake is applied (Manual Transmis-
sion models).
● The seatback is raised (Coupe).
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function
is automatically disabled. Restart the function
by selecting a previously stored seat memory
position using the memory switches (1 or 2). An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in
the seat memory, restart the function by adjust-
ing the steering wheel and outside mirrors
manually for your best driving position and then
drive the vehicle above 4 MPH (7 km/h). SPA2322
Pre-driving checks and adjustments
3-29
 —
—
04/21/10—debbie

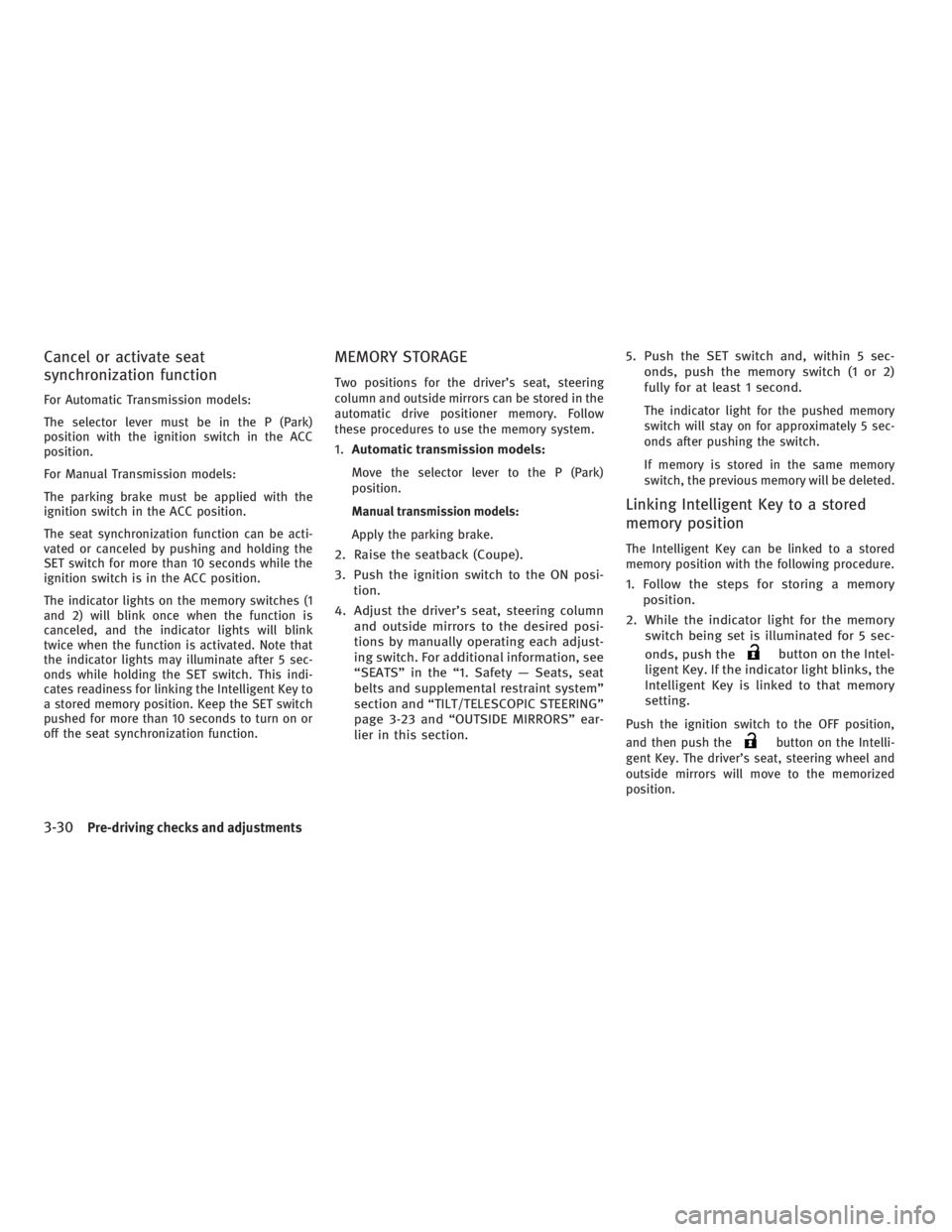

Cancel or activate seat
synchronization function For Automatic Transmission models:
The selector lever must be in the P (Park)
position with the ignition switch in the ACC
position.
For Manual Transmission models:
The parking brake must be applied with the
ignition switch in the ACC position.
The seat synchronization function can be acti-
vated or canceled by pushing and holding the
SET switch for more than 10 seconds while the
ignition switch is in the ACC position.
The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated. Note that
the indicator lights may illuminate after 5 sec-
onds while holding the SET switch. This indi-
cates readiness for linking the Intelligent Key to
a stored memory position. Keep the SET switch
pushed for more than 10 seconds to turn on or
off the seat synchronization function. MEMORY STORAGE Two positions for the driver’s seat, steering
column and outside mirrors can be stored in the
automatic drive positioner memory. Follow
these procedures to use the memory system.
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe).
3. Push the ignition switch to the ON posi-
tion.
4. Adjust the driver’s seat, steering column
and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information, see
“SEATS” in the “1. Safety — Seats, seat
belts and supplemental restraint system”
section and “TILT/TELESCOPIC STEERING”
page 3-23 and “OUTSIDE MIRRORS” ear-
lier in this section. 5. Push the SET switch and, within 5 sec-
onds, push the memory switch (1 or 2)
fully for at least 1 second.
The indicator light for the pushed memory
switch will stay on for approximately 5 sec-
onds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored
memory position The Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow the steps for storing a memory
position.
2. While the indicator light for the memory
switch being set is illuminated for 5 sec-
onds, push the button on the Intel-
ligent Key. If the indicator light blinks, the
Intelligent Key is linked to that memory
setting.
Push the ignition switch to the OFF position,
and then push the button on the Intelli-
gent Key. The driver’s seat, steering wheel and
outside mirrors will move to the memorized
position.
3-30 Pre-driving checks and adjustments
 —
—
04/21/10—debbie

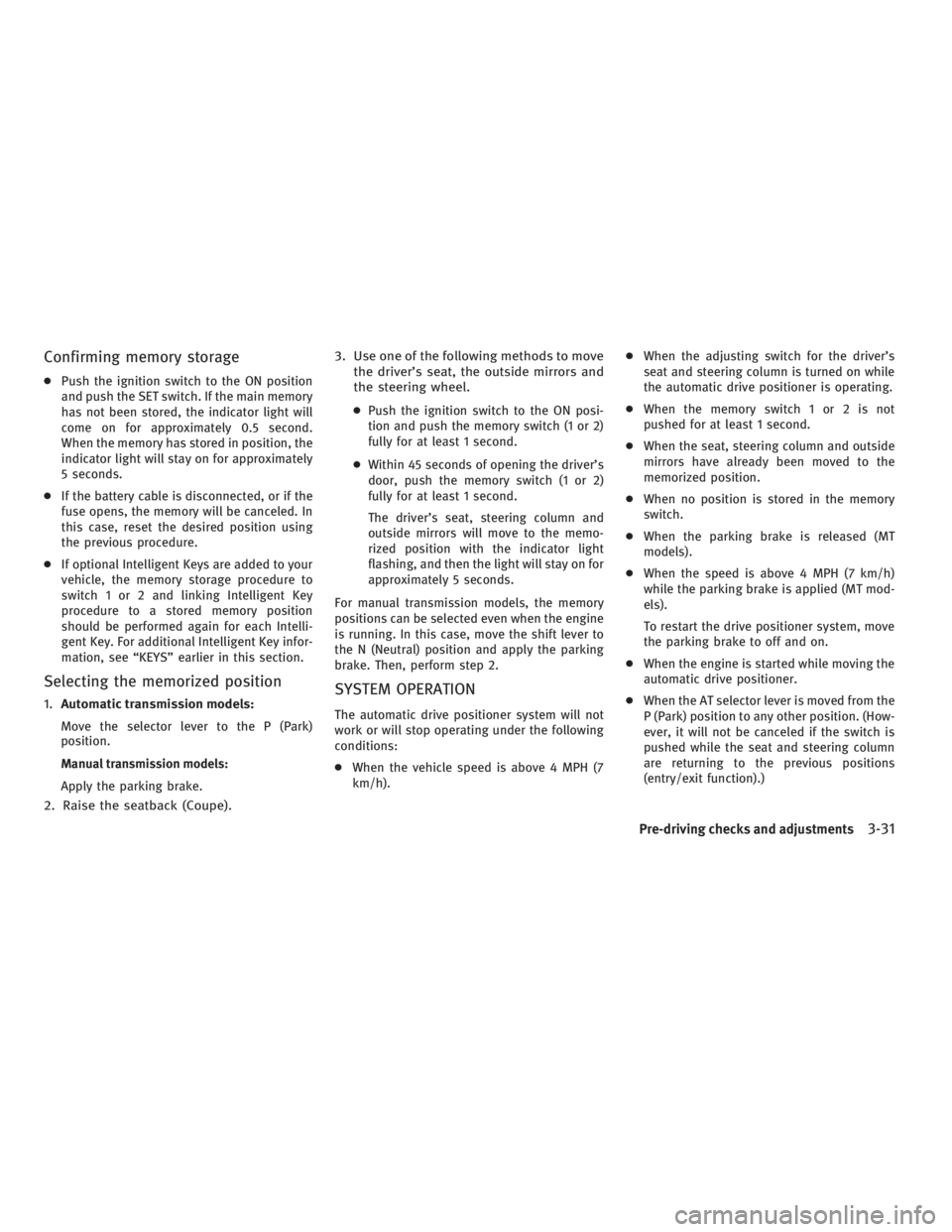

Confirming memory storage ● Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position 1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe). 3. Use one of the following methods to move
the driver’s seat, the outside mirrors and
the steering wheel.
● Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memo-
rized position with the indicator light
flashing, and then the light will stay on for
approximately 5 seconds.
For manual transmission models, the memory
positions can be selected even when the engine
is running. In this case, move the shift lever to
the N (Neutral) position and apply the parking
brake. Then, perform step 2.
SYSTEM OPERATION The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h). ● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the parking brake is released (MT
models).
● When the speed is above 4 MPH (7 km/h)
while the parking brake is applied (MT mod-
els).
To restart the drive positioner system, move
the parking brake to off and on.
● When the engine is started while moving the
automatic drive positioner.
● When the AT selector lever is moved from the
P (Park) position to any other position. (How-
ever, it will not be canceled if the switch is
pushed while the seat and steering column
are returning to the previous positions
(entry/exit function).)
Pre-driving checks and adjustments
3-31
 —
—
04/21/10—debbie


Movie file operation (models with
navigation system) Park the vehicle in a safe location for the front
seat occupants to operate the USB memory
while watching the images.
PLAY :
When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode. Operation keys :
To operate the USB memory, select the desired
key displayed on the operation screen using the
INFINITI controller.
Pause
Select the “
” key to pause the movie file.
To resume playing the movie file, select the
“ ” key.
Play
Select the “
” key to start playing a movie
file, for example, after pausing a movie file.
STOP
Select the “
” key to stop playing a movie
file.
Skip (Next chapter)
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed. Skip (Previous chapter)
Select the “
” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the “ ” key is se-
lected.
List :
Select the “List” key on the movie file operation
screen to display the file list.SAA2503
Monitor, climate, audio, phone and voice recognition systems
4-65
 —
—
04/21/10—debbie

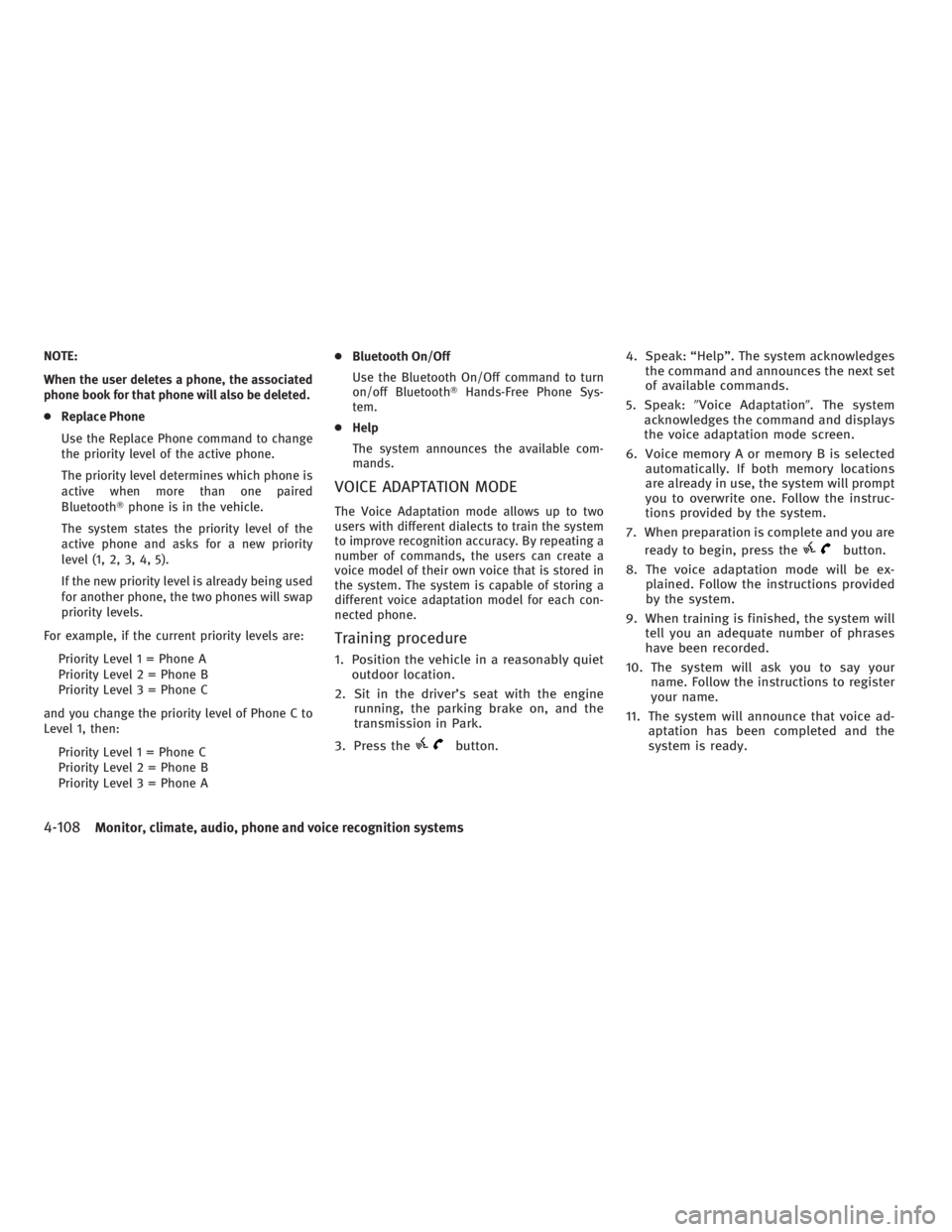

NOTE:
When the user deletes a phone, the associated
phone book for that phone will also be deleted.
● Replace Phone
Use the Replace Phone command to change
the priority level of the active phone.
The priority level determines which phone is
active when more than one paired
Bluetooth  phone is in the vehicle.
The system states the priority level of the
active phone and asks for a new priority
level (1, 2, 3, 4, 5).
If the new priority level is already being used
for another phone, the two phones will swap
priority levels.
For example, if the current priority levels are:
Priority Level 1 = Phone A
Priority Level 2 = Phone B
Priority Level 3 = Phone C
and you change the priority level of Phone C to
Level 1, then:
Priority Level 1 = Phone C
Priority Level 2 = Phone B
Priority Level 3 = Phone A ● Bluetooth On/Off
Use the Bluetooth On/Off command to turn
on/off Bluetooth  Hands-Free Phone Sys-
tem.
● Help
The system announces the available com-
mands.
VOICE ADAPTATION MODE The Voice Adaptation mode allows up to two
users with different dialects to train the system
to improve recognition accuracy. By repeating a
number of commands, the users can create a
voice model of their own voice that is stored in
the system. The system is capable of storing a
different voice adaptation model for each con-
nected phone.
Training procedure 1. Position the vehicle in a reasonably quiet
outdoor location.
2. Sit in the driver’s seat with the engine
running, the parking brake on, and the
transmission in Park.
3. Press the button. 4. Speak: “Help”. The system acknowledges
the command and announces the next set
of available commands.
5. Speak:  Voice Adaptation  . The system
acknowledges the command and displays
the voice adaptation mode screen.
6. Voice memory A or memory B is selected
automatically. If both memory locations
are already in use, the system will prompt
you to overwrite one. Follow the instruc-
tions provided by the system.
7. When preparation is complete and you are
ready to begin, press the button.
8. The voice adaptation mode will be ex-
plained. Follow the instructions provided
by the system.
9. When training is finished, the system will
tell you an adequate number of phrases
have been recorded.
10. The system will ask you to say your
name. Follow the instructions to register
your name.
11. The system will announce that voice ad-
aptation has been completed and the
system is ready.
4-108 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


M
Malfunction indicator light (MIL) ...... .2-17
Map lights .................. .2-54
Master warning light ............. .2-15
Mechanical key (Intelligent Key system) . . .3-3
Memory storage, Automatic drive
positioner ................... .3-30
Meter
Trip computer ............... .2-24
Meters and gauges .............. .2-4
Meters and gauges, Instrument brightness
control ..................... .2-36
Mirror
Inside mirror ............... .3-25
Outside mirrors .............. 3-26
Monitor, Rearview monitor ......... .4-22
Moonroof ................... .2-52
N
New vehicle break-in ............. .5-42
No key warning ................ .2-21
O
Odometer .................... .2-5
Off-road recovery ............... .5-5
Oil
Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine oil and filter .......8-9
Checking engine oil level .........8-8 Engine oil ..................8-8
Engine oil viscosity .............9-6
Oil filter replacement indicator ..... 2-23
Operation, Indicators for operation (dot
matrix) ..................... .2-21
Outside air temperature ........... .2-26
Outside mirrors ................ .3-26
Owner’s Manual/Service Manual order
information .................. .9-25
P
Panic alarm .................. .3-15
Parking
Parking brake operation ......... .5-18
Parking brake release warning ...... 2-22
Parking on hills .............. 5-44
Parking brake break-in ........... .5-49
Personal lights ................ .2-54
Phone, Car phone or CB radio ....... .4-85
Power
Power door lock .............. .3-4
Power
outlet ................ 2-41
Power
steering fluid ............ 8-11
Power steering system .......... 5-48
Power windows .............. 2-49
Power front seat adjustment ......... .1-3
Pre-crash seat belts ............. .1-16
Precautions
Audio operation ............. .4-39
Braking precautions ............ 5-48
Child restraints ............... 1-21
Cruise control ............... 5-19
Maintenance .................8-5
Seat belt usage ............... 1-12 Supplemental restraint system ...... 1-40
When starting and driving . . .......5-2
Preview function ............... .5-49
Preview function (for Intelligent cruise
control system) ................ .5-42
Preview Function warning light ....... .2-15
Push starting .................. .6-9
Push-button ignition switch ......... .5-7
R
Radio ..................... .4-39
Radio
Car phone or CB radio .......... .4-85
FM-AM-SAT radio with Compact Disc
(CD) player ................. 4-54
Rain-sensing auto wiper system . . . . . . .2-31
Rapid air pressure loss ............ .5-6
Readiness for inspection/maintenance
(I/M) test (US only) ............. .9-24
Rear door lock, Child safety rear door lock . .3-6
Rear seats ................... .1-7
Rear window and outside mirror defroster
switch ..................... .2-32
Rearview monitor ............... .4-22
Recorders, Event data ............ .9-25
Registering your vehicle in
another country ................ .9-11
Remote keyless entry system ........ .3-14
Reporting safety defects (US only) ..... .9-23
Roadside assistance program ........ .6-2
Rollover ..................... .5-5
Roof,
Moonroof ............... .2-53
10-5
 —
—
04/30/10—diane


Safety
Child seat belts .............. .1-15
Reporting safety defects (US only) . . . 9-23
S
Satellite radio operation ........... .4-55
Seat adjustment
Front power seat adjustment ....... .1-3
Front seats ..................1-3
Seat belt(s)
Child safety ................ .1-15
Infants .................... 1-15
Injured persons ............... 1-16
Larger children ............... 1-15
Pre-crash seat belts ............ 1-16
Precautions on seat belt usage ...... 1-12
Pregnant women .............. 1-16
Seat belt cleaning ..............7-5
Seat belt extenders ............ 1-20
Seat belt maintenance .......... 1-20
Seat belt warning light and chime .... 2-16
Seat belts .................. 1-12
Seat belts with pretensioners ...... 1-52
Shoulder belt height adjustment ..... 1-19
Small children ............... 1-15
Three-point type .............. 1-16
Seat synchronization function ....... .3-29
Seat(s)
Driver-side memory ........... .3-28
Heated seats ................ 2-38
Seats .....................1-2
Security system (INFINITI Vehicle
Immobilizer System), Engine start ..... .2-29
Security system, Vehicle security system . .2-27 Selector lever
Shift lock release ............. .5-15
Servicing air conditioner (See automatic
climate control) ............... .4-28
Servicing climate control .......... .4-38
SETTING button ................ .4-12
Shift lock release
Transmission ............... .5-15
Shifting
Automatic transmission ......... .5-12
Manual transmission ........... 5-16
Shoulder
belt
height adjustment ...... .1-19
Sliding front passenger’s seat ........ .1-5
Snow mode switch .............. .2-40
Sonar system ................. .5-46
Sonar system off switch ........... .5-48
Spare tire .................... .9-9
Spark plugs .................. .8-16
Speedometer .................. .2-5
Starting
Before starting the engine ........ .5-10
Precautions when starting and driving . . 5-2
Starting the engine ............. 5-11
STATUS button ................. .4-7
Status light, Front passenger air bag . . . .1-47
Steering
Power steering fluid ........... .8-11
Power steering system .......... 5-48
Steering lock release malfunction
indicator .................. 2-21
Steering-wheel-mounted controls for
audio .................... 4-83
Tilt/telescopic steering .......... 3-23
Storage .................... .2-43
Storage box .................. .2-47
Stowing golf bags .............. .2-48 Sun visors .................. .3-24
Sunglasses holder .............. .2-45
Supplemental air bag warning labels . . . .1-53
Supplemental air bag warning light . .1-53 , 2-16
Supplemental restraint system ....... .1-40
Supplemental restraint system,
Precautions on supplemental restraint
system ..................... .1-40
Switch
Autolight switch ............. .2-33
Fog light switch .............. 2-37
Hazard warning flasher switch ...... 2-37
Headlight switch .............. 2-33
Ignition switch automatic transmission
models ................... 5-12
Ignition switch manual transmission
models ................... 5-16
Power door lock switch ...........3-5
Rear window and outside mirror defroster
switch .................... 2-32
Snow mode switch ............ 2-40
Turn
signal switch ............. 2-37
Vehicle dynamic control (VDC)
off switch ................. 2-40
T
Tachometer ................... .2-6
Temperature gauge, Engine coolant
temperature gauge .............. .2-6
Theft (INFINITI Vehicle Immobilizer System),
Engine start .................. .2-29
Thigh extension ................ .1-5
Three-way catalyst ............... .5-2
Tilt/telescopic steering ........... .3-23
10-6
 —
—
04/30/10—diane
