key INFINITI G37 2012 Owners Manual

Black plate (321,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5 Starting and driving Precautions when starting and driving .................... 5-3
Exhaust gas (carbon monoxide) .......................... 5-3
Three-way catalyst .............................................. 5-4
Tire Pressure Monitoring System (TPMS) ............. 5-4
Avoiding collision and rollover ............................ 5-6
Off-road recovery ................................................ 5-7
Rapid air pressure loss ...................................... 5-7
Drinking alcohol/drugs and driving .................... 5-8
All-Wheel Drive (AWD) driving
safety precautions .............................................. 5-8
Push-button ignition switch .................................... 5-9
Intelligent Key system ........................................ 5-9
Operating range for engine start function ......... 5-10
Push-button ignition switch operation .............. 5-10
Push-button ignition switch positions ............... 5-11
Emergency engine shut off ............................... 5-11
Intelligent Key battery discharge ...................... 5-12
Before starting the engine .................................... 5-12
Starting the engine ............................................... 5-13
Driving the vehicle ................................................ 5-14
Automatic transmission .................................... 5-14
Manual Transmission ........................................ 5-18 Parking brake ....................................................... 5-20
Automatic transmission models ...................... 5-21
Manual Transmission models .......................... 5-21
Cruise control ....................................................... 5-21
Precautions on cruise control .......................... 5-21
Cruise control operations ................................ 5-22
Intelligent Cruise Control (ICC) system (if
so equipped) ........................................................ 5-23
Selecting the vehicle-to-vehicle distance
control mode .................................................. 5-24
Vehicle-to-vehicle distance control mode ......... 5-25
Precautions on vehicle-to-vehicle distance
control mode .................................................. 5-25
Vehicle-to-vehicle distance control
mode operation .............................................. 5-27
Conventional (fixed speed) cruise
control mode .................................................. 5-41
Preview function (for Intelligent Cruise Control
system equipped models) ............................... 5-44
Break-in schedule ................................................ 5-45
Increasing fuel economy ....................................... 5-45
All-Wheel Drive (AWD) (if so equipped) ................. 5-45
Parking/parking on hills ....................................... 5-47

Black plate (323,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-39788F85-F09A-4F03-A86A-9971096F7435
WARNING. Do not leave children or adults who
would normally require the support of
others alone in your vehicle. Pets should
not be left alone either. They could
accidentally injure themselves or others
through inadvertent operation of the
vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
. Closely supervise children when they are
around cars to prevent them from play-
ing and becoming locked in the trunk
where they could be seriously injured.
Keep the car locked, with the rear
seatback and trunk lid securely latched
when not in use, and prevent children ’ s
access to car keys. EXHAUST GAS (carbon monoxide) GUID-FE83F1BB-566B-418F-8146-74C3A55C538A
WARNING . Do not breathe exhaust gases; they
contain colorless and odorless carbon
monoxide. Carbon monoxide is danger-
ous. It can cause unconsciousness or
death.
. If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.
. Do not run the engine in closed spaces
such as a garage.
. Do not park the vehicle with the engine
running for any extended length of time.
. Keep the trunk lid closed while driving,
otherwise exhaust gases could be drawn
into the passenger compartment. If you
must drive with the trunk lid open,
follow these precautions:
1) Open all the windows.
2) Set the
air recirculation to off
and the fan control to high to
circulate the air. . If electrical wiring or other cable con-
nections must pass to a trailer through
the seal on the trunk lid or the body,
follow the manufacturer ’ s recommenda-
tion to prevent carbon monoxide entry
into the vehicle.
. The exhaust system and body should be
inspected by a qualified mechanic when-
ever:
— The vehicle is raised for service.
— You suspect that exhaust fumes are
entering into the passenger compart-
ment.
— You notice a change in the sound of
the exhaust system.
— You have had an accident involving
damage to the exhaust system,
underbody, or rear of the vehicle.
Starting and driving
5-3PRECAUTIONS WHEN STARTING AND
DRIVING

Black plate (329,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]in drivetrain damage or unexpected
vehicle movement which could result in
serious vehicle damage or personal
injury.
. Do not attempt to test an AWD equipped
vehicle on a 2-wheel dynamometer,
(such as the dynamometers used by
some states for emissions testing), or
similar equipment even if the other two
wheels are raised off the ground. Make
sure you inform test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer.
Using the wrong test equipment may
result in drivetrain damage or unex-
pected vehicle movement which could
result in serious vehicle damage or
personal injury.
. When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively. GUID-A0F35CA1-ADE1-478F-ABDB-FB4DD4BF0426
WARNING Do not operate the push-button ignition
switch while driving the vehicle except in an
emergency. (The engine will stop when the
ignition switch is pushed 3 consecutive
times or the ignition switch is pushed and
held for more than 2 seconds.) If the engine
stops while the vehicle is being driven, this
could lead to a crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the selector lever
to the P (Park) position (for automatic
transmission model) or the shift lever to
the N (Neutral) position (for manual trans-
mission model).
INTELLIGENT KEY SYSTEM GUID-5C22F5F0-8E63-49DB-8E3C-09EA9AB0E315
The Intelligent Key system can operate the
ignition switch without it being taken out
from your pocket or purse. The operating
environment and/or conditions may affect
the Intelligent Key system operation.
Some indicators and warnings for opera-
tion are displayed on the dot matrix liquid
crystal display between the speedometer
and tachometer. (See “ Dot matrix liquid crystal display ” (P.2-20).)
CAUTION . Be sure to carry the Intelligent Key with
you when operating the vehicle.
. Never leave the Intelligent Key inside the
vehicle when you leave the vehicle.
. If the vehicle battery is discharged, the
ignition switch cannot be switched from
the LOCK position. Charge the battery as
soon as possible. (See “ Jump starting ”
(P.6-8).)
Starting and driving
5-9PUSH-BUTTON IGNITION SWITCH

Black plate (330,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-10 Starting and driving SSD0824
OPERATING RANGE FOR ENGINE
START FUNCTION GUID-AD538490-C217-4791-BBA1-E0D349567B64
The Intelligent Key can only be used for
starting the engine when the Intelligent
Key is within the specified operating range
* 1
.
When the Intelligent Key battery is almost
discharged or strong radio waves are
present near the operating location, the
Intelligent Key system ’ s operating range
becomes narrower and may not function
properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even someone who does not carry the Intelligent
Key, to push the ignition switch to start the
engine.
. The trunk area is not included in the
operating range but the Intelligent Key
may function.
. If the Intelligent Key is placed on the
instrument panel, rear parcel shelf,
inside the glove box or door pocket,
the Intelligent Key may not function.
. If the Intelligent Key is placed near the
door or window outside the vehicle, the
Intelligent Key may function. SSD1021
PUSH-BUTTON IGNITION SWITCH
OPERATION GUID-A0C2E067-D7A3-43F9-A9B9-0A01FE60AF79
When the ignition switch is pushed without
depressing the brake pedal (automatic
transmission model) or the clutch pedal
(manual transmission model), the ignition
switch position will change as follows:
. Push center once to change to ACC.
. Push center two times to change to ON.
. Push center three times to change to
OFF. (No position illuminates.)
. Push center four times to return to ACC.
. Open or close any door to return to
LOCK during the OFF position.

Black plate (331,1)

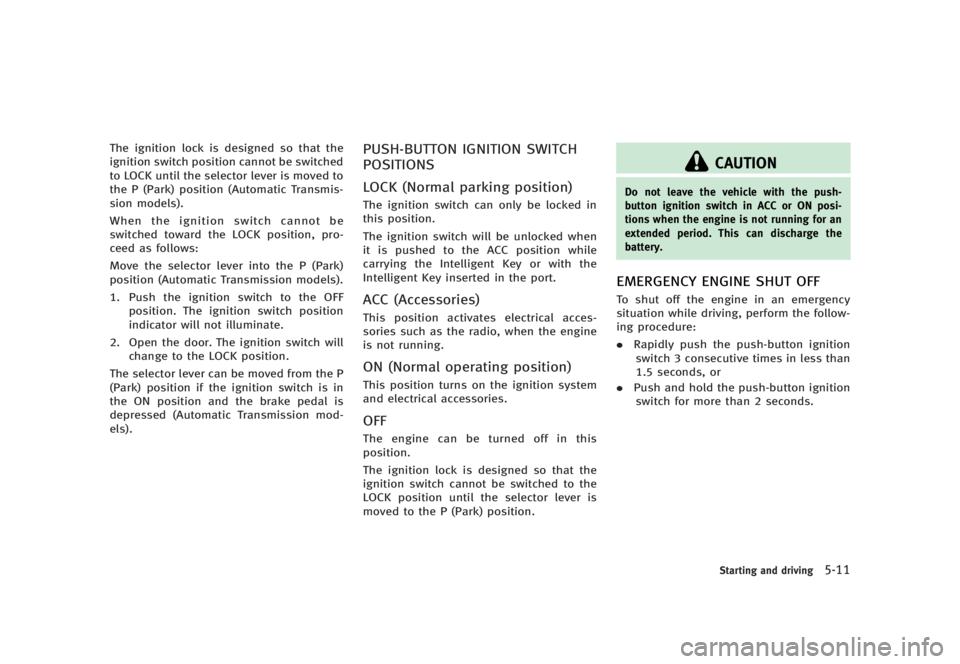

[ Edit: 2012/ 1/ 17 Model: V36-D ]The ignition lock is designed so that the
ignition switch position cannot be switched
to LOCK until the selector lever is moved to
the P (Park) position (Automatic Transmis-
sion models).
When the ignition switch cannot be
switched toward the LOCK position, pro-
ceed as follows:
Move the selector lever into the P (Park)
position (Automatic Transmission models).
1. Push the ignition switch to the OFF
position. The ignition switch position
indicator will not illuminate.
2. Open the door. The ignition switch will
change to the LOCK position.
The selector lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed (Automatic Transmission mod-
els). PUSH-BUTTON IGNITION SWITCH
POSITIONS GUID-60710781-CEB6-43F5-B4C9-238B6EF8631F
LOCK (Normal parking position) GUID-161E66BB-0EE3-42A6-90C3-A7F2B560A7E5
The ignition switch can only be locked in
this position.
The ignition switch will be unlocked when
it is pushed to the ACC position while
carrying the Intelligent Key or with the
Intelligent Key inserted in the port.
ACC (Accessories) GUID-3C0C67C0-6F44-45BC-B992-E50C144EB56B
This position activates electrical acces-
sories such as the radio, when the engine
is not running.
ON (Normal operating position) GUID-3AA055B1-B48F-4EAB-AAAF-76D265FCEBCF
This position turns on the ignition system
and electrical accessories.
OFF GUID-81A46A28-9A2C-4CDA-AAB1-7CAF6AE2AEF6
The engine can be turned off in this
position.
The ignition lock is designed so that the
ignition switch cannot be switched to the
LOCK position until the selector lever is
moved to the P (Park) position. CAUTION Do not leave the vehicle with the push-
button ignition switch in ACC or ON posi-
tions when the engine is not running for an
extended period. This can discharge the
battery.
EMERGENCY ENGINE SHUT OFF GUID-0593A1BC-9CDC-4F2A-B77C-2AF6E75B6A86
To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:
. Rapidly push the push-button ignition
switch 3 consecutive times in less than
1.5 seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.
Starting and driving
5-11

Black plate (332,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-12 Starting and driving SSD0768
INTELLIGENT KEY BATTERY DIS-
CHARGE GUID-9671F916-0B52-40C4-A8B6-C2EBEE799C79
If the battery of the Intelligent Key is
almost discharged, the guide light
* B
of
the Intelligent Key port
* A
blinks and the
indicator appears on the dot matrix liquid
crystal display. (See “ Dot matrix liquid
crystal display ” (P.2-20).)
In this case, inserting the Intelligent Key
into the port
* 1
allows you to start the
engine. Make sure that the key ring side
faces backward as illustrated. Insert the
Intelligent Key in the port until it is latched
and secured. To remove the Intelligent Key from the port,
push the ignition switch to the OFF position
and pull the Intelligent Key out of the port.
NOTE:
The Intelligent Key port does not charge
the Intelligent Key battery. If you see the
low battery indicator in the dot matrix
liquid crystal display, replace the battery
as soon as possible. (See “ Intelligent Key
battery replacement ” (P.8-26).)
CAUTION . Never place anything except the Intelli-
gent Key in the Intelligent Key port.
Doing so may cause damage to the
equipment.
. Make sure the Intelligent Key is in the
correct direction when inserting it to the
Intelligent Key port. The engine may not
start if it is in the incorrect direction.
. Remove the Intelligent Key from the
Intelligent Key port after the ignition
switch is pushed to the OFF position. GUID-9AB14243-C48A-46A2-B252-8756B1BD5A3D
. Make sure the area around the vehicle
is clear.
. Check fluid levels such as engine oil,
coolant, brake fluid and window
washer fluid as frequently as possible,
or at least whenever you refuel.
. Check that all windows and lights are
clean.
. Visually inspect tires for their appear-
ance and condition. Also check tires for
proper inflation.
. Lock all doors.
. Position seat and adjust head re-
straints.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passen-
gers to do likewise.
. Check the operation of warning lights
when the ignition switch is pushed to
the ON position. (See “ Warning/indica-
tor lights and audible reminders ” (P.2-
12).)BEFORE STARTING THE ENGINE

Black plate (333,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-047D7FCF-6A67-40C6-9132-4B63D7D41A18
1. Apply the parking brake.
2. Automatic Transmission (AT) model:
Move the selector lever to the P (Park)
or N (Neutral) position. (P is recom-
mended.)
The starter is designed not to operate
unless the selector lever is in either of
the above positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral)
position. Depress the clutch pedal fully
to the floor.
The starter is designed not to operate
unless the clutch pedal is fully de-
pressed.
The Intelligent Key must be carried
when operating the ignition switch.
3. Push the ignition switch to the ON
position. Depress the brake pedal (AT
model) or the clutch pedal (MT model)
and push the ignition switch to start
the engine.
To start the engine immediately, push
and release the ignition switch while
depressing the brake pedal or clutch
pedal (MT model) with the ignition
switch in any position. .
If the engine is very hard to start in
extremely cold weather or when
restarting, depress the accelerator
pedal a little (approximately 1/3 to
the floor) and while holding, crank
the engine. Release the accelerator
pedal when the engine starts. .
If the engine is very hard to start
because it is flooded, depress the
accelerator pedal all the way to the
floor and hold it. Push the ignition
switch to the ON position to start
cranking the engine. After 5 or 6
seconds, stop cranking by pushing
the ignition switch to OFF. After
cranking the engine, release the
accelerator pedal. Crank the engine
with your foot off the accelerator
pedal by depressing the brake pedal
and pushing the push-button igni-
tion switch to start the engine. If the
engine starts, but fails to run, repeat
the above procedure.
CAUTION Do not operate the starter for more than 15
seconds at a time. If the engine does not
start, push the ignition switch to OFF and wait 10 seconds before cranking again,
otherwise the starter could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
moderate speed for a short distance
first, especially in cold weather. In cold
weather, keep the engine running for a
minimum of 2 - 3 minutes before
shutting it off. Starting and stopping
the engine over a short period of time
may make the vehicle more difficult to
start.
VQ37VHR engine: When racing the
engine up to 4,000 rpm or more under
no load condition, the engine will enter
the fuel cut mode.
5. To stop the engine, shift the selector
lever to the P (Park) position (AT model)
or move the shift lever to the N
(Neutral) position (MT model), and push
the ignition switch to the OFF position.
Starting and driving
5-13STARTING THE ENGINE

Black plate (369,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]stacles or false alarms.
CAUTIONKeep the interior of the vehicle as quiet as
possible to hear the tone clearly.
The sonar system sounds a tone to warn
the driver of obstacles near the bumper.
When the “ Sonar Display ” key is ON, the
sonar indicator will also appear in the
center display. (See “ Sonar indicator ” (P.5-
49).) The system detects rear obstacles
when the selector lever is in the “ R ”
(Reverse) position.
The system may not detect objects at
speeds above 6 MPH (10 km/h) and may
not detect certain angular or moving
objects.
The sonar system detects obstacles up to
3.9 feet (1.2 m) from the bumper with a
decreased coverage area at the outer
corners of the bumper. Refer to the
illustration for approximate zone coverage
areas. As you move closer to the obstacle,
the rate of the tone increases. When the
obstacle is less than 11.8 in (30 cm) away, the tone will sound continuously.
Keep the corner/center sonar (located on
the bumper fascia) free from snow, ice and
large accumulations of dirt (do not clean
the sonar with sharp objects). If the sonar
is covered, it will affect the accuracy of the
sonar system.
The sensitivity level of the corner/center
sonar can be adjusted (higher or lower) in
the SONAR setting display. (See “ How to
use SETTING button ” (P.4-14) for the
“ Sonar ” settings.) SSD0928
* 1
Rear view monitor display
* A
Corner sonar indicator
* B
Center sonar indicator
SONAR INDICATOR GUID-BCE909B1-A1DD-4D6D-AC06-E3739C301FD2
With the “ Sonar Display ” key ON in the
“ Sonar ” settings, when the corner/center
sonar detects obstacles near the bumper, a
tone will sound and the sonar indicator will
appear in the center display. When the rear
view monitor is displayed, the sonar
indicator will appear in the upper corner
of the display
* 1
.
The sonar indicators
* A
and
* B
indicate
the position of the object and the distance
Starting and driving
5-49

Black plate (378,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-58 Starting and driving GUID-695D451B-86A6-4B0E-A4A9-166BD9DD27DE

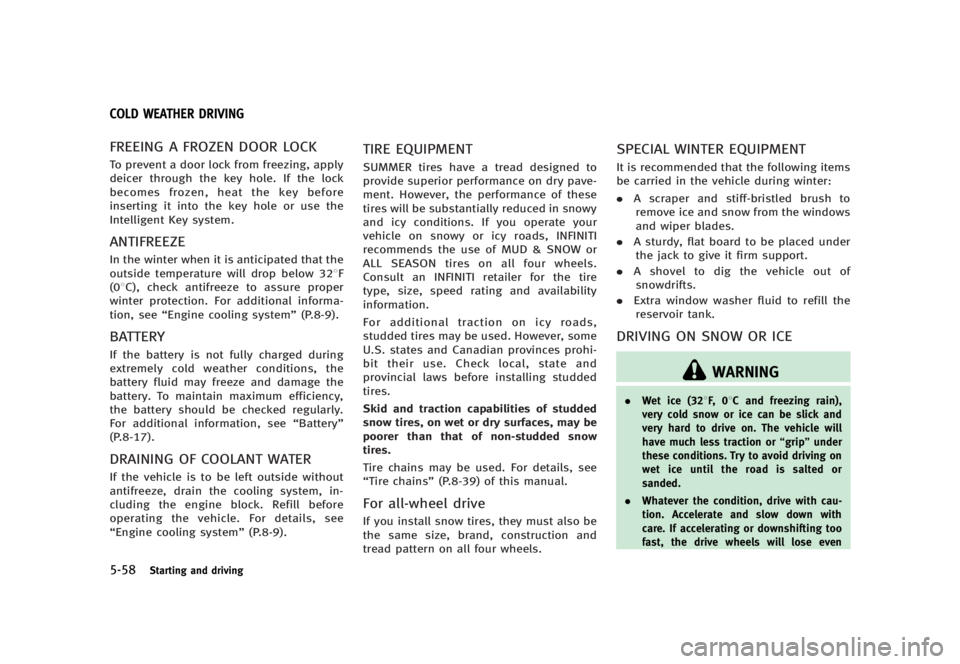

FREEING A FROZEN DOOR LOCK GUID-5F57F3E0-2969-4980-A1A0-BD5D647B2C54
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock
becomes frozen, heat the key before
inserting it into the key hole or use the
Intelligent Key system.
ANTIFREEZE GUID-F8D7961D-C579-4F53-826C-B5C0F179A8A4
In the winter when it is anticipated that the
outside temperature will drop below 32 8 F
(0 8 C), check antifreeze to assure proper
winter protection. For additional informa-
tion, see “ Engine cooling system ” (P.8-9).
BATTERY GUID-7370DBB5-3733-4F67-B170-202B0ECEAFD5
If the battery is not fully charged during
extremely cold weather conditions, the
battery fluid may freeze and damage the
battery. To maintain maximum efficiency,
the battery should be checked regularly.
For additional information, see “ Battery ”
(P.8-17).
DRAINING OF COOLANT WATER GUID-1E2017DE-B388-4F4A-AC44-3F639AB39240
If the vehicle is to be left outside without
antifreeze, drain the cooling system, in-
cluding the engine block. Refill before
operating the vehicle. For details, see
“ Engine cooling system ” (P.8-9). TIRE EQUIPMENT GUID-CB13ADAD-1389-4CA9-89D4-C970D4152E81
SUMMER tires have a tread designed to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your
vehicle on snowy or icy roads, INFINITI
recommends the use of MUD & SNOW or
ALL SEASON tires on all four wheels.
Consult an INFINITI retailer for the tire
type, size, speed rating and availability
information.
For additional traction on icy roads,
studded tires may be used. However, some
U.S. states and Canadian provinces prohi-
bit their use. Check local, state and
provincial laws before installing studded
tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
Tire chains may be used. For details, see
“ Tire chains ” (P.8-39) of this manual.
For all-wheel drive GUID-7A027A3E-CFDC-48CE-8A84-86EFBDFF0BCB
If you install snow tires, they must also be
the same size, brand, construction and
tread pattern on all four wheels. SPECIAL WINTER EQUIPMENT GUID-6AEDC1F1-78E0-49EE-A495-05AD7B0A46B7
It is recommended that the following items
be carried in the vehicle during winter:
. A scraper and stiff-bristled brush to
remove ice and snow from the windows
and wiper blades.
. A sturdy, flat board to be placed under
the jack to give it firm support.
. A shovel to dig the vehicle out of
snowdrifts.
. Extra window washer fluid to refill the
reservoir tank.
DRIVING ON SNOW OR ICE GUID-0864712C-2A8E-4B2A-96E7-B1801A0D999A
WARNING . Wet ice (32 8 F, 0 8 C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “ grip ” under
these conditions. Try to avoid driving on
wet ice until the road is salted or
sanded.
. Whatever the condition, drive with cau-
tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose evenCOLD WEATHER DRIVING

Black plate (407,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8 Maintenance and do-it-yourself Maintenance requirement ....................................... 8-3
Scheduled maintenance ..................................... 8-3
General maintenance .......................................... 8-3
Where to go for service ...................................... 8-3
General maintenance .............................................. 8-4
Explanation of maintenance items ...................... 8-4
Maintenance precautions ........................................ 8-6
Engine compartment check locations ...................... 8-8
VQ25HR/VQ37VHR engine .................................. 8-8
Engine cooling system ............................................ 8-9
Checking engine coolant level .......................... 8-10
Changing engine coolant .................................. 8-10
Engine oil ............................................................. 8-11
Checking engine oil level .................................. 8-11
Changing engine oil and filter .......................... 8-11
Automatic transmission fluid ................................ 8-14
Power steering fluid .............................................. 8-14
Brake and clutch fluid .......................................... 8-15
Brake fluid ....................................................... 8-15
Clutch fluid (if so equipped) ............................. 8-15
Window washer fluid ............................................ 8-16 Battery ................................................................. 8-17
Coupe ............................................................. 8-17
Sedan and coupe ............................................ 8-17
Jump starting .................................................. 8-18
Variable voltage control system ............................ 8-19
Drive belts ........................................................... 8-19
Spark plugs ......................................................... 8-20
Replacing spark plugs .................................... 8-20
Air cleaner ........................................................... 8-21
Windshield wiper blades ...................................... 8-22
Cleaning ......................................................... 8-22
Replacing ........................................................ 8-22
Brakes ................................................................. 8-23
Self-adjusting brakes ...................................... 8-23
Brake pad wear warning ................................. 8-23
Fuses ................................................................... 8-24
Engine compartment ....................................... 8-24
Passenger compartment .................................. 8-25
Intelligent Key battery replacement ...................... 8-26
