TPMS INFINITI G37 2012 Owners Manual

Black plate (9,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-8717B1C7-6F7F-40EB-8277-9FF3CC88B2F6
SSI0643
SEDAN GUID-79DD3727-9840-4EBC-90BA-C1063732CCE6
1. Hood (P.3-18)
2. Headlight and turn signal
— Operation (P.2-34)
— Bulb replacement (P.8-28)
3. Windshield wiper and washer — Operation (P.2-31)
— Maintenance (P.8-22)
4. Moonroof (if so equipped) (P.2-55)
5. Power windows (P.2-52)
6. Recovery hook (P.6-13) 7. Fog light (P.2-39)
8. Tires
— Wheel and tires (P.8-33, P.9-9)
— Flat tire (P.6-2)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
9. Outside mirrors (P.3-29)
10. Doors
— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
Illustrated table of contents
0-3EXTERIOR FRONT

Black plate (10,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]0-4 Illustrated table of contents SSI0806
COUPE GUID-AC0B3EEA-9252-4992-8E97-317D9777AC16
1. Hood (P.3-18)
2. Headlight and turn signal
— Operation (P.2-34)
— Bulb replacement (P.8-28)
3. Windshield wiper and washer — Operation (P.2-31)
— Maintenance (P.8-22)
4. Moonroof (if so equipped) (P.2-55)
5. Power windows (P.2-52)
6. Recovery hook (P.6-13) 7. Fog light (P.2-39)
8. Tires
— Wheel and tires (P.8-33, P.9-9)
— Flat tire (P.6-2)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
9. Outside mirrors (P.3-29)
10. Doors
— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)

Black plate (93,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]even when driving on a straight road. Drive
carefully to the nearest INFINITI retailer.
Intelligent Cruise Control (ICC)
system warning light (orange; if so
equipped) GUID-FF29B1E7-F6C4-403D-8621-C6A7F86246EF
This light comes on if there is a malfunc-
tion in the Intelligent Cruise Control (ICC)
system.
If the warning light comes on, park the
vehicle in a safe place. Turn the engine off,
restart the engine, resume driving and set
the ICC system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the
vehicle is still driveable under normal
conditions, have the vehicle checked at
an INFINITI retailer.
Intelligent Key warning light GUID-7E046839-8973-408F-BF89-AB2223E4A062
After the ignition switch is pushed to the
ON position, this light comes on for about
2 seconds and then turns off.
This light warns of a malfunction with the
Intelligent Key system.
If the light comes on while the engine is
stopped, it may be impossible to start the
engine. If the light comes on while the engine is running, you can drive the
vehicle. However in these cases, contact
an INFINITI retailer for repair as soon as
possible.
Low tire pressure warning
light GUID-4B828BB9-9D9C-4BA9-B41A-9EF6D3CB156D
Your vehicle is equipped with a Tire
Pressure Monitoring System (TPMS) that
monitors the tire pressure of all tires
except the spare.
The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.
After the ignition switch is pushed ON, this
light illuminates for about 1 second and
turns off.
Low tire pressure warning: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRESSURE warning also
appears on the dot matrix liquid crystal
display.
When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure to the recommended
COLD tire pressure shown on the Tire and
Loading Information label. The low tire pressure warning light does not automati-
cally turn off when the tire pressure is
adjusted. After the tire is inflated to the
recommended pressure, the vehicle must
be driven at speeds above 16 MPH (25
km/h) to activate the TPMS and turn off the
low tire pressure warning light. Use a tire
pressure gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning is
active as long as the low tire pressure
warning light remains illuminated.
For additional information, see “ Dot matrix
liquid crystal display ” (P.2-20), “ Tire Pres-
sure Monitoring System (TPMS) ” (P.5-4)
and “ Tire Pressure Monitoring System
(TPMS) ” (P.6-2).
TPMS malfunction: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is pushed ON. The light will remain
on after the 1 minute. Have the system
checked by an INFINITI retailer. The CHECK
TIRE PRESSURE warning does not appear if
the low tire pressure warning light illumi-
nates to indicate a TPMS malfunction.
For additional information, see “ Tire Pres-
sure Monitoring System (TPMS) ” (P.5-4).
Instruments and controls
2-15

Black plate (94,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]2-16 Instruments and controlsWARNING. If the light does not illuminate with the
ignition switch pushed ON, have the
vehicle checked by an INFINITI retailer as
soon as possible.
. If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and could
result in serious personal injury. Check
the tire pressure for all four tires. Adjust
the tire pressure to the recommended
COLD tire pressure shown on the Tire
and Loading Information label to turn
the low tire pressure warning light OFF. If
the light still illuminates while driving
after adjusting the tire pressure, a tire
may be flat. If you have a flat tire,
replace it with a spare tire as soon as
possible. . When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after the 1
minute. Contact your INFINITI retailer as
soon as possible for tire replacement
and/or system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
CAUTION . The TPMS is not a substitute for the
regular tire pressure check. Be sure to
check the tire pressure regularly.
. If the vehicle is being driven at speeds of
less than 16 MPH (25 km/h), the TPMS
may not operate correctly.
. Be sure to install the specified size of
tires to the four wheels correctly.
Master warning light GUID-BFD238A1-B056-42EA-B9A0-FCCF2B17501F
When the ignition switch is in the ON
position, the master warning light illumi- nates if any of the following are displayed
on the dot matrix liquid crystal display:
. No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/trunk open warning
. Loose fuel cap warning
. Check tire pressure warning
See “ Dot matrix liquid crystal display ” (P.2-
20).
Preview Function warning light
(orange; if so equipped) GUID-B4E486C7-1748-4EBD-A37A-79C9F389E7E0
The light comes on if there is a malfunction
in the Brake Assist (with Preview Function)
system.
If the warning light comes on, park the
vehicle in a safe place. Turn the engine off,
restart the engine, resume driving and set
the ICC system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the
vehicle is still driveable under normal
conditions, have the vehicle checked at
an INFINITI retailer.

Black plate (101,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8. Engine start operation indicator
(Manual Transmission models) GUID-6F348F29-B160-4632-B05C-A45F6D5E7AD7
This indicator means that the engine will
start by pushing the ignition switch with
the clutch pedal depressed.
9. Parking brake release warning GUID-7289EFE7-F400-4C19-9597-F8AA159911CA
This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
10. Low fuel warning GUID-2FE47C40-46BC-4EC8-AC52-E90EBB5F8B0F
This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (E) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (E) position.
11. Low washer fluid warning GUID-54C94524-E0BC-4326-8A11-B2CD705757A6
This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See “ Window washer fluid ”
(P.8-16).)
12. Door/trunk open warning (igni-
tion switch is in the ON position) GUID-50585695-BAF8-48B7-8A81-CEA312693DE1
This warning appears if any of the doors and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
13. Loose fuel cap warning GUID-479E9C15-B26C-477B-8AA7-ED29D6CD76ED
This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See “ Fuel-filler
door ” (P.3-23).)
14. Check tire pressure warning GUID-174D3E5C-C80F-432A-944F-EE13C51D1486
This warning appears when the low tire
pressure warning light in the meter illumi-
nates to indicate the low tire pressure. If
this warning appears, stop the vehicle and
adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. (See
“ Low tire pressure warning light ” (P.2-15)
and “ Tire Pressure Monitoring System
(TPMS) ” (P.5-4).)
15. “ Time to rest ” indicator GUID-9639DC97-247E-4499-BA1B-AFF133E94400
This indicator appears when the set “ time
to rest ” indicator activates. You can set the
time for up to 6 hours. (See “ Trip
computer ” (P.2-26).) 16. Low outside temperature warn-
ing GUID-E9986E7D-DDA6-4BCF-8D8E-D8F9C645C41B
This warning appears if the outside tem-
perature is below 37 8 F (3 8 C). The warning
can be set not to be displayed. (See “ Trip
computer ” (P.2-26).)
17. Cruise indicator GUID-8437A118-88BE-4895-A266-56D415AE4EC7
Cruise main switch indicator: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The indicator is displayed when the cruise
control main switch is pushed. When the
main switch is pushed again, the indicator
disappears. When the cruise control main
switch indicator is displayed, the cruise
control system is operational.
Cruise set switch indicator: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The indicator is displayed while the vehicle
speed is controlled by the cruise control
system. If the indicator blinks while the
engine is running, it may indicate that the
cruise control system is not functioning
properly. Have the system checked by an
INFINITI retailer.
See “ Cruise control ” (P.5-21) for details.
Instruments and controls
2-23

Black plate (321,1)

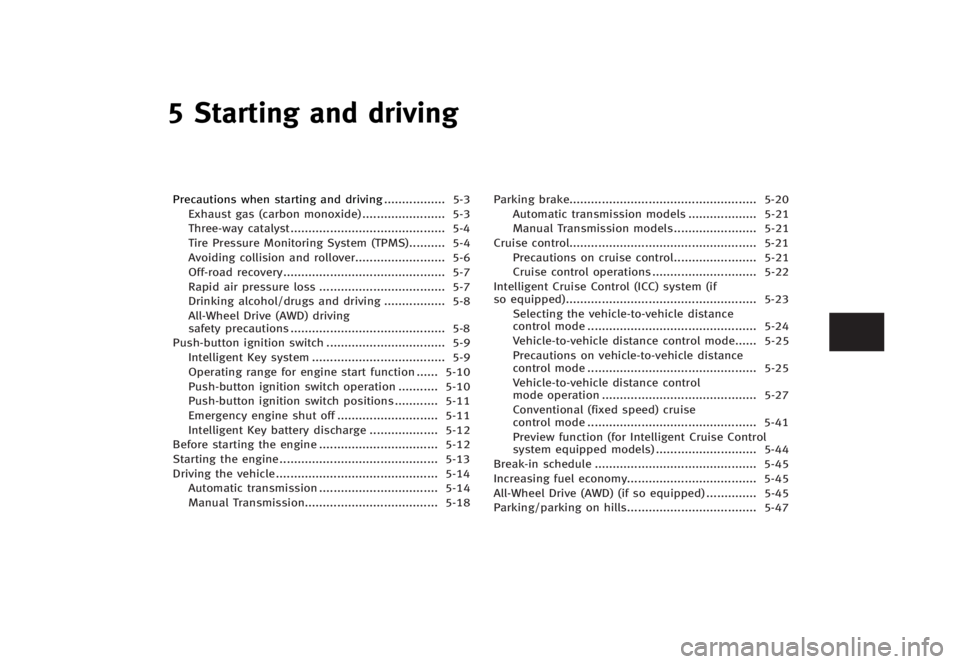

[ Edit: 2012/ 1/ 17 Model: V36-D ]5 Starting and driving Precautions when starting and driving .................... 5-3
Exhaust gas (carbon monoxide) .......................... 5-3

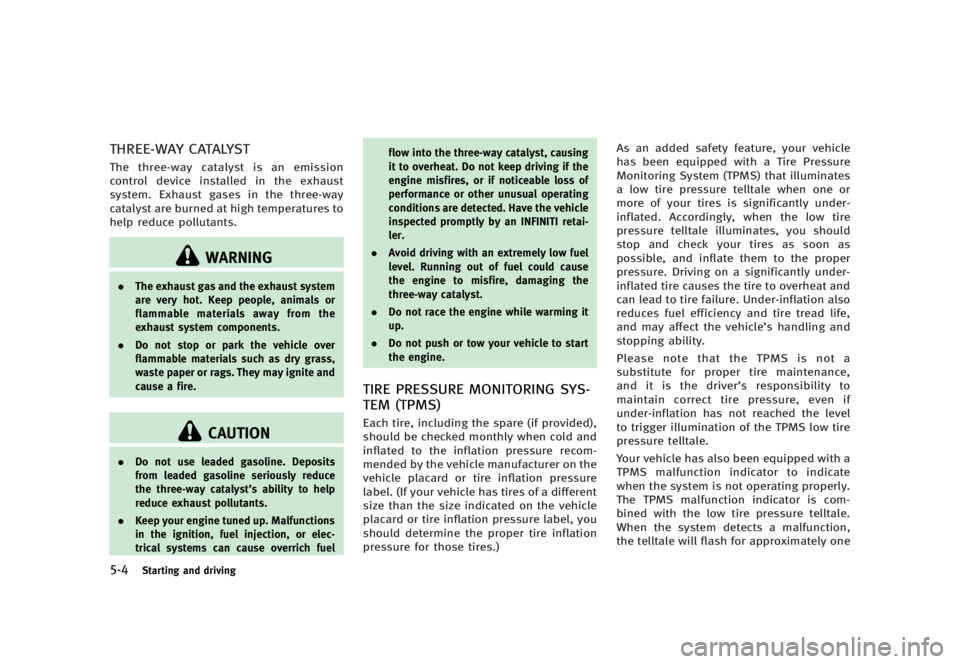

Three-way catalyst .............................................. 5-4

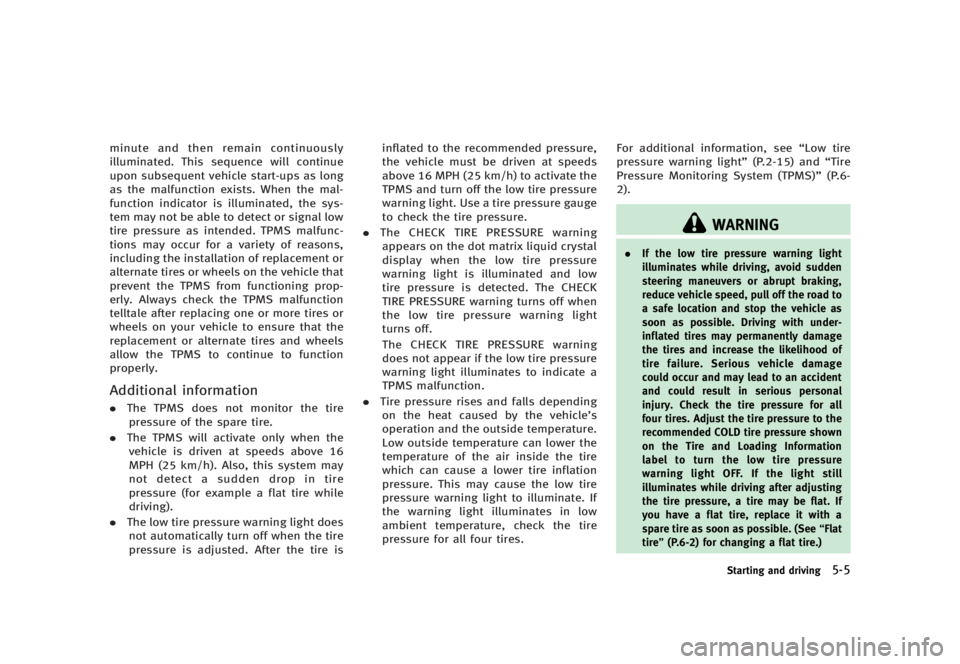

Tire Pressure Monitoring System (TPMS) ............. 5-4
Avoiding collision and rollover ............................ 5-6
Off-road recovery ................................................ 5-7
Rapid air pressure loss ...................................... 5-7
Drinking alcohol/drugs and driving .................... 5-8
All-Wheel Drive (AWD) driving
safety precautions .............................................. 5-8
Push-button ignition switch .................................... 5-9
Intelligent Key system ........................................ 5-9
Operating range for engine start function ......... 5-10
Push-button ignition switch operation .............. 5-10
Push-button ignition switch positions ............... 5-11
Emergency engine shut off ............................... 5-11
Intelligent Key battery discharge ...................... 5-12
Before starting the engine .................................... 5-12
Starting the engine ............................................... 5-13
Driving the vehicle ................................................ 5-14
Automatic transmission .................................... 5-14
Manual Transmission ........................................ 5-18 Parking brake ....................................................... 5-20
Automatic transmission models ...................... 5-21
Manual Transmission models .......................... 5-21
Cruise control ....................................................... 5-21
Precautions on cruise control .......................... 5-21
Cruise control operations ................................ 5-22
Intelligent Cruise Control (ICC) system (if
so equipped) ........................................................ 5-23
Selecting the vehicle-to-vehicle distance
control mode .................................................. 5-24
Vehicle-to-vehicle distance control mode ......... 5-25
Precautions on vehicle-to-vehicle distance
control mode .................................................. 5-25
Vehicle-to-vehicle distance control
mode operation .............................................. 5-27
Conventional (fixed speed) cruise
control mode .................................................. 5-41
Preview function (for Intelligent Cruise Control
system equipped models) ............................... 5-44
Break-in schedule ................................................ 5-45
Increasing fuel economy ....................................... 5-45
All-Wheel Drive (AWD) (if so equipped) ................. 5-45
Parking/parking on hills ....................................... 5-47

Black plate (324,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-4 Starting and drivingTHREE-WAY CATALYST GUID-86566321-839C-449F-B115-5E0F54C18ECE
The three-way catalyst is an emission
control device installed in the exhaust
system. Exhaust gases in the three-way
catalyst are burned at high temperatures to
help reduce pollutants.
WARNING. The exhaust gas and the exhaust system
are very hot. Keep people, animals or
flammable materials away from the
exhaust system components.
. Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite and
cause a fire.
CAUTION. Do not use leaded gasoline. Deposits
from leaded gasoline seriously reduce
the three-way catalyst ’ s ability to help
reduce exhaust pollutants.
. Keep your engine tuned up. Malfunctions
in the ignition, fuel injection, or elec-
trical systems can cause overrich fuel flow into the three-way catalyst, causing
it to overheat. Do not keep driving if the
engine misfires, or if noticeable loss of
performance or other unusual operating
conditions are detected. Have the vehicle
inspected promptly by an INFINITI retai-
ler.
. Avoid driving with an extremely low fuel
level. Running out of fuel could cause
the engine to misfire, damaging the
three-way catalyst.
. Do not race the engine while warming it
up.
. Do not push or tow your vehicle to start
the engine.
TIRE PRESSURE MONITORING SYS-
TEM (TPMS) GUID-01A54468-A798-4FEE-AB71-4E7737FDCB1C
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.) As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that illuminates
a low tire pressure telltale when one or
more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate them to the proper
pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle ’ s handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver ’ s responsibility to
maintain correct tire pressure, even if
under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction,
the telltale will flash for approximately one

Black plate (325,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as long
as the malfunction exists. When the mal-
function indicator is illuminated, the sys-
tem may not be able to detect or signal low
tire pressure as intended. TPMS malfunc-
tions may occur for a variety of reasons,
including the installation of replacement or
alternate tires or wheels on the vehicle that
prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
Additional information GUID-80EA0255-F871-460E-BDF5-E3C4E75931D0
. The TPMS does not monitor the tire
pressure of the spare tire.
. The TPMS will activate only when the
vehicle is driven at speeds above 16
MPH (25 km/h). Also, this system may
not detect a sudden drop in tire
pressure (for example a flat tire while
driving).
. The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to the recommended pressure,
the vehicle must be driven at speeds
above 16 MPH (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.
. The CHECK TIRE PRESSURE warning
appears on the dot matrix liquid crystal
display when the low tire pressure
warning light is illuminated and low
tire pressure is detected. The CHECK
TIRE PRESSURE warning turns off when
the low tire pressure warning light
turns off.
The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.
. Tire pressure rises and falls depending
on the heat caused by the vehicle ’ s
operation and the outside temperature.
Low outside temperature can lower the
temperature of the air inside the tire
which can cause a lower tire inflation
pressure. This may cause the low tire
pressure warning light to illuminate. If
the warning light illuminates in low
ambient temperature, check the tire
pressure for all four tires. For additional information, see “ Low tire
pressure warning light ” (P.2-15) and “ Tire
Pressure Monitoring System (TPMS) ” (P.6-
2).
WARNING . If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still
illuminates while driving after adjusting
the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a
spare tire as soon as possible. (See “ Flat
tire ” (P.6-2) for changing a flat tire.)
Starting and driving
5-5

Black plate (326,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-6 Starting and driving. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.
CAUTION. The TPMS may not function properly
when the wheels are equipped with tire
chains or the wheels are buried in snow.
. Do not place metalized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly. Some devices and transmitters may tem-
porarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate. Some exam-
ples are:
. Facilities or electric devices using simi-
lar radio frequencies are near the
vehicle.
. If a transmitter set to similar frequen-
cies is being used in or near the
vehicle.
. If a computer (or similar equipment) or
a DC/AC converter is being used in or
near the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user ’ s
authority to operate the equipment. For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
AVOIDING COLLISION AND ROLL-
OVER GUID-EE5BC752-B37C-479E-857D-032EF1A955FA
WARNING Failure to operate this vehicle in a safe and
prudent manner may result in loss of control
or an accident.
Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid exces-
sive speed, high speed cornering, or
sudden steering maneuvers, because
these driving practices could cause you to
lose control of your vehicle. As with any
vehicle, a loss of control could result in a
collision with other vehicles or objects, or
cause the vehicle to rollover, particularly if
the loss of control causes the vehicle to
slide sideways. Be attentive at all times,

Black plate (381,1)

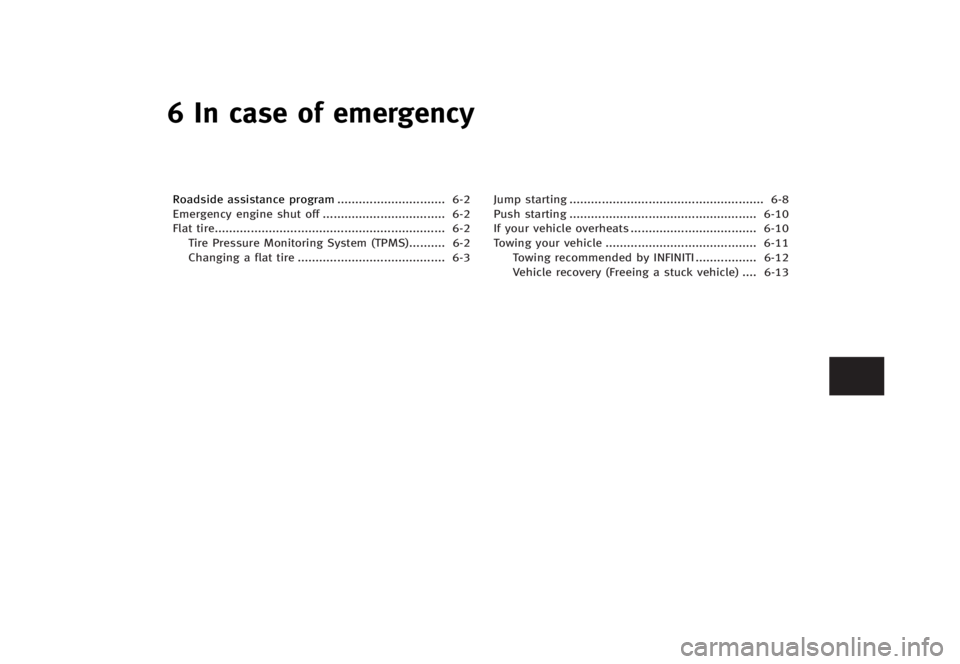

[ Edit: 2012/ 1/ 17 Model: V36-D ]6 In case of emergency Roadside assistance program ................................. 6-2
Emergency engine shut off ..................................... 6-2
Flat tire ................................................................... 6-2
Tire Pressure Monitoring System (TPMS) ............. 6-2
Changing a flat tire ............................................ 6-3 Jump starting ......................................................... 6-8
Push starting ....................................................... 6-10
If your vehicle overheats ...................................... 6-10
Towing your vehicle ............................................. 6-11
Towing recommended by INFINITI .................... 6-12
Vehicle recovery (Freeing a stuck vehicle) ....... 6-13
