[ Edit: 2012/ 1/ 17 Model: V36-D ]5-12 Starting and driving SSD0768
INTELLIGENT KEY BATTERY DIS-
CHARGE GUID-9671F916-0B52-40C4-A8B6-C2EBEE799C79
If the battery of the Intelligent Key is
almost discharged, the guide light
* B
of
the Intelligent Key port
* A
blinks and the
indicator appears on the dot matrix liquid
crystal display. (See “ Dot matrix liquid
crystal display ” (P.2-20).)
In this case, inserting the Intelligent Key
into the port
* 1
allows you to start the
engine. Make sure that the key ring side
faces backward as illustrated. Insert the
Intelligent Key in the port until it is latched
and secured. To remove the Intelligent Key from the port,
push the ignition switch to the OFF position
and pull the Intelligent Key out of the port.
NOTE:
The Intelligent Key port does not charge
the Intelligent Key battery. If you see the
low battery indicator in the dot matrix
liquid crystal display, replace the battery
as soon as possible. (See “ Intelligent Key
battery replacement ” (P.8-26).)
CAUTION . Never place anything except the Intelli-
gent Key in the Intelligent Key port.
Doing so may cause damage to the
equipment.
. Make sure the Intelligent Key is in the
correct direction when inserting it to the
Intelligent Key port. The engine may not
start if it is in the incorrect direction.
. Remove the Intelligent Key from the
Intelligent Key port after the ignition
switch is pushed to the OFF position. GUID-9AB14243-C48A-46A2-B252-8756B1BD5A3D
. Make sure the area around the vehicle
is clear.
. Check fluid levels such as engine oil,
coolant, brake fluid and window
washer fluid as frequently as possible,
or at least whenever you refuel.
. Check that all windows and lights are
clean.
. Visually inspect tires for their appear-
ance and condition. Also check tires for
proper inflation.
. Lock all doors.
. Position seat and adjust head re-
straints.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passen-
gers to do likewise.
. Check the operation of warning lights
when the ignition switch is pushed to
the ON position. (See “ Warning/indica-
tor lights and audible reminders ” (P.2-
12).)BEFORE STARTING THE ENGINE

Black plate (391,1)

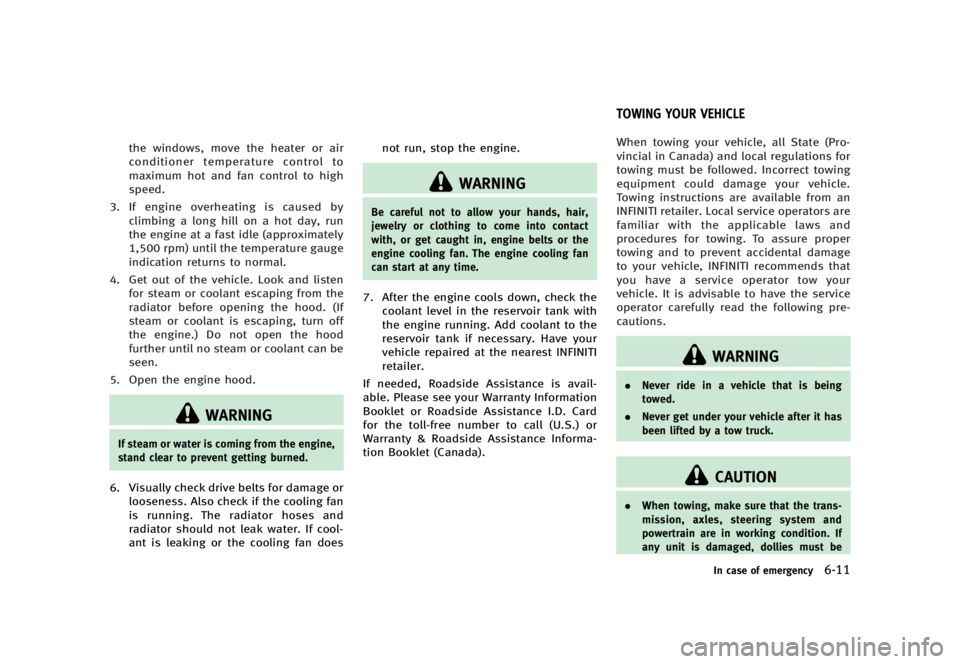

[ Edit: 2012/ 1/ 17 Model: V36-D ]the windows, move the heater or air
conditioner temperature control to
maximum hot and fan control to high
speed.
3. If engine overheating is caused by
climbing a long hill on a hot day, run
the engine at a fast idle (approximately
1,500 rpm) until the temperature gauge
indication returns to normal.
4. Get out of the vehicle. Look and listen
for steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off
the engine.) Do not open the hood
further until no steam or coolant can be
seen.
5. Open the engine hood.
WARNINGIf steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or
looseness. Also check if the cooling fan
is running. The radiator hoses and
radiator should not leak water. If cool-
ant is leaking or the cooling fan does not run, stop the engine.
WARNING Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.
7. After the engine cools down, check the
coolant level in the reservoir tank with
the engine running. Add coolant to the
reservoir tank if necessary. Have your
vehicle repaired at the nearest INFINITI
retailer.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada). GUID-EFD3ED0D-F0D8-4E16-A86F-75D73E7484FA
When towing your vehicle, all State (Pro-
vincial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from an
INFINITI retailer. Local service operators are
familiar with the applicable laws and
procedures for towing. To assure proper
towing and to prevent accidental damage
to your vehicle, INFINITI recommends that
you have a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following pre-
cautions.
WARNING . Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it has
been lifted by a tow truck.
CAUTION . When towing, make sure that the trans-
mission, axles, steering system and
powertrain are in working condition. If
any unit is damaged, dollies must be
In case of emergency
6-11TOWING YOUR VEHICLE

Black plate (407,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8 Maintenance and do-it-yourself Maintenance requirement ....................................... 8-3
Scheduled maintenance ..................................... 8-3
General maintenance .......................................... 8-3
Where to go for service ...................................... 8-3
General maintenance .............................................. 8-4
Explanation of maintenance items ...................... 8-4
Maintenance precautions ........................................ 8-6
Engine compartment check locations ...................... 8-8
VQ25HR/VQ37VHR engine .................................. 8-8
Engine cooling system ............................................ 8-9
Checking engine coolant level .......................... 8-10
Changing engine coolant .................................. 8-10
Engine oil ............................................................. 8-11
Checking engine oil level .................................. 8-11
Changing engine oil and filter .......................... 8-11
Automatic transmission fluid ................................ 8-14
Power steering fluid .............................................. 8-14
Brake and clutch fluid .......................................... 8-15
Brake fluid ....................................................... 8-15
Clutch fluid (if so equipped) ............................. 8-15
Window washer fluid ............................................ 8-16 Battery ................................................................. 8-17
Coupe ............................................................. 8-17
Sedan and coupe ............................................ 8-17
Jump starting .................................................. 8-18
Variable voltage control system ............................ 8-19
Drive belts ........................................................... 8-19
Spark plugs ......................................................... 8-20
Replacing spark plugs .................................... 8-20
Air cleaner ........................................................... 8-21
Windshield wiper blades ...................................... 8-22
Cleaning ......................................................... 8-22
Replacing ........................................................ 8-22
Brakes ................................................................. 8-23
Self-adjusting brakes ...................................... 8-23
Brake pad wear warning ................................. 8-23
Fuses ................................................................... 8-24
Engine compartment ....................................... 8-24
Passenger compartment .................................. 8-25
Intelligent Key battery replacement ...................... 8-26

Black plate (411,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your
vehicle is held securely with the selector
lever in the P (Park) position without
applying any brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly
goes down further than normal, the pedal
feels spongy or the vehicle seems to take
longer to stop, see an INFINITI retailer
immediately. Keep the floor mat away from
the pedal.
Brakes: Check that the brakes do not pull
the vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, see an INFINITI
retailer.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, an-
chors, adjuster and retractors) operate
properly and smoothly, and are installed securely. Check the belt webbing for cuts,
fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to
ensure they operate smoothly and that all
latches lock securely in every position.
Check that the head restraints move up
and down smoothly and that the locks (if
so equipped) hold securely in all latched
positions.
Steering wheel: Check for changes in the
steering conditions, such as excessive free
play, hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
Windshield defroster: Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly
and that the wipers do not streak.
Under the hood and vehicle GUID-29B64B94-E77F-40DC-A4B2-6B5D542860ED
The maintenance items listed here should
be checked periodically (for example, each
time you check the engine oil or refuel). Battery*: Check the fluid level in each cell.
It should be between the MAX and MIN
lines. Vehicles operated in high tempera-
tures or under severe condition require
frequent checks of the battery fluid level.
Brake fluid level*: Make sure that the
brake fluid level is between the MAX and
MIN lines on the reservoir.
Engine coolant level*: Check the coolant
level when the engine is cold.
Engine drive belts*: Make sure that no belt
is frayed, worn, cracked or oily.
Engine oil level*: Check the level after
parking the vehicle on a level spot and
turning off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
Exhaust system: Make sure there are no
loose supports, cracks or holes. If the
sound of the exhaust seems unusual or
there is a smell of exhaust fumes, im-
mediately have the exhaust system in-
spected by an INFINITI retailer. (See
“ Precautions when starting and driving ”
(P.5-3) for exhaust gas (Carbon monoxide).)
Fluid leaks: Check under the vehicle for
fuel, oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
Maintenance and do-it-yourself
8-5

Black plate (416,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-10 Maintenance and do-it-yourself SDI2043
CHECKING ENGINE COOLANT LEVEL GUID-0A58561D-6ED8-4332-9DEB-68F0F2BD40A6
Check the coolant level in the reservoir
when the engine is cold. If the coolant
level is below MIN
* 2
, open the reservoir
tank cap and add coolant up to the MAX
* 1
level. If the reservoir tank is empty, check
the coolant level in the radiator when the
engine is cold. If there is insufficient
coolant in the radiator, fill the radiator
with coolant up to the filler opening and
also add it to the reservoir tank up to the
MAX level
* 1
.
Tighten the cap securely after adding
engine coolant. If the cooling system requires coolant
frequently, have it checked by an INFINITI
retailer.
CHANGING ENGINE COOLANT GUID-5414AC03-7904-49CD-BD61-168CF59A9756
Major cooling system repairs should be
performed by an INFINITI retailer. The
service procedures can be found in the
appropriate INFINITI Service Manual.
Improper servicing can result in reduced
heater performance and engine overheat-
ing.
WARNING . To avoid the danger of being scalded,
never change the coolant when the
engine is hot.
. Never remove the radiator cap when the
engine is hot. Serious burns could be
caused by high pressure fluid escaping
from the radiator.
. Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.
. Keep coolant out of reach of children and
pets. Engine coolant must be disposed of
properly. Check your local regulations.

Black plate (422,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-16 Maintenance and do-it-yourself GUID-9300F307-19B1-4EC9-B93C-3421C155DC4A
SDI2027
WARNINGAntifreeze is poisonous and should be
stored carefully in marked containers out
of the reach of children.
Fill the window washer fluid reservoir
periodically. Add window washer fluid
when the low window washer fluid warning
light comes on.
To fill the window washer fluid reservoir,
lift the cap off the reservoir tank and pour
the window washer fluid into the tank
opening. Add a washer solvent to the washer for
better cleaning. In the winter season, add a
windshield washer antifreeze. Follow the
manufacturer ’ s instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of window washer fluid.
Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.
CAUTION . Do not substitute engine anti-freeze
coolant for window washer solution. This
may result in damage to the paint.
. Do not fill the window washer reservoir
tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
. Pre-mix washer fluid concentrates with
water to the manufacturer ’ s recom-
mended levels before pouring the fluid
into the window washer reservoir tank. Do not use the window washer reservoir
tank to mix the washer fluid concentrate
and water.
WINDOW WASHER FLUID

Black plate (480,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]10-2 CCabin air filter ...................................................... 4-40
Capacities and recommended fuel/lubricants ......... 9-2
Car phone or CB radio ......................................... 4-89
Card holder .......................................................... 2-49
Cargo net retainers .............................................. 2-51
Catalytic converter, Three way catalyst ................... 5-4
CD/CF/USB memory care and cleaning ................ 4-86
Center multi-function control panel ........................ 4-3
Child restraints .................................................... 1-23
LATCH system ................................................. 1-25
Precautions on child restraints ........................ 1-23
Child safety ......................................................... 1-21
Child safety rear door lock ..................................... 3-6
Chimes
Audible reminders .......................................... 2-19
Seat belt warning light and chime .................. 2-17
Cigarette lighter and ashtrays .............................. 2-44
Circuit breaker, Fusible link .................................. 8-24
Cleaning exterior and interior .......................... 7-2, 7-4
Climate control, Automatic climate control ........... 4-31
Clock ................................................................... 2-42
Clutch fluid .......................................................... 8-15
Coat hooks .......................................................... 2-50
Cockpit .................................................................. 2-3
Cold weather driving ............................................ 5-58
Compact Disc (CD) player (See audio system) ...... 4-60
Compact spare tire .............................................. 8-43
Compass ................................................................ 2-9
Console box ......................................................... 2-48 Controller, Center multi-function control panel ....... 4-5
Controls
Control panel button ......................................... 4-3
INFINITI Controller ............................................. 4-5
Coolant
Capacities and
recommended fuel/lubricants ........................... 9-2
Changing engine coolant ................................ 8-10
Checking engine coolant level ......................... 8-10
Corrosion protection .............................................. 7-6
Cruise control ...................................................... 5-21
Fixed speed cruise control (on ICC system) ...... 5-41
Intelligent cruise control (ICC) system ............. 5-23
Cup holders ......................................................... 2-45
Current fuel consumption ..................................... 2-26
DDaytime running light system .............................. 2-37
Defroster switch, Rear window and outside mirror
defroster switch ................................................... 2-34
Dimensions .......................................................... 9-11
Distance to empty ................................................ 2-26
Door/trunk open warning ..................................... 2-23
Dot matrix liquid crystal display .......................... 2-20
Drive belts ........................................................... 8-19
Drive positioner ................................................... 3-31
Driving
All-wheel drive (AWD) ...................................... 5-45
Cold weather driving ....................................... 5-58
Driving with automatic transmission ............... 5-14
Driving with manual transmission ................... 5-18 Precautions when starting and driving .............. 5-3
DS (Drive Sport) mode ......................................... 5-16
DVD player operation ........................................... 4-62
E Economy, Fuel ...................................................... 5-45
Elapsed time ........................................................ 2-26
Elapsed time and trip odometer ........................... 2-26
Emission control information label ....................... 9-13
Emission control system warranty ........................ 9-25
Engine
Before starting the engine .............................. 5-12
Break-in schedule ........................................... 5-45
Capacities and
recommended fuel/lubricants ........................... 9-2
Changing engine coolant ................................ 8-10
Changing engine oil and filter ......................... 8-11
Checking engine coolant level ......................... 8-10
Checking engine oil level ................................ 8-11
Coolant temperature gauge ............................... 2-8
Emergency engine shut off .............................. 5-11
Engine compartment check locations ................ 8-8
Engine cooling system ...................................... 8-9
Engine oil ....................................................... 8-11
Engine oil and oil filter recommendation ........... 9-6
Engine oil replacement indicator ..................... 2-24
Engine oil viscosity ........................................... 9-7
Engine serial number ...................................... 9-12
Engine specifications ........................................ 9-8
Engine start operation indicator (Automatic
Transmission models) ..................................... 2-22
