.[Stored Routes]:
Edits the information of a stored route.
“Editing stored route” (page 6-14)
. [Stored Tracking]:
Edits the information of a stored
tracked route.
“Editing stored tracking”
(page 6-15)
. [Avoid Area]:
Edits the information of a stored Avoid
Area.
“Editing avoid area” (page 6-16)
. [Delete Stored Items]:
Deletes a stored location or route.
“Deleting all stored items”
(page 6-20)
. [Transfer Address Book]:
Imports or exports the data of the
stored items using a USB memory.
EDITING STORED HOME AND AD-
DRESS
IST01081. Highlight [Stored Location] and push
.
2. Highlight the stored home location or preferred stored address and push
.
INFO:
Highlighting [Sort] displays a list of various
sort functions.
To use the sort functions, stored locations
must be set in advance.
“Minor adjustment of home or stored
address” (page 6-10)
IST01093. Highlight the preferred item and push
.
Available setting items
. [Edit]:
Edits the stored address information.
. [Move Location]:
Adjusts the location of the stored
address.
. [Delete]:
Deletes the stored address.
. [OK]:
Applies the settings.
Other settings
A stored address can also be edited using
the following procedure.
6. Storing location/route
6-9
Condition: Language=NAM_English/

Black plate (132,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
6. Storing location/route
6-10
IST01101. Push.
2. Highlight [Address Book] and push
.
3. Highlight [Store/Edit] and push
.
MINOR ADJUSTMENT OF HOME OR
STORED ADDRESS
When [Edit] is selected, you can edit the
following items of the home or stored
location can be edited.
. [Show Icon on Map]
. [Name] (only for stored locations)
. [Voicetag] (only for stored locations)
. [Icon]
. [Sound]
. [Direction] .
[Distance]
. [Phone No.]
. [Group] (only for stored locations)
. [Entry Numbers] (only for stored loca-
tions)
Show Icon on Map
Displays the home icon or the stored
address icon on the map.
IST01111. Highlight [Show Icon on Map] and push
.
2. The indicator illuminates when the item is set. Then the system displays the
icon on the map.
Name (only for stored locations)
Changes the name of a stored location.
IST01121. Highlight [Name] and push .
A character input screen is displayed.
IST01132. Enter the preferred name for the stored location.
“How to input letters and num-
bers” (page 2-16)
3. Highlight [OK] and push .
The name is stored.
Condition: Language=NAM_English/

Black plate (133,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
Voicetag (only for stored locations)
Stores the voicetag for the stored location.
The voicetag allows you to set the stored
location as a destination using Voice
Recognition.
IST01141. Highlight [Voicetag] and push.
IST01152. Highlight [Store] and push.
IST01163. A beep sounds, and the system enters
the voice command reception mode.
4. Speak the name/word to be used as Voicetag.
5. The Voicetag is stored, provided the system recognizes it.
INFO:
.
A Voicetag cannot be stored, overwritten or
played while driving.
.The Address Book can store up to 100
Voicetags.
.Highlight [Play] to confirm the stored
Voicetag.
.Highlight [Delete] to delete a stored Voice-
tag.
.If a Voicetag is already stored, select
[Restore] to re-record the Voicetag.
Icon
Changes the icon of the home or stored
address to the preferred one. By changing
the icons, the usage of the [By Icon] option
of the sort function can be optimized more
effectively.
IST01171. Highlight [Icon] and push .
A list of icons is displayed.
IST01182. Highlight the preferred icon and push .
The icon is changed.
6. Storing location/route
6-11
Condition: Language=NAM_English/

Black plate (134,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
6. Storing location/route
6-12
Sound
Sets the tone of the alarm that sounds
when the vehicle approaches the home or
a stored address.
IST01191. Highlight [Sound] and push.
A sound list is displayed.
IST01202. Select the preferred alarm tone and push .
The indicator of the selected alarm tone
illuminates. Sound list:
None
Chime
Melody
Sound
Dog
Cat
Wave
Church bell
Marimba
Trumpet
Horn
Scratch
Direction
Sets the alarm to sound when approaching
from a specific direction.
IST0121
1. Highlight [Direction] and push
.
A map screen with the home or stored
location located on the map center is
displayed.
IST01222. Set the direction that sounds the alarm and push .
The selected direction is set.
INFO:
After the direction is set and [Direction] is
selected and set again, a confirmation message
is displayed. Confirm the contents of the
message, highlight [Yes] and push .
The set direction is overwritten.
Condition: Language=NAM_English/

Black plate (135,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]

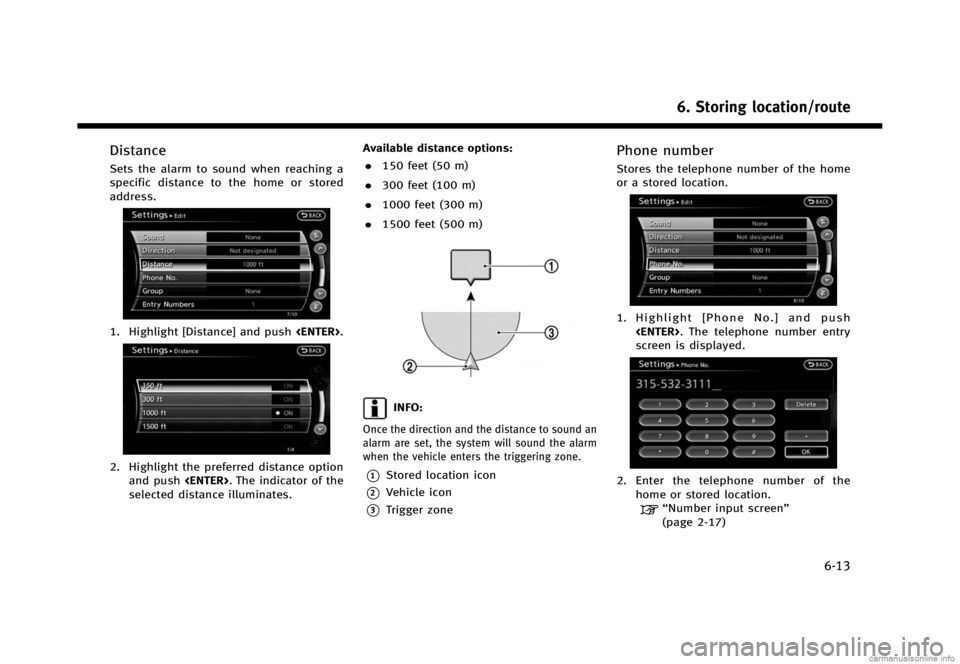

Distance
Sets the alarm to sound when reaching a
specific distance to the home or stored
address.
IST01231. Highlight [Distance] and push.
IST01242. Highlight the preferred distance option
and push . The indicator of the
selected distance illuminates. Available distance options:
. 150 feet (50 m)
. 300 feet (100 m)
. 1000 feet (300 m)
. 1500 feet (500 m)
IST0191
INFO:
Once the direction and the distance to sound an
alarm are set, the system will sound the alarm
when the vehicle enters the triggering zone.
*1Stored location icon
*2Vehicle icon
*3Trigger zone
Phone number
Stores the telephone number of the home
or a stored location.
IST01251. Highlight [Phone No.] and push
. The telephone number entry
screen is displayed.
IST01262.Enter the telephone number of the
home or stored location.
“Number input screen”
(page 2-17)
6. Storing location/route
6-13
Condition: Language=NAM_English/

Black plate (136,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
6. Storing location/route
6-14
3. Highlight [OK] and push. The
telephone number is stored.
INFO:
If the phone number of the home or a location is
stored, the phone number can be used to search
for the destination even if it is not included in
the map data.
Group (only for stored locations)
This groups the stored locations.
By grouping the stored locations, the [By
Group] option of the sort function can be
used more effectively in the [Sort Entries]
mode.
IST01271. Highlight [Group] and push .
IST01282. Highlight the preferred group and push
.
When the indicator of the selected
group illuminates, the stored location
is classified into the applicable group.
Entry Numbers (only for stored
locations)
Switches the entry numbers of any two
stored locations in the list.
IST0129
1.Highlight [Entry Numbers] and push
.
A list of stored locations is displayed.
IST0130
2. Highlight the stored addresses that you
want to change and push .
The position numbers of the selected
stored locations are changed.
EDITING STORED ROUTE
IST0131
Condition: Language=NAM_English/

Black plate (137,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
1.Highlight [Stored Routes] and push
.
2. Highlight the preferred stored route
and push .
IST01323. Highlight the preferred item to edit
from the list on the right side of the
screen and push .
4. After finishing the editing, highlight
[OK] and push .
INFO:
If [Store Current Route] is selected, the system
stores the current route.
Available setting items
. [Rename]:
Changes the name.
“Character (letters and numbers)
input screen” (page 2-16) .
[Replace]:
Overwrites the stored route with the
current route.
. [Delete]:
Deletes the stored route.
. [OK]:
Applies the settings.
EDITING STORED TRACKING
IST01331. Highlight [Stored Tracking] and push
.
2. Highlight the stored tracked route and push . When the “ON”indicator
is not illuminated, push . The
indicator illuminates, and the Edit
screen is displayed.
If is pushed while the “ON”
indicator is illuminated, the indicator
turns off.
IST01343. Highlight the preferred item and push .
Available setting items (Current tracking) . [View Track]:
Displays the tracked route up to the
current location.
. [Delete]:
Deletes the stored current tracking.
. [OK]:
Applies the settings.
IST0135
6. Storing location/route
6-15
Condition: Language=NAM_English/

Black plate (138,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
6. Storing location/route
6-16
Available setting items (Stored tracked
routes). [View Track]:
Displays a stored tracked route on the
map.
. [Rename]:
Changes the name.
“Character (letters and numbers)
input screen” (page 2-16)
. [Replace]:
Overwrites the stored tracked route
with the current tracked route.
. [Delete]:
Deletes the stored tracked route.
. [OK]:
Applies the settings.
Displaying a tracked route
The stored tracked route can be displayed
on the map as necessary.
IST01361. Highlight [Stored Tracking] and push
.
2. Highlight a tracked route to display on the map screen, and push . The
“ON” indicator illuminates, and the Edit
screen is displayed.
IST01373. After confirming the location to display
the tracked route, highlight [OK] and
push . The screen returns to the
previous screen. 4. Push

Black plate (139,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]

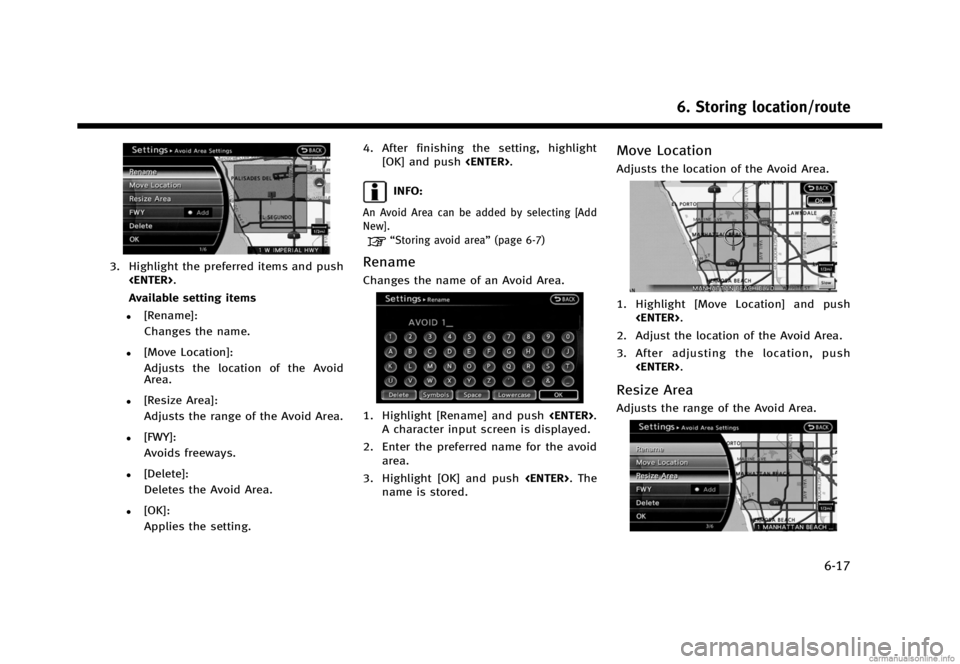

IST01393. Highlight the preferred items and push.
Available setting items
.[Rename]:
Changes the name.
.[Move Location]:Adjusts the location of the Avoid
Area.
.[Resize Area]:Adjusts the range of the Avoid Area.
.[FWY]:Avoids freeways.
.[Delete]:Deletes the Avoid Area.
.[OK]:
Applies the setting. 4.
After finishing the setting, highlight
[OK] and push .
INFO:
An Avoid Area can be added by selecting [Add
New].
“Storing avoid area” (page 6-7)
Rename
Changes the name of an Avoid Area.
IST01401. Highlight [Rename] and push .
A character input screen is displayed.
2. Enter the preferred name for the avoid area.
3. Highlight [OK] and push . The
name is stored.
Move Location
Adjusts the location of the Avoid Area.
IST01411. Highlight [Move Location] and push
.
2. Adjust the location of the Avoid Area.
3. After adjusting the location, push
.
Resize Area
Adjusts the range of the Avoid Area.
IST0142
6. Storing location/route
6-17
Condition: Language=NAM_English/

Black plate (140,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
6. Storing location/route
6-18
1.Highlight [Resize Area] and push
.
2. Highlight the range from 5 available levels.
3. After highlighting the range, push
.
INFO:
Turning the center dial to change the scale of
the map.
Push / (if so equipped)
to change the scale of the map.
FWY
Sets the route to avoid freeways.
IST01431. Highlight [FWY].
To include freeways in the Avoid Area,
push to illuminate this indica-
tor.
IST01442. The Avoid Area is displayed in green if it includes a freeway or in blue if it does
not include a freeway.
INFO:
If the current vehicle location is set to an Avoid
Area, the system will not provide route gui-
dance.
Delete
Deletes the Avoid Area.
IST0145
1. Highlight [Delete] and push .
IST01462. A confirmation message is displayed.
Confirm the contents of the message,
highlight [Yes] and push . The
stored item is deleted from the Address
Book.
Condition: Language=NAM_English/
